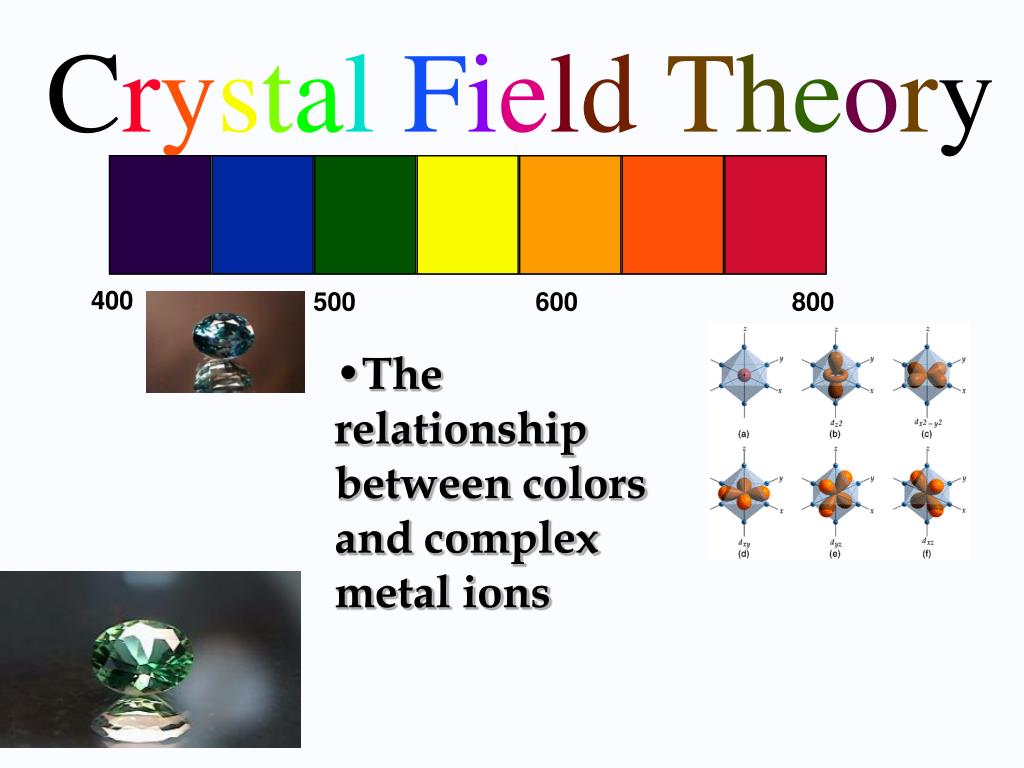

  1. 400 500 600 800 Crystal Field Theory • The relationship between colors and complex metal ions

  2. Crystal Field Model • A purely ionic model for transition metal complexes. • Ligands are considered as point charge. • Predicts the pattern of splitting of d-orbitals. • Used to rationalize spectroscopic and magnetic properties.

  3. Salient features of CFT • The interaction between the metal ion and the ligand is electrostatic one i.e ionic. • The metal ion theligandsare considered as point charges. • The negative ligands are regarded as negative point charges and the neutral ligands are regarded as diploes. The negative end of the ligand dipole is oriented towards the metal ion. • The central metal ion is surrounded by ligands that contain one or more lone pair of electrons. • The lignand electron pairs can’t enter into the metal orbitals. Thus there is no orbital overlap between the metal and the ligand.

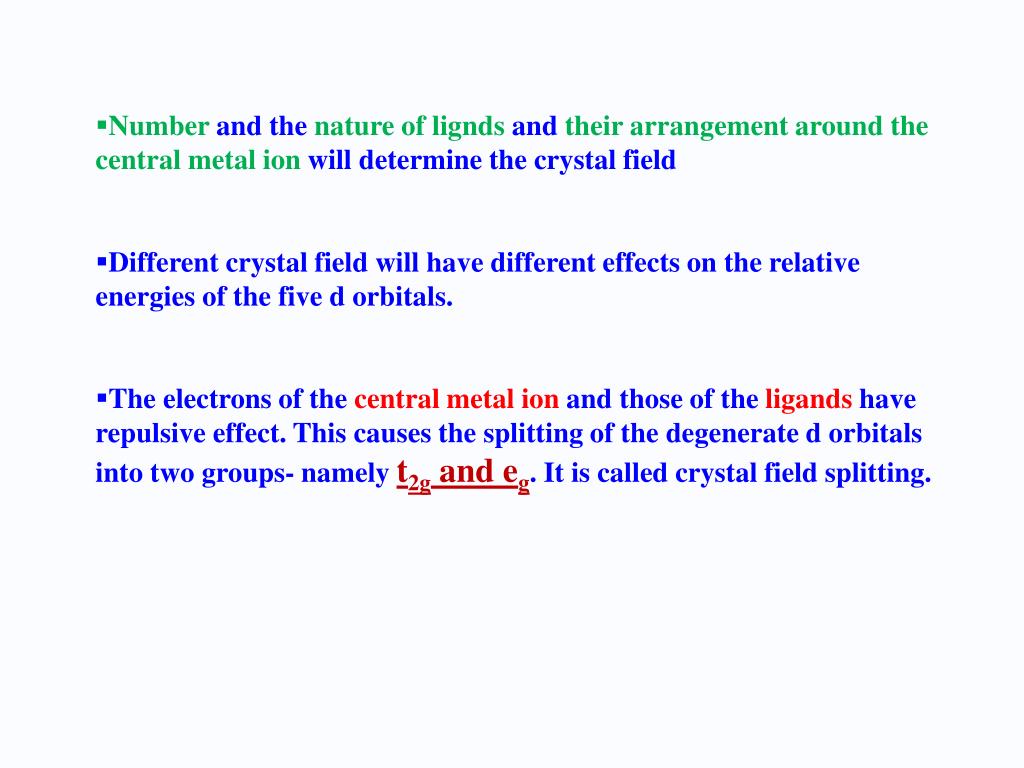

  4. Numberand the nature of lignds and their arrangement around the central metal ion will determine the crystal field • Different crystal field will have different effects on the relative energies of the five d orbitals. • The electrons of the central metal ion and those of the ligands have repulsive effect. This causes the splitting of the degenerate d orbitals into two groups- namely t2g and eg. It is called crystal field splitting.

  5. d-orbitals: look attentively along the axis Linear combination of dz2-dx2 and dz2-dy2 d2z2-x2-y2

  6. Octahedral Field

  7. eg orbitals t2g orbitals 19.3 Crystal Field Theory: Splitting of the 5 d orbitals Consider the response of the energy of the d orbitals to the approach of 6 negatively charged ligands (a “crystal field”) along the x, y and z axes of the metal The two d orbitals (dx2-y2 and dz2) that are directed along the x, y and z axes are affected more than the other three d orbitals (dxy, dxz and dyz) crystal field energy splitting The result is that the dx2-y2 and dz2 orbital increase in energy relative to the dxy, dxz and dyz orbitals (D0 is called the “crystal field energy splitting”

  8. eg orbitals t2g orbitals Crystal field splitting of the 5 d orbitals by the “crystal field” of 6 ligands Orbitals “on axis”: “energy increases” Crystalfield splitting Orbitals “off axis”: “energy decreases”

  9. Crystal Field SplittingEnergy (CFSE) • In Octahedral field, configuration is:t2gx egy • Net energy of the configuration relative to the average energy of the orbitals is: • = (-0.4x + 0.6y)O • O = 10 Dq • BEYOND d3 • In weak field: O P, => t2g3eg1 • In strong field O P, => t2g4 • P - paring energy

  10. The Spectrochemical Series Based on measurements for a given metal ion, the following series has been developed: I-<Br-<S2-<Cl-<NO3-<N3-<F-<OH-<C2O42-<H2O <NCS-<CH3CN<pyridine<NH3<en<bipy<phen <NO2-<PPh3<CN-<CO

  11. The Spectrochemical Series The complexes of cobalt (III) show the shift in color due to the ligand. (a) CN–, (b) NO2–, (c) phen, (d) en, (e) NH3, (f) gly, (g) H2O, (h) ox2–, (i) CO3 2–.

  12. Tetrahedral Complexes

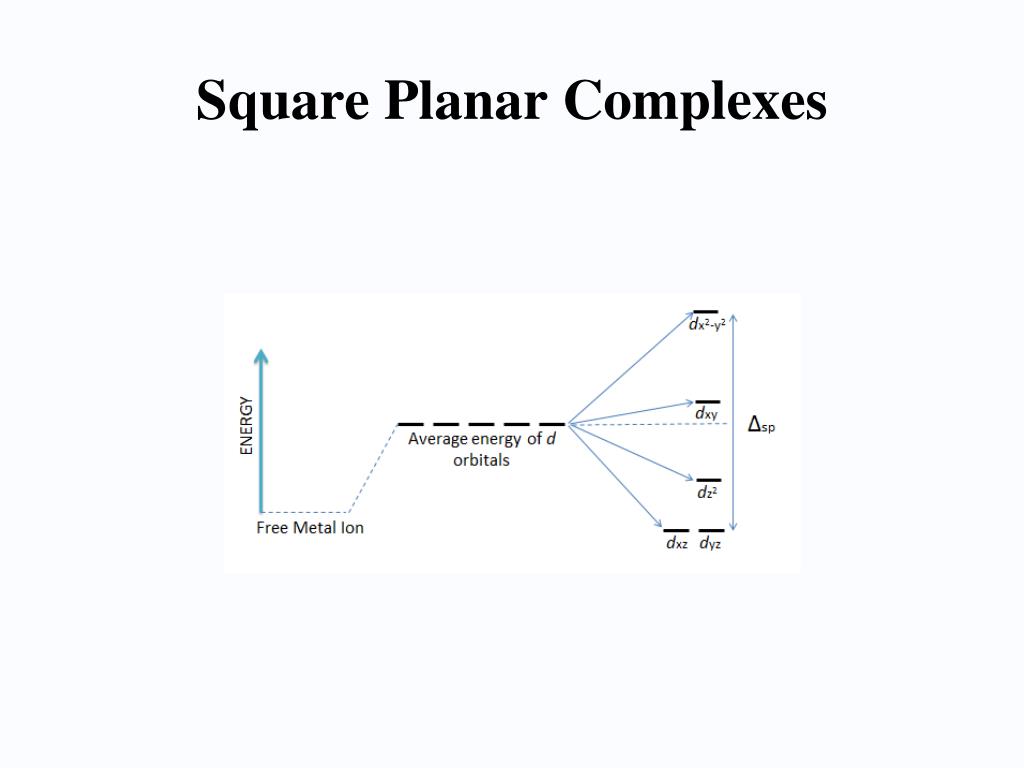

  13. Square Planar Complexes

  14. Ligand Field Strength Observations • ∆o increases with increasing oxidation number on the metal. Mn+2<Ni+2<Co+2<Fe+2<V+2<Fe+3<Co+3 <Mn+4<Mo+3<Rh+3<Ru+3<Pd+4<Ir+3<Pt+4 2. ∆o increases with increases going down a group of metals.

  15. Magnitude of  Oxidation state of the metal ion [Ru(H2O)6]2+ 19800 cm-1 [Ru(H2O)6]3+ 28600 cm-1

  16. Ground-state Electronic Configuration, Magnetic Properties and Colour

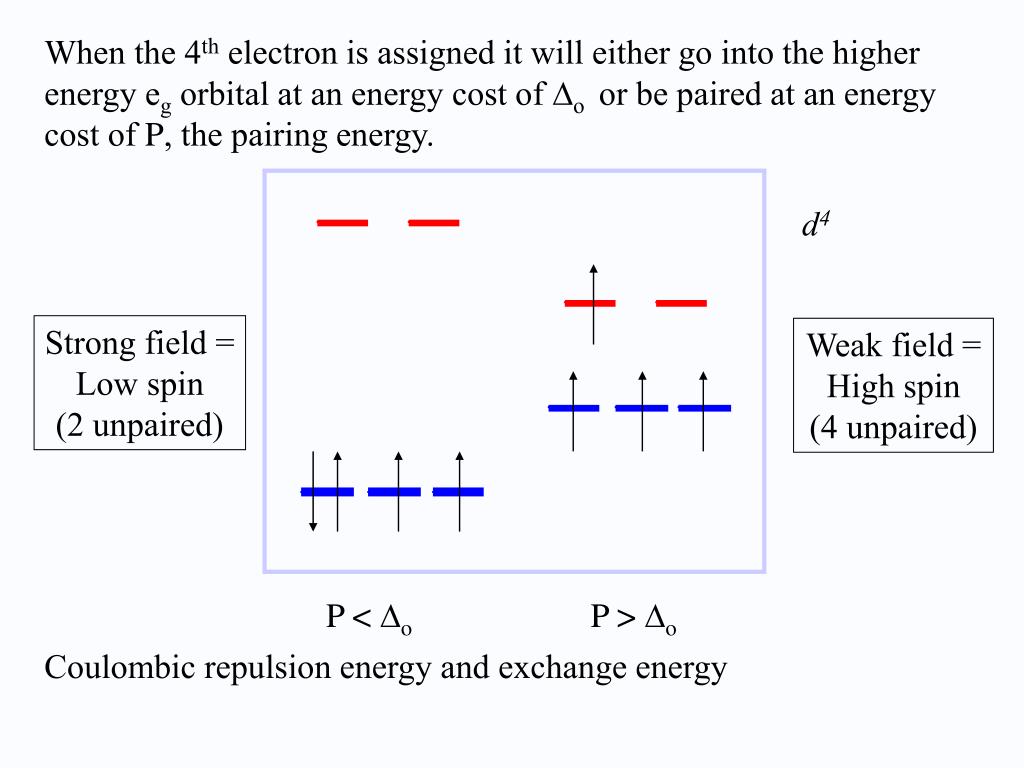

  17. When the 4th electron is assigned it will either go into the higher energy eg orbital at an energy cost of Do or be paired at an energy cost of P, the pairing energy. d4 Strong field = Low spin (2 unpaired) Weak field = High spin (4 unpaired) P < Do P > Do Coulombic repulsion energy and exchange energy

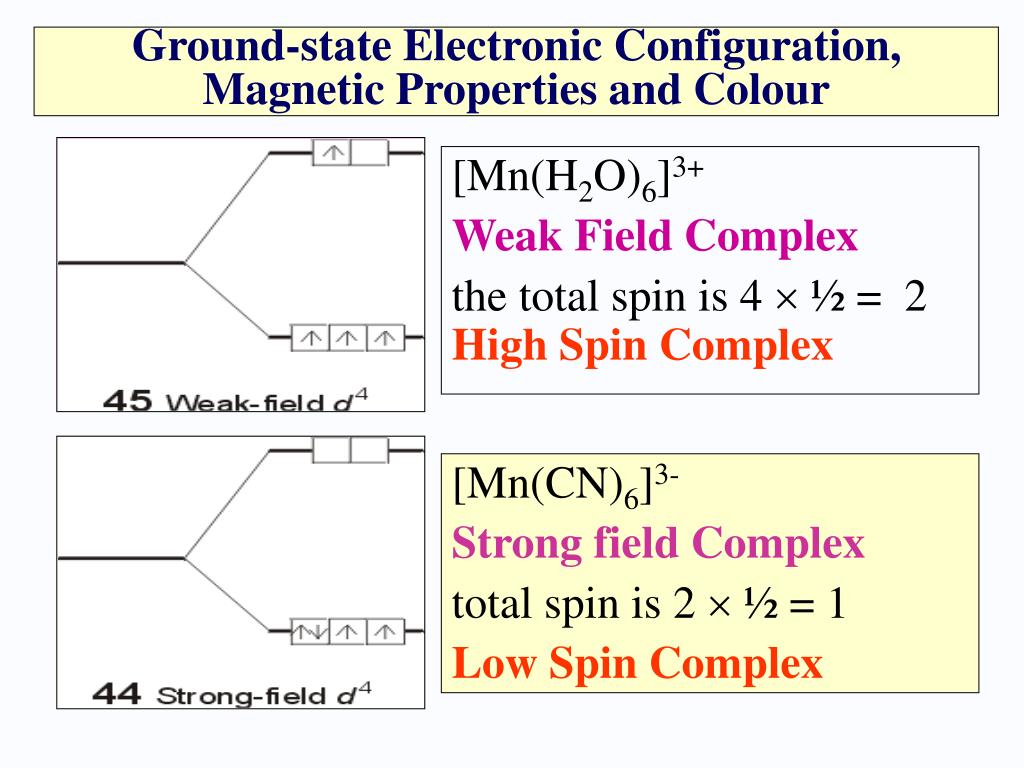

  18. [Mn(CN)6]3- Strong field Complex total spin is 2  ½ = 1 Low Spin Complex Ground-state Electronic Configuration, Magnetic Properties and Colour [Mn(H2O)6]3+ Weak Field Complex the total spin is 4  ½ = 2 High Spin Complex

  19. CN- = s.f.l. h.s. l.s. eg eg t2g t2g h.s. l.s. eg eg t2g t2g What is the CFSE of [Fe(CN)6]3-? C.N. = 6  Oh Fe(III)  d5 3- + 0.6 Doct - 0.4 Doct CFSE = 5 x - 0.4 Doct + 2P = - 2.0 Doct + 2P If the CFSE of [Co(H2O)6]2+ is -0.8 Doct, what spin state is it in? C.N. = 6  Oh Co(II)  d7 2+ + 0.6 Doct - 0.4 Doct CFSE = (5 x - 0.4 Doct) + (2 x 0.6 Doct) +2P = - 0.8 Doct+2P CFSE = (6 x - 0.4 Doct) + (0.6 Doct) + 3P= - 1.8 Doct + P

  20. The origin of the color of the transition metal compounds Ligands influence O, therefore the colour

  21. The colour can change depending on a number of factors e.g. 1. Metal charge 2. Ligand strength

  22. The optical absorption spectrum of [Ti(H2O)6]3+ Assigned transition: eg t2g This corresponds to the energy gap O = 243 kJ mol-1

  23. absorbed color observed color

  24. Spectrochemical Series: An order of ligand field strength based on experiment: Weak Field • I- Br- S2- SCN- Cl- NO3- F-  C2O42- H2O NCS- CH3CN NH3 en  bipy phen NO2- PPh3 CN- CO Strong Field

  25. [CrF6]3- [Cr(H2O)6]3+ [Cr(NH3)6]3+ [Cr(CN)6]3- As Cr3+ goes from being attached to a weak field ligand to a strong field ligand,  increases and the color of the complex changes from green to yellow.

  26. Limitations of CFT Considers Ligand as Point charge/dipole only Does not take into account of the overlap of ligand and metal orbitals Consequence e.g. Fails to explain why CO is stronger ligand than CN- in complexes having metal in low oxidation state
