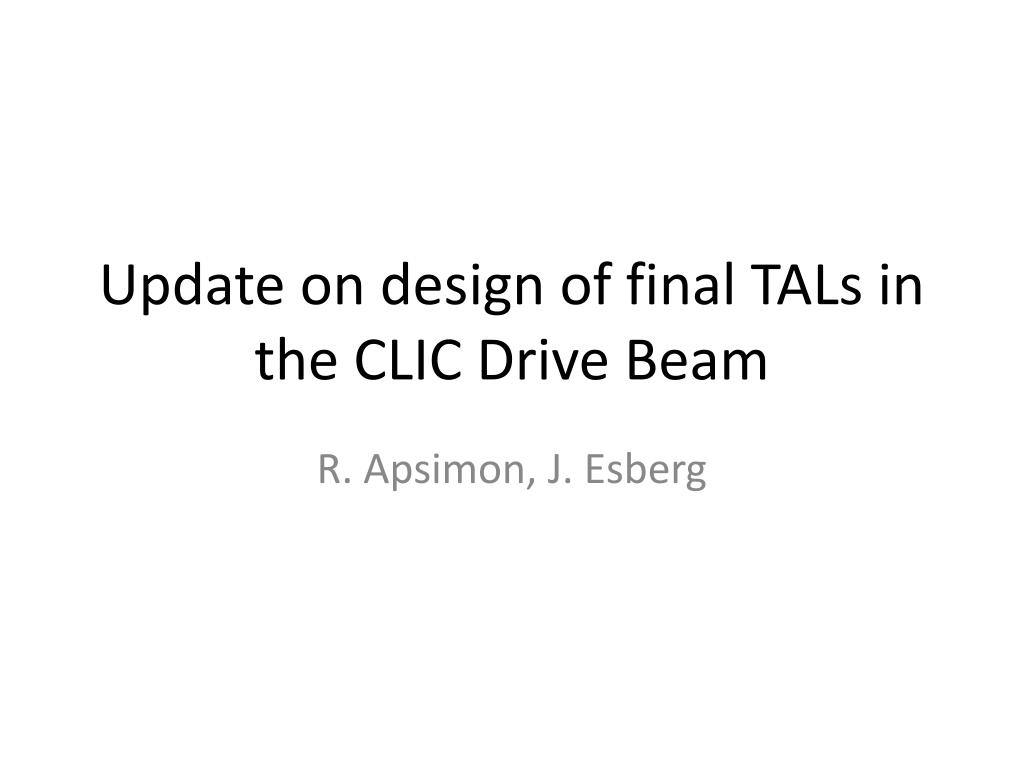

  1. Update on design of final TALs in the CLIC Drive Beam R. Apsimon, J. Esberg

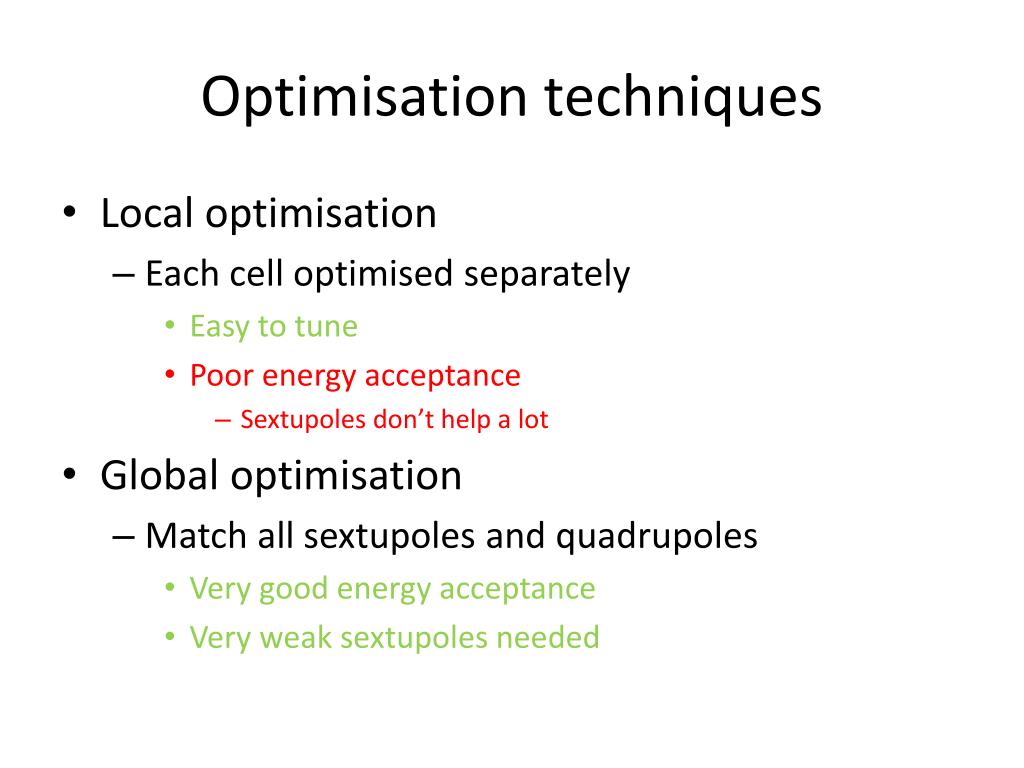

  2. Optimisation techniques • Local optimisation • Each cell optimised separately • Easy to tune • Poor energy acceptance • Sextupoles don’t help a lot • Global optimisation • Match all sextupoles and quadrupoles • Very good energy acceptance • Very weak sextupoles needed

  3. 20 sextupoles used • 4 sextupoles per arc cell • Maximum pole-tip field ~0.018 T

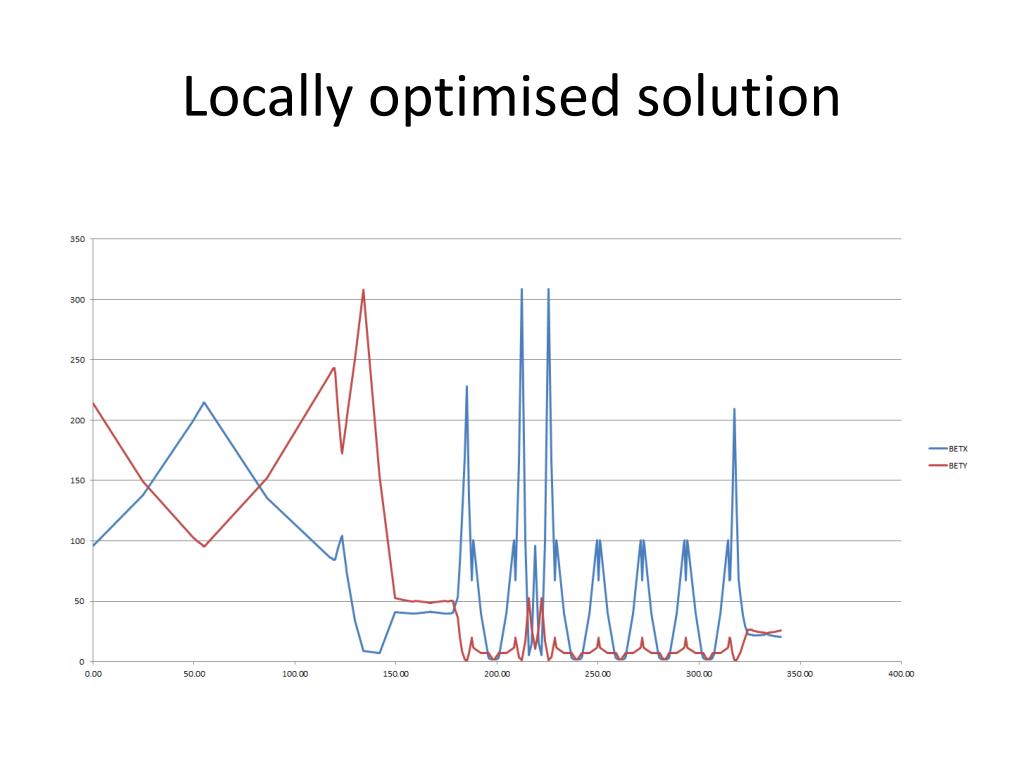

  4. Locally optimised solution

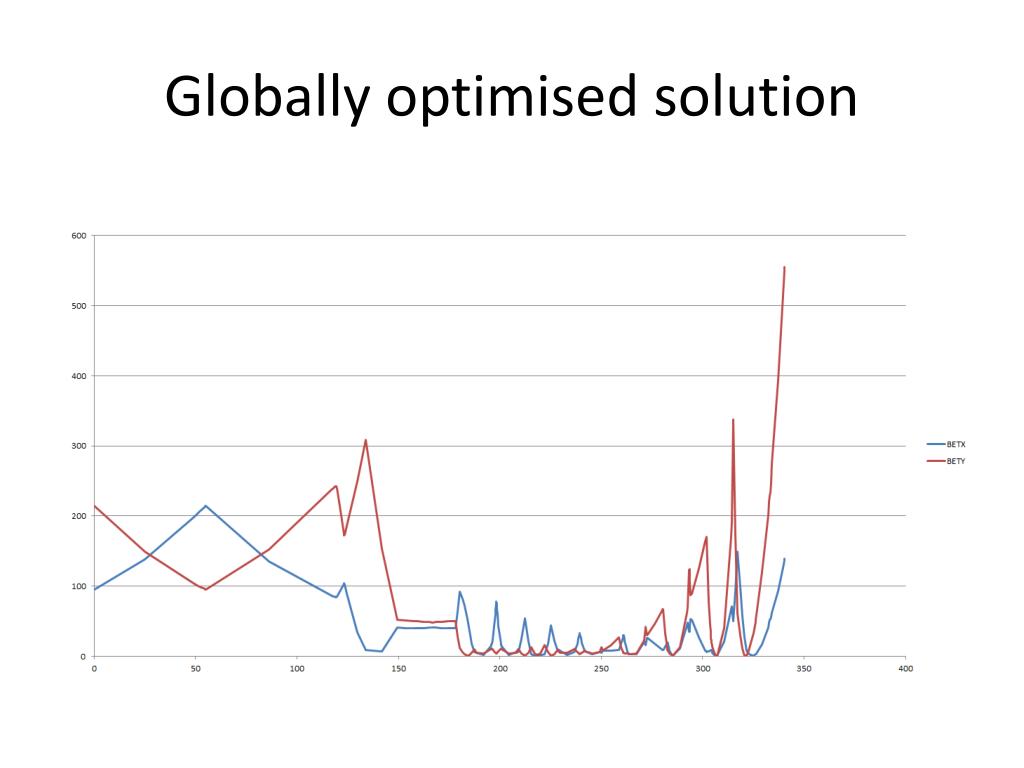

  5. Globally optimised solution

  6. Dispersion energy dependence

  7. R56 energy dependence

  8. Emittance growth vs sextupole strength: PLACET tracking

  9. Emittance growth vs sextupole strength: PLACET tracking

  10. Emittance growth vs sextupole strength: PLACET tracking

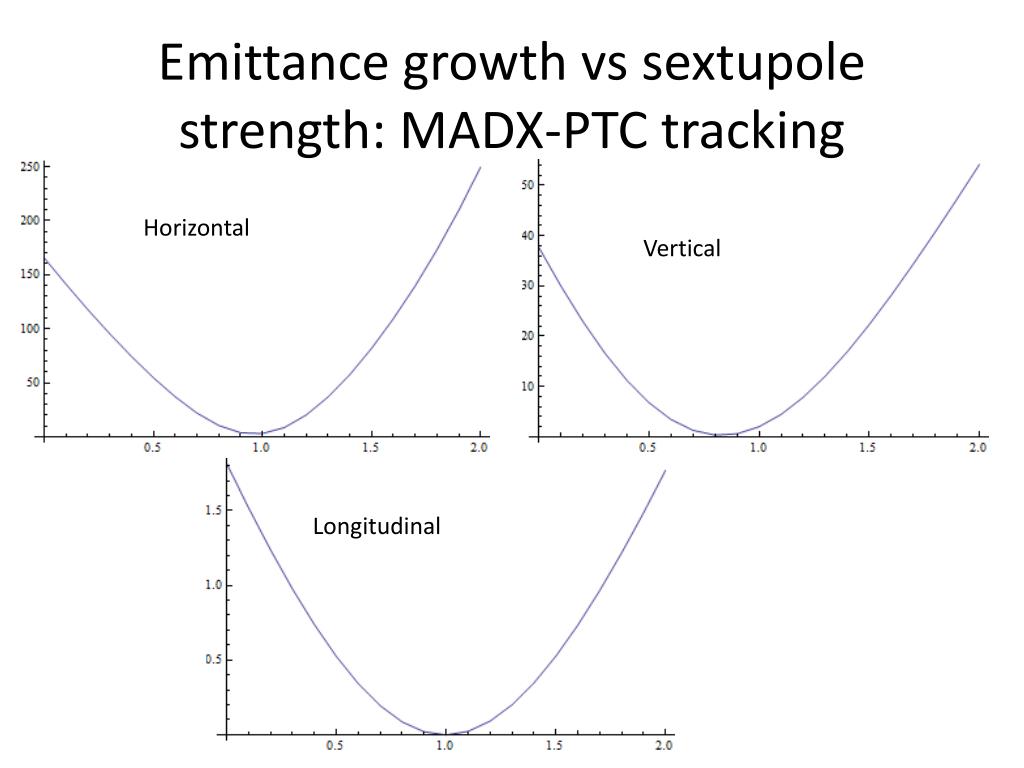

  11. Emittance growth vs sextupole strength: MADX-PTC tracking Horizontal Vertical Longitudinal

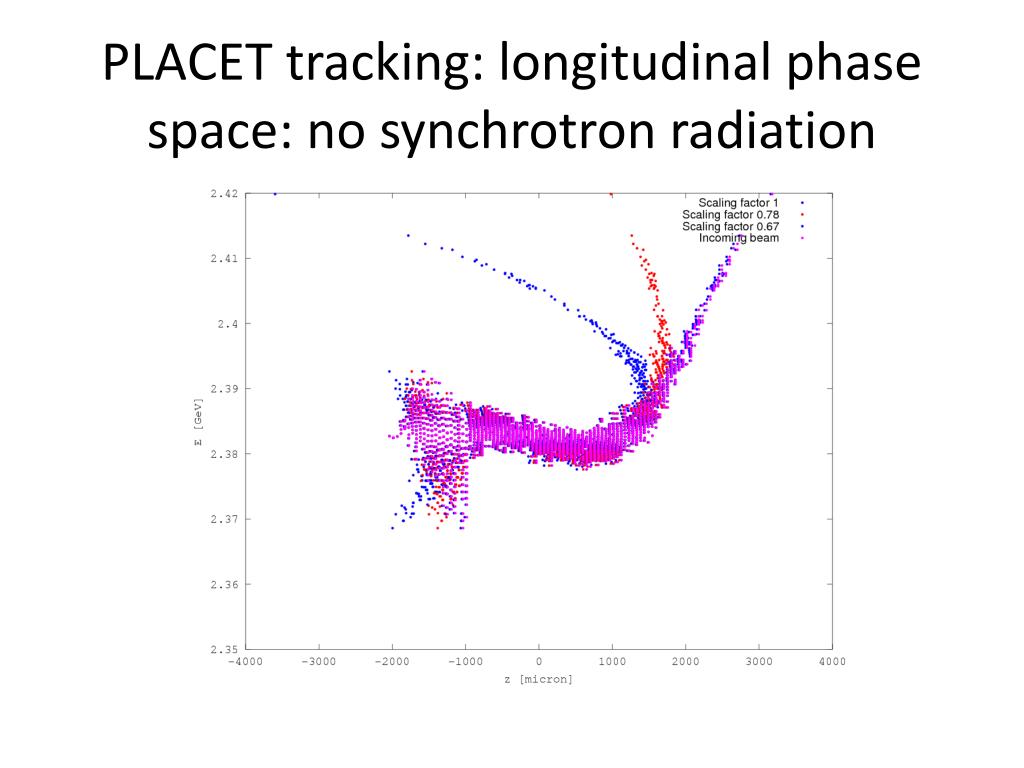

  12. PLACET tracking: longitudinal phase space: no synchrotron radiation

  13. Emittance growth vs sextupole strength: PLACET tracking Horizontal Vertical Longitudinal

  14. PTC tracking emittance growth
