  1. Creating basic HTML web questionnaires R. Chris Fraley – Psych 437

  2. HTML web pages • Most web pages are written in a language called HTML (hypertext markup language). • HTML files exist on a web server. When a person types in the URL for a specific file in his or her web browser, the person is essentially retrieving that pre-existing file from the web server.

  3. web user types a URL into the browser web server locates requested HTML file (or runs a script) and sends the requested HTML file (or script output) to user’s computer web user the browser renders the HTML file as a web page How the Net Works

  4. HTML • There are many programs that are designed to help you create HTML files • Macromedia’s Dreamweaver • Microsoft’s FrontPage • Microsoft’s Word • These kinds of programs are often called WYSIWYG programs. They allow you to create web pages in the way in which you want them to appear; the HTML code is generated in the background.

  5. EditPlus • Although there are good reasons not to use WYSIWYG programs, there are good reasons to use programs that will make HTML coding easier for you. • The perks of EditPlus (http://www.editplus.com/) • Free trial version • Works in a lot like MS Word (e.g., buttons for placing text in bold), but creates the HTML code for you rather than doing so in the background. • Built-in browser so you can see what your code looks like as you write it • Color-coding • Spell checking

  6. If you’re an Apple user, you might want to consider TextWrangler • http://www.barebones.com/products/TextWrangler/download.html • Regardless, do NOT use MS Word. Use a basic text editor (e.g., Notepad in Windows) if you do not use a program specifically for HTML coding.

  7. Let’s begin . . .

  8. [Live examples of creating HTML code using EditPlus.]

  9. HTML Tags HTML web pages are based on a combination of text and tags. Tags are programming commands used to modify the contents of a web page. They are used, for example, to change the color of the text, the size of the text, insert images, etc. Example: <B> and </B> Most (but not all) tags have an “opening” and “closing” tag. The opening tag is used to tell the browser that a new command is coming and the closing tag tells the browser that the command is complete.

  10. HTML Tags The most basic tag is the HTML tag. This is used so the browser will know that the content to follow is HTML code/content. (Most browsers assume this by default even without the use of the HTML tag.) <HTML> </HTML>

  11. HTML Tags Any text that is placed in-between these tags will be rendered by the browser. Try this example. <HTML> The purpose of this study is to learn more about personality. </HTML>

  12. HTML Tags - Bold Text can be formatted in ways that will be familiar to you if you use a program like MS Word. To set something in bold, use the <B> </B> tags and include the piece to be set in bold in-between. Try this example. <HTML> The purpose of this experiment is to learn more about the way <B>people</B> understand <B>machines</B>. </HTML>

  13. HTML Tags - Italics Italics work in the same way. The HTML tags for setting text in italics are <I> and </I> Try this example. <HTML> Although the average score in this sample is 4.23, <I>your score</I> was 6.32. </HTML>

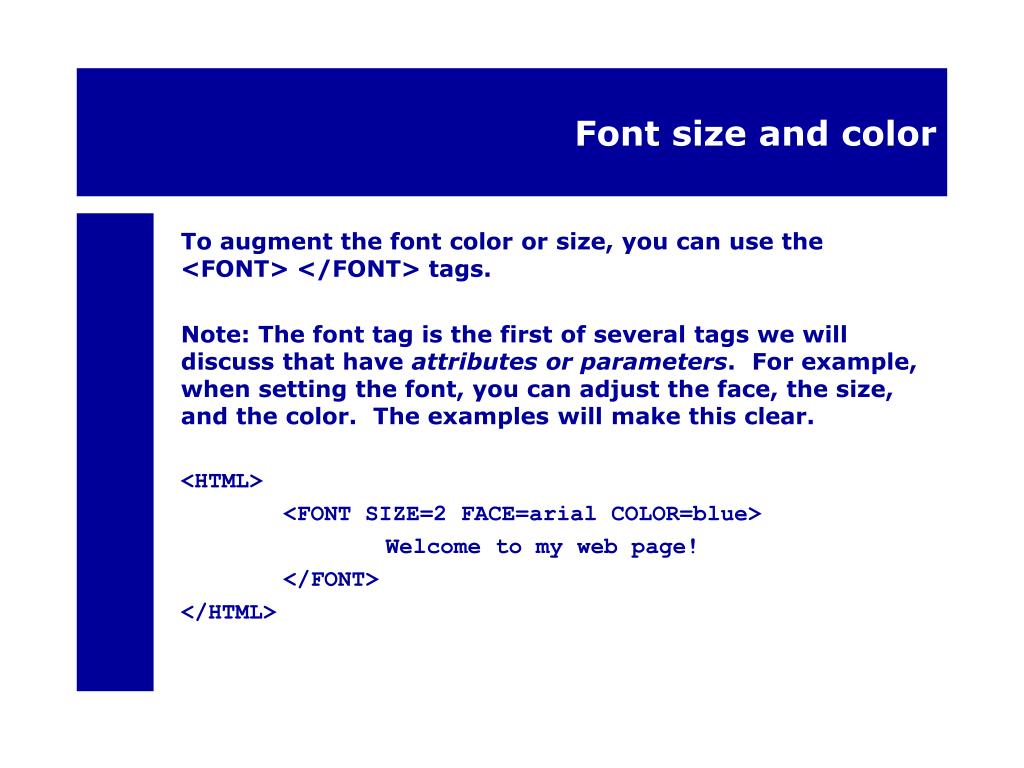

  14. Font size and color To augment the font color or size, you can use the <FONT> </FONT> tags. Note: The font tag is the first of several tags we will discuss that have attributes or parameters. For example, when setting the font, you can adjust the face, the size, and the color. The examples will make this clear. <HTML> <FONT SIZE=2 FACE=arial COLOR=blue> Welcome to my web page! </FONT> </HTML>

  15. Font size and color Another example. <HTML> <FONT SIZE=3 FACE=arial COLOR=blue> Psychology 437 </FONT> <FONT SIZE=2 FACE=arial COLOR=blue> Welcome to our class web page! </FONT> </HTML>

  16. Line spacing In HTML, carriage returns are not coded as line breaks. You can use them all you wish to format your file, but the presence of a return in the code will not affect the rendering of the text. To insert a line break, you must include a tag for it. The line break tag is <BR>. There is no closing tag.

  17. Line spacing Try this example. <HTML> <FONT SIZE=3 FACE=arial COLOR=blue> Psychology 437 </FONT> <BR><BR> <FONT SIZE=2 FACE=arial COLOR=blue> Welcome to our class web page! </FONT> </HTML>

  18. Blank Spaces Blank spaces work in a similar way: Any space (greater than 1) that exists in the HTML code will not be rendered. If you want a sequence of blank spaces (e.g., for minor indenting), you have to include them explicitly. The command is &nbsp (Notice that this is not a tag per se, but it is still an HTML command. nbsp stands for Non-Breaking Space.)

  19. Blank spaces Try this example. <HTML> Factor 1<BR> &nbsp &nbsp joy <BR> &nbsp &nbsp happy <BR> Factor 2<BR> &nbsp &nbsp sad <BR> &nbsp &nbsp shame <BR> </HTML>

  20. Centering Text To center text, use the <CENTER> and </CENTER> tags Try this example. <HTML> <CENTER>Personality Research 437 </CENTER> <BR><BR> The purpose of this study is to learn more about the way people understand others. </HTML>

  21. Creating Links A link is a portion of the page that, when clicked, automatically transports the user to a new page. HTML code: <A HREF=http://www.google.com>click here to go to Google</A> Note: The “A” stands for “anchor”. The HREF attribute is the URL for the page you want the user to go to when the link is clicked. The text in between the two tags will be what the user sees as the link. Although there are many ways to specify the URL, the most reliable way to do so is to start with http:// and include the FULL URL that you would see on your browser address bar.

  22. Cascading Style Sheets (CSS) • One of the cumbersome aspects of formatting text in classic HTML is the sheer number of tags required to do so. If you choose to change the “style” of your web page after a period of time, all of the code needs to be rewritten. • This is especially inconvenient when working with tables because the text has to be formatted separately within each cell. • CSS provides a means for separating style from content and is an efficient way to add pizzazz (not pizza) and personality to your web pages.

  23. CSS Any text that is placed in-between these tags will be rendered by the browser. Try this example. <HTML> <style type="text/css" media="all"> body { color: white; background: gray; font-family: verdana; font-size: 14; line-height: 2; } </style> Welcome to my web page! </HTML>

  24. You can define “classes” so that different portions of your content are styled differently.

  25. CSS Adjusting the way in which links behave. <HTML> <style type="text/css" media="all"> a:link { color: blue; } a:visited { color: navy; } a:active { color: pink; } a:hover { color: red; background-color: blue;} } </style> Welcome to my web page!<BR> <A HREF=http://www.google.com>click here to go to Google</A> </HTML>

  26. Images You can use tags that enable images to be displayed on your web page. Here is the basic code: <img src=http://www.psych.uiuc.edu/~rcfraley/nauttext2.gif width=240 height=240 alt=‘main graphic’>

  27. Notice that there are several attributes that can be varied: width, height, and ‘alt’ (i.e., the text that appears when you hover your mouse over the graphic). • As with links, there are many ways to specify the address for the image. The surefire way to do it for the purposes of this class is to list the full URL for the image in question. • Importantly, the image must already exist on the Internet. If there is an image on your computer, you cannot display it for others unless it is web-accessible.

  28. Forms: How to collect data • The majority of web pages exist simply to provide content. • It is also possible to use web pages to collect information through the use of forms. • Forms are special segments of a web page that tell the browser that information is to be collected.

  29. [Example of a web page using a form] • The live page is at: • http://www.yourpersonality.net/psych437/fall2011/testform1.htm • The HTML code for the page can be viewed (and copied) by “right-clicking” on the page and choosing the “view source” option.

  30. Note. The user provides input and clicks a ‘submit’ button when he or she is done.

  31. Different input options • Radio buttons • Checkboxes [skipping in this class] • Textboxes • Select menus • Textarea • [Review these in depth based on the online version of testform2.htm. Right-clicking to view the code of that page contains detailed comments and explanations.]

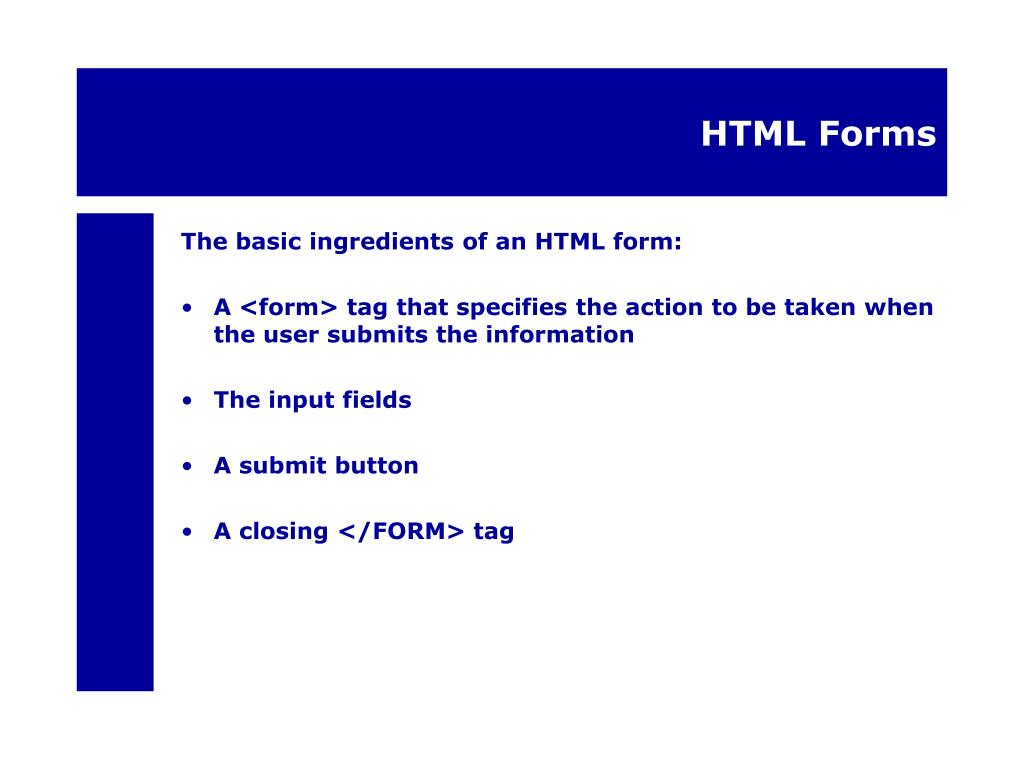

  32. HTML Forms The basic ingredients of an HTML form: • A <form> tag that specifies the action to be taken when the user submits the information • The input fields • A submit button • A closing </FORM> tag

  33. HTML Forms The form tag specifies, as part of the action attribute, the name of the script that will be activated when the submit button is pressed. <FORM ACTION='http://www.yourpersonality.net/psych437/fall2011/genericsubmit.pl' METHOD=post> For the purposes of this class, you will always be using this exact line of code for your opening form tag.

  34. Transferring your web page to the web server • Save your file with the *.htm extension. Example: mypage.htm • For many projects in this class, you will want to use your alias as the file name, with a number appended to it so that you can keep various assignments separated. • Example: If your alias is “coffeefan” • coffeefan1.htm • coffeefan2.htm • coffeefan3.htm

  35. Transferring your web page to the web server • For this week’s lab assignment, you’ll be working together in groups to create a websurvey and you will use your group assignment as your file name • Examples: • group1.htm • group2.htm • group3.htm • Notice that I’m not capitalizing anything. Stick with that rule so we can be consistent as a class and not create administrative bungles.

  36. Transferring your web page to the web server • E-mail your html file to your TA or to me (rcfraley@gmail.com), depending on the assignment in question. • When e-mailing to me, please make the following your SUBJECT LINE or the e-mail might end up unprocessed: “Psych 437 web” • I’ll upload the file to the class server. At that point, the page will be “live” and anyone can access it via the Internet.

  37. Transferring your web page to the web server • The URL will be • http://www.yourpersonality.net/psych437/fall2011/youralias.htm • If your alias is “coffeefan” and you saved the file as “coffeefan1.htm” then the URL for that webpage would be • http://www.yourpersonality.net/psych437/fall2011/coffeefan1.htm
