  1. Melbourne Azure Meetup Group – August 2013 Integration in the Cloud: First Look at Windows Azure BizTalk Services Bill Chesnut Principal Consultant, Mexia MS Integration MVP, VTSP

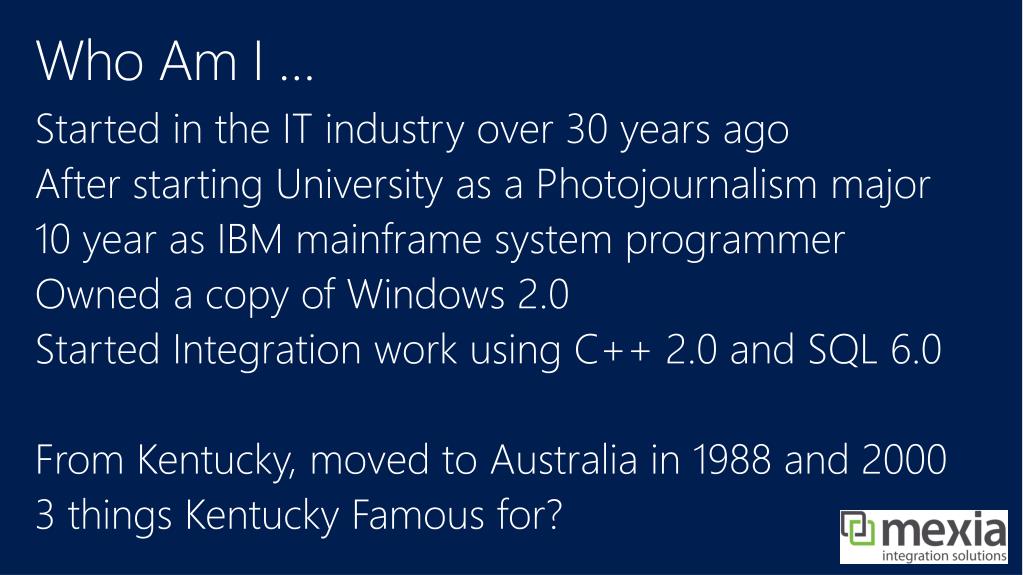

  2. Who Am I … Started in the IT industry over 30 years ago After starting University as a Photojournalism major 10 year as IBM mainframe system programmer Owned a copy of Windows 2.0 Started Integration work using C++ 2.0 and SQL 6.0 From Kentucky, moved to Australia in 1988 and 2000 3 things Kentucky Famous for?

  3. Agenda What it is History Features & Pricing Provisioning Scenarios Building Solution Deploying & Testing Solution Next Steps

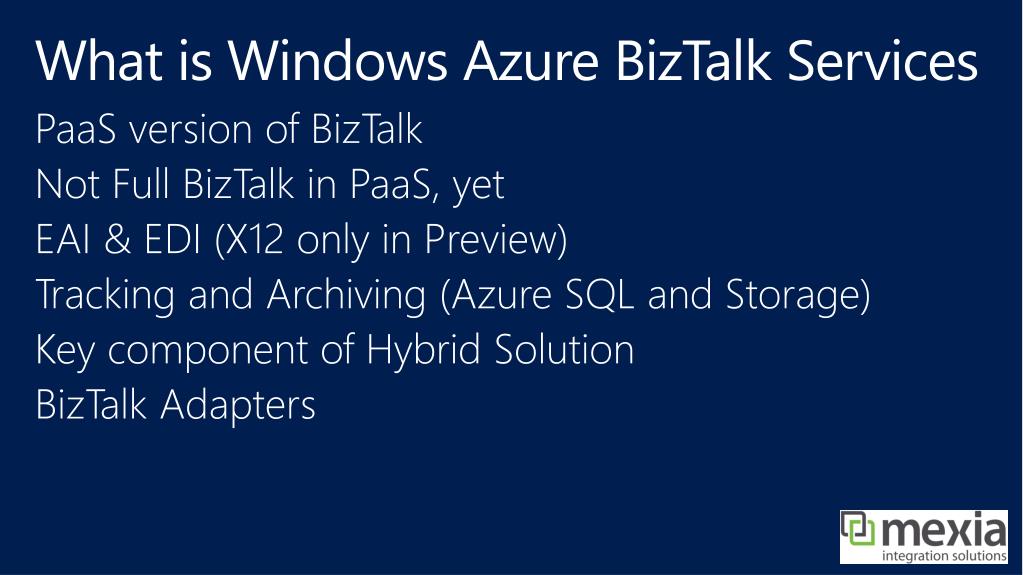

  4. What is Windows Azure BizTalk Services PaaS version of BizTalk Not Full BizTalk in PaaS, yet EAI & EDI (X12 only in Preview) Tracking and Archiving (Azure SQL and Storage) Key component of Hybrid Solution BizTalk Adapters

  5. Windows Azure BizTalk Services Dedicated Service Dedicated service hosted & managed by Microsoft in its subscription Provides isolation for compute and storage Predictable performance Secure sandboxed environment for each customer/tenant Infrastructure managed by Microsoft, App by user 99.9% uptime SLA from Microsoft Service Health monitoring integrated with Azure Portal BizTalk applications monitoring through BizTalk Portal Raw tracking and monitoring information available in user store

  6. Windows Azure BizTalk Services EAI Service Drag and drop integration solution development Out of the box support for common integration patterns Connectivity to on-premises LOB systems out of the box B2B Service Trading partner management and supplier on-boarding Support for X12 and AS2 Enterprise capabilities such as Archiving, ACK correlation and NRR Extensible Platform Rich message processing Customization with code for transforms and pipeline stages Trading Partner Management API for custom experiences

  7. History BizTalk Services .NET Services AppFabric Azure EAI & EDI BizTalk Services

  8. Features and Pricing Preview Available now in following Regions: East US West US North Europe West Europe 4 Editions Developer Basic Standard Premium

  9. Pricing(preview pricing 50% discount to GA)

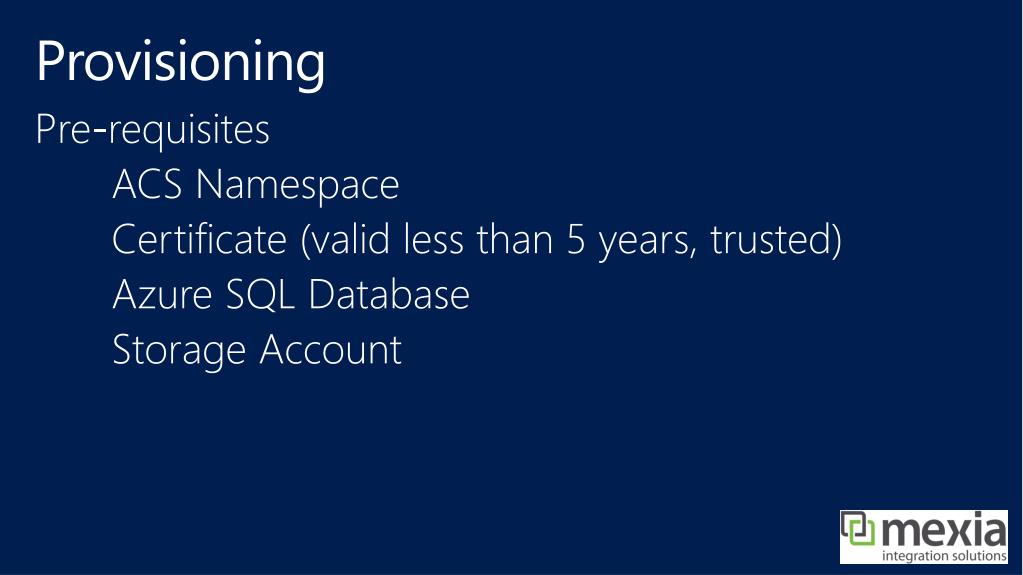

  10. Provisioning Pre-requisites ACS Namespace Certificate (valid less than 5 years, trusted) Azure SQL Database Storage Account

  11. Demo BizTalk Service Provisioning

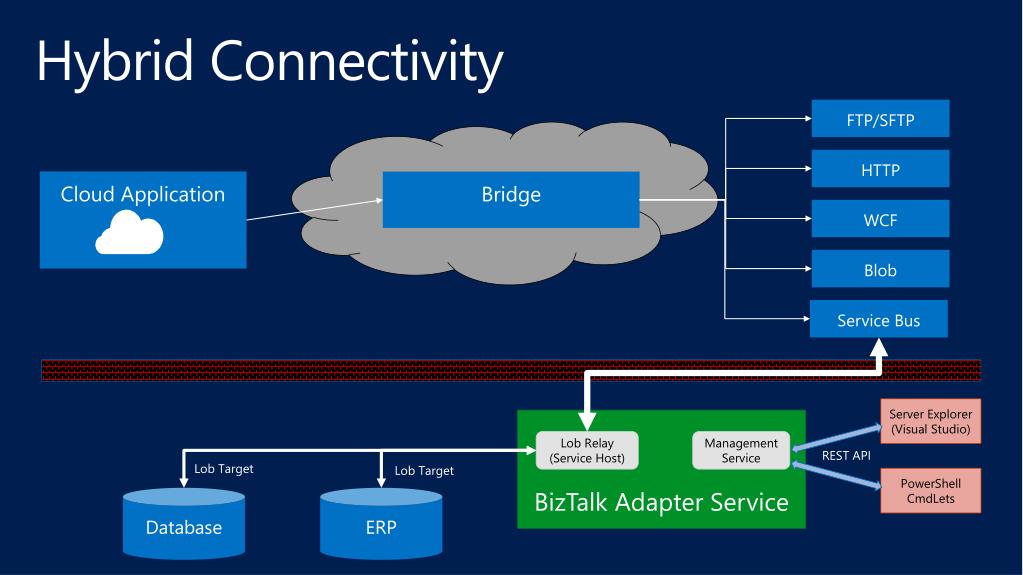

  12. Hybrid Connectivity FTP/SFTP HTTP Cloud Application Bridge WCF Blob Service Bus Server Explorer (Visual Studio) BizTalk Adapter Service Lob Relay (Service Host) Management Service REST API Lob Target Lob Target PowerShell CmdLets Database ERP

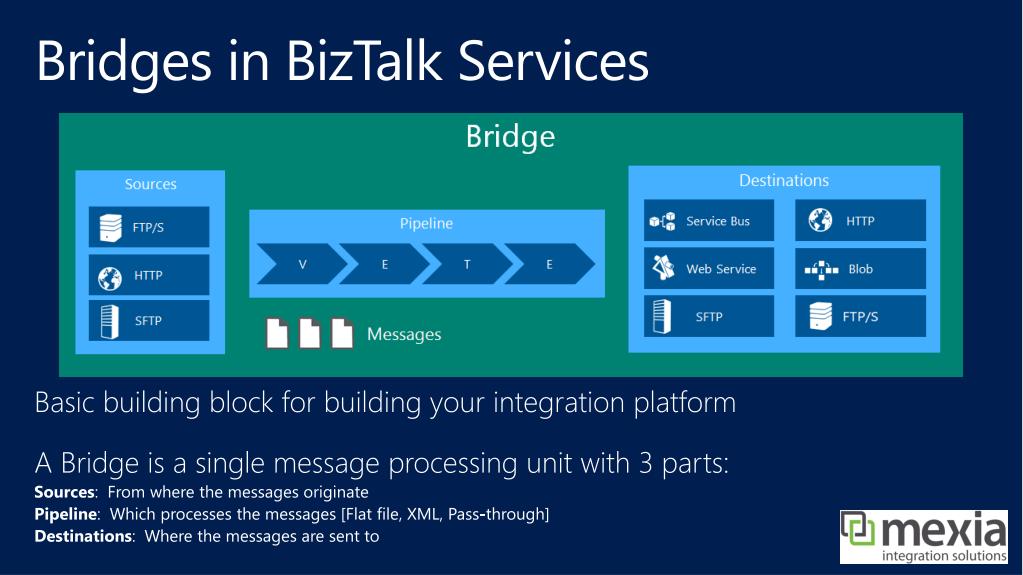

  13. Bridges in BizTalk Services Basic building block for building your integration platform A Bridge is a single message processing unit with 3 parts: Sources: From where the messages originate Pipeline: Which processes the messages [Flat file, XML, Pass-through] Destinations: Where the messages are sent to

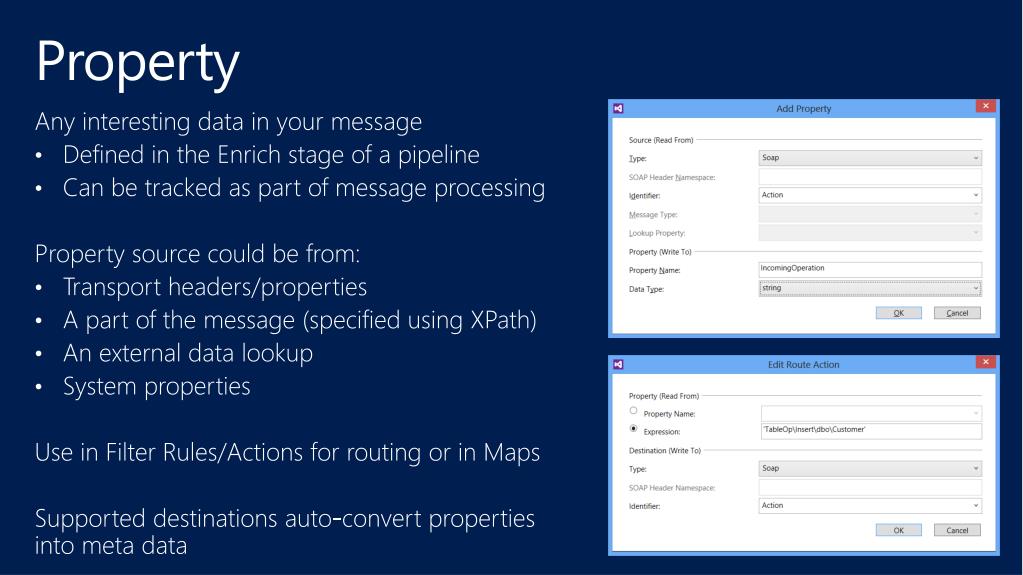

  14. Property Any interesting data in your message Defined in the Enrich stage of a pipeline Can be tracked as part of message processing Property source could be from: Transport headers/properties A part of the message (specified using XPath) An external data lookup System properties Use in Filter Rules/Actions for routing or in Maps Supported destinations auto-convert properties into meta data

  15. Transformation Graphical UI tool to define your map OOB Support for more than 35 operations Supports custom XSLT and inline C# scripts Test the map locally and validate the output as well

  16. Routing Rule based routing Message delivered to first matching destination Rules use the same SQL92 syntax used in Service Bus Topic/Subscription Rules Route Actions may be used to write destination specific headers

  17. Demo Developing

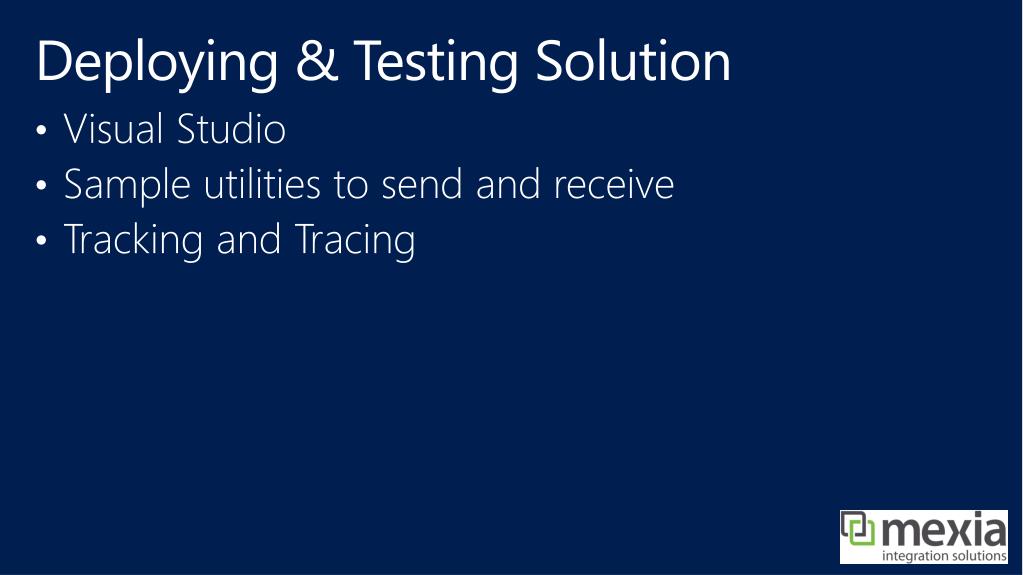

  18. Deploying & Testing Solution • Visual Studio • Sample utilities to send and receive • Tracking and Tracing

  19. BizTalk Services Deployment Portal Bridges B2B Service Artifacts Monitoring Store Certificates Partners Xml Request Agreements Assemblies Xml One-Way Visual Studio Config Store Profiles EDI X12 Schemas Pass-Through Transforms Partnerships PowerShell Tracking Store

  20. Demo Deploying & Testing

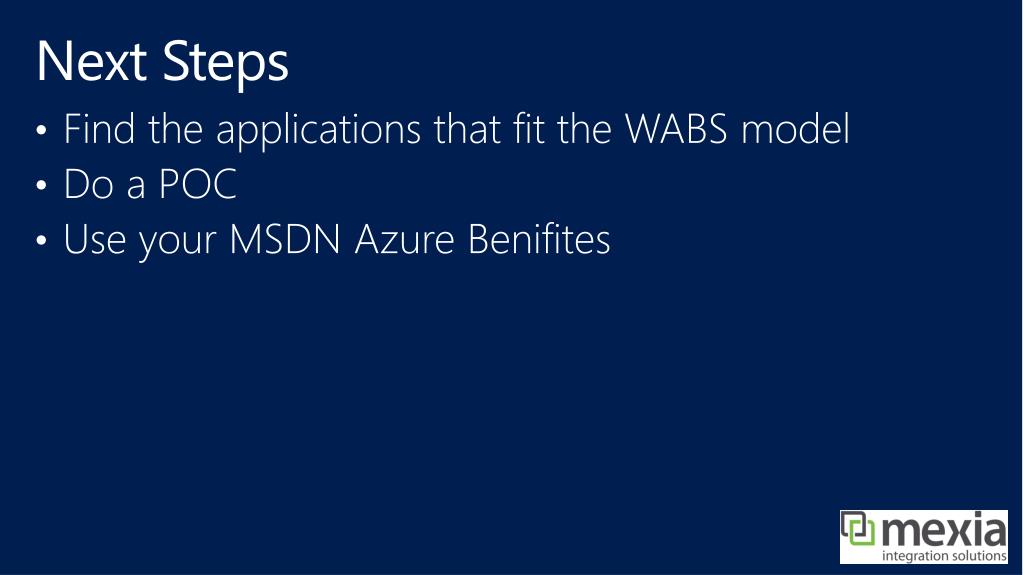

  21. Next Steps • Find the applications that fit the WABS model • Do a POC • Use your MSDN Azure Benifites

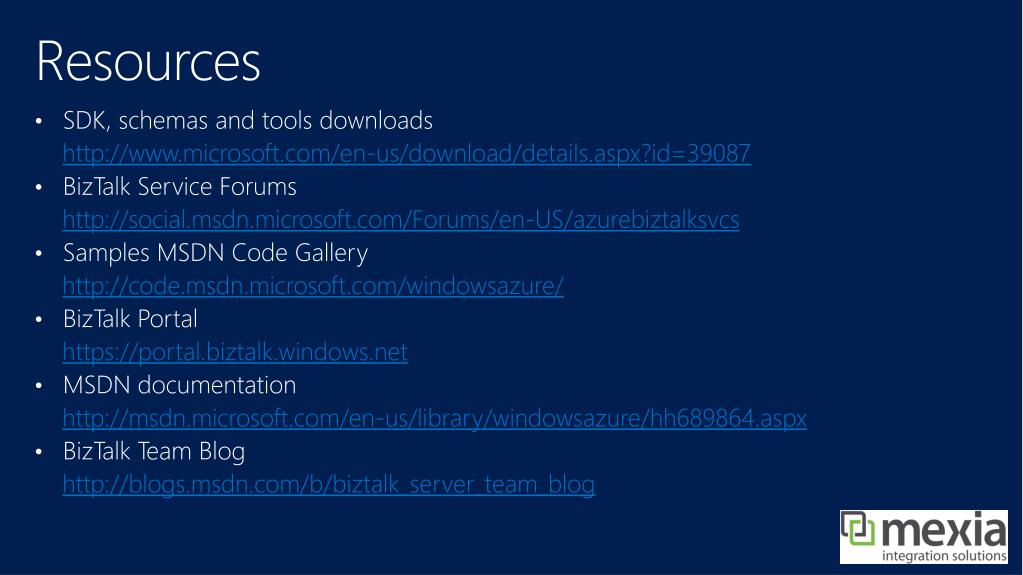

  22. Resources • SDK, schemas and tools downloads http://www.microsoft.com/en-us/download/details.aspx?id=39087 • BizTalk Service Forums http://social.msdn.microsoft.com/Forums/en-US/azurebiztalksvcs • Samples MSDN Code Gallery http://code.msdn.microsoft.com/windowsazure/ • BizTalk Portal https://portal.biztalk.windows.net • MSDN documentation http://msdn.microsoft.com/en-us/library/windowsazure/hh689864.aspx • BizTalk Team Blog http://blogs.msdn.com/b/biztalk_server_team_blog
