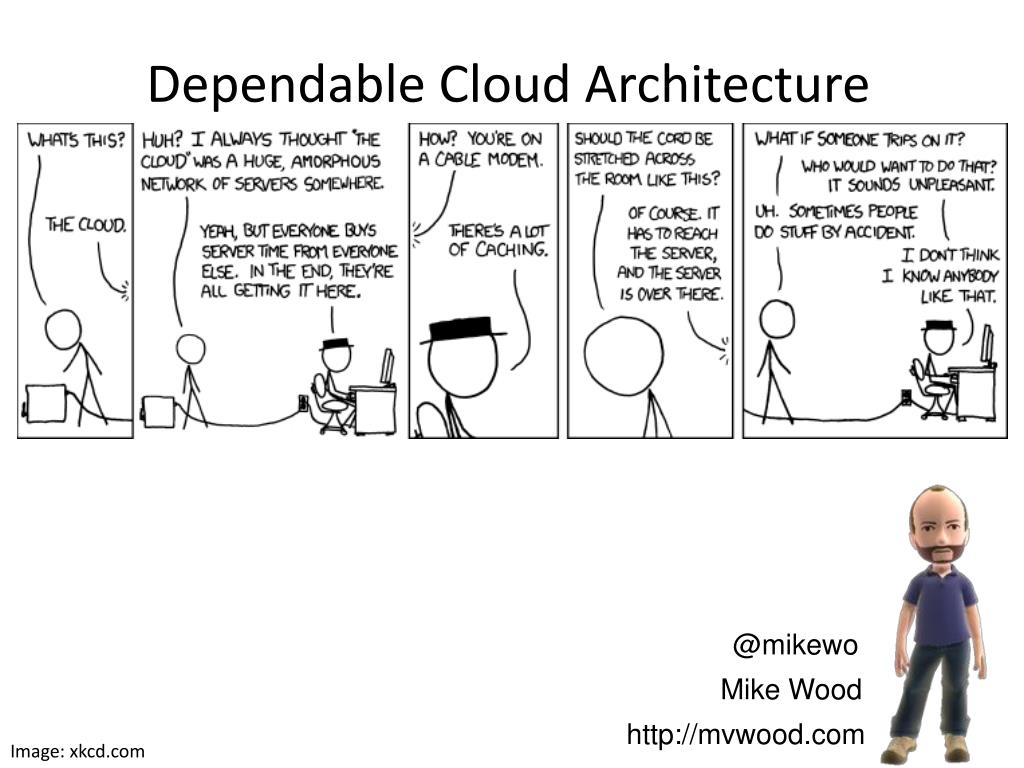

  1. Dependable Cloud Architecture @mikewo Mike Wood http://mvwood.com Image: xkcd.com

  2. Tack @mikewo Mike Wood http://mvwood.com Questions

  3. “Failure is alwaysan option.” Image: Discovery Channel, Fair Use

  4. What are we looking for? Protection From: Loss of Facilities Network Failure Hardware Failure Data Corruption Check out: http://bit.ly/wazbizcont Images: Office ClipArt & Godzilla Releasing Corp (Fair Use)

  5. Human Error Image: FOX, Fair Use

  6. What we’re trying to achieve Monitoring Resilient Solutions Image: Cohdra

  7. Cost vs Risk $1, … ,000.00 99.999% To get more 9’s here add more 0’s here. Image: Office ClipArt

  8. Monitoring Image: NASA

  9. Functional Transparency Logging Messages Hardware Health Dependent Services Health Image: Office ClipArt

  10. Telemetry

  11. Analyze your Data Image: NASA

  12. Resilience Image: Office ClipArt

  13. Remember: Failure is always an option. Common Points of Failure • Machine\application crashes • Throttling (exceeding capacity) • Connectivity\Network • External service dependencies Focus less on the uptime of hardware and more about how the solution handles it WHEN something fails!

  14. Try/catch != Resilient privatevoidcreateFile() { stringfileName = @"c:\workingDirectory\someFileName.txt"; try { File.Create(fileName); } catch(DirectoryNotFoundException ex) { Trace.WriteLine( String.Format("Unable to create {0}. {1}", fileName, ex)); throw; } } }

  15. Image: Michael Wood Decompose your system…

  16. Capacity Buffering Content Delivery Networks (CDN’s) Distributed Application Cache Local Content Cache Enables recovery during outages or spikes in load Image: jepler

  17. Always carry a spare 0% Capacity, redirect all load 75% Capacity, half of our load 100% of load, 150% Capacity 75% Capacity, half of our load SYSTEM FAILURE!!! • 50% more capacity then needed • Can absorb of temporary spikes • Time to react if need to add capacity • Over allocated, but still functioning • Degrade, but don’t fail Image: Kevin Rosseel

  18. Request Buffering Queues Retry Policies Async Workloads Image: Joe Shlabotnik

  19. Dept. of Redundancy Dept. • Have a backup, somewhere else • More than one? Cost to benefit Ratio? • Ready State • Hot = full capacity • Warm = scaled down, but ready to grow • Cold = mothballed, starts from zero Image: Mr. White

  20. Redundancy - Its about probability 95% uptime 95% uptime 95% uptime 95% uptime 1 box : 5% downtime or 438hrs per year (that’s 18 ½ days!) 2 boxes : 5/100 * 5/100 = 25/10,000 = 0.25% downtime or 22hrs per year 4 boxes : 5/100 * 5/100 * 5/100 * 5/100 = 625/100,000,000 0.000625% downtime or 3.285 MINUTES per year

  21. Total Outage duration = • Time to Detect • + Time to Diagnose • + Time to Decide • + Time to Act Image: Office ClipArt

  22. Dynamic Addressing & Configuration

  23. What about your data? Image: barrymieny

  24. Image: Michael Wood Availability via Degradation

  25. Virtualization and Automation Images: Gizmodo

  26. Images: Orion Pictures owns Terminator Franchise

  27. The “HI” Point Check out:http://bit.ly/wazinternals Images: Office Clip Art

  28. Image: NASA

  29. “Don't be too proud of this technological terror you've constructed…” • DO: • Root cause analysis • Read other root cause analysis • Plan for failure • ADMIT: • Your Solution WILL failat some point • You can learn from others just as well as yourself • DON’T: • Get cocky • Stick your head in the sand Images: LucasFilm, Fair Use

  30. Tack Questions @mikewo Mike Wood http://mvwood.com http://bit.ly/CloudFailSafe
