  1. Consistency-Based Service Level Agreements for Cloud Storage Douglas B. Terry, Vijayan Prabhakaran, Ramakrishna Kotla, Mahesh Balakrishnan, Marcos K. Aguilera, Hussam Abu-Libdeh Microsoft Research

  2. “A foolish consistency is the hobgoblin of little minds” -- Ralph Waldo Emerson (1841) “… and of large clouds” -- Douglas Brian Terry (2013)

  3. Today’s Cloud Storage Providers • Replicate data widely • Offer choice of strongor eventualconsistency e.g. Amazon DynamoDB, Yahoo PNUTS, Google App Engine, Oracle NoSQL, Cassandra, … Microsoft Windows Azure • Tradeoff consistency, availability and performance

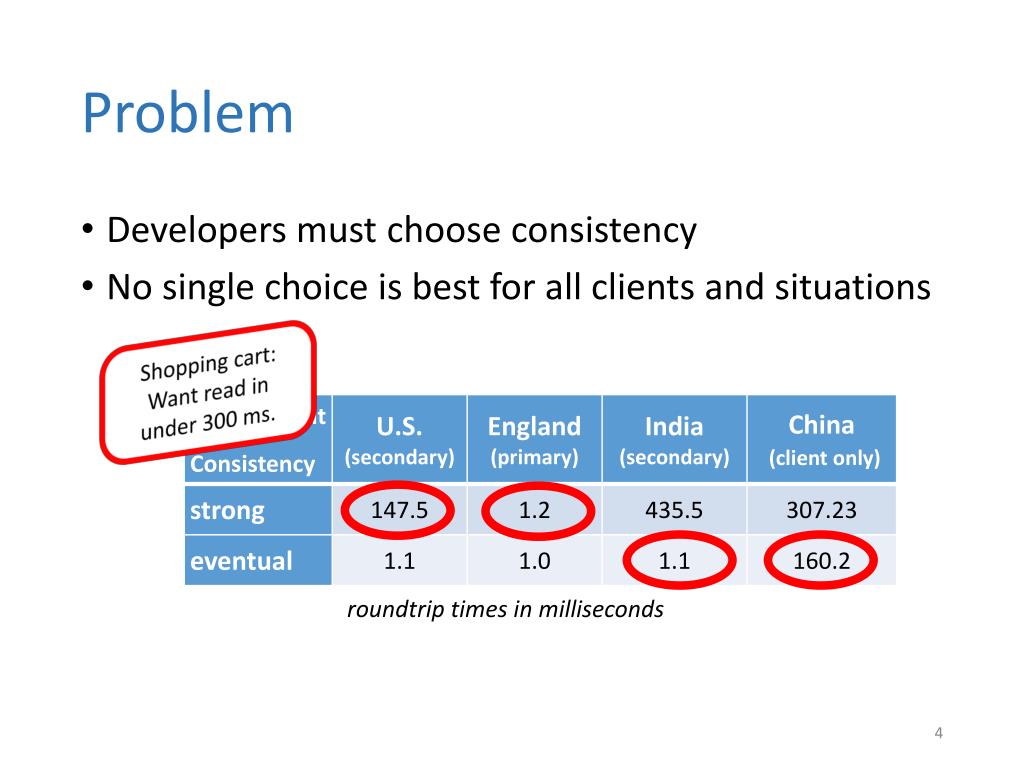

  4. Problem • Developers must choose consistency • No single choice is best for all clients and situations Shopping cart: Want read in under 300 ms. roundtrip times in milliseconds

  5. Pileus key features a cap cloud • Replicated, partitioned key-value store • Choice of consistency • Consistency-based service level agreements (SLAs)

  6. Pileus System Model API secondary nodes Get(key, SLA) BeginSession (SLA) BeginTx (SLA) Put (key, value) Get (key, SLA) returns value, consistency EndTx () EndSession () primary core Put(key, value) sync replication Get(key, SLA) lazy replication Get(key, SLA)

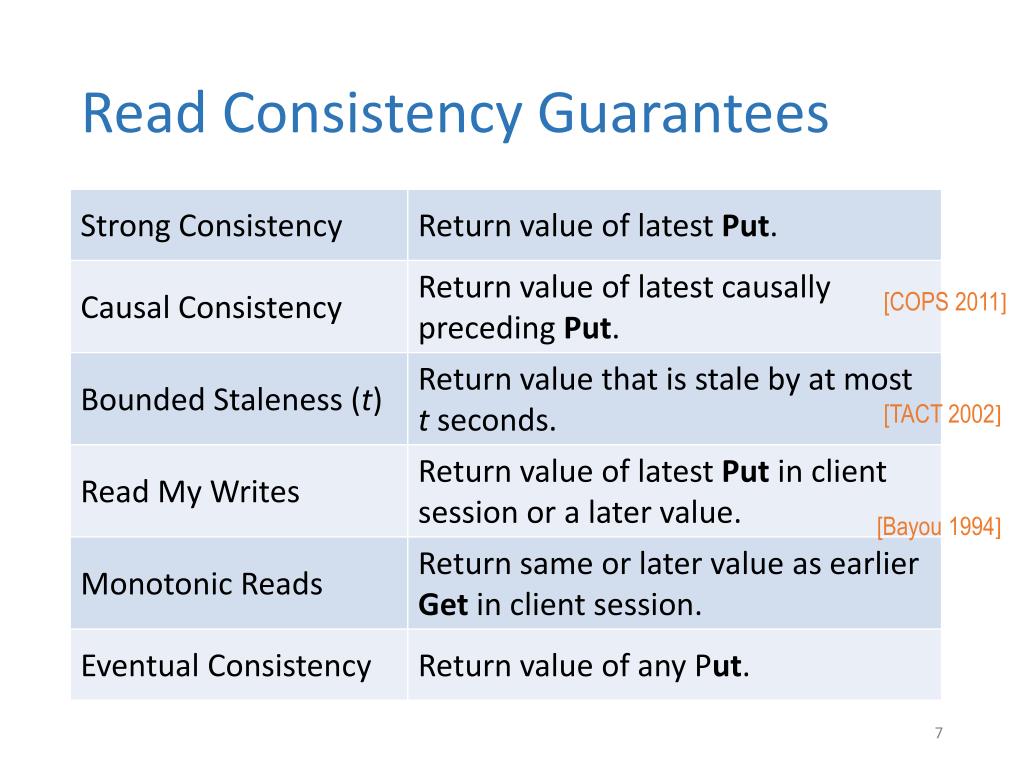

  7. Read Consistency Guarantees [COPS 2011] [TACT 2002] [Bayou 1994]

  8. Read Latencies consistency affects latency client location affects latency roundtrip times in milliseconds

  9. Consistency-based SLA • Applications declare desired consistency/latency Shopping Cart: consistency latency utility strong 300 ms. 1.0 1. read my writes 300 ms. 0.5 2. eventual 300 ms. 0.1 3.

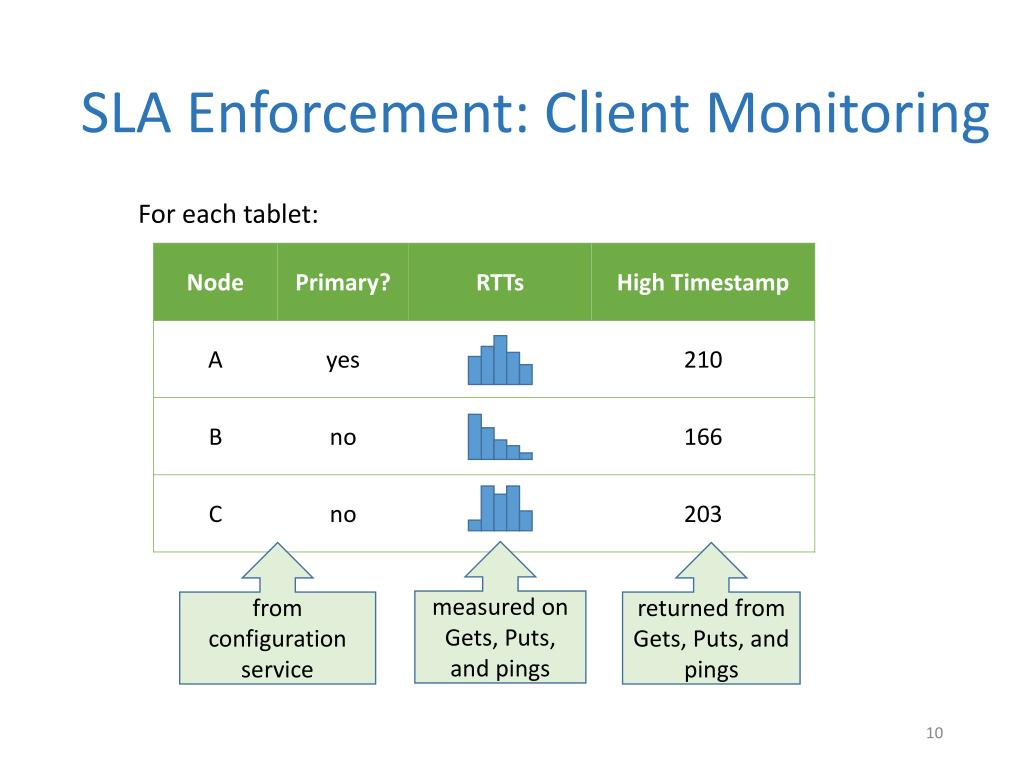

  10. SLA Enforcement: Client Monitoring For each tablet: measured on Gets, Puts, and pings from configuration service returned from Gets, Puts, and pings

  11. SLA Enforcement: Node Selection On Get (key, SLA): • For each subSLA and node, • compute Platency • compute Pconsistency • compute Platencyx Pconsistency x utility • Select node with maximum expected utility • Send Get operation to node • Measure RTT and update records • Return data and delivered consistency to caller

  12. Experimental Setup 161 England U.S. 149 308 China 436 287 181 India System configuration: Primary: England Secondaries: U.S., India Clients: U.S., England, India, China Benchmark: YCSB with 50/50 Gets/Puts 500-op sessions Node selection schemes: Primary = get from primary Random = get from random node Closest = get from closest node Pileus = get from node with highest expected utility Measurement: Average utility for Get operations

  13. Experiment #1: SLA Simplified shopping cart SLA: consistency latency utility 1. read my writes 300 ms. 1.0 2. eventual 300 ms. 0.5

  14. Experiment #1: Delivered Utility Average utilityper Get (secondary) (primary) (secondary) (client only) Client datacenter

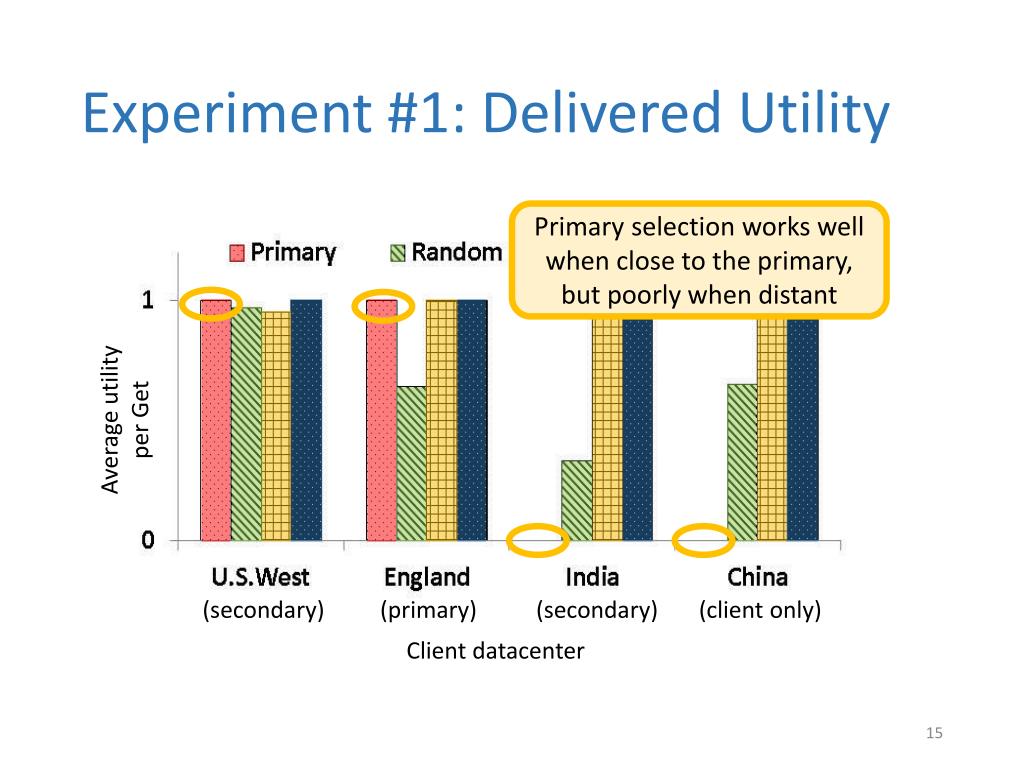

  15. Experiment #1: Delivered Utility Primary selection works well when close to the primary, but poorly when distant Average utilityper Get (secondary) (primary) (secondary) (client only) Client datacenter

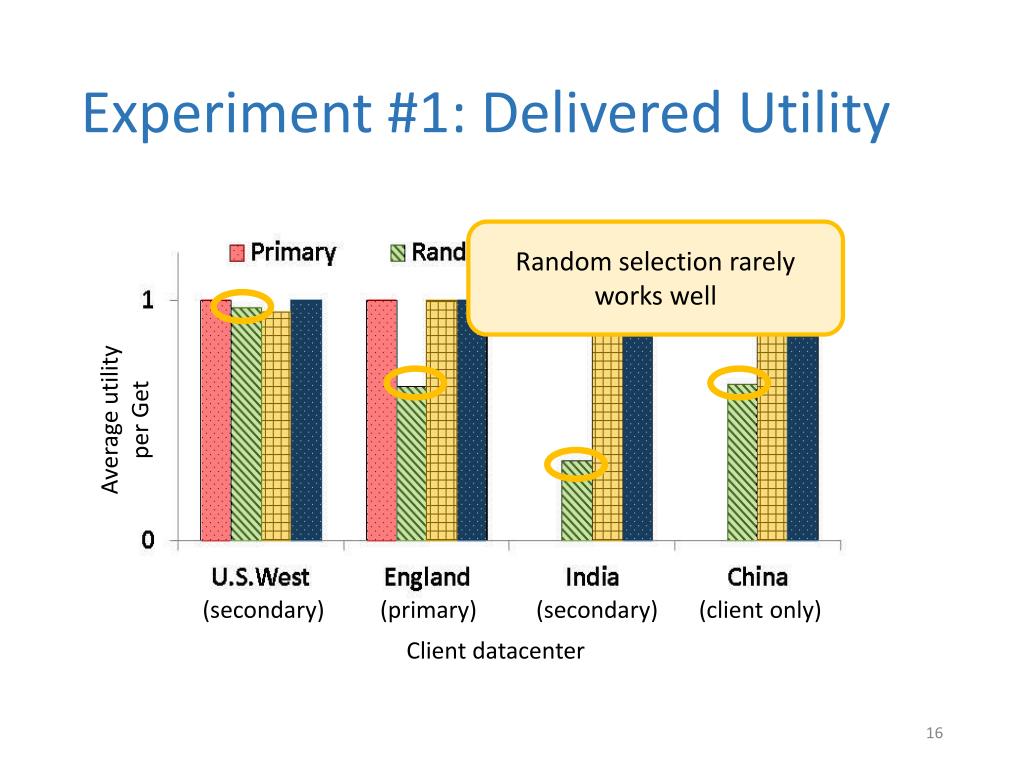

  16. Experiment #1: Delivered Utility Random selection rarely works well Average utilityper Get (secondary) (primary) (secondary) (client only) Client datacenter

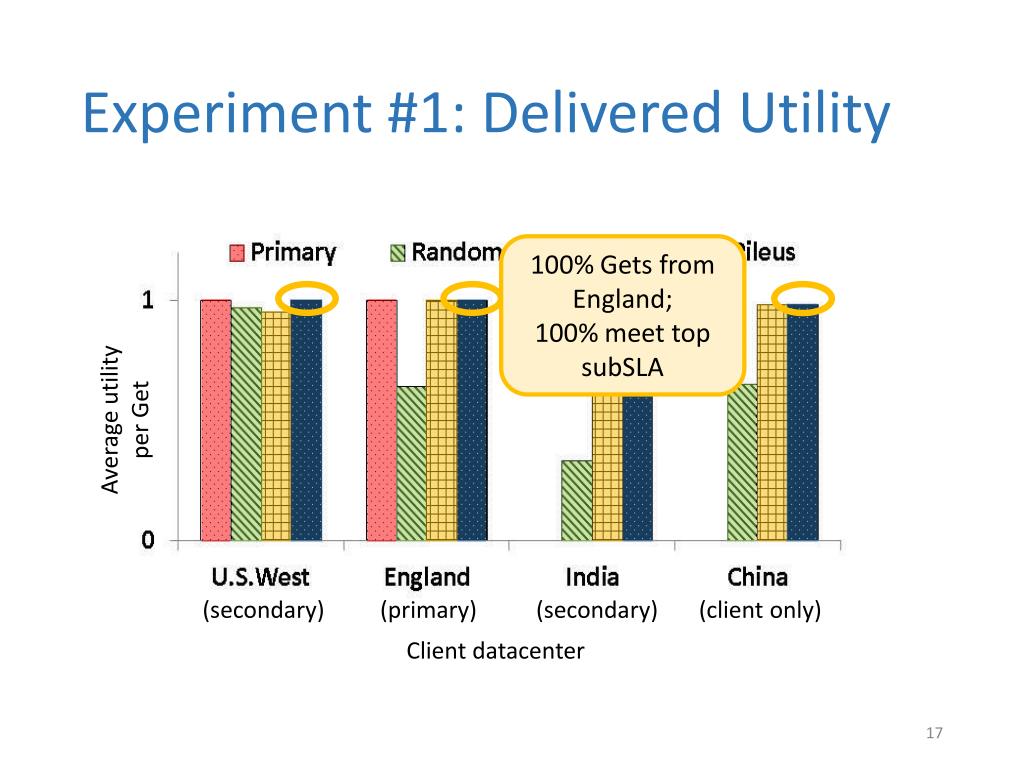

  17. Experiment #1: Delivered Utility 100% Gets from England; 100% meet top subSLA Average utilityper Get (secondary) (primary) (secondary) (client only) Client datacenter

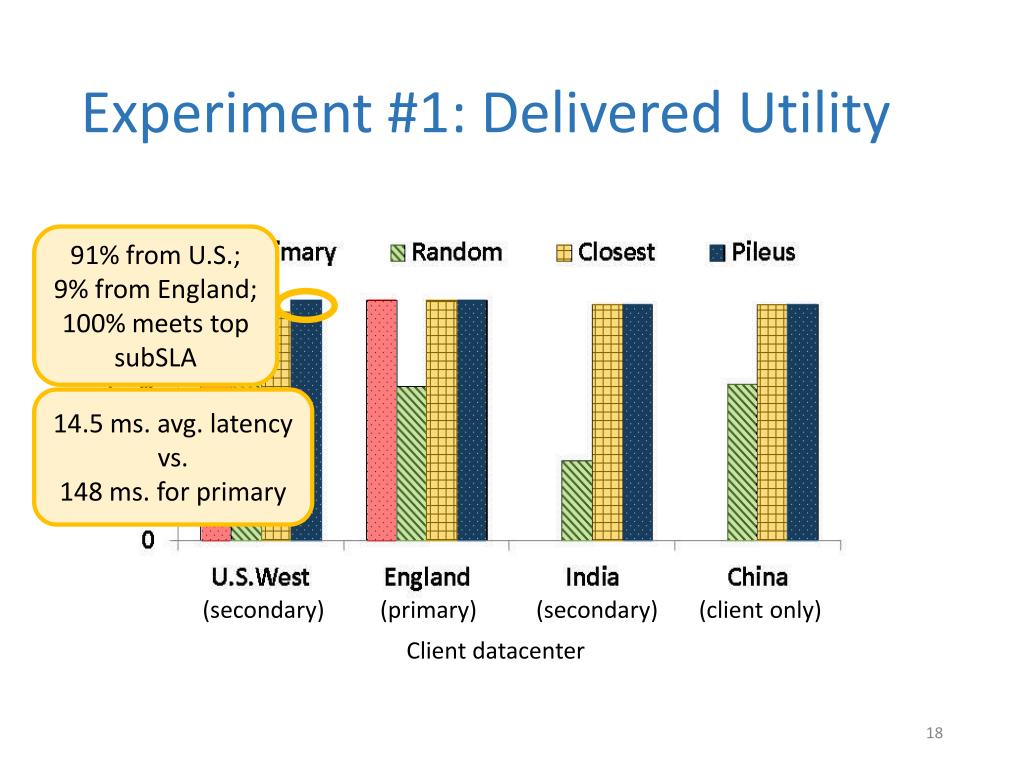

  18. Experiment #1: Delivered Utility 91% from U.S.; 9% from England; 100% meets top subSLA Average utilityper Get 14.5 ms. avg. latency vs. 148 ms. for primary (secondary) (primary) (secondary) (client only) Client datacenter

  19. Experiment #1: Delivered Utility 99.6% from U.S.; 0.4% from India; 96% meets top subSLA Average utilityper Get (secondary) (primary) (secondary) (client only) Client datacenter

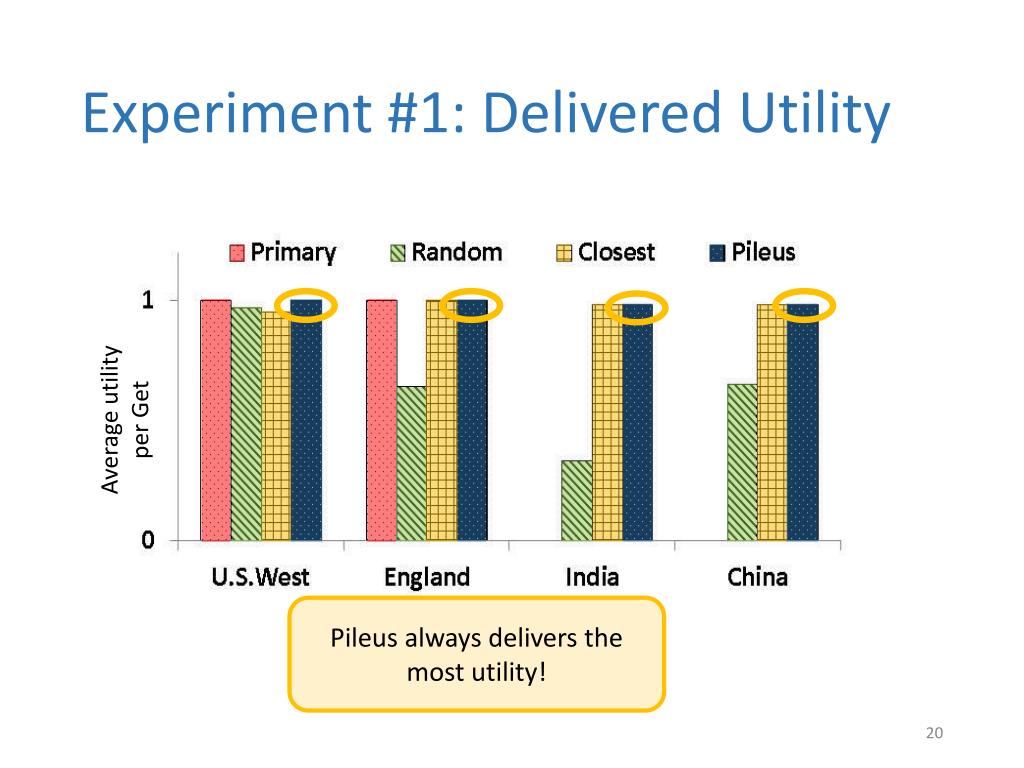

  20. Experiment #1: Delivered Utility Average utilityper Get (secondary) (primary) (secondary) (client only) Pileus always delivers the most utility! Client datacenter

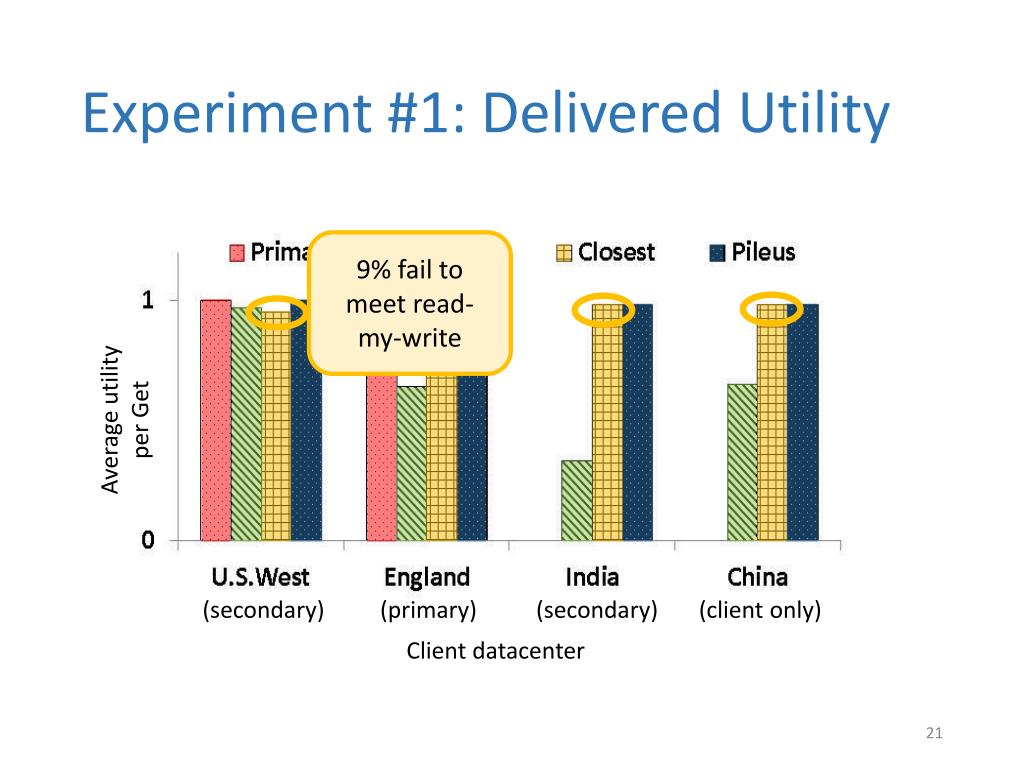

  21. Experiment #1: Delivered Utility 9% fail to meet read-my-write Average utilityper Get (secondary) (primary) (secondary) (client only) Client datacenter

  22. Experiment #2: SLA Password checking SLA: consistency latency utility 1. strong 150 ms. 1.0 2. eventual 150 ms. 0.5 3. strong 1000 ms. 0.25

  23. Experiment #2: Delivered Utility Average utilityper Get (secondary) (primary) (secondary) (client only) Client datacenter

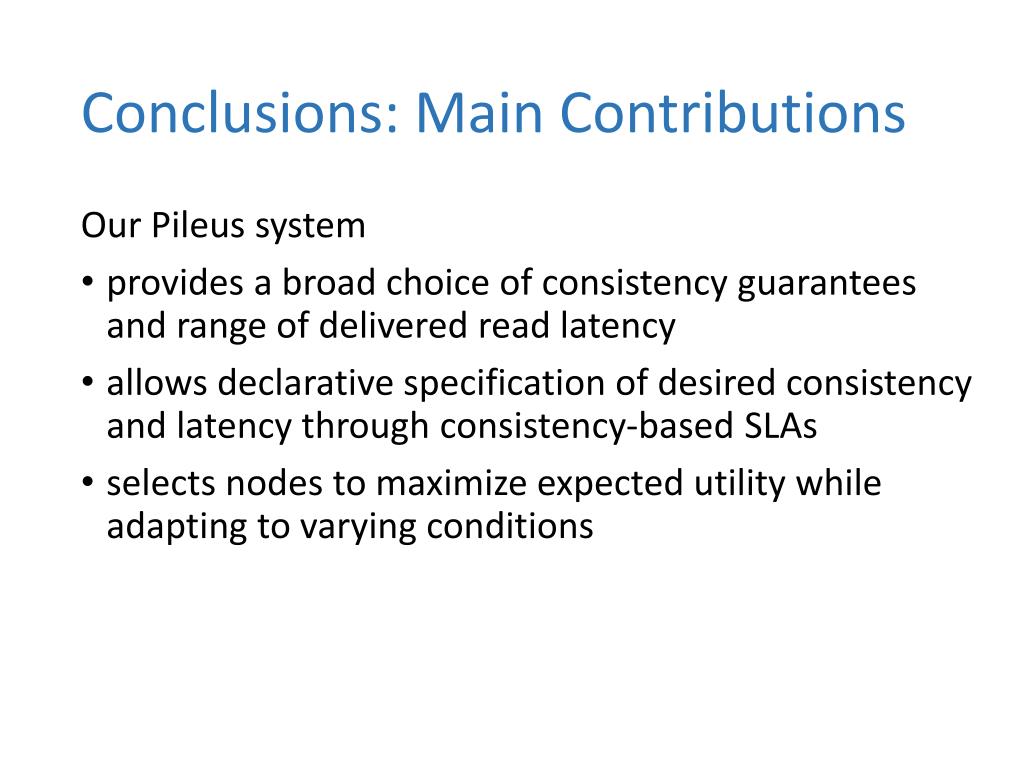

  24. Conclusions: Main Contributions Our Pileus system • provides a broad choice of consistency guarantees and range of delivered read latency • allows declarative specification of desired consistency and latency throughconsistency-based SLAs • selects nodes to maximize expected utility while adapting to varying conditions
