Finding Exponential Equations Using Logs: A Straightforward Approach

ranee avatar
ranee
18 diapositives · 307 Views · Sep 10, 2014

This guide explores how to find exponential equations using logarithms in R. We start by transforming data points into a logarithmic format, then derive the slope (m) and intercept (c) of the line, leading to the equation log(R) = m log(t) + c. We'll also convert the logs to base 10 where needed for simplification, ensuring no logs remain in the final equation. Using example points and the addition rule, we demonstrate the step-by-step process of eliminating logs and obtaining the final exponential form.

Finding Exponential Equations Using Logs: A Straightforward Approach - slide 1
01 / 18Finding Exponential Equations Using Logs: A Straightforward Approach
1 / 17

Télécharger la présentation

Finding Exponential Equations Using Logs: A Straightforward Approach
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Finding Exponential Equations (using logs)

  2. R Not very straight!  x x x x x x x t

  3. R Exponential x Equation? x x x x x x t

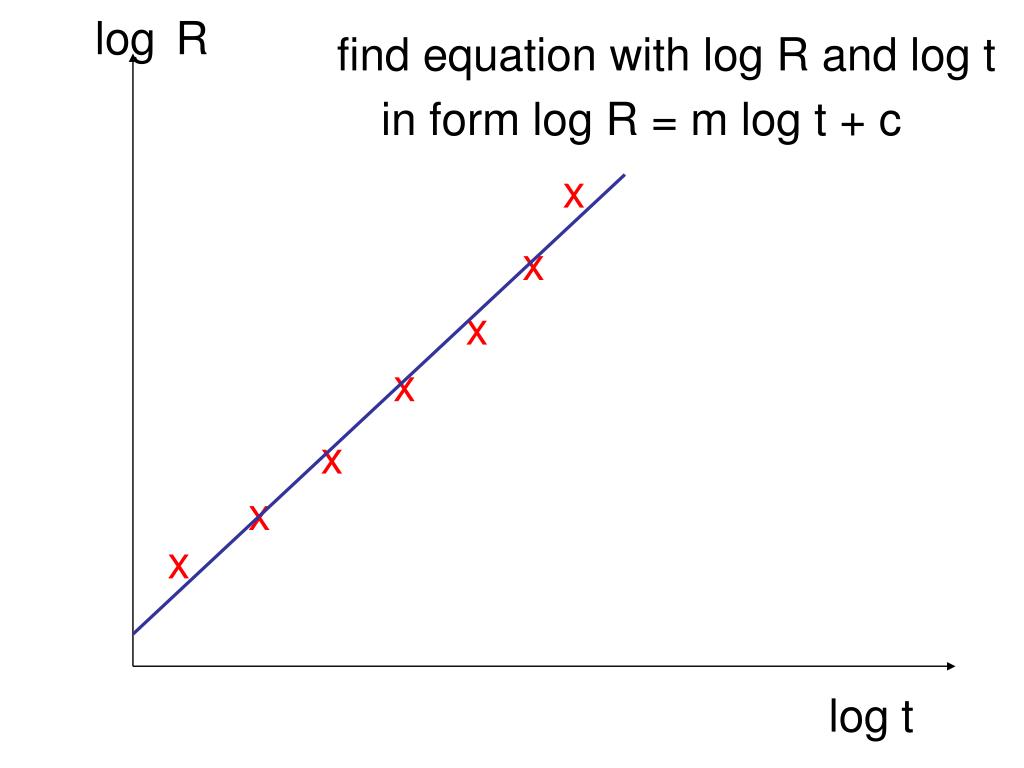

  4. log R find equation with log R and log t in form log R = m log t + c x x x x x x x log t

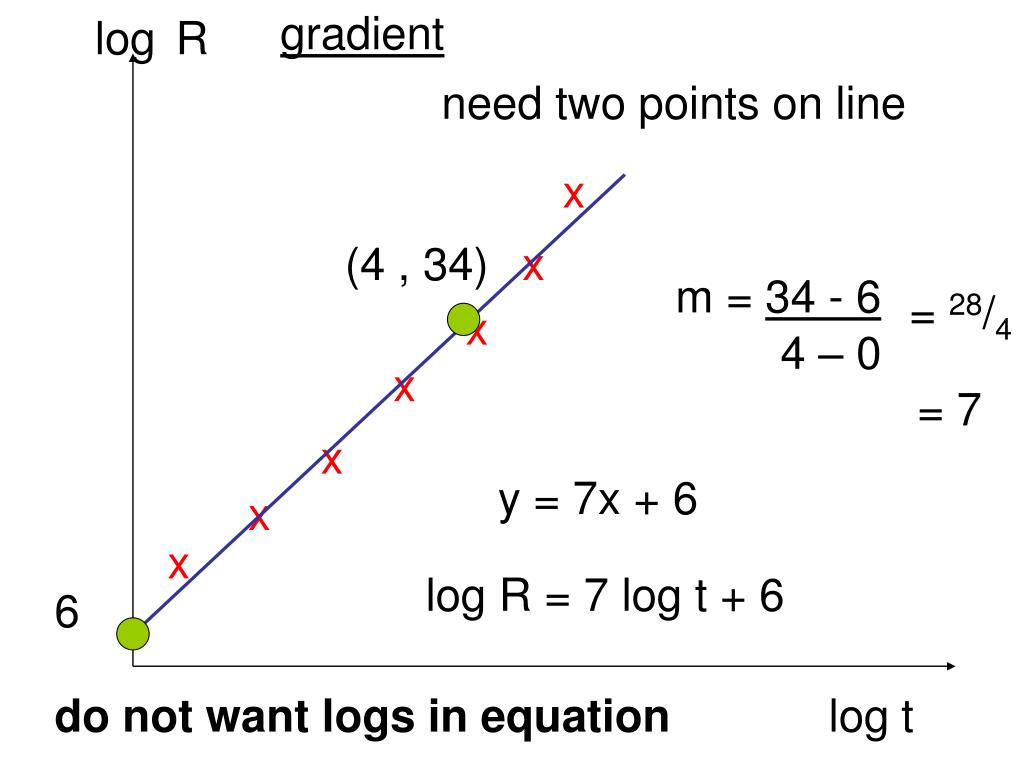

  5. gradient log R need two points on line x (4 , 34) x m = 34 - 6 = 28/4 x 4 – 0 x = 7 x y = 7x + 6 x x log R = 7 log t + 6 6 do not want logs in equation log t

  6. log R = 7 log t + 6 logless! ? want to change 6 → log10........ log statement log10 x = 6 translation x = 106 equation becomes log10 106 log R = 7 log t + no need to always write 10 still some work to do!

  7. log R = 7 log t + log106 to get rid of logs want log…. = log…. Time for some log rules

  8. log R = 7 log t + log106 Neat Wee Rule log R = log t7 + log106 Addition Rule (t7 X 106) log R = log R = 1000000t7

  9. Finding Exponential EquationsUsing Logs Tactics Get straight line equation with logs Change everything to logs Get rid of the logs!!

  10. log R find equation with log R and log t in form log R = m log t + c x x x x x x x log t

  11. Find Gradient log R need two points on line x (13 , 34) x m = 34 - 8 = 26/13 x 13 – 0 x = 2 x y = 2x + 8 x x log R = 2 log t + 8 8 log t

  12. log R = 2 log t + 8 logless! want to change 8 → log10? log statement log10 x = 8 translation x = 108 equation becomes log R = 2 log t + log 108 no need to always write 10

  13. log R = 2 log t + log108 to get rid of logs want log…. = log…. Neat Wee Rule log R = log t2 + log108 Addition Rule log log (t2 X 108) R = Eliminate Logs (t2 X 108) R = R = 100000000t2

  14. log R Equation log R = mt + c x x x x x x x t

  15. log R x (6 , 7) x m = 7 - 4 = 3/6 x 6 – 0 x = 0.5 x y = 0.5x + 4 x x log R = 0.5t + 4 4 t

  16. log R = 0.5t + 4 logless! want to change 4 → log10 same for 0.5t log statement log10 x = 4 log10 x = 0.5t translation x = 104 x = 100.5t equation becomes log R = log 100.5t + log 104

  17. log R = log 100.5t + log 104 Addition Rule log log (100.5t X 104) R = Eliminate Logs R = (100.5t X 104) R = 10000 X 100.5t 100.5 = 3.2 R = 10000 X 3.2t R = 10000 (3.2)t

  18. Annoying First Part of Question Sort of Thing If y = abt Show that the relationship between log y and log b is linear log y = log abt reverse addition rule log y = log a + log bt Neat Wee Rule log y = log a + t log b log y = t log b + log a eh? log both sides like y = mx + c → linear
