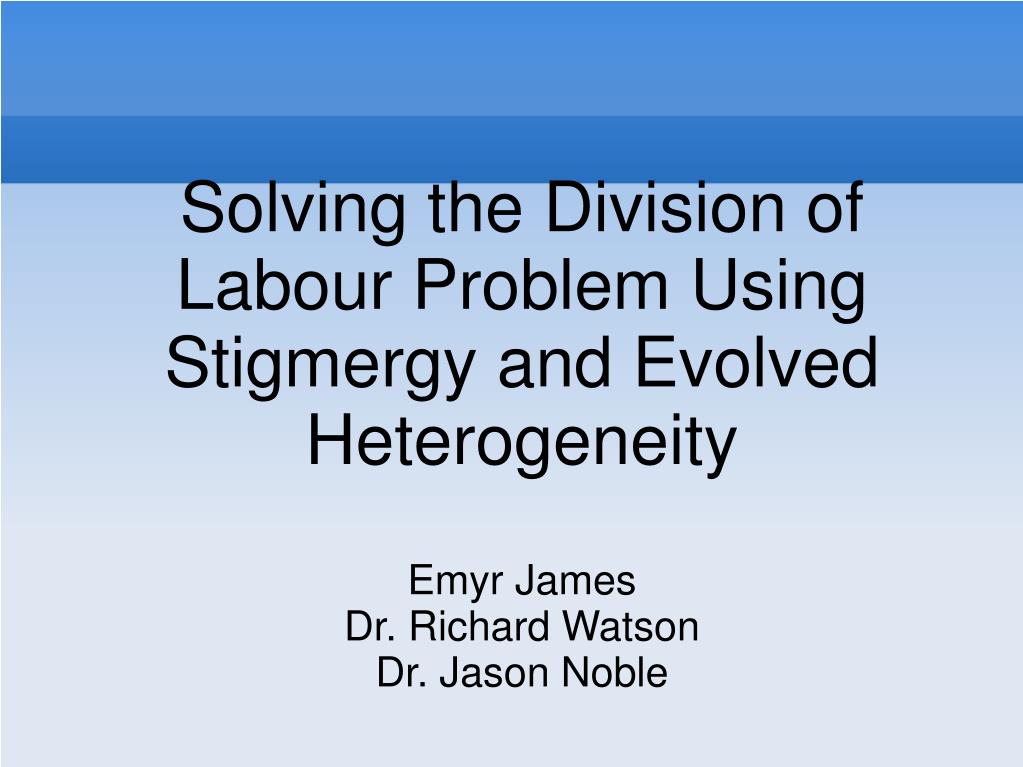

  1. Solving the Division of Labour Problem Using Stigmergy and Evolved Heterogeneity Emyr James Dr. Richard Watson Dr. Jason Noble

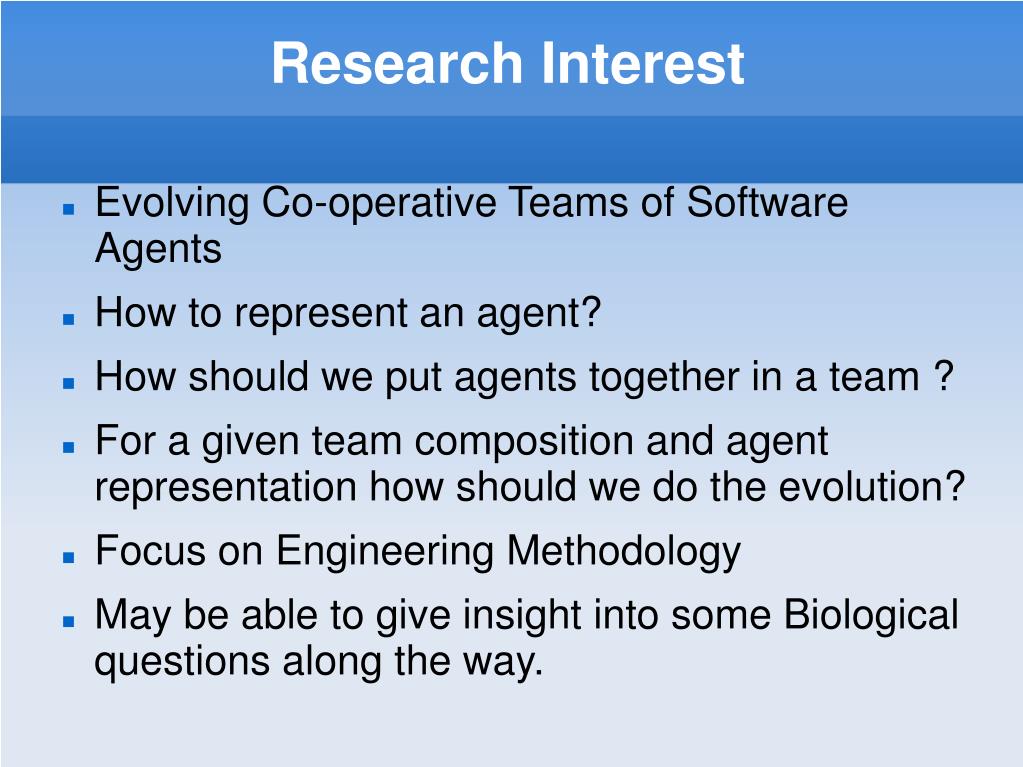

  2. Research Interest • Evolving Co-operative Teams of Software Agents • How to represent an agent? • How should we put agents together in a team ? • For a given team composition and agent representation how should we do the evolution? • Focus on Engineering Methodology • May be able to give insight into some Biological questions along the way.

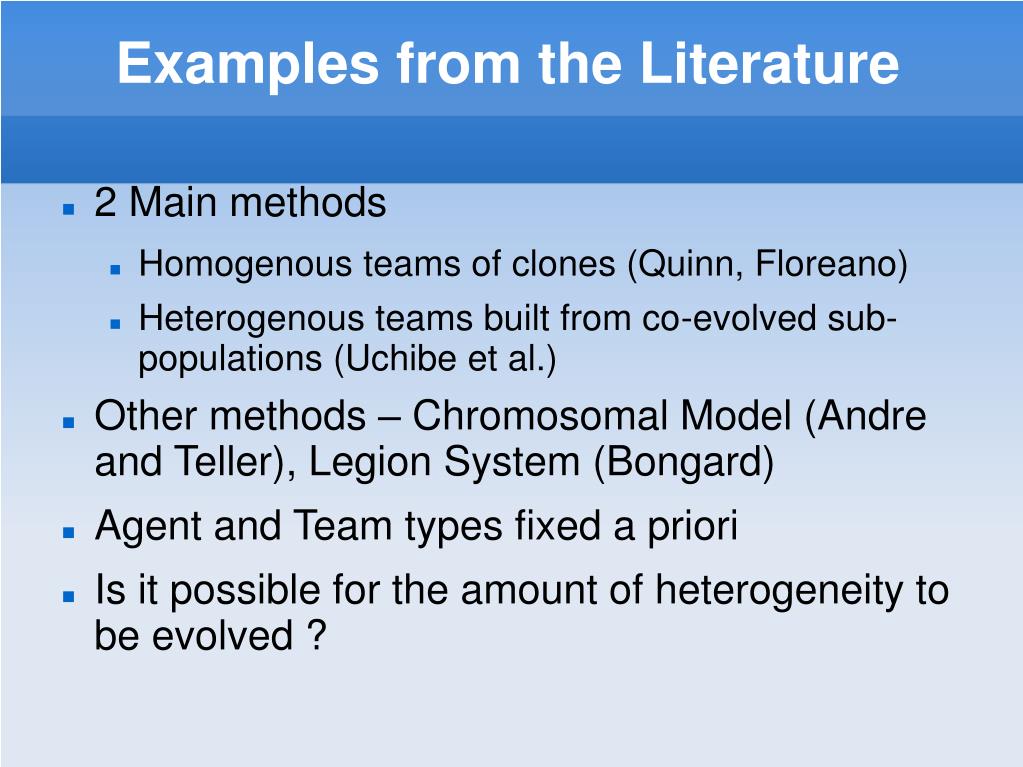

  3. Examples from the Literature • 2 Main methods • Homogenous teams of clones (Quinn, Floreano) • Heterogenous teams built from co-evolved sub-populations (Uchibe et al.) • Other methods – Chromosomal Model (Andre and Teller), Legion System (Bongard)‏ • Agent and Team types fixed a priori • Is it possible for the amount of heterogeneity to be evolved ?

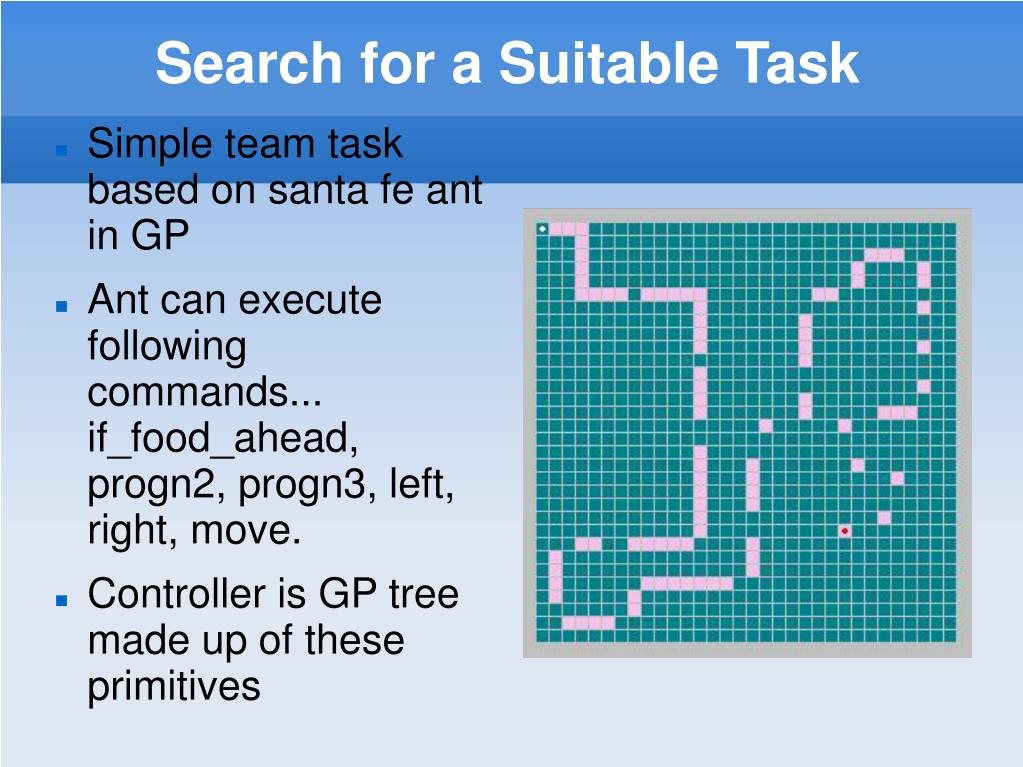

  4. Search for a Suitable Task • Simple team task based on santa fe ant in GP • Ant can execute following commands... if_food_ahead, progn2, progn3, left, right, move. • Controller is GP tree made up of these primitives

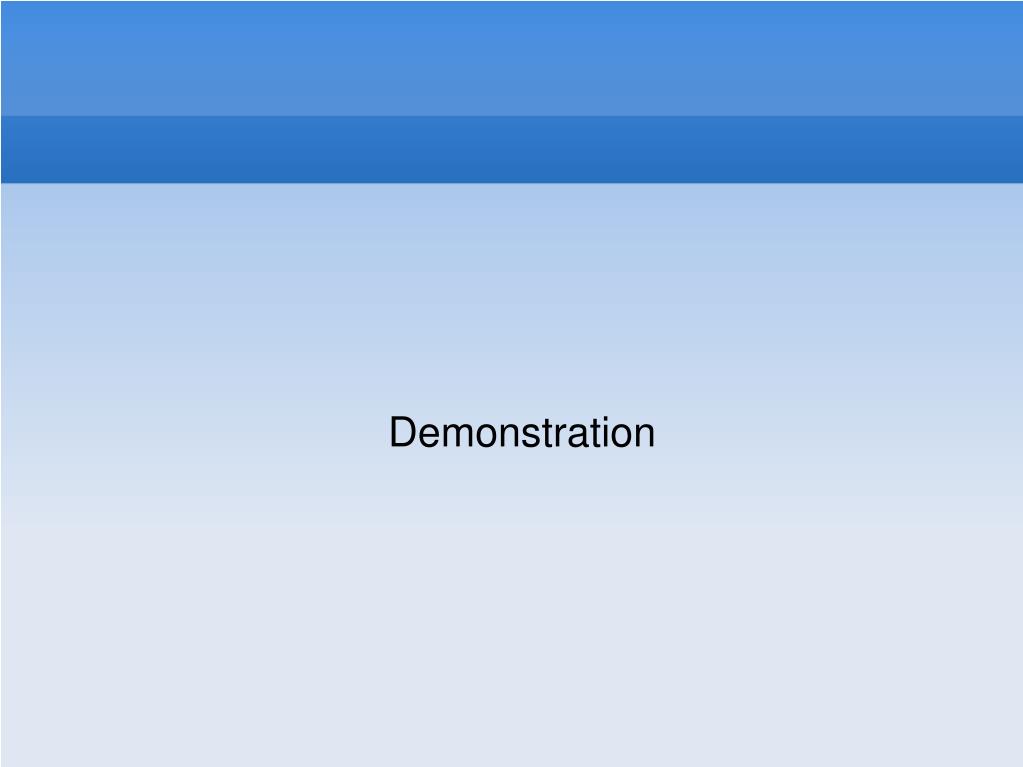

  5. Demonstration

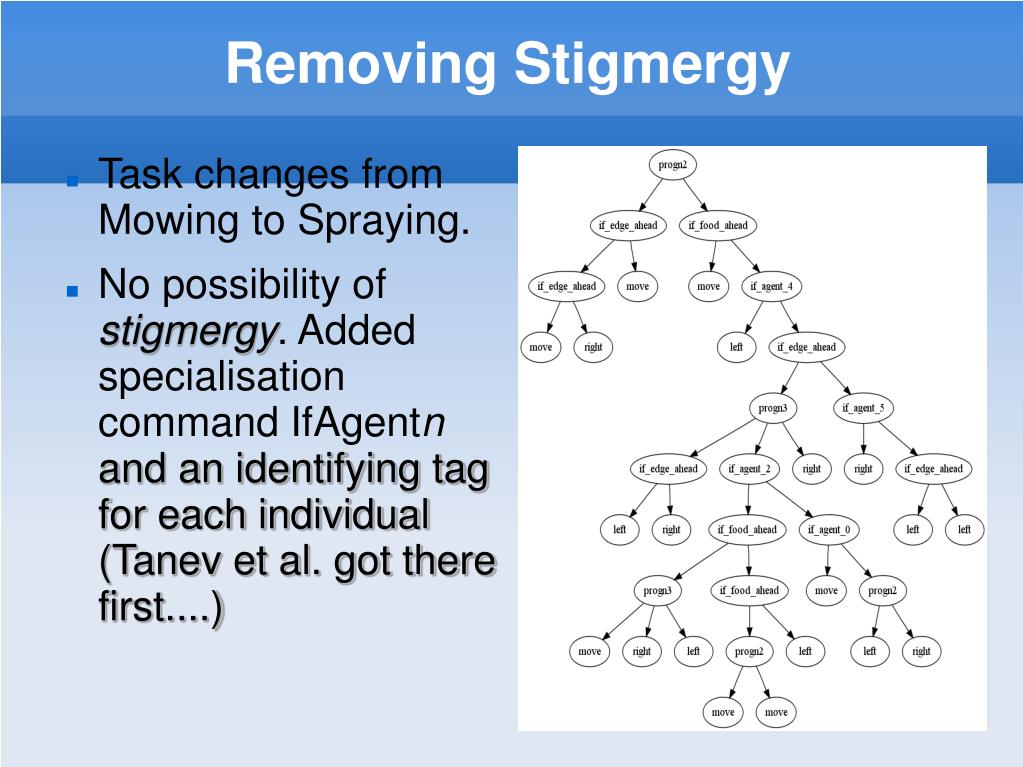

  6. Removing Stigmergy • Task changes from Mowing to Spraying. • No possibility of stigmergy. Added specialisation command IfAgentn and an identifying tag for each individual (Tanev et al. got there first....)‏

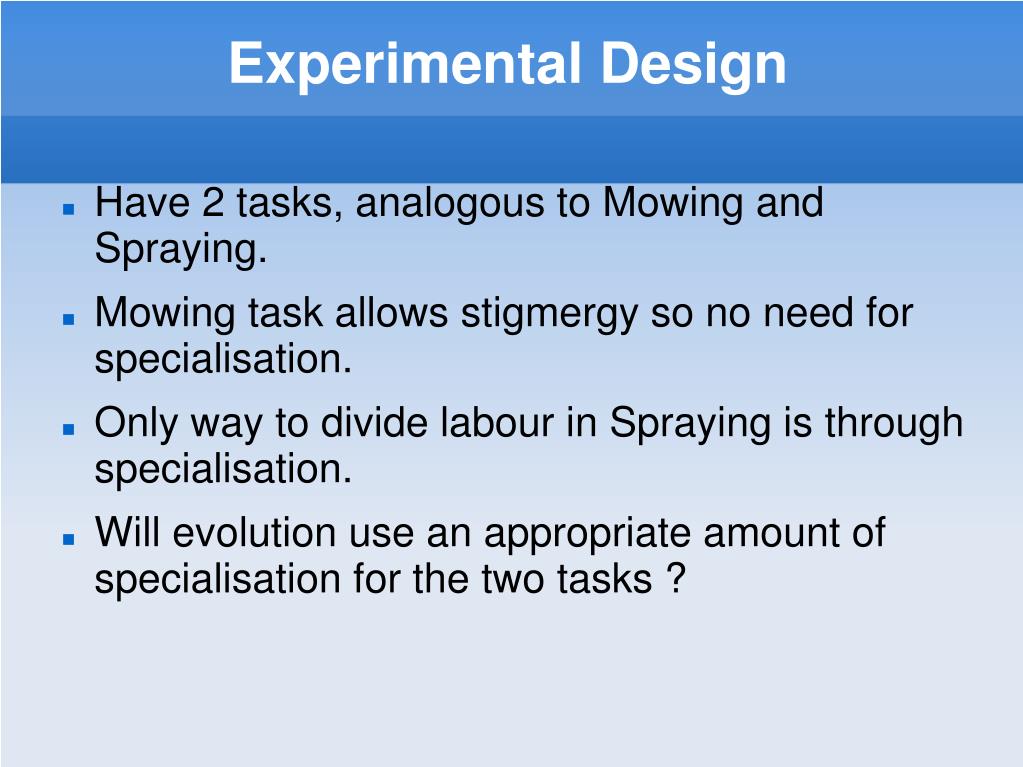

  7. Experimental Design • Have 2 tasks, analogous to Mowing and Spraying. • Mowing task allows stigmergy so no need for specialisation. • Only way to divide labour in Spraying is through specialisation. • Will evolution use an appropriate amount of specialisation for the two tasks ?

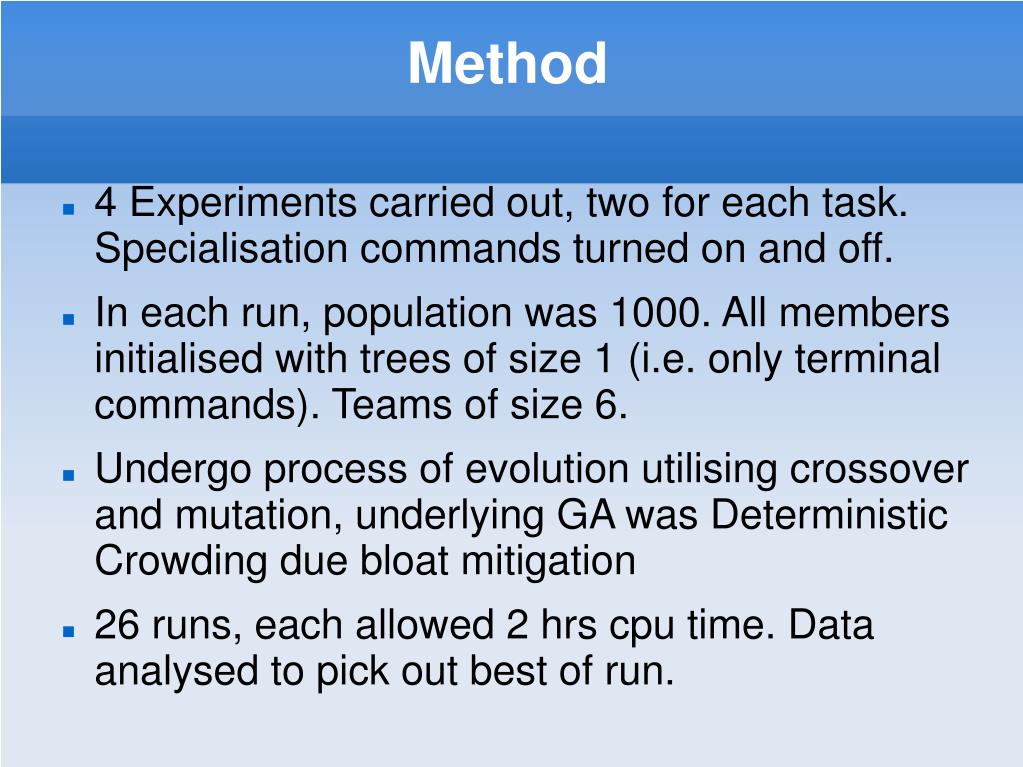

  8. Method • 4 Experiments carried out, two for each task. Specialisation commands turned on and off. • In each run, population was 1000. All members initialised with trees of size 1 (i.e. only terminal commands). Teams of size 6. • Undergo process of evolution utilising crossover and mutation, underlying GA was Deterministic Crowding due bloat mitigation • 26 runs, each allowed 2 hrs cpu time. Data analysed to pick out best of run.

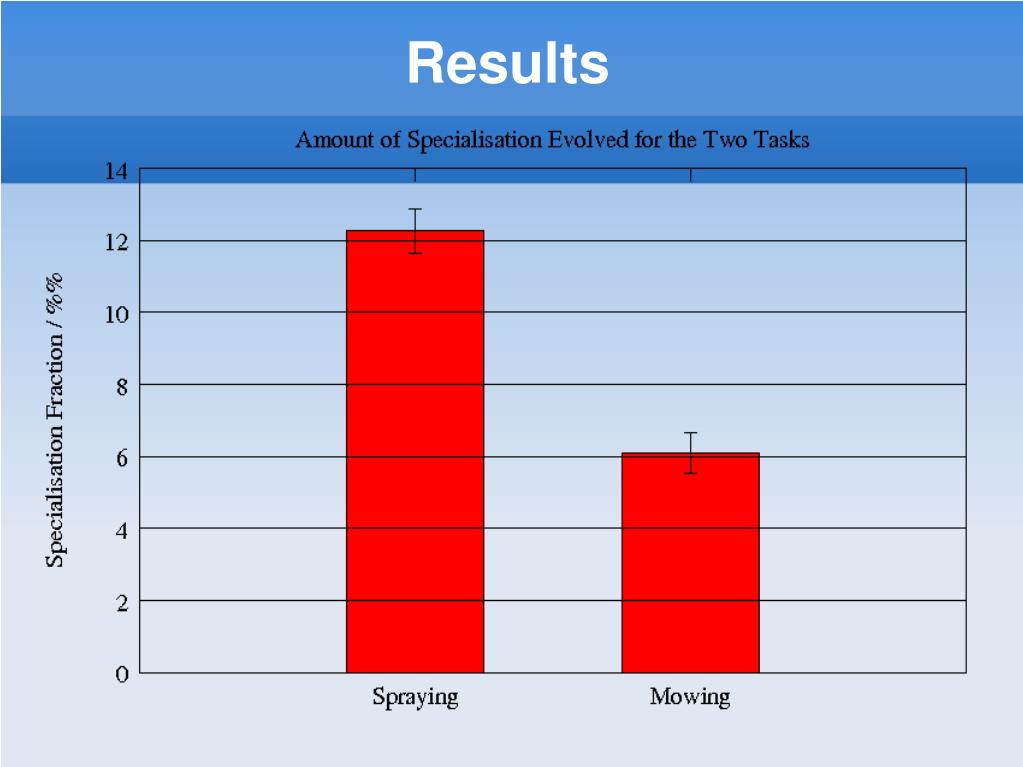

  9. Results

  10. Fitness

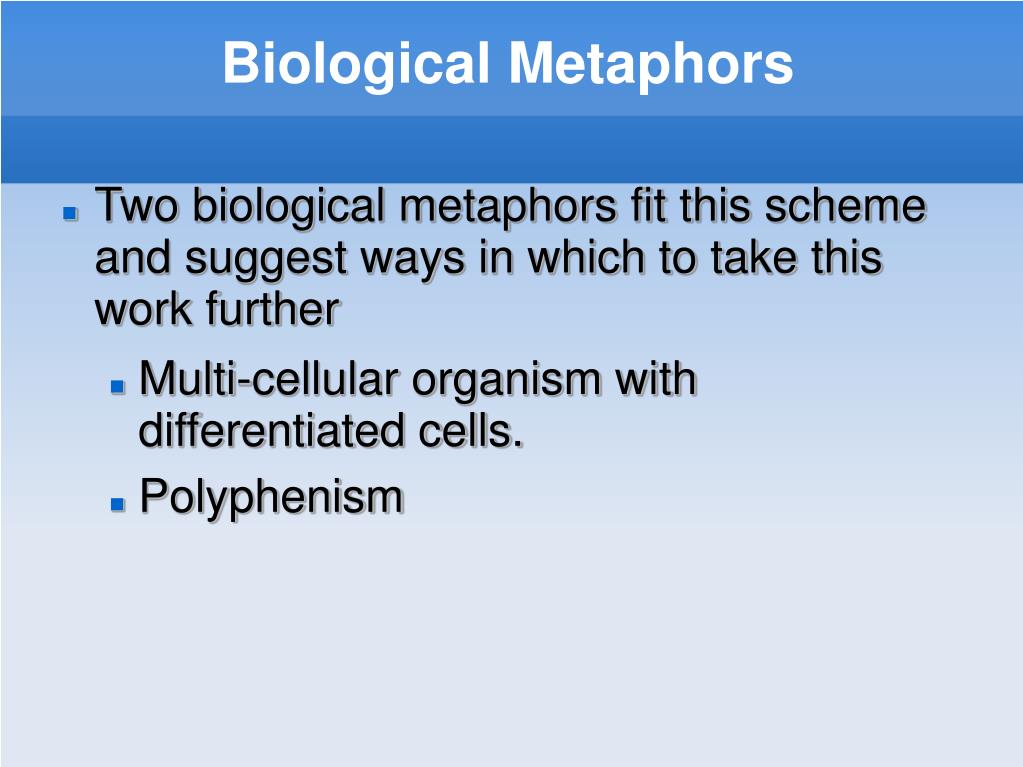

  11. Biological Metaphors • Two biological metaphors fit this scheme and suggest ways in which to take this work further • Multi-cellular organism with differentiated cells. • Polyphenism

  12. Further Work • See how far the multicellularity metaphor can go – change from id for each agent to agent classes. Hierarchical differentiation ? • Polyphenism – talk by Rob Mills yesterday. • Vary team size. Bigger teams require more co-ordination. Will the degree of specialisation reflect this ? • Compare this approach with the purely clonal and purely heterogeneous methods from the literature.

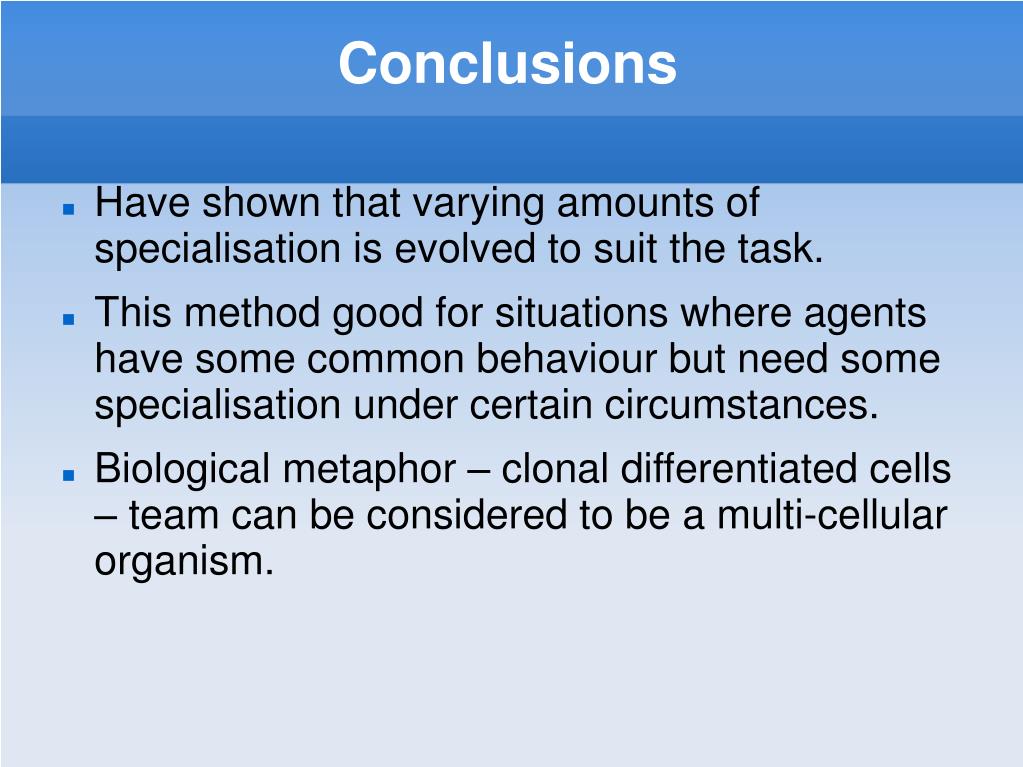

  13. Conclusions • Have shown that varying amounts of specialisation is evolved to suit the task. • This method good for situations where agents have some common behaviour but need some specialisation under certain circumstances. • Biological metaphor – clonal differentiated cells – team can be considered to be a multi-cellular organism.
