  1. Mediation Models Laura Stapleton UMBC

  2. Mediation Models Tasha Beretvas University of Texas at Austin

  3. Session outline • What is mediation? • Basic single mediator model • Short comment on causality • Tests of the hypothesized mediation effect • Mediation models for cluster randomized trials • Brief mention of advanced issues

  4. What is mediation? • A mediator explains how or why two variables are related. • In the context of interventions, a mediator explains how or why a Tx effect occurs • A mediator is thought of as the mechanism or processes through which a Tx influences an outcome (Barron & Kenny, 1986). • If X M and M  Y, then M is a mediator • X causes proximal variable, M, to vary which itself causes distal, variable,Y, to vary

  5. What is mediation? • Mediational process can be • Observed or latent • Internal or external • At the individual or cluster level • Based on multiple or sequential processes • Who cares?! • Mediation analyses can identify important processes/mechanisms underlying effective (or ineffective!) treatments thereby providing important focal points for future interventions.

  6. Mediation Examples • Bacterial exposure  Disease • Bacterial exposure  Infection  Disease • Stimulus  Response • Might work for simple organisms (amoebae!), however, for more complex creatures: • Stimulus  Organism  Response • Stimulus  Expectancy Response • Monkey and lettuce example • Maze-bright, maze-dull rats and maze performance example

  7. Mediation Examples Intervention  Outcome Intervention  Receptivity  Outcome Intervention  Tx Fidelity  Outcome Intervention  TchConfid Outcome Intervention  Soc Comp Achievement Intervention  Phon Aware  Reading Intervention Peer Affil  DelinqBeh

  8. Mediation  Moderation • A moderator explains when an effect occurs • Relationship between X and Ychanges for different values of M • More in later session of workshop…

  9. Basic (single-level) mediation model c Treatment Outcome Mediator a b Treatment Outcome c’ total effect = indirect effect + direct effect c= ab+ c’

  10. Causality concerns • Just because you estimate the model X M  Y does not mean that the relationships are causal • Unless you manipulate M, causal inferences are limited. • Mediation model differs from Mediation design

  11. Causality concerns – mediation model • Remember, if the mediator is not typically manipulated, causal interpretations are limited Z Mediator M a b  Treatment T Ok! Outcome Y • Possible misspecification • For now, be sure to substantively justify the causal direction and “assumeor hypothesize that M causes Y and assuming that, here’s the strength of that effect…” • In future research, manipulate mediator

  12. Tests of the hypothesized mediation effect Mediator M a b • The estimate of the indirect effect, ab, is based on the sample • To infer that a non-zero αβexists in the population, a test of the statistical significance of ab is needed • Several approaches have been suggested and differ in their ability to “see” a true effect (power) Treatment T Outcome Y c’

  13. Tests of the hypothesized mediation effect • Causal steps approach (Baron & Kenny) • Test of joint significance • z test of ab(with normal theory confidence interval) • Asymmetric confidence interval (Empirical M or distribution of the product) • Bootstrap resampling

  14. Causal steps approach • Step 1: test the effect of T on Y (path c) c Treatment Outcome • Step 2: test the effect of T on M (path a) Mediator a Treatment

  15. Causal steps approach • Step 3: test the effect of M on Y, controlling for T (path b) Mediator b Treatment Outcome c’ • Step 4: to decide on partial or complete mediation, test the effect of T on Y, controlling for M (path c’)

  16. Causal steps approach: performance • Step 1 may be non-significant when true mediation exists Mediator FdF +2 +3 What if… Treatment T Outcome Dep -6 Mediator FdF +2 +3 or… Treatment T Outcome Dep +3 -2 Mediator SS

  17. Causal steps approach: performance • Lacks power • Power is a function of the product of the power to test each of the three paths • Power discrepancy worsens for smaller n and smaller effects • Lower Type I error rate than expected • i.e., too conservative

  18. Test of joint significance • Very similar to causal steps approach Mediator a b Treatment Outcome c’ • 1st: test the effect of T on M (path a) • 2nd: test the effect of M on Y, controlling for T (path b) • If both significant, then infer significant mediation

  19. Test of joint significance: performance • Better power than causal steps approach • Type I error rate slightly lower than expected • Power nearly as good as newer methods in single- level models • Power lower than other methods in multilevel models • No confidence interval around the indirect effect is available

  20. z test of ab product • Calculate z = • Sobel’sseab= • Compare z test value to critical values from the standard normal distribution • Can also calculate confidence interval around ab CI =

  21. z test of ab product: performance • One of the least powerful approaches • Type I error rate much lower than expected .05. • Single-level models, it approaches the power of other methods when sample size are 500 or greater, or effect sizes are large • Multilevel models, it never reaches the levels of other models although it does get closer although still lower • Problem is that the ab product is not normally distributed, so critical values are inappropriate • How is the abproduct distributed?

  22. Sampled 1,000 a ~ N(0,1) and of b ~ N(0,1) Distribution of path a Distribution of path b Distribution of product of axb

  23. Empirical M-test (asymmetric CI) • Determines empirical (more leptokurtic) distribution of zof the abproduct (not assuming normality) • αβ=0: dist’n is leptokurtic and symmetric • αβ>0: dist’n is less leptokurtic and +ly skewed • αβ<0: dist’n is less leptokurtic and -ly skewed • Due to asymmetry, different upper and lower critical values needed to calculate asymmetric confidence intervals (CIs). • Meeker derived tables for various combinations of Za and Zbvalues (increments of 0.4) that could be used to calculate asymmetric CIs.

  24. Empirical M-test (asymmetric CI) MacKinnon et al created PRODCLIN that, given a, b, and their SEs, determines the distribution of ab and relevant critical values for calculating asymmetric CI. (MacKinnon & Fritz, 2007, 384-389). Confidence interval limits: If CI does not include zero, then significant

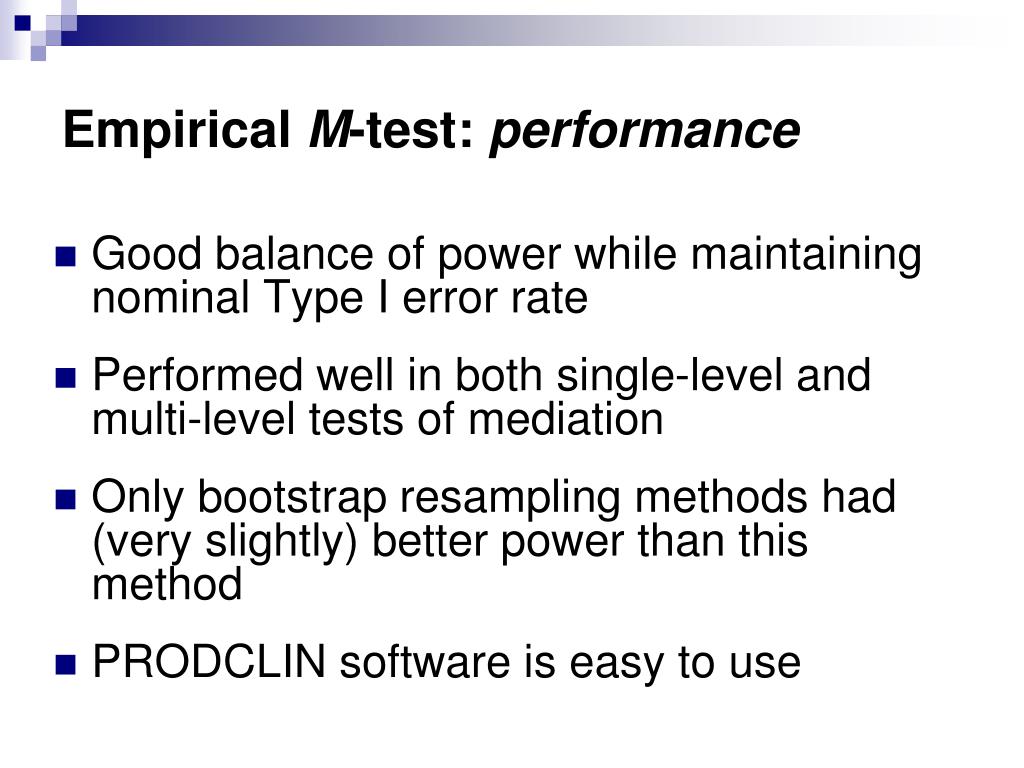

  25. Empirical M-test: performance • Good balance of power while maintaining nominal Type I error rate • Performed well in both single-level and multi-level tests of mediation • Only bootstrap resampling methods had (very slightly) better power than this method • PRODCLIN software is easy to use

  26. Bootstrap resampling methods • Determines empirical distribution of the ab product • Several variations • Parametric percentile • Non-parametric percentile • Bias-corrected versions of both • Can bootstrap cases or bootstrap residuals. • It is typical in multilevel designs to bootstrap residuals.

  27. Parametric percentile bootstrap • With original sample, run the analysis and obtain estimates of variance(s) of residuals • New residuals are then resampled from a distribution ~N(0,σ2) (thus, the “parametric”). • New values of M are created by using the fixed effects estimates from the original analysis, T and the resampled residual(s). • New values of Y are created using the fixed effects, and T and M values and residual(s). • Then, the analysis is run and the ab product is estimated

  28. Parametric percentile bootstrap • The process of resampling and estimating ab is repeated many times (commonly 1,000 times) • The ab estimates are then ordered • With 1,000 estimates, the 25th and the 975th are taken as the lower and upper limits of the 95% (empirically derived) CI. • Note that the CI limits may not be symmetric around the original ab estimate • If CI does not include zero, then significant mediation

  29. Non-parametric percentile bootstrap • The parametric bootstrap involves the assumption that the residuals are normally distributed • Instead, residuals can be resampled with replacement from the empirical distribution of actual residuals (saved from the original sample’s analysis) • The remaining process is the same as for the parametric version

  30. Bias-corrected bootstrap • With both the parametric and non-parametric bootstrap, the initial ab product may not be at the median of the bootstrap ab distribution • Thus, the initial ab estimate is biased • BC-bootstrap procedures “shift” the confidence interval to adjust for the difference in the initial estimate and the median

  31. Bootstrap resampling methods: performance • Resampling methods provide the most power and accurate Type I error rates of all methods • Parametric has best confidence interval coverage • BC-parametric had best power, especially with low effect sizes with normal and non-normally distributed residuals; Type I error rate was slightly high for multilevel analyses • Non-parametric had the most accurate Type I error rates; good overall power • BC Non-parametric had good power • But … complicated to program

  32.  Summary: tests of the hypothesized mediation effect • Causal steps approach • Test of joint significance • z test of ab • Empirical M • Bootstrap resampling  OK for single level…  Yes! Easy!  Yes! Not quite as easy… but does have the most power

  33. Example for today • Social-emotional curriculum = Tx • Child social competence = outcome • Randomly selected classrooms (one per school) • Why would Tx affect outcome? • Teacher attitude about importance? • Child understanding of others’ behaviors? • Puppet show down-time soothes child? • Researcher should think in advance of possible mediators to measure

  34. Mediation models for cluster randomized trials • Extend basic model to situations when treatment is administered at cluster level • Model depends on whether mediator is measured at cluster or individual level • Definition (Krull & MacKinnon, 2001) depends on level at which each variable is measured: T→ M →Y • Upper-level mediation [2→2→1] • Cross-level mediation [2→1→1] • Cross-level and upper-level mediation [2→(1 & 2) →1]

  35. Measured variable partitioning Cluster uoj • First, consider that any variable may be partitioned into individual level components and cluster level components Yij Individual rij Note: No intercepts depicted

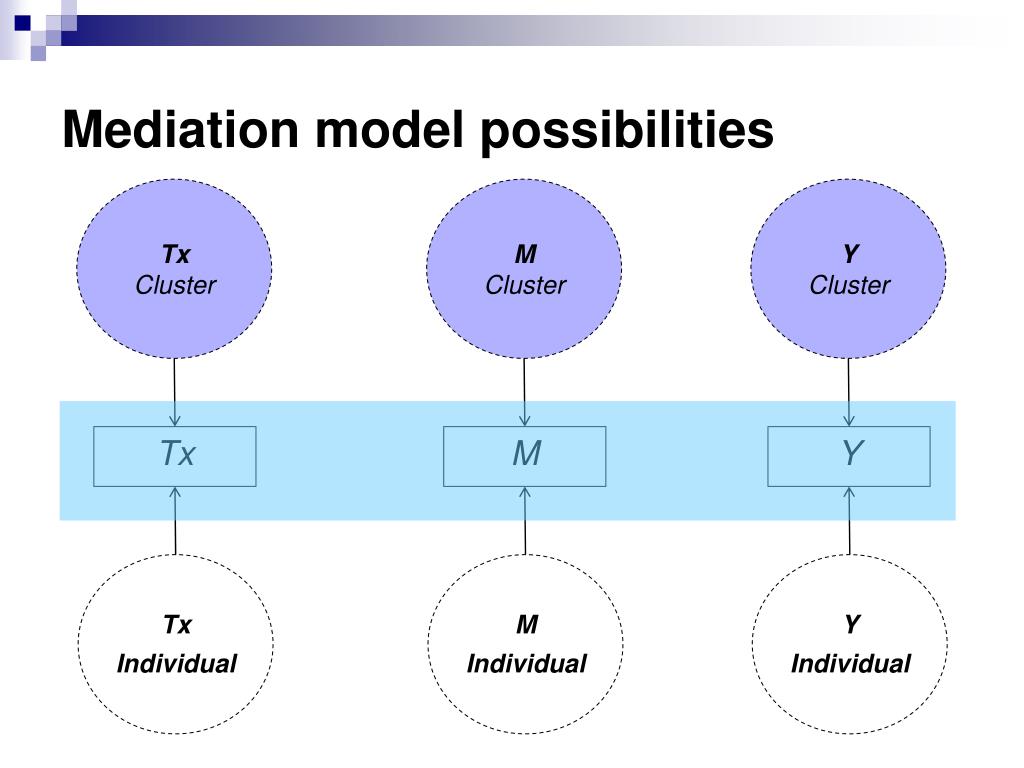

  36. Mediation model possibilities Tx Cluster M Cluster Y Cluster Tx M Y Tx Individual M Individual Y Individual

  37. Data Example Context • Cluster randomized trial (hierarchical design) • 14 preschools: ½ treatment, ½ control • 6 kids per school (/classroom) • Socio-emotional curriculum • Outcome is child social competence behavior • Possible mediators: teacher attitude about importance of including this kind of training in classroom, child socio-emotional knowledge • Sample data are on handout

  38. Total effect of treatment Before we examine mediation, let’s examine the total effect of treatment on the outcome… Tx Cluster Y Cluster 01 Tx Y Y Cluster

  39. Total effect of treatment: FEResults Final estimation of fixed effects: ---------------------------------------------------------------------------- Standard Approx. Fixed Effect Coefficient Error T-ratio d.f. P-value ---------------------------------------------------------------------------- For INTRCPT1, B0 INTRCPT2, G00 34.357143 1.029102 33.386 12 0.000 T, G01 4.238095 1.455370 2.912 12 0.014 ---------------------------------------------------------------------------- c

  40. Upper-level mediation model (2→2→1) M Cluster 01 ’01 Tx Cluster Y Cluster ’02 Tx M Y Y Cluster

  41. Upper-level mediation model: Results To estimate the a path, I ran an OLS regression in SPSS using the Level 2 file What is the estimate of a and its SE?

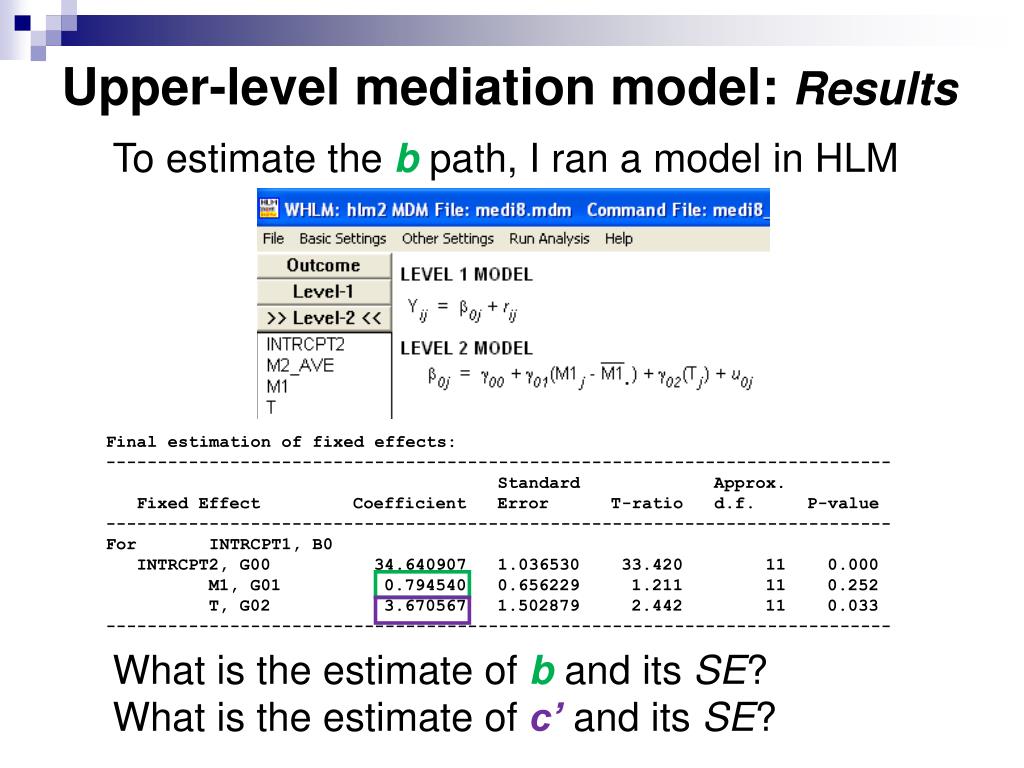

  42. Upper-level mediation model: Results To estimate the b path, I ran a model in HLM Final estimation of fixed effects: ---------------------------------------------------------------------------- Standard Approx. Fixed Effect Coefficient Error T-ratio d.f. P-value ---------------------------------------------------------------------------- For INTRCPT1, B0 INTRCPT2, G00 34.640907 1.036530 33.420 11 0.000 M1, G01 0.794540 0.656229 1.211 11 0.252 T, G02 3.670567 1.502879 2.442 11 0.033 ---------------------------------------------------------------------------- What is the estimate of b and its SE? What is the estimate of c’ and its SE?

  43. Upper-level mediation model: Results M Cluster .714 .795 Tx Cluster Y Cluster 3.671 Tx M Y Y Cluster • Direct effect = 3.671 • Indirect effect = (.714)(.795) = .568 • Total effect = DE + IE = 3.671 + .568 = 4.239

  44. Upper-level mediation model: Results • Causal steps approach • Test of joint significance • z test of ab product • Empirical-M test • BC parametric bootstrap Step 1 significant, but not Steps 2 and 3 No. Neither path a nor path bare significant No. se=.68, z=.83, p=.41 95% CI = -.78 to 1.91 No. No. 95% CI = -.47 to 2.26 No. 95% CI= -.42 to 3.68

  45. Upper-level mediation model: Results • PRODCLINhttp://www.public.asu.edu/~davidpm/ripl/ Prodclin/

  46. Cross-level mediation model (2→1→1) Model A Model B Mediator CLUSTER γ01 Treatment CLUSTER Treatment CLUSTER Outcome CLUSTER γ’01 Mediator Mediator Treatment Treatment Outcome Mediator INDIVIDUAL Mediator INDIVIDUAL γ’10 Outcome INDIVIDUAL

  47. Cross-level mediation model: Results To estimate the a path: Final estimation of fixed effects: ---------------------------------------------------------------------------- Standard Approx. Fixed Effect Coefficient Error T-ratio d.f. P-value ---------------------------------------------------------------------------- For INTRCPT1, B0 INTRCPT2, G00 39.309524 0.845210 46.509 12 0.000 T, G01 2.642857 1.195308 2.211 12 0.047 ---------------------------------------------------------------------------- What is a and its SE?

  48. Cross-level mediation model: Results To estimate the b path: Final estimation of fixed effects: ---------------------------------------------------------------------------- Standard Approx. Fixed Effect Coefficient Error T-ratio d.f. P-value ---------------------------------------------------------------------------- For INTRCPT1, B0 INTRCPT2, G00 35.138955 0.941637 37.317 12 0.000 T, G01 2.674528 1.358185 1.969 12 0.072 For M2_GRAND slope, B1 INTRCPT2, G10 0.591620 0.142895 4.140 81 0.000 ---------------------------------------------------------------------------- What is b and its SE? And for c’?

  49. Cross-level mediation model: Results Model A Model B Mediator CLUSTER 2.643 Treatment CLUSTER Treatment CLUSTER Outcome CLUSTER 2.675 Mediator Mediator Treatment Treatment Outcome Mediator INDIVIDUAL Mediator INDIVIDUAL .592 Outcome INDIVIDUAL • Direct effect = 2.675 • Indirect effect = (2.643)(.592) = 1.564 • Total effect = 2.675 + 1.564 = 4.239

  50. Cross-level mediation model: Results • Causal steps approach • Test of joint significance • z test of ab product • Empirical-M test • BC parametric bootstrap Yes Steps 1, 2 and 3 significant Yes Paths a and bsignificant se=.802, z=1.95, p=.051 95% CI = -.01 to 3.13 No Yes 95% CI = .19 to 3.32 95% CI = .31 to 3.57 Yes
