Section 10-2 Area of Trapezoids, Rhombus, Kites

rasha avatar
rasha
9 diapositives · 307 Views · Jul 26, 2014

Section 10-2 Area of Trapezoids, Rhombus, Kites. Objectives: find area of trapezoids, rhombus, and kites. Kite. Rhombus. Trapezoid. Area and Perimeter of a Trapezoid. Trapezoid. A = ½ h(b 1 + b 2 ). Height: the perpendicular distance h between the bases.

#section 10-2 area of trapezoids, rhombus, kites #section 10-2 area of trapezoids, rhombus, kites ppt #powerpoint #presentation
Section 10-2 Area of Trapezoids, Rhombus, Kites - slide 1
01 / 9Section 10-2 Area of Trapezoids, Rhombus, Kites
1 / 17

Télécharger la présentation

Section 10-2 Area of Trapezoids, Rhombus, Kites
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

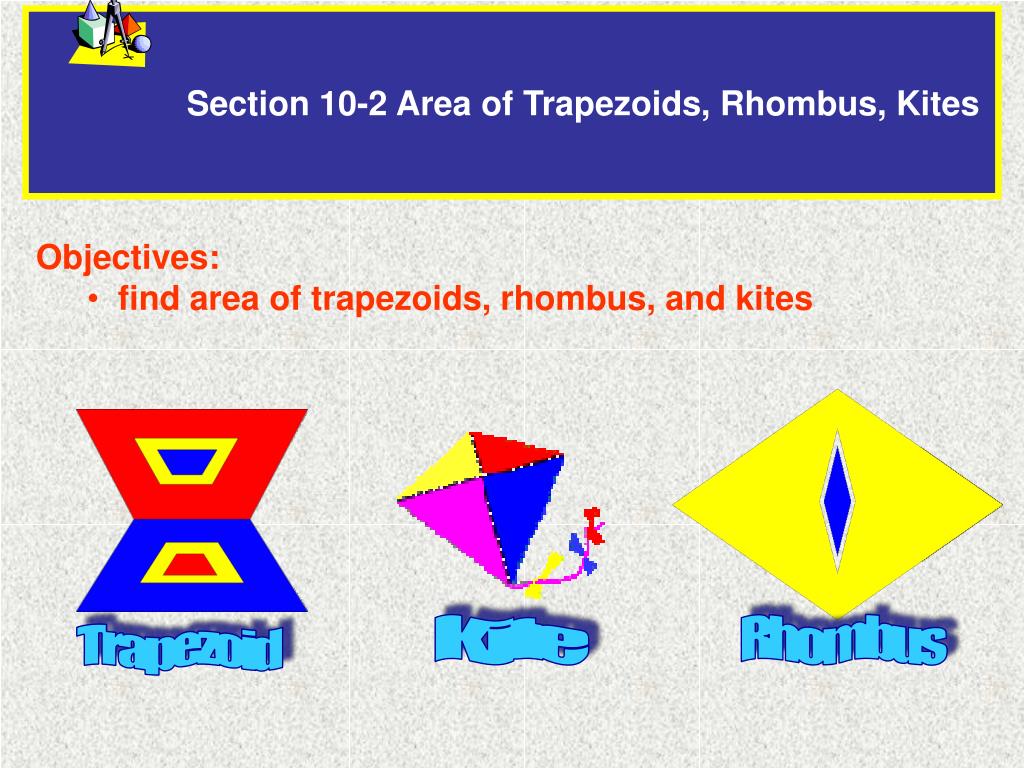

  1. Section 10-2 Area of Trapezoids, Rhombus, Kites • Objectives: • find area of trapezoids, rhombus, and kites Kite Rhombus Trapezoid

  2. Area and Perimeter of a Trapezoid Trapezoid A = ½ h(b1 + b2) • Height: • the perpendicular distance h between the bases. • To find Perimeter: • add the lengths of the sides • may need to use • Pythagorean Thm • 30-60-90 Triangle Thm • 45-45-90 Triangle Thm

  3. 1 2 A = h(b1 + b2) Area of a trapezoid 1 2 A = (18)(20 + 36) Substitute 18 for h, 20 for b1, and 36 for b2. Find the Area of a Trapezoid A car window is shaped like the trapezoid shown. Find the area of the window. A = 504 Simplify. The area of the car window is 504 in.2

  4. Find the Area of a Trapezoid Find the area of trapezoid ABCD. Draw an altitude from vertex B to DC that divides trapezoid ABCD into a rectangle and a right triangle. Because opposite sides of rectangle ABXD are congruent, DX = 11 ft XC = 16 ft – 11 ft = 5 ft.

  5. 1 2 A = h(b1 + b2) Use the trapezoid area formula. 1 2 A = (12)(11 + 16) Substitute 12 for h, 11 for b1, and 16 for b2. (continued) By the Pythagorean Theorem, BX2 + XC2 = BC2, so BX2 = 132 – 52 = 144. Taking the square root, BX = 12 ft. A = 162 Simplify. The area of trapezoid ABCD is 162 ft2.

  6. Area and Perimeter of a Rhombus or Kite Rhombus or Kite Area = ½ d1d2 d is the diagonal • To find Perimeter: • add the lengths of the sides

  7. Find the Area of a Kite Find the area of kite XYZW. Kite: 2 pairs of adjacent congruent sides. Opposite sides not congruent Find the lengths of the diagonals of kite XYZW. XZ = d1 = 3 + 3 = 6 and YW = d2 = 1 + 4 = 5 1 2 A = d1d2Use the formula for the area of a kite. 1 2 A = (6)(5) Substitute 6 for d1 and 5 for d2. A = 15 Simplify. The area of kite XYZW is 15 cm2.

  8. Find the Area of a Kite Find the area of rhombus RSTU. To find the area, you need to know the lengths of both diagonals. Draw diagonal SU, and label the intersection of the diagonals point X.

  9. SXT is a right triangle because the diagonals of a rhombus are perpendicular. 1 2 A = d1d2Area of a rhombus 1 2 A = (24)(10) Substitute 24 for d1 and 10 for d2. … continued The diagonals of a rhombus bisect each other, so TX = 12 ft. You can use the Pythagorean triple 5, 12, 13 or the Pythagorean Theorem to conclude that SX = 5 ft. SU = 10 ft because the diagonals of a rhombus bisect each other. A = 120 Simplify. The area of rhombus RSTU is 120 ft2.
