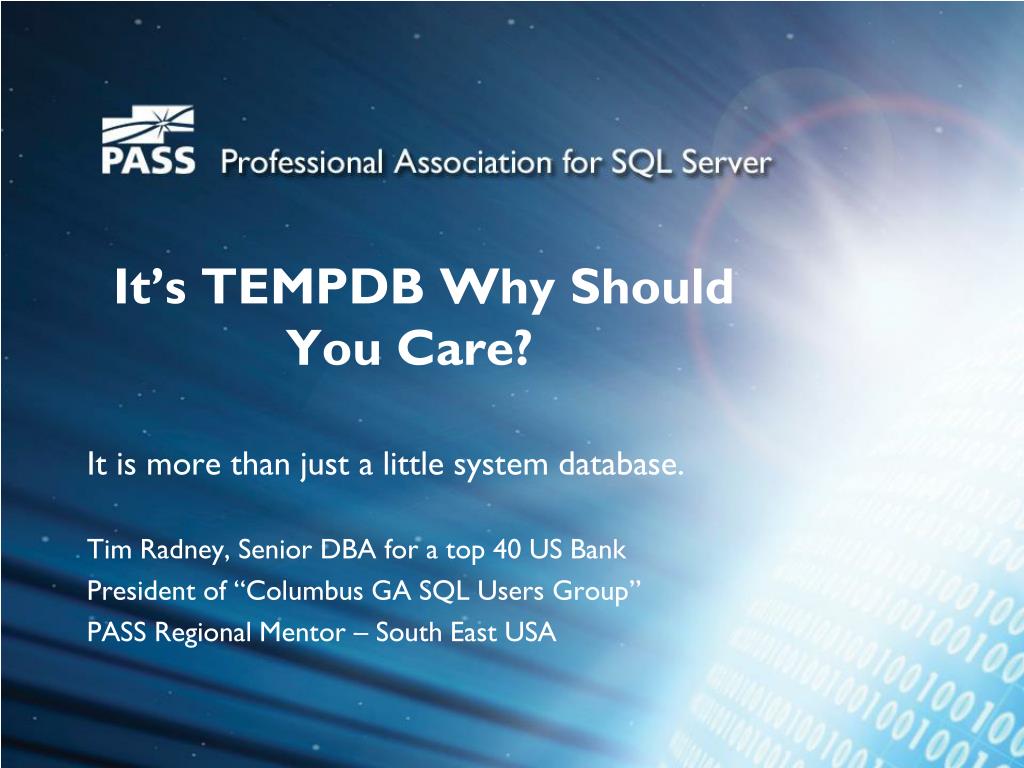

  1. It’s TEMPDB Why Should You Care? It is more than just a little system database. Tim Radney, Senior DBA for a top 40 US Bank President of “Columbus GA SQL Users Group” PASS Regional Mentor – South East USA

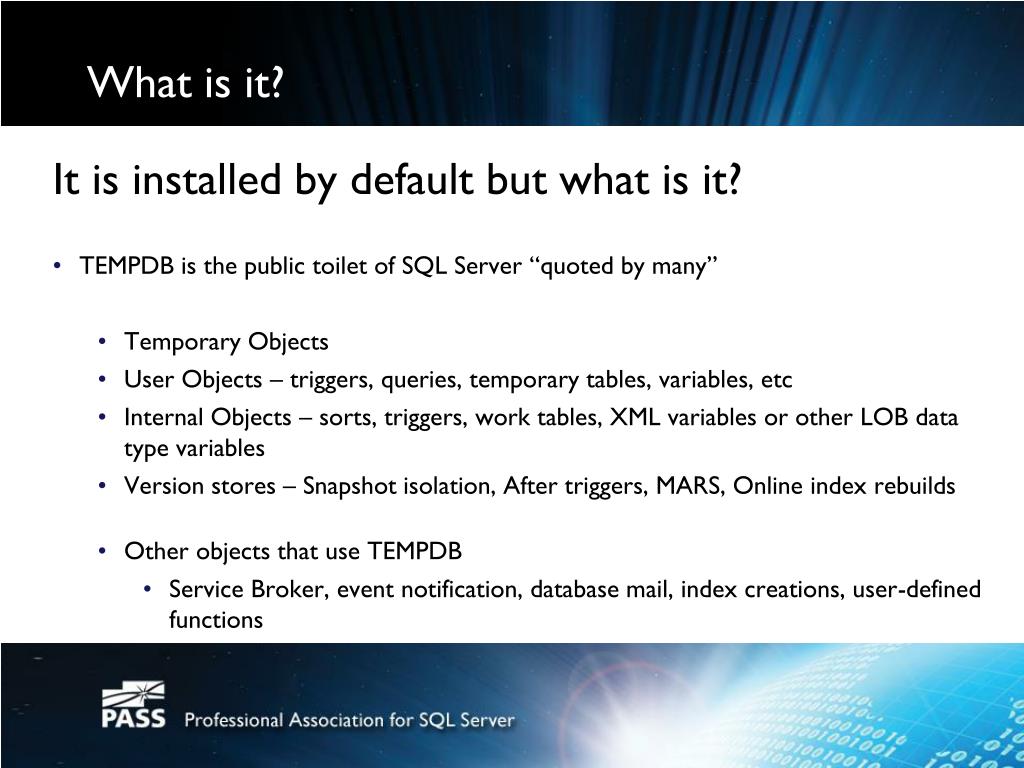

  2. What is it? It is installed by default but what is it? • TEMPDB is the public toilet of SQL Server “quoted by many” • Temporary Objects • User Objects – triggers, queries, temporary tables, variables, etc • Internal Objects – sorts, triggers, work tables, XML variables or other LOB data type variables • Version stores – Snapshot isolation, After triggers, MARS, Online index rebuilds • Other objects that use TEMPDB • Service Broker, event notification, database mail, index creations, user-defined functions

  3. Characteristics of TEMPDB What makes this guy unique? • It is recreated each time SQL Server is started • It is modeled after the Model database • If it has grown, it is reset to its default when recreated • Can not have user defined file groups created • Auto Shrink can not be used on TEMPDB (even though it is an option) • A database snapshot can not be created on TEMPDB • THERE IS ONLY ONE TEMPDB FOR THE ENTIRE INSTANCE!

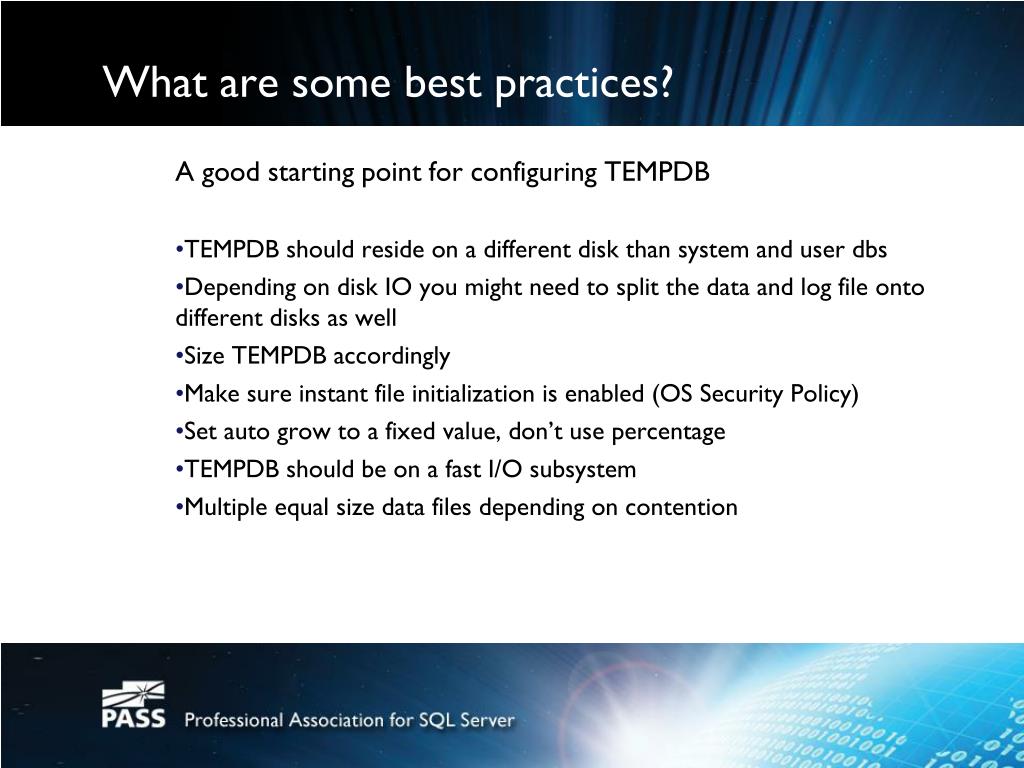

  4. What are some best practices? A good starting point for configuring TEMPDB • TEMPDB should reside on a different disk than system and user dbs • Depending on disk IO you might need to split the data and log file onto different disks as well • Size TEMPDB accordingly • Make sure instant file initialization is enabled (OS Security Policy) • Set auto grow to a fixed value, don’t use percentage • TEMPDB should be on a fast I/O subsystem • Multiple equal size data files depending on contention

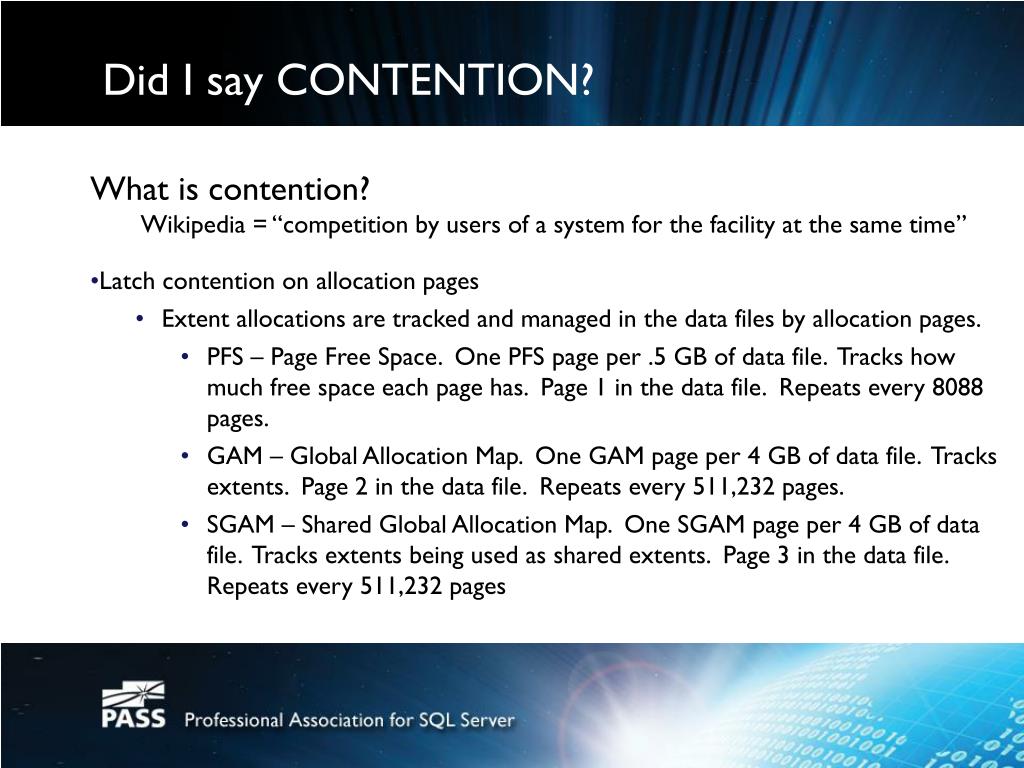

  5. Did I say CONTENTION? What is contention? Wikipedia = “competition by users of a system for the facility at the same time” • Latch contention on allocation pages • Extent allocations are tracked and managed in the data files by allocation pages. • PFS – Page Free Space. One PFS page per .5 GB of data file. Tracks how much free space each page has. Page 1 in the data file. Repeats every 8088 pages. • GAM – Global Allocation Map. One GAM page per 4 GB of data file. Tracks extents. Page 2 in the data file. Repeats every 511,232 pages. • SGAM – Shared Global Allocation Map. One SGAM page per 4 GB of data file. Tracks extents being used as shared extents. Page 3 in the data file. Repeats every 511,232 pages

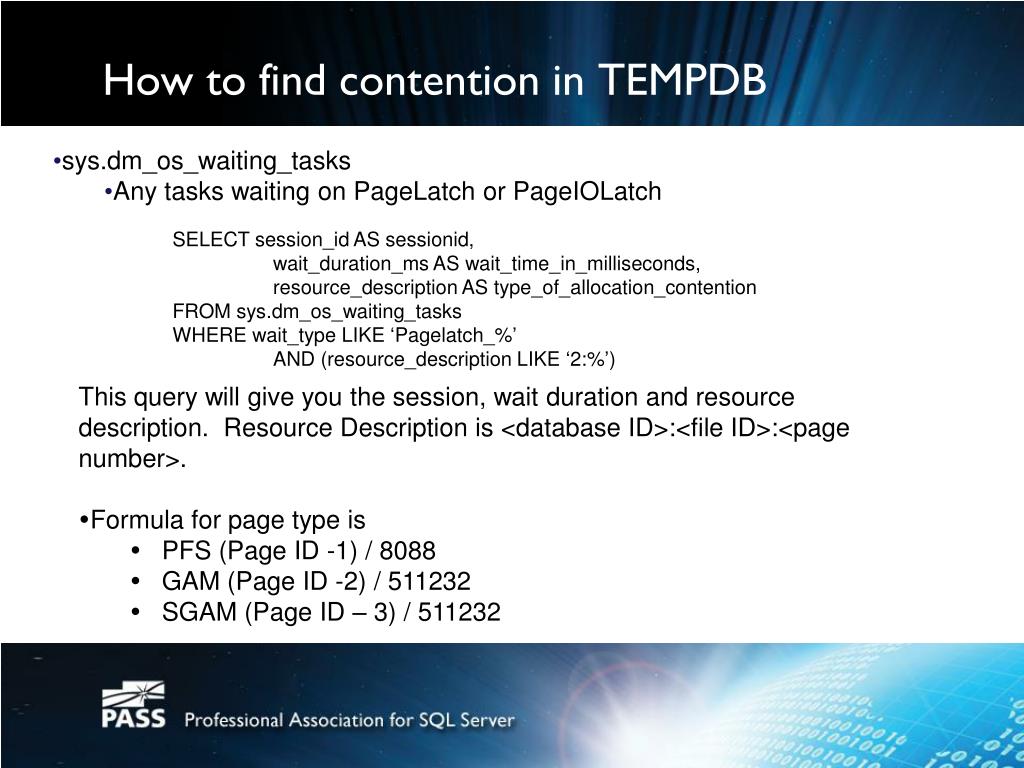

  6. How to find contention in TEMPDB • sys.dm_os_waiting_tasks • Any tasks waiting on PageLatch or PageIOLatch SELECT session_id AS sessionid, wait_duration_ms AS wait_time_in_milliseconds, resource_description AS type_of_allocation_contention FROM sys.dm_os_waiting_tasks WHERE wait_type LIKE ‘Pagelatch_%’ AND (resource_description LIKE ‘2:%’), • This query will give you the session, wait duration and resource description. Resource Description is <database ID>:<file ID>:<page number>. • Formula for page type is • PFS (Page ID -1) / 8088 • GAM (Page ID -2) / 511232 • SGAM (Page ID – 3) / 511232

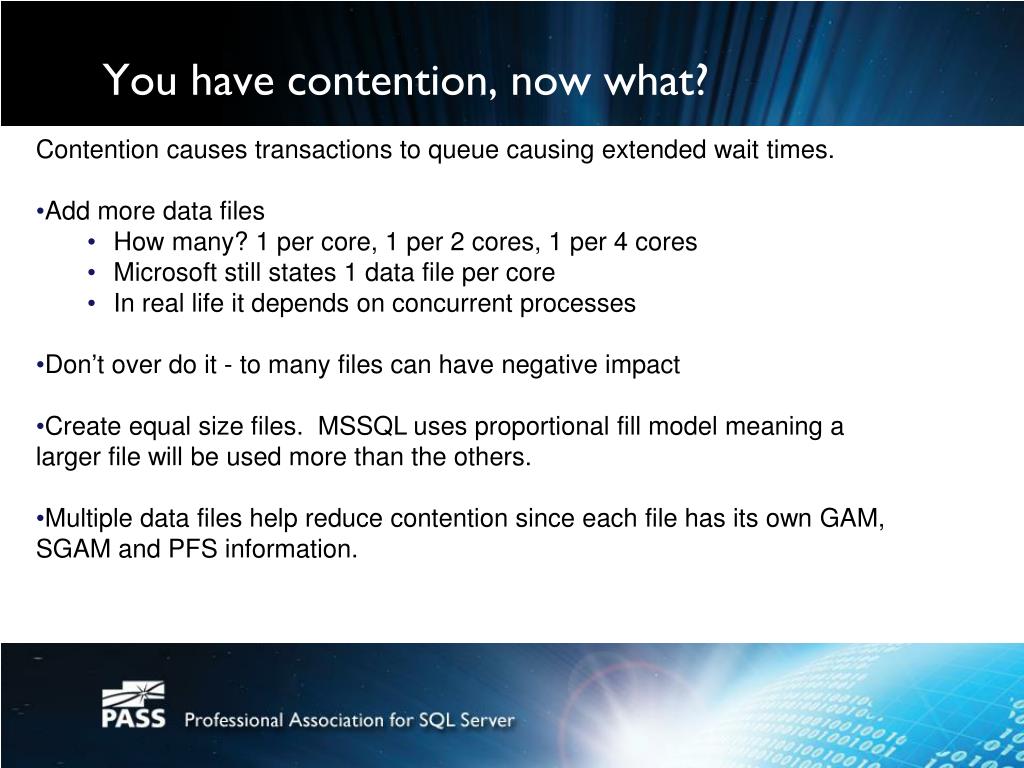

  7. You have contention, now what? • Contention causes transactions to queue causing extended wait times. • Add more data files • How many? 1 per core, 1 per 2 cores, 1 per 4 cores • Microsoft still states 1 data file per core • In real life it depends on concurrent processes • Don’t over do it - to many files can have negative impact • Create equal size files. MSSQL uses proportional fill model meaning a larger file will be used more than the others. • Multiple data files help reduce contention since each file has its own GAM, SGAM and PFS information. • database can lead to fragmentation.

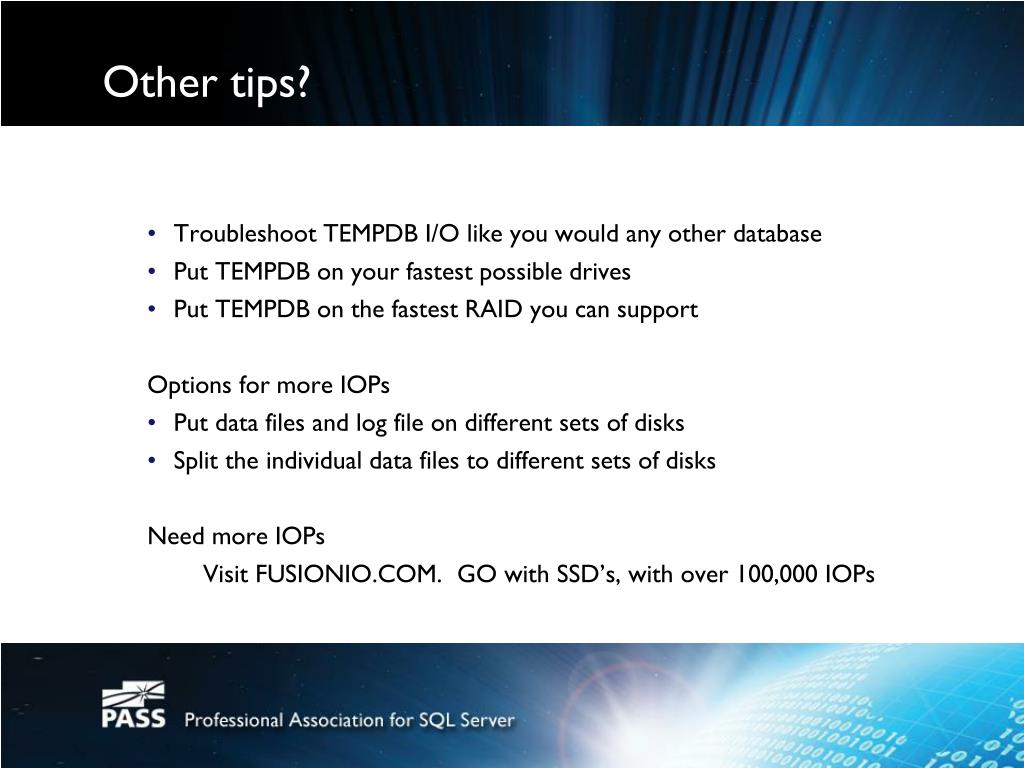

  8. Troubleshoot TEMPDB I/O like you would any other database Put TEMPDB on your fastest possible drives Put TEMPDB on the fastest RAID you can support Options for more IOPs Put data files and log file on different sets of disks Split the individual data files to different sets of disks Need more IOPs Visit FUSIONIO.COM. GO with SSD’s, with over 100,000 IOPs Other tips?

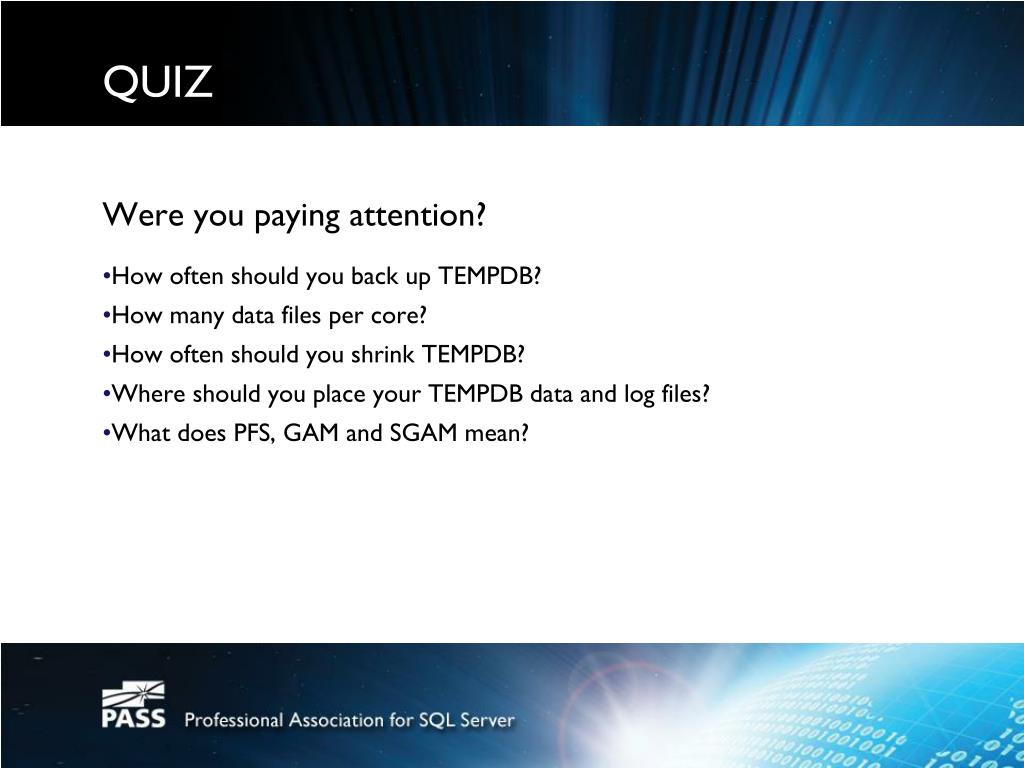

  9. QUIZ Were you paying attention? • How often should you back up TEMPDB? • How many data files per core? • How often should you shrink TEMPDB? • Where should you place your TEMPDB data and log files? • What does PFS, GAM and SGAM mean?

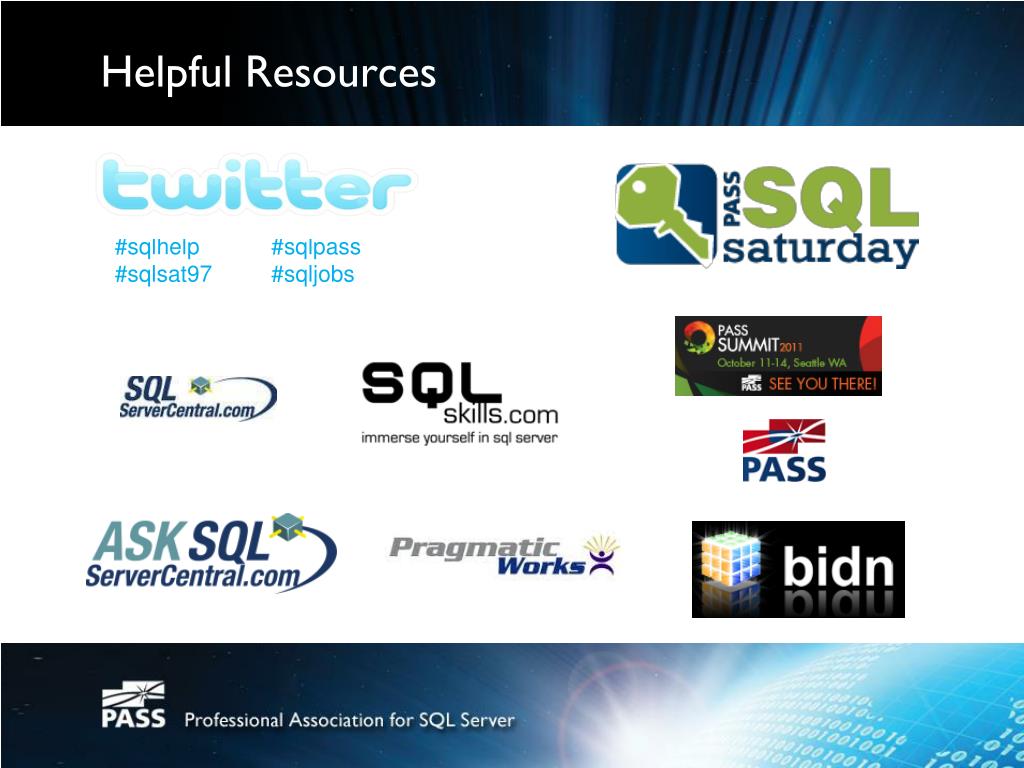

  10. Helpful Resources • #sqlhelp #sqlpass • #sqlsat97 #sqljobs

  11. How To Find Me • Blog • http://www.timradney.com • Twitter • http://www.twitter.com/tradney • LinkedIn • http://www.linkedin.com/in/tradney • Facebook • http://www.facebook.com/tradney • Email • Tim@timradney.com
