  1. Accelerator PhysicsTopic IIIPerturbations and Nonlinear Dynamics Joseph Bisognano Synchrotron Radiation Center University of Wisconsin J. J. Bisognano

  2. Chromaticity From form, it’s clear tune will depend on momentum J. J. Bisognano

  3. Sextupoles • A sextupole field can remove much of this Tune change J. J. Bisognano

  4. Natural Chromaticity J. J. Bisognano

  5. Dispersion to the Rescue We can move to orbit at energy offset by canonical transform J. J. Bisognano

  6. Chromaticity Correction Judicious choice of SD vs K’s can cancel chromaticity Price: NONLINEARITY J. J. Bisognano

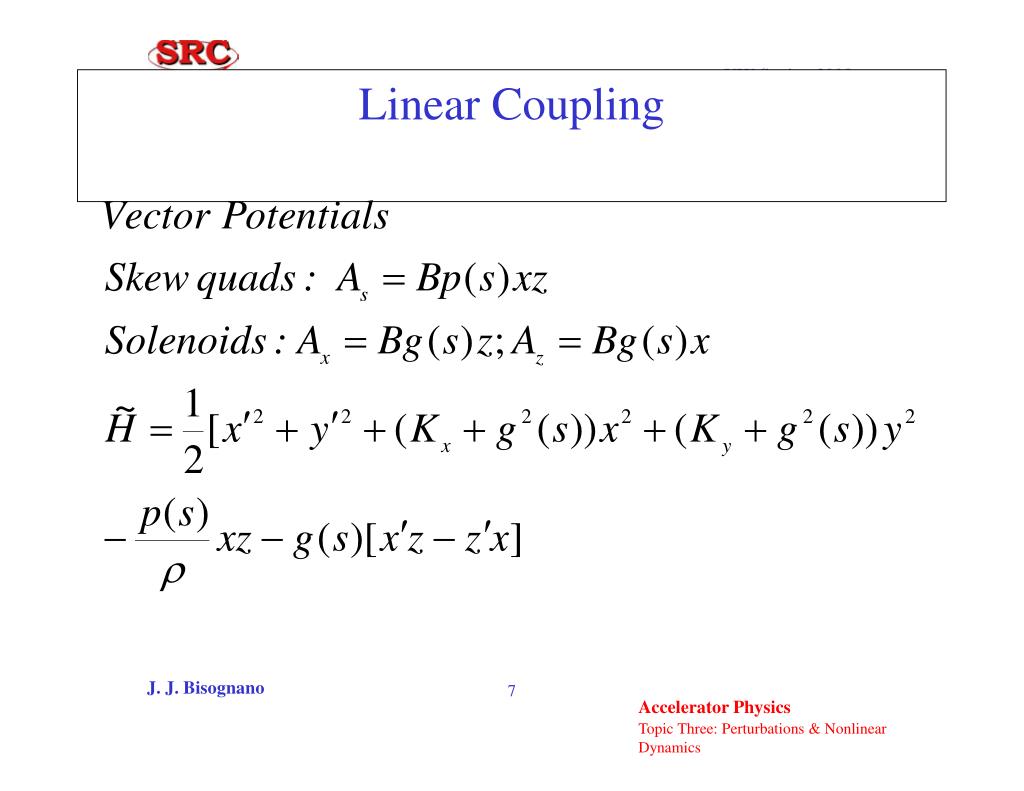

  7. Linear Coupling J. J. Bisognano

  8. Linear Coupling with Skew Quads See Wiedemann II J. J. Bisognano

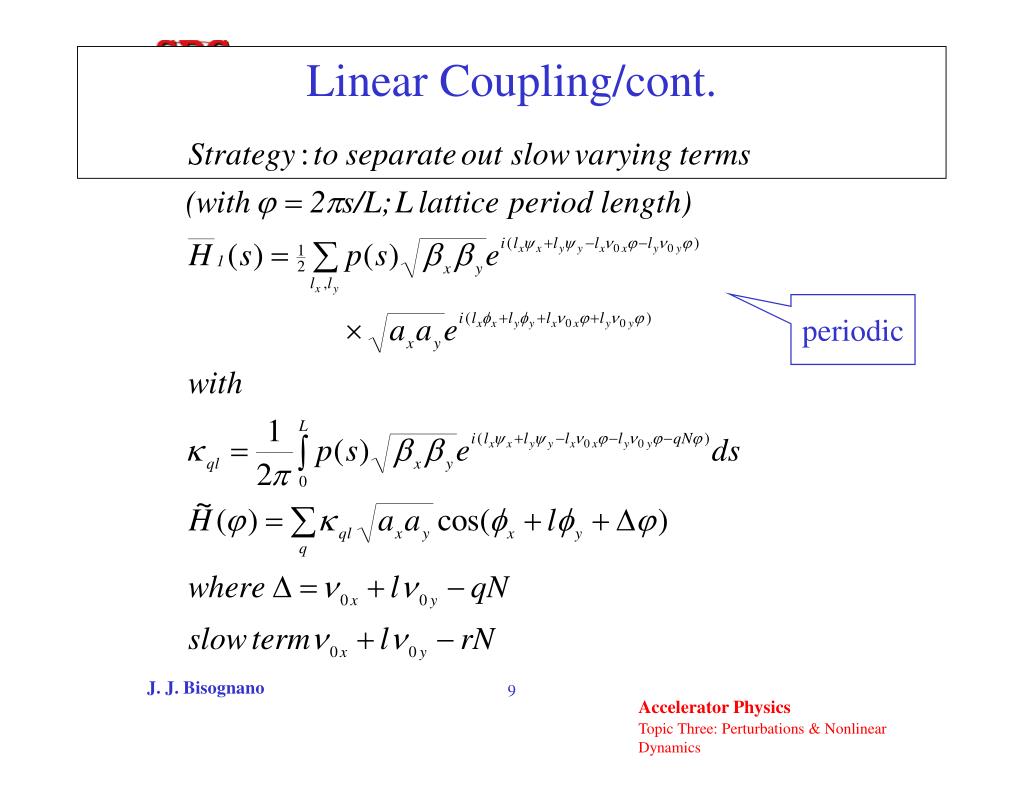

  9. Linear Coupling/cont. periodic J. J. Bisognano

  10. Linear Coupling/cont. J. J. Bisognano

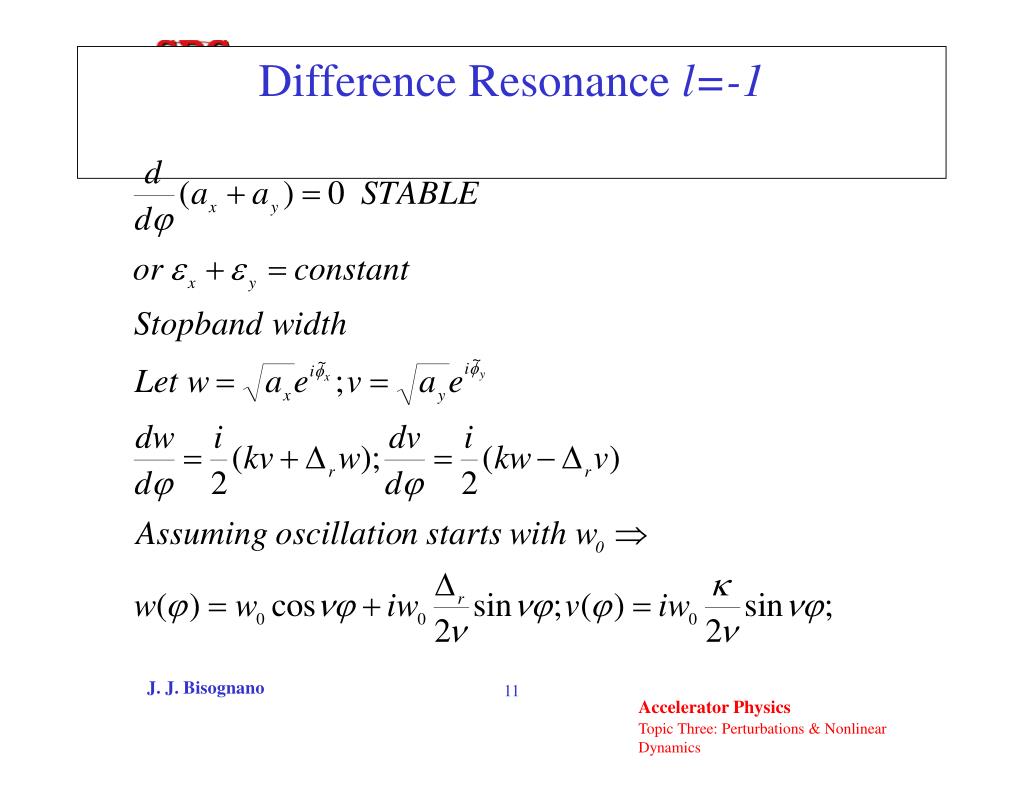

  11. Difference Resonance l=-1 J. J. Bisognano

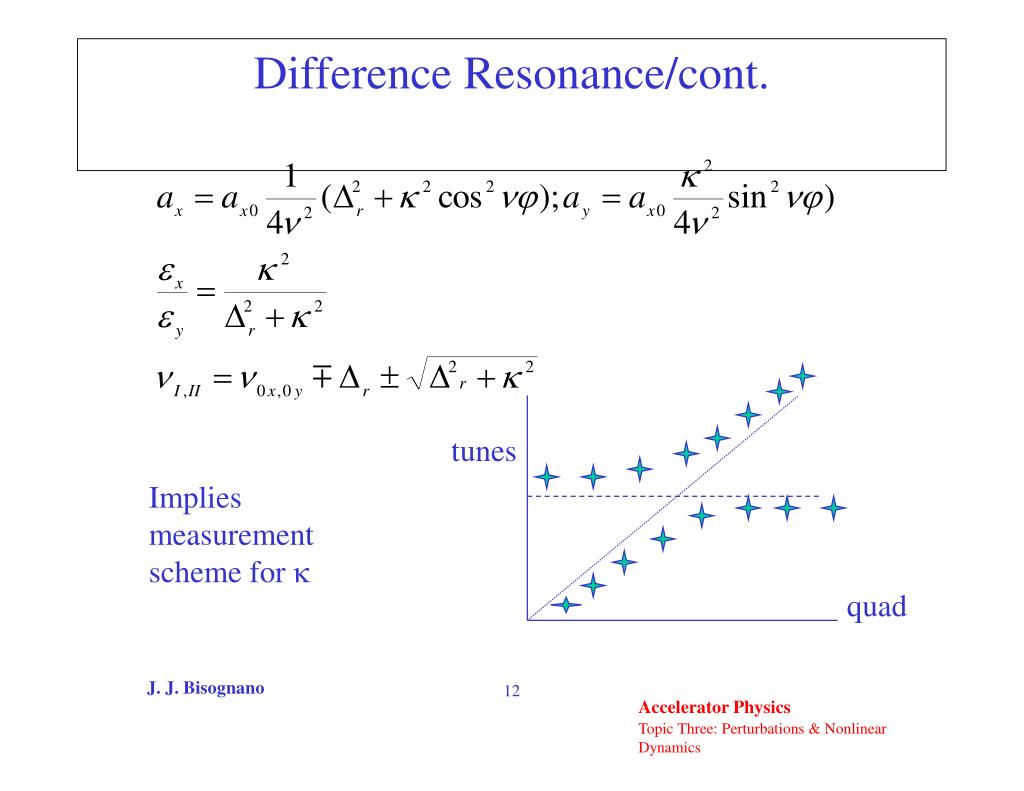

  12. Difference Resonance/cont. tunes Implies measurement scheme for  quad J. J. Bisognano

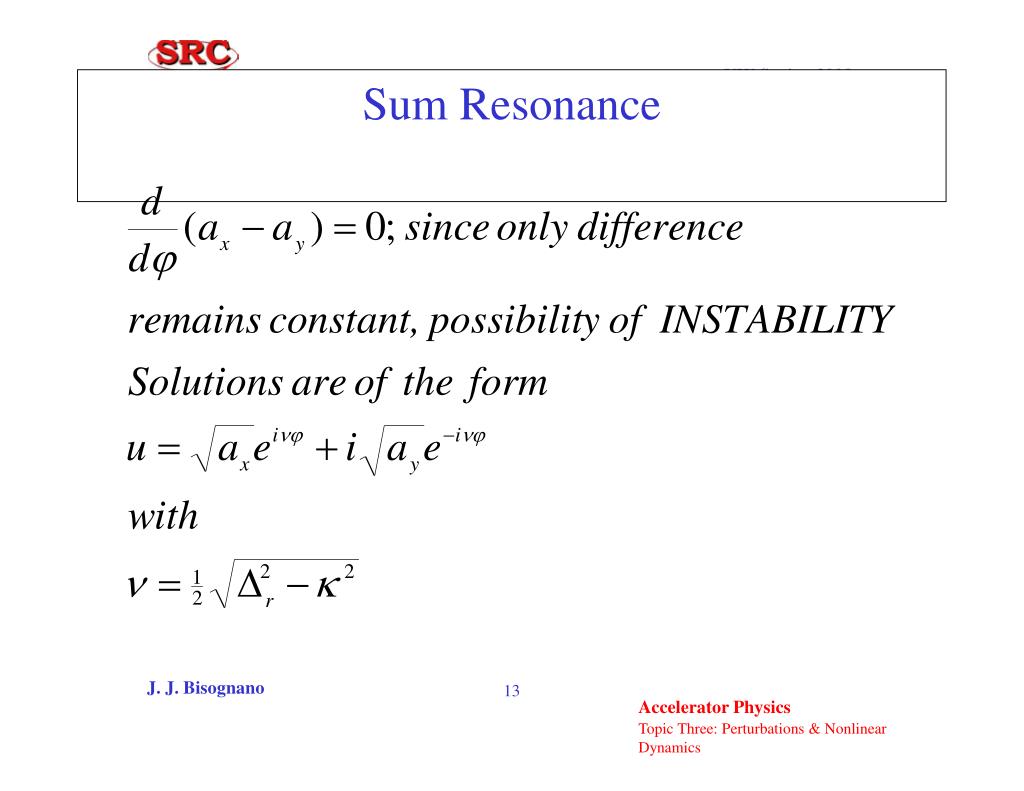

  13. Sum Resonance J. J. Bisognano

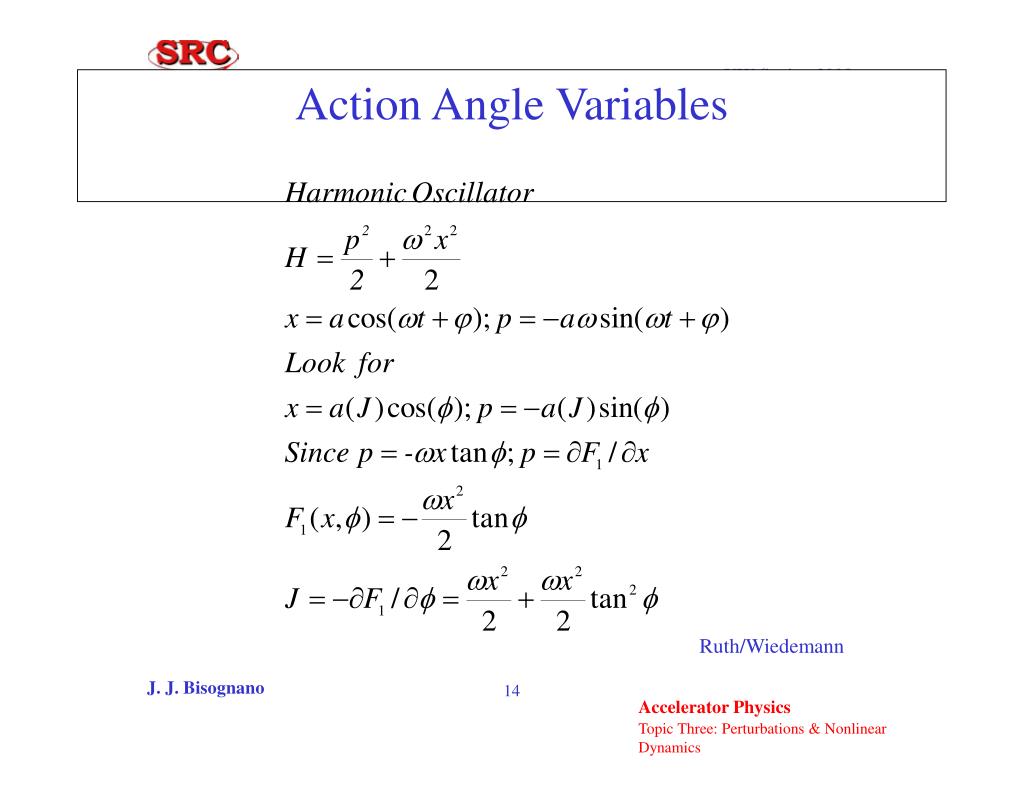

  14. Action Angle Variables Ruth/Wiedemann J. J. Bisognano

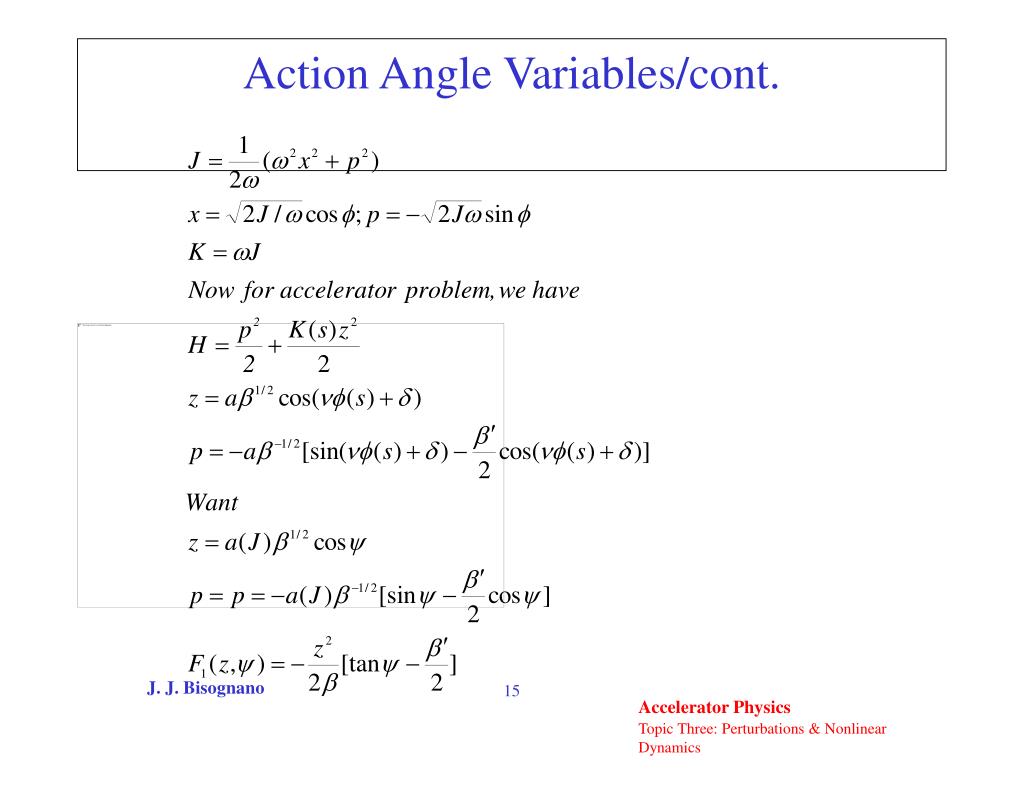

  15. Action Angle Variables/cont. J. J. Bisognano

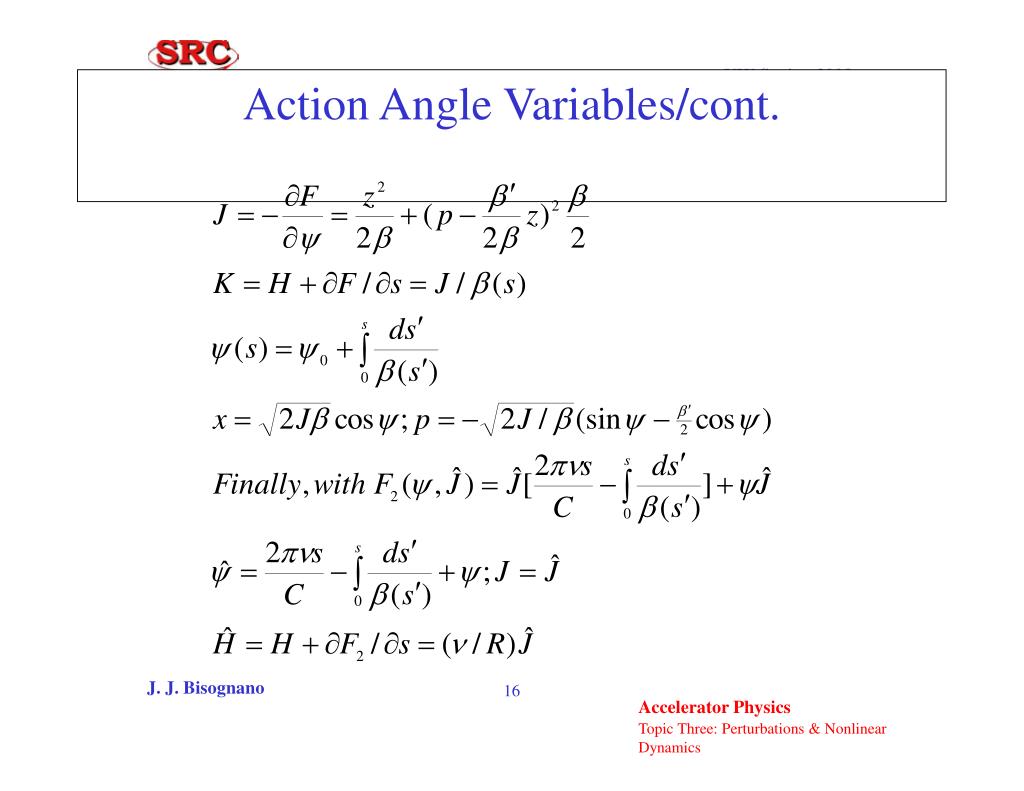

  16. Action Angle Variables/cont. J. J. Bisognano

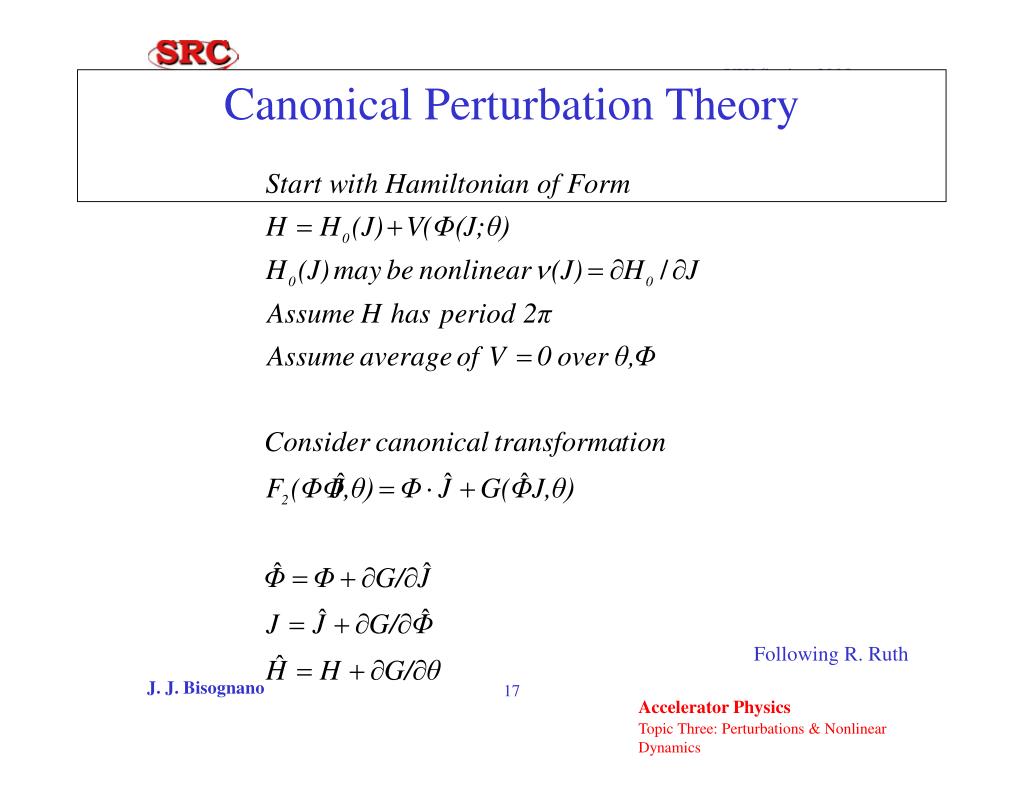

  17. Canonical Perturbation Theory Following R. Ruth J. J. Bisognano

  18. Canonical Perturbation Theory/cont. J. J. Bisognano

  19. Canonical Perturbation Theory/cont. J. J. Bisognano

  20. Canonical Perturbation Theory/cont. J. J. Bisognano

  21. Octopole J. J. Bisognano

  22. Isolated Resonance J. J. Bisognano

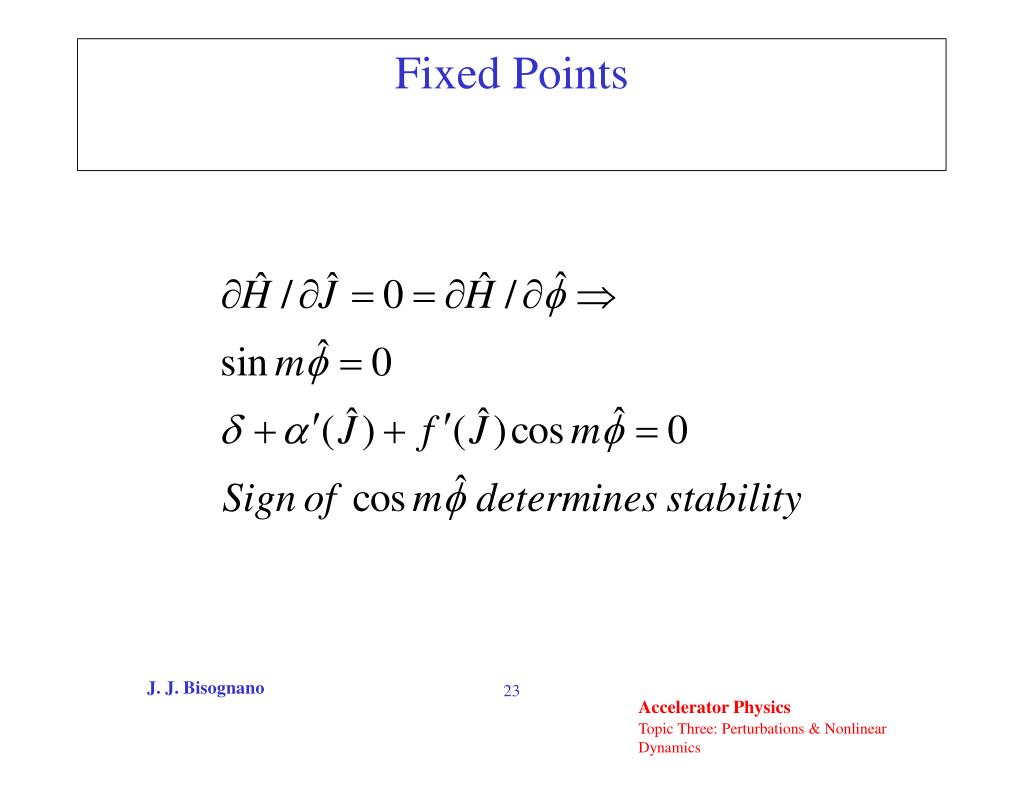

  23. Fixed Points J. J. Bisognano

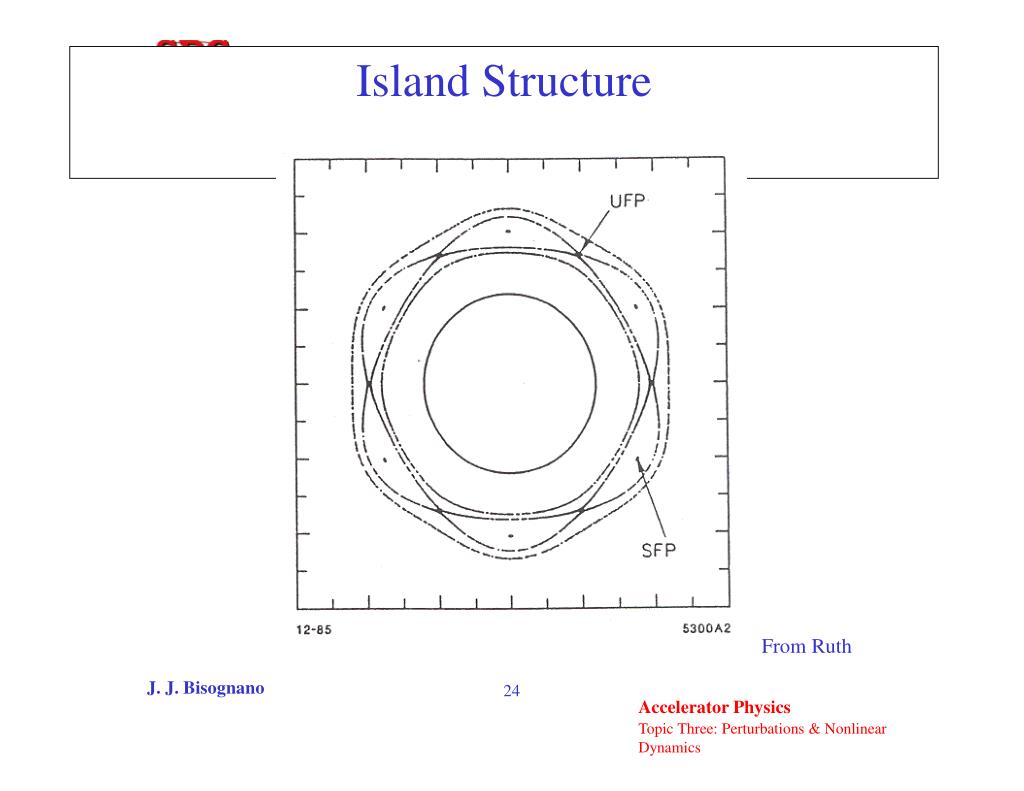

  24. Island Structure From Ruth J. J. Bisognano

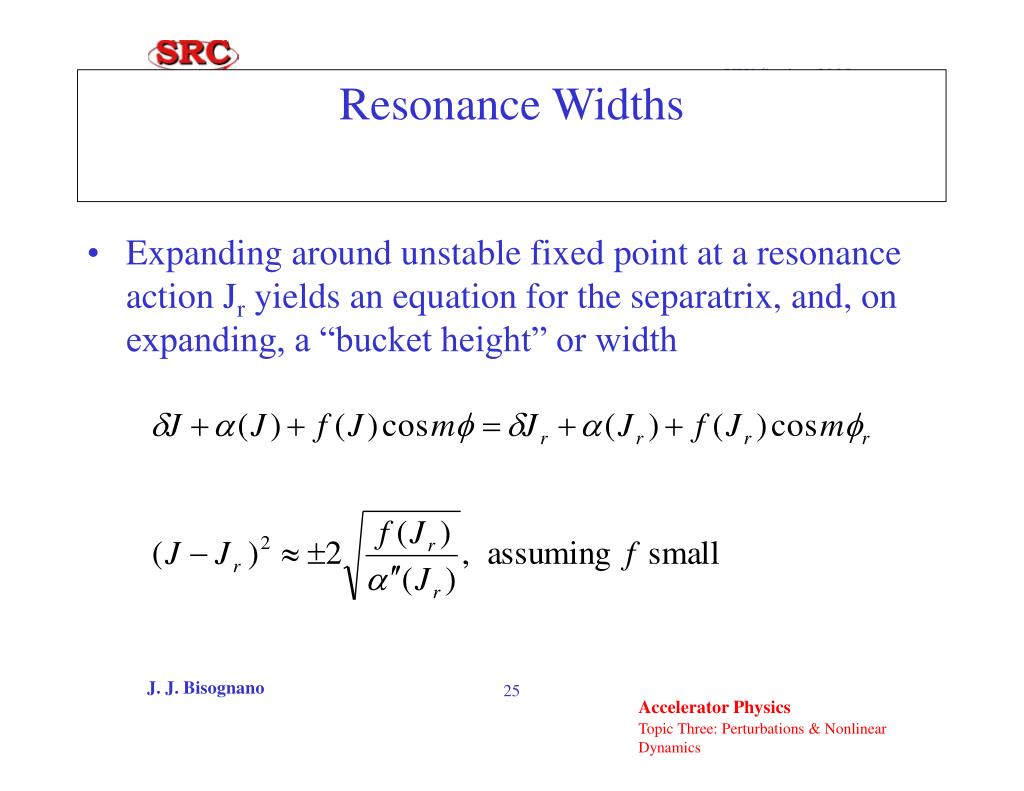

  25. Resonance Widths • Expanding around unstable fixed point at a resonance action Jr yields an equation for the separatrix, and, on expanding, a “bucket height” or width J. J. Bisognano

  26. Avoiding Low Order Resonances R Ruth J. J. Bisognano

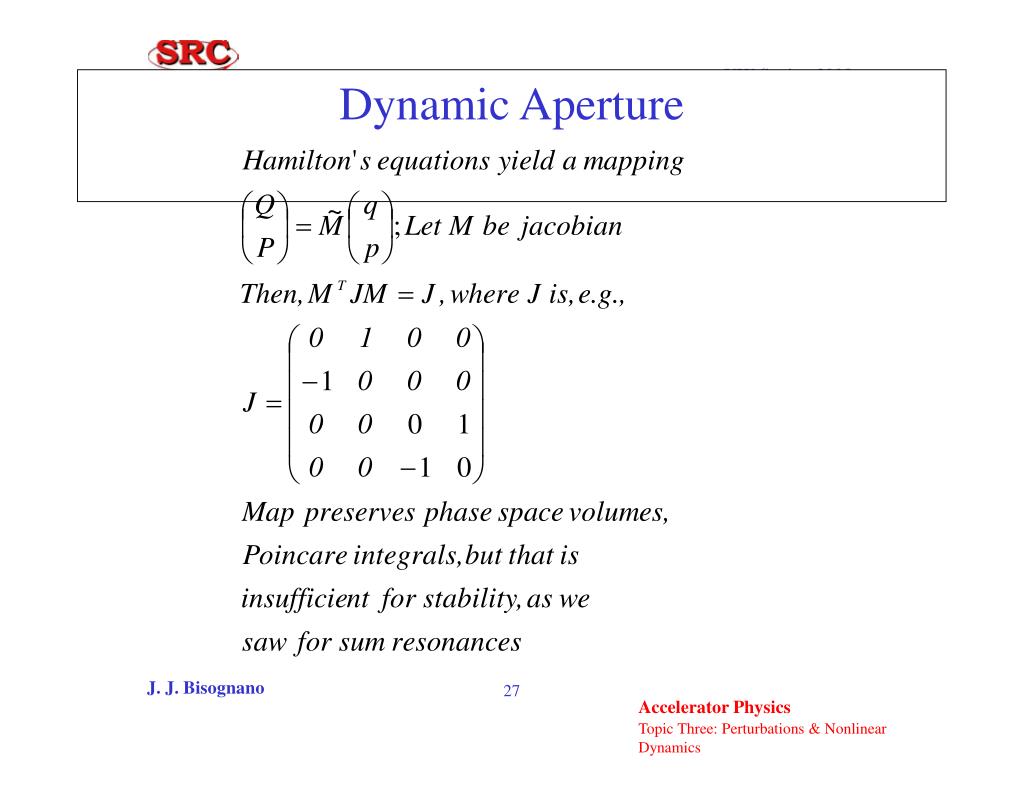

  27. Dynamic Aperture J. J. Bisognano

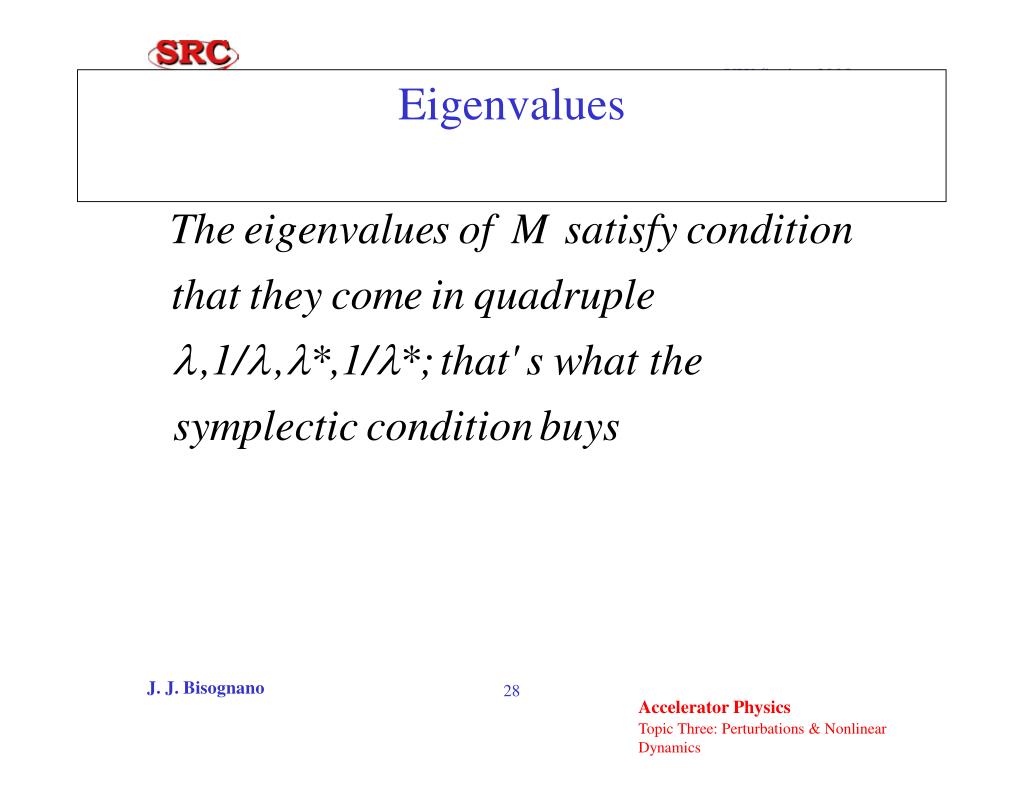

  28. Eigenvalues J. J. Bisognano

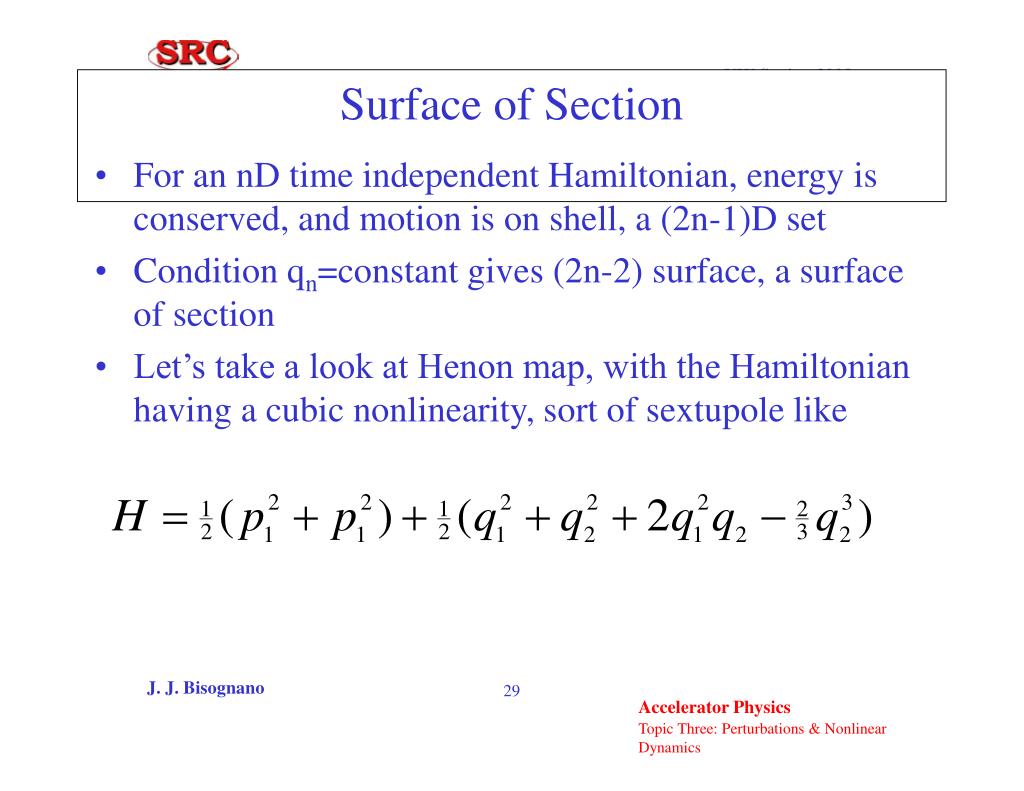

  29. For an nD time independent Hamiltonian, energy is conserved, and motion is on shell, a (2n-1)D set Condition qn=constant gives (2n-2) surface, a surface of section Let’s take a look at Henon map, with the Hamiltonian having a cubic nonlinearity, sort of sextupole like Surface of Section J. J. Bisognano

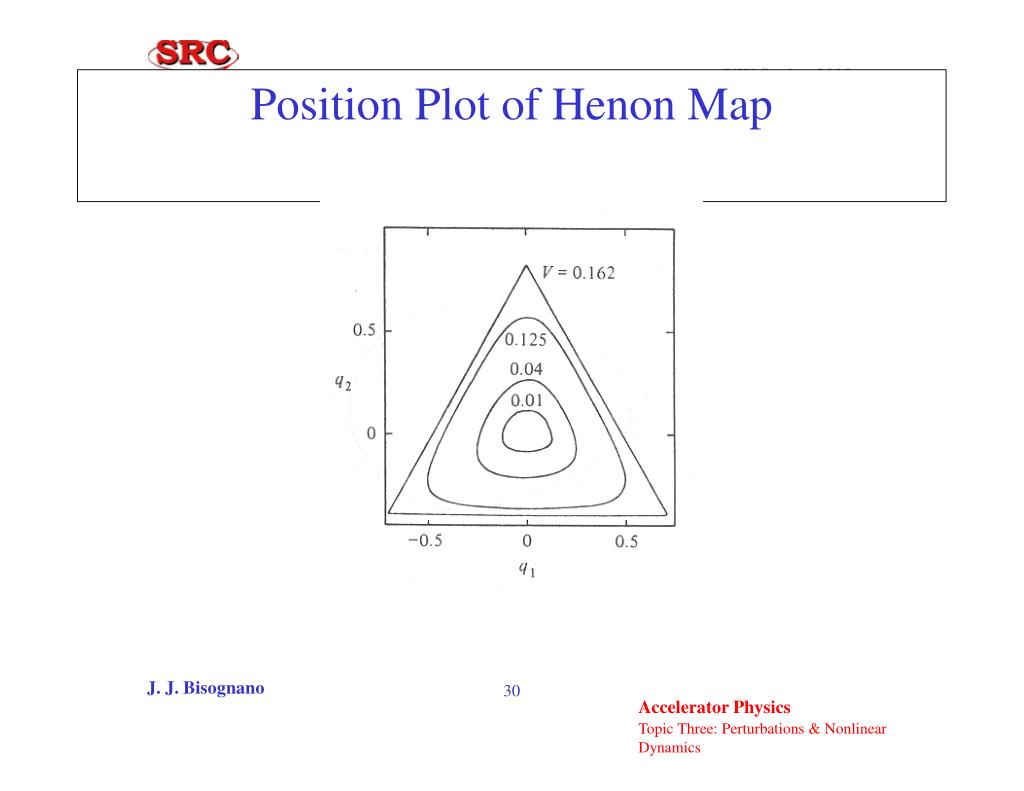

  30. Position Plot of Henon Map J. J. Bisognano

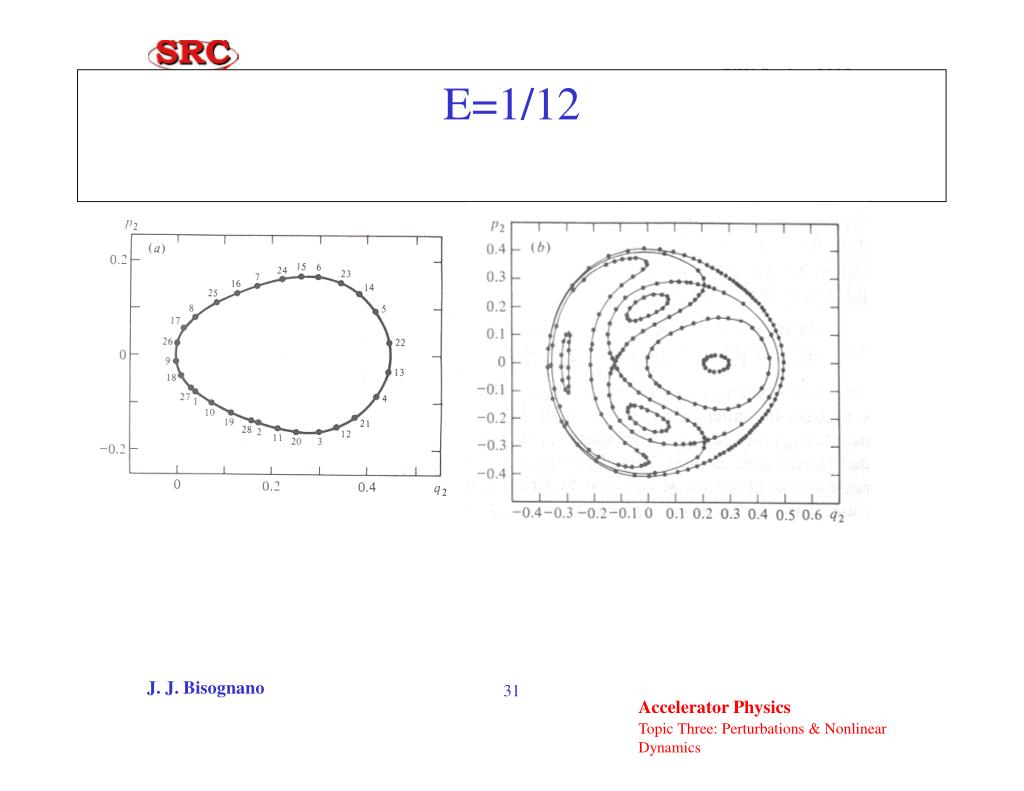

  31. E=1/12 J. J. Bisognano

  32. E=1/8 J. J. Bisognano

  33. E Almost 1/6 J. J. Bisognano

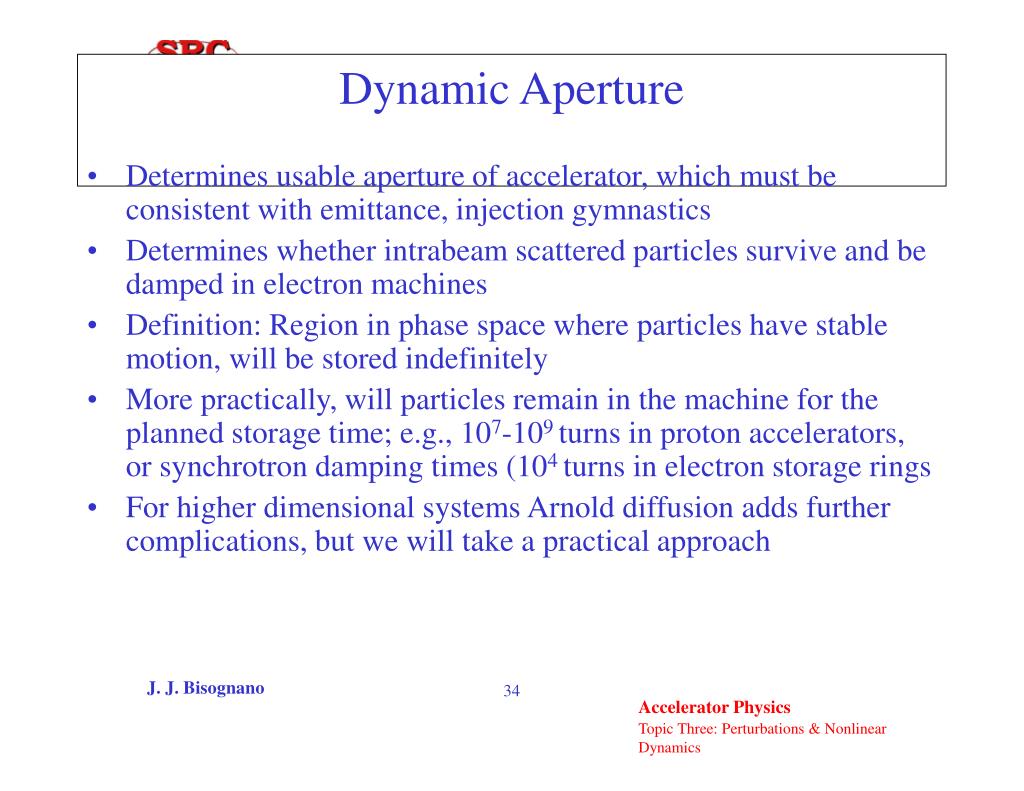

  34. Dynamic Aperture • Determines usable aperture of accelerator, which must be consistent with emittance, injection gymnastics • Determines whether intrabeam scattered particles survive and be damped in electron machines • Definition: Region in phase space where particles have stable motion, will be stored indefinitely • More practically, will particles remain in the machine for the planned storage time; e.g., 107-109 turns in proton accelerators, or synchrotron damping times (104 turns in electron storage rings • For higher dimensional systems Arnold diffusion adds further complications, but we will take a practical approach J. J. Bisognano

  35. Tools • Tracking (approximate computer mapping) is primary game • But tracking for “storage time” is still beyond computational limits, so some “numerically derived” criteria to extrapolate are essential • Since systems are “chaotic,” they are very sensitive to initial conditions and numerical error, so one has to be careful Scandale, et al. J. J. Bisognano

  36. Tracking Tools • Work-horse programs such as MAD, SIXTRACK use transfer maps for linear part of mapping, but “thin lens” approximation for nonlinearities. This maintains symplecticity of transforms • Extensions of transfer maps of finite length (or turn) for nonlinearities using differential algebra techniques with Taylor expansions, etc. used for “analysis.” • “Symplectification” is issue that limits initially perceived advantages of maps over element by element approach J. J. Bisognano

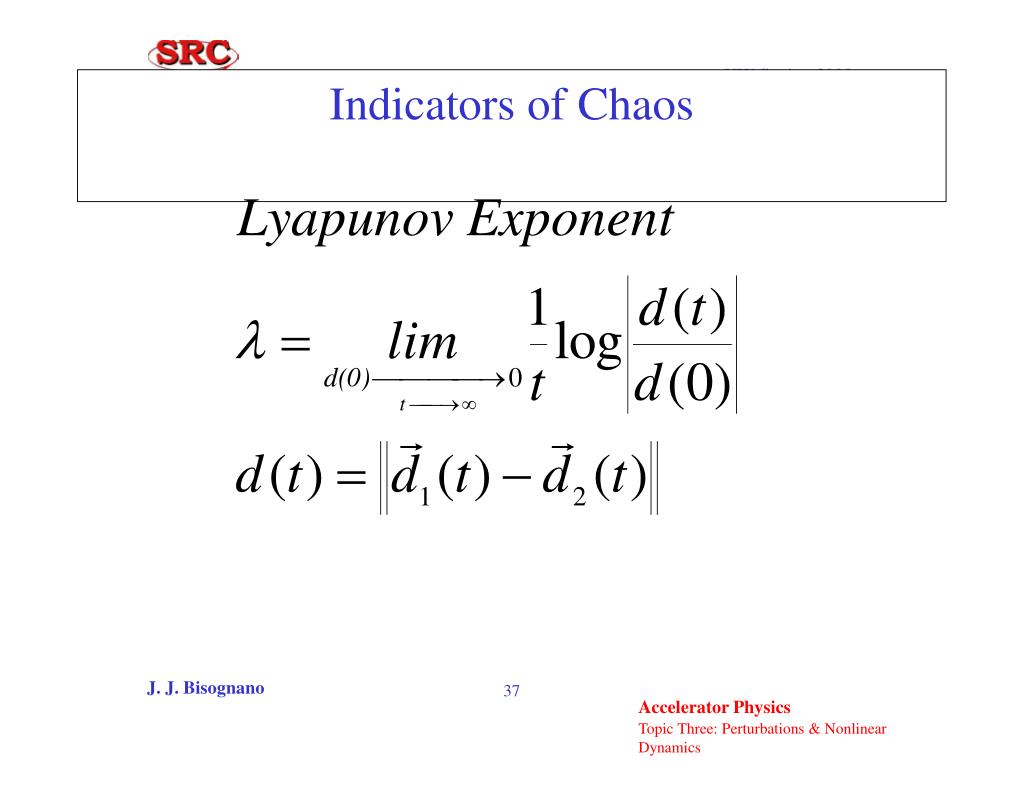

  37. Indicators of Chaos J. J. Bisognano

  38. Survival Plots • Plot maximum number of turns that survive as function of starting amplitude • Plots are interpolated with fitting on functional form J. J. Bisognano

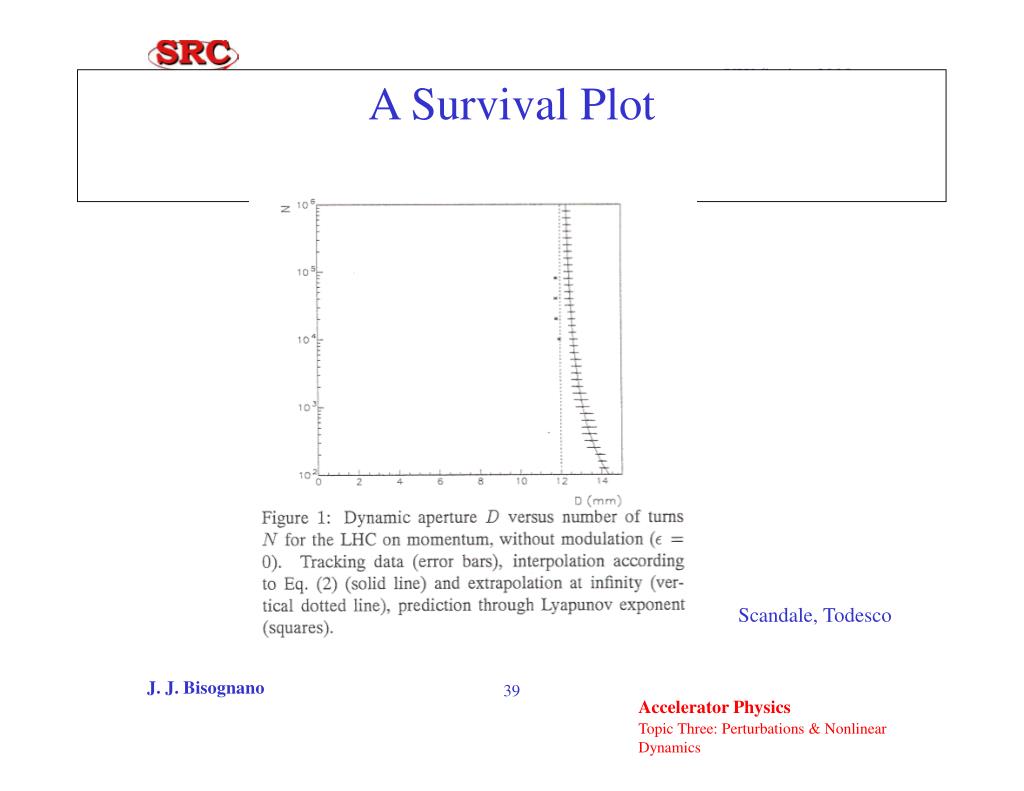

  39. A Survival Plot Scandale, Todesco J. J. Bisognano

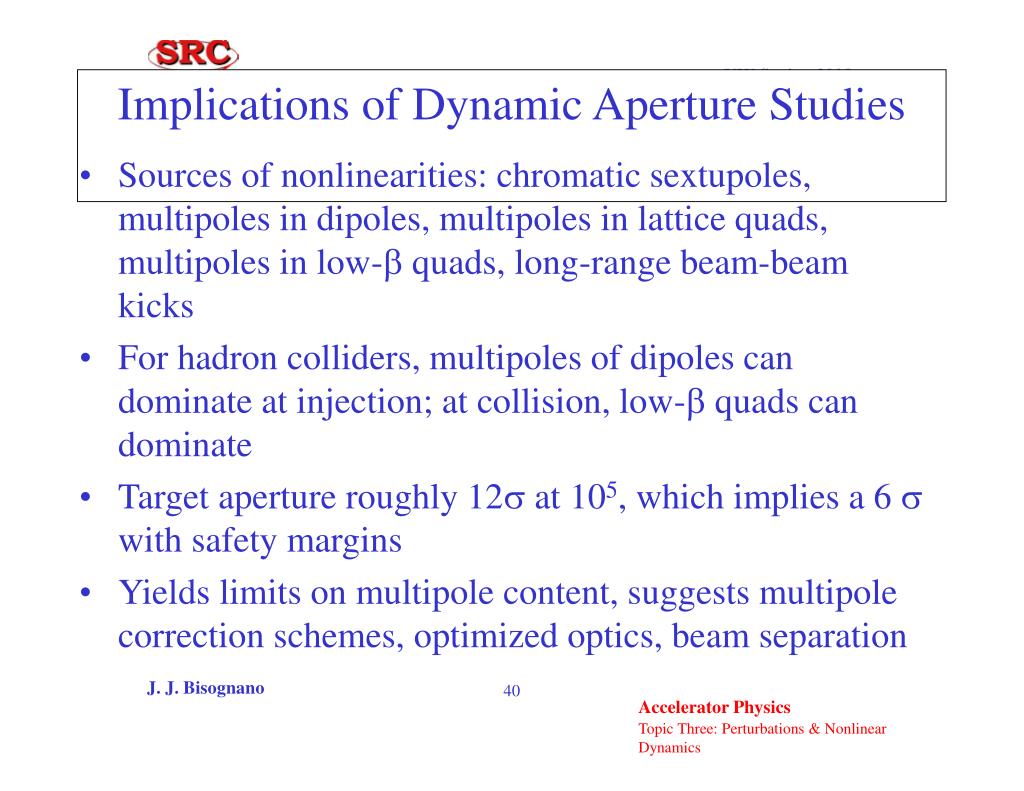

  40. Implications of Dynamic Aperture Studies • Sources of nonlinearities: chromatic sextupoles, multipoles in dipoles, multipoles in lattice quads, multipoles in low- quads, long-range beam-beam kicks • For hadron colliders, multipoles of dipoles can dominate at injection; at collision, low- quads can dominate • Target aperture roughly 12 at 105, which implies a 6  with safety margins • Yields limits on multipole content, suggests multipole correction schemes, optimized optics, beam separation J. J. Bisognano

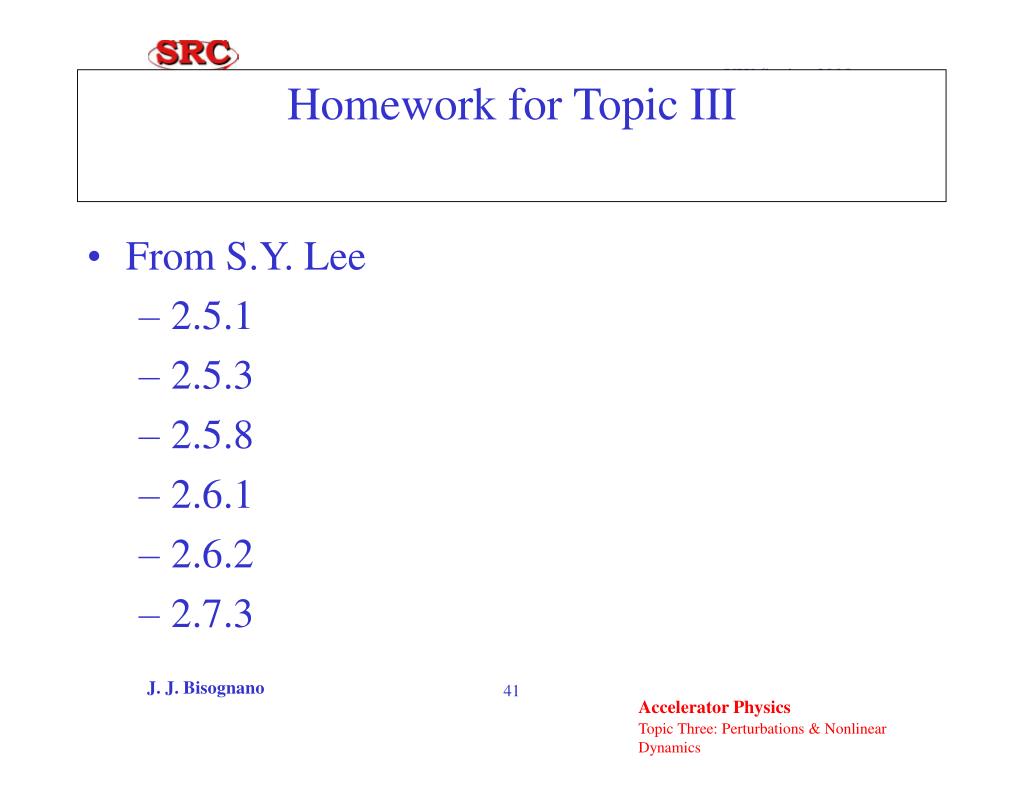

  41. Homework for Topic III • From S.Y. Lee • 2.5.1 • 2.5.3 • 2.5.8 • 2.6.1 • 2.6.2 • 2.7.3 J. J. Bisognano
