CORE Switch L3

?. Router. Interface 10.100.100.1. A. HP Procurve Switch 2650. Serial A/LOM Port. 2. 0. 1. 3. Net0. Serial B Port. Fibre Backbone 200mts. HP procurve Switch 2626. Interface 10.20.230.7. CORE Switch L3. HP Procurve Switch 4108GL. PC1. PC2. IPConfig Result Dynamic IP.

reba
Télécharger la présentation

CORE Switch L3

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

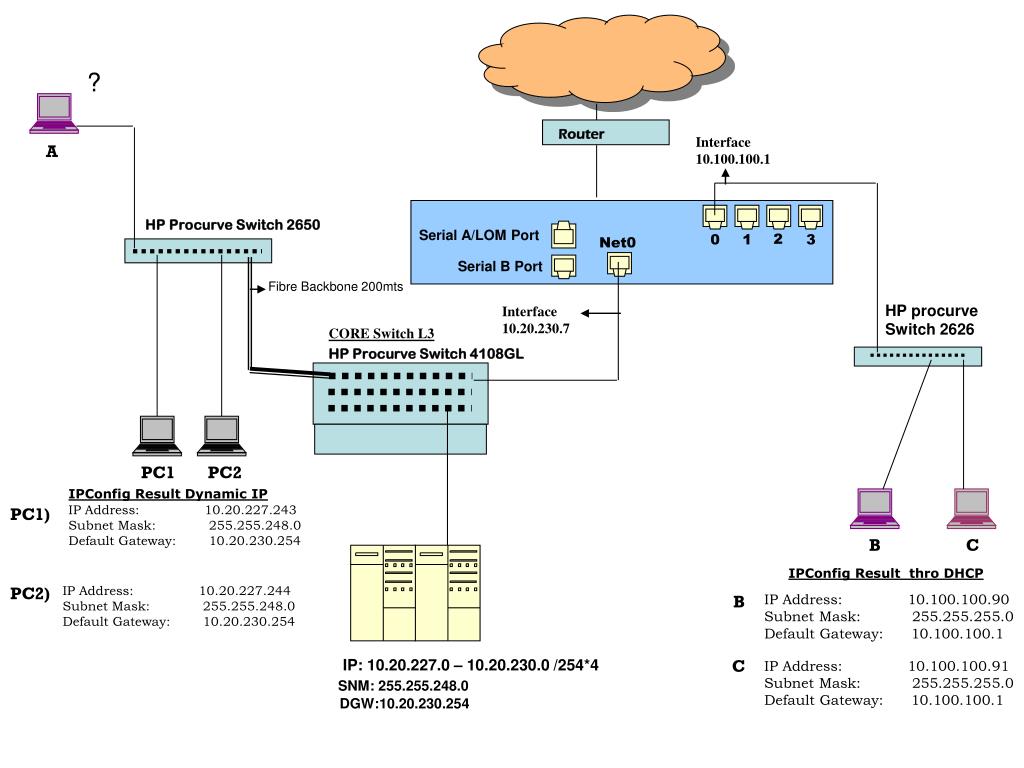

  1. ? Router Interface 10.100.100.1 A HP Procurve Switch 2650 Serial A/LOM Port 2 0 1 3 Net0 Serial B Port Fibre Backbone 200mts HP procurve Switch 2626 Interface 10.20.230.7 CORE Switch L3 HP Procurve Switch 4108GL PC1 PC2 IPConfig Result Dynamic IP IP Address: 10.20.227.243 Subnet Mask: 255.255.248.0 Default Gateway: 10.20.230.254 PC1) B C IPConfig Result thro DHCP PC2) IP Address: 10.20.227.244 Subnet Mask: 255.255.248.0 Default Gateway: 10.20.230.254 B IP Address: 10.100.100.90 Subnet Mask: 255.255.255.0 Default Gateway: 10.100.100.1 IP: 10.20.227.0 – 10.20.230.0 /254*4 SNM: 255.255.248.0 DGW:10.20.230.254 C IP Address: 10.100.100.91 Subnet Mask: 255.255.255.0 Default Gateway: 10.100.100.1
