  1. EPD Co. Ltd. Medical Software Company The main points for the architecture and performance of PACS Maryam Zibaeefard, Dr. Afshin Niakan

  2. EPD Co. Ltd. DICOM Mission • Create and maintain international standards for communication of bio-medical diagnostic and health information. www.epd.ir

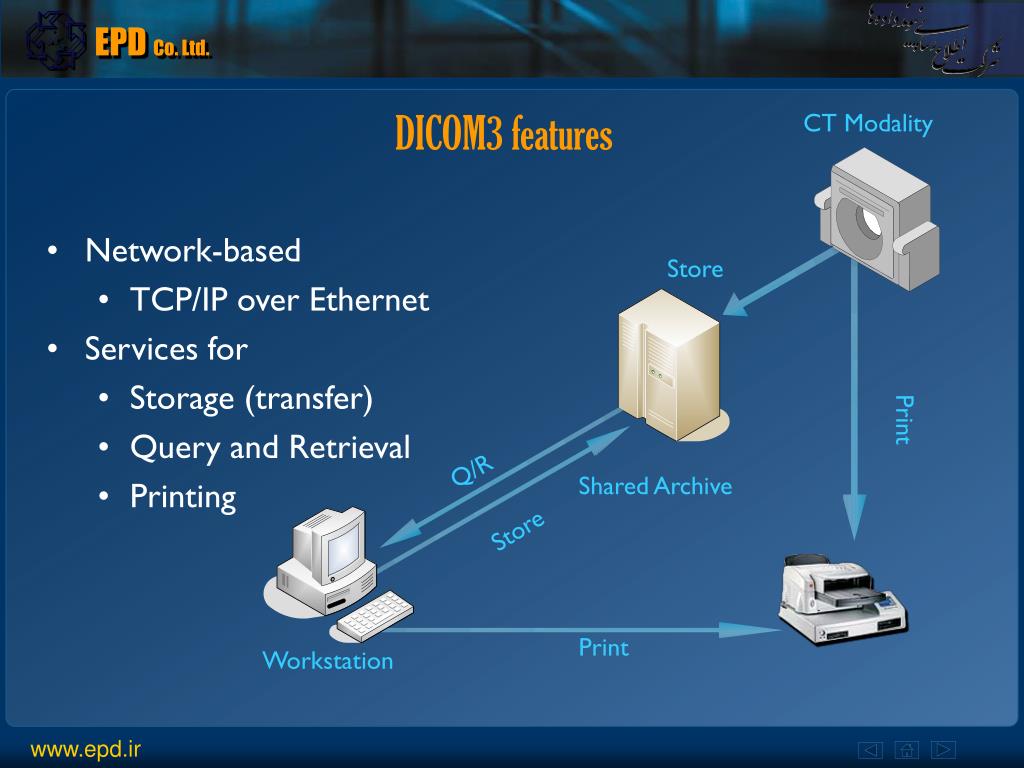

  3. EPD Co. Ltd. DICOM3 features CT Modality • Network-based • TCP/IP over Ethernet • Services for • Storage (transfer) • Query and Retrieval • Printing Store Print Q/R Shared Archive Store Print Workstation www.epd.ir

  4. EPD Co. Ltd. DICOM Negotiation Roles • MR scanner may say: • “I am an MR Image Storage Service Class User (SCU)” • Mini PACS may say: • “I am an MR Image Storage Service Class Provider (SCP)” MR images may be transferred www.epd.ir

  5. EPD Co. Ltd. PACS • Picture Archiving and Communication System • Smallest - “mini-PACS” • Large PACS • Multi-modality PACS www.epd.ir

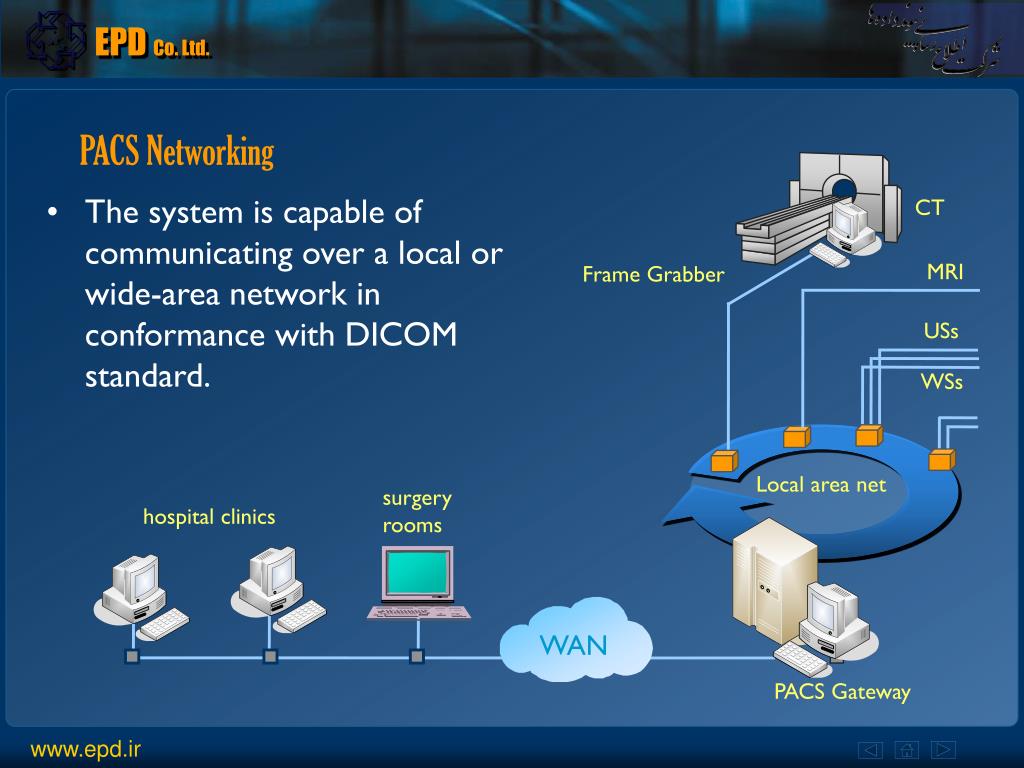

  6. EPD Co. Ltd. PACS Networking • The system is capable of communicating over a local or wide-area network in conformance with DICOM standard. CT MRI Frame Grabber USs WSs Local area net surgery rooms hospital clinics WAN PACS Gateway www.epd.ir

  7. EPD Co. Ltd. PACS Networking • Web interface for Internet access Web Viewer Web server PACS Viewing Station PACS server At Modality www.epd.ir

  8. EPD Co. Ltd. DICOM Server • The Core part of a PACS server is a software called DICOM Server. • Its purpose is to receive DICOM images from any node in the network such as different modalities, or to list studies on a workstation and directly retrieve the ones of interest. www.epd.ir

  9. EPD Co. Ltd. Authentication & Authorization • User authentication and authorization is necessary for any secure system • No direct solution is anticipated in DICOM standard www.epd.ir

  10. EPD Co. Ltd. Authentication & Authorization • Our Idea is to useCalled AE Title&Calling AE Titlefor user authentication. www.epd.ir

  11. EPD Co. Ltd. Authentication & Authorization • Through Negotiation phase, a client sendsCalled AE Title&Calling AE Titleto the DICOM Server. • Both are 16-byte fields. Calling AE Title User name Called AE Title Password + User Type www.epd.ir

  12. EPD Co. Ltd. Authentication & Authorization • 4 User types are authorized for different operations on workstations: • Viewer • Reporter • Capturer • Administrator www.epd.ir

  13. EPD Co. Ltd. Access control for studies • Access control levels: • Read/Write • Read • Disable • Access control on study level for a user or a group of users www.epd.ir

  14. EPD Co. Ltd. Access control for studies • Different groups of users can be defined with different authorities www.epd.ir

  15. EPD Co. Ltd. Other Motivations • Two-layer Data Storage • On-line • Near-line (on DVD or CD ) On-line server Long-term Archive www.epd.ir

  16. EPD Co. Ltd. Other Motivations • Relational/Hierarchical Search Engine Patient • Hierarchal search is mandatory. • Relational search is optional. Patient name, Birth date… Study Study date, Physician name… Series Modality,… Image Creation date,… www.epd.ir

  17. EPD Co. Ltd. Other Motivations • Extra Firewall on DICOM Server • Blocking or granting some IPs • Traceable history • Capable of restoring previous instances www.epd.ir

  18. EPD Co. Ltd. www.epd.ir

  19. EPD Co. Ltd. Etelaresani Peyvand Dadeha Software Company
