VHL Applications Installation Guide

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Installation Overview

  2. Environment Setup

  3. Operating System: Windows, Linux; • Web server installed; • Apache 1.3x, (All Products); • Apache 2 (only for BVS-Site, iAH); • IIS 5.0 (tested to all products); •   PHP Installed (tested until 4.4.0 version); •   PHP set to work with the eXpat and Sablotron (for more information see the “Installation manual of pre-required software to VHL applications” available at the VHL Model site); •   Web server configured with PHP; •   WWWIsis Licence (HIL and Direve).

  4. Install process 1 – Copy folders and files to virtual host location 2 – Run installation scripts (setup) or manually change path and domain name (servername) in definition files (.def)

  5. Standard structure packet * * Except VHL-Site

  6. Virtual Host example http://domain-name/ <VirtualHost *> ... DocumentRoot "/web/example/htdocs/" ServerName domain-name ScriptAlias /cgi-bin/ "/web/example/cgi-bin/" ... </VirtualHost> DocumentRoot ScriptAlias

  7. 1 – Copy folders and files to virtual host location To start installing, unpack (or unzip) the application to a temporary location and then copy folders and files to the corresponding location as defined by the Virtual Host definition

  8. Sample installationVHL-site directly to DocumentRoot VHL-Site packet Virtual Host Copy files and folders VHL-Site access http://domain-name/

  9. Sample installHSL-WEB subdirectories below each folder HSL-web packet Virtual Host Copy files and folders HSL-WEB Site http://domain-name/lildbi/

  10. Virtual Host directory structure

  11. The process of copying files and folders is the same to all other products (IAH, DIREVE, HIL)

  12. 2 2ª. RUN INSTALLATION SCRIPTS2b. ADJUST PATH AND SERVERNAME IN THE DEFINITION FILES

  13. 2ªRUN INSTALLATION SCRIPTS: HIL, HSL-WEB (both methods)

  14. HILInstallation http://localhost:90/lis/start-up.php

  15. HSL-WEBInstallation http://localhost:90/lildbi/install/setup.php

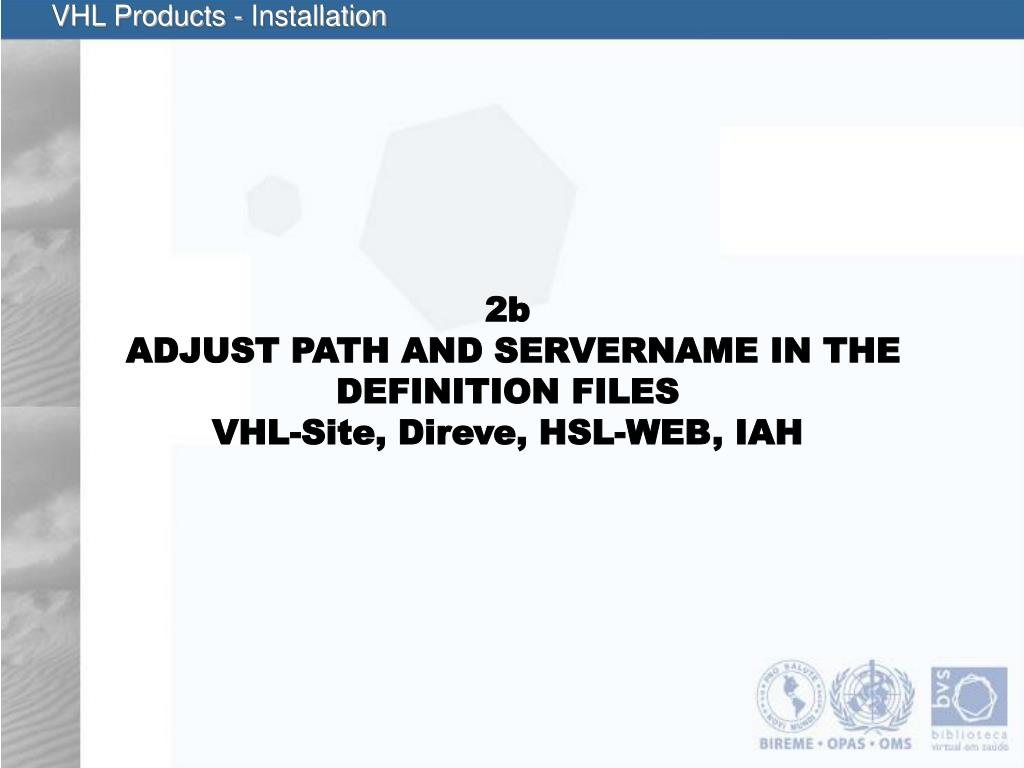

  16. 2b ADJUST PATH AND SERVERNAME IN THE DEFINITION FILESVHL-Site, Direve, HSL-WEB, IAH

  17. InstallationVHL-SITE File Location htdocs/bvs-site-conf.php DIRECTORY=/ SITE_PATH=/bvs/www/htdocs/ DATABASE_PATH=/bvs/www/bases/site/ SERVERNAME=localhost:90 Adjust local paths and servername according tolocal installation

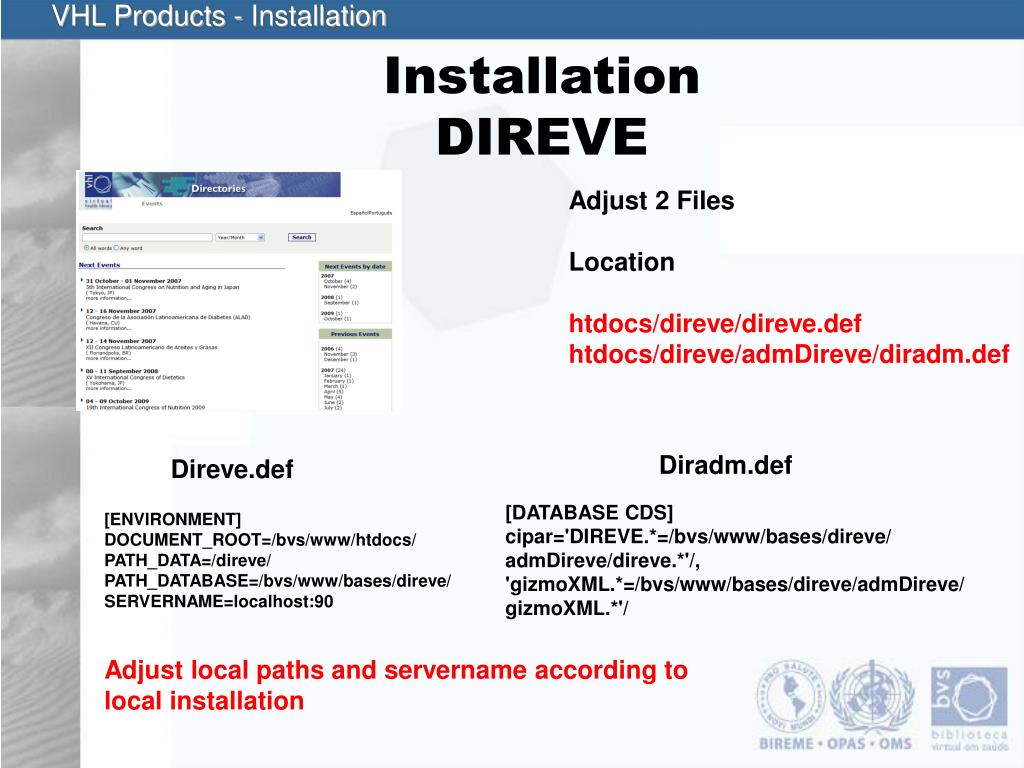

  18. InstallationDIREVE Adjust 2 Files Location htdocs/direve/direve.def htdocs/direve/admDireve/diradm.def Diradm.def Direve.def [DATABASE CDS] cipar='DIREVE.*=/bvs/www/bases/direve/ admDireve/direve.*'/, 'gizmoXML.*=/bvs/www/bases/direve/admDireve/ gizmoXML.*'/ [ENVIRONMENT] DOCUMENT_ROOT=/bvs/www/htdocs/ PATH_DATA=/direve/ PATH_DATABASE=/bvs/www/bases/direve/ SERVERNAME=localhost:90 Adjust local paths and servername according tolocal installation

  19. InstallationIAH Adjust File Location htdocs/iah/iah.def iah.def [PATH] PATH_DATA=/iah/ PATH_CGI-BIN=/bvs/www/cgi-bin/iah/ PATH_DATABASE=/bvs/www/bases/iah/ Adjust local paths according to local installation

  20. InstallationHSL-WEB Adjust File Location /htdocs/lildbi/lildbi.def /htdocs/lildbi/iah/iah.def /htdocs/lildbi/iah/edit/iah.def /htdocs/lildbi/decs/decserver.def /htdocs/lildbi/docsonline/pft/cipar.pft [PATH] PATH_DATA=/lildbi/ PATH_CGI-BIN=/bvs-site/cgi-bin/lildbi/ PATH_DATABASE=/bvs-site/bases/lildbi/ Adjust local paths according to local installation

  21. For more information,please access: • http://bvsmodelo.bvsalud.org/php/index.php?lang=en
