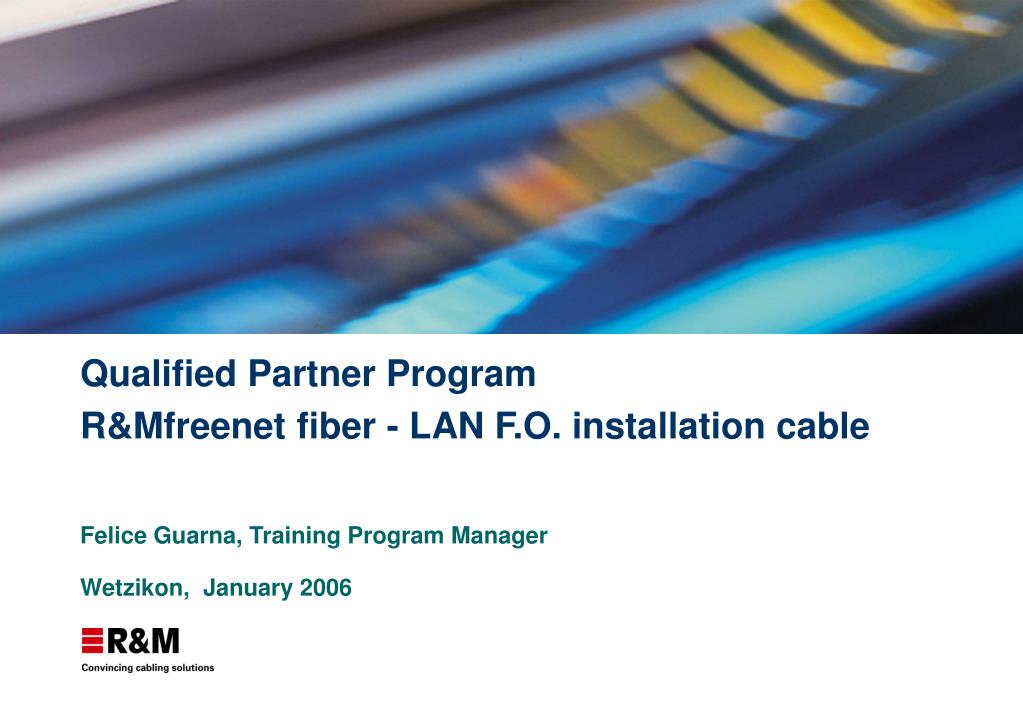

  1. Qualified Partner ProgramR&Mfreenet fiber - LAN F.O. installation cableFelice Guarna, Training Program ManagerWetzikon, January 2006

  2. R&Mfreenet GOF installation cable / overview

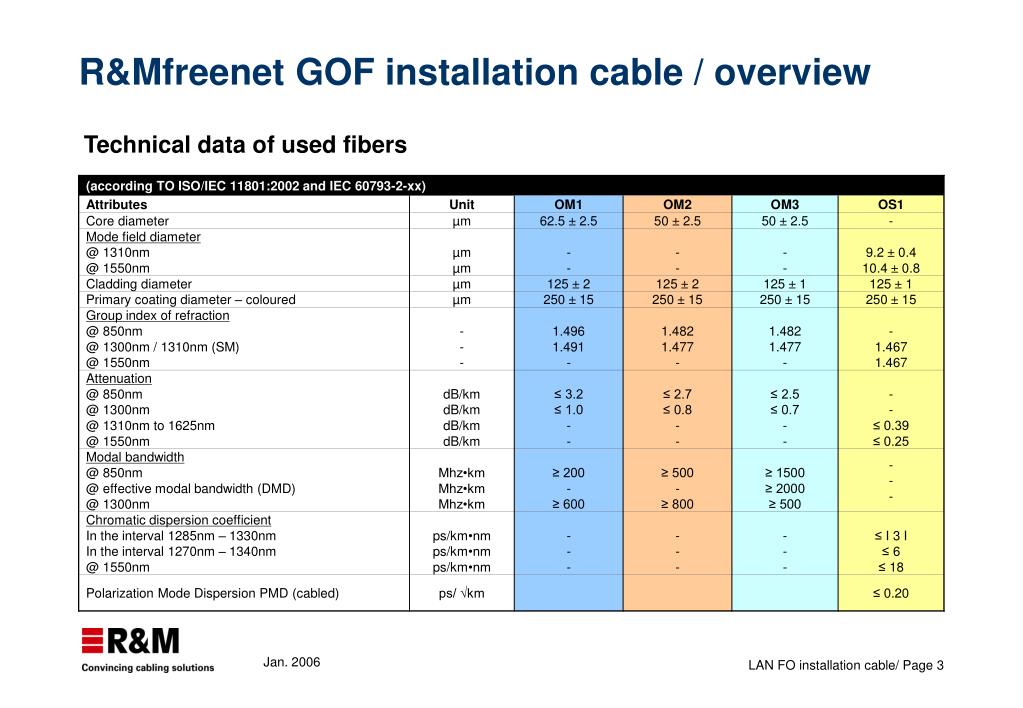

  3. R&Mfreenet GOF installation cable / overview Technical data of used fibers

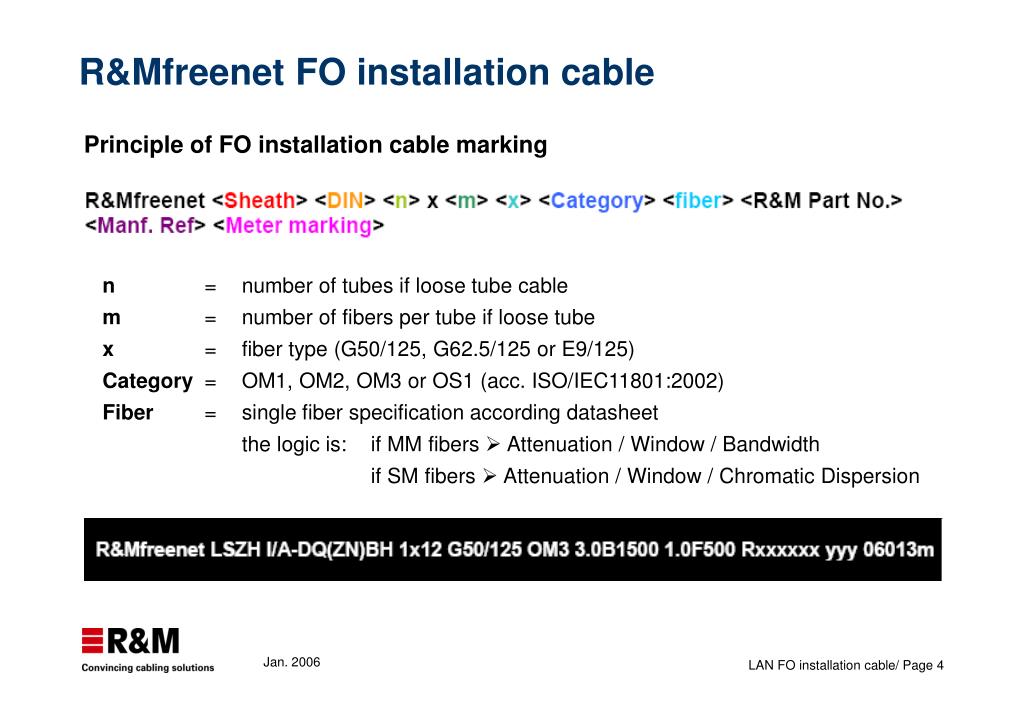

  4. R&Mfreenet FO installation cable Principle of FO installation cable marking • n = number of tubes if loose tube cable • m = number of fibers per tube if loose tube • x = fiber type (G50/125, G62.5/125 or E9/125) • Category = OM1, OM2, OM3 or OS1 (acc. ISO/IEC11801:2002) • Fiber = single fiber specification according datasheet • the logic is: if MM fibers  Attenuation / Window / Bandwidth • if SM fibers  Attenuation / Window / Chromatic Dispersion

  5. Tight buffered fibre Aramid yarn LSZH sheath R&Mfreenet GOF installation cable Breakout Duplex cable I-V(ZN)H

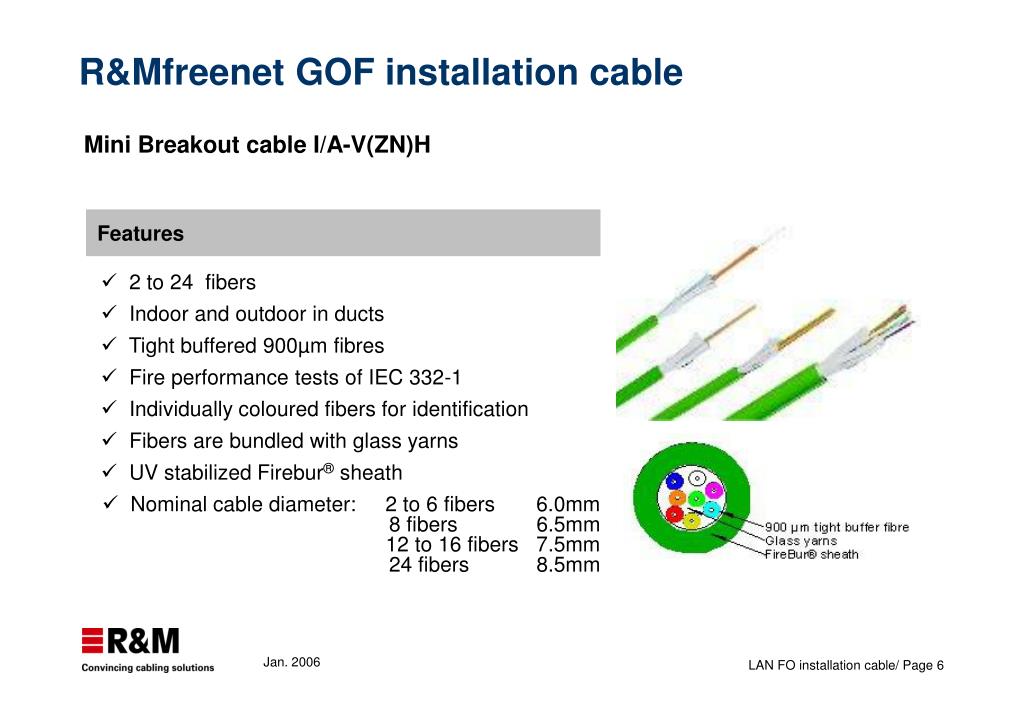

  6. R&Mfreenet GOF installation cable Mini Breakout cable I/A-V(ZN)H

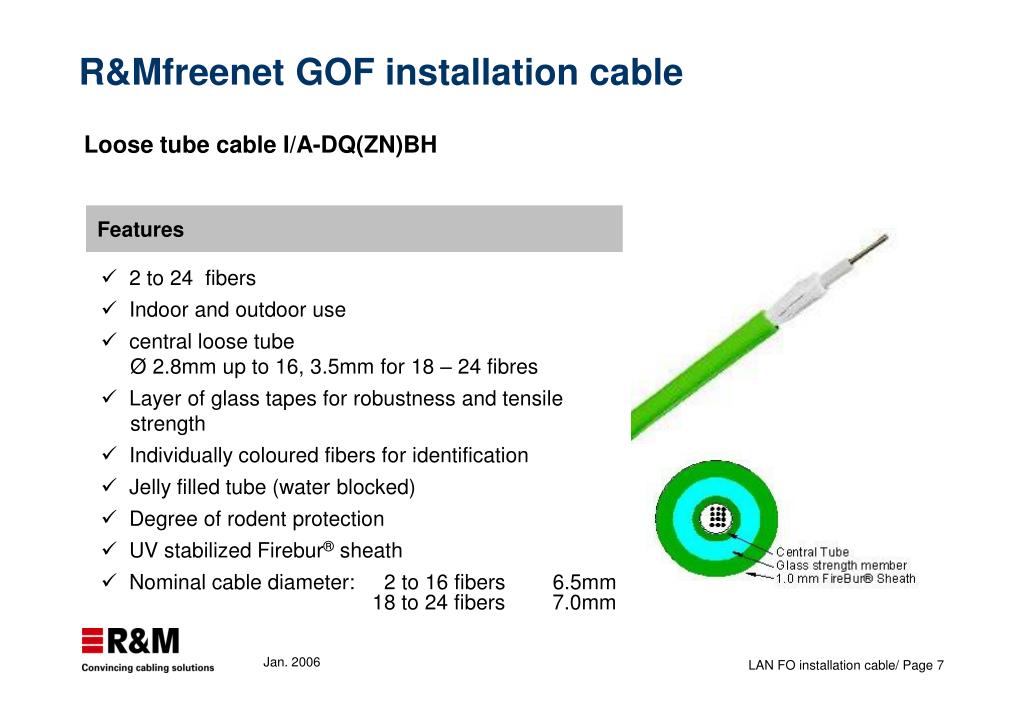

  7. R&Mfreenet GOF installation cable Loose tube cable I/A-DQ(ZN)BH

  8. R&Mfreenet GOF installation cable Loose tube cable A-DQ(ZN)B2Y

  9. R&Mfreenet GOF installation cable Loose tube cable A-DQ(ZN)B2Y

  10. R&Mfreenet GOF installation cable Loose tube cable A-D(ZN)B2Y (corrugated steel)

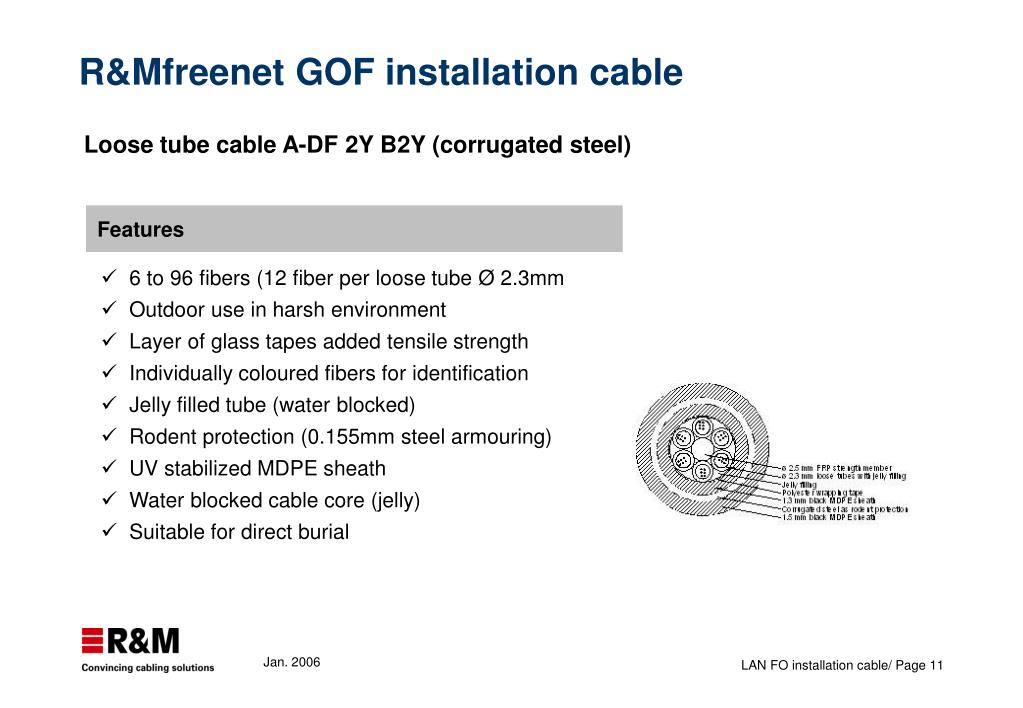

  11. R&Mfreenet GOF installation cable Loose tube cable A-DF 2Y B2Y (corrugated steel)

  12. VARIOline Fiber Optic cabling system

  13. VARIOline Fiber Optic cabling system Overview

  14. VARIOline Fiber Optic cabling system Introduction

  15. VARIOline Fiber Optic cabling system Introduction

  16. VARIOline Fiber Optic cabling system Introduction

  17. VARIOline Fiber Optic cabling system Cable and Fiber types options

  18. VARIOline Fiber Optic cabling system Cable and Fiber types options

  19. VARIOline Fiber Optic cabling system Cable and Fiber types

  20. VARIOline Fiber Optic cabling system Connector types - multimode

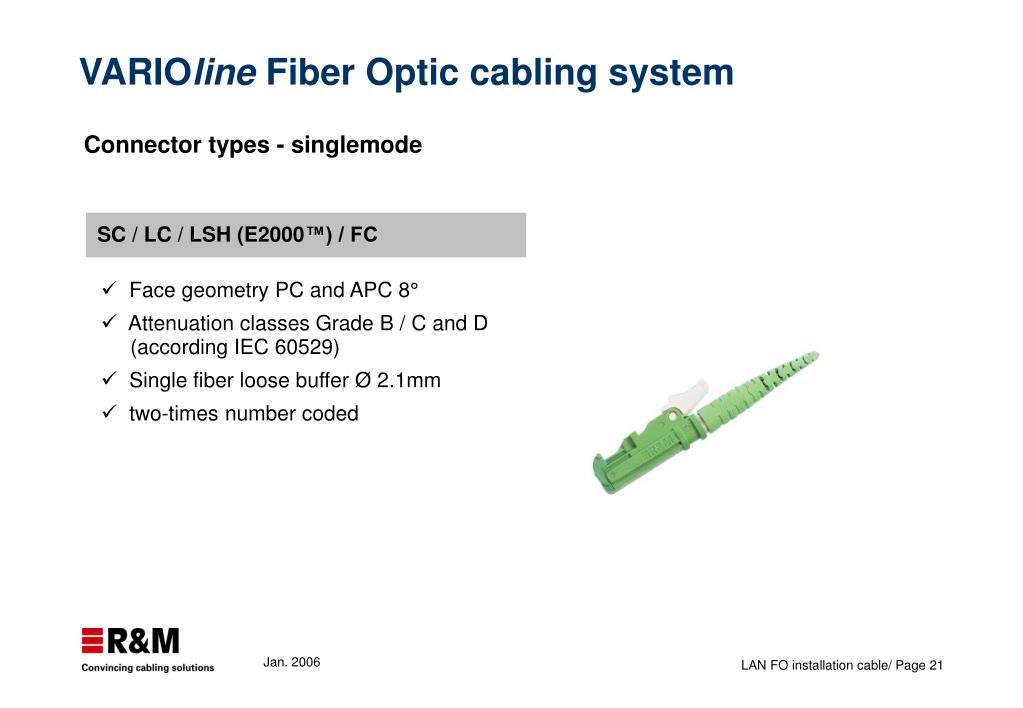

  21. VARIOline Fiber Optic cabling system Connector types - singlemode

  22. VARIOline Fiber Optic cabling system Application examples of VARIOline

  23. VARIOline Fiber Optic cabling system Application examples of VARIOline

  24. VARIOline Fiber Optic cabling system Application examples of VARIOline
