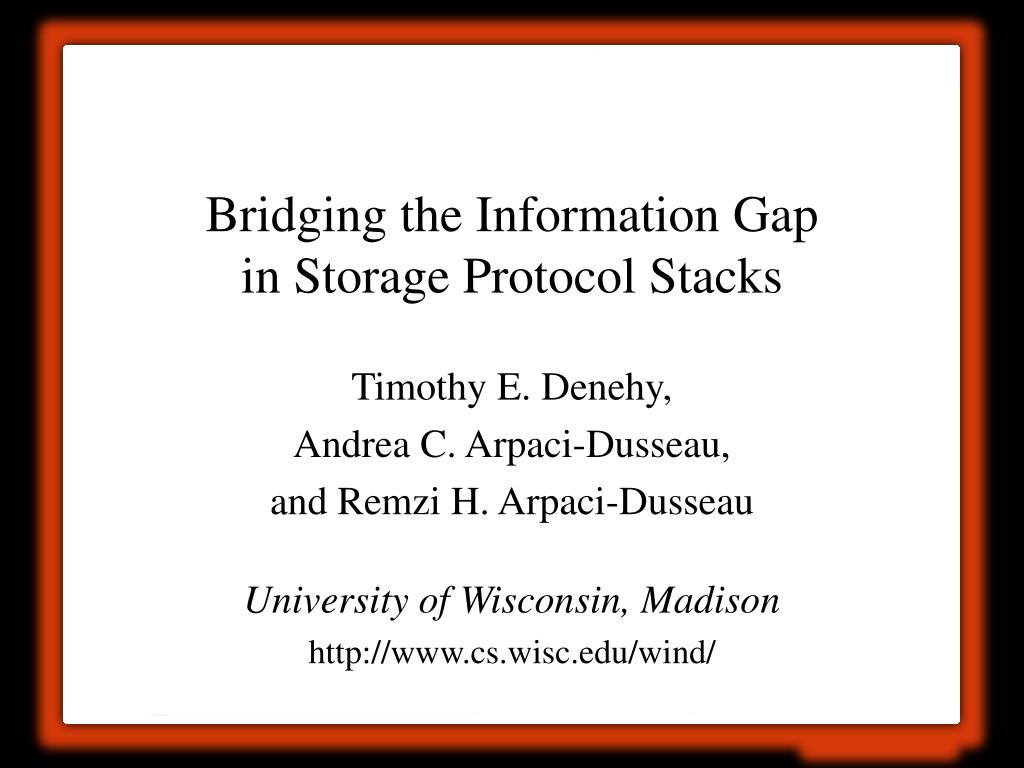

  1. Bridging the Information Gapin Storage Protocol Stacks Timothy E. Denehy, Andrea C. Arpaci-Dusseau, and Remzi H. Arpaci-Dusseau University of Wisconsin, Madison http://www.cs.wisc.edu/wind/

  2. State of Affairs File System Storage System Namespace Files Metadata Layout Liveness Parallelism Redundancy

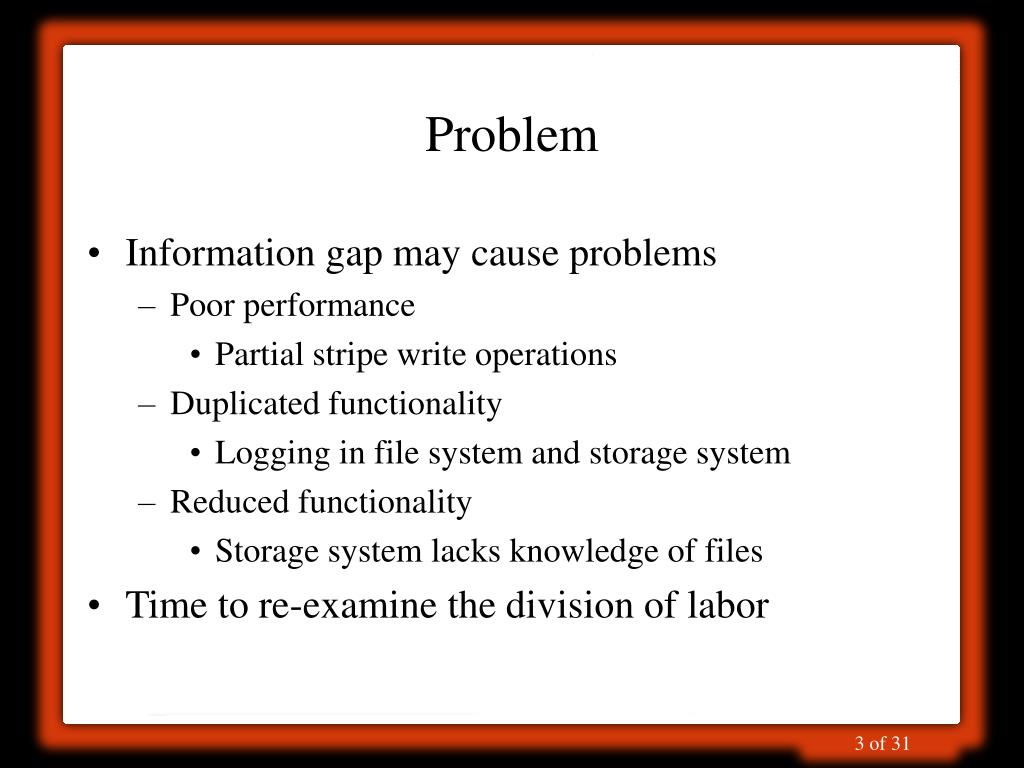

  3. Problem • Information gap may cause problems • Poor performance • Partial stripe write operations • Duplicated functionality • Logging in file system and storage system • Reduced functionality • Storage system lacks knowledge of files • Time to re-examine the division of labor

  4. Informed LFS Exposed RAID Our Approach • Enhance the storage interface • Expose performance and failure information • Use information to provide new functionality • On-line expansion • Dynamic parallelism • Flexible redundancy

  5. Outline • ERAID Overview • I·LFS Overview • Functionality and Evaluation • Conclusion

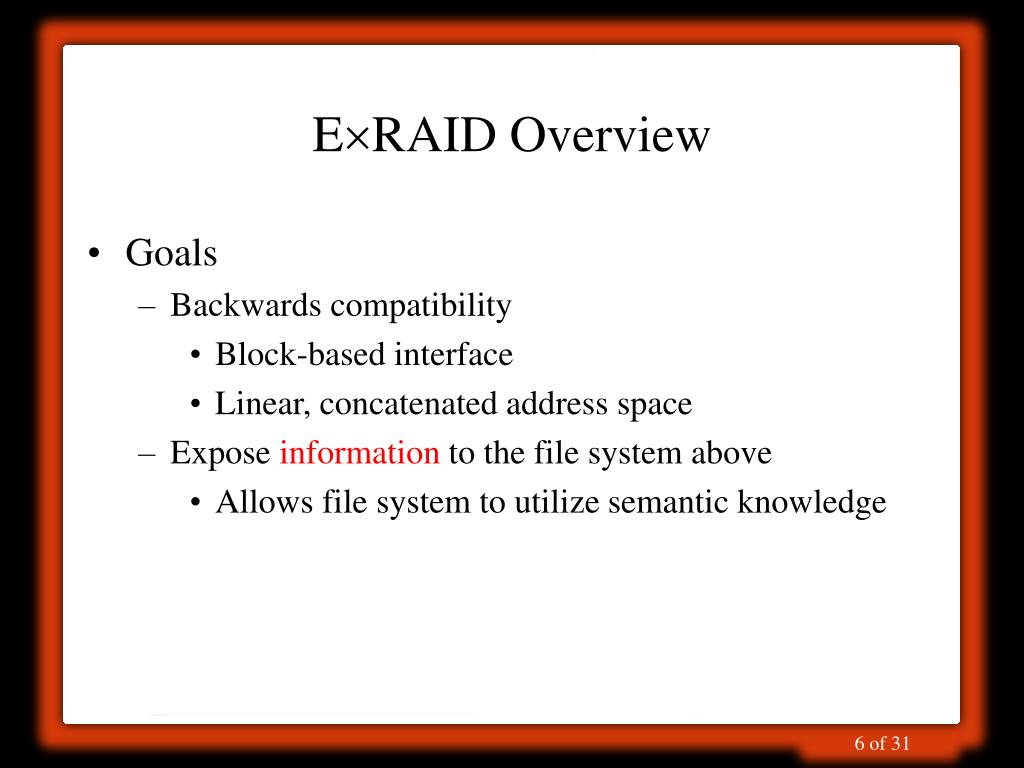

  6. ERAID Overview • Goals • Backwards compatibility • Block-based interface • Linear, concatenated address space • Expose information to the file system above • Allows file system to utilize semantic knowledge

  7. ERAID Regions • Region • Contiguous portion of the address space • Regions can be added to expand the address space • Region composition • RAID: one region for all disks • Exposed: separate regions for each disk • Hybrid ERAID

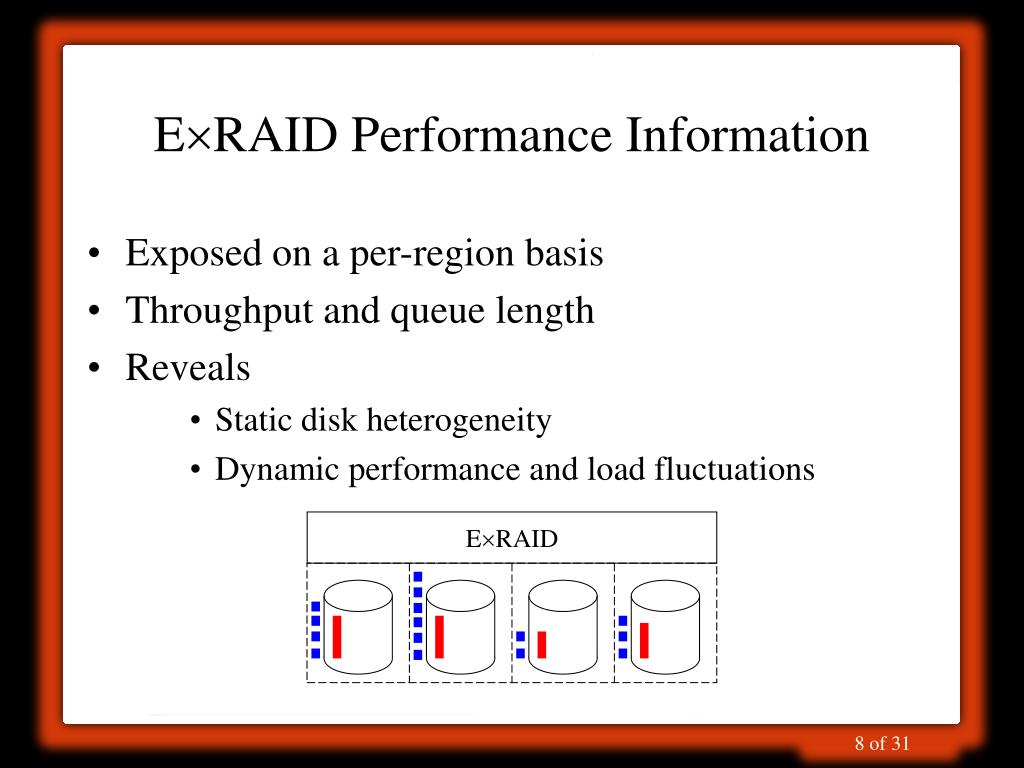

  8. ERAID ERAID Performance Information • Exposed on a per-region basis • Throughput and queue length • Reveals • Static disk heterogeneity • Dynamic performance and load fluctuations

  9. ERAID Failure Information • Exposed on a per-region basis • Number of tolerable failures • Regions may have different failure characteristics • Reveals dynamic failures to file system above ERAID X RAID1

  10. Outline • ERAID Overview • I·LFS Overview • Functionality and Evaluation • Conclusion

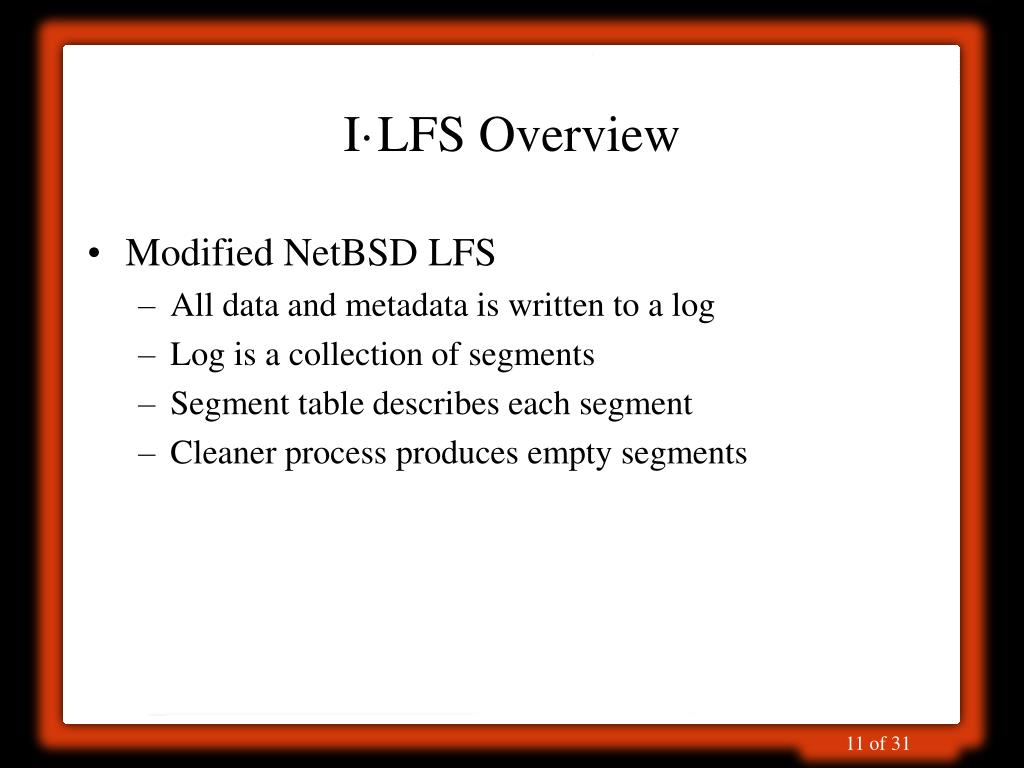

  11. I·LFS Overview • Modified NetBSD LFS • All data and metadata is written to a log • Log is a collection of segments • Segment table describes each segment • Cleaner process produces empty segments

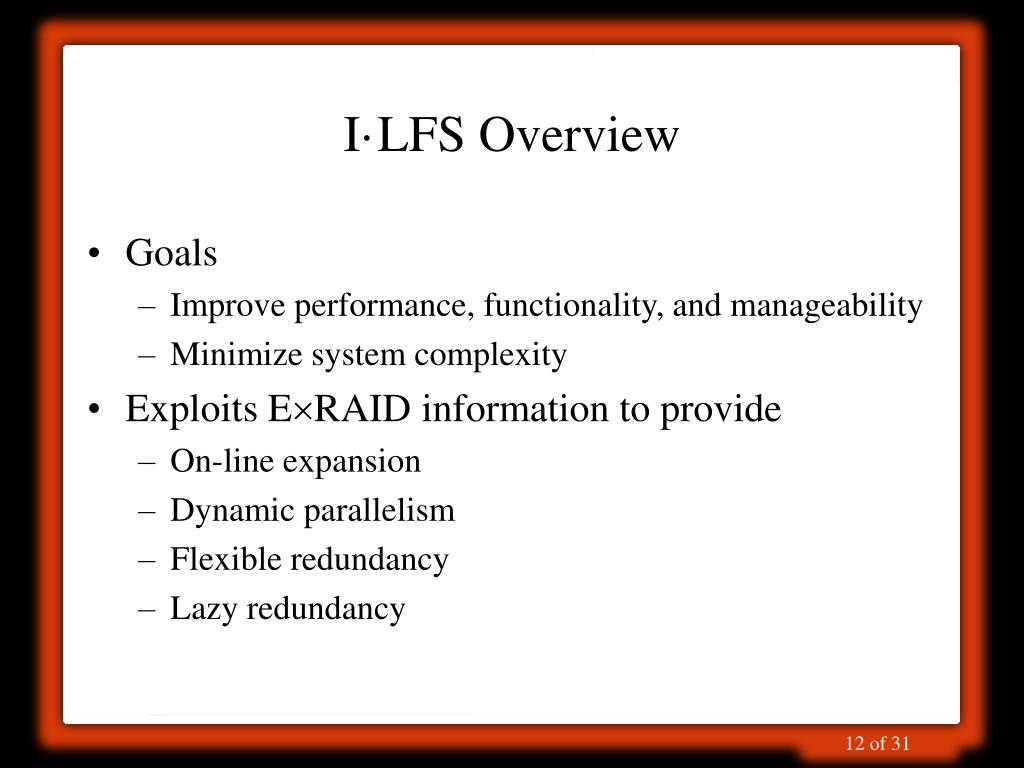

  12. I·LFS Overview • Goals • Improve performance, functionality, and manageability • Minimize system complexity • Exploits ERAID information to provide • On-line expansion • Dynamic parallelism • Flexible redundancy • Lazy redundancy

  13. I·LFS Experimental Platform • NetBSD 1.5 • 1 GHz Intel Pentium III Xeon • 128 MB RAM • Four fast disks • Seagate Cheetah 36XL, 21.6 MB/s • Four slow disks • Seagate Barracuda 4XL, 7.5 MB/s

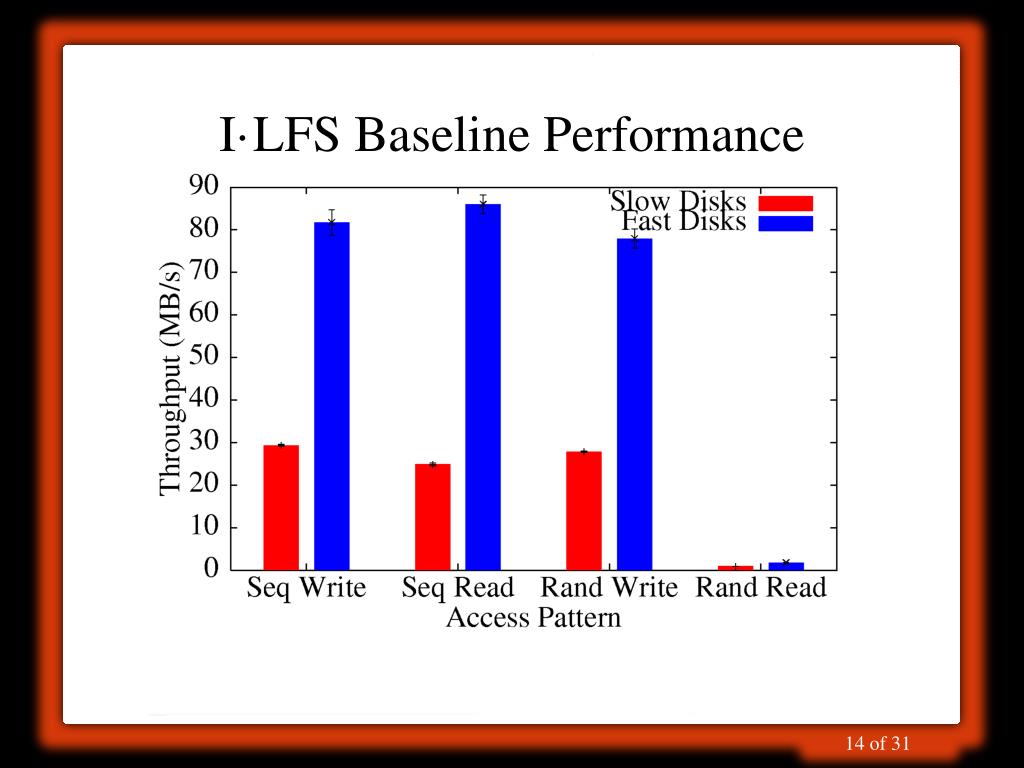

  14. I·LFS Baseline Performance

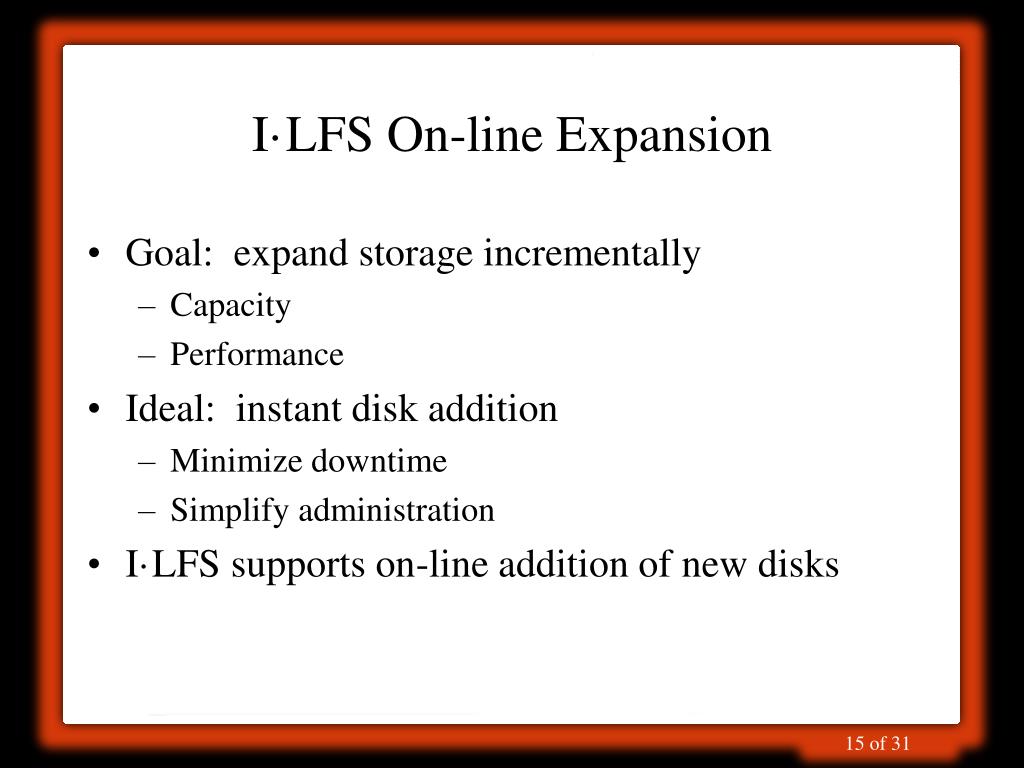

  15. I·LFS On-line Expansion • Goal: expand storage incrementally • Capacity • Performance • Ideal: instant disk addition • Minimize downtime • Simplify administration • I·LFS supports on-line addition of new disks

  16. I·LFS On-line Expansion Details • ERAID: an expandable address space • Expansion is equivalent to adding empty segments • Start with an oversized segment table • Activate new portion of segment table

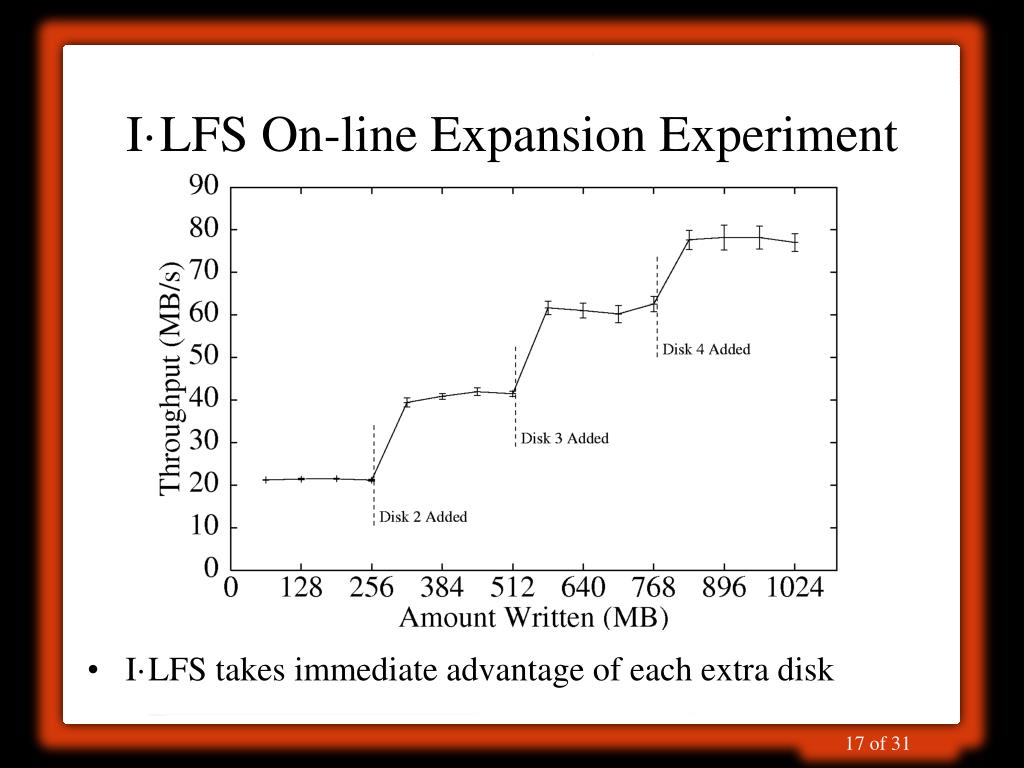

  17. I·LFS On-line Expansion Experiment • I·LFS takes immediate advantage of each extra disk

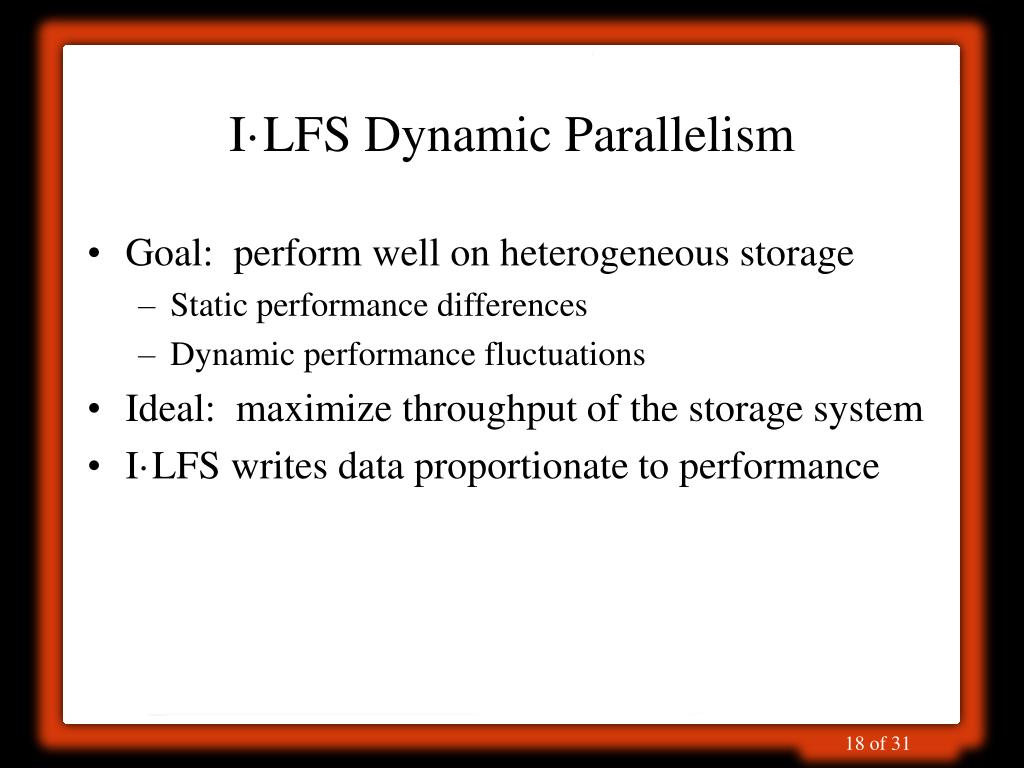

  18. I·LFS Dynamic Parallelism • Goal: perform well on heterogeneous storage • Static performance differences • Dynamic performance fluctuations • Ideal: maximize throughput of the storage system • I·LFS writes data proportionate to performance

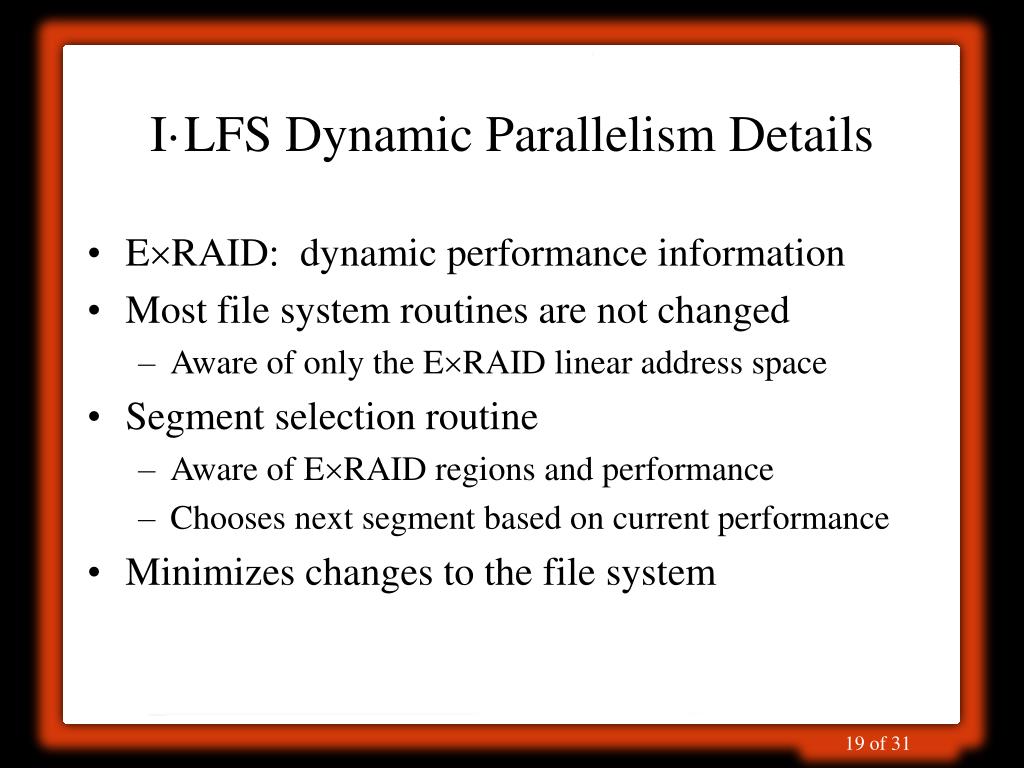

  19. I·LFS Dynamic Parallelism Details • ERAID: dynamic performance information • Most file system routines are not changed • Aware of only the ERAID linear address space • Segment selection routine • Aware of ERAID regions and performance • Chooses next segment based on current performance • Minimizes changes to the file system

  20. I·LFS Static Parallelism Experiment • I·LFS provides the full throughput of the system • Simple striping runs at the rate of the slowest disk

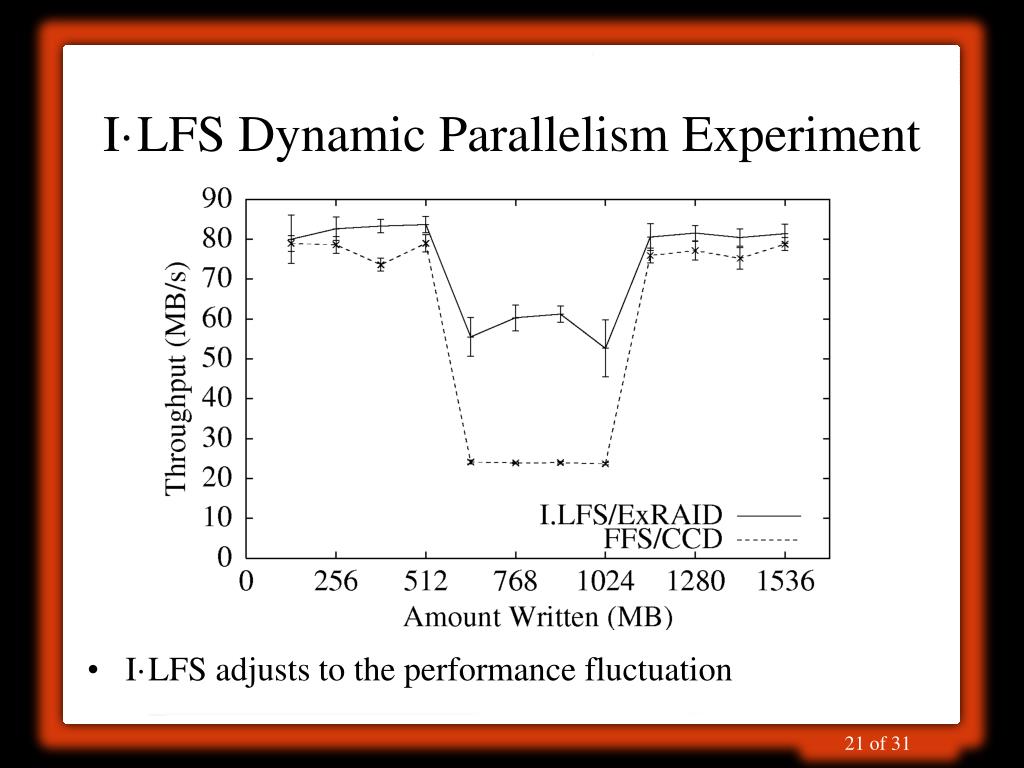

  21. I·LFS Dynamic Parallelism Experiment • I·LFS adjusts to the performance fluctuation

  22. I·LFS Flexible Redundancy • Goal: offer new redundancy options to users • Ideal: range of redundancy mechanisms and granularities • I·LFS provides mirroredper-file redundancy

  23. I·LFS Flexible Redundancy Details • ERAID: region failure characteristics • Use separate files for redundancy • Even inode N for original files • Odd inode N+1 for redundant files • Original and redundant data in different sets of regions • Flexible data placement within the regions • Use recursive vnode operations for redundant files • Leverage existing routines to reduce complexity

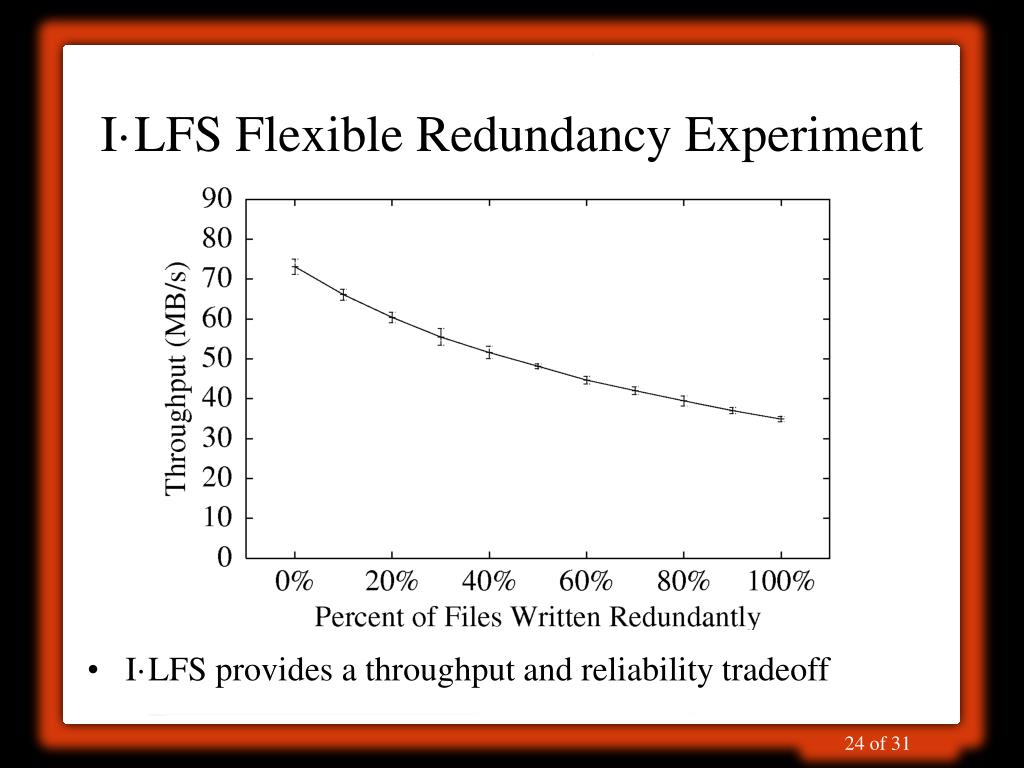

  24. I·LFS Flexible Redundancy Experiment • I·LFS provides a throughput and reliability tradeoff

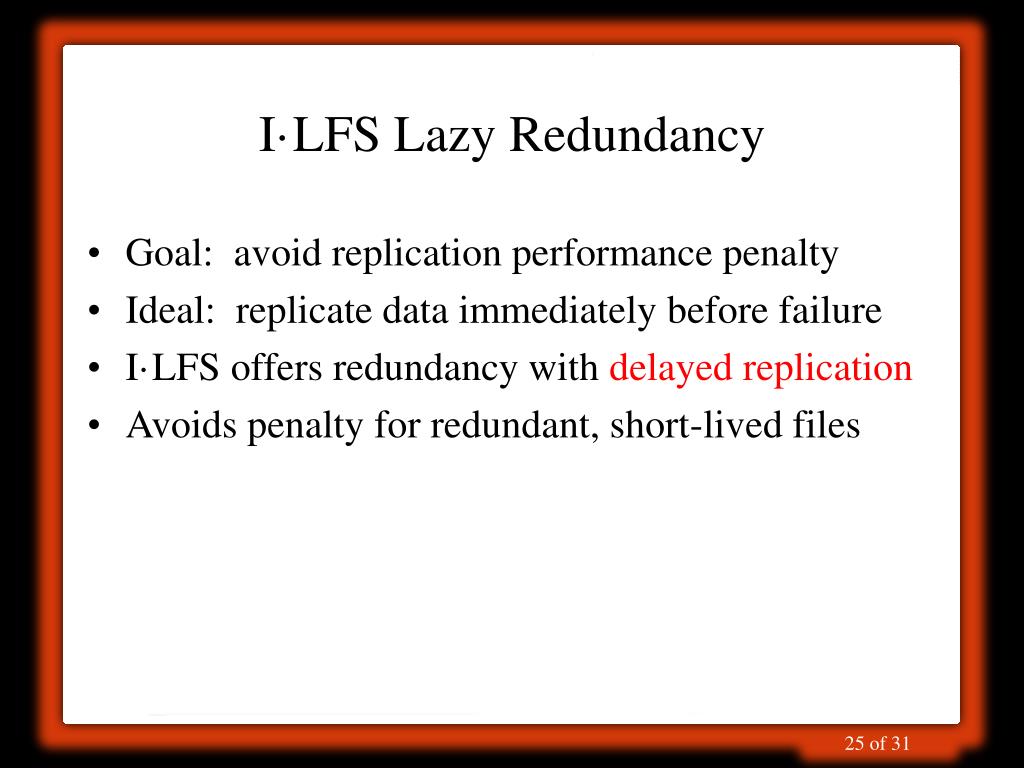

  25. I·LFS Lazy Redundancy • Goal: avoid replication performance penalty • Ideal: replicate data immediately before failure • I·LFS offers redundancy with delayed replication • Avoids penalty for redundant, short-lived files

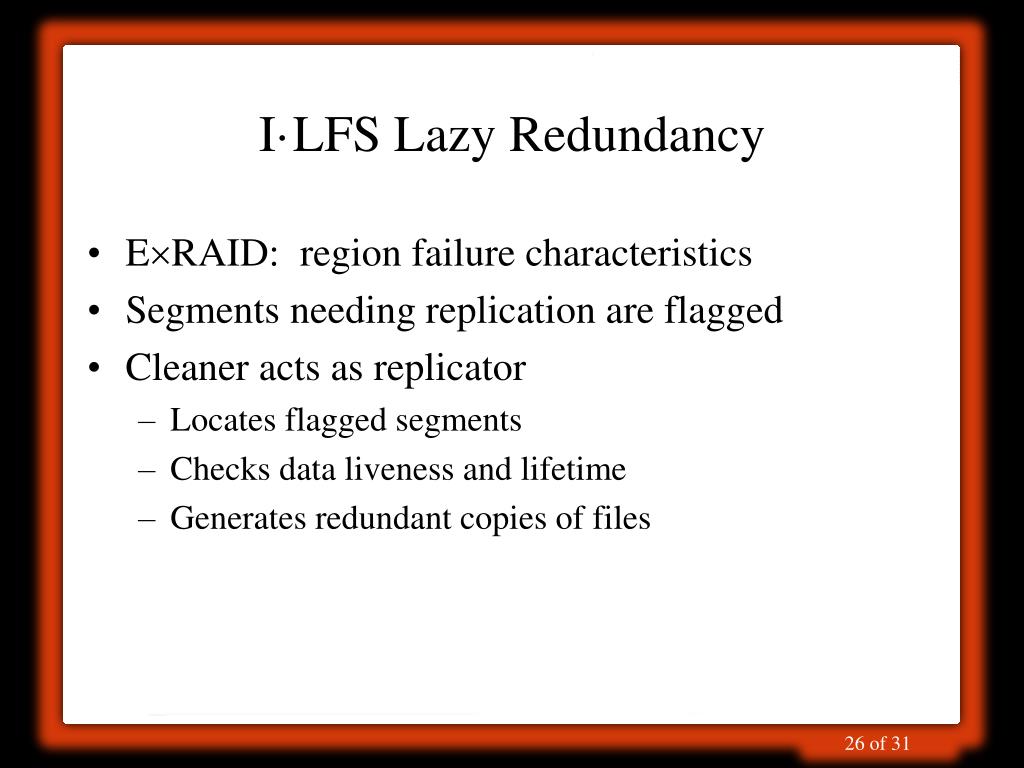

  26. I·LFS Lazy Redundancy • ERAID: region failure characteristics • Segments needing replication are flagged • Cleaner acts as replicator • Locates flagged segments • Checks data liveness and lifetime • Generates redundant copies of files

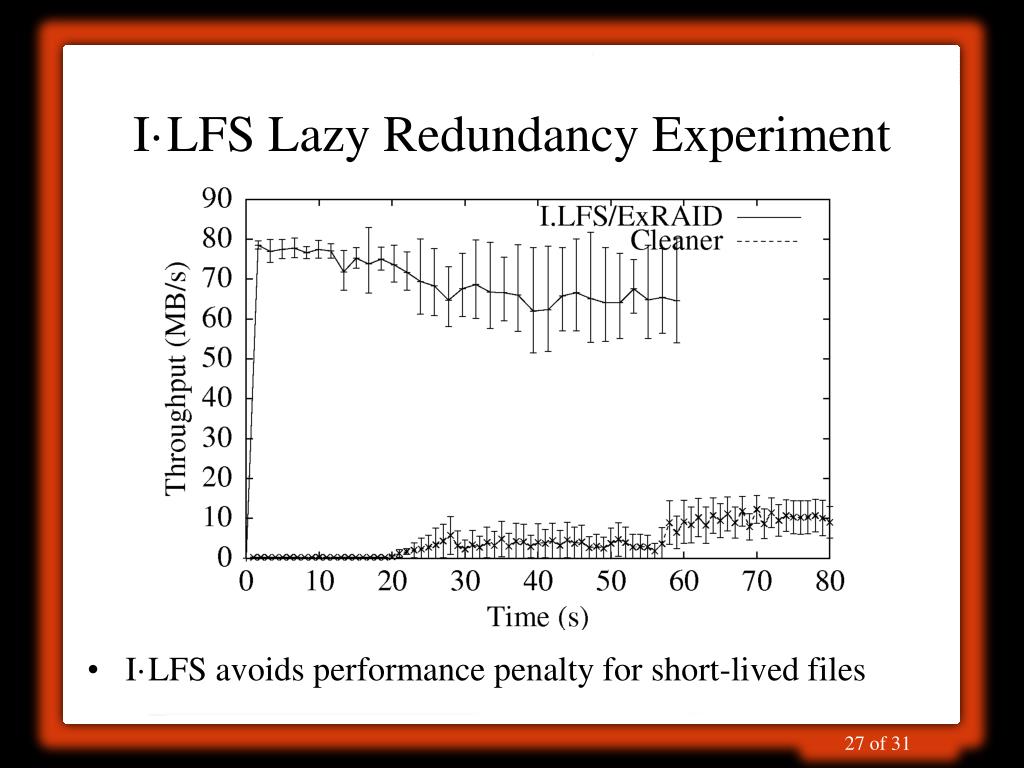

  27. I·LFS Lazy Redundancy Experiment • I·LFS avoids performance penalty for short-lived files

  28. Outline • ERAID Overview • I·LFS Overview • Functionality and Evaluation • Conclusion

  29. Comparison with Traditional Systems • On-line expansion • Yes, but capacity only, not performance • Dynamic parallelism • Yes, but with duplicated functionality • Flexible redundancy • No, the storage system is not aware of file composition • Lazy redundancy • No, the storage system is not aware of file deletions

  30. Conclusion • Introduced ERAID and I·LFS • Extra information enables new functionality • Difficult or impossible in traditional systems • Minimal complexity • 19% increase in code size • Time to re-examine the division of labor

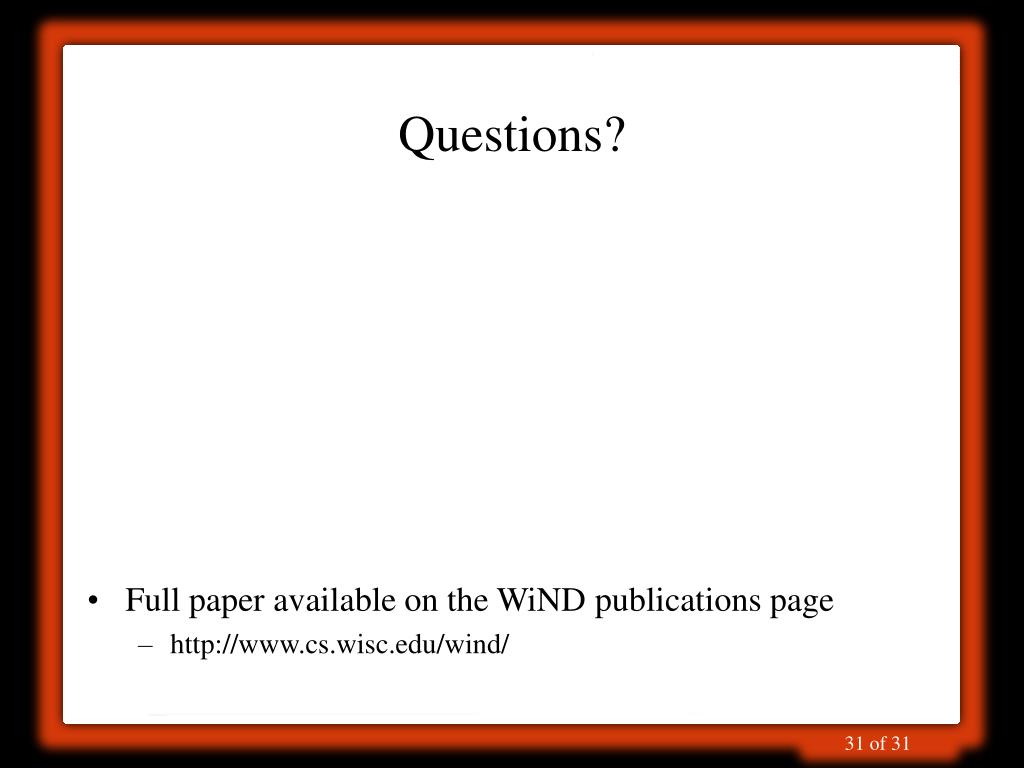

  31. Questions? • Full paper available on the WiND publications page • http://www.cs.wisc.edu/wind/

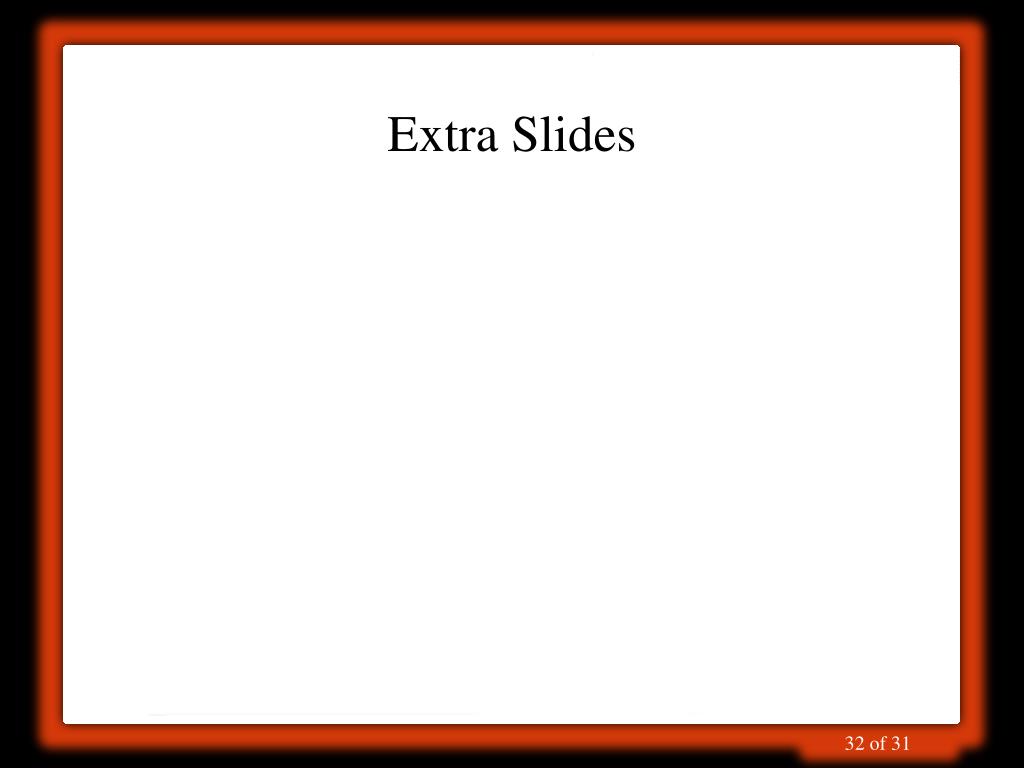

  32. Extra Slides

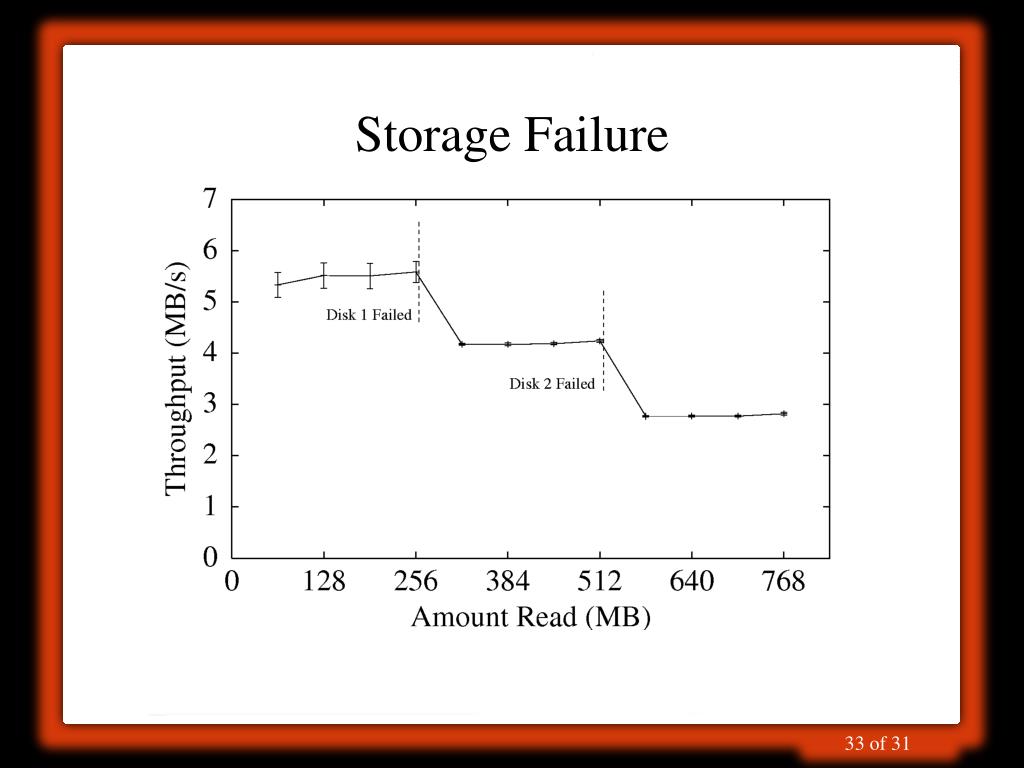

  33. Storage Failure

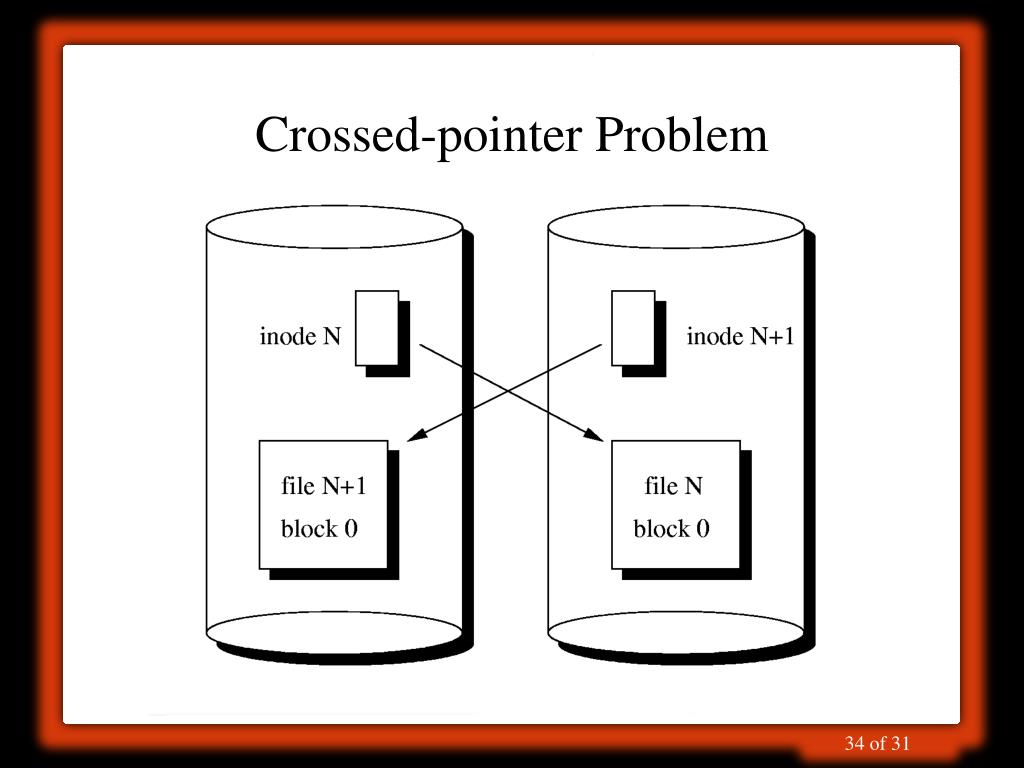

  34. Crossed-pointer Problem
