  1. All About Encryption

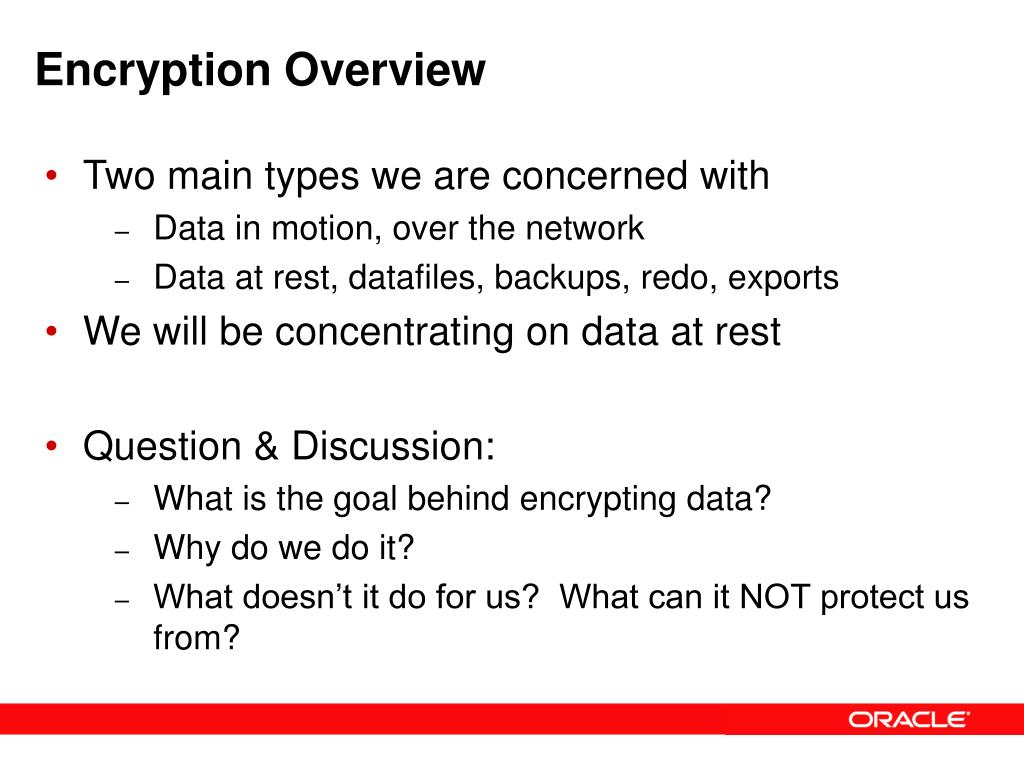

  2. Encryption Overview • Two main types we are concerned with • Data in motion, over the network • Data at rest, datafiles, backups, redo, exports • We will be concentrating on data at rest • Question & Discussion: • What is the goal behind encrypting data? • Why do we do it? • What doesn’t it do for us? What can it NOT protect us from?

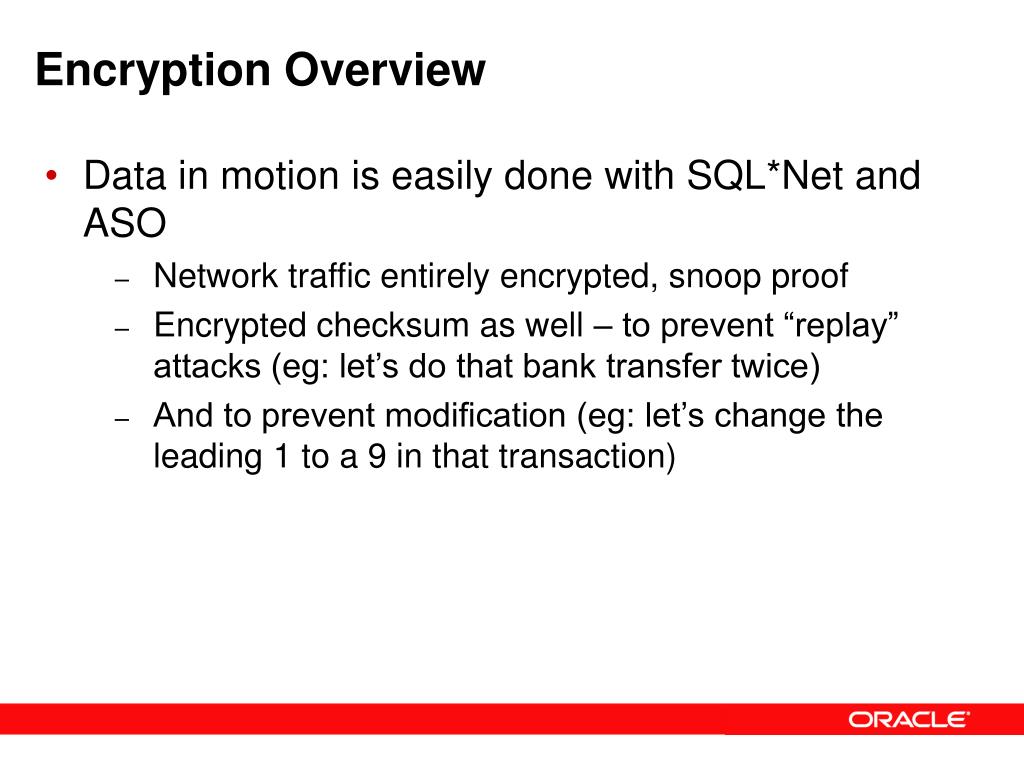

  3. Encryption Overview • Data in motion is easily done with SQL*Net and ASO • Network traffic entirely encrypted, snoop proof • Encrypted checksum as well – to prevent “replay” attacks (eg: let’s do that bank transfer twice) • And to prevent modification (eg: let’s change the leading 1 to a 9 in that transaction)

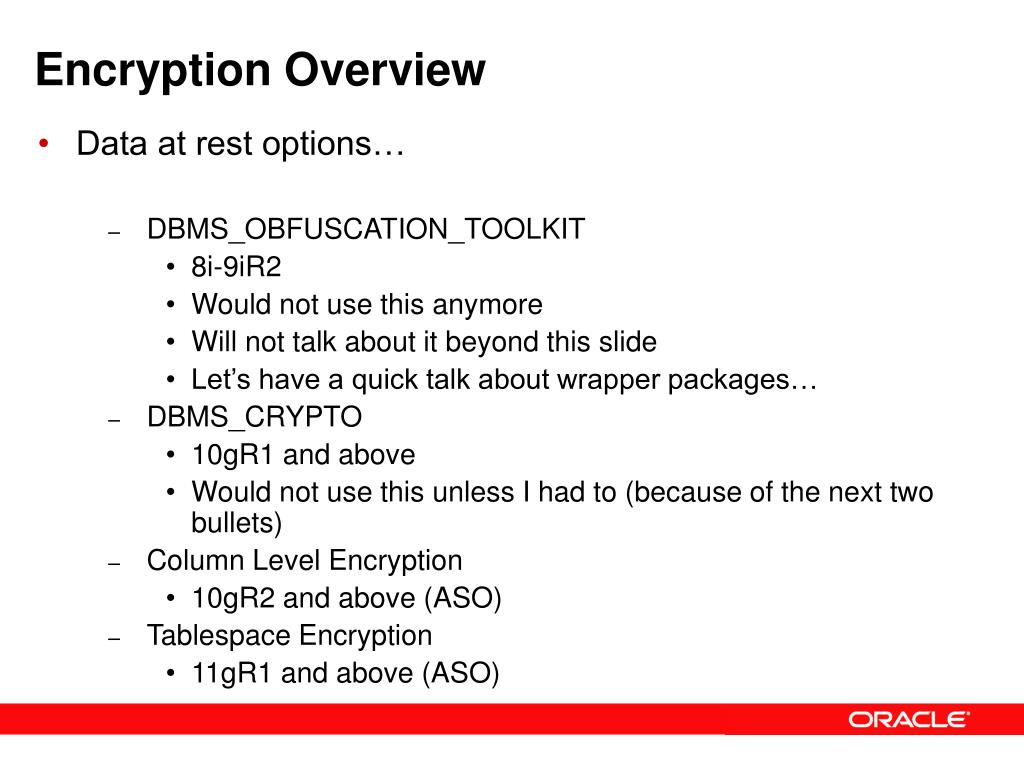

  4. Encryption Overview • Data at rest options… • DBMS_OBFUSCATION_TOOLKIT • 8i-9iR2 • Would not use this anymore • Will not talk about it beyond this slide • Let’s have a quick talk about wrapper packages… • DBMS_CRYPTO • 10gR1 and above • Would not use this unless I had to (because of the next two bullets) • Column Level Encryption • 10gR2 and above (ASO) • Tablespace Encryption • 11gR1 and above (ASO)

  5. DBMS_CRYPTO • Encrypt/Decrypt data procedurally • DES, 3DES • AES • RC4 • Hash functions • MD5, SHA-1, MD4 • Can use secret key as well • Random functions • Raw keys • Number and Integers as well

  6. DBMS_CRYPTO • The major problem – KEY MANAGEMENT • Do you store the key in the application? • How do you secure it there? • You need to retrieve it and transmit it • Do you store the key in the database? • If I steal your database, I have your keys • You will have code that retrieves the key, I will find out how • There are no good answers to this problem.

  7. DBMS_CRYPTO • API driven. • You code it, definitely not transparent. • Definite performance impact (compared to column and/or tablespace encryption) • Supports as inputs • RAW • CLOB • BLOB • And always returns binary output • You will use BLOB or RAW to store • If you use varchar2, you need to round up to multiple of 16 and double the length and RAWTOHEX or base64 encode the data. • Discuss legacy obfuscation toolkit and varchar2 flaw

  8. DBMS_CRYPTO • Simple Examples • Input raw after converting • Specify typ – the stream or block cipher type. Block cipher is what we use for storing data persistently • Key – the encryption key • Use varchar2 interface and the CLOB • Performance • What impact will this have? (it will be different for everyone) • How to measure it? Encrypt1.sql Encrypt2.sql Encrypt3.sql

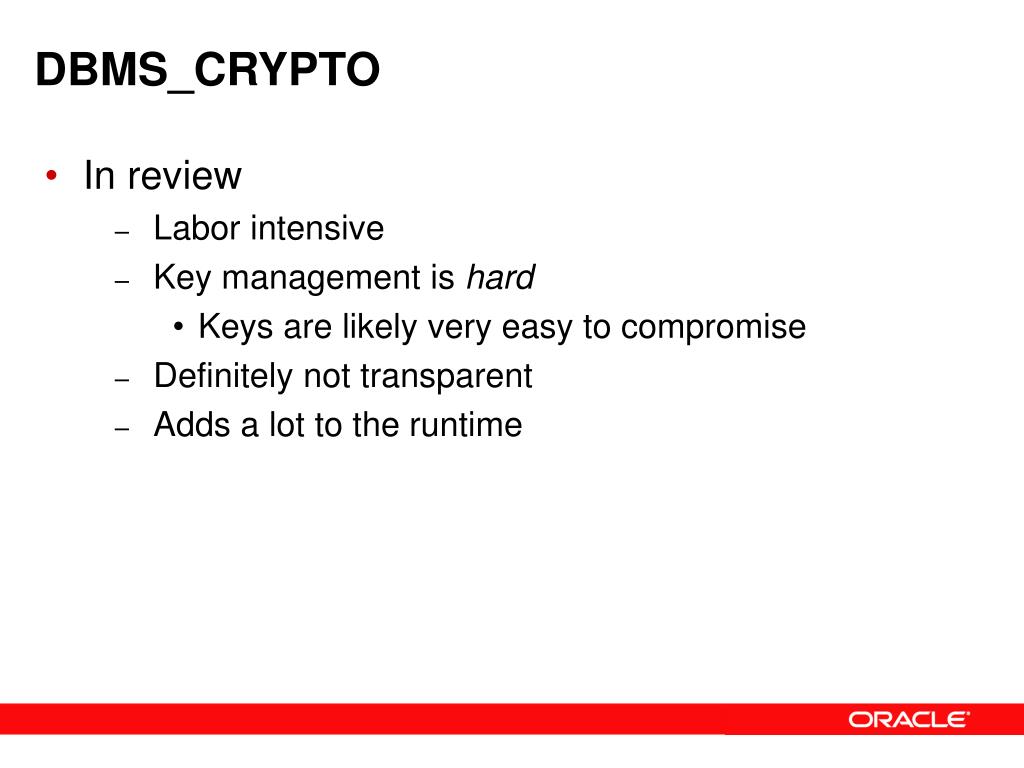

  9. DBMS_CRYPTO • In review • Labor intensive • Key management is hard • Keys are likely very easy to compromise • Definitely not transparent • Adds a lot to the runtime

  10. Column and Tablespace Encryption • Designed to be transparent • Uses a wallet • Must steal database and • Steal wallet and • Kidnap the DBA in order to make use of the data • As opposed to dbms-crypto, where I likely just need your database and some intelligence • Or Hardware Security Modules (HSM) • Physical device that stores keys • Provides protected memory space to encrypt/decrypt so keys are never visible • 11g

  11. Column Level Encryption • Data is cached encrypted in the SGA • Decrypted only when you dereference it • Encrypted every time you modify it • Undo generated is encrypted • Redo generated is encrypted • You can index it, but the index is indexing encrypted data (not sorted!)

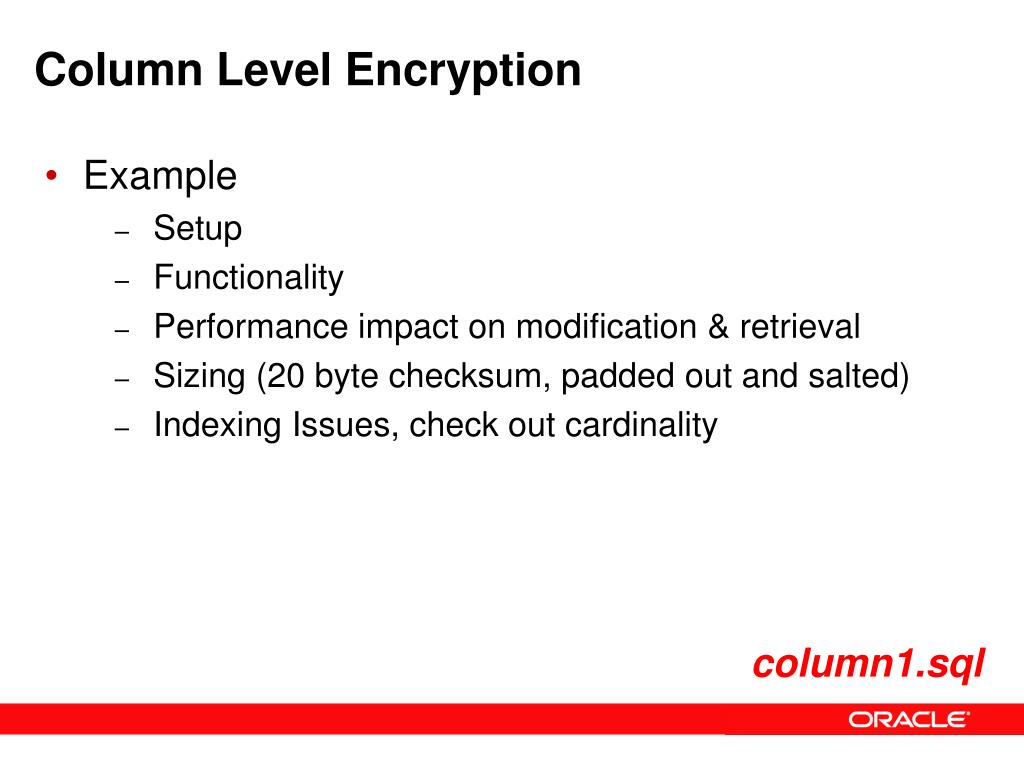

  12. Column Level Encryption • Example • Setup • Functionality • Performance impact on modification & retrieval • Sizing (20 byte checksum, padded out and salted) • Indexing Issues, check out cardinality column1.sql

  13. Column Level Encryption • Restrictions • Must not ‘salt’ if you index • Cannot be used with foreign keys • Issues with exp/imp (clear text issues) • In 11g, datapump can handle encryption, preserving the protection.

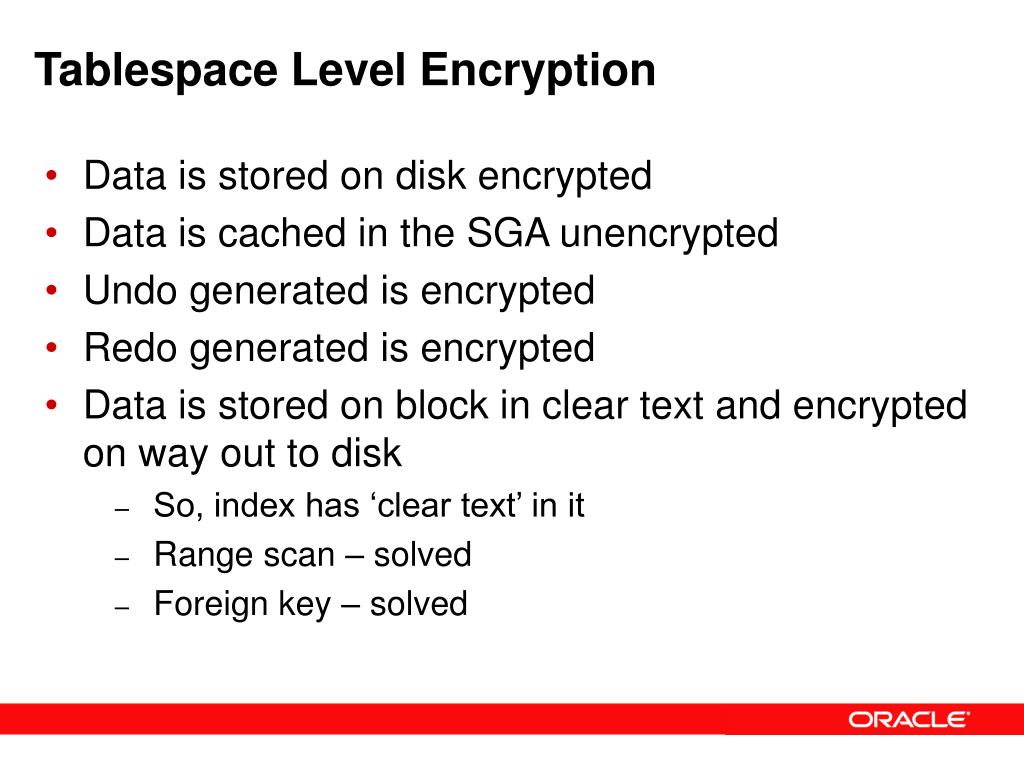

  14. Tablespace Level Encryption • Data is stored on disk encrypted • Data is cached in the SGA unencrypted • Undo generated is encrypted • Redo generated is encrypted • Data is stored on block in clear text and encrypted on way out to disk • So, index has ‘clear text’ in it • Range scan – solved • Foreign key – solved

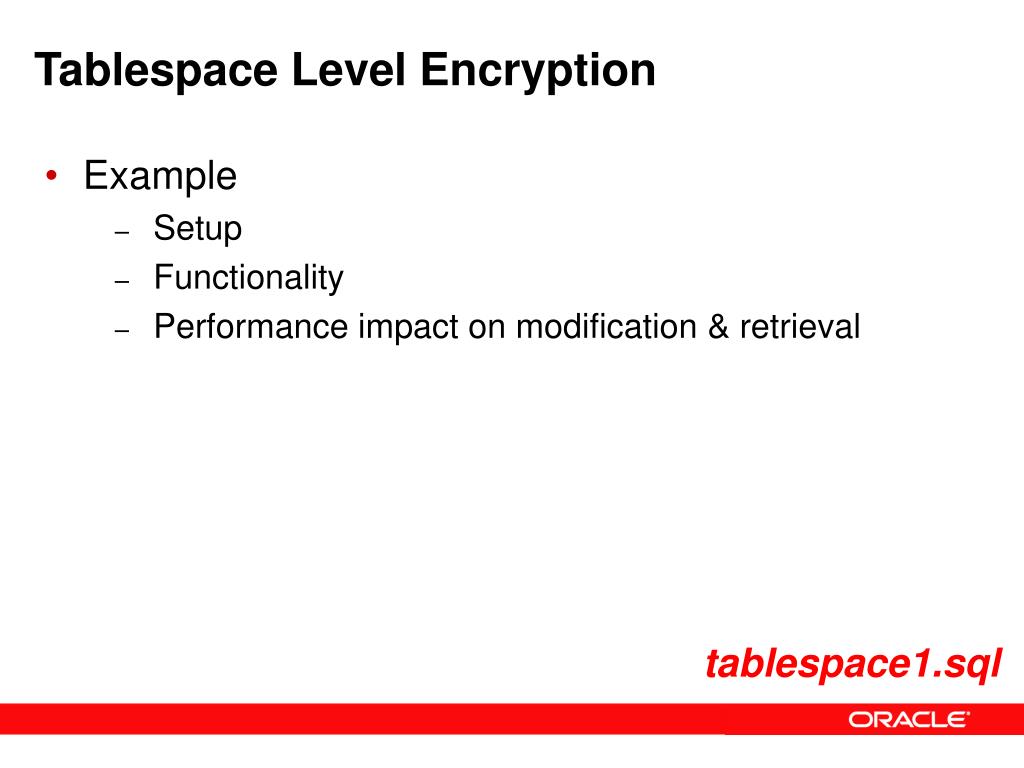

  15. Tablespace Level Encryption • Example • Setup • Functionality • Performance impact on modification & retrieval tablespace1.sql

  16. Tablespace Level Encryption • Restrictions • You cannot alter an existing tablespace to be encrypted • You create a new encrypted tablespace and move segments into it • You can alter a column to be encrypted • But you probably don’t want too! • It’ll leave old copies of itself

  17. Questions
