LHCb Upgrade Electronics. Meetings in 2012 (Thursday, 2pm): 14 th June 9 th August 11 th October 13 th December http://lhcb-elec.web.cern.ch/lhcb-elec/html/upgrade.htm. GBTX & Versatile Link Schedules. Reminder: GBTX: production parts Q1 2014 VL: production parts Q3-4 2015

remedy
Télécharger la présentation

LHCb Upgrade Electronics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

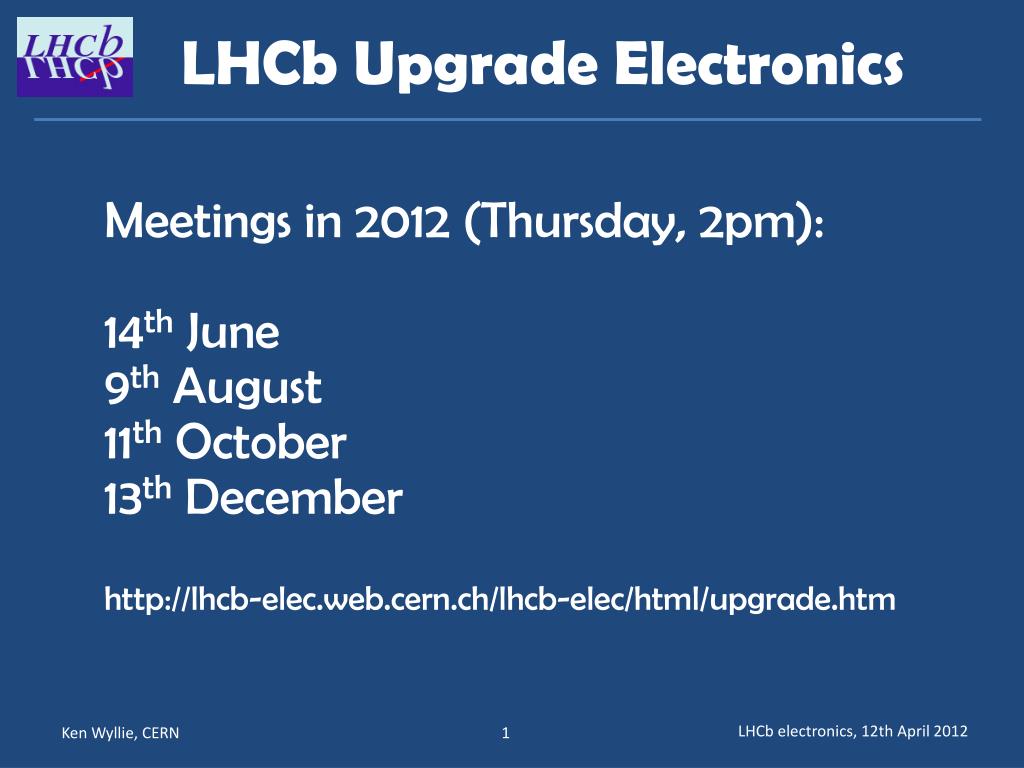

  1. LHCb Upgrade Electronics Meetings in 2012 (Thursday, 2pm): 14th June 9th August 11th October 13th December http://lhcb-elec.web.cern.ch/lhcb-elec/html/upgrade.htm LHCb electronics, 12th April 2012

  2. GBTX & Versatile Link Schedules Reminder: GBTX: production parts Q1 2014 VL: production parts Q3-4 2015 Are these dates Ok for users??????? Every sub-detector expressed interest in early samples LHCb electronics, 12th April 2012

  3. News TELL40 firmware kick-off on 1st March: Discussion on tools, general philosophy 1st actions from CPPM + TFC on core blocks Manchester/Krakow on Velo implementation (Lausanne guidance) Some commitments from groups but more is needed! ---------------------------------------------------------- ACTEL irradiations Syracuse ready for final(?) round in June Using NIKHEF TDC code LHCb electronics, 12th April 2012

  4. Updated link estimates Good estimates needed for planning fibre installation in 2013 – 2014. Check : L = 2 x 10 33 ???????? LHCb electronics, 12th April 2012

  5. TELL40 channel density • TELL40 (DAQ): • 24 input links per AMC • 96 input links per full TELL40 • TELL ECS/TFC (any suggestions for name?): • 36 bidir links per AMC • 144 bidir links per full TELL ECS/TFC • but bottleneck at GbEth of CCPC……..? LHCb electronics, 12th April 2012

  6. Sub-project contacts LHCb electronics, 12th April 2012
