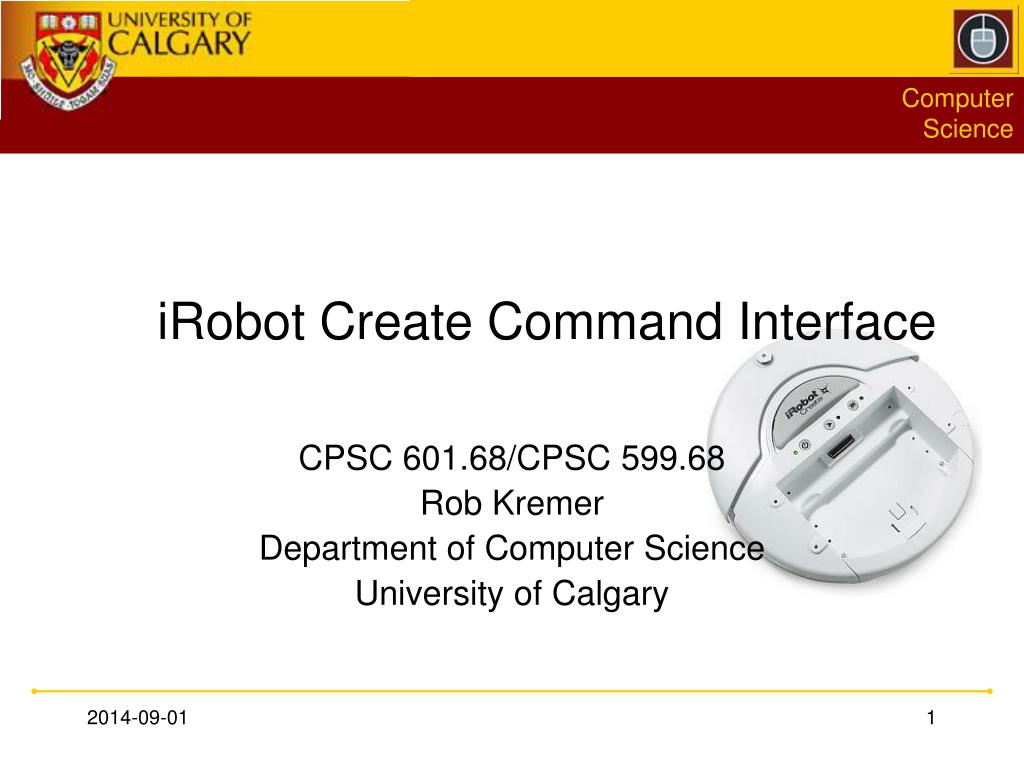

  1. iRobot Create Command Interface CPSC 601.68/CPSC 599.68 Rob Kremer Department of Computer Science University of Calgary

  2. Anatomy CPSC 609.68/599.68: Agent Communications

  3. Anatomy Bump Sensors CPSC 609.68/599.68: Agent Communications

  4. Anatomy CPSC 609.68/599.68: Agent Communications

  5. Agent software support: sensor tab CPSC 609.68/599.68: Agent Communications

  6. Agent software support: sensor tab CPSC 609.68/599.68: Agent Communications

  7. Agent software support: execute command execute takes a string of bytes (in decimal). Can also prefix a number with "s" to make it parse it as two bytes (a short). CPSC 609.68/599.68: Agent Communications

  8. Modes • OFF • Unresponsive (except START (128)) • Can charge • PASSIVE • Sensor status commands • No Actuator commands • Can charge • SAFE  recommended! • Sensor status commands • Actuator commands • But reverts to PASSIVE if moving forward and any cliff sensor is activated; any wheel drop sensor is activated; or the charger is plugged in • No Charging • FULL • Sensor status commands • Actuator commands • No Charging CPSC 609.68/599.68: Agent Communications

  9. Modes START (128) OFF PASSIVE SAFE (131) FULL (132) START (128) START (128) SAFE (131) SAFE FULL FULL (132) CPSC 609.68/599.68: Agent Communications

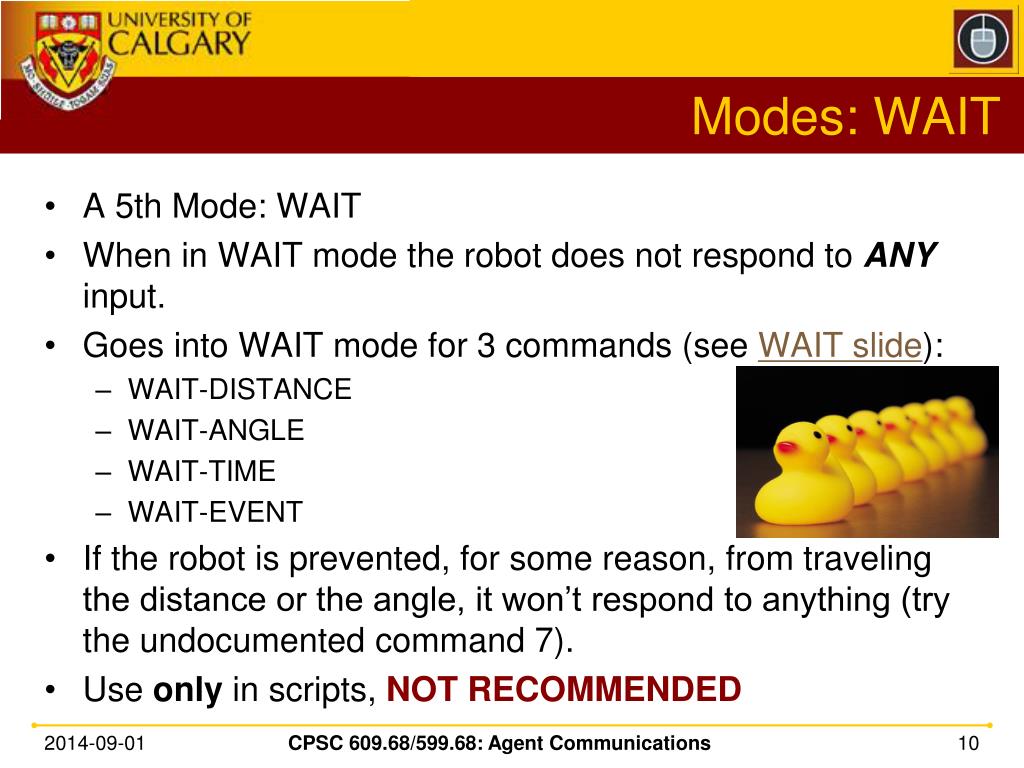

  10. Modes: WAIT • A 5th Mode: WAIT • When in WAIT mode the robot does not respond to ANY input. • Goes into WAIT mode for 3 commands (see WAIT slide): • WAIT-DISTANCE • WAIT-ANGLE • WAIT-TIME • WAIT-EVENT • If the robot is prevented, for some reason, from traveling the distance or the angle, it won’t respond to anything (try the undocumented command 7). • Use only in scripts, NOT RECOMMENDED CPSC 609.68/599.68: Agent Communications

  11. Actuators: Drive • DRIVE (137 <velocityhigh> <velocitylow> <radiushigh> <radiuslow>) • 2 short (16 bit) parameters • Each represented by 2 bytes, high byte first (so a total of 5 bytes for this command) • Parameter 1: velocity in mm/sec • -500 to +500 (-ve means “backwards”) • Parameter 2: curve radius in mm • -2000 to +2000 where -ve means clockwise and +ve means counterclockwise • 32768 means “go straight” • -1 and +1 mean spin in place clockwise, counterclockwise respectively CPSC 609.68/599.68: Agent Communications

  12. Actuators: LEDs • LEDs (139 <Adv&Play> <powerColor> <powerInten>) • Adv&Play: • Bit 1 (=2): Play LED • Bit 3 (=8): Advance LED • PowerColor (0-255): • 0=green; 255=red • PowerIntensity (0-255) • 0=off; 255=full intensity CPSC 609.68/599.68: Agent Communications

  13. Actuators: Send IR • SEND-IR (151 <IRbyte>) • Sends a byte using an add-on circuit and a IR LED • Can be received by the omnidirectional IR reciever at the front of the robot • Could be use to transmit short-distance identifiers for each robot • Does not replace CASA agent communication protocols! CPSC 609.68/599.68: Agent Communications

  14. Actuators: Songs • Load a song • 140 <song#> <length> {<note> <duration>}* • <song#>: 0-15 • <length>: number of notes (1/2 of bytes) (up to 16 notes) • <note>: see table in OI Manual • <duration>: in 1/64 second (31=G@49.0Hz … 127=G@12543.9Hz) • Play a song • 141 <song#> • Doesn’t work if a song is already playing CPSC 609.68/599.68: Agent Communications

  15. Inputs: Sensors • Read Sensors • 142 <packetID> • Packets 0-6 are “packet groups” (eg: 0 is sensors 7-26, which is 26 bytes [some are two-byte returns]) • Packets 7-42 are individual sensors • Either numerical values (1 or 2 bytes) or bitmaps • See OI Manual • Also a commands for: • reading a list of sensors (149) • requesting a continuous stream of packet data (148) • pausing/resuming a stream (150) CPSC 609.68/599.68: Agent Communications

  16. Sensor Groups Packets CPSC 609.68/599.68: Agent Communications

  17. Sensor Single Packets CPSC 609.68/599.68: Agent Communications

  18. Scripts • Load a script • 152 <length> <opcode>* • <length>: number of bytes in script (up to 100) • <opcode>: OI commands • Play a script • 143 • No flow control except for WAIT commands (next slide) • Show script • 154 • Returns the current script CPSC 609.68/599.68: Agent Communications

  19. Scripts: Wait • Wait time • 155 <time> • <time> in 1/10 sec (resolution of 15ms) • Wait Distance • 156 <disthigh> <distlow> • <dist> distance in mm. +ve=forward, -ve=back • Works for passively rotating the wheels • Wait Angle • 157 <anglehigh> <anglelow> • <angle> angle in deg. +ve=counterclockwise, -ve=clockwise • Wait Event • 158 <event#> • <event#>: eg: 1=wheel drop (see table in OI Manual, p.16) • Use -ve for inverse of event (eg: -1 wheel drop stops) CPSC 609.68/599.68: Agent Communications

  20. Tasks: measuring • You can track the distance traveled by using sensor 19 (distance) • Angle with sensor 20 (angle) • Note: reading these sensors causes them to be reset • Distance (angles) increment for forward (counterclockwise) and decrement for backward (clockwise) • Class iRobotCreate’s regular sensor reading keeps an accumulator for distance and angle CPSC 609.68/599.68: Agent Communications

  21. Tasks: Following a wall • You can track along a wall using the wall sensor (sensor 8) • Use Drive straight (137 <velocity> 32687) when the wall is there; or a wide right curve (137 <velocity> -2000) when the wall goes away • You should expect the occasional right-bump • If you get a left-bumb, you’ve probably hit a corner CPSC 609.68/599.68: Agent Communications
