  1. Estimating Performance of aRay-Tracing ASIC Design Sven Woop† Erik Brunvand‡ Philipp Slusallek† † Saarland University, Germany ‡ University of Utah, USA

  2. Ray Tracing in Car Industry

  3. Ray Tracing Games

  4. Previous Work • Ray Tracers for Static Scenes • CPU based: [OpenRT], [MLRT SIGGRAPH05] • GPU based: Purcell (Grids) [SIGGRAPH02], Foley et al. (KD Trees) [GH05] • Custom Hardware: Commercial Hardware (ART-VPS) Schmittler (KD Trees) [GH04] RPU (KD Trees) [SIGGRAPH05] • Ray Tracers for Dynamic Scenes • CPU based: Wald (Grids) [SIGGRAPH06] Wald (AABVHs) [TOG / Tech. Rep. 2006] • Custom Hardware: Woop (B-KD Trees) [GH06]

  5. Outline • Previous Work • DRPU Architecture • B-KD Trees • Traversal Processor • Prototype Implementations • DRPU-FPGA • DRPU-ASICs • Conclusion

  6. Definition of B-KD Trees B-KD Tree (Bounded KD-Tree) • Binary Tree • 1D bounding intervalls for each child • Leaf nodes point to a single primitive

  7. B-KD Tree Subdivision • Bounding Volume Hierarchy (partially unbounded) • Each node can be associated with a full bounding box • Bounds may overlap • Primitives in single leaf nodes • More traversal steps as for KD Tree • Support for dynamic scenes

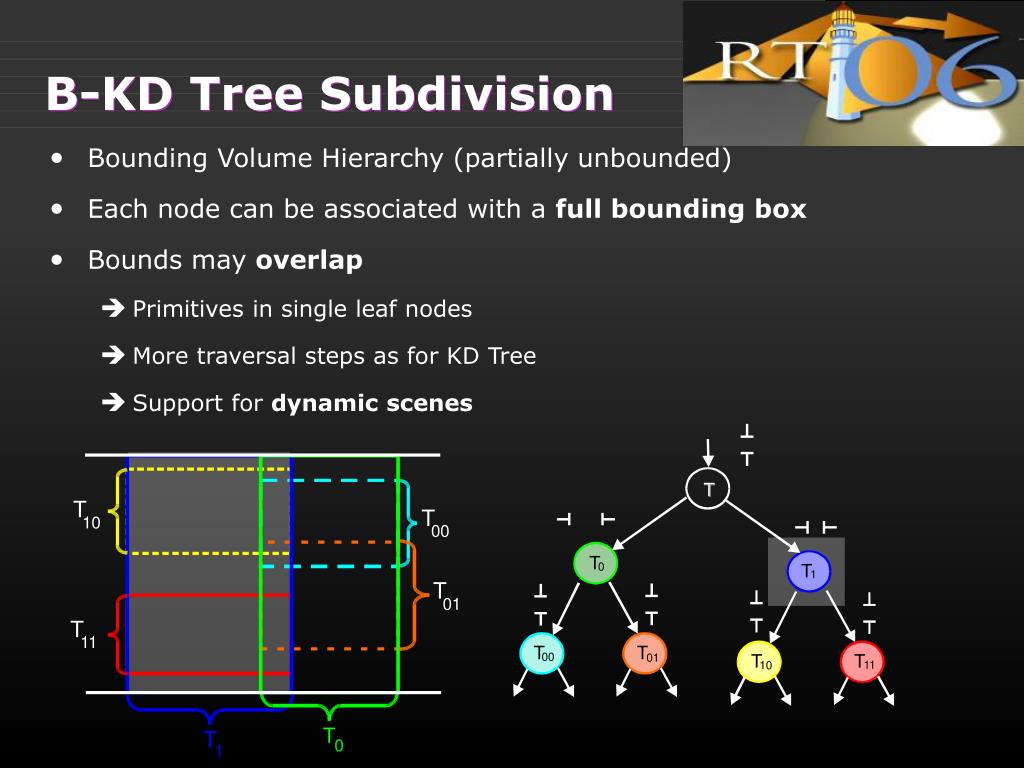

  8. B-KD Tree Subdivision • Bounding Volume Hierarchy (partially unbounded) • Each node can be associated with a full bounding box • Bounds may overlap • Primitives in single leaf nodes • More traversal steps as for KD Tree • Support for dynamic scenes

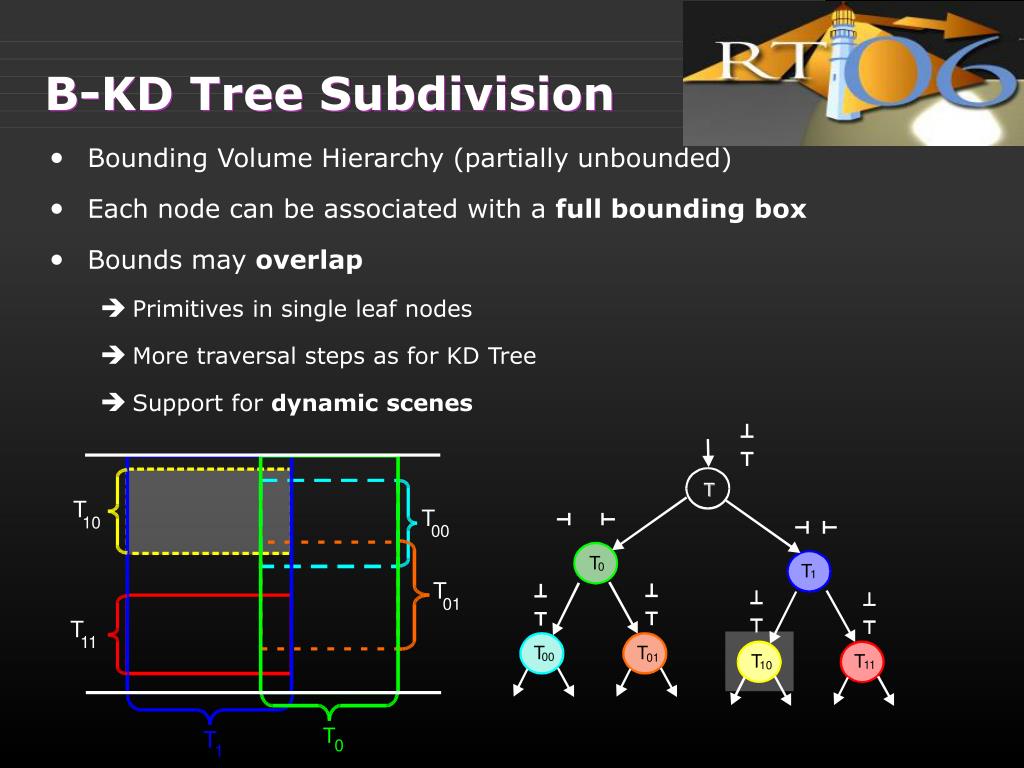

  9. B-KD Tree Subdivision • Bounding Volume Hierarchy (partially unbounded) • Each node can be associated with a full bounding box • Bounds may overlap • Primitives in single leaf nodes • More traversal steps as for KD Tree • Support for dynamic scenes

  10. B-KD Tree Subdivision • Bounding Volume Hierarchy (partially unbounded) • Each node can be associated with a full bounding box • Bounds may overlap • Primitives in single leaf nodes • More traversal steps as for KD Tree • Support for dynamic scenes

  11. B-KD Tree Subdivision • Bounding Volume Hierarchy (partially unbounded) • Each node can be associated with a full bounding box • Bounds may overlap • Primitives in single leaf nodes • More traversal steps as for KD Tree • Support for dynamic scenes

  12. Update of B-KD Trees Update Procedure • Bounds updated on changed geometry • B-KD tree structure remains constant • Linear updating complexity

  13. DRPU Architecture vertices from memory

  14. DRPU Architecture • Rendering Units • Highly multi-threaded • Higher hardware usage • Synchronous execution of packets of 4 rays • Memory bandwidth reduction • First level caches • Memory bandwidth reduction vertices from memory

  15. DRPU Architecture • Programmable Shading Processor • Design similar to fragment processors on GPUs • Improved Programming Model • Add highly efficient recursion • Add flexible memory access • Programming Model • Ray generation tasks • Material shading • Calls Ray Casting Units to cast rays vertices from memory

  16. DRPU Architecture • Programmable Shading Unit • Ray Casting Units • High-performance traversal and intersection • Support for continous dynamic scenes • B-KD Trees approach vertices from memory

  17. DRPU Architecture • Programmable Shading Unit • Ray Casting Units • Traversal Processor • Efficient traversal of B-KD trees vertices from memory

  18. DRPU Architecture • Programmable Shading Unit • Ray Casting Units • Traversal Processor • Efficient traversal of B-KD trees • Geometry Unit • Ray transformations • Vertex-based ray/triangle intersection [Möller Trumbore] • Shared vertices save memory 6x vertices from memory

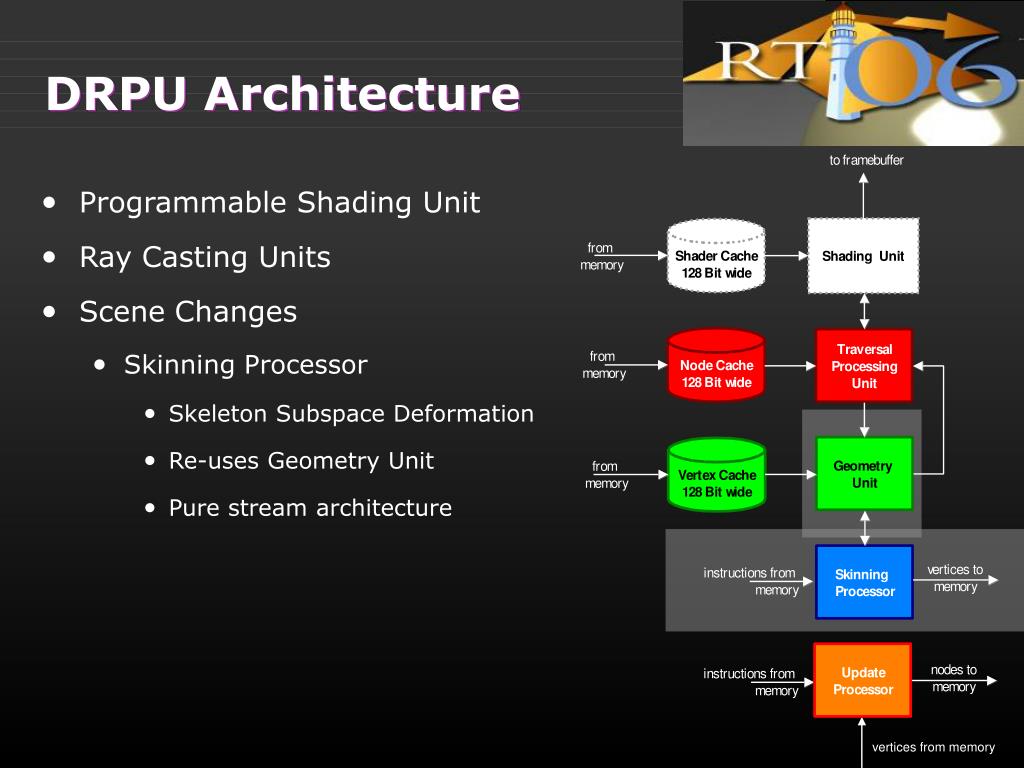

  19. DRPU Architecture • Programmable Shading Unit • Ray Casting Units • Scene Changes • Skinning Processor • Skeleton Subspace Deformation • Re-uses Geometry Unit • Pure stream architecture vertices from memory

  20. DRPU Architecture • Programmable Shading Unit • Ray Casting Units • Scene Changes • Skinning Processor (see paper) • Skeleton Subspace Deformation • Re-uses Geometry Unit • Pure stream architecture • Update Processor • Stream-like architecture • Partial breadth-first execution • One B-KD node update per clock cycle peak vertices from memory

  21. DRPU Architecture vertices from memory

  22. Traversal of B-KD Trees Traversal of B-KD Trees • Early ray termination • Clipping of near/far interval against both bounding intervalls • Take closer child, push farther child to stack • Traversal order does not affect correctness Complexity • 4x computational cost of KD tree traversal step • 2x stack memory

  23. Traversal Processor • Stack control computes next address

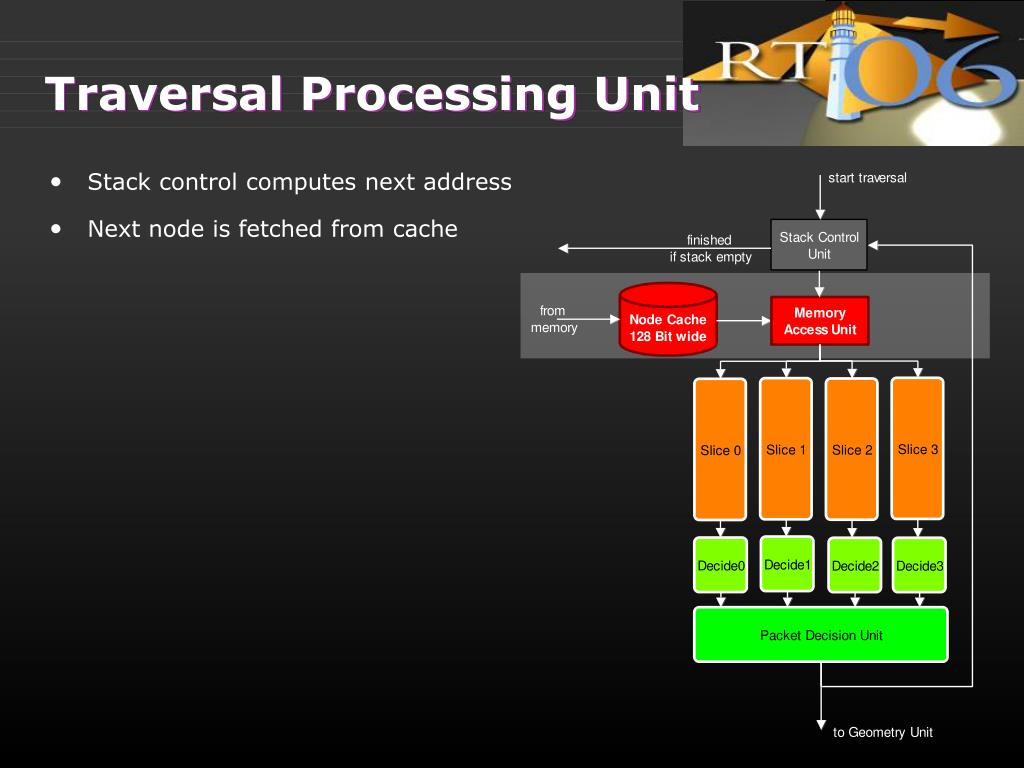

  24. Traversal Processing Unit • Stack control computes next address • Next node is fetched from cache

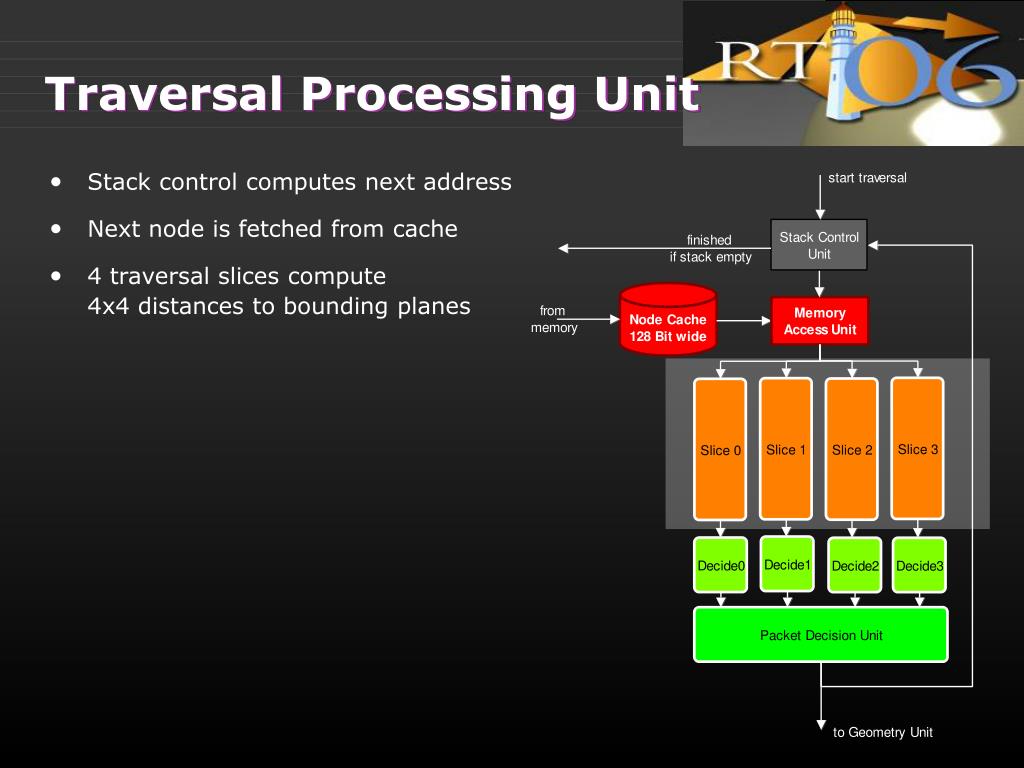

  25. Traversal Processing Unit • Stack control computes next address • Next node is fetched from cache • 4 traversal slices compute 4x4 distances to bounding planes

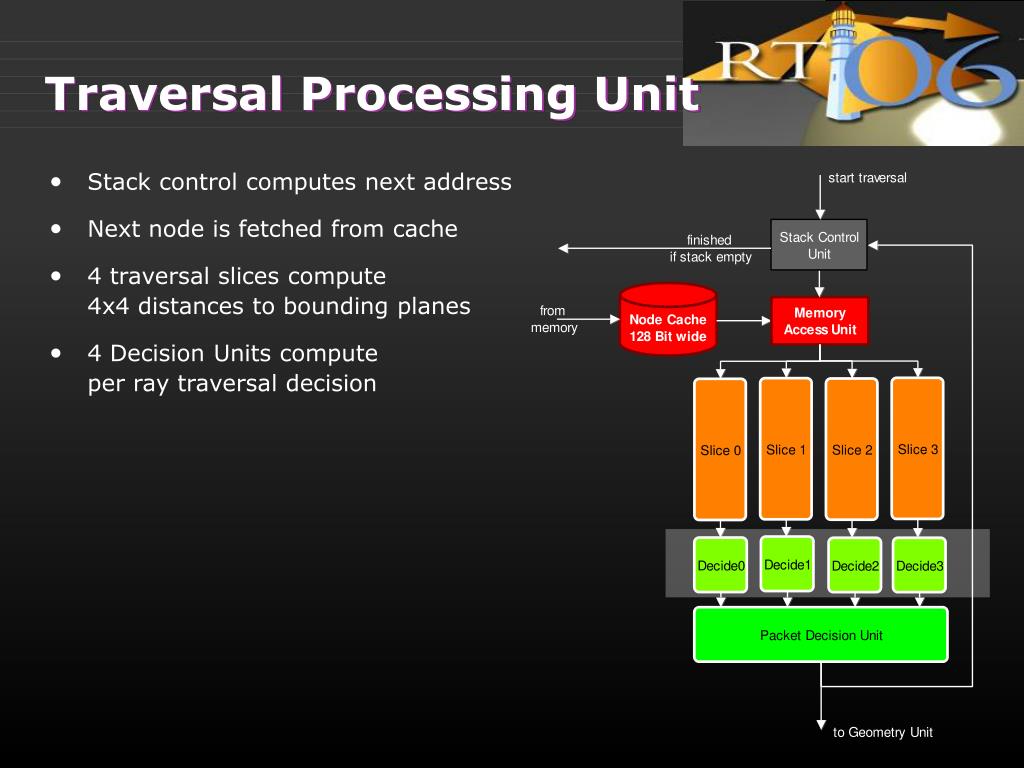

  26. Traversal Processing Unit • Stack control computes next address • Next node is fetched from cache • 4 traversal slices compute 4x4 distances to bounding planes • 4 Decision Units compute per ray traversal decision

  27. Traversal Processing Unit • Stack control computes next address • Next node is fetched from cache • 4 traversal slices compute 4x4 distances to bounding planes • 4 Decision Units compute per ray traversal decision • Packet Decision Unit computes packet traversal decision • Packet goes left if exists a that ray goes left • Packet goes right if exists a ray that goes right • Packet goes from left to right if exists a ray that goes into both children from left to right

  28. Traversal Processing Unit • Stack control computes next address • Next node is fetched from cache • 4 traversal slices compute 4x4 distances to bounding planes • 4 Decision Units compute per ray traversal decision • Packet Decision Unit computes packet traversal decision • Packet goes left if exists a that ray goes left • Packet goes right if exists a ray that goes right • Packet goes from left to right if exists a ray that goes into both children from left to right  Incoherent packets possible

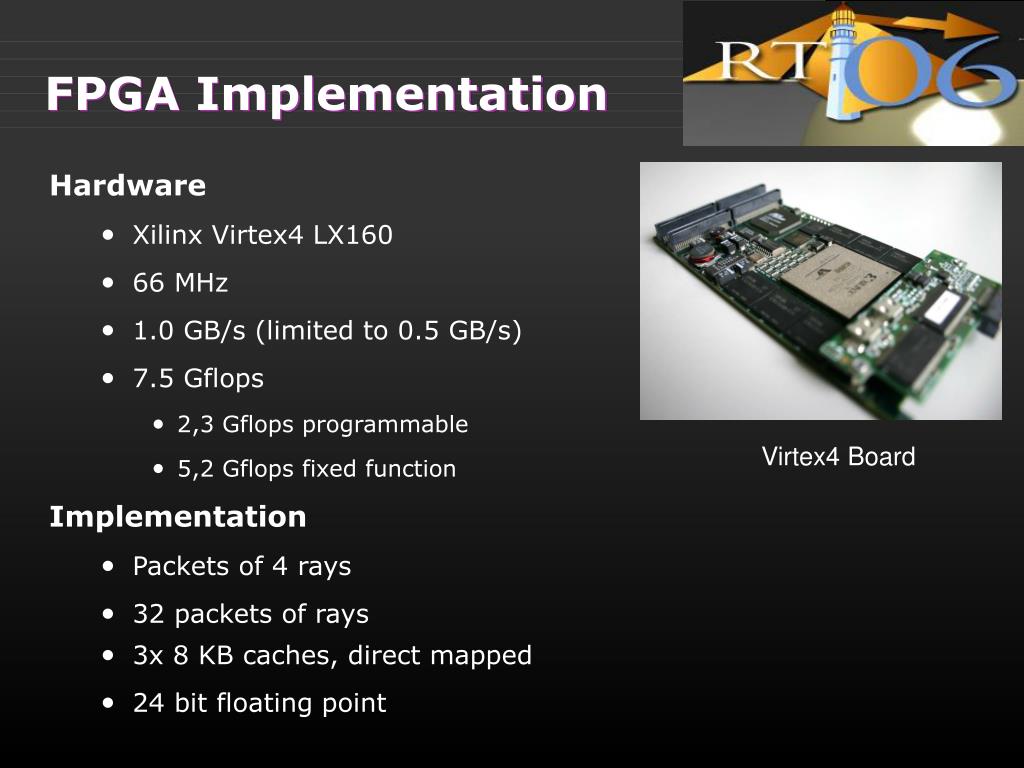

  29. FPGA Implementation Hardware • Xilinx Virtex4 LX160 • 66 MHz • 1.0 GB/s (limited to 0.5 GB/s) • 7.5 Gflops • 2,3 Gflops programmable • 5,2 Gflops fixed function Implementation • Packets of 4 rays • 32 packets of rays • 3x 8 KB caches, direct mapped • 24 bit floating point Virtex4 Board

  30. ASIC Design • Synthesis • Synopsys Synthesis • UMC 130nm CMOS process • Place & Route • Cadence Encounter • Some manual placements to achieve good results • Only DRPU Core • No chip interface designed (PCI Express, DRAM, ...) • No power estimation DRPU-ASIC

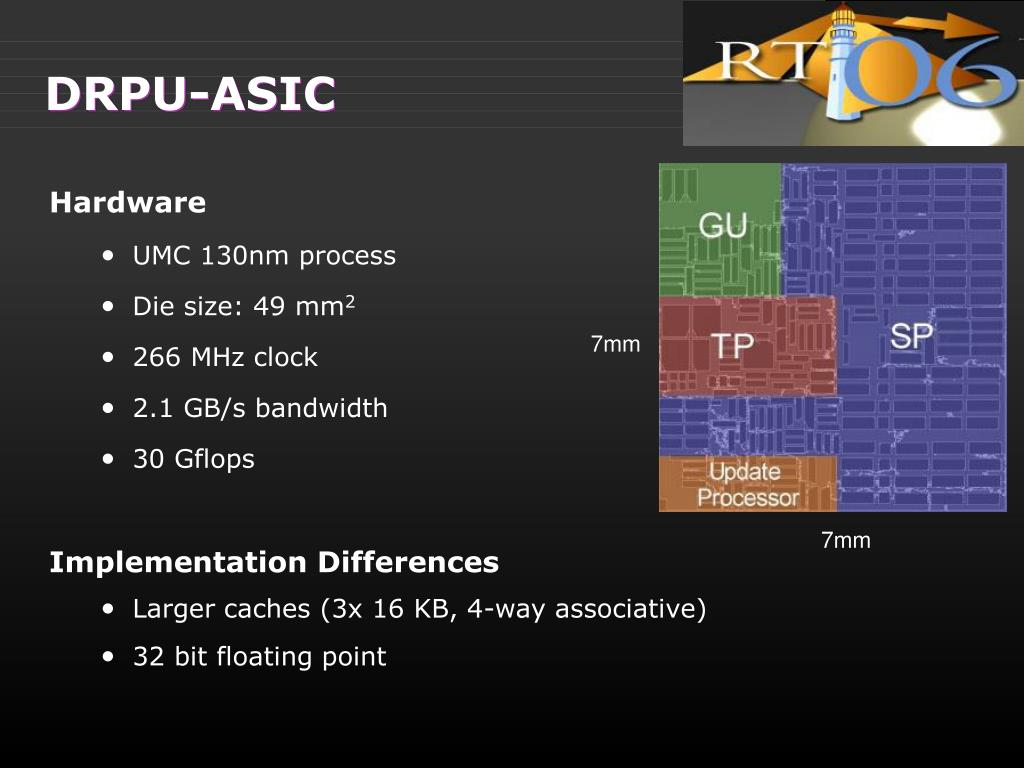

  31. DRPU-ASIC Hardware • UMC 130nm process • Die size: 49 mm2 • 266 MHz clock • 2.1 GB/s bandwidth • 30 Gflops Implementation Differences • Larger caches (3x 16 KB, 4-way associative) • 32 bit floating point 7mm 7mm

  32. GPU Complexity ATI R520 (October, 2005) • 90nm process • 288 mm2 die • 600 MHz clock speed • 170 GFlops programmable? • 44,8 GB/s memory bandwidth Implementation • Packets of 4 fragments • 16 fragment pipelines • 8 vertex piplines • 32 bit floating point 7mm

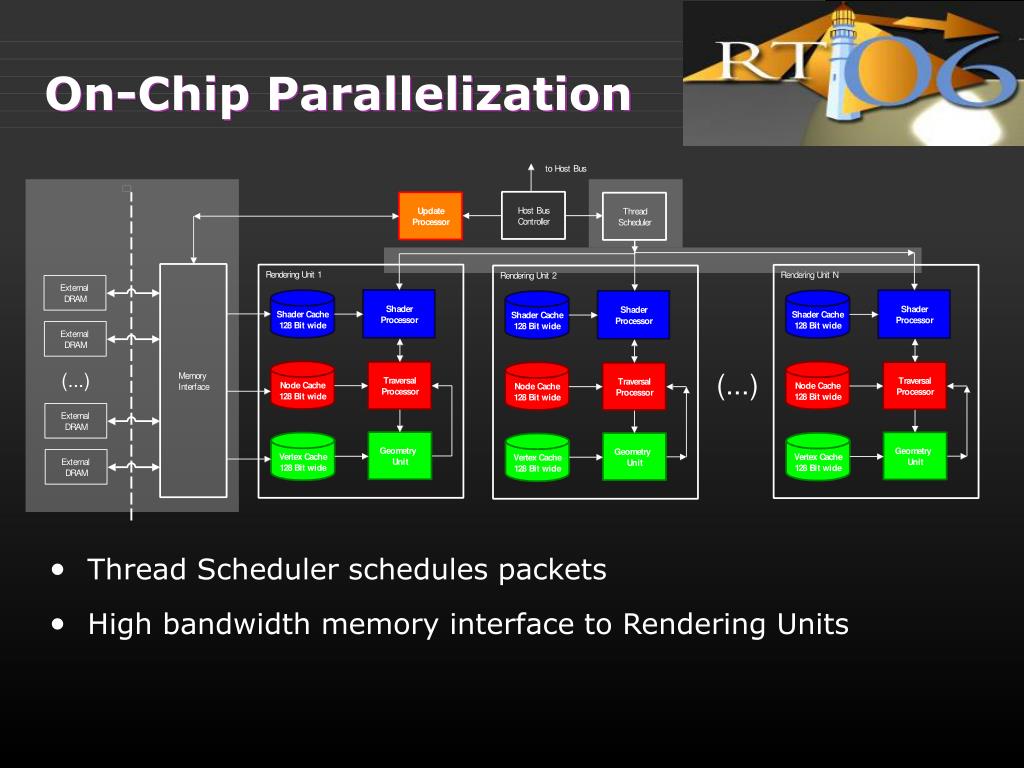

  33. On-Chip Parallelization • Thread Scheduler schedules packets • High bandwidth memory interface to Rendering Units

  34. DRPU4 ASIC Hardware • UMC 130nm process • 196 mm2 die (4 x 49 mm2) • 266 MHz clock • 8,5 GB/s • 120 GFlops Implementation Differences • 4x DRPU ASIC • No high level control 14mm 14mm

  35. DRPU8-ASIC Hardware • 90nm process (extrapolated using constant field scaling) • 186 mm2 die • 400 MHz clock speed • 25,6 GB/s bandwidth • 361 Gflops • 110 Gflops programmable • 471 Gflops fixed function Implementation Differences • 8x DRPU-ASIC 19,3 mm 9,6 mm

  36. Results 1024x768, shadows

  37. Results 1024x768, shadows

  38. Results for DRPU8 • Performance sufficient for game play • Room for improving image quality Gael 91.2 fps DynGael 96.0 fps

  39. Conclusions and Future Work • Ray Tracing Hardware Design • Support for programmable recursive shading • Coherent scene changes • Working Prototype Implementation • Post layout ASIC Results • Still no power results • No direct performance comparison against GPU

  40. Questions? • Project Homepage:http://www.saarcor.de • Computer Graphics Lab at Saarland University:http://graphics.cs.uni-sb.de
