Intelligent controller design based on gain and phase margin specifications

This study compares the performance of advanced control strategies, including PID, 2-DOF PID, and GPC, focusing on gain and phase margin specifications. Utilizing genetic algorithms, the research addresses the tuning of controllers for single-input, single-output (SISO) systems. The evaluation involves simulations across twelve models with varying stability characteristics. Results indicate that GPC consistently outperforms traditional PID implementations, highlighting the advantages of advanced control structures in handling complex systems. The study also discusses the challenges in tuning these controllers and their real-time application potential.

reuben-bishop
Télécharger la présentation

Intelligent controller design based on gain and phase margin specifications

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Intelligent controller design based on gain and phase margin specifications Daniel Czarkowski and Tom O’Mahony* Advanced Control Group, Department of Electronics Engineering, Cork Institute of Technology, e-mails:  dczarkowski@cit.ie * tomahony@cit.ie

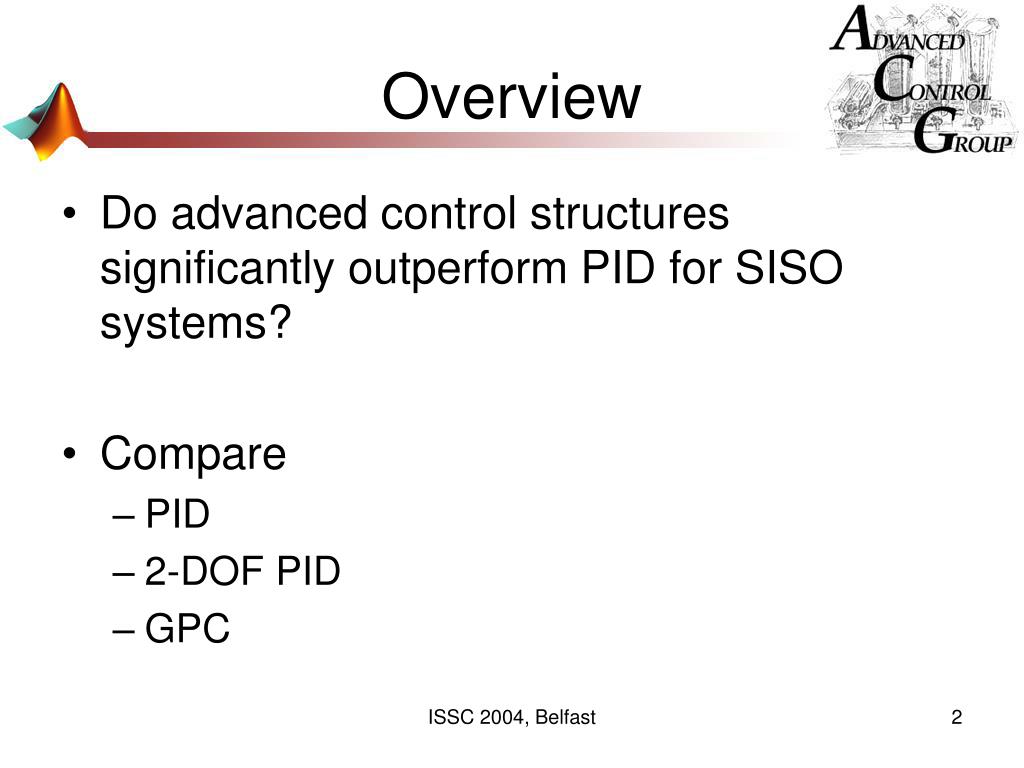

  2. Overview • Do advanced control structures significantly outperform PID for SISO systems? • Compare • PID • 2-DOF PID • GPC ISSC 2004, Belfast

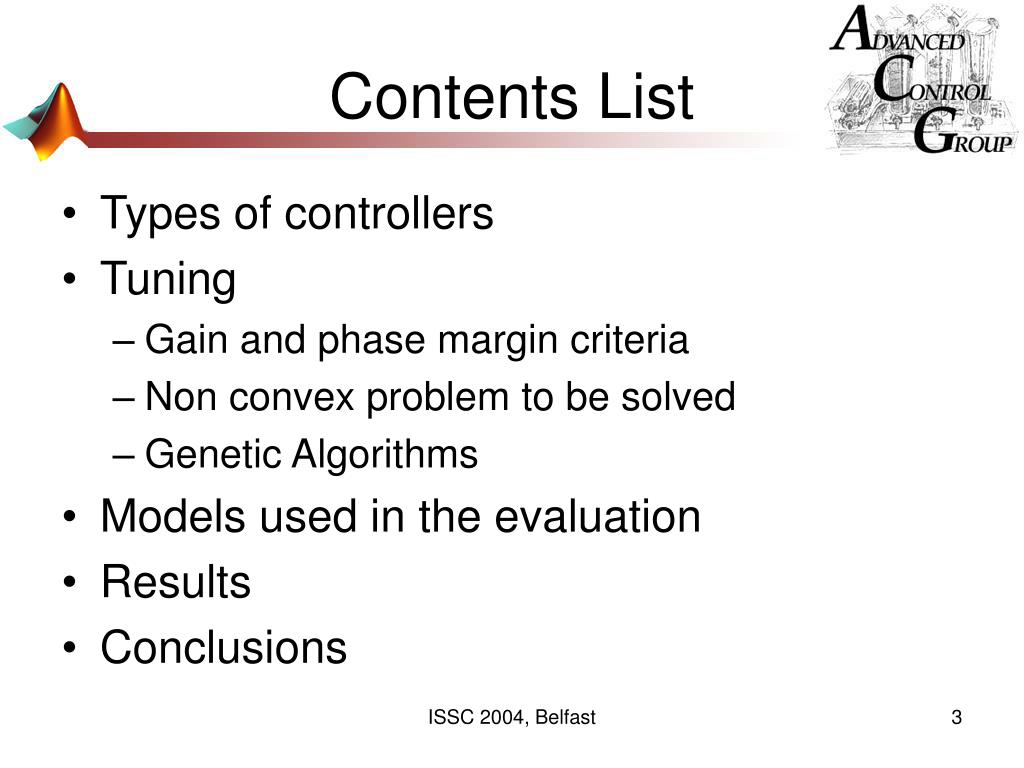

  3. Contents List • Types of controllers • Tuning • Gain and phase margin criteria • Non convex problem to be solved • Genetic Algorithms • Models used in the evaluation • Results • Conclusions ISSC 2004, Belfast

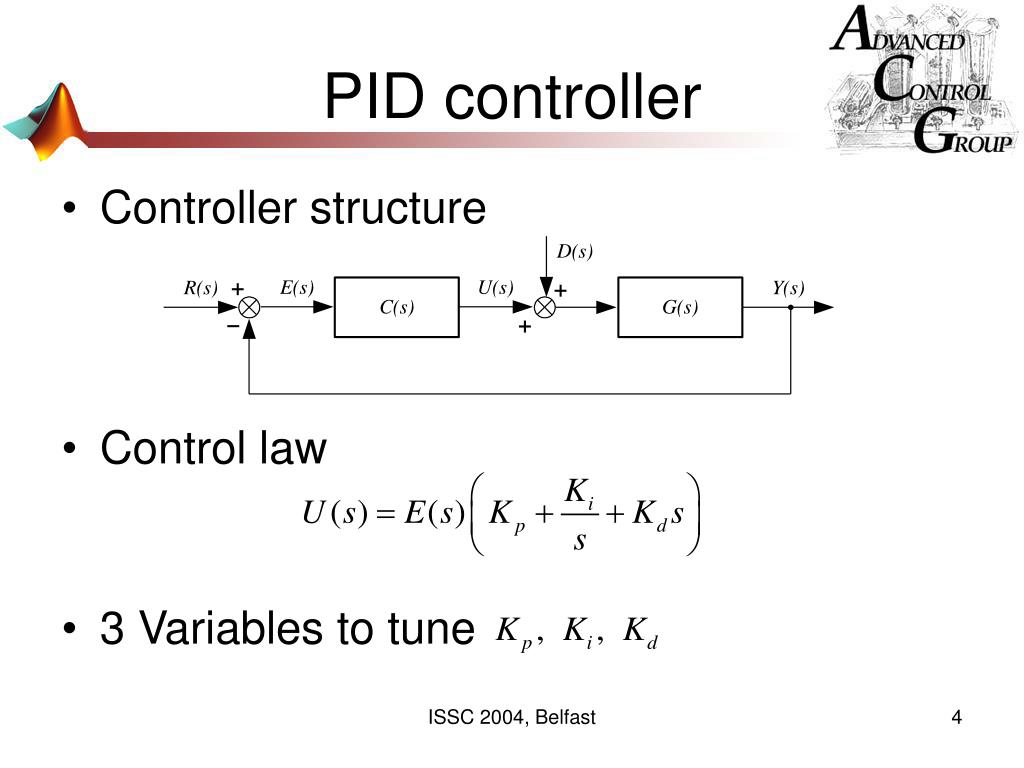

  4. PID controller • Controller structure • Control law • 3 Variables to tune ISSC 2004, Belfast

  5. 2-DOF PID controller • Controller structure • Control law • 6 variables to tune ISSC 2004, Belfast

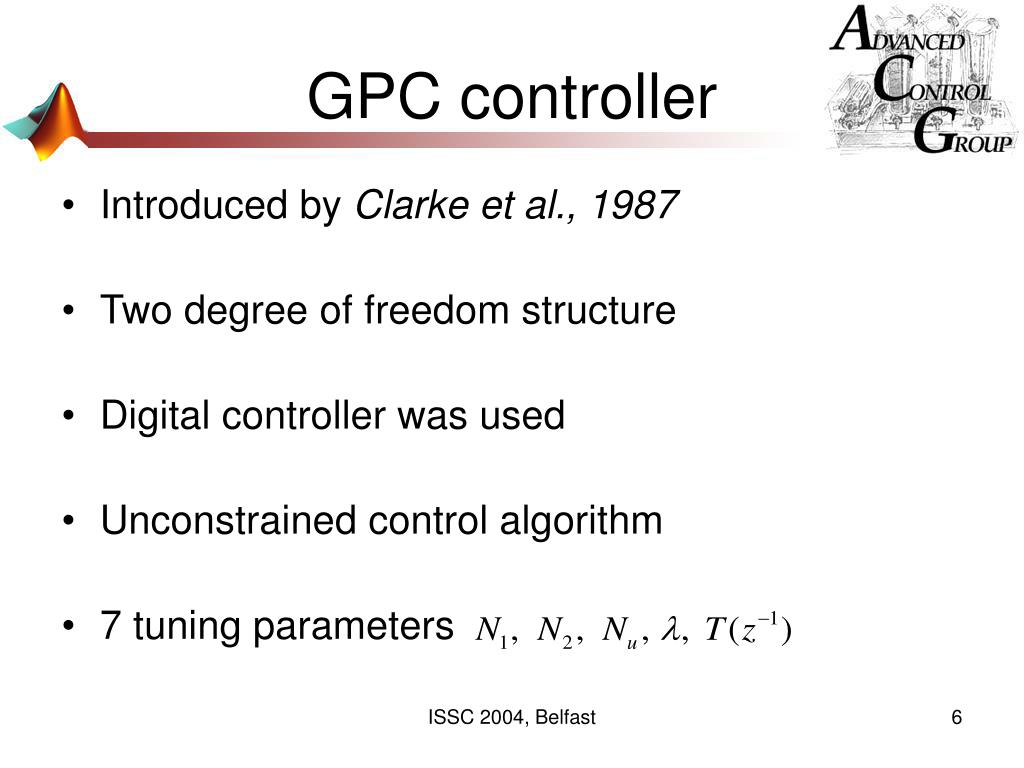

  6. GPC controller • Introduced by Clarke et al., 1987 • Two degree of freedom structure • Digital controller was used • Unconstrained control algorithm • 7 tuning parameters ISSC 2004, Belfast

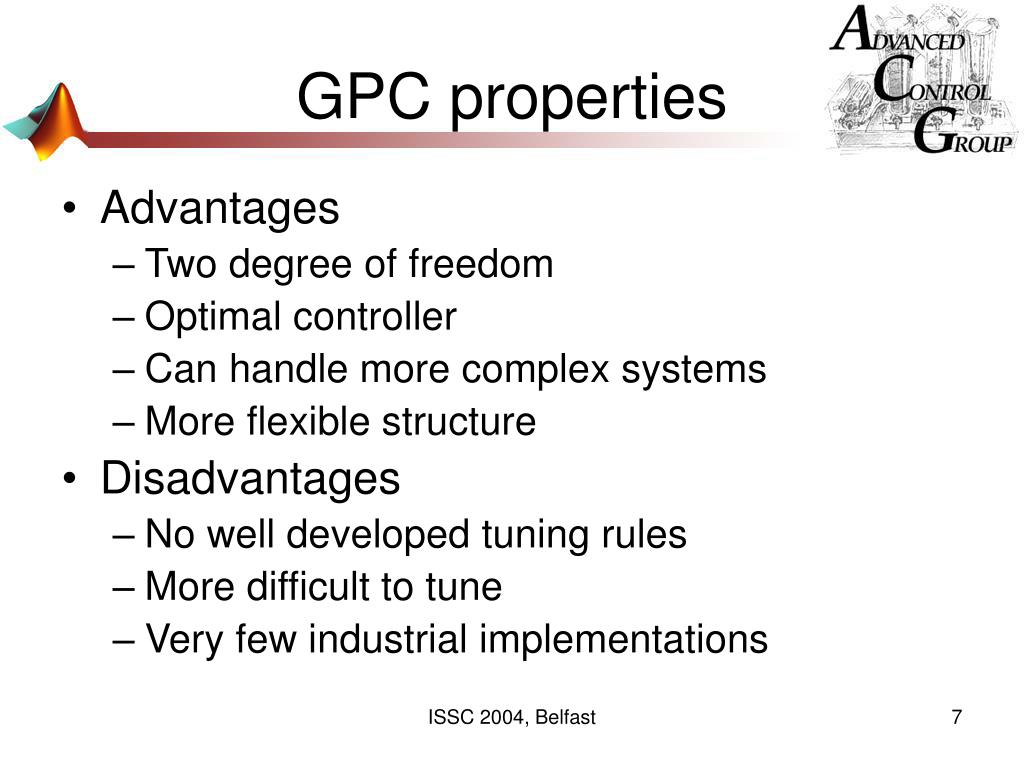

  7. GPC properties • Advantages • Two degree of freedom • Optimal controller • Can handle more complex systems • More flexible structure • Disadvantages • No well developed tuning rules • More difficult to tune • Very few industrial implementations ISSC 2004, Belfast

  8. Design strategy • Performance & robustness • Performance • IAE servo + regulator • Robustness • Gain and phase margin ISSC 2004, Belfast

  9. Non-convex problem • Inverse unstable system Avoid local minima! ISSC 2004, Belfast

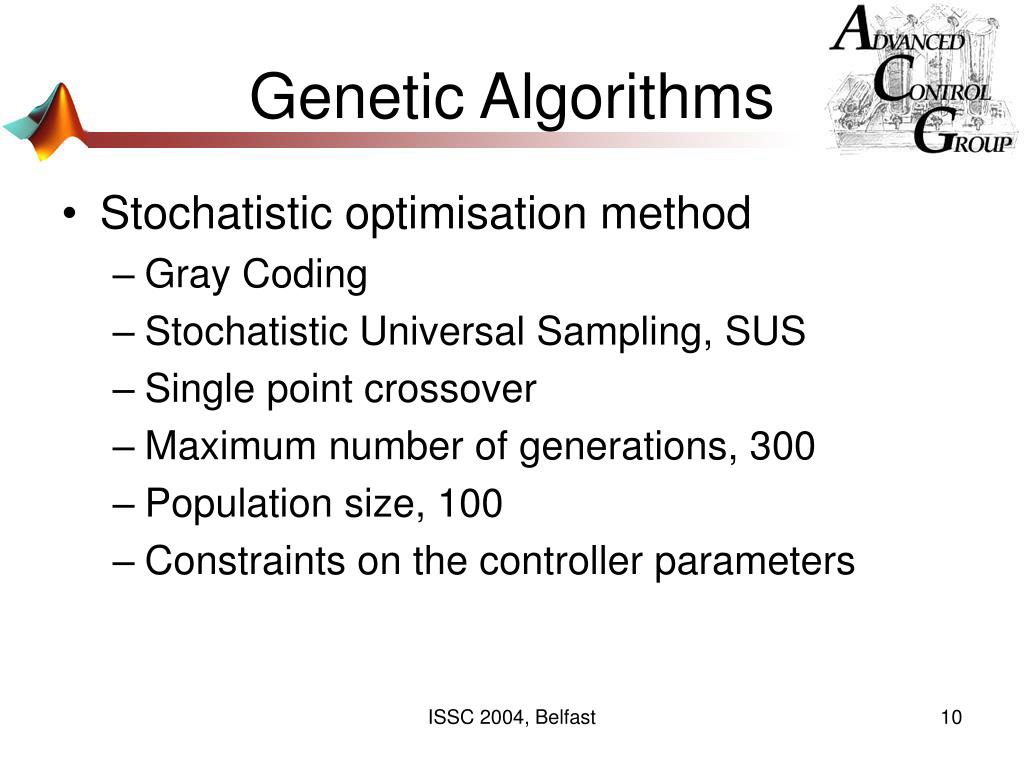

  10. Genetic Algorithms • Stochatistic optimisation method • Gray Coding • Stochatistic Universal Sampling, SUS • Single point crossover • Maximum number of generations, 300 • Population size, 100 • Constraints on the controller parameters ISSC 2004, Belfast

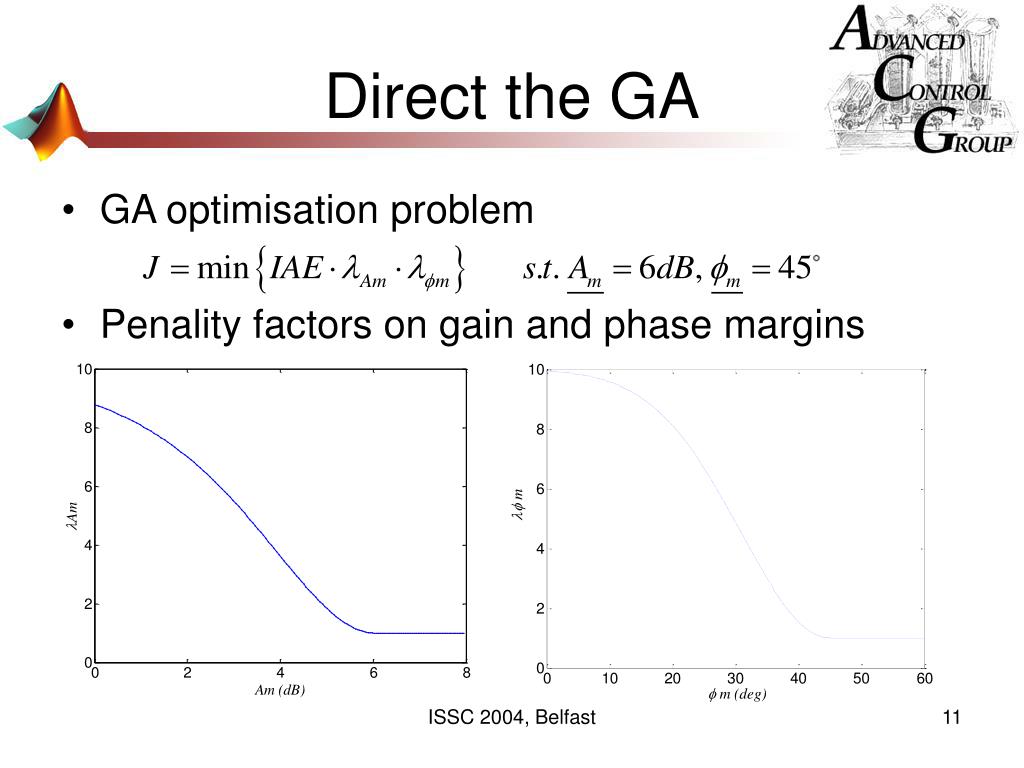

  11. Direct the GA • GA optimisation problem • Penality factors on gain and phase margins ISSC 2004, Belfast

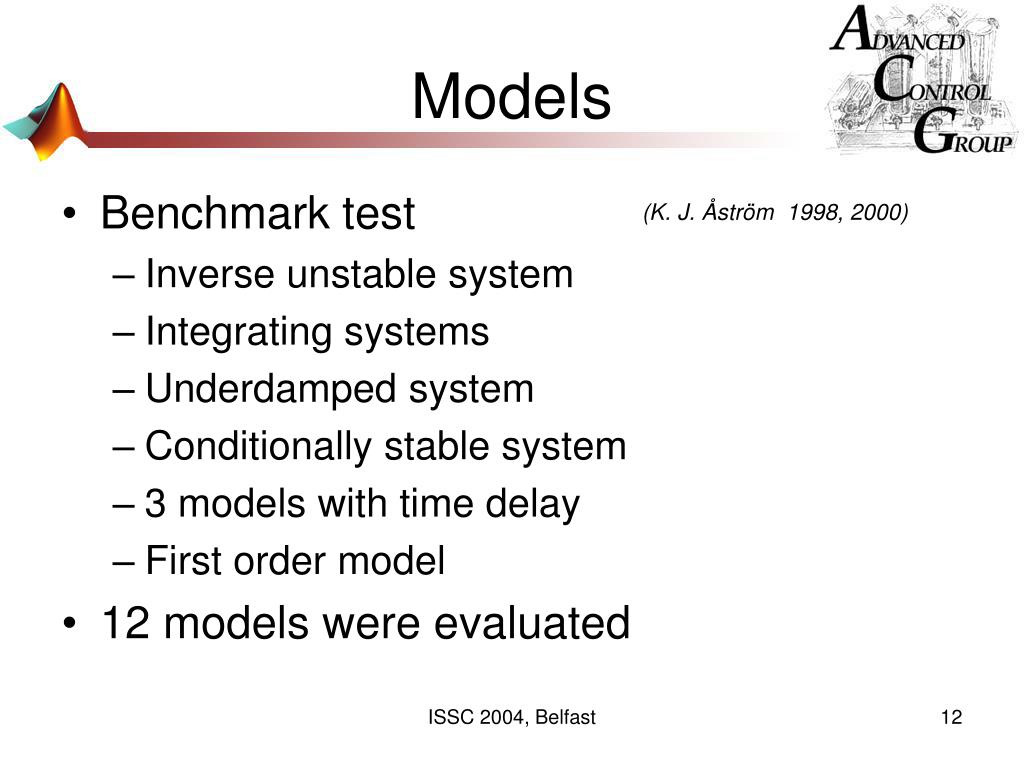

  12. Models • Benchmark test • Inverse unstable system • Integrating systems • Underdamped system • Conditionally stable system • 3 models with time delay • First order model • 12 models were evaluated (K. J. Åström 1998, 2000) ISSC 2004, Belfast

  13. Results • Comparison of PID, 2-DOF PID and GPC GPC outperforms the other two counterparts ISSC 2004, Belfast

  14. Results • Design based on minimum Am=6dB • GPC vs PID,average IAE decreased by 43% • GPC vs 2-DOF PID,average IAE decreasedby 25% • 2-DOF PID vs PID,average IAE decreased by 24% • Design based on minimum Am=14dB • GPC vs PID, average IAE decreased by 37% • GPC vs 2-DOF PID, average IAE decreasedby 22% • 2-DOF PID vs PID, average IAE decreasedby 15% ISSC 2004, Belfast

  15. Set-point following • Model • Design • Results Better robustness achieved by PID controllers! ISSC 2004, Belfast

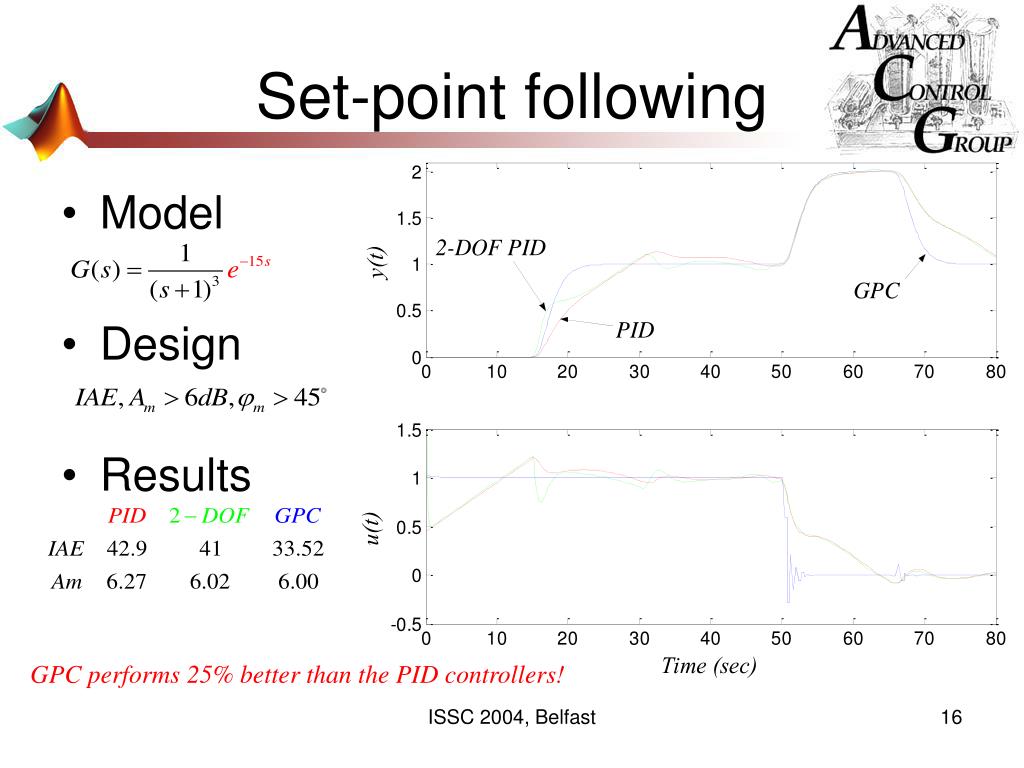

  16. Set-point following • Model • Design • Results GPC performs 25% better than the PID controllers! ISSC 2004, Belfast

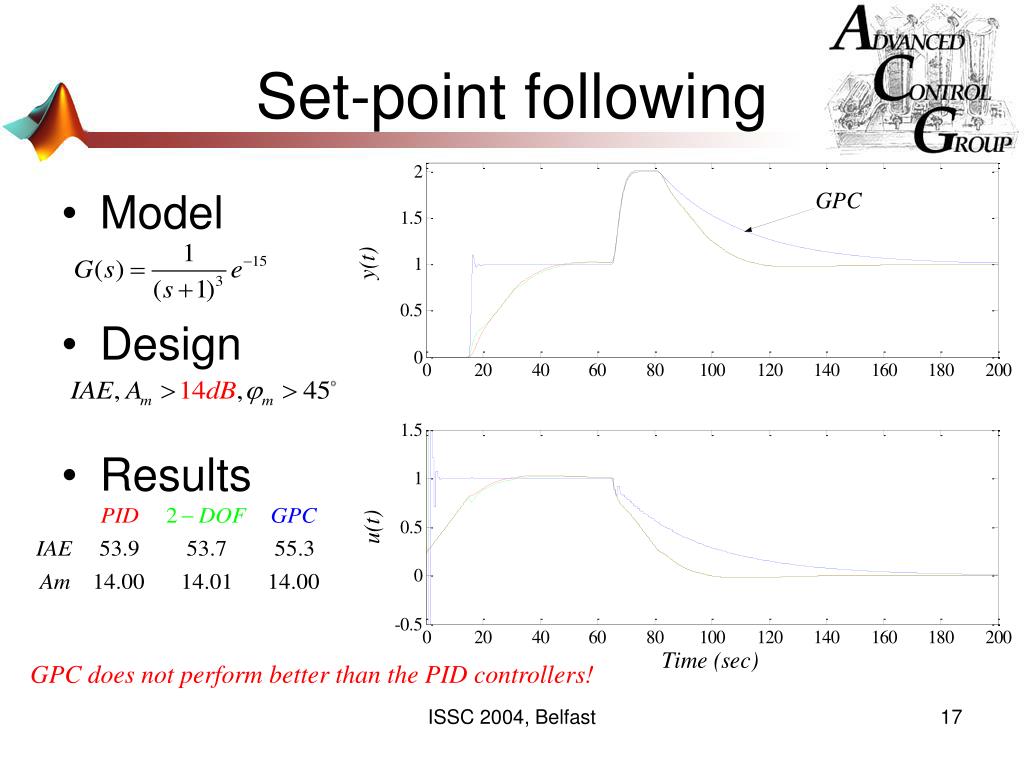

  17. Set-point following • Model • Design • Results GPC does not perform better than the PID controllers! ISSC 2004, Belfast

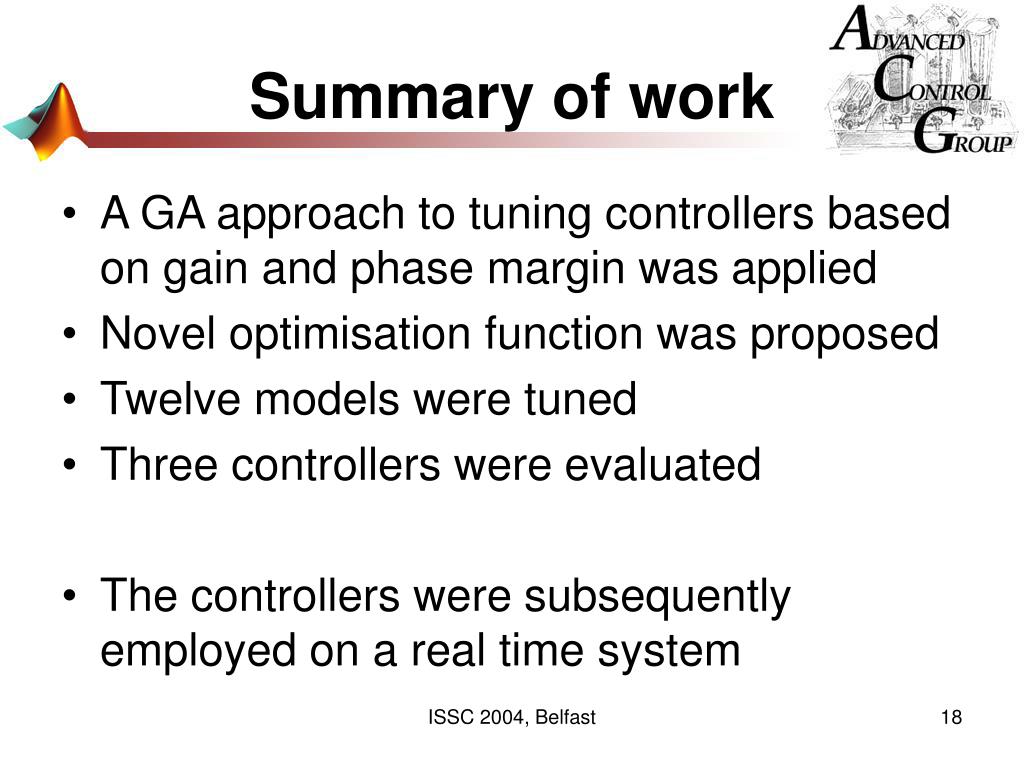

  18. Summary of work • A GA approach to tuning controllers based on gain and phase margin was applied • Novel optimisation function was proposed • Twelve models were tuned • Three controllers were evaluated • The controllers were subsequently employed on a real time system ISSC 2004, Belfast

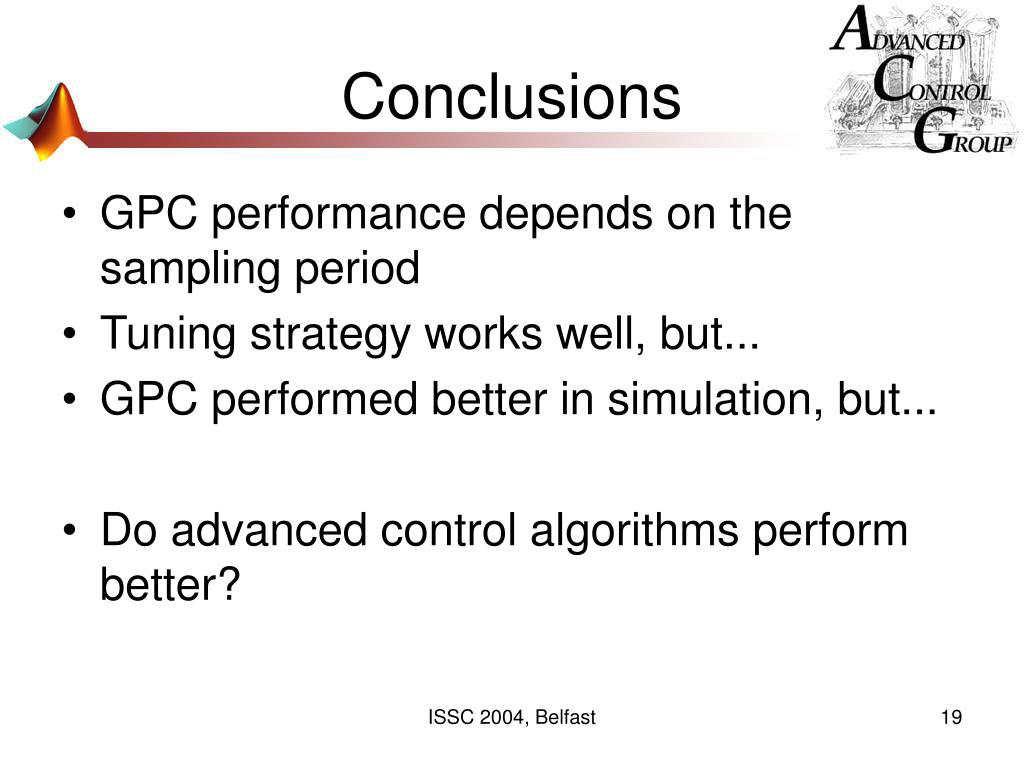

  19. Conclusions • GPC performance depends on the sampling period • Tuning strategy works well, but... • GPC performed better in simulation, but... • Do advanced control algorithms perform better? ISSC 2004, Belfast

  20. Questions?
