  1. Introduction to Lost Wax Casting

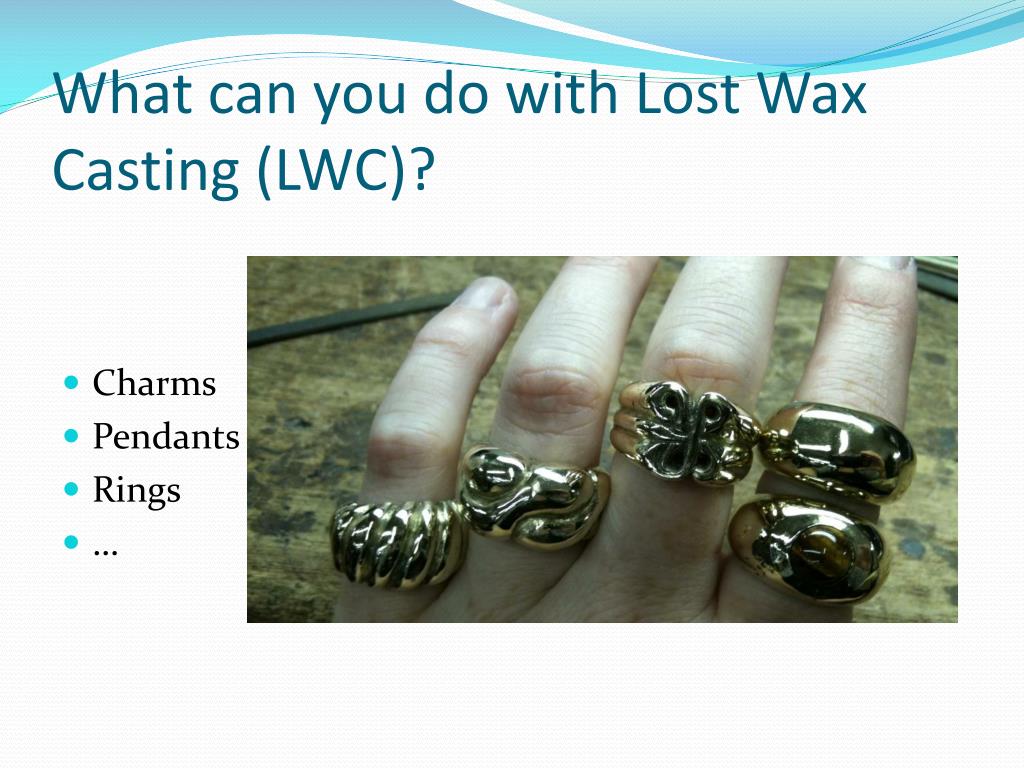

  2. What can you do with Lost Wax Casting (LWC)? • Charms • Pendants • Rings • …

  3. This process is used for making jewelry, but is also an industrial process and used to make large sculptures.

  4. How does it work? • Make a mold out of wax • Encase the mold in plaster • Cook out the wax • Fill the empty plaster cast with metal • Clean it up, sand & polish

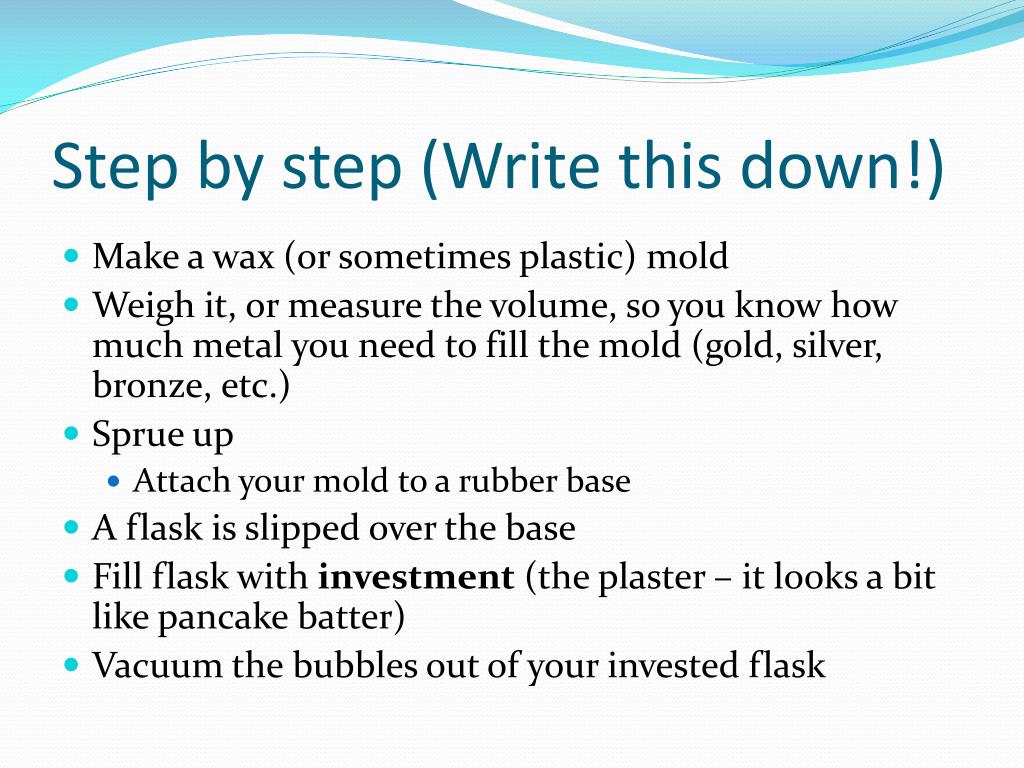

  5. Step by step (Write this down!) • Make a wax (or sometimes plastic) mold • Weigh it, or measure the volume, so you know how much metal you need to fill the mold (gold, silver, bronze, etc.) • Sprue up • Attach your mold to a rubber base • A flask is slipped over the base • Fill flask with investment (the plaster – it looks a bit like pancake batter) • Vacuum the bubbles out of your invested flask

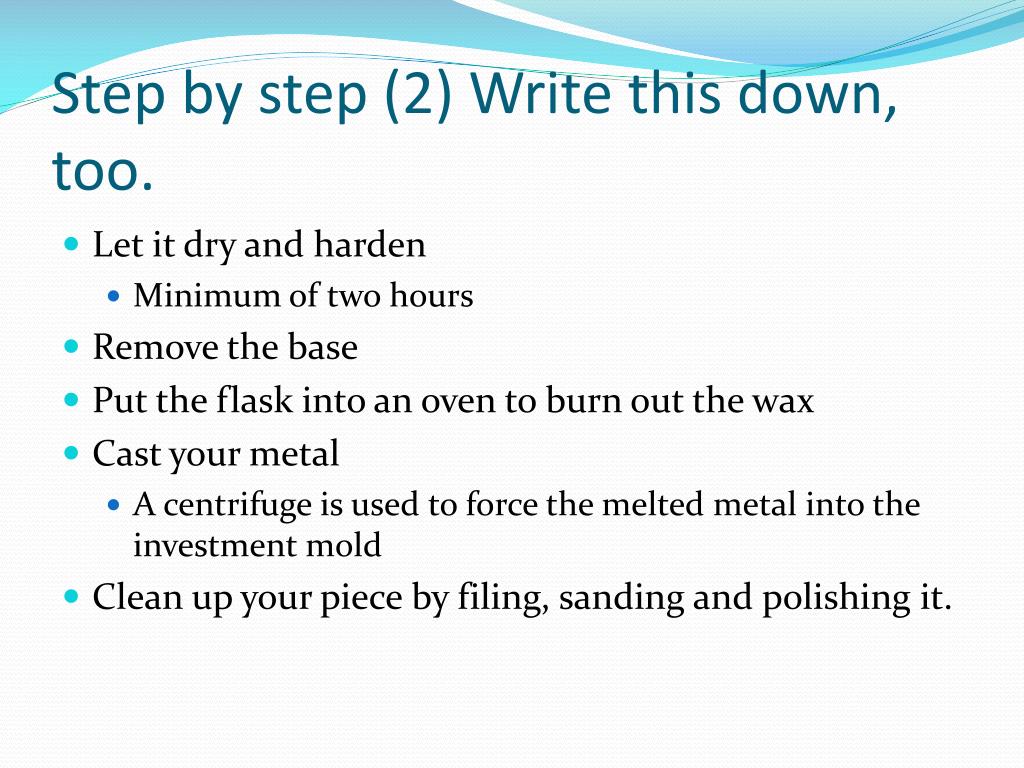

  6. Step by step (2) Write this down, too. • Let it dry and harden • Minimum of two hours • Remove the base • Put the flask into an oven to burn out the wax • Cast your metal • A centrifuge is used to force the melted metal into the investment mold • Clean up your piece by filing, sanding and polishing it.

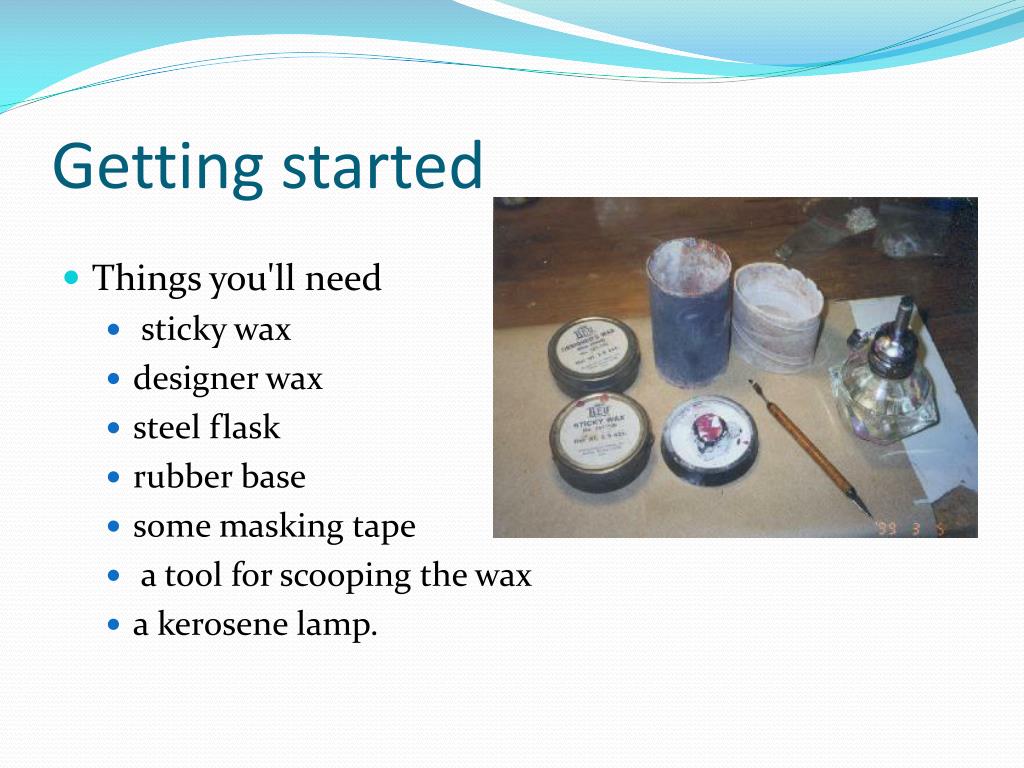

  7. Getting started • Things you'll need • sticky wax • designer wax • steel flask • rubber base • some masking tape • a tool for scooping the wax • a kerosene lamp.

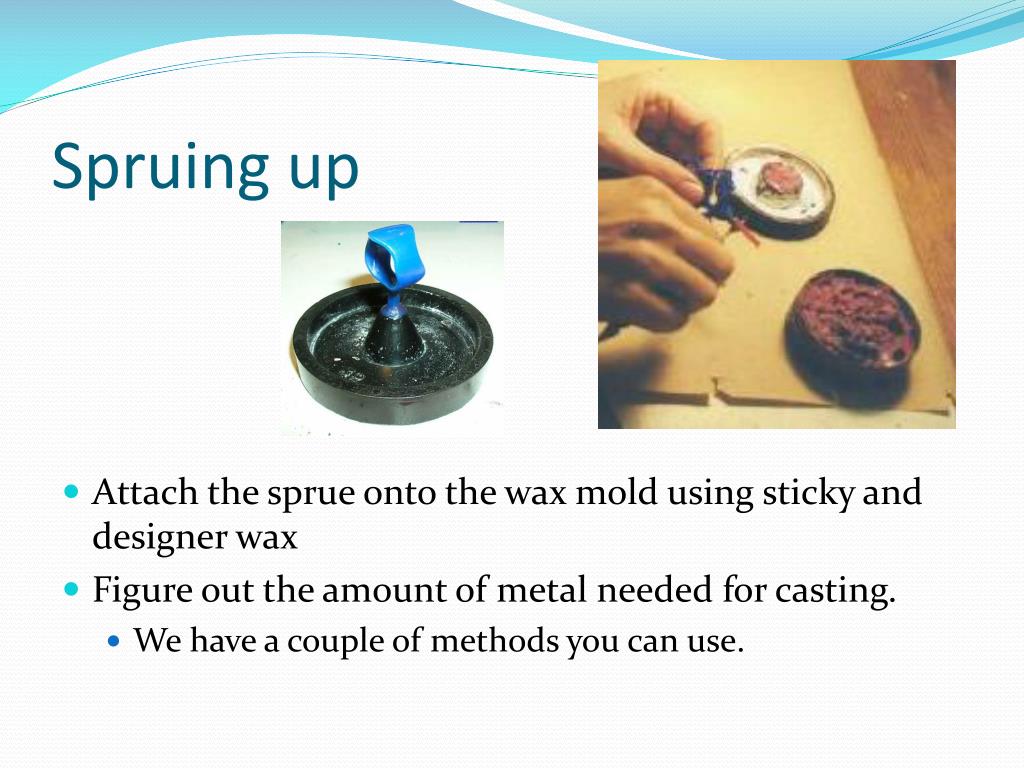

  8. Spruing up • Attach the sprue onto the wax mold using sticky and designer wax • Figure out the amount of metal needed for casting. • We have a couple of methods you can use.

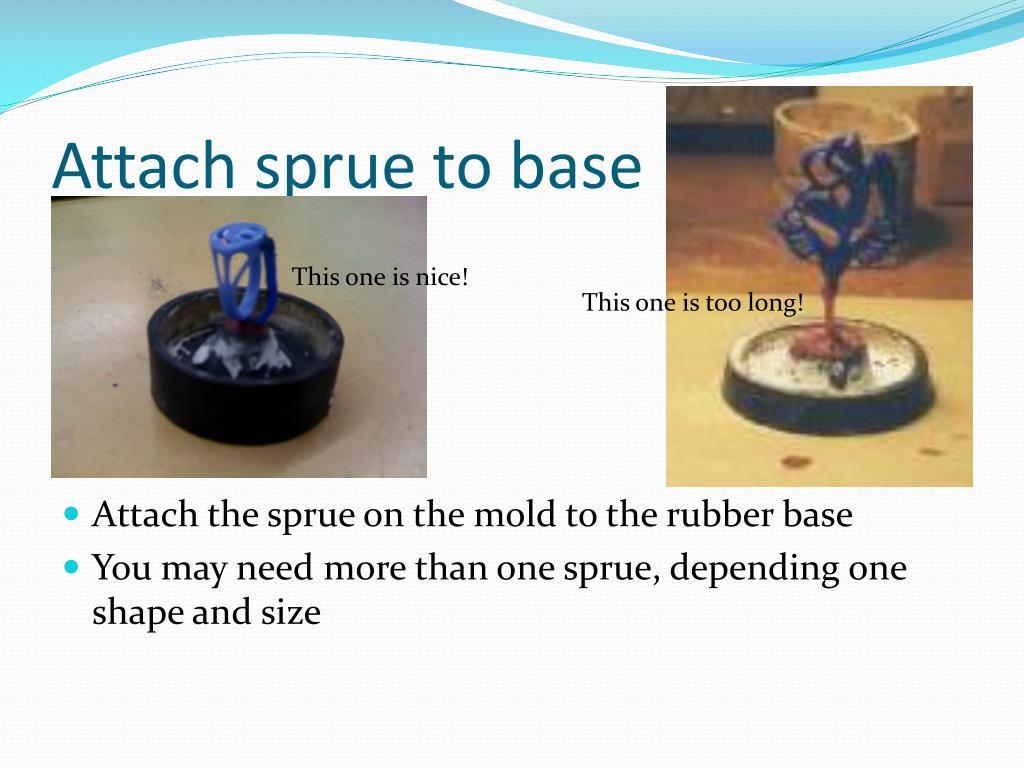

  9. Attach sprue to base • Attach the sprue on the mold to the rubber base • You may need more than one sprue, depending one shape and size This one is nice! This one is too long!

  10. Protect your investment • Attach the masking tape to top of the flask to prevent spilling • Fill the flask with investment • Vacuum the bubbles out

  11. After the investment is dry, burn out the wax in a kiln • Take it from the kiln and set it inside the centrifuge machine so the hole lines up with the hole in the crucible • Remember it will be very, very, very HOT

  12. Mr. Peters will Cast your piece • Add metal to the crucible • Use a torch to melt it • Once it gets hot enough, push the button to spin the centrifuge (while the torch is still held over the metal) • Back off quickly because the centrifuge spins around • This forces the metal into the tumbler • Remember it will be very, very, very HOT

  13. Button – GOOD No Button - BAD Open your present • Once the centrifuge stops spinning, pull the flask out • Let it cool for about a minute • Drop into room temperature water • Your piece will be somewhere in the goop • Remember it will be very, very, very HOT

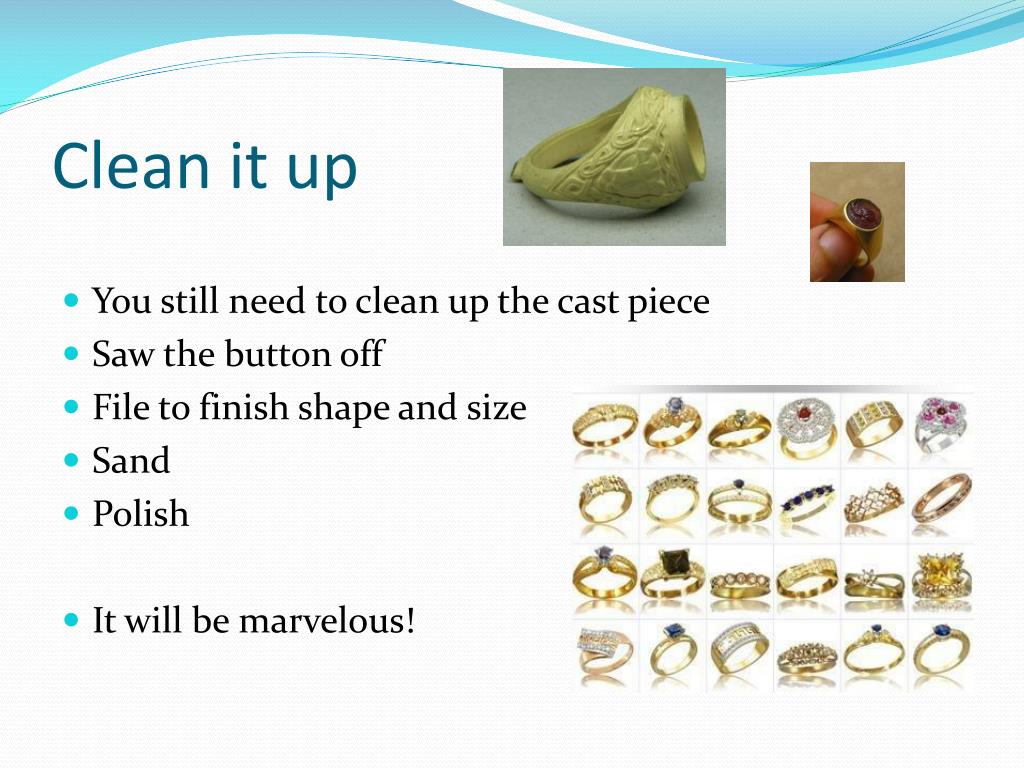

  14. Clean it up • You still need to clean up the cast piece • Saw the button off • File to finish shape and size • Sand • Polish • It will be marvelous!

  15. Stone in place casting provides a fast, efficient alternative to stone setting allowing several processed to be combined simply and effectively. This has proved to be cost effective and efficient method of jewelry production.
