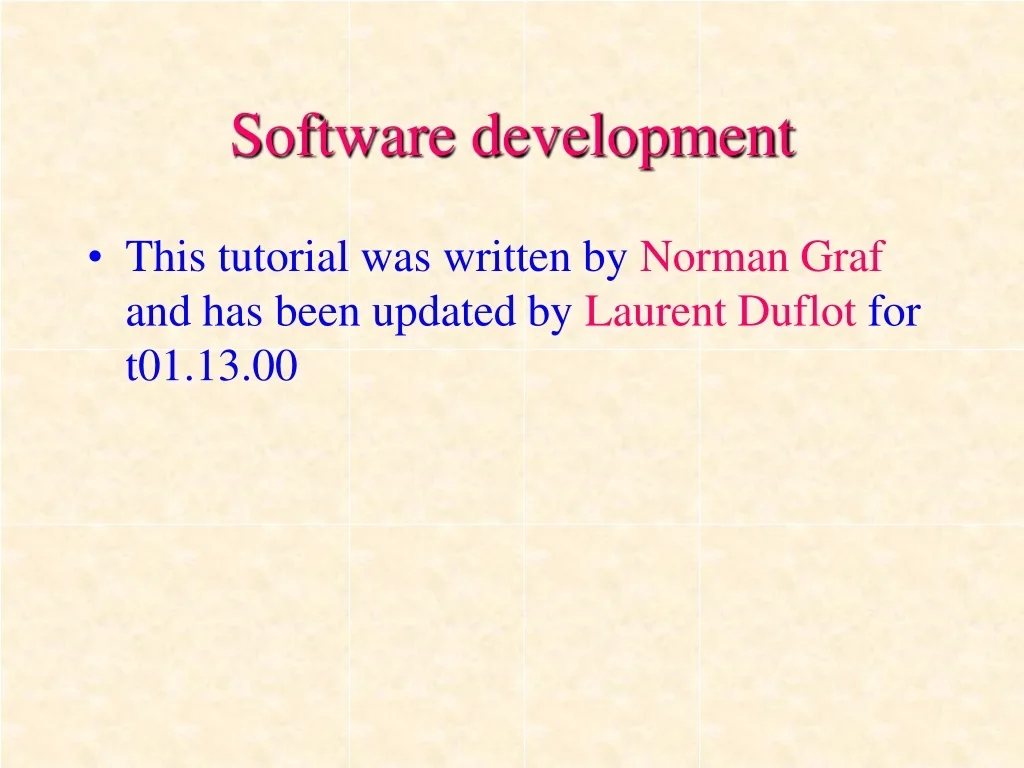

  1. Software development • This tutorial was written by Norman Graf and has been updated by Laurent Duflot for t01.13.00

  2. Getting Started... • Brief introduction for developers of Run II software. • Targeted to development on UNIX platform (e.g. d0mino). • Concentration on CTEST interface using CTBUILD implementation.

  3. CTEST • An interface for building software. • Builds and tests libraries made up of components which are tested individually. • Allows integrated testing and creation of executables. • http://www-d0.fnal.gov/software/cmgt/ctest/ctest

  4. CTBUILD • A framework for building software packages which conform to the CTEST interface. • Can be run standalone or within the D0 CVS/SRT environment.

  5. Starting from scratch... • setup D0RunII t01.13.00 (a release version) • setup n32 IRIX only ! • setup d0cvs • cd workdir (your development area) • newrel -t t01.13.00 topdir • cd topdir (referred to as top directory) • d0setwa (initialize local RCP DB)

  6. Creating a new package... • ctnewpkg -h (for help on syntax) • ctnewpkg -lib mynewpackage • cd mynewpackage (referred to as package directory)

  7. Component development... • Normally there is 1 class per component. • A package component consists of 3 parts… • the public interface in myfile.hpp. • the implementation in myfile.cpp. • the component test in myfile_t.cpp. • The component test is intended to fully exercise the public interface.

  8. Component testing • Essential for quality control. • Simplifies error-finding during complex builds. • Well-controlled environment for testing. • An example of how to use your class for physicists unwilling to read the documentation.

  9. COMPONENTS • Each package has a file which contains a dependency-ordered list of components named COMPONENTS. • The *.cpp files will be compiled and inserted into the package library. • The *_t.cpp files will be compiled, linked and then executed to test the component.

  10. LIBRARIES • Each package contains a file listing the external libraries on which that package depends, in the dependency order. • No circular dependencies are allowed.

  11. LIBDEPS • Contains a list of only the explicit package library dependencies. • Deeper dependencies will be resolved by the LIBDEPS file in the lower package. • Requires every package to provide a correct LIBDEPS file.

  12. Integrated tests • Complex packages often require more extensive testing, called integrated tests. • Will, in general, link to extra libraries which the package itself does not depend upon. • The file ITESTS contains a list of files which conduct these tests. • Normally resides in test subdirectory along with expanded LIBRARIES file.

  13. BINARIES • Executables which are created as part of the release and are meant to be distributed are specified by the list of components in the file BINARIES. • This file and the accompanying code and LIBRARIES file (which may be different from the package LIBRARIES file) should reside in the bin subdirectory.

  14. Help! • Several tutorials and much documentation available on the web. For example: • http://www-d0.fnal.gov/~hur/L3mainpage.html • http://www-d0.fnal.gov/software/cmgt/ctbuild_conversion.html • http://www-d0.fnal.gov/software/cmgt/cmgt.html • http://www-d0.fnal.gov/~schellma/d0cpp/
