  1. Lecture 15: Data Abstraction It is better to have 100 functions operate on one data structure than 10 functions on 10 data structures. Alan Perlis

  2. Menu • Data Abstraction before CLU • Data Abstraction in CLU • Reasoning about Data Abstractions • Abstraction Functions • Rep Invariants CS 655: Lecture 15

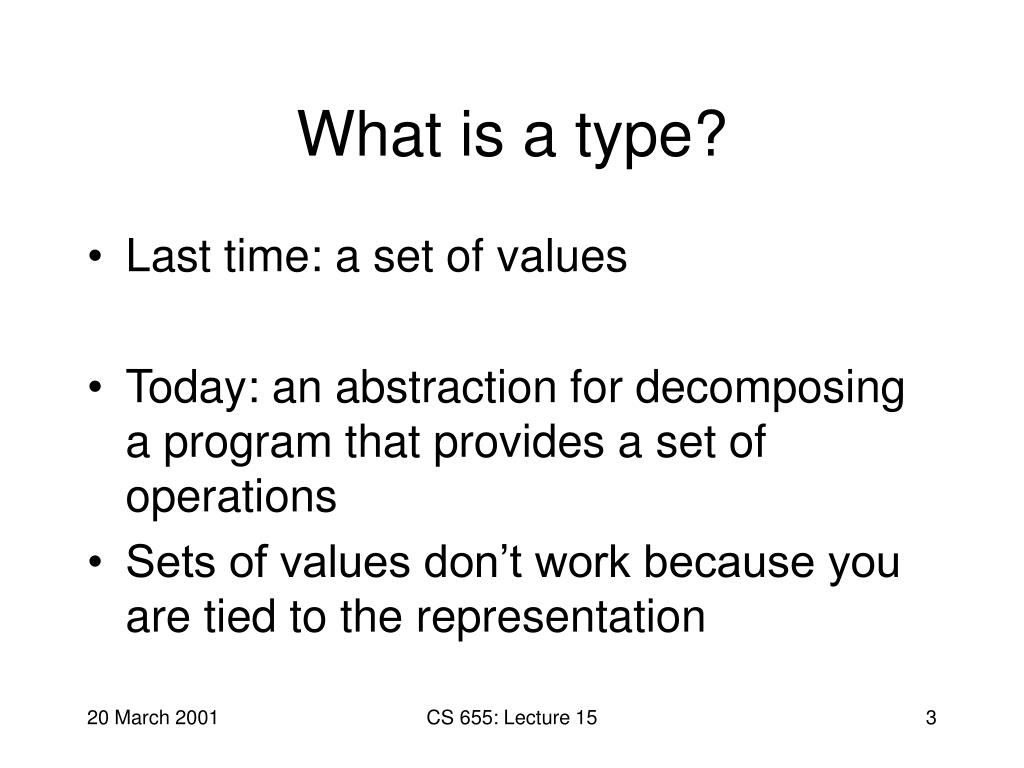

  3. What is a type? • Last time: a set of values • Today: an abstraction for decomposing a program that provides a set of operations • Sets of values don’t work because you are tied to the representation CS 655: Lecture 15

  4. Data Abstraction in C/Pascal? • User-defined types: typedef enum { red = 0, green, blue } color; typedef struct { int locx; int locy; } location; • Type checking either: • By structure (e.g., color dumb = 23) • By name (maybe in Pascal, ambiguous) • Only way to use type, is to access its representation; no restrictions on where you can do this. CS 655: Lecture 15

  5. Data Abstraction in BLISS? • User specifies accessing algorithm for structure elements • May modify either structure definition or algorithms without affecting the other structure array[i, j] = (.array + .i * 10 + .j) • May define memory allocation routines • But: only arrays, no typed elements CS 655: Lecture 15

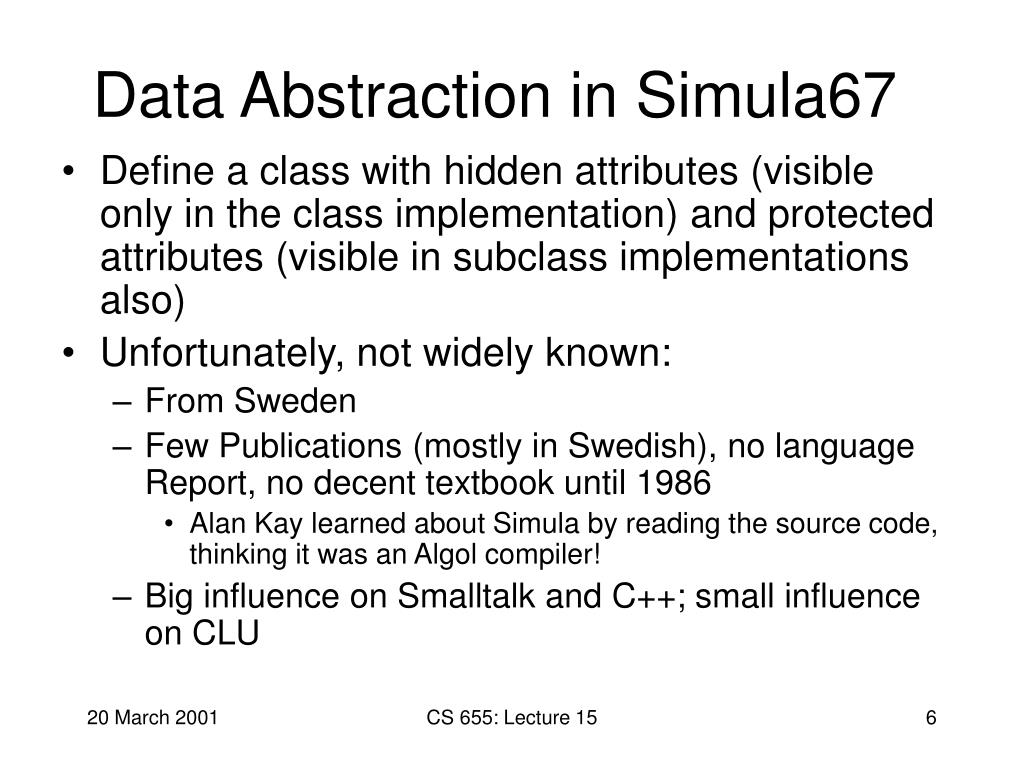

  6. Data Abstraction in Simula67 • Define a class with hidden attributes (visible only in the class implementation) and protected attributes (visible in subclass implementations also) • Unfortunately, not widely known: • From Sweden • Few Publications (mostly in Swedish), no language Report, no decent textbook until 1986 • Alan Kay learned about Simula by reading the source code, thinking it was an Algol compiler! • Big influence on Smalltalk and C++; small influence on CLU CS 655: Lecture 15

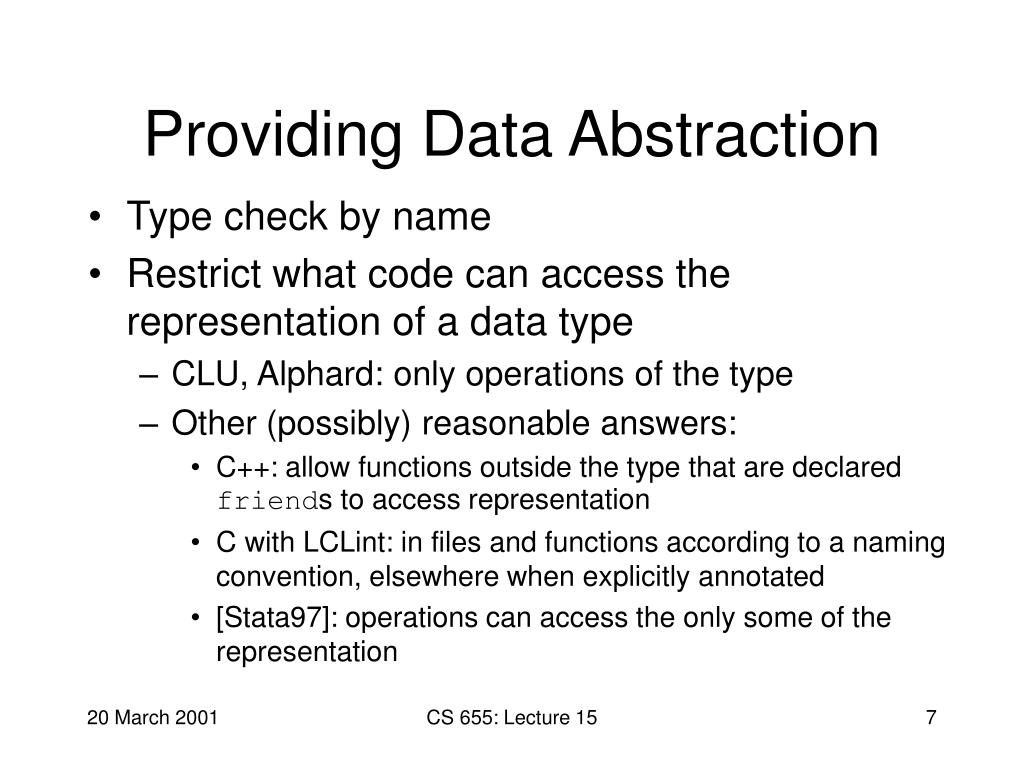

  7. Providing Data Abstraction • Type check by name • Restrict what code can access the representation of a data type • CLU, Alphard: only operations of the type • Other (possibly) reasonable answers: • C++: allow functions outside the type that are declared friends to access representation • C with LCLint: in files and functions according to a naming convention, elsewhere when explicitly annotated • [Stata97]: operations can access the only some of the representation CS 655: Lecture 15

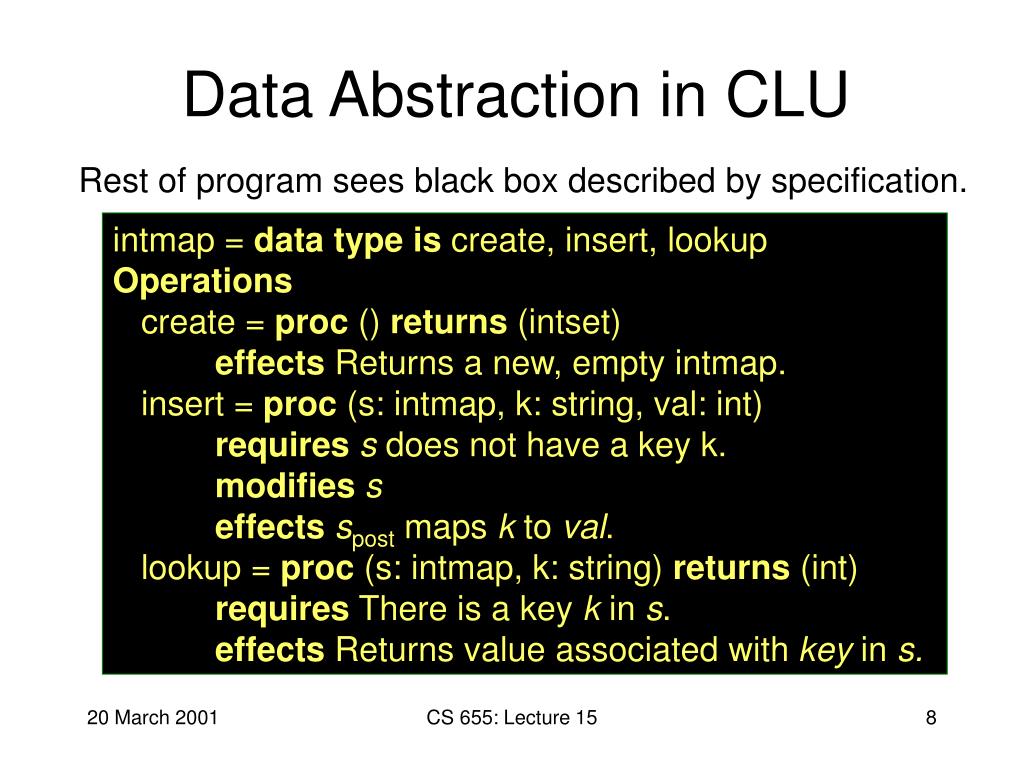

  8. Data Abstraction in CLU Rest of program sees black box described by specification. intmap = data type is create, insert, lookup Operations create = proc () returns (intset) effects Returns a new, empty intmap. insert = proc (s: intmap, k: string, val: int) requiress does not have a key k. modifies s effectsspost maps k to val. lookup = proc (s: intmap, k: string) returns (int) requires There is a key k in s. effects Returns value associated with key in s. CS 655: Lecture 15

  9. Black-box Interface intmap down(intmap) returns (rep) up(rep) returns (intmap) rep = representation of intmap Only code in the cluster implementing intmap can call intmap$up or intmap$down. There is nothing else special about code in the cluster! CS 655: Lecture 15

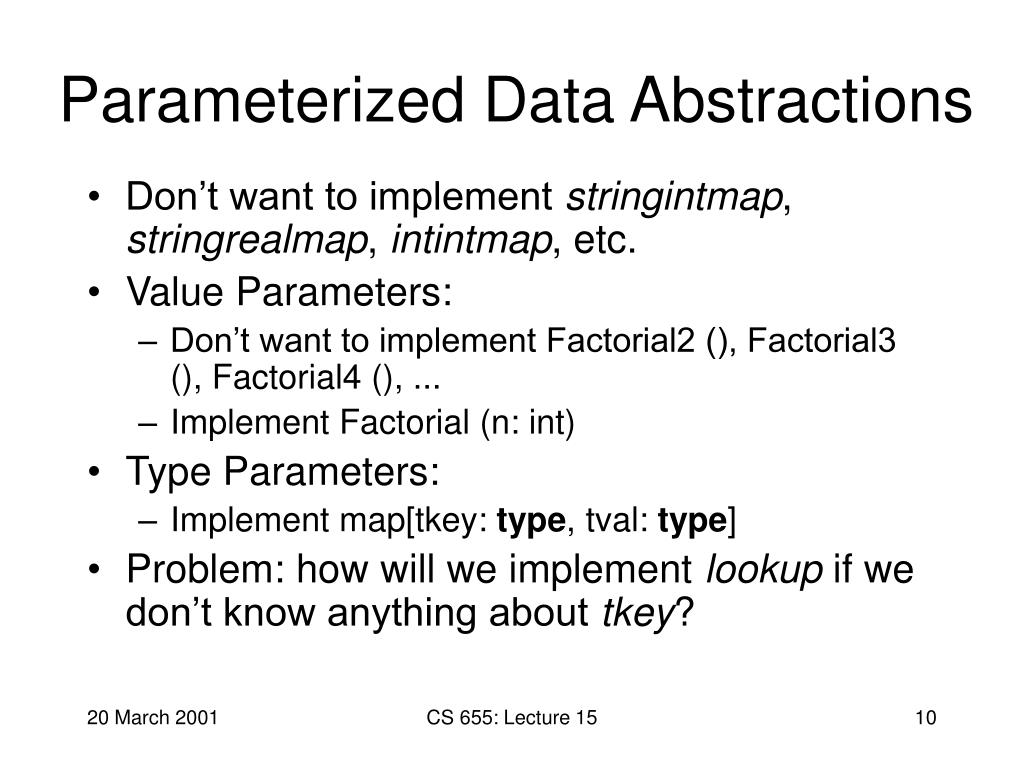

  10. Parameterized Data Abstractions • Don’t want to implement stringintmap, stringrealmap, intintmap, etc. • Value Parameters: • Don’t want to implement Factorial2 (), Factorial3 (), Factorial4 (), ... • Implement Factorial (n: int) • Type Parameters: • Implement map[tkey: type, tval: type] • Problem: how will we implement lookup if we don’t know anything about tkey? CS 655: Lecture 15

  11. Specification map = data type [tkey: type, tval: type] iscreate, insert, lookup Requirestkey has an operation equal: proctype (t, t) returns (bool) that is an equivalence relation on t. Operations create = proc () returns (map) effects Returns a new, empty map. insert = proc (s: map, k: tkey, val: tval) requiress has no key k’ such that tkey$equal (k, k’). modifies s effects lookup (spost. k)= val. lookup = proc (s: map, k: tkey) returns (tval) requiress has a key k’ in s such that tkey$equal (k, k’). effects Returns value associated with k in s. CS 655: Lecture 15

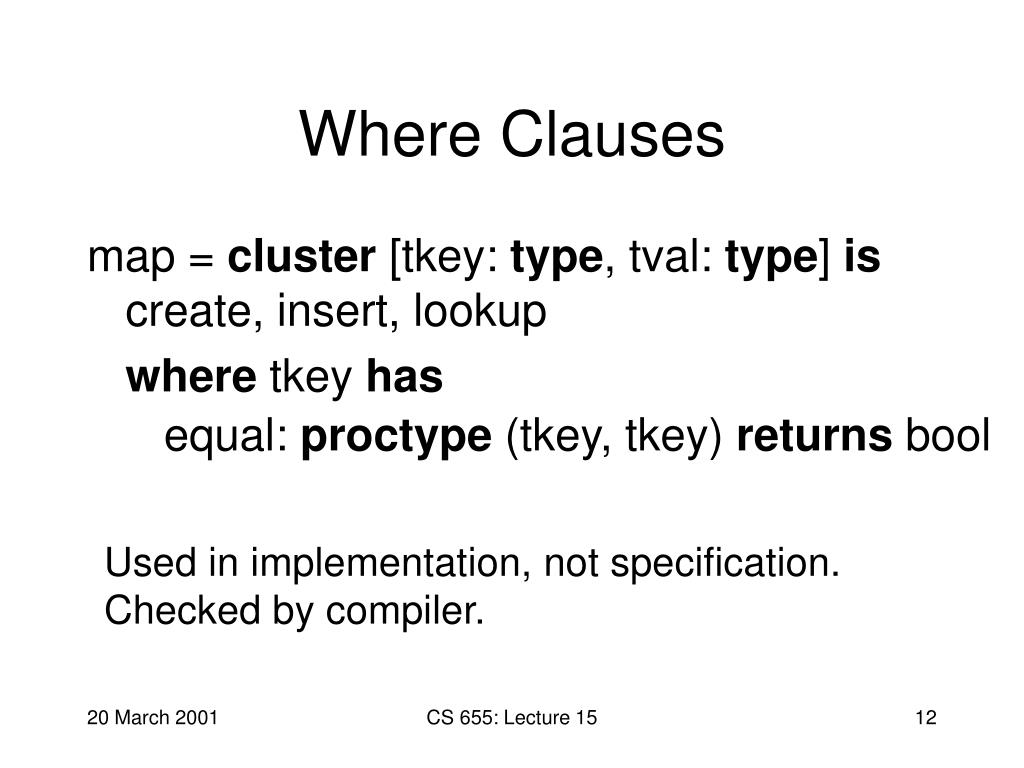

  12. Where Clauses map = cluster [tkey: type, tval: type] is create, insert, lookup where tkey has equal: proctype (tkey, tkey) returns bool Used in implementation, not specification. Checked by compiler. CS 655: Lecture 15

  13. Implementing Data Abstractions • Need a concrete representation map = cluster [tkey: type, tval: type] is create, insert, lookup where tkey has equal: proctype (tkey, tkey) returns (bool) pair = record [key: tkey, value: tval] rep = array [pair] create = proc () returns (map) return end create up( rep$new () ) CS 655: Lecture 15

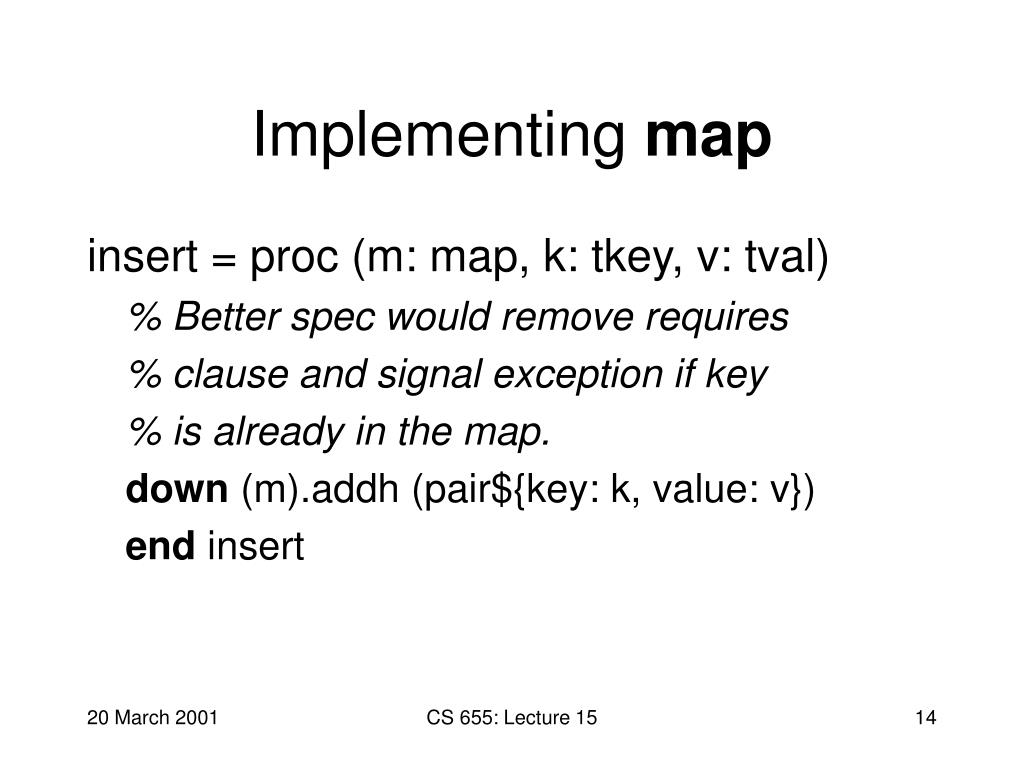

  14. Implementing map insert = proc (m: map, k: tkey, v: tval) % Better spec would remove requires % clause and signal exception if key % is already in the map. down (m).addh (pair${key: k, value: v}) end insert CS 655: Lecture 15

  15. Printing maps map = cluster [tkey: type, tval] is ... unparse ... unparse = proc (m: map) returns (string) where tkey has unparse: proctype (tkey) returns (string) tval has unparse: proctype (tval) returns (string) Why put the where clause about equal on the cluster instead of member operation? CS 655: Lecture 15

  16. CLU: Special Types • bool • Language control structures (if, while) depend on type bool • int, char, real, string, null • Built-in language support for literals • record, struct, variant, oneof, array, sequence • Special constructor syntax T${ … } • any • Union of all possible types, use force to convert (with checking) to actual type CS 655: Lecture 15

  17. CLU Operators • Assignment (:=) • Always means sharing (recall immutable types) • Types by name must match • Everything else is syntactic sugar, all types can use: 3 + 2  int$add (3, 2) m1,m2: map[string,int] m1 + m2  map[string,int]$add (m1, m2) ai: array[int] ai[n] := ai[n-1]  array[int]$store (ai, n, array[int]$fetch (ai, n-1)) • Four exceptions: up, down, cand, cor CS 655: Lecture 15

  18. Questions? Next: Reasoning About Data Abstractions

  19. Reasoning about Data Abstractions • They are abstractions – need to invent a formal notation (A) for describing them • They have representations – need to define a mapping from concrete representation to that formal notation • Abstraction Function: A: rep A CS 655: Lecture 15

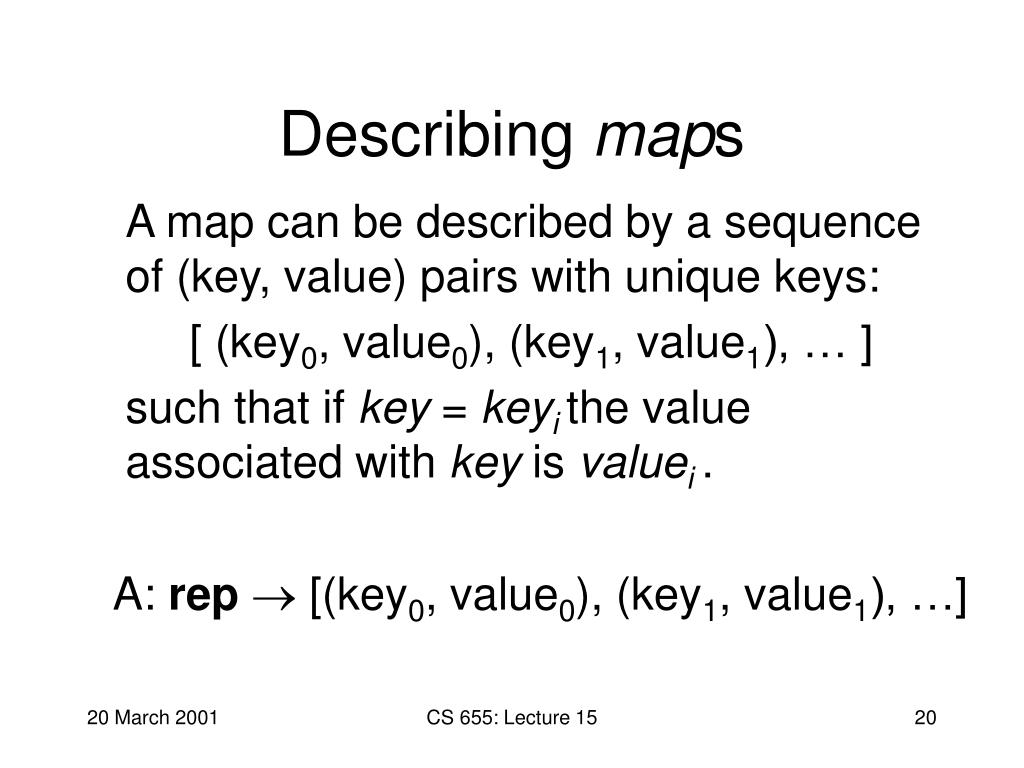

  20. Describing maps A map can be described by a sequence of (key, value) pairs with unique keys: [ (key0, value0), (key1, value1), … ] such that if key = keyithe value associated with key is valuei . • A: rep [(key0, value0), (key1, value1), …] CS 655: Lecture 15

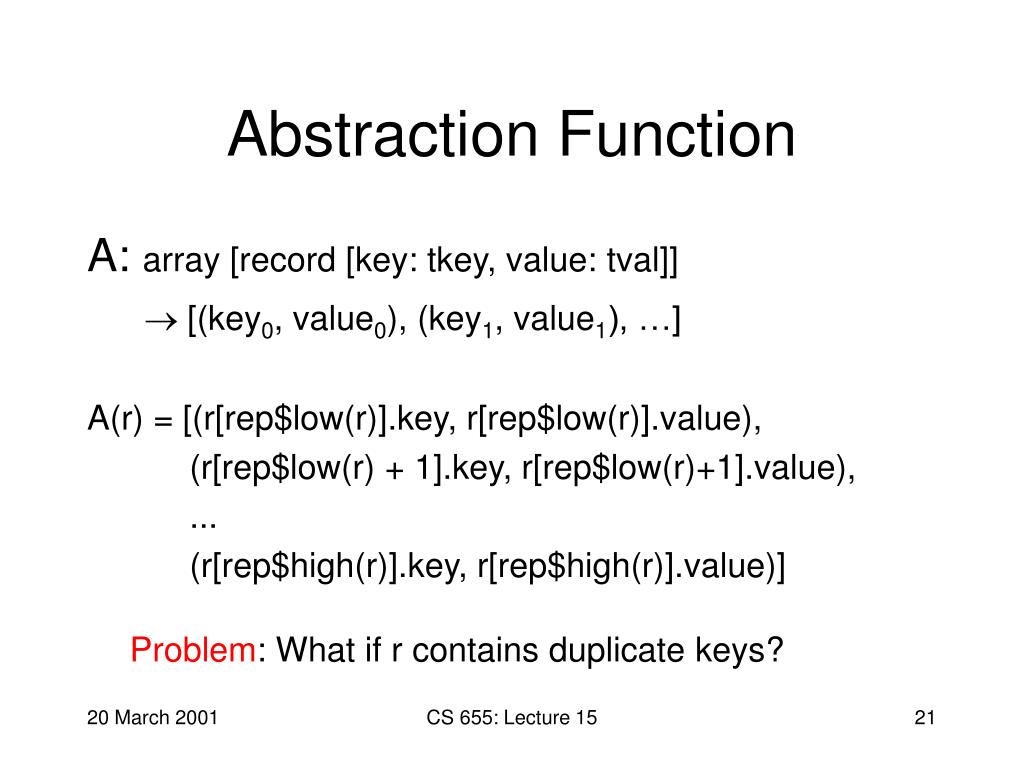

  21. Abstraction Function A: array [record [key: tkey, value: tval]]  [(key0, value0), (key1, value1), …] A(r) = [(r[rep$low(r)].key, r[rep$low(r)].value), (r[rep$low(r) + 1].key, r[rep$low(r)+1].value), ... (r[rep$high(r)].key, r[rep$high(r)].value)] Problem: What if r contains duplicate keys? CS 655: Lecture 15

  22. Rep Invariant • “It better not!” • I: rep Boolean I(r) = (r[i].key = r[k].key implies i = k) CS 655: Lecture 15

  23. Reasoning with Rep Invariants Prove by induction, for a datatype t: • For each operation that creates new t: prove that returned reps r of returned t satisfies I(r) • For each cluster operation: assume all t objects passed as parameters satisfy have reps r that satisfy I(r), prove they do at all cluster exit points. Argue that only cluster operations can alter the rep, so if you can prove invariant holds for all cluster operations, it must always hold. CS 655: Lecture 15

  24. What can go wrong? map = cluster [tkey: type, tval: type] is ... choose = proc (m: map) returns (record [key: tkey, value: tval]) % requires m is not empty. % effects Returns a (key, value) pair in m. return (down (m)[rep$low (down(m))] end choose p = proc (m: map[string, int]) map[string,int]$insert (m, “duplicate”, 3) pair p := map[string,int]$choose (m) p.key = “duplicate” end p CS 655: Lecture 15

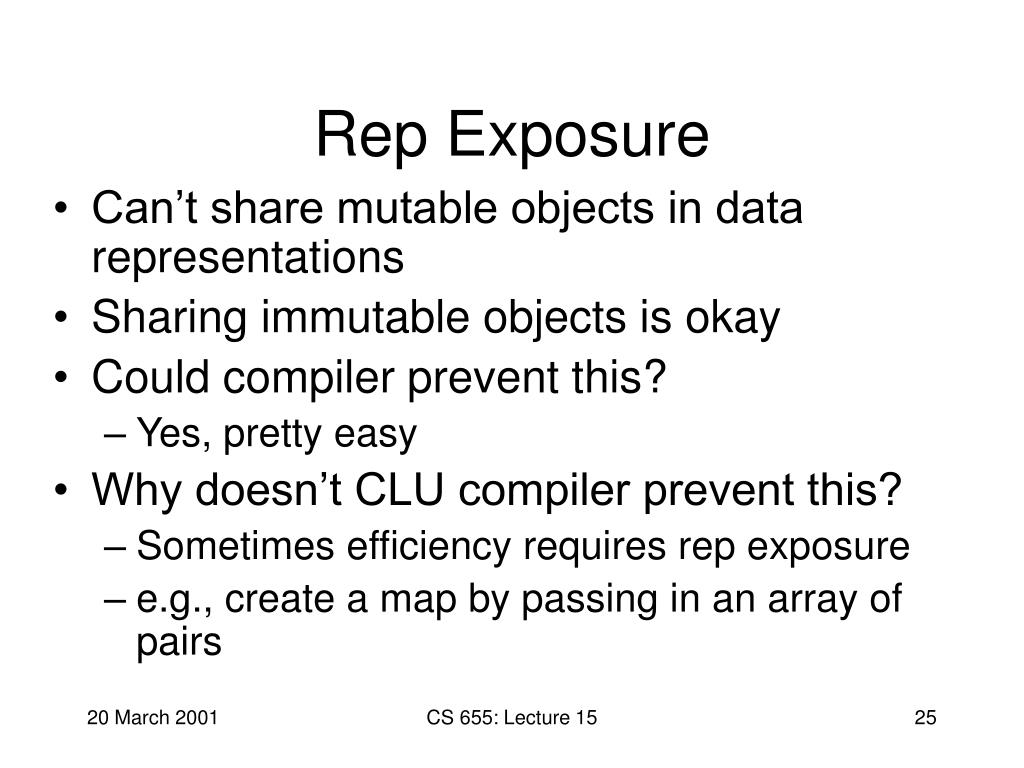

  25. Rep Exposure • Can’t share mutable objects in data representations • Sharing immutable objects is okay • Could compiler prevent this? • Yes, pretty easy • Why doesn’t CLU compiler prevent this? • Sometimes efficiency requires rep exposure • e.g., create a map by passing in an array of pairs CS 655: Lecture 15

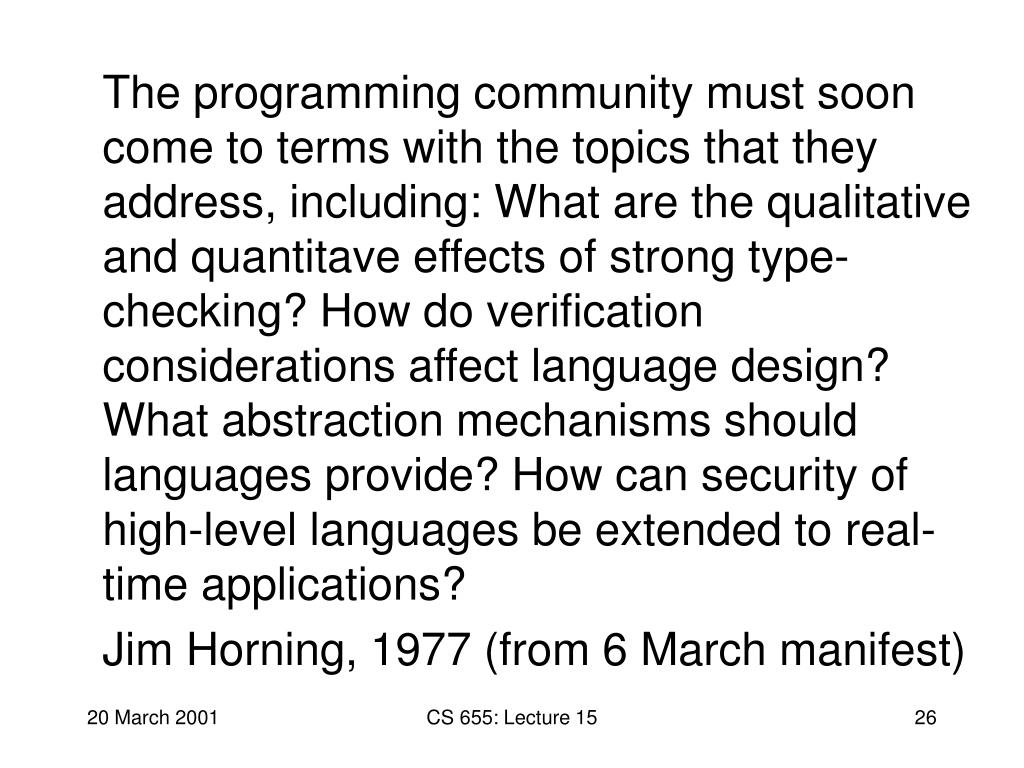

  26. The programming community must soon come to terms with the topics that they address, including: What are the qualitative and quantitave effects of strong type-checking? How do verification considerations affect language design? What abstraction mechanisms should languages provide? How can security of high-level languages be extended to real-time applications? Jim Horning, 1977 (from 6 March manifest) CS 655: Lecture 15

  27. Charge • Read Stroustrup and Smalltalk papers before class Thursday • Think about what Object-Oriented Programming really means – could Stroustrup and Ingalls really be writing about the same thing? • Is CLU Object-Oriented? If not, would adding syntactic sugar make CLU object-oriented? CS 655: Lecture 15
