Presentation Transcript

  1. Topics of the Lecture • Packages • USE clause • Aliases • Data alias • Non-data alias • Resolved signals

  2. Packages

  3. Packages • Method for Grouping Related Declarations Which Serve a Common Purpose • Set of subprograms to operate on particular data type • Set of declarations for particular model • Separate interface from implementation • Reusable

  4. Packages • Unclutter rest of model • Allows declaration of “global” signals, e.g., clocks. • Not a generally good since behavior can change through means other than signals declared in entity interface

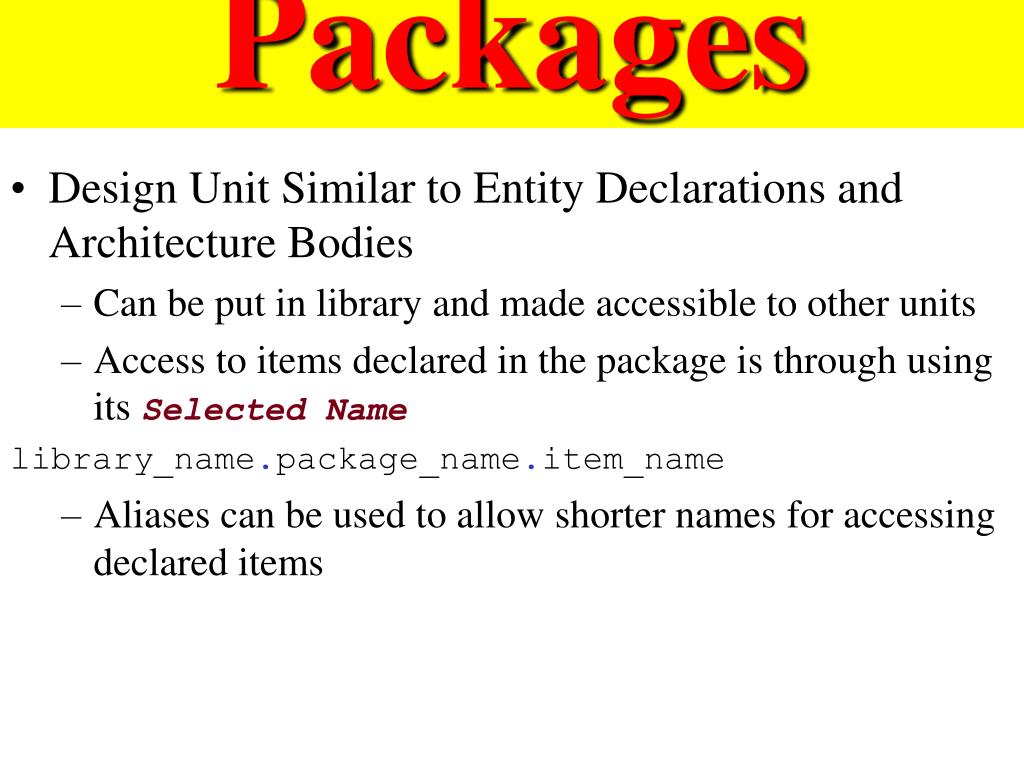

  5. Packages • Design Unit Similar to Entity Declarations and Architecture Bodies • Can be put in library and made accessible to other units • Access to items declared in the package is through using its Selected Name library_name.package_name.item_name • Aliases can be used to allow shorter names for accessing declared items

  6. Packages • Two Components to Packages • Package declaration • Package body

  7. Package Declaration • Subprograms Using Header, Implementation Is Hidden • “information hiding” • Constants, Do Not Need to Be Initialized in Declaration • “information hiding”

  8. Package Declaration • Types, Must Be Completely Specified • Can have variable size arrays • Signals Must Be Completely Specified

  9. Package Declaration Syntax package identifier is {package_declarative_item} end [package] [ identifier ];

  10. Package Declaration Example* package dp32_types is constant unit_delay :Time := 1 ns ; type bool_to_bit_table is array ( boolean ) of bit ; . . . *Ashenden VHDL cookbook

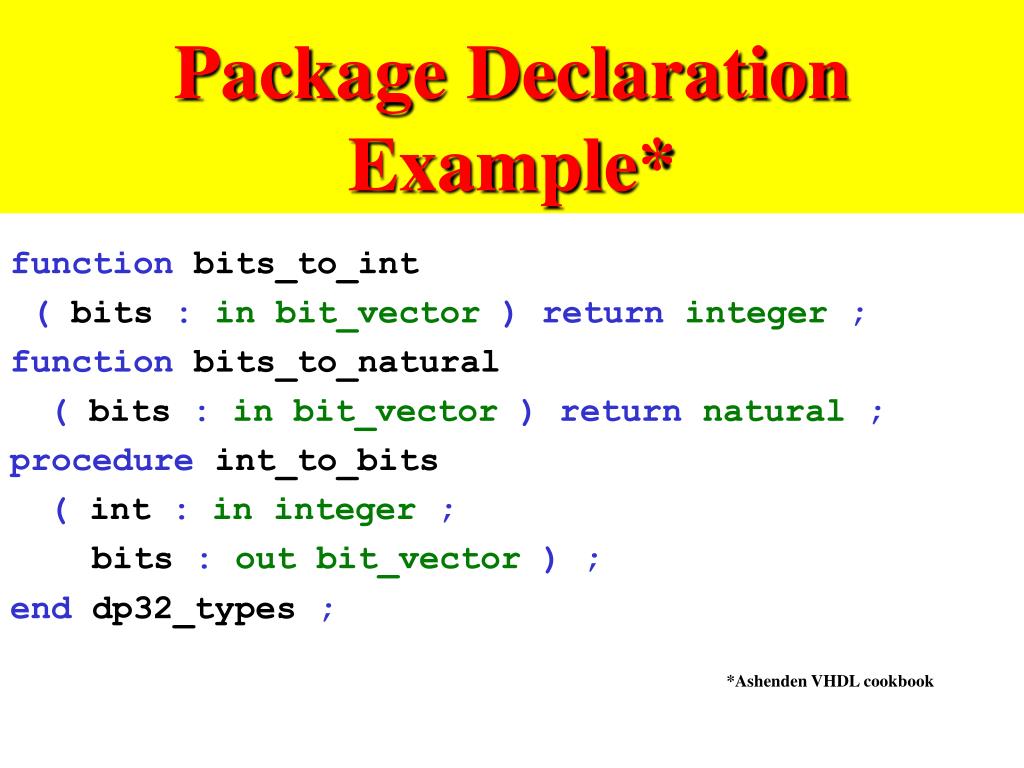

  11. Package Declaration Example* function bits_to_int ( bits : in bit_vector )return integer ; function bits_to_natural ( bits : in bit_vector )return natural ; procedure int_to_bits ( int :in integer ; bits :out bit_vector ) ; end dp32_types ; *Ashenden VHDL cookbook

  12. Package Body • Not Necessary If Package Declaration Does Not Declare Subprograms • May Contain Additional Declarations Which Are Local to the Package Body • Cannot declare signals in body

  13. Package Body • Declared Subprograms Must Include the Full Declaration As Used in Package Declaration • Numeric literals can be written differently if same value • Simple name may be replaced by a selected name provided it refers to same item

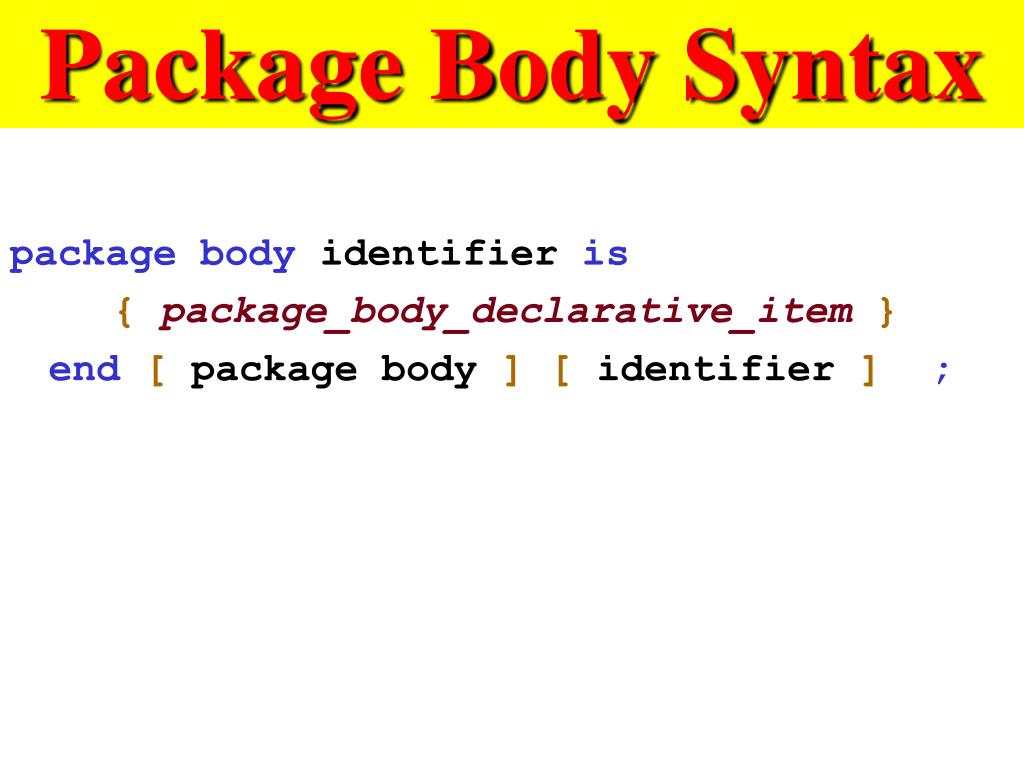

  14. Package Body Syntax package body identifier is {package_body_declarative_item} end [package body ] [identifier ];

  15. Package Body Example* package body dp32_types is constant bool_to_bit : bool_to_bit_table :=( false => '0' , true => '1' ) ; function resolve_bit_32 ( driver : in bit_32_array )return bit_32 is constant float_value : bit_32 := X"0000_0000"; variable result : bit_32 := float_value; *Ashenden VHDL cookbook

  16. Package Body Example* begin for i in driver'range loop result := result or driver ( i ) ; end loop ; return result ; end resolve_bit_32 ; *Ashenden VHDL cookbook

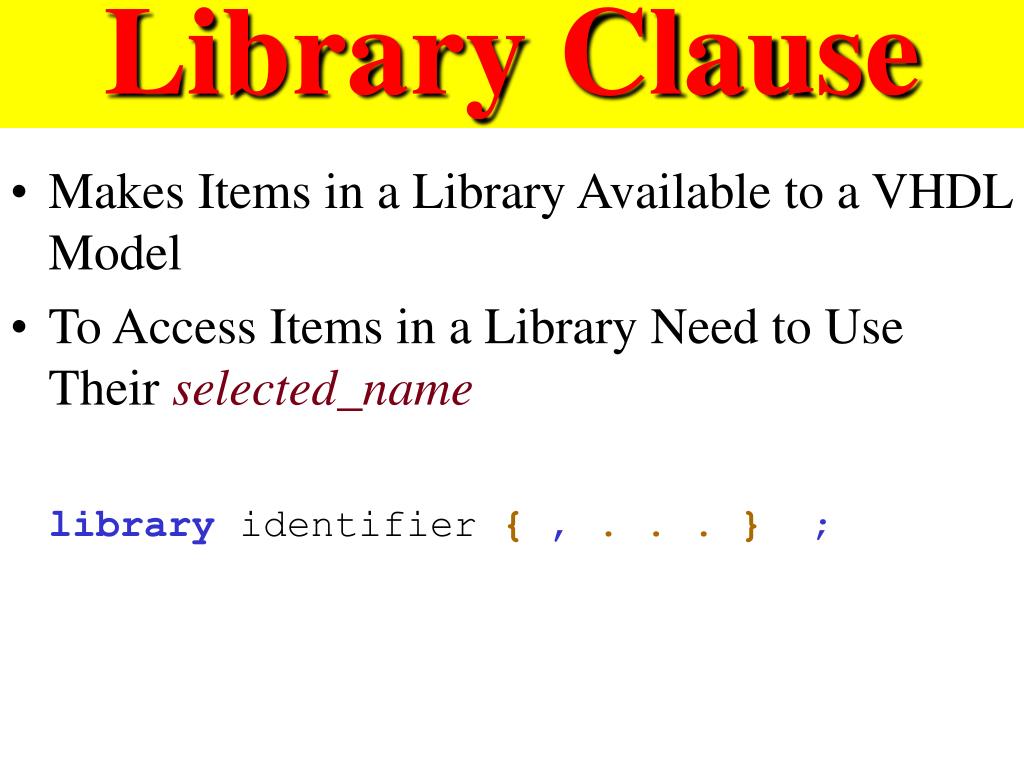

  17. Library Clause • Makes Items in a Library Available to a VHDL Model • To Access Items in a Library Need to Use Their selected_name library identifier { ,. . . } ;

  18. Use Clause • Tedious to Always Use an Item’s Selected Name • All Items Declared in a Package or Library Can Be Made “Visible” Through a Use Clause

  19. Use Clause • Can Be Used in Any Declarative Section • Keyword “All” Imports All Identifiers

  20. Use Clause Syntax use selected_name{ , . . . } selected_name <= name .(identifier |character_literal |operator_symbol |all )

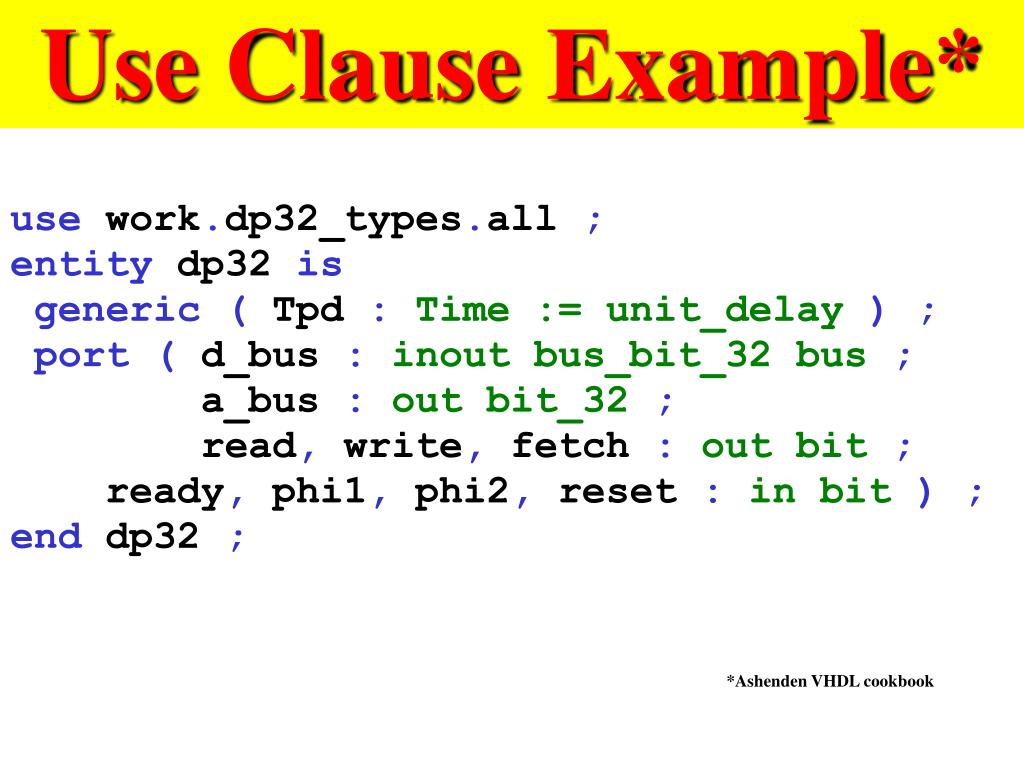

  21. Use Clause Example* use work.dp32_types.all ; entity dp32 is generic ( Tpd : Time := unit_delay) ; port ( d_bus : inout bus_bit_32 bus; a_bus : out bit_32; read, write, fetch : out bit ; ready, phi1, phi2, reset :in bit) ; end dp32 ; *Ashenden VHDL cookbook

  22. A35ases Aliases

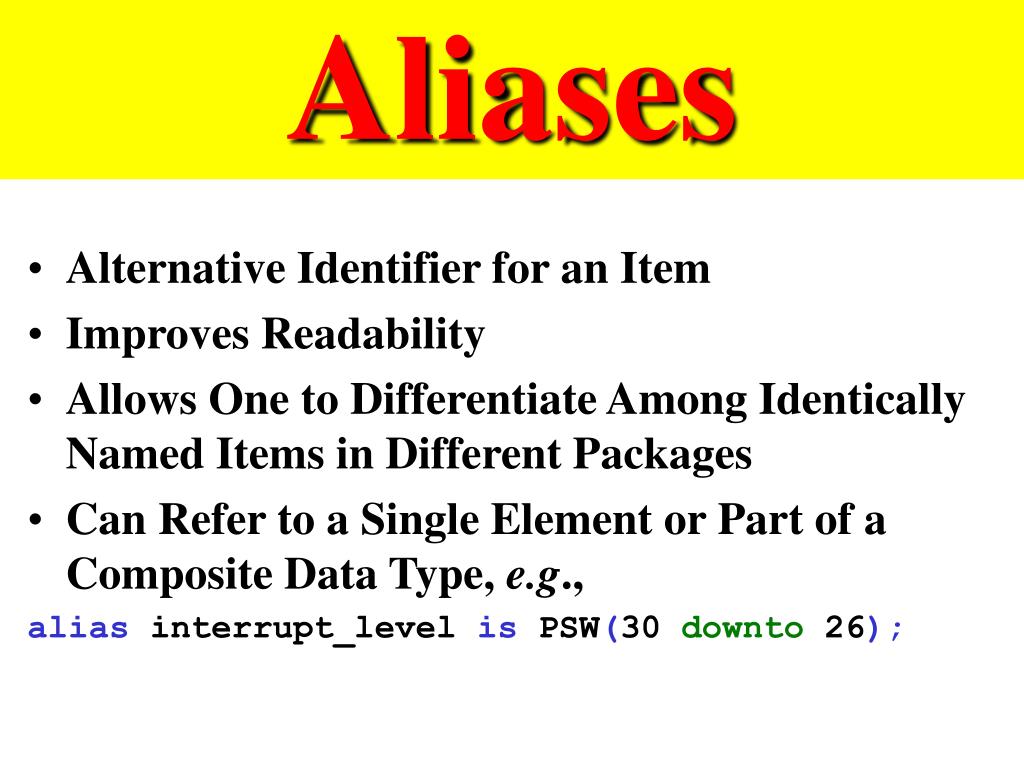

  23. Aliases • Alternative Identifier for an Item • Improves Readability • Allows One to Differentiate Among Identically Named Items in Different Packages • Can Refer to a Single Element or Part of a Composite Data Type, e.g., alias interrupt_level is PSW(30 downto 26);

  24. Aliases • Operations on Aliases Operate on Actual Items Except for the Following Attributes • x’simple_name • x’path_name • x’instance_name

  25. Aliases • Cannot Declare Aliases for • Labels • Loop parameters • Generate parameters (replicates items)

  26. Data Alias Syntax alias identifier [: subtype_indication ]is name ;

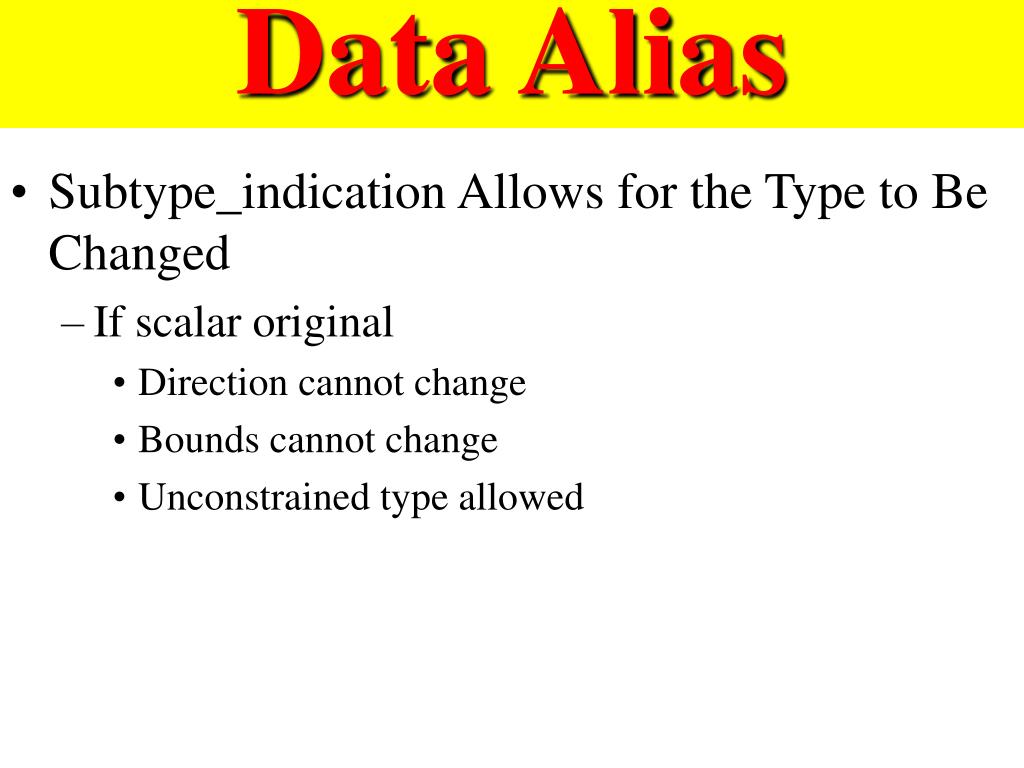

  27. Data Alias • Subtype_indication Allows for the Type to Be Changed • If scalar original • Direction cannot change • Bounds cannot change • Unconstrained type allowed

  28. Data Alias • Subtype_indication Allows for the Type to Be Changed • If array or array slice • Direction can differ • Bounds can differ • Base type must remain unchanged

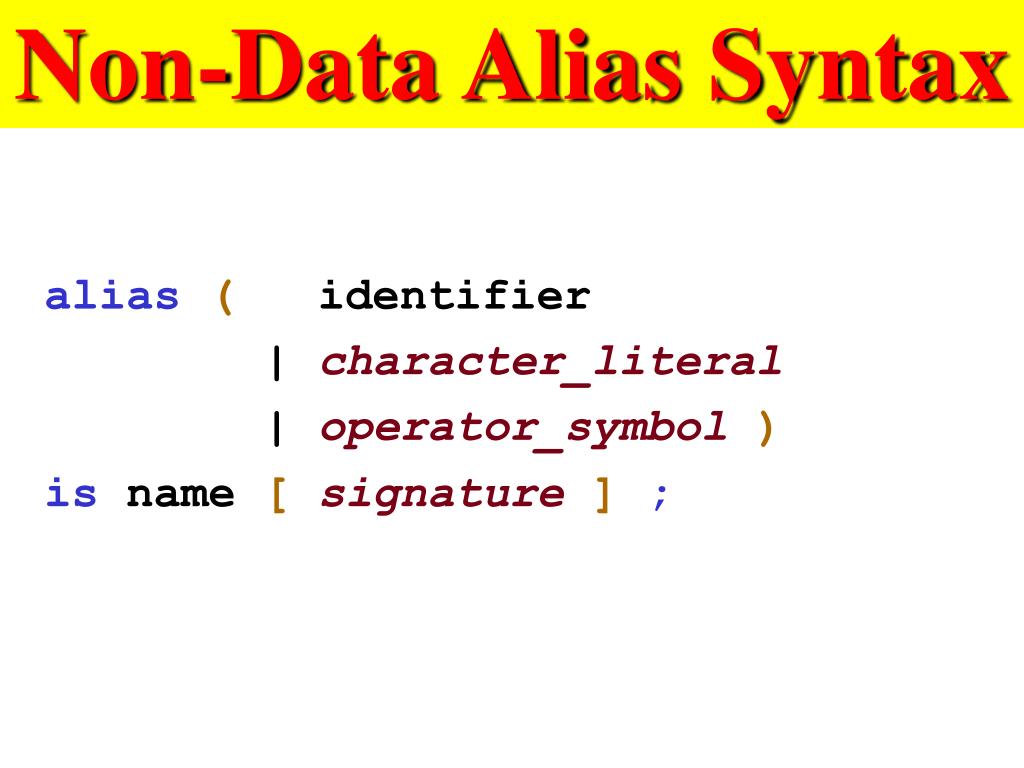

  29. Non-Data Alias Syntax alias (identifier |character_literal |operator_symbol ) is name [signature];

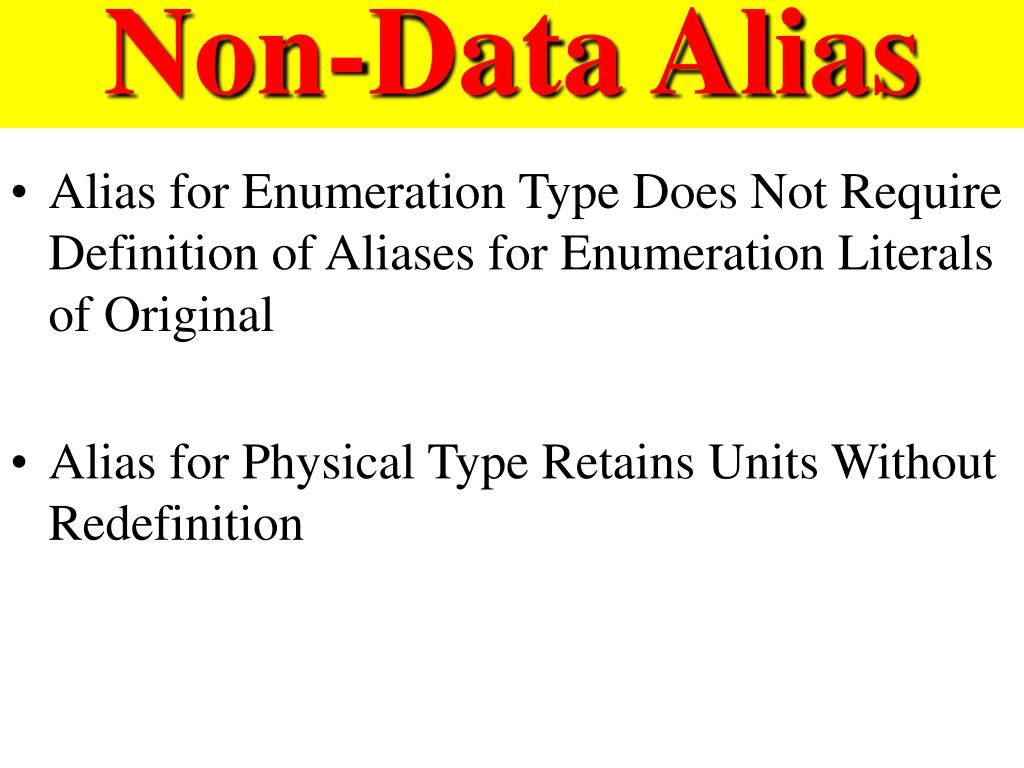

  30. Non-Data Alias • Alias for Enumeration Type Does Not Require Definition of Aliases for Enumeration Literals of Original • Alias for Physical Type Retains Units Without Redefinition

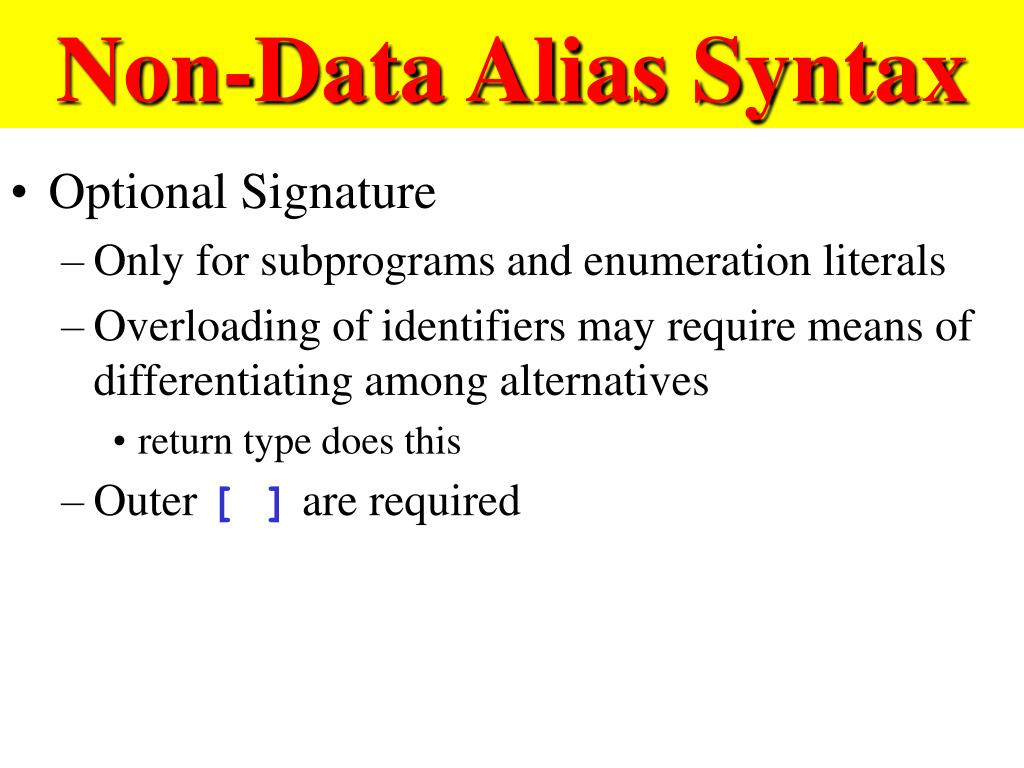

  31. Non-Data Alias Syntax • Optional Signature • Only for subprograms and enumeration literals • Overloading of identifiers may require means of differentiating among alternatives • return type does this • Outer [ ] are required

  32. Non-Data Alias Syntax signature <= [[type_mark{ , . . . } ] [ return type_mark]] • e.g., alias high is std.standard.’1’ [return bit ]

  33. Resolved Signals • VHDL Requires a Function to Specify the Values Which Result From TyingMultiple Outputs Together • Resolved Signal Includes Resolution Function • Inclusion of function indicates it is a resolved signal

  34. Resolved Signals • Resolution Function Must Be Written for an Indeterminate Number of Signals Since It Is Not Known When Declared How Many Signals Will Be Connected to It. • The Value of a Signal at a Transaction Is Determined by the Resolution Function Operating on the Multiply Connected Signals.

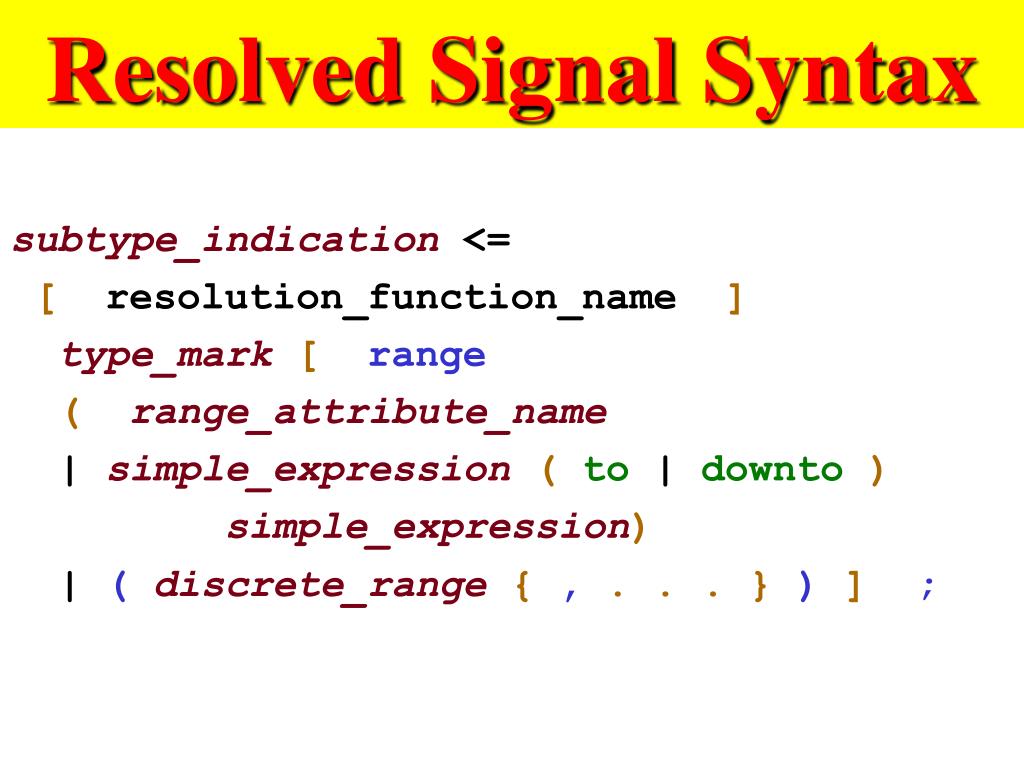

  35. Resolved Signal Syntax subtype_indication <= [resolution_function_name ] type_mark [range (range_attribute_name | simple_expression(to |downto) simple_expression) | ( discrete_range { , . . . } )];

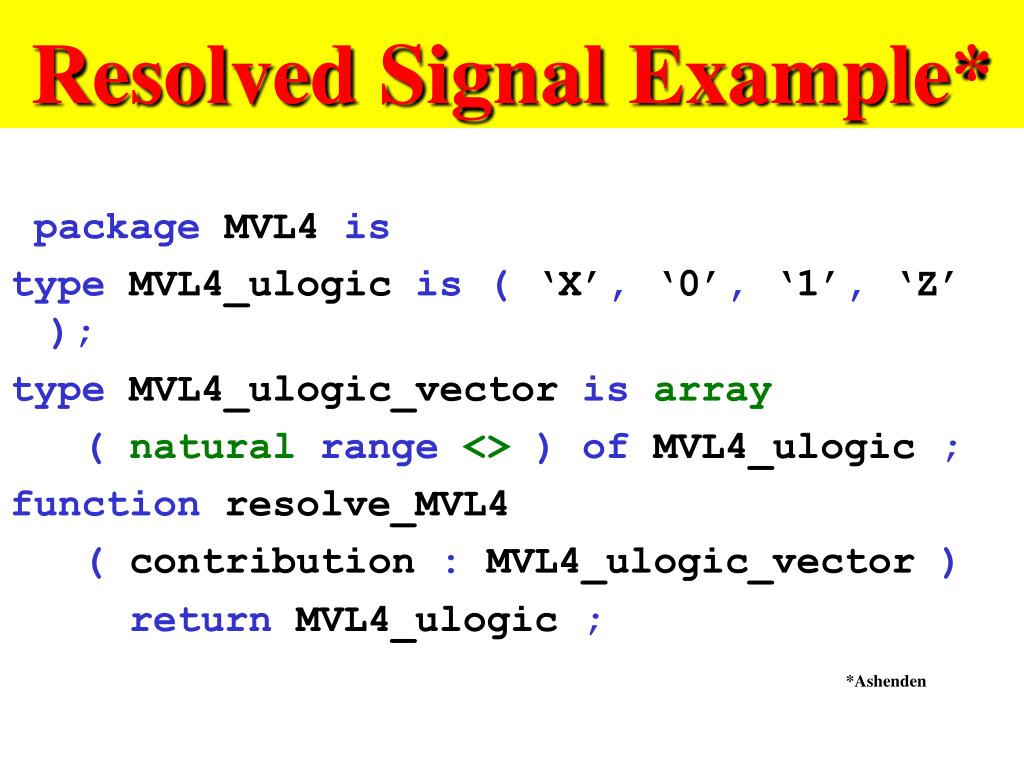

  36. Resolved Signal Example* package MVL4 is type MVL4_ulogic is ( ‘X’, ‘0’, ‘1’, ‘Z’ ); type MVL4_ulogic_vector is array (natural range <> ) of MVL4_ulogic ; function resolve_MVL4 ( contribution : MVL4_ulogic_vector ) return MVL4_ulogic ; *Ashenden

  37. Resolved Signal Example* subtype MVL4_logic is resolve_MVL4 MVL4_ulogic ; end package MVL4 ; *Ashenden

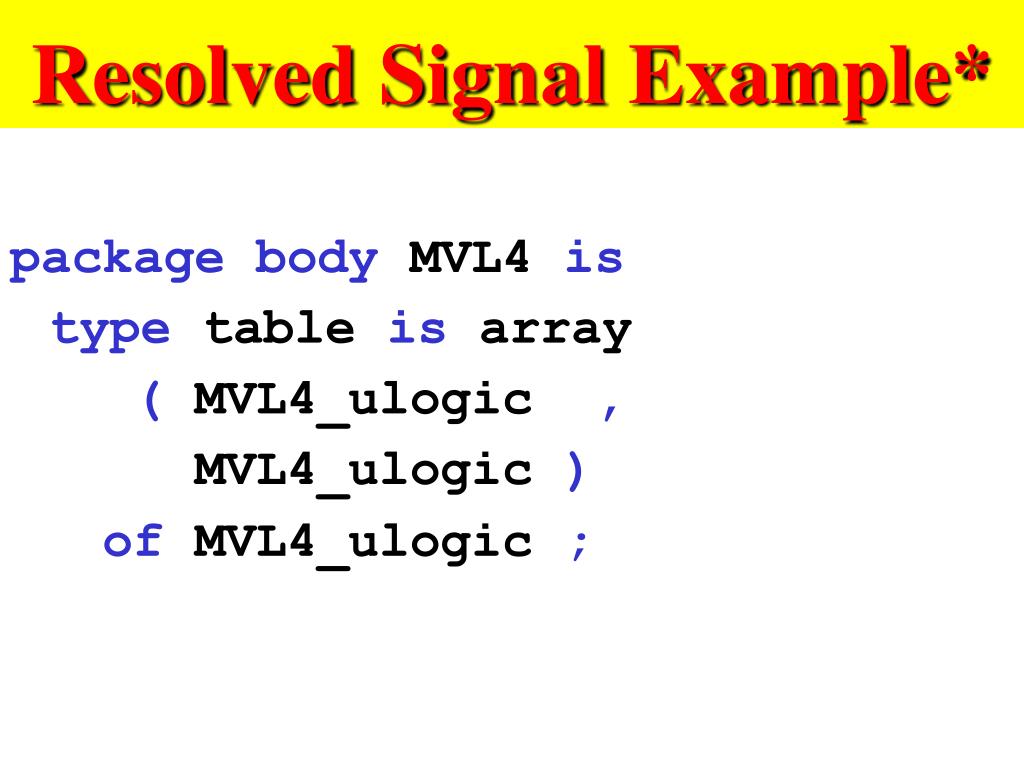

  38. Resolved Signal Example* package body MVL4 is type table is array ( MVL4_ulogic , MVL4_ulogic ) of MVL4_ulogic ;

  39. Resolved Signal Example* constant resolution_table : table := -- ‘X’ ‘0’ ‘1’ ‘Z’ -- ------------------------- ( ( ‘X’ ‘X’ ‘X’ ‘X’ ), -- ‘X’ ( ‘X’ ‘0’ ‘X’ ‘0’ ), -- ‘0’ ( ‘X’ ‘X’ ‘1’ ‘1’ ), -- ‘1’ ( ‘X’ ‘0’ ‘1’ ‘Z’ ) ) ;-- ‘Z’

  40. Resolved Signal Example* function resolve_MVL4 ( contribution : MVL4_ulogic_vector ) return MVL4_ulogic is variable result : MVL4_ulogic := ‘Z’;

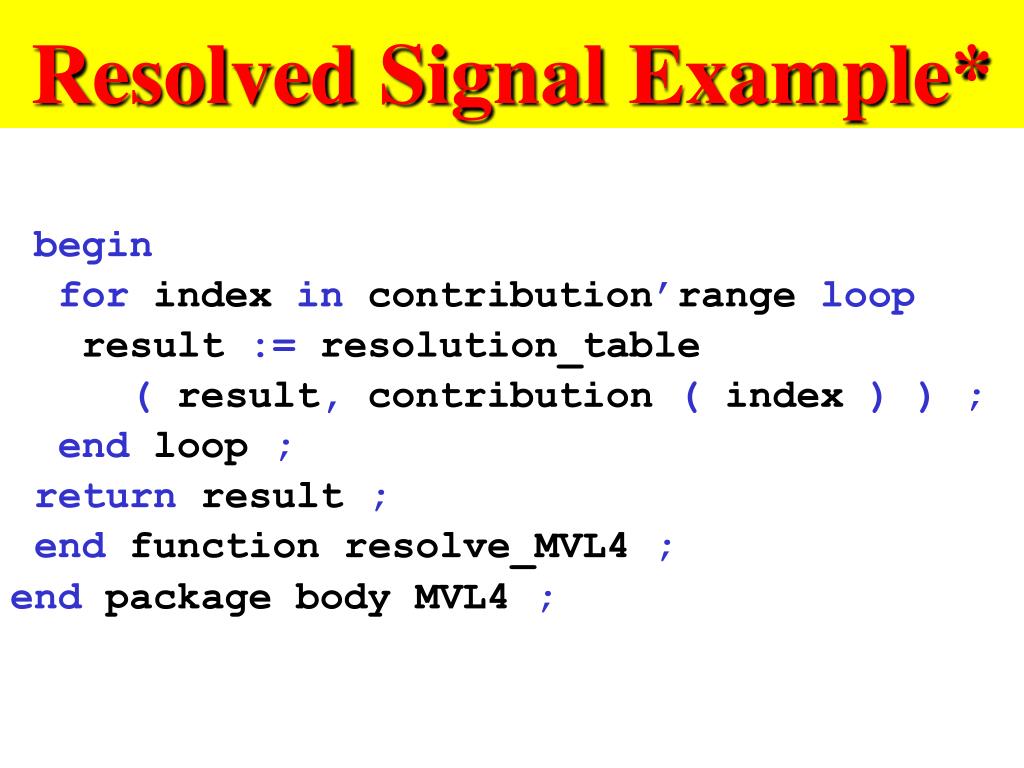

  41. Resolved Signal Example* begin for index in contribution’range loop result := resolution_table ( result, contribution ( index ) ) ; end loop ; return result ; end function resolve_MVL4 ; end package body MVL4 ;

  42. Advanced Modeling in VHDL • Standard Logic System • Package Body Example • Use of IEEE 1164 Package

  43. Advanced Modelling Techniques in VHDL • VHDL defines only basic features to model digital devices, such as, simple BIT type, two types of a delay, etc. • more complex data types for signals must be defined for realistic simulation.

  44. Advanced Modelling Techniques in VHDL • more complex data types for signals must be defined for realistic simulation. • Recall our old Example of Nand_2:

  45. Why we need more complex logic definition than BIT? • we want to get more accurate simulation results, • we use different technology and we want to simulate the same design in different technologies, • real world is more complex than '0' and '1', • more complex delays than standard VHDL models • inputs, output delays, • rising edge, falling edge delays, • min, max and typical delays

  46. A Case Example • Std_logic_1164 defined by IEEE as a portable constructs • Requirements: • support for more realistic signal modeling, • technology independence, allowing extensions for the future and providing support for all current technologies, • provide consistent features which facilitate logic level modeling, • hide the complexity of the package from the designer as much as possible, make models readable, • provide for the timing accuracy continuum, giving the modeler flexibility to choose the appropriate level of model accuracy. • Intended use of the packages: -- access standard logic facilities use ieee.Std_logic_1164.all; -- VHDL entity declaration -- -- --

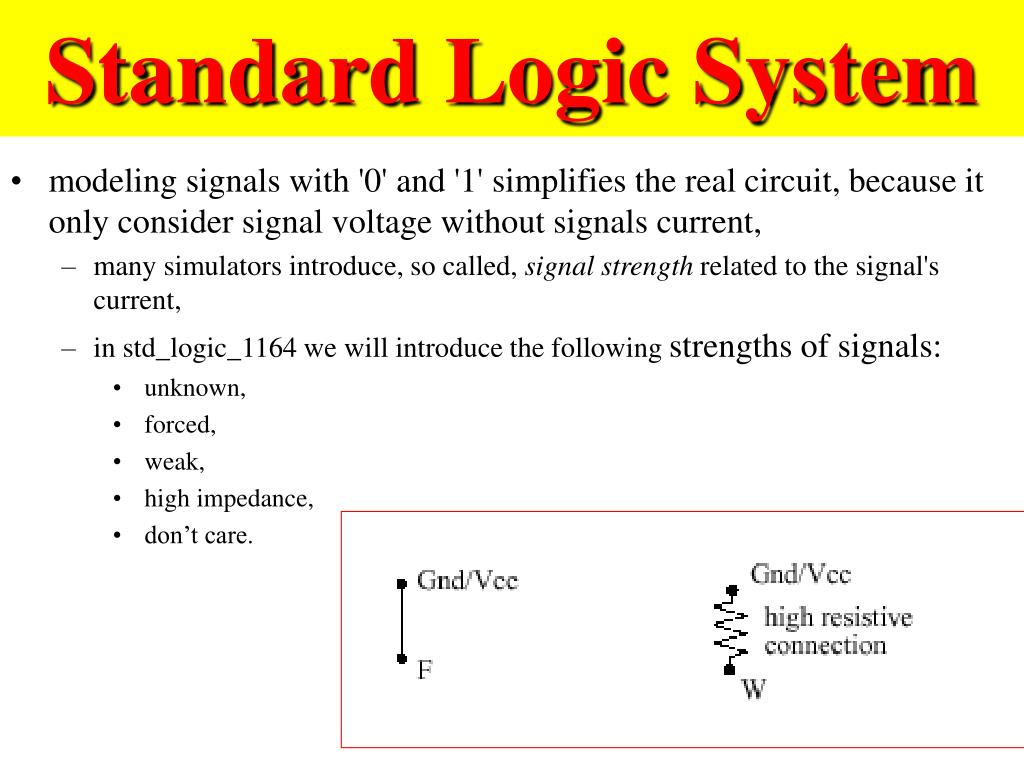

  47. Standard Logic System • modeling signals with '0' and '1' simplifies the real circuit, because it only consider signal voltage without signals current, • many simulators introduce, so called, signal strength related to the signal's current, • in std_logic_1164 we will introduce the following strengths of signals: • unknown, • forced, • weak, • high impedance, • don’t care.

  48. Standard Logic System

  49. Standard Logic System

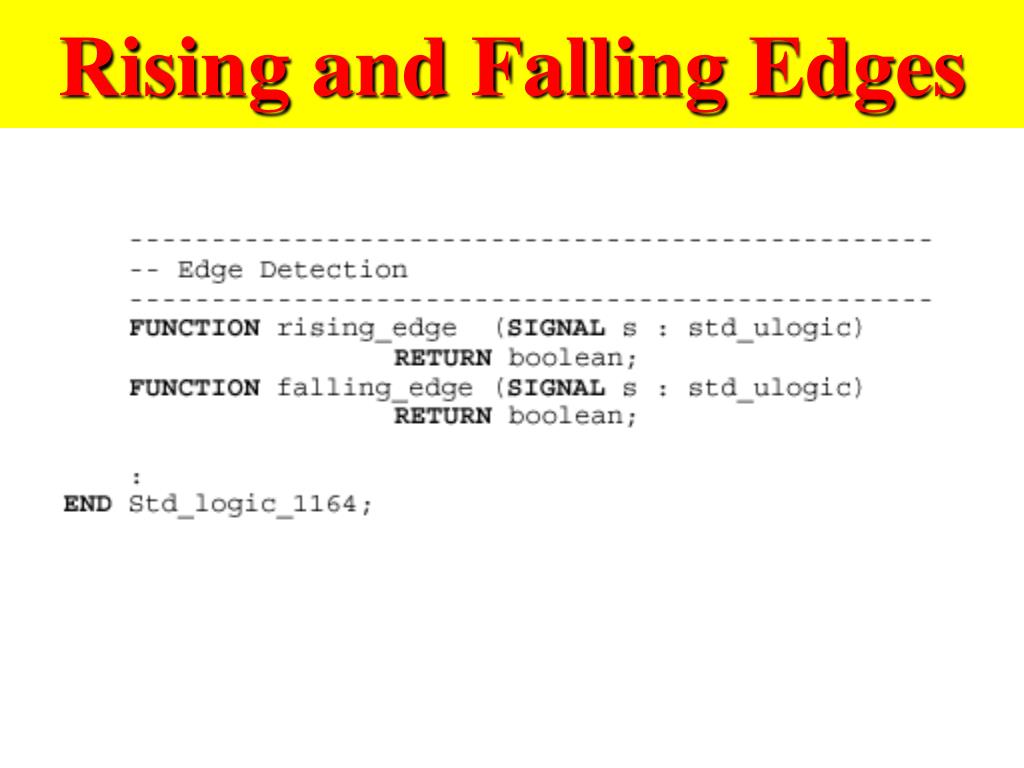

  50. Rising and Falling Edges
