5.1 and 5.2: Midsegments of Triangles Perpendicular and Angle bisectors

rhoda avatar
rhoda
20 diapositives · 521 Views · Aug 14, 2014

5.1 and 5.2: Midsegments of Triangles Perpendicular and Angle bisectors. Objectives : Students will be able to… Use properties of midsegments to solve problems Use properties of perpendicular and angle bisectors to find missing measurements. Midsegment of a Triangle.

#5.1 and 5.2: midsegments of triangles perpendicular and angle bisectors #5.1 and 5.2: midsegments of triangles perpendicular and angle bisectors ppt #powerpoint #presentation
5.1 and 5.2: Midsegments of Triangles Perpendicular and Angle bisectors - slide 1
01 / 205.1 and 5.2: Midsegments of Triangles Perpendicular and Angle bisectors
1 / 17

Télécharger la présentation

5.1 and 5.2: Midsegments of Triangles Perpendicular and Angle bisectors
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

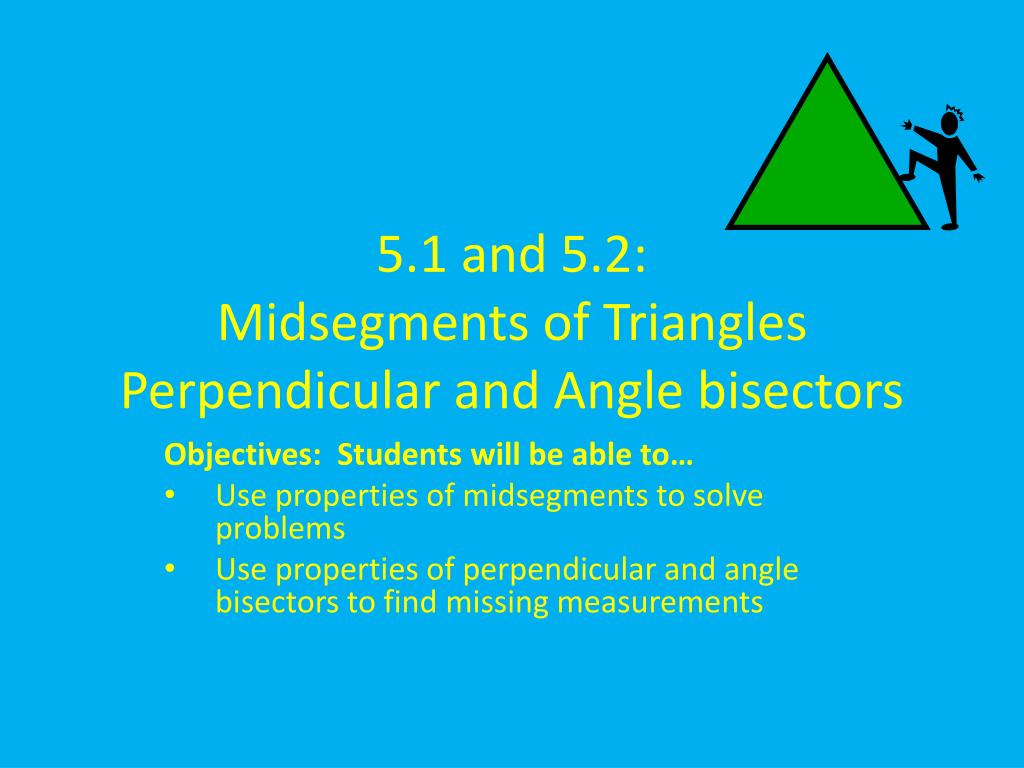

  1. 5.1 and 5.2: Midsegmentsof TrianglesPerpendicular and Angle bisectors Objectives: Students will be able to… Use properties of midsegments to solve problems Use properties of perpendicular and angle bisectors to find missing measurements

  2. Midsegment of a Triangle • Segment connecting the midpoints of 2 sides of a triangle B D E C A D is the midpoint of E is the midpoint of is the midsegment of

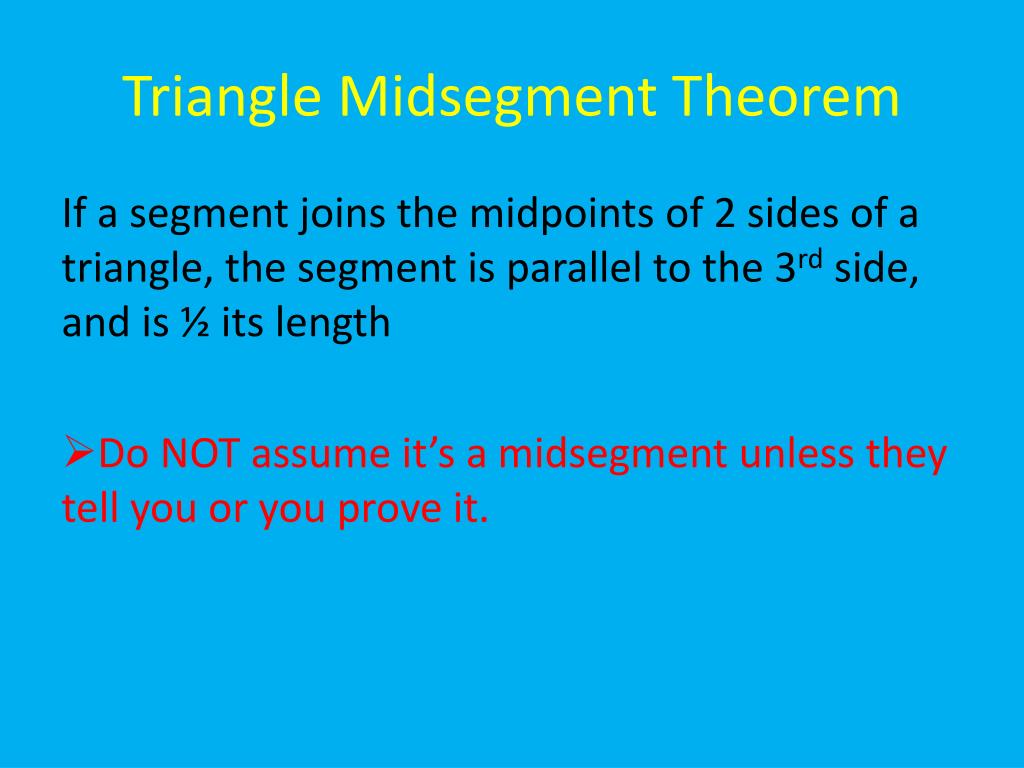

  3. Triangle MidsegmentTheorem If a segment joins the midpoints of 2 sides of a triangle, the segment is parallel to the 3rd side, and is ½ its length • Do NOT assume it’s a midsegment unless they tell you or you prove it.

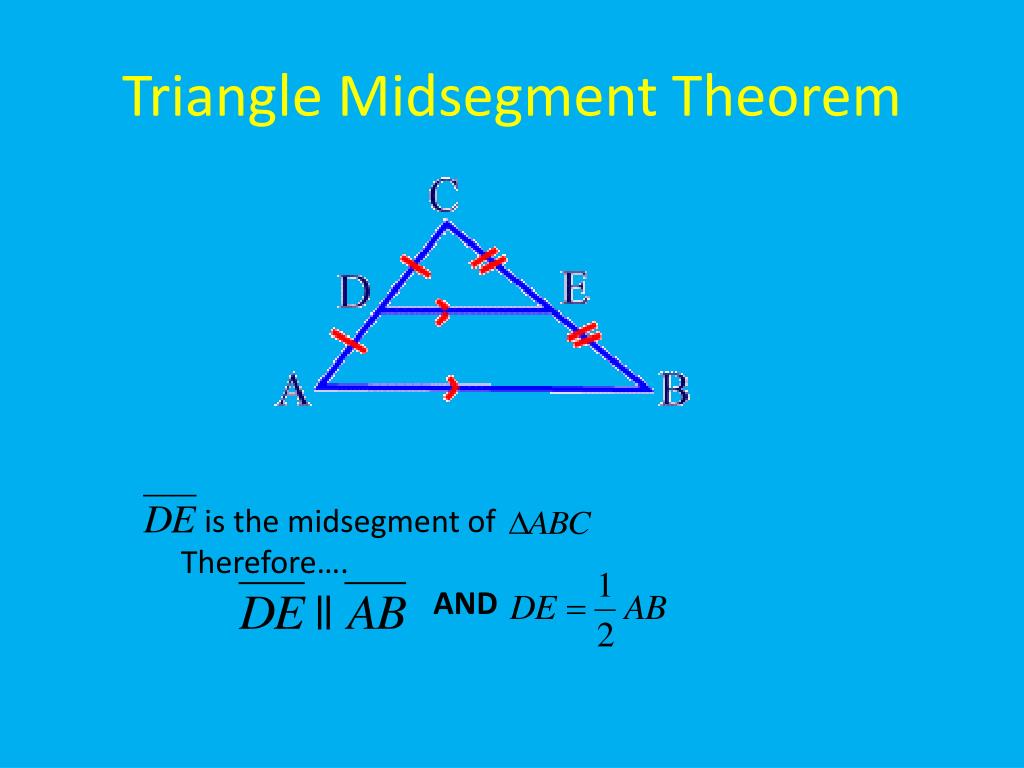

  4. Triangle Midsegment Theorem is the midsegment of Therefore…. AND

  5. EXAMPLES: Find the value of the variables. 1. 2. A B C x x+2 E D 18 20

  6. Find the perimeter of D 5 3 E 7 A

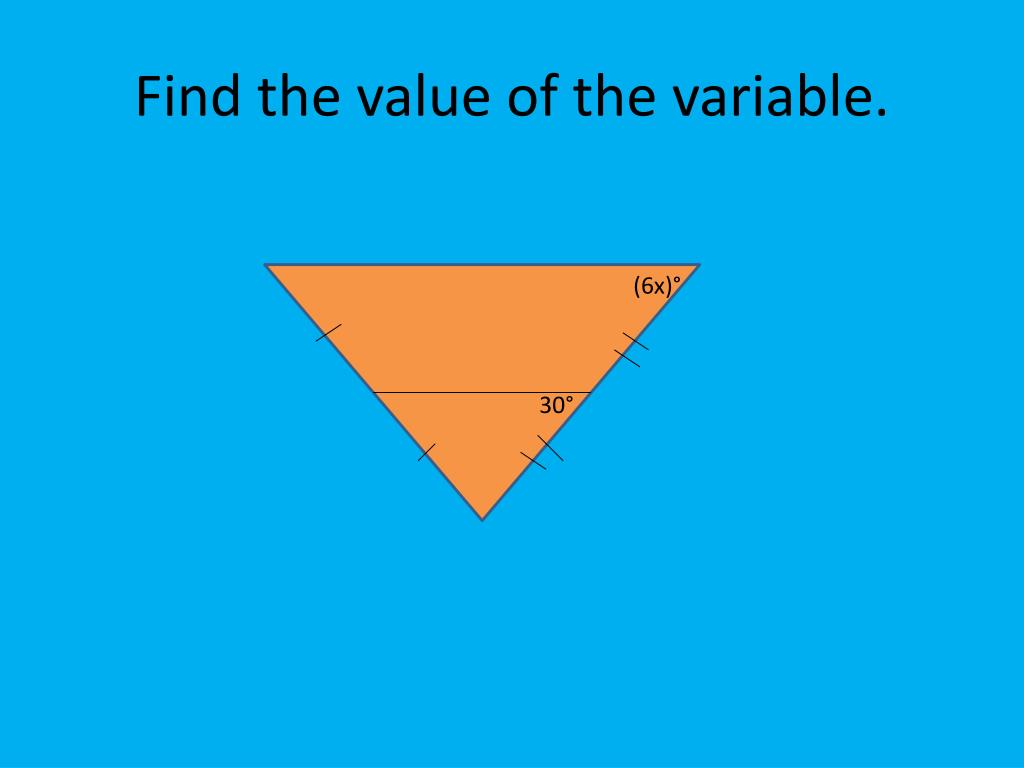

  7. Find the value of the variable. (6x)° 30°

  8. In ∆XYZ, M, N, and P are midpoints. The perimeter of the ∆ MNP is 60 yd. Find NP and YZ. X 22 M P 24 Y Z N NAME ALL PARALLEL SEGMENTS:

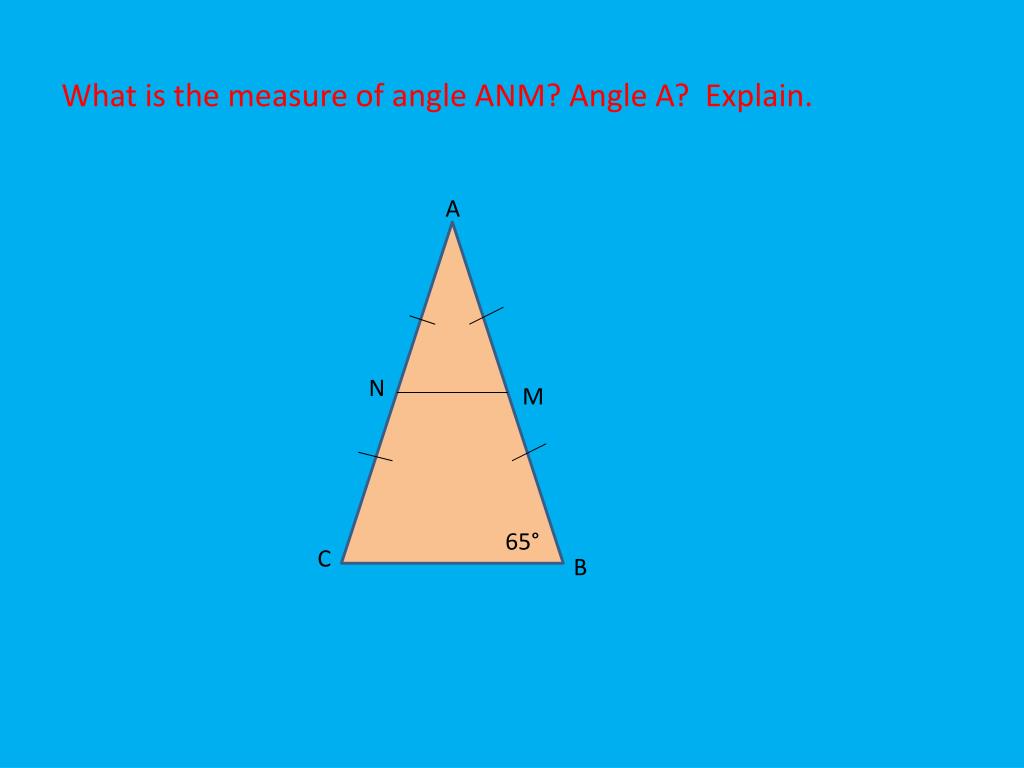

  9. What is the measure of angle ANM? Angle A? Explain. A N M 65° C B

  10. Warm Up • What is a perpendicular bisector of a segment? • What is an angle bisector? • What does equidistant mean?

  11. is the perpendicular bisector of What do we know?

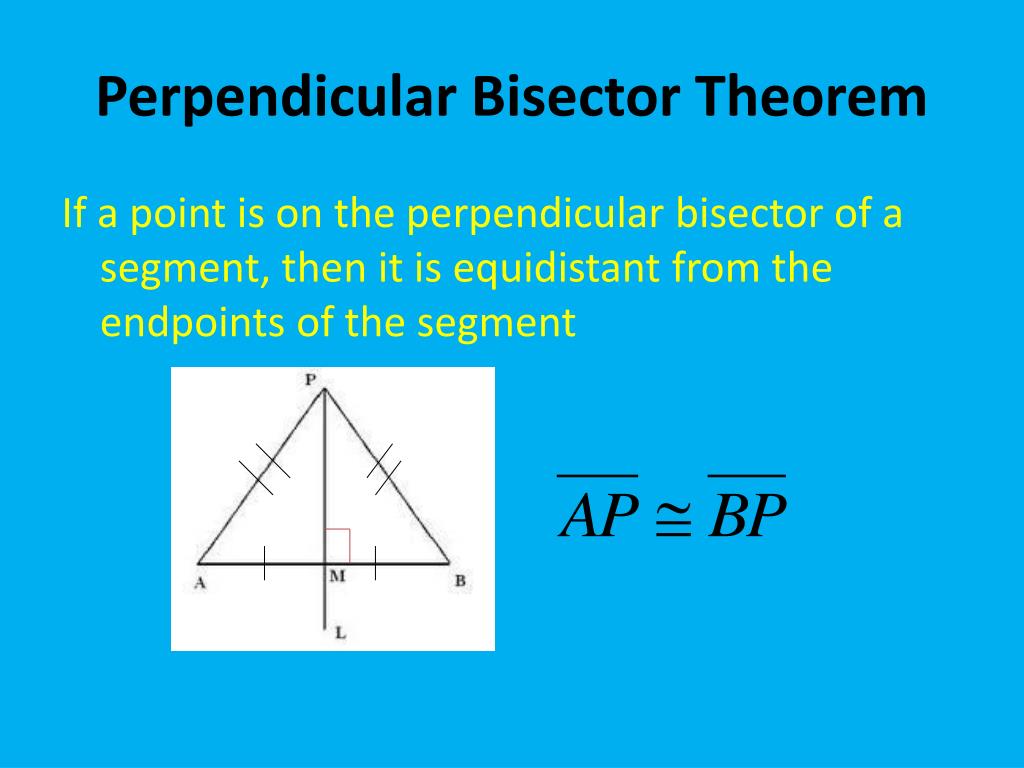

  12. Perpendicular Bisector Theorem If a point is on the perpendicular bisector of a segment, then it is equidistant from the endpoints of the segment

  13. Converse of Perpendicular Bisector Theorem If a point is equidistant from the endpoints of a segment, then it is on the perpendicular bisector of the segment. IS THE PERPENDICULAR BISECTOR OF SEGMENT AB 6 6

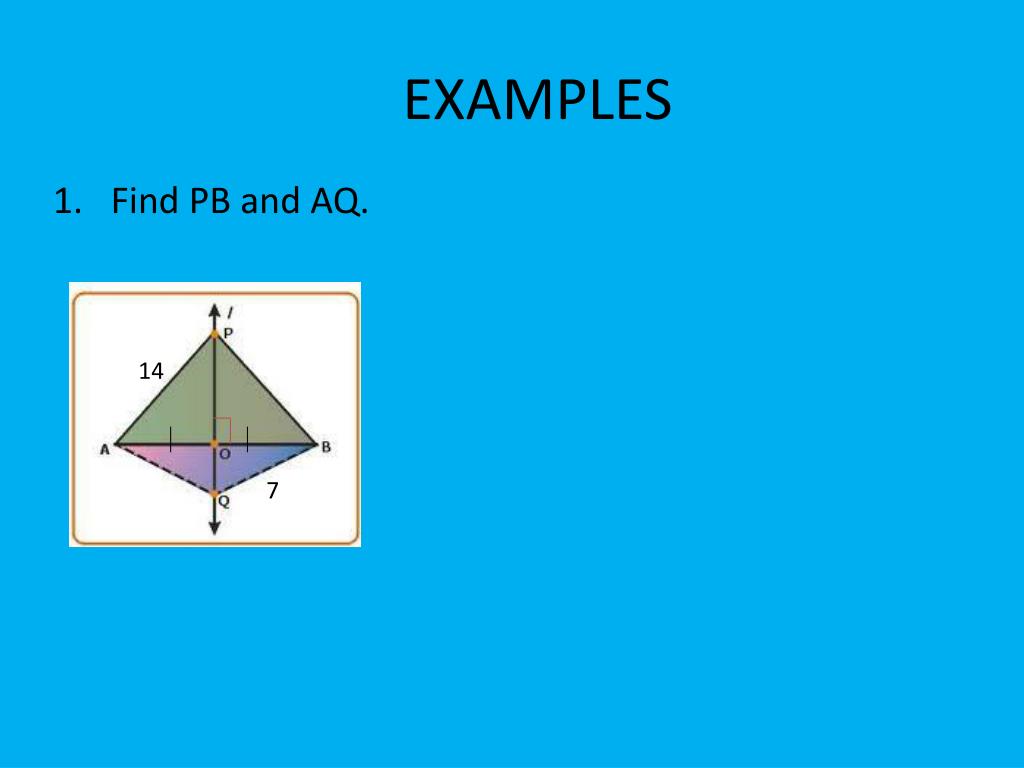

  14. EXAMPLES • Find PB and AQ. 14 7

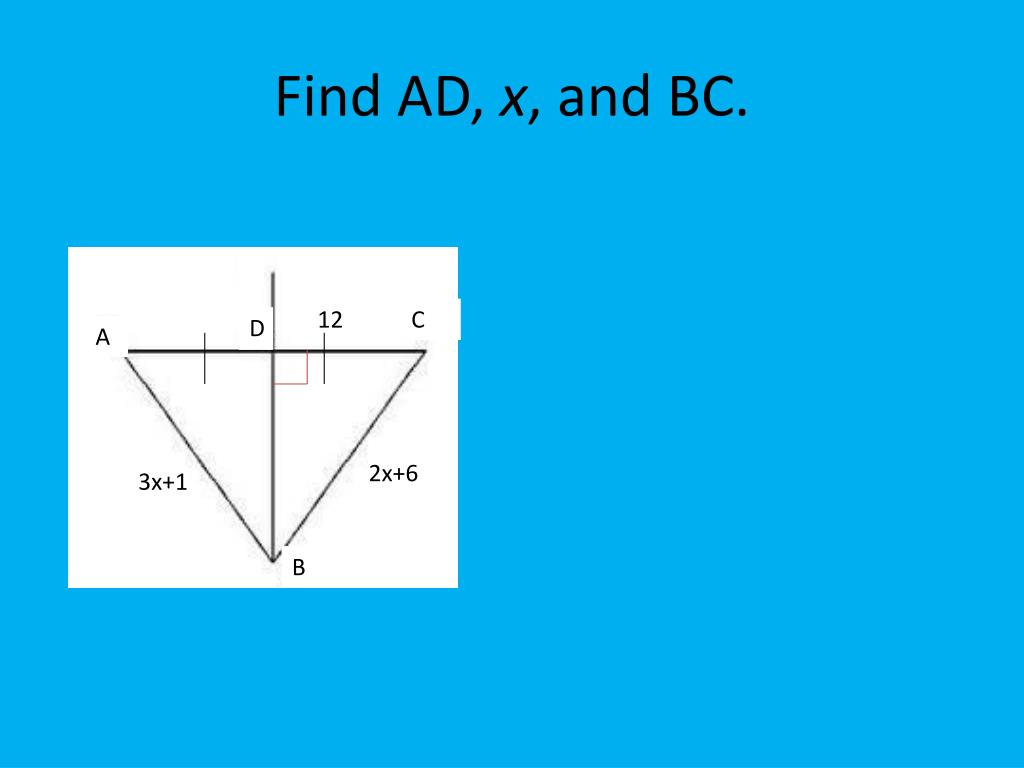

  15. Find AD, x, and BC. 12 C D A 2x+6 3x+1 B

  16. What do we know about P? 10 10

  17. Definition The distance from a point to a line is defined as the length of the perpendicular segment from the point to the line.

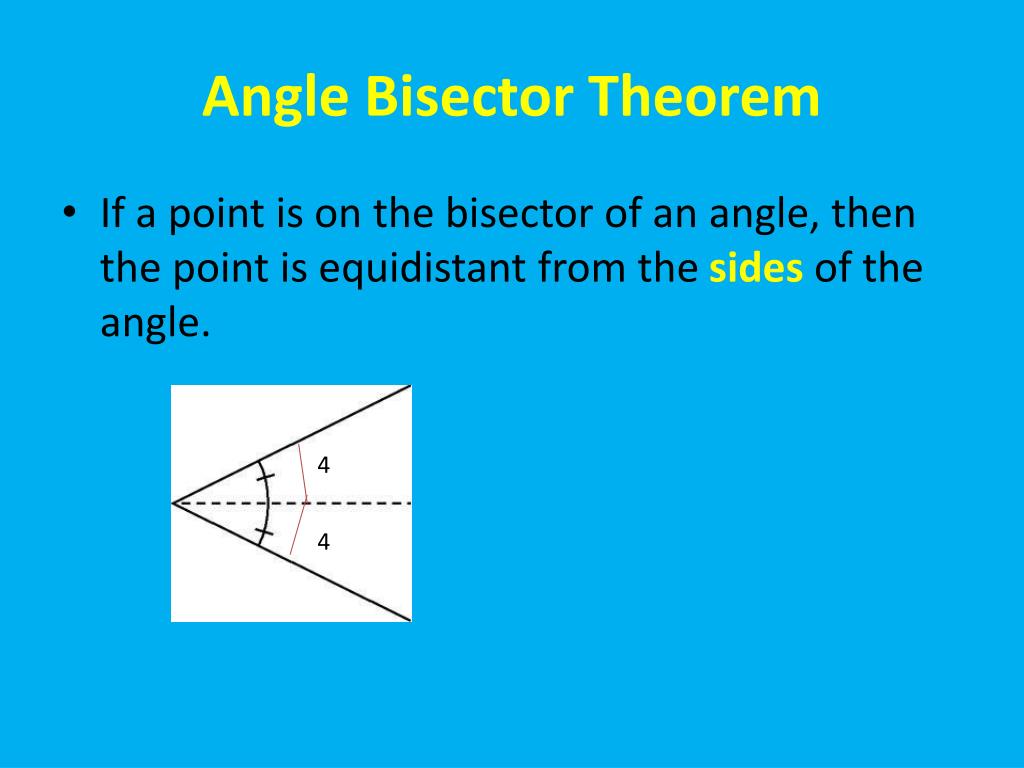

  18. Angle Bisector Theorem • If a point is on the bisector of an angle, then the point is equidistant from the sides of the angle. 4 4

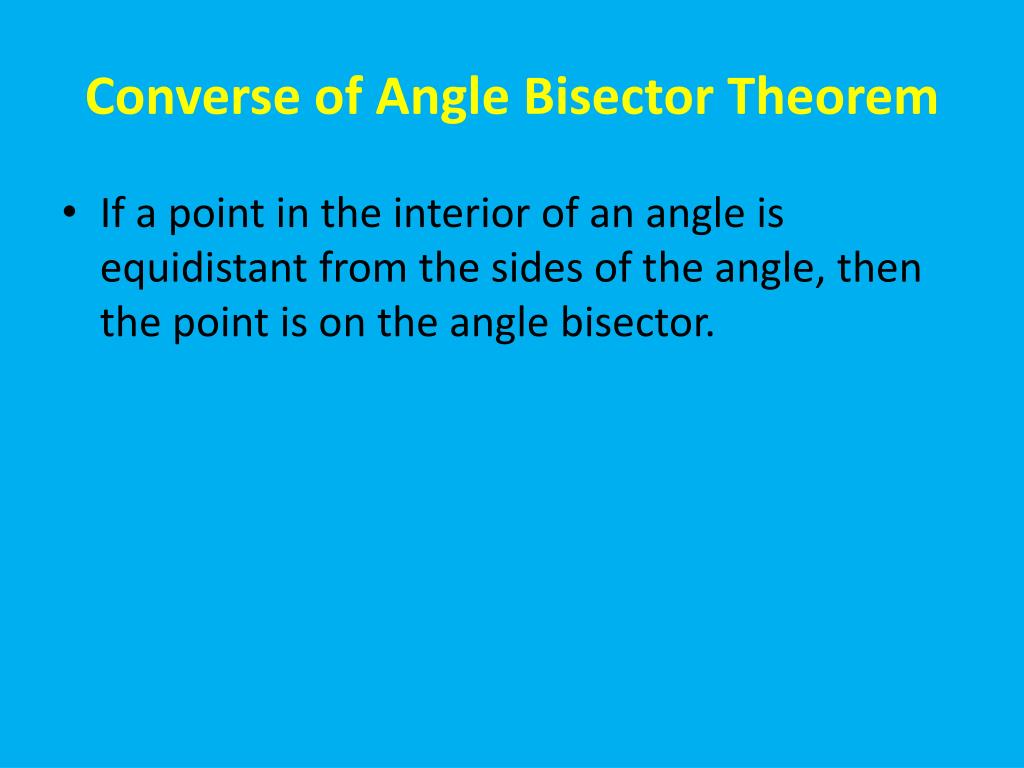

  19. Converse of Angle Bisector Theorem • If a point in the interior of an angle is equidistant from the sides of the angle, then the point is on the angle bisector.

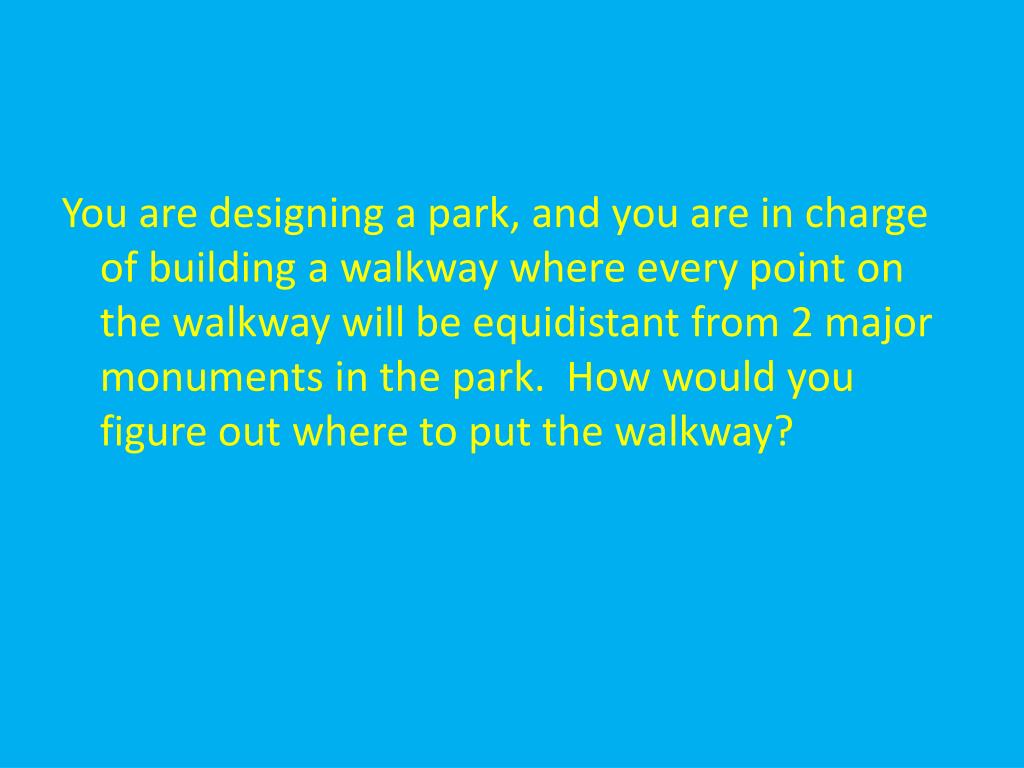

  20. You are designing a park, and you are in charge of building a walkway where every point on the walkway will be equidistant from 2 major monuments in the park. How would you figure out where to put the walkway?
