Topology 12 nodes divided into two groups to simulate a wireless network

node1. node10. Topology 12 nodes divided into two groups to simulate a wireless network in each group, 5 nodes communicate with one node which is assumed to be the base station. Each base station is connected to a terminal Each terminal is connected to a satellite.

rhonda
Télécharger la présentation

Topology 12 nodes divided into two groups to simulate a wireless network

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

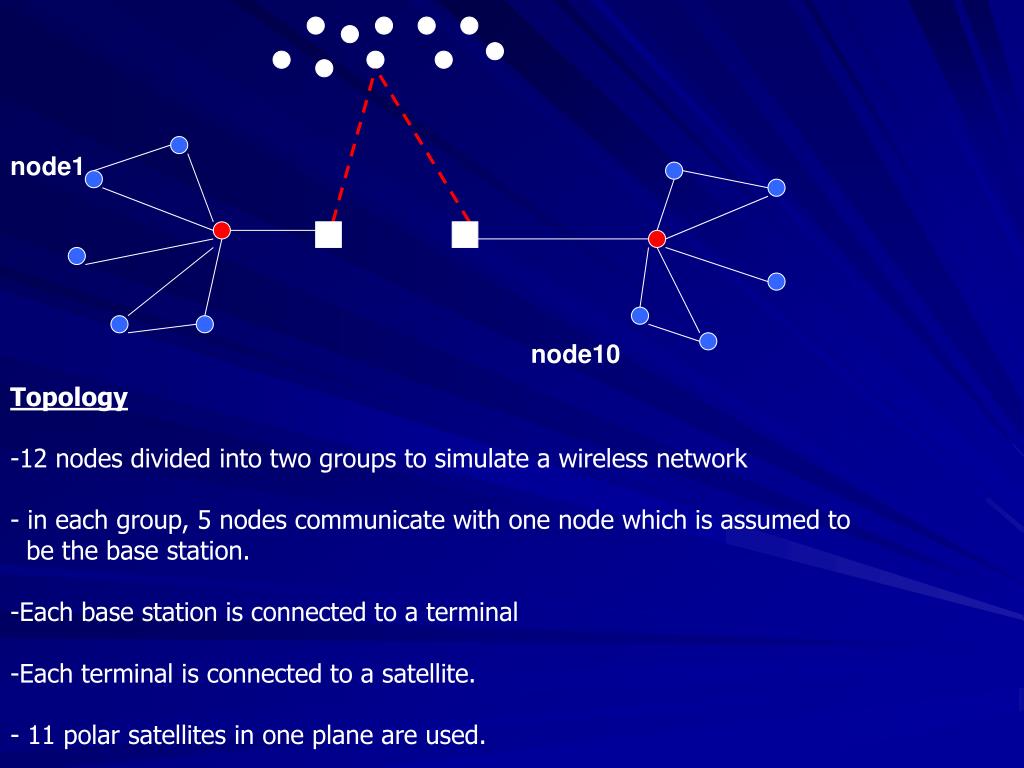

  1. node1 node10 • Topology • 12 nodes divided into two groups to simulate a wireless network • in each group, 5 nodes communicate with one node which is assumed to • be the base station. • Each base station is connected to a terminal • Each terminal is connected to a satellite. • - 11 polar satellites in one plane are used.

  2. 13 0 node1 18 24 11 12 node10 23 + 50 13 18 cbr 210 ------- 0 13.0 23.0 0 836- 50 13 18 cbr 210 ------- 0 13.0 23.0 0 836r 50.002336 13 18 cbr 210 ------- 0 13.0 23.0 0 836+ 50.002336 18 11 cbr 210 ------- 0 13.0 23.0 0 836- 50.002336 18 11 cbr 210 ------- 0 13.0 23.0 0 836r 50.004672 18 11 cbr 210 ------- 0 13.0 23.0 0 836+ 50.0047 11 0 cbr 210 ------- 0 13.0 23.0 0 836 0.00 -10.00 2.99 -0.21- 50.0047 11 0 cbr 210 ------- 0 13.0 23.0 0 836 0.00 -10.00 2.99 -0.21r 50.0107 11 0 cbr 210 ------- 0 13.0 23.0 0 836 0.00 -10.00 2.99 -0.21+ 50.0107 0 12 cbr 210 ------- 0 13.0 23.0 0 836 2.99 -0.21 0.00 10.00- 50.0107 0 12 cbr 210 ------- 0 13.0 23.0 0 836 2.99 -0.21 0.00 10.00r 50.0168 0 12 cbr 210 ------- 0 13.0 23.0 0 836 2.99 -0.21 0.00 10.00+ 50.016791 12 24 cbr 210 ------- 0 13.0 23.0 0 836- 50.016791 12 24 cbr 210 ------- 0 13.0 23.0 0 836r 50.019127 12 24 cbr 210 ------- 0 13.0 23.0 0 836+ 50.019127 24 23 cbr 210 ------- 0 13.0 23.0 0 836- 50.019127 24 23 cbr 210 ------- 0 13.0 23.0 0 836r 50.021463 24 23 cbr 210 ------- 0 13.0 23.0 0 836

  3. Some Important issues • What if one of the nodes move to a place where it can’t communicate • with its base station. • I used the following code in ns2: • $ns rtproto DV $ns rtmodel-at 200.0 down $node1 $BS0 $ns rtmodel-at 300.0 up $node1 $BS0 13 0 node1 18 24 11 12

  4. $ns rtmodel-at 150.0 down $node1 $BS0$ns rtmodel-at 230.0 down $node1 $node4 $ns rtmodel-at 300.0 up $node1 $BS0 $ns rtmodel-at 350.0 up $node1 $node4
