  1. Association Rules Evgueni Smirnov

  2. Overview • Association Rule Problem • Applications • The Apriori Algorithm • Discovering Association Rules • Techniques to Improve Efficiency of Association Rule Mining • Measures for Association Rules

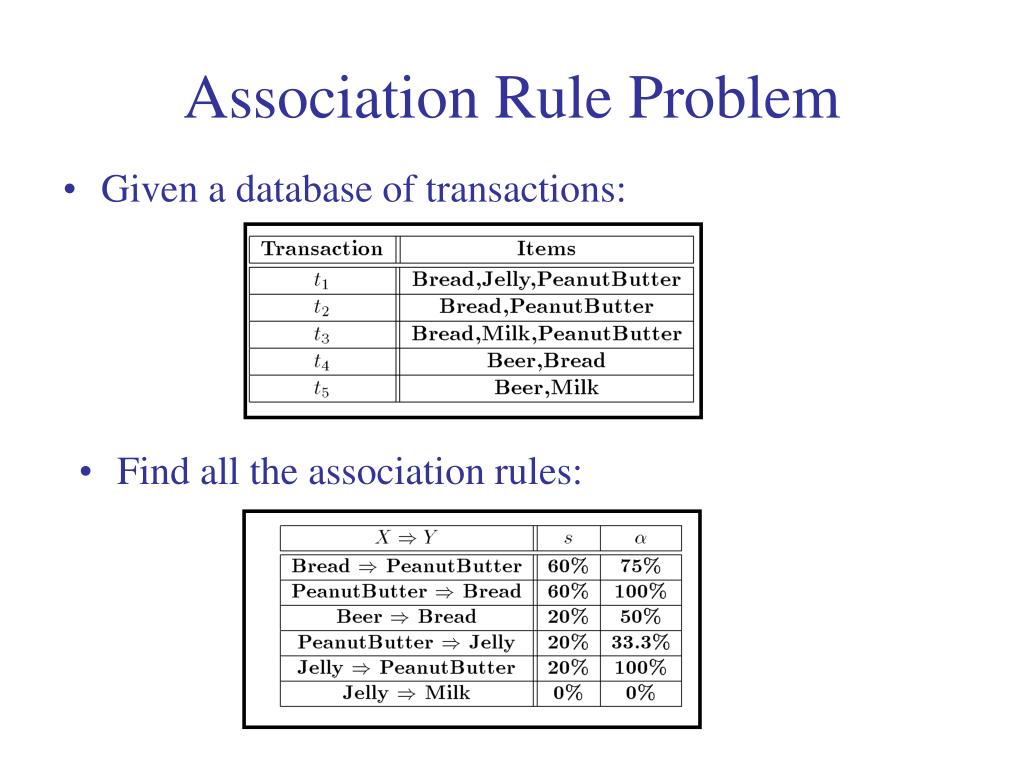

  3. Association Rule Problem • Given a database of transactions: • Find all the association rules:

  4. Applications • Market Basket Analysis: given a database of customer transactions, where each transaction is a set of items the goal is to find groups of items which are frequently purchased together. • Telecommunication (each customer is a transaction containing the set of phone calls) • Credit Cards/ Banking Services (each card/account is a transaction containing the set of customer’s payments) • Medical Treatments (each patient is represented as a transaction containing the ordered set of diseases) • Basketball-Game Analysis (each game is represented as a transaction containing the ordered set of ball passes)

  5. Association Rule Definitions • I={i1, i2, ..., in}: a set of all the items • Transaction T: a set of items such that TI • Transaction DatabaseD: a set of transactions • A transaction TIcontains a set XI of some items, if XT • An Association Rule: is an implication of the form XY, where X, YI

  6. Association Rule Definitions • A set of items is referred as an itemset. A itemset that contains k items is a k-itemset. • The support s of an itemset Xis the percentage of transactions in the transaction databaseDthat contain X. • The support of the rule XY in the transaction databaseDis the support of the items set XYin D. • The confidence of the rule XY in the transaction databaseDis the ratio of the number of transactions in D that contain XY to the number of transactions that contain X in D.

  7. Example • Given a database of transactions: • Find all the association rules:

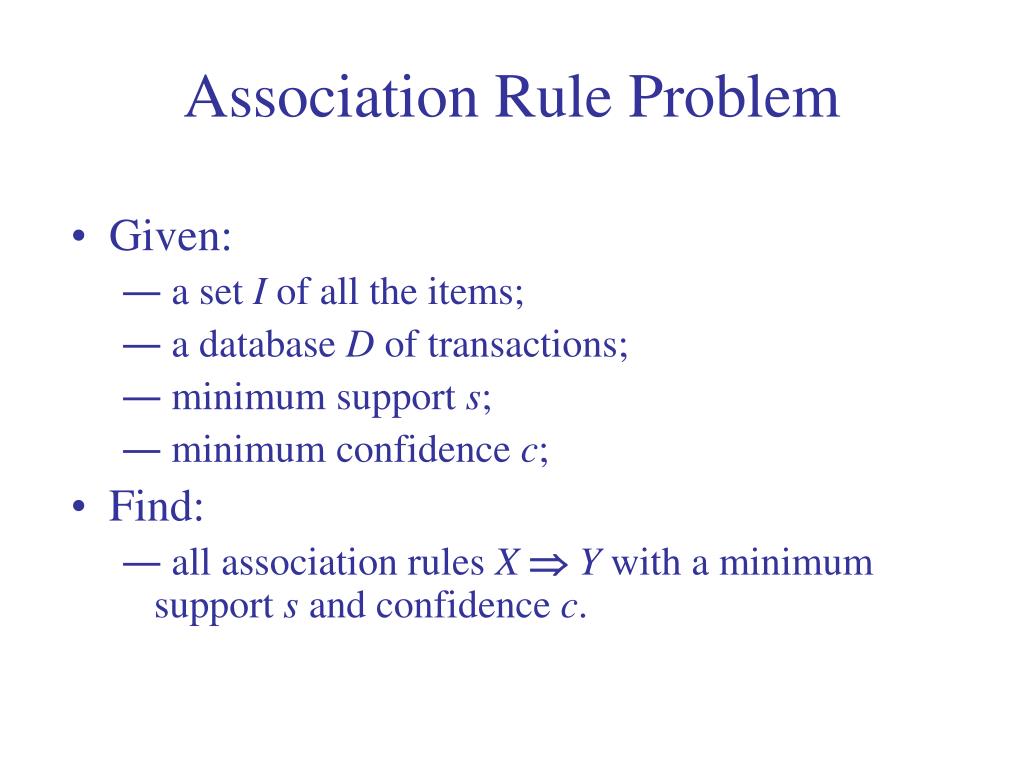

  8. Association Rule Problem • Given: • a set I of all the items; • a database D of transactions; • minimum support s; • minimum confidence c; • Find: • all association rules XY with a minimum support s and confidence c.

  9. Problem Decomposition 1. Find all sets of items that have minimum support (frequent itemsets) 2. Use the frequent itemsets to generate the desired rules

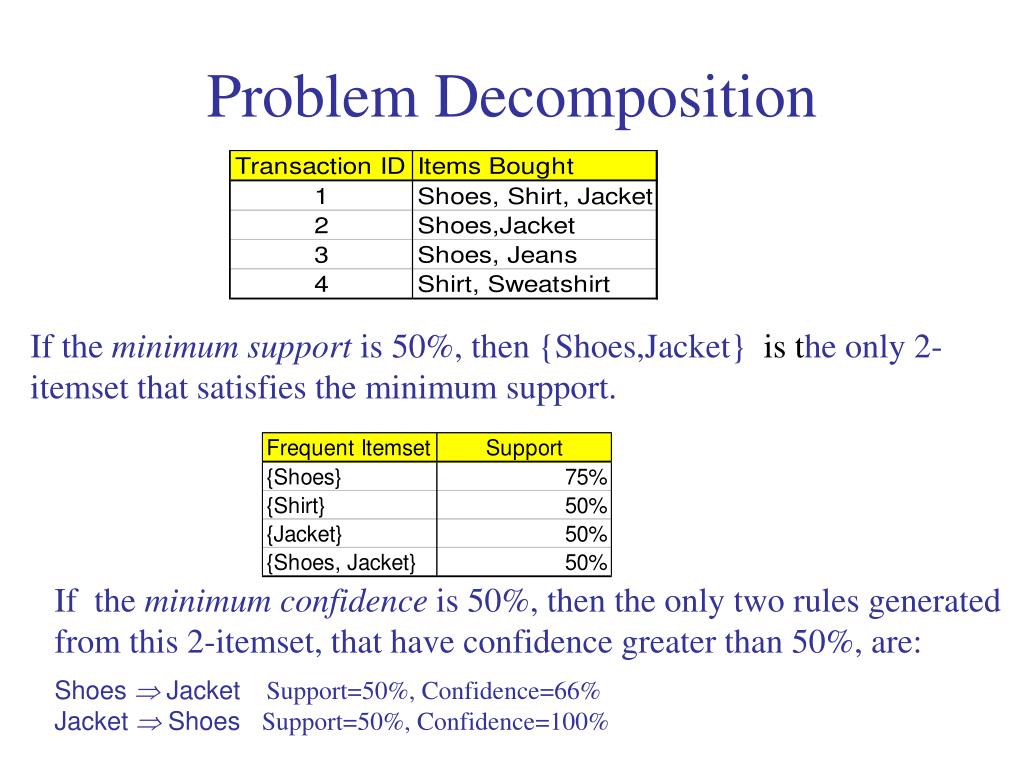

  10. Problem Decomposition If the minimum support is 50%, then {Shoes,Jacket} is the only 2- itemset that satisfies the minimum support. If the minimum confidence is 50%, then the only two rules generated from this 2-itemset, that have confidence greater than 50%, are: Shoes  Jacket Support=50%, Confidence=66% Jacket  Shoes Support=50%, Confidence=100%

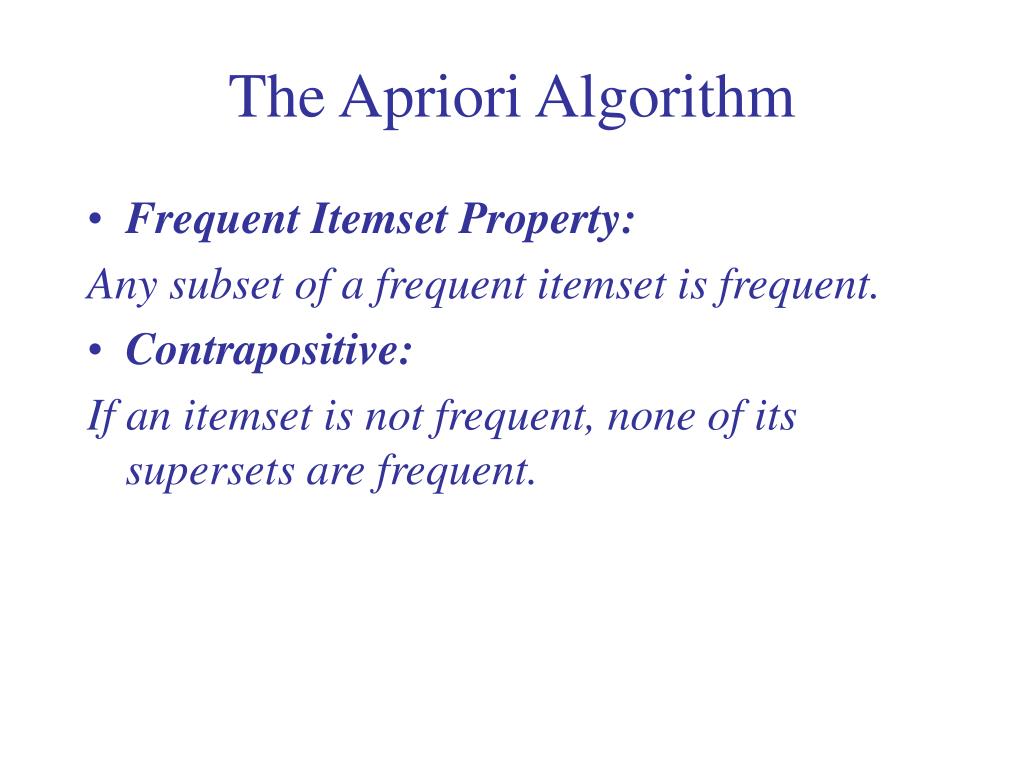

  11. The Apriori Algorithm • Frequent Itemset Property: Any subset of a frequent itemset is frequent. • Contrapositive: If an itemset is not frequent, none of its supersets are frequent.

  12. Frequent Itemset Property

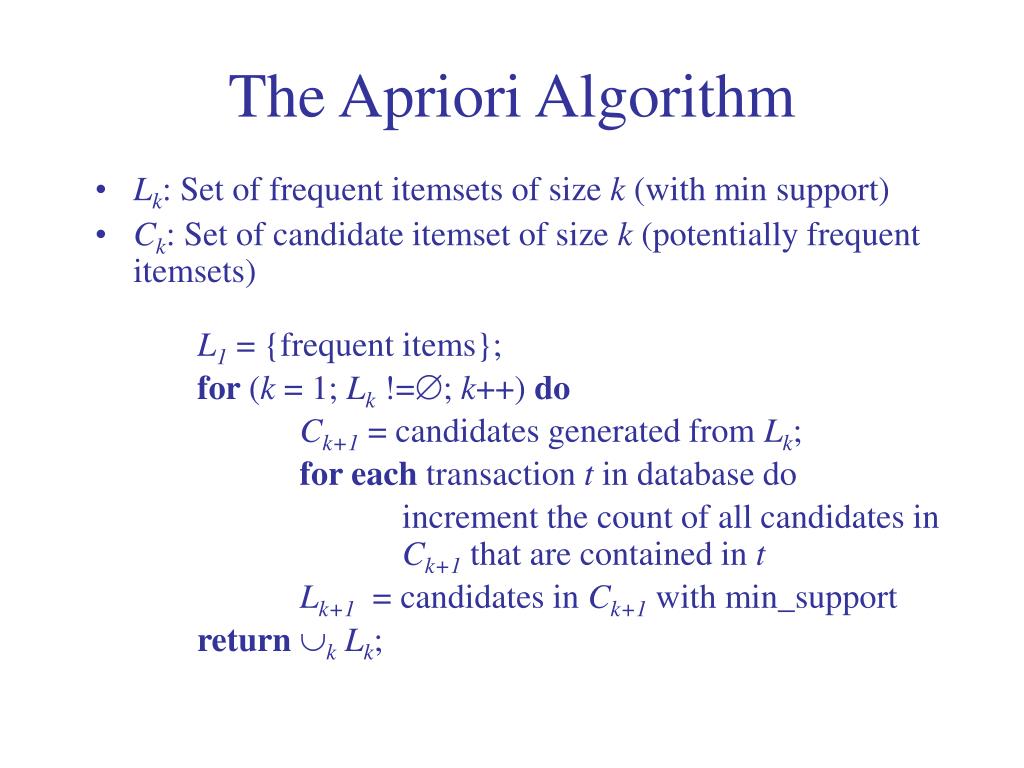

  13. The Apriori Algorithm • Lk: Set of frequent itemsets of size k (with min support) • Ck: Set of candidate itemset of size k (potentially frequent itemsets) L1 = {frequent items}; for (k = 1; Lk !=; k++) do Ck+1 = candidates generated from Lk; for each transaction t in database do increment the count of all candidates in Ck+1 that are contained in t Lk+1 = candidates in Ck+1 with min_support returnkLk;

  14. Database D L1 C1 Scan D C2 C2 L2 Scan D L3 C3 Scan D The Apriori Algorithm — Example Min support =50%

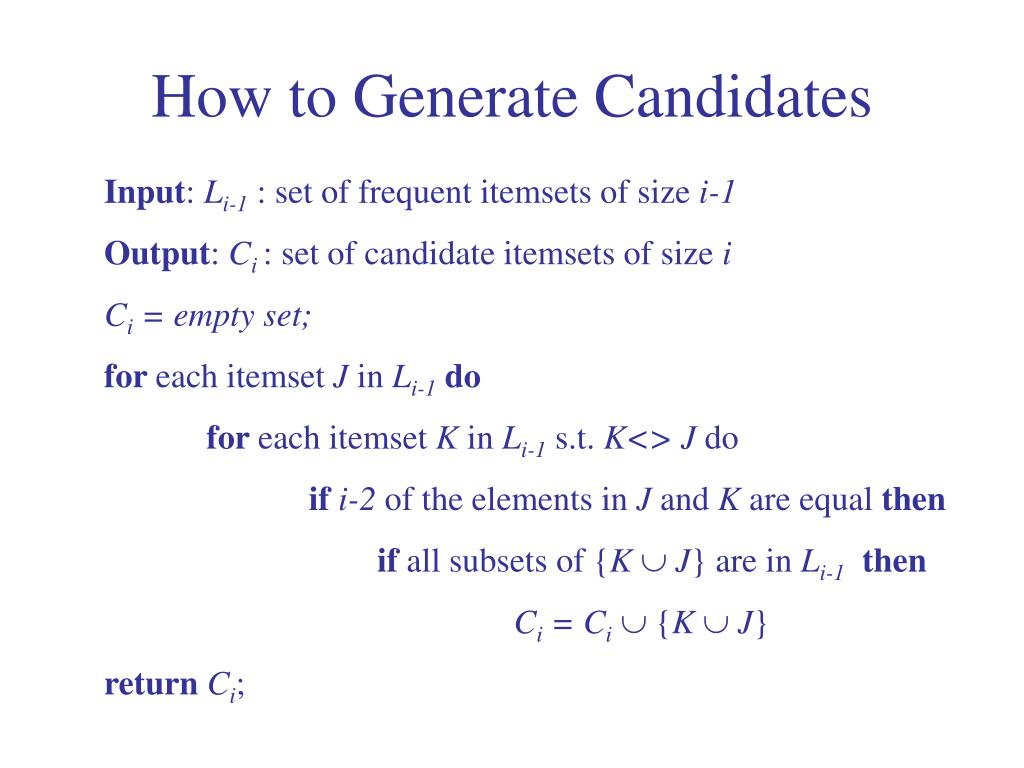

  15. How to Generate Candidates Input: Li-1:set of frequent itemsets of size i-1 Output: Ci :set of candidate itemsets of size i Ci= empty set; for each itemset J in Li-1do for each itemset K in Li-1s.t. K<> J do ifi-2 of the elements in J and K are equal then if all subsets of {K  J} are in Li-1then Ci = Ci {K  J} return Ci;

  16. Example of Generating Candidates • L3={abc, abd, acd, ace, bcd} • Generating C4 from L3 • abcd from abc and abd • acde from acd and ace • Pruning: • acde is removed because ade is not in L3 • C4={abcd}

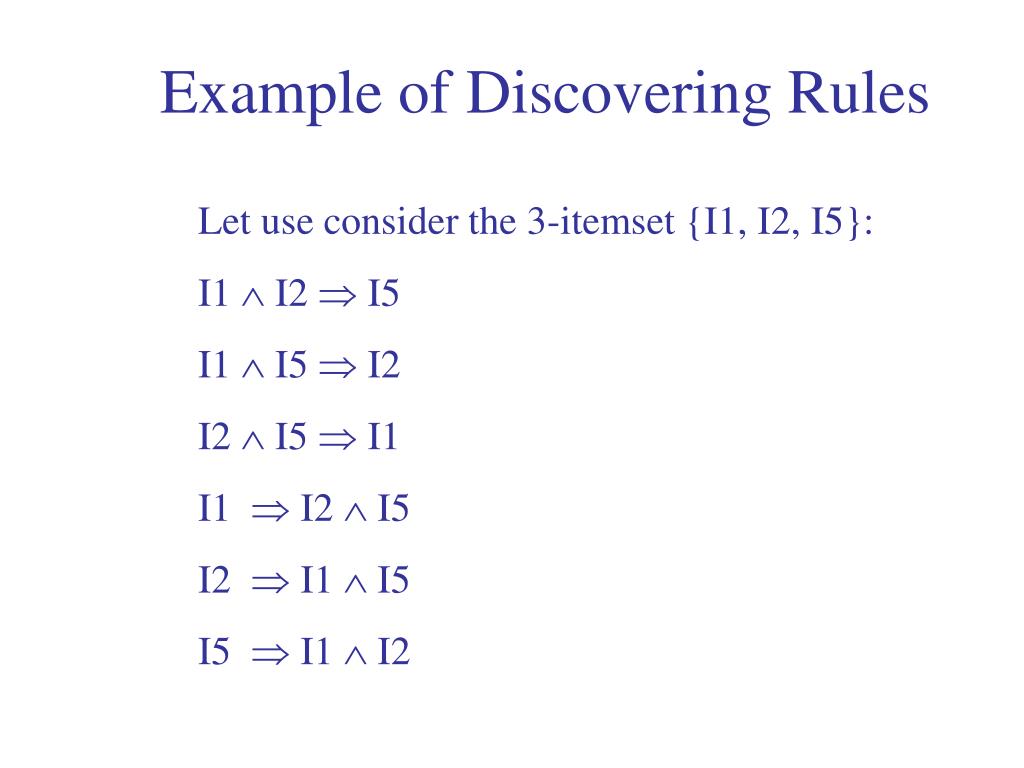

  17. Example of Discovering Rules Let use consider the 3-itemset {I1, I2, I5}: I1  I2  I5 I1  I5  I2 I2  I5  I1 I1  I2  I5 I2  I1  I5 I5  I1  I2

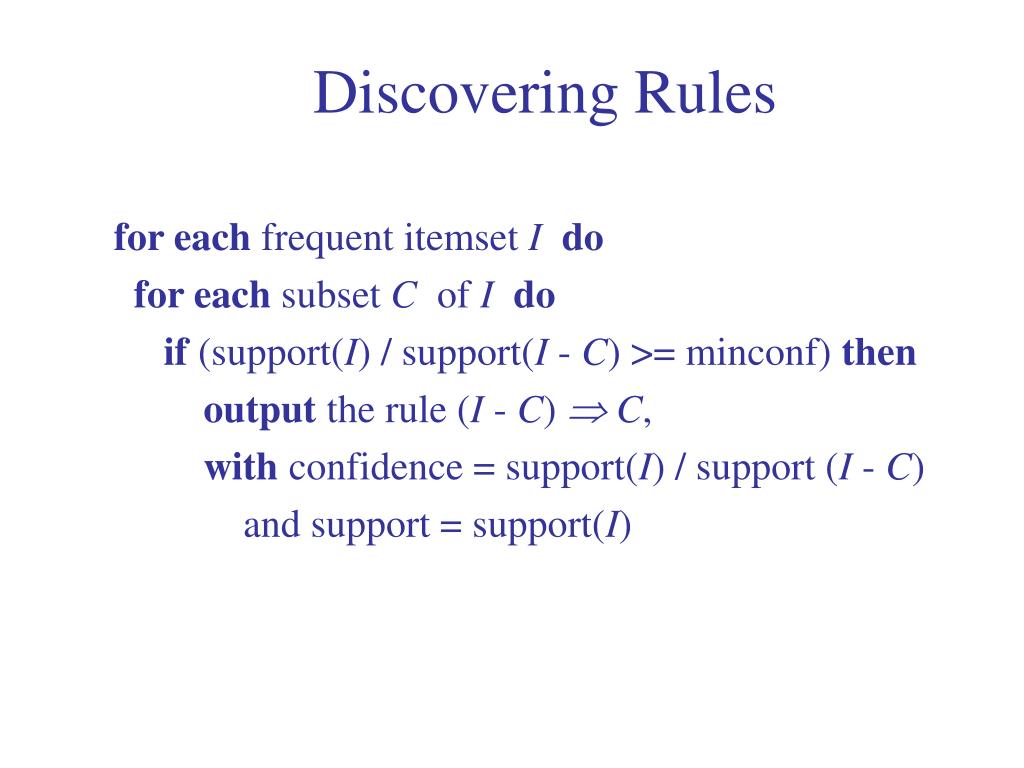

  18. Discovering Rules for each frequent itemset Ido for each subset C of Ido if (support(I) / support(I - C) >= minconf) then output the rule (I - C) C, with confidence = support(I) / support (I - C) and support = support(I)

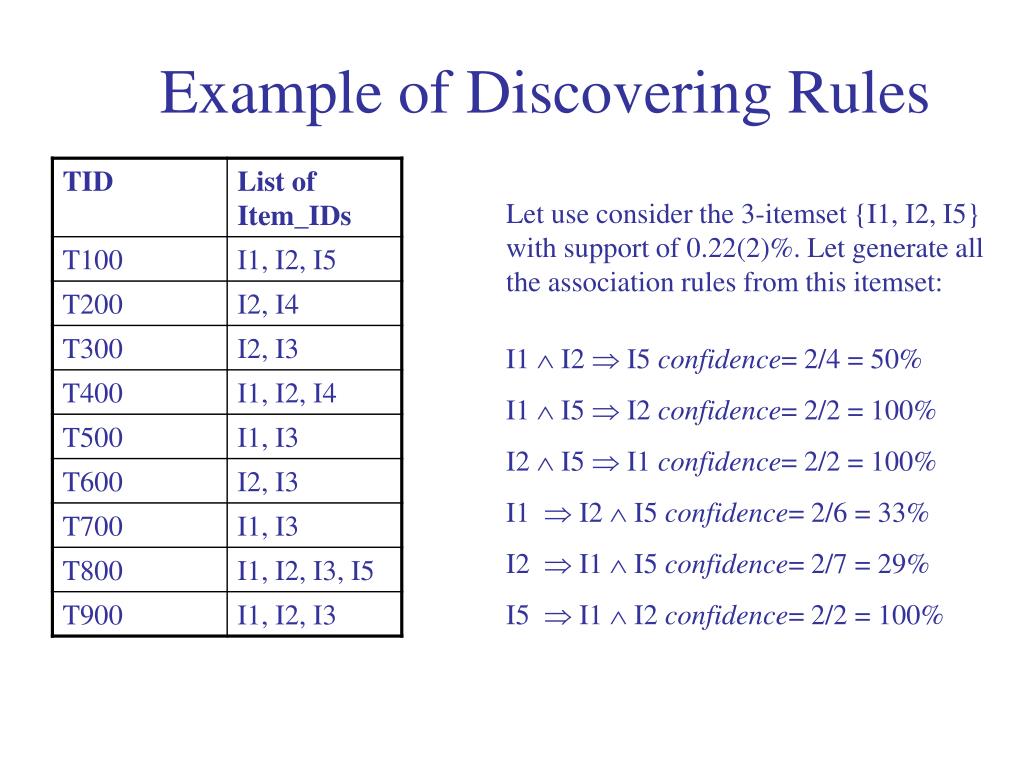

  19. Example of Discovering Rules Let use consider the 3-itemset {I1, I2, I5} with support of 0.22(2)%. Let generate all the association rules from this itemset: I1  I2  I5 confidence= 2/4 = 50% I1  I5  I2 confidence= 2/2 = 100% I2  I5  I1 confidence= 2/2 = 100% I1  I2  I5 confidence= 2/6 = 33% I2  I1  I5 confidence= 2/7 = 29% I5  I1  I2 confidence= 2/2 = 100%

  20. Apriori Advantages/Disadvantages • Advantages: • Uses large itemset property. • Easily parallelized • Easy to implement. • Disadvantages: • Assumes transaction database is memory resident. • Requires many database scans.

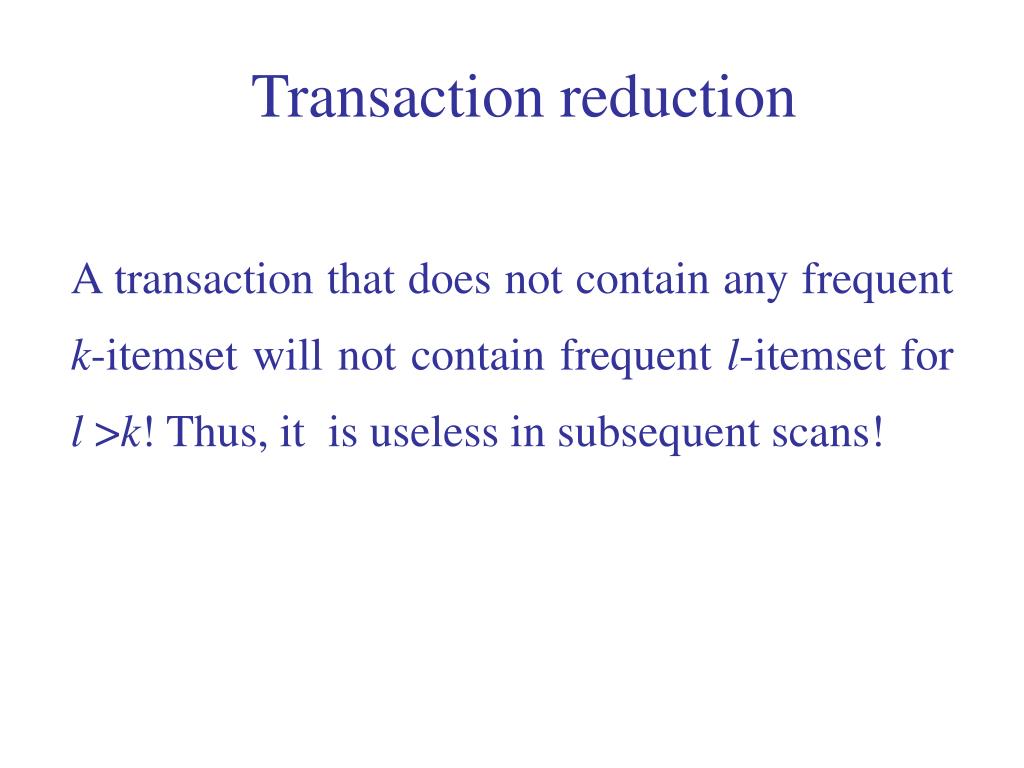

  21. Transaction reduction A transaction that does not contain any frequent k-itemset will not contain frequent l-itemset for l >k! Thus, itis useless in subsequent scans!

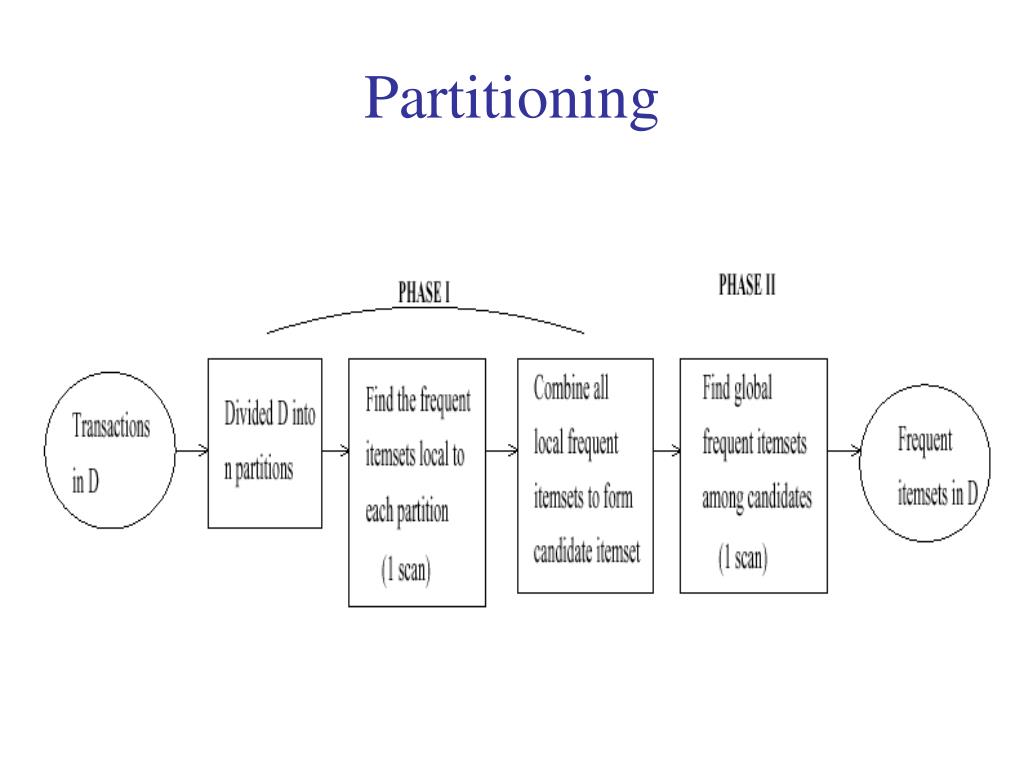

  22. Partitioning

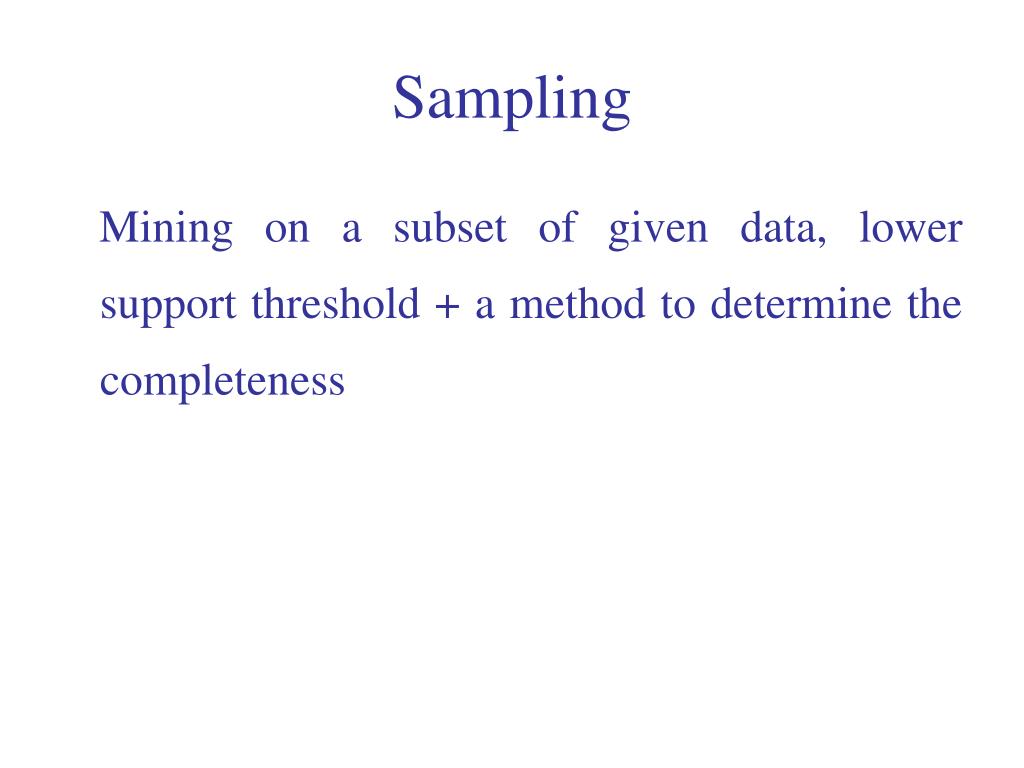

  23. Sampling Mining on a subset of given data, lower support threshold + a method to determine the completeness

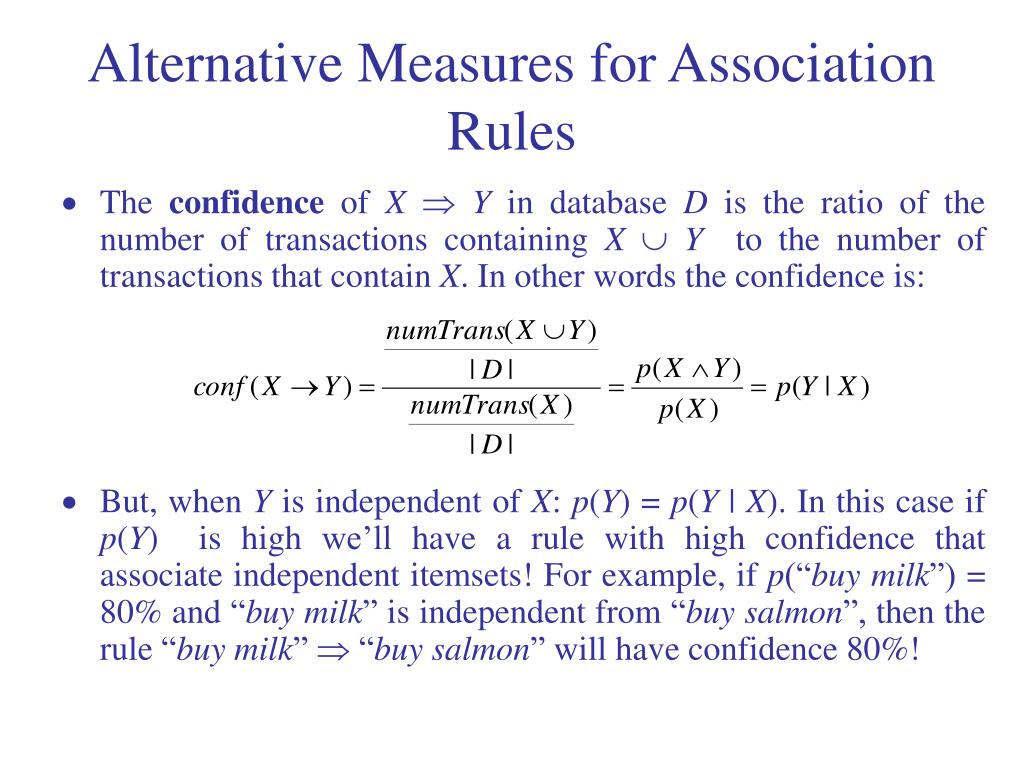

  24. Alternative Measures for Association Rules • The confidence of XYin database D is the ratio of the number of transactions containing XY to the number of transactions that contain X. In other words the confidence is: • But, when Y is independent of X: p(Y) = p(Y | X). In this case if p(Y) is high we’ll have a rule with high confidence that associate independent itemsets! For example, if p(“buy milk”) = 80% and “buy milk” is independent from “buy salmon”, then the rule “buy milk” “buy salmon” will have confidence 80%!

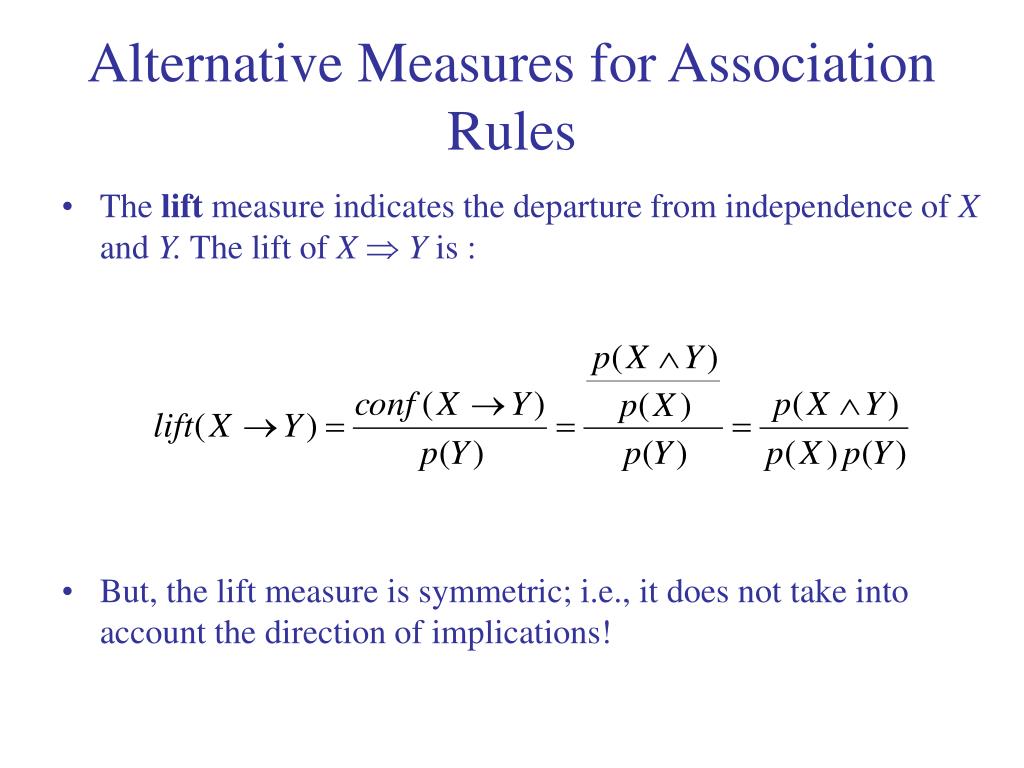

  25. The lift measure indicates the departure from independence of X and Y. The lift of XYis : But, the lift measure is symmetric; i.e., it does not take into account the direction of implications! Alternative Measures for Association Rules

  26. The conviction measure indicates the departure from independence of X and Y taking into account the implication direction. The conviction of XYis : Alternative Measures for Association Rules

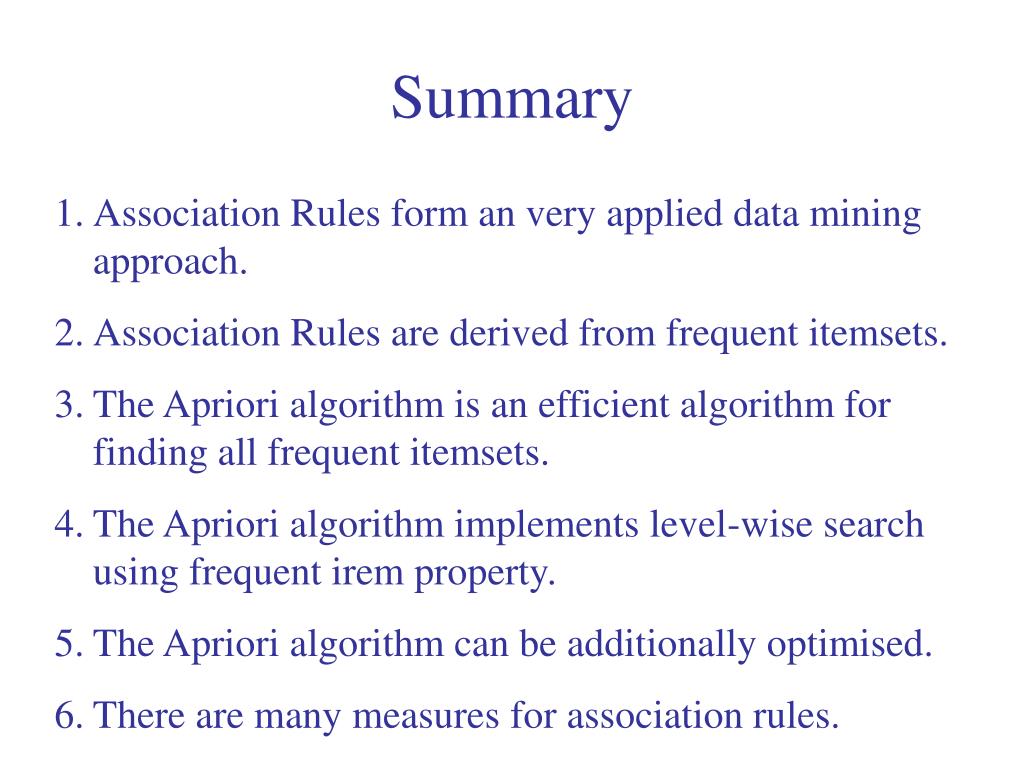

  27. Summary • Association Rules form an very applied data mining approach. • Association Rules are derived from frequent itemsets. • The Apriori algorithm is an efficient algorithm for finding all frequent itemsets. • The Apriori algorithm implements level-wise search using frequent irem property. • The Apriori algorithm can be additionally optimised. • There are many measures for association rules.
