  1. Introduction to Materials

  2. Contents • Materials • Editing materials • Quick methods for editing materials in UDK

  3. Introduction to Materials • Materials affect the appearances of games • Let objects appear to be what they should look like

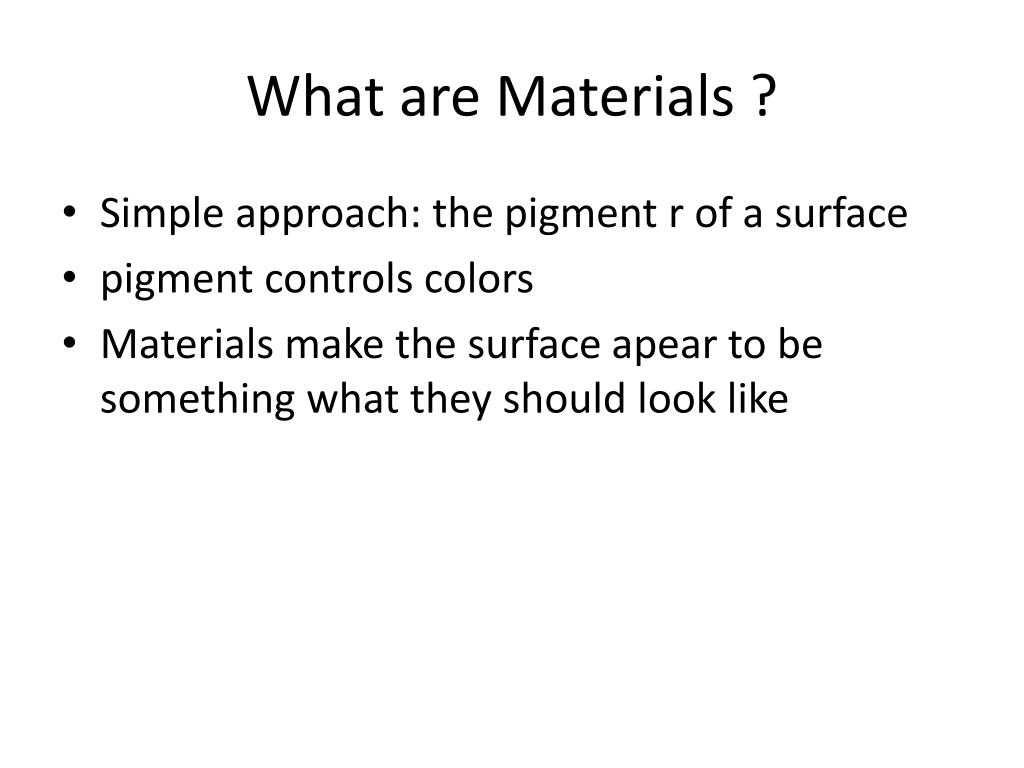

  4. What are Materials ? • Simple approach: the pigment r of a surface • pigment controls colors • Materials make the surface apear to be something what they should look like

  5. Material vs Texture • Texture is an image • Materials contains textures and more, for example, transparency, emittance and etc.

  6. Texture UV Coordinates • A texture is defined a two-dimensional space • We have to map the 2D texture to the surface of an object in three-dimensional space

  7. Texture UV Coordinates • Horzontal axis : U-axis • Vertical axis : V-axis • Sometimes, the texture coordinate is called the tangent space。 • Each vertex should be assoicated with a texture coordinates

  8. Example V Direction 1.0 0, 0 U Direction 1.0 Source:http://en.wikipedia.org/wiki/File:UVMapping.png

  9. Example • Cube Representative UV A representation of the UV mapping of a cube. The flattened cube net may then be textured to texture the cube Source : http://en.wikipedia.org/wiki/File:Cube_Representative_UV_Unwrapping.png

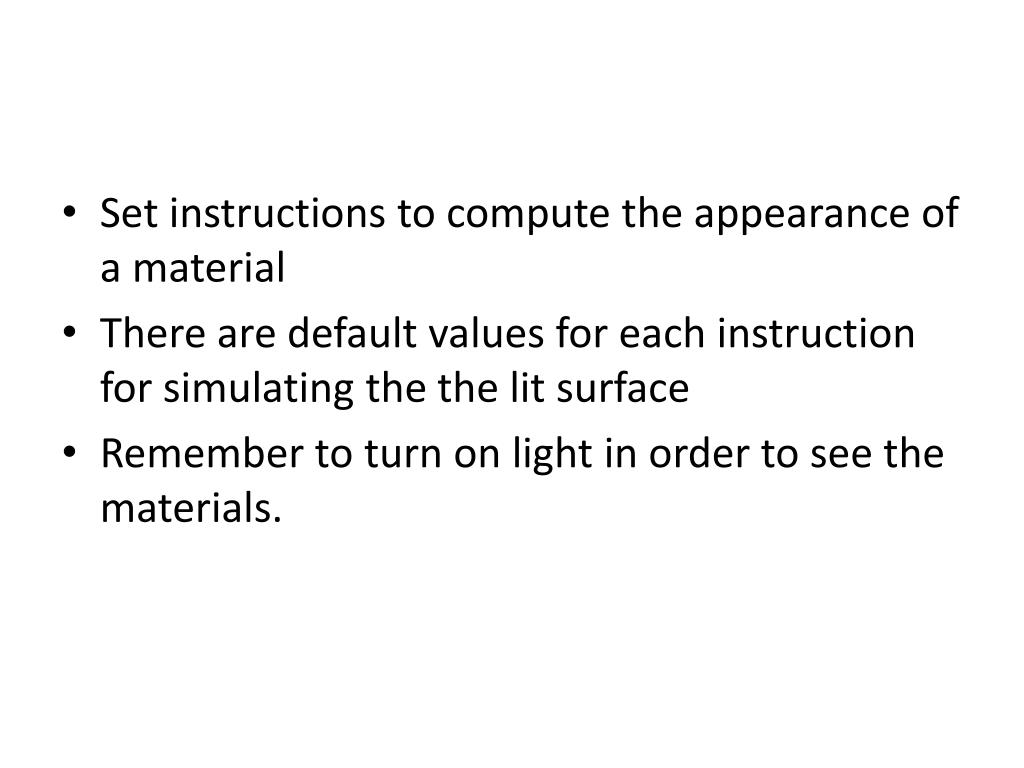

  10. Set instructions to compute the appearance of a material • There are default values for each instruction for simulating the the lit surface • Remember to turn on light in order to see the materials.

  11. Material Components • Components: • Material Nodes (材质节点) • Basic components • Material Channels (材质通道) • Set the specific properties of a material • 材质表达式（Material Expressions）。 • A building block for creating materials. • Each expression defines a specific function, for example, connecting textures, adding two values, vectors or modify coordinates of textures.

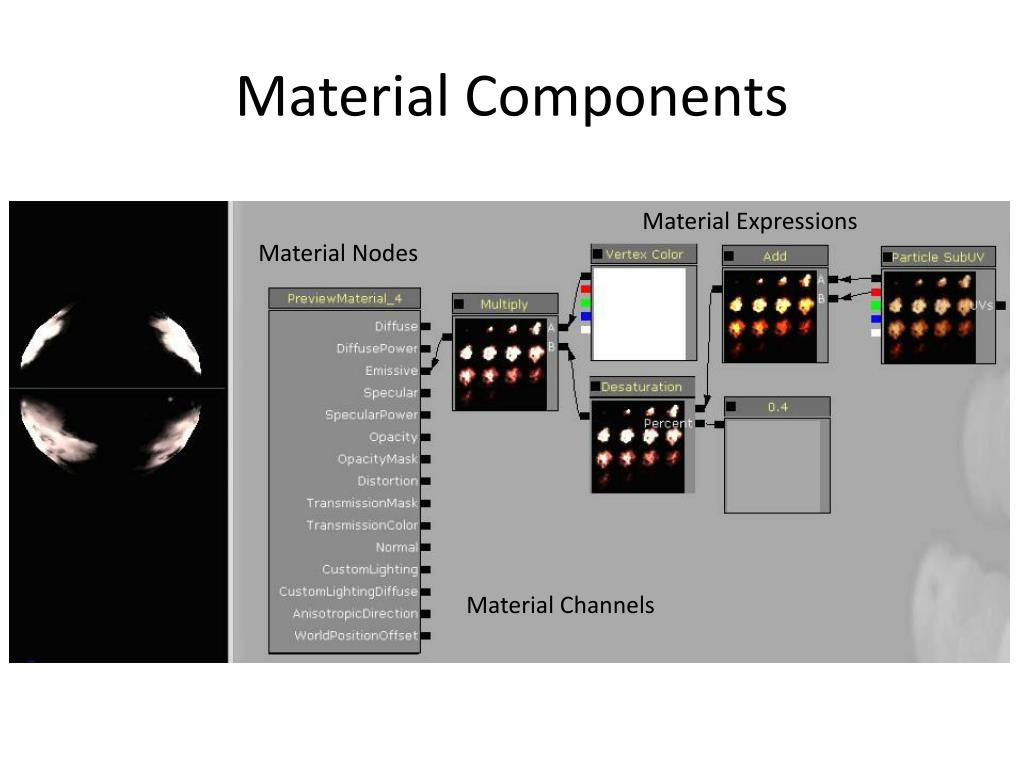

  12. Material Components Material Expressions Material Nodes Material Channels

  13. Example: Creation of a Material • 1. Run UnrealEd • 2. Open Generic browser • 3. File - > New • 文件包（Package）: MyFirstGameLevel • 组(Group): Materials • 名称(Name): mat_test_01 • 组件工厂(Factory): Material

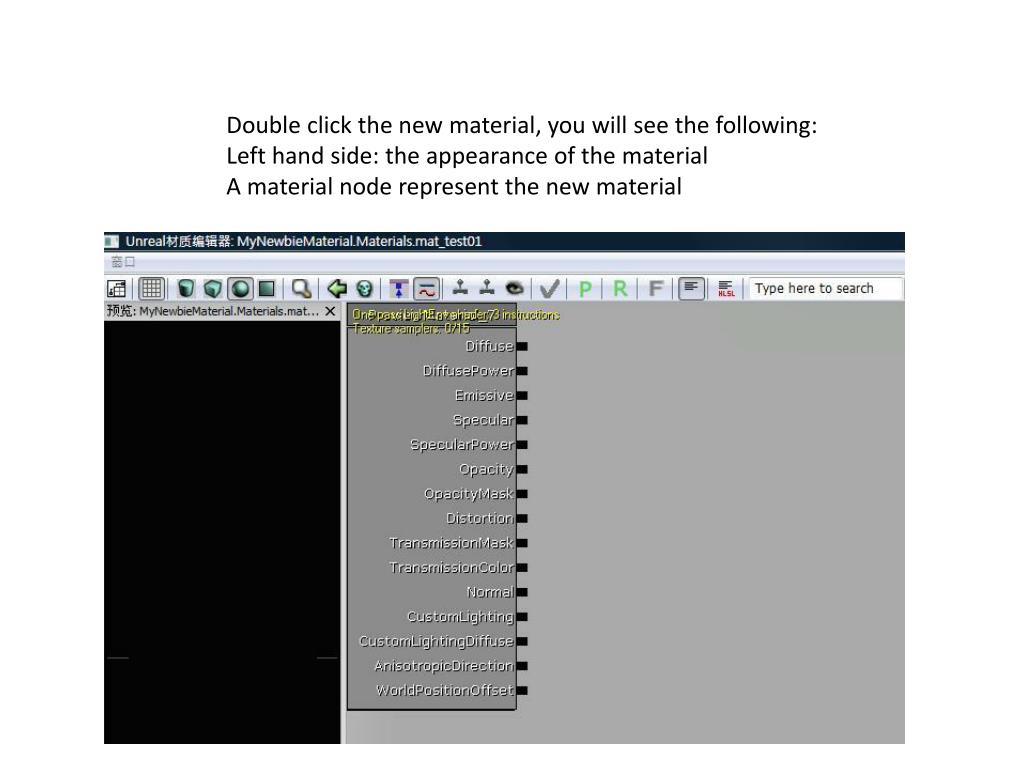

  14. Double click the new material, you will see the following: Left hand side: the appearance of the material A material node represent the new material

  15. Material Channels • Diffuse (漫射) • Emissive（自发光） • Specular（高光） • SpecularPower（高光次幂） • Opacity（不透明） • Opacity Mask（不透明蒙板） • Distortion（扭曲） • Transmission Mask/Transmission Color（透射蒙板/透射色） • Normal（法线） • Custom Lighting（自定义光照）

  16. Show demo for the following items • Diffuse (漫射) • Emissive（自发光） • Specular（高光） • SpecularPower（高光次幂）

  17. Diffuse Emissive

  18. Opacity（不透明） • Set“LightingModel”（光照模型）as MLM_Unlit - Set BlendMode”（混合模式）as BLEND_Masked、 BLEND_Translucent、BLEND_Additive或BLEND_Modulate

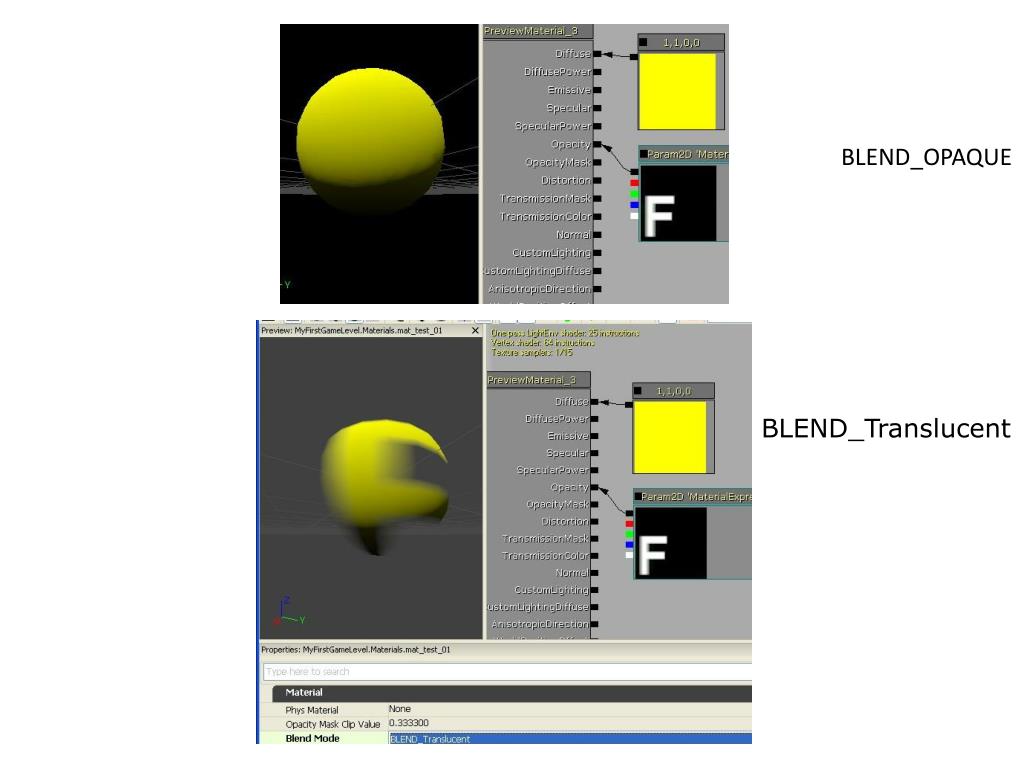

  19. BLEND_OPAQUE BLEND_Translucent

  20. Opacity Mask（不透明蒙板） A simplified version of the opacity. Can be used if MLM_Phong is not available. It’s value boolean map. 1 for on 0 for off If the pixel value is smaller than a clipping value, it’s computed value is 0; otherwise it is 1.

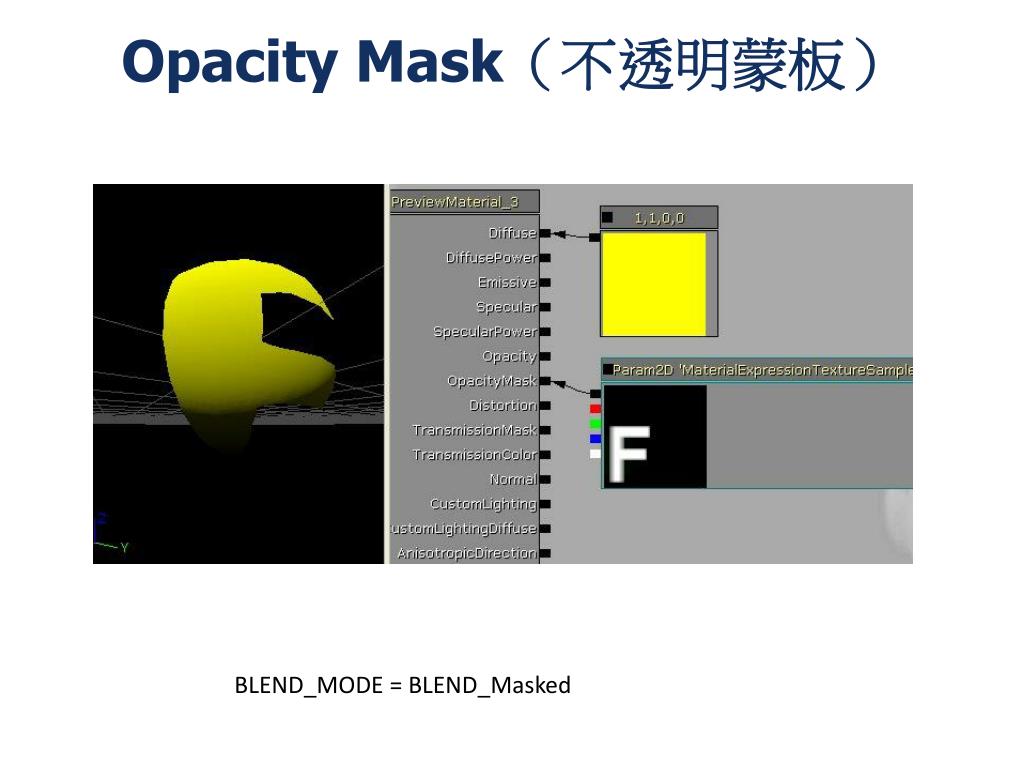

  21. Opacity Mask（不透明蒙板） BLEND_MODE = BLEND_Masked

  22. Distortion（扭曲） Model refraction effect Used when MLM_Unlit is used. http://upload.wikimedia.org/wikipedia/en/e/eb/Rays_incident_on_medium.png

  23. Transmission Mask/Transmission Color - Model sub-surface scattering（次表面散射） • Subsurface scattering (or SSS) : a mechanism of light transport in which light penetrates the surface of a translucent object, is scattered by interacting with the material, and exits the surface at a different point. • Source: wikipedia

  24. Subsurface scattering http://en.wikipedia.org/wiki/File:Subsurface_scattering.png

  25. Normal Map • or "Dot3 bump mapping", is a technique used for faking the lighting of bumps and dents. It is used to add details without using more polygons. A normal map is usually an RGB image that corresponds to the X, Y, and Z coordinates of a surface normal from a more detailed version of the object. Normal map

  26. Without Normal Map Normal Map

  27. Transmission + Normal BLEND_Translucent

  28. Custom Lighting（自定义光照） Define your own lighting function You must enable this channel by setting lighting model as MLM_Custom

  29. Custom Lighting

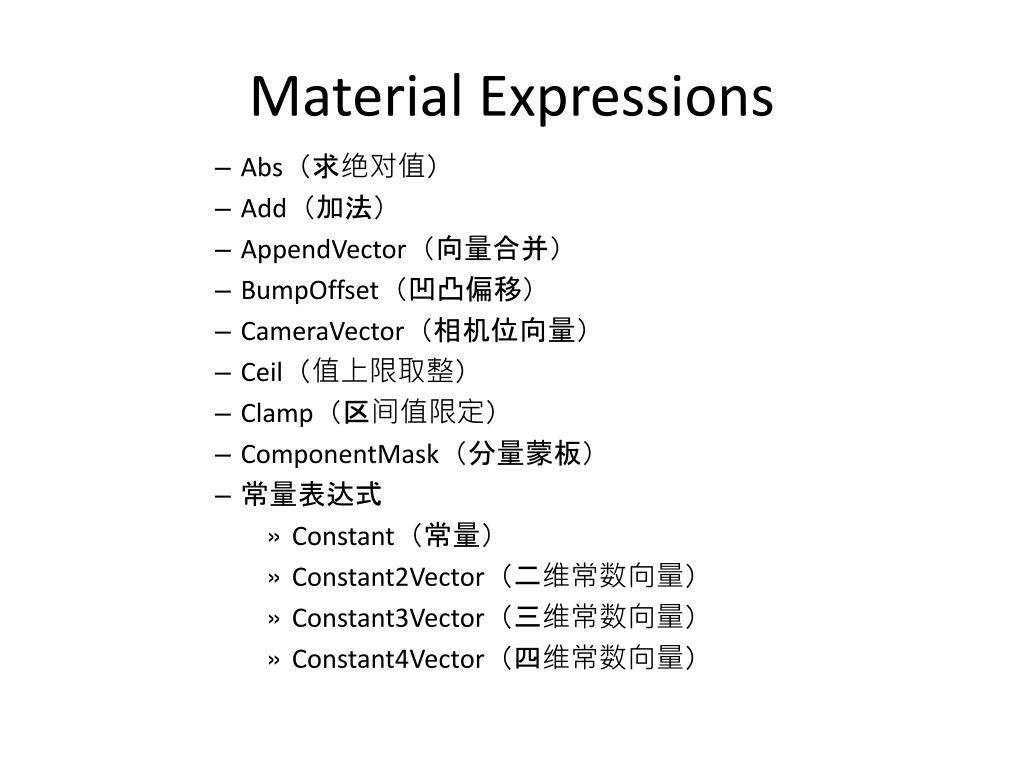

  30. Material Expressions • Abs（求绝对值） • Add（加法） • AppendVector（向量合并） • BumpOffset（凹凸偏移） • CameraVector（相机位向量） • Ceil（值上限取整） • Clamp（区间值限定） • ComponentMask（分量蒙板） • 常量表达式 • Constant（常量） • Constant2Vector（二维常数向量） • Constant3Vector（三维常数向量） • Constant4Vector（四维常数向量）

  31. Material Expressions • Desaturation（冲淡颜色） • DestColor（目标色） • DestDepth（目标深度） • Divide（除法） • DotProduct（点乘、内积) • Cosine（余弦） • CrossProduct（叉乘、外积） • DepthBiasedAlpha（深度偏移Alpha） • DepthBiasedBlend（深度偏移混合）

  32. Material Expressions • FlipBookSample（翻书采样） • Floor（值下限取整） • Frac（取小数值） • Fresnel（菲涅尔） • If（条件表达式） • LightVector（光照向量） • LinearInterpolate（线性插值）

  33. Material Expressions • MeshEmitterVertexColor（网格物体发射器顶点色） • MeshSubUV（网格物体子UV） • Multiply（乘法表达式） • Normalize（单位化） • OneMinus（一减去） • Panner（平移器） • ParticleSubUV（粒子子UV） • PixelDepth（像素深度） • Power（求幂值） • ReflectionVector（反射向量）

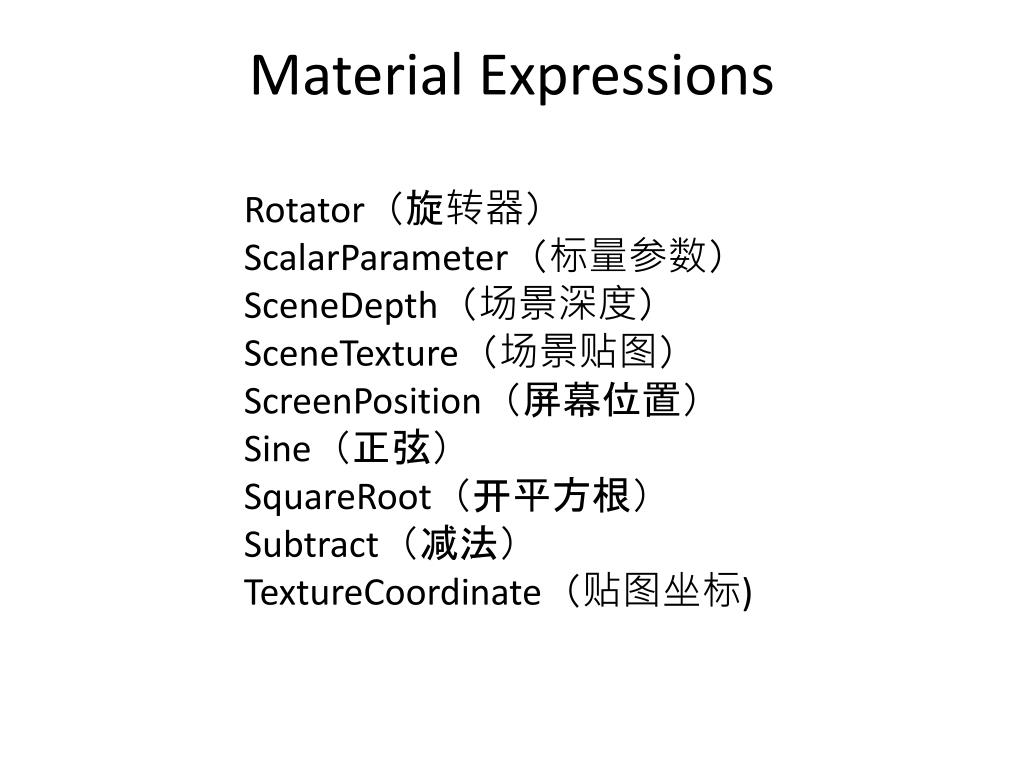

  34. Material Expressions • Rotator（旋转器） • ScalarParameter（标量参数） • SceneDepth（场景深度） • SceneTexture（场景贴图） • ScreenPosition（屏幕位置） • Sine（正弦） • SquareRoot（开平方根） • Subtract（减法） • TextureCoordinate（贴图坐标)

  35. Material Expressions • TextureSample（贴图采样） • TextureSampleParameter2D（贴图采样参数：2D） • TextureSampleParameterCube（贴图采样参数：立方体） • TextureSampleParameterMovie（贴图采样参数：影片） • Time（计时） • Transform（变换）

  36. Material Expressions • VectorParameter（向量参数） • VertexColor（顶点色）

  37. Issues about designing your own materials • Texture format: Targa（.TGA）。It can accept other formats too. • Dimension of the texture: the power of 2. • Need not to be a square, e.g. 32, 1024, etc. • The number of pixels in width or height is not larger than 2048. • Make sure the resolution matches your need. For example, if you use a texture with resolution 2048x2048 but the players never have a chance to see it. Don’t do it.

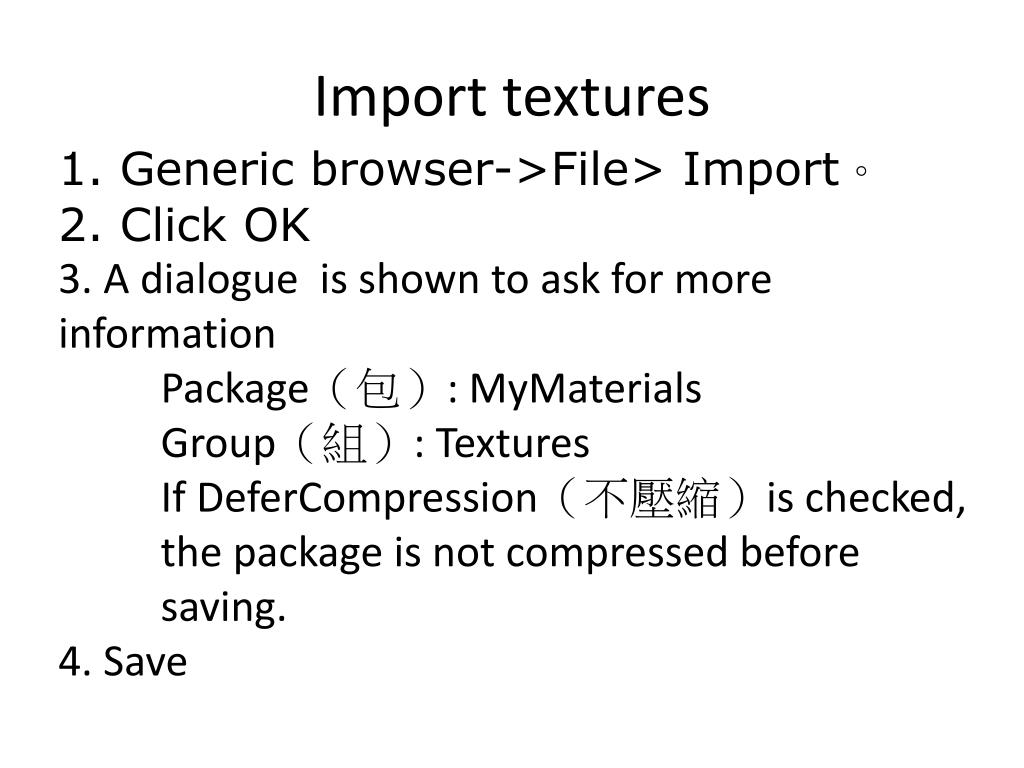

  38. Import textures • 1. Generic browser->File> Import。 • 2. Click OK • 3. A dialogue is shown to ask for more information • Package（包）: MyMaterials • Group（組）: Textures • If DeferCompression（不壓縮）is checked, the package is not compressed before saving. • 4. Save

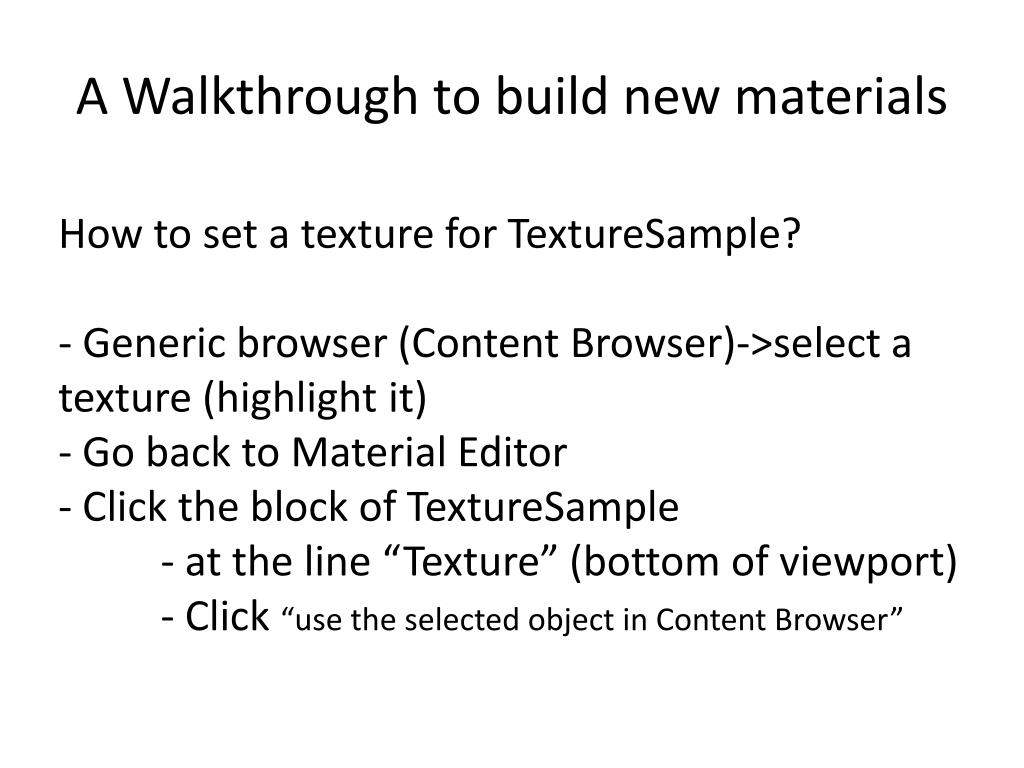

  39. A Walkthrough to build new materials • How to set a texture for TextureSample? • - Generic browser (Content Browser)->select a texture (highlight it) • Go back to Material Editor • Click the block of TextureSample • - at the line “Texture” (bottom of viewport) • - Click “use the selected object in Content Browser”

  40. Example

  41. Example • Try Pan • Try Rotation • Try Scaling • Try Relative

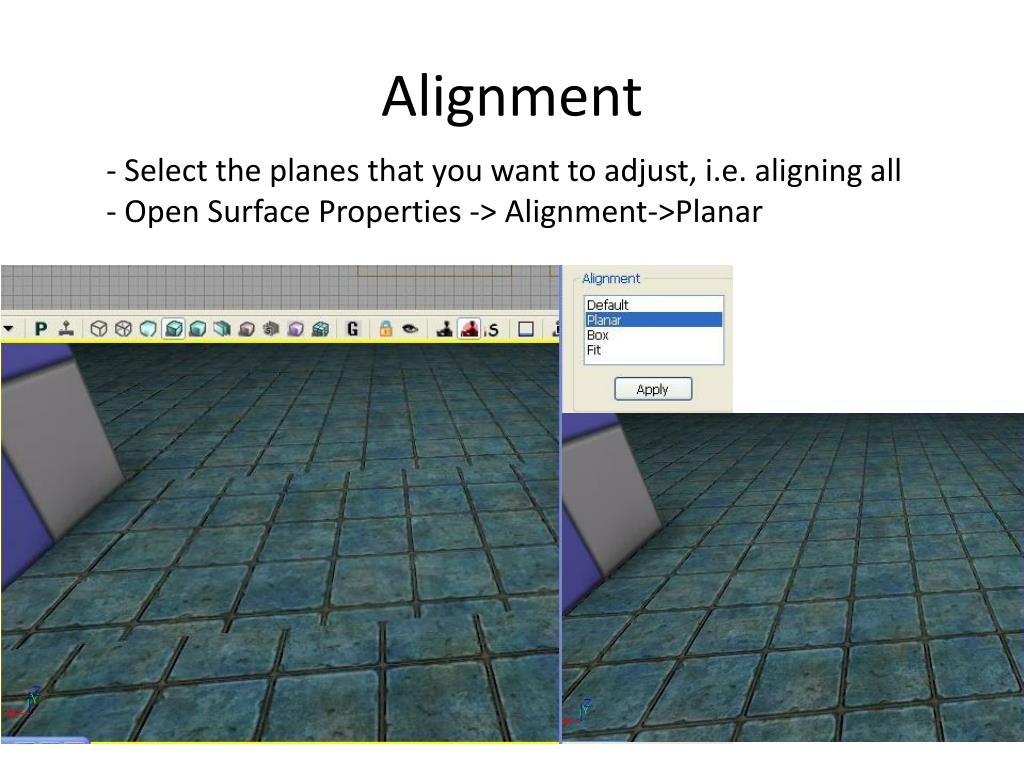

  42. Alignment - Select the planes that you want to adjust, i.e. aligning all - Open Surface Properties -> Alignment->Planar

  43. Hints • After you select an object, press right mouse button. • Additional actions will be shown for manipulating the object • Select Geometry Mode (left hand side) • After you select a BSP, you can change the texture coordinates by using widgets too.

  44. BumpOffset • Purpose : Virtual Displacement Mapping • To generate the illusion of height differences when normal map is used. • Inputs : Height（高度值）和UVs Height:a scaling factor for height HeightRatio（高度比）:pixel height / surface area ReferencePlane（参考平面）。 Determine how the displacement is computed, value in [0, 1]. Denote as h. - If pixel height > h, move along the direction of camera - If pixel height <h, move in the negative direction of camera

  45. BumpOffset • Change “height value” from -1.0 to 2.0 and observe the effect • Change ReferencePlane and observe the effect

  46. Fresnel (value in [0,1])

  47. Examples • TexCoord • Panner • Rotator • OneMinus • Power • etc.

  48. Specular Instead of applying an intensity of specular uniformly over a surface, you can assign the intensity of specular to it based on a texture.

  49. Exercises • Learn from UDK examples.
