  1. Managing SX.e and TWL with scripts and MARC 02/12/04 Jeremiah Curtis

  2. Assumptions You should understand: • MARC -- What it is and generally what it does • Unix -- what it is and basic commands • Shell Scripts -- what they are and what they are used for • Basic understanding of TWL (for the TWL specific portions – you can nap during these portions if you are not concerned with TWL)

  3. Once upon a time… • … customers as well as NxTrend personnel identified the need to have a standard set of scripts • MARC would generate the standard set • Everyone would be happy

  4. The Shadow... • NxTrend support identified needs that the MARC scripts did not address • The product evolved, but MARC was not well suited to this change • So, there became two sets of scripts • GFI for Go For It • MARC

  5. Confusion Reigned... • There was confusion • Which scripts should be used? • Which were getting installed?

  6. An Alliance was Forged... • The decision came that there should be only one set of scripts • MARC should generate these scripts • MARC should be flexible enough to handle future needs

  7. Harmony was Restored... • All scripts will be generated by MARC and are stored as templates • No longer hand editing scripts • Script issues will begin by regenerating all scripts • New scripts are easily added and existing ones easily updated

  8. The End

  9. The Changes • The next section describes the current set of scripts

  10. New Scripts and New Names • Many new scripts have been added to MARC’s script base • Many more scripts had a name change to standardize names and functions

  11. The Progress Admin Server • These scripts help manage the Progress Admin and Name Servers admin.start admin.shut admin.query nameserver.query

  12. The Database • These scripts help manage the database brokers dbbroker.start dbbroker.shut dbbroker.query • These are database utilities dbstats truncate.bi

  13. The Application Broker • These scripts help manage the Progress Application Brokers appbroker.start appbroker.shut appbroker.query

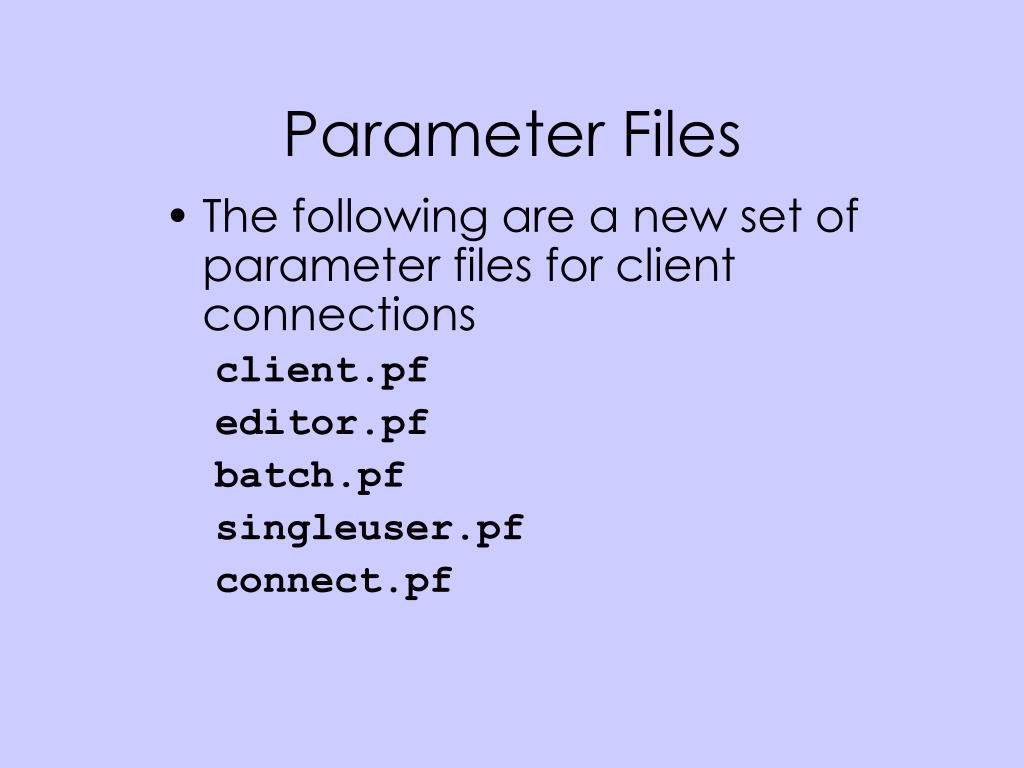

  14. Parameter Files • The following are a new set of parameter files for client connections client.pf editor.pf batch.pf singleuser.pf connect.pf

  15. The Environment • These scripts help manage this particular environment nxt.env nxtall.start nxtall.shut

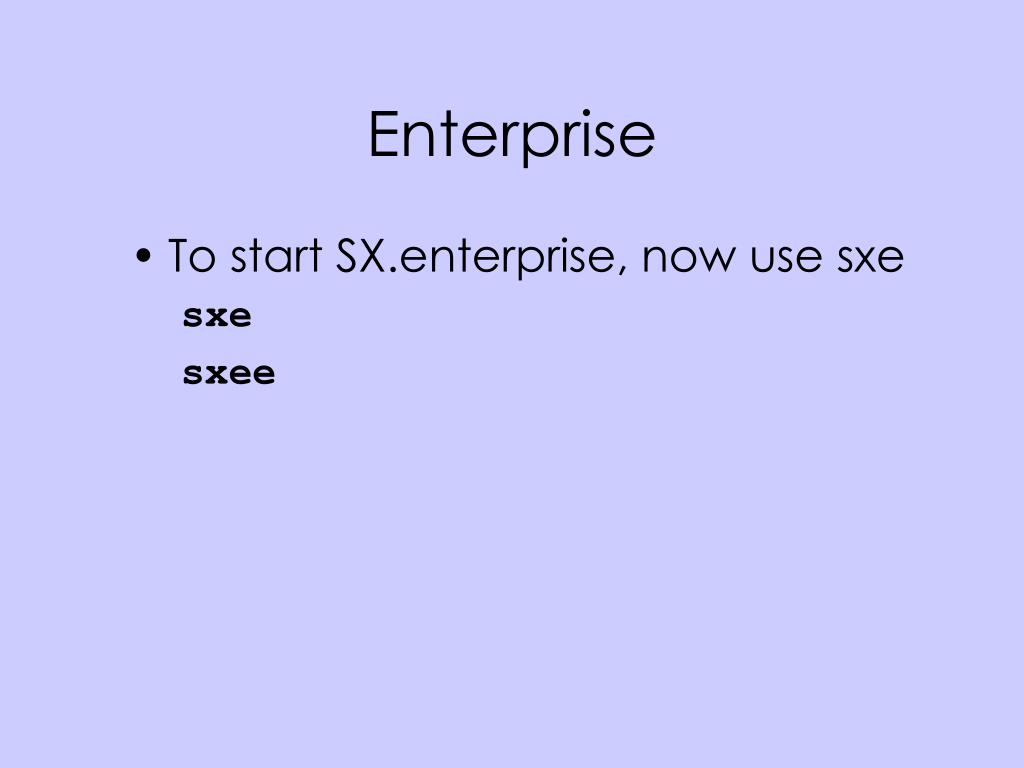

  16. Enterprise • To start SX.enterprise, now use sxe sxe sxee

  17. The Report Manager • These are the Report Manager scripts rptmgr (or rptmgr.start) rptmgr.shut

  18. Binary Dump and Load • These scripts are for Dump and Loads easybd sareabd bddriver.p sareabddriver.p bddumpall.p bddumparea.p bdloadall.p bdloadarea.p bdscript.p sareabdscript.p

  19. After Imaging • These scripts are for AI aimage.start aimage.shut aimage.backedup aimage.list aimage.archive aimage.new aistats rollforward.ai truncate.ai

  20. Backups • These are new standard backup scripts backup.data backup.full backup.online backup.files

  21. RxServer • RxServer scripts are now generated by MARC rxsfax.sh rxsprint.sh emailout.sh

  22. Other Scripts • These don’t fit anywhere else rdclean sassi.sh shutuser showuser config_rpt

  23. TWL • TWL scripts have been mostly rewritten • MARC generates all of the needed TWL scripts • TWL scripts now follow a standard naming convention

  24. Additional TWL Application Broker • These scripts help manage the Application Broker that manages TWL connections to the SX.enterprise database twlentappbroker.start twlentappbroker.shut twlentappbroker.query • TWL also uses the normal appbroker scripts which are generated from TWLMARC. These appbrokers are for connections to the TWL database

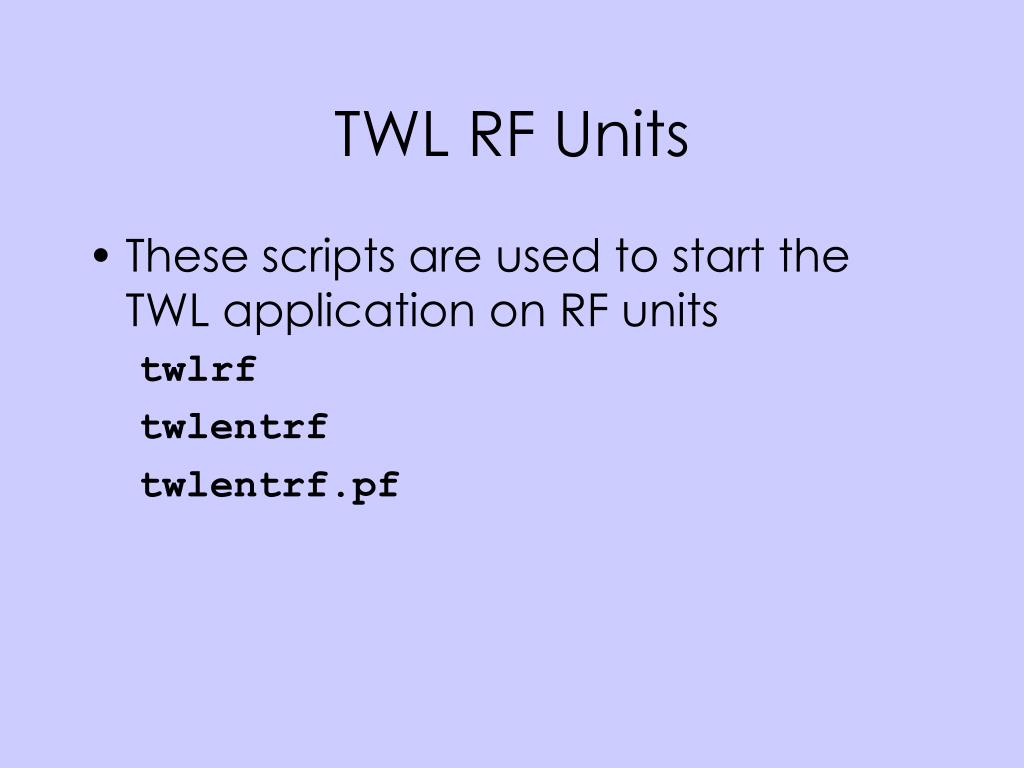

  25. TWL RF Units • These scripts are used to start the TWL application on RF units twlrf twlentrf twlentrf.pf

  26. Additional TWL Environment • Since TWL integrates with SX.enterprise, an additional environment is available using: twlsecondary.env

  27. TWL End of Day • These scripts are used to run TWL End of Day processing. These are usually called from the backup scripts • The first script performs processing that requires a single-user connection to the DB while the second performs tasks using a normal multi-user connection to the DB twleod1 twleod2

  28. TWL Interfaces • The following scripts are used to manage the TWL interfaces twlsend.start twlrcvpack.sh twlsend.sh twlrcv.sh twlsend.shut twlrcv.shut twlsend.query twlrcv.query

  29. The Templates • The next section describes the new Script Generator in MARC

  30. MARC Generate Scripts • MARC • Databases -> Configure -> Generate Scripts • Select the database(s) to generate scripts for • Select the scripts to generate

  31. Script Template • All scripts generated by MARC are stored as templates • These templates contain the form of the final script • Critical portions of a template contain tags • These tags get substituted with real values to generate a script

  32. MARC Generate Scripts • All of the templates reside in subdirectories under /rd/marc/scripts/template • All templates must end with a .tpl • These subdirectories are: base dg hp ibm sco intchan taxware twl

  33. MARC Generate Scripts • All of the templates in base are added to the list • One system directory is included based on the selected machine type in Installations -> Configure (e.g. ibm) • If optional products are setup in MARC, then those templates are also included in the list (e.g. twl) • The custom directory is always checked first and overrides a standard template of the same name

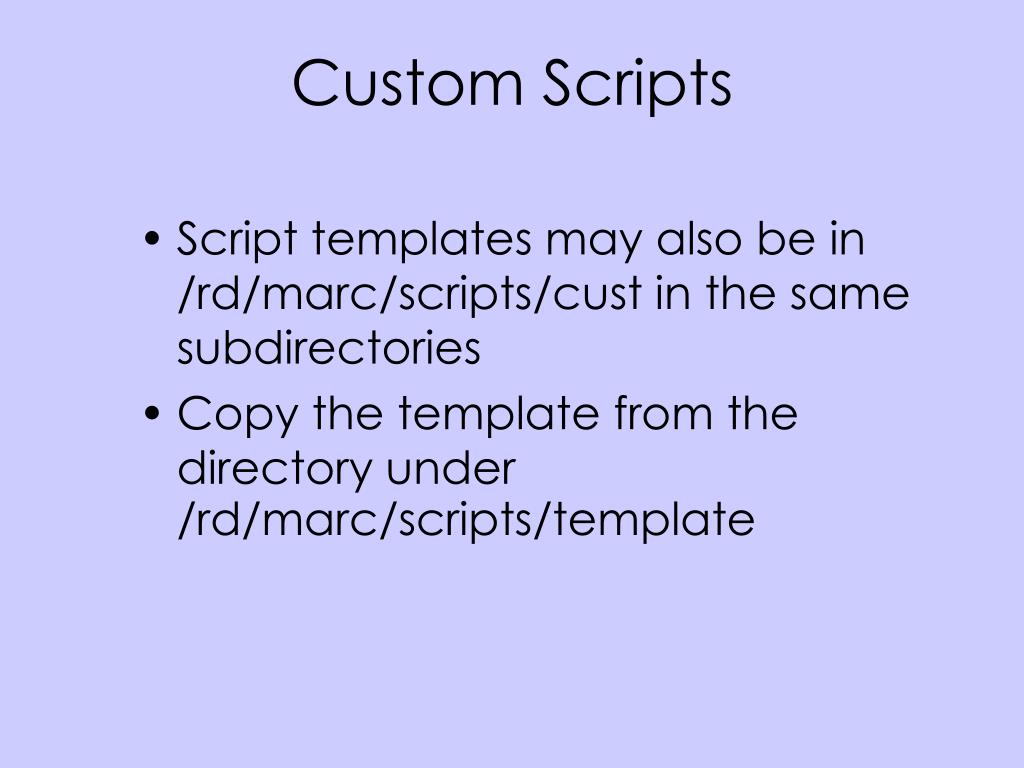

  34. Custom Scripts • Script templates may also be in /rd/marc/scripts/cust in the same subdirectories • Copy the template from the directory under /rd/marc/scripts/template

  35. Template Tags • There are two types of template tags • System tags (defined by MARC) • Custom tags (defined by the user) • Tags are names enclosed in ‘< >’ • Example: <ENVNAME> • The convention is to use tag names that are all capital letters

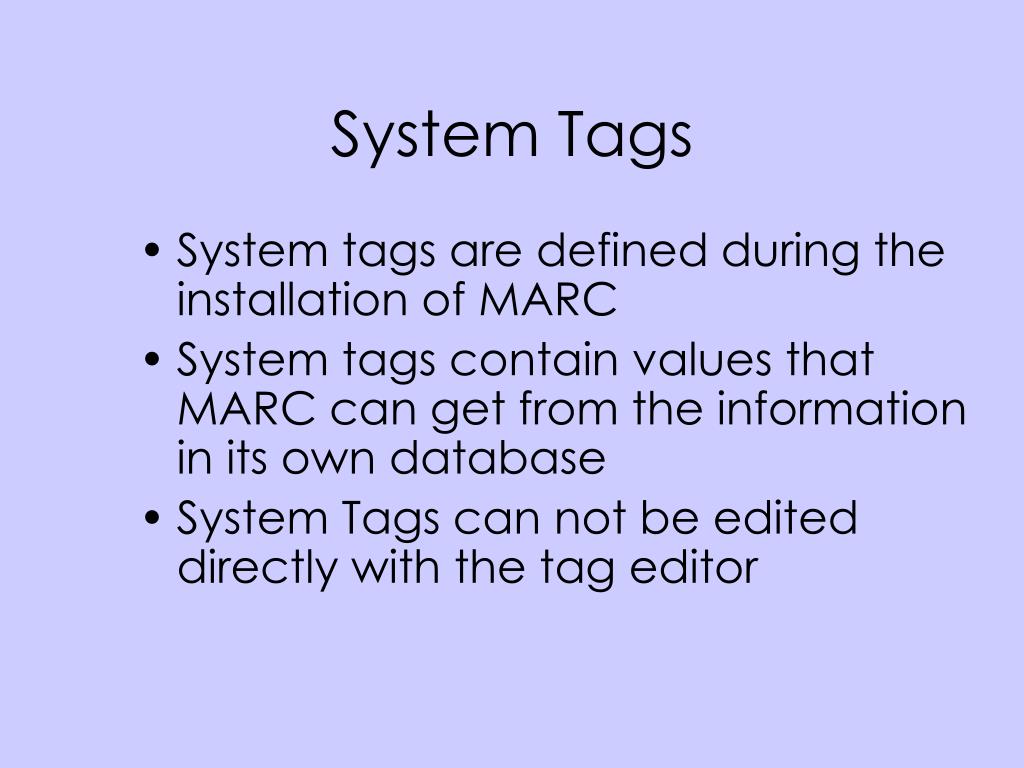

  36. System Tags • System tags are defined during the installation of MARC • System tags contain values that MARC can get from the information in its own database • System Tags can not be edited directly with the tag editor

  37. Custom Tags • Users may use the Tag Editor to create and edit tags. • Custom tags are created by users or may be in some delivered scripts (e.g. rxsprint.sh) • Values for the tags can be assigned in two ways: • By answering the prompt when MARC finds an undefined tag • By using the tag editor in Databases -> Configure -> Tag Editor

  38. The Tag Editor • The tag editor allows the user to: • Create new custom tags • Modify existing custom tags • Delete custom tags

  39. Example Template • Here is a simple template <SCRIPTNAME=ENV”helloworld.sh”> <DESTDIR=BIN> echo “Hello, world!” • Top two lines are reserved for formatting • SCRIPTNAME is what the script will be called • DESTDIR tells where the script will get created

  40. Script Naming <SCRIPTNAME=ENV”helloworld.sh”> • All scripts should be prefaced with the environment name • Use ENV before the script name to substitute in the environment name in the MARC that is generating the script

  41. Destinations <DESTDIR=BIN> • The destination directory can be a path • The destination can be one of these predefined directories BIN OPSYS RD EXEC

  42. Building A Script • Here is a simple template “helloworld.sh.tpl” <SCRIPTNAME=ENV”helloworld.sh”> <DESTDIR=BIN> echo “Hello, world!” • Should be created in the ../cust/base directory • Generating script to /rd/bin/

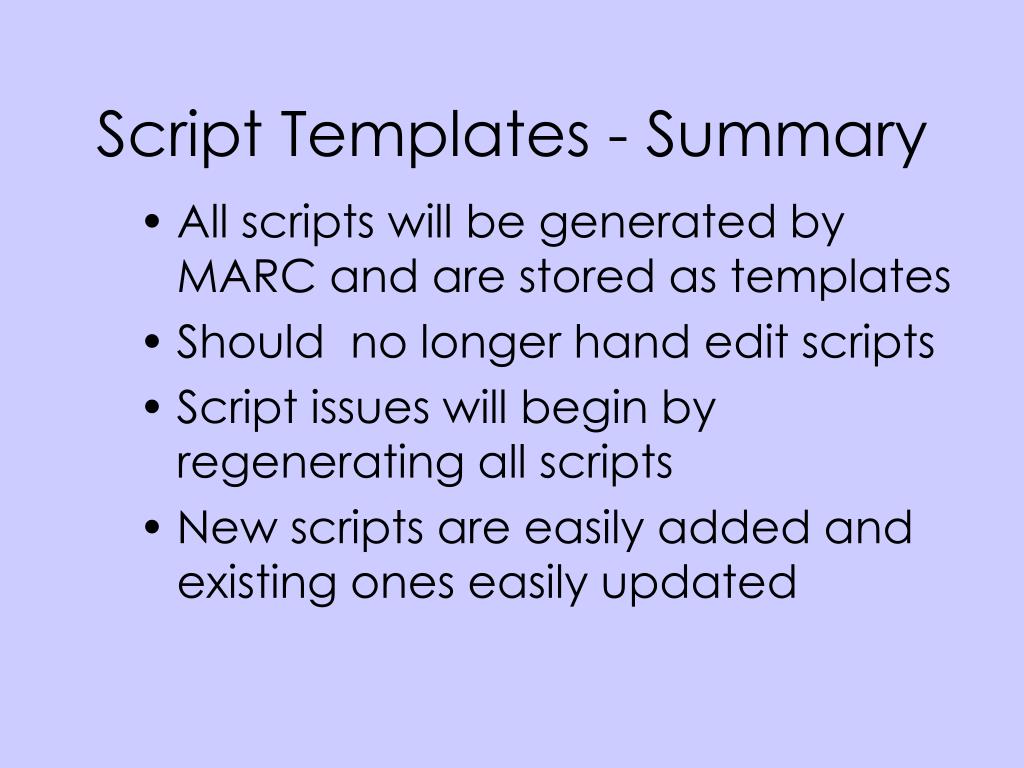

  43. Script Templates - Summary • All scripts will be generated by MARC and are stored as templates • Should no longer hand edit scripts • Script issues will begin by regenerating all scripts • New scripts are easily added and existing ones easily updated

  44. MARC Enhancements The next section describes some changes in Progress 9 and changes in MARC 10.1

  45. First, Some Background • With the advent of Progress 9, there are some new concepts to understand • MARC 10.1 also contains many changes to accommodate the new version of Progress as well as a few enhancements

  46. Storage Areas • The Progress database has changed to incorporate a new concept of storage areas • Storage areas are a logical grouping of tables • Storage areas are also in their own files on disk and have extents • Oh, and by the way, all Progress 9 databases are multi-volume and will have extents

  47. Progress Admin and Name Servers • MARC can now configure the ports used by the Progress Admin and Name Servers • Admin Server Port • Admin Server Admin Port • Name Server Port • Allows for multiple installs of Progress • Live: /rd/dlc • Test: /test/rd/dlc

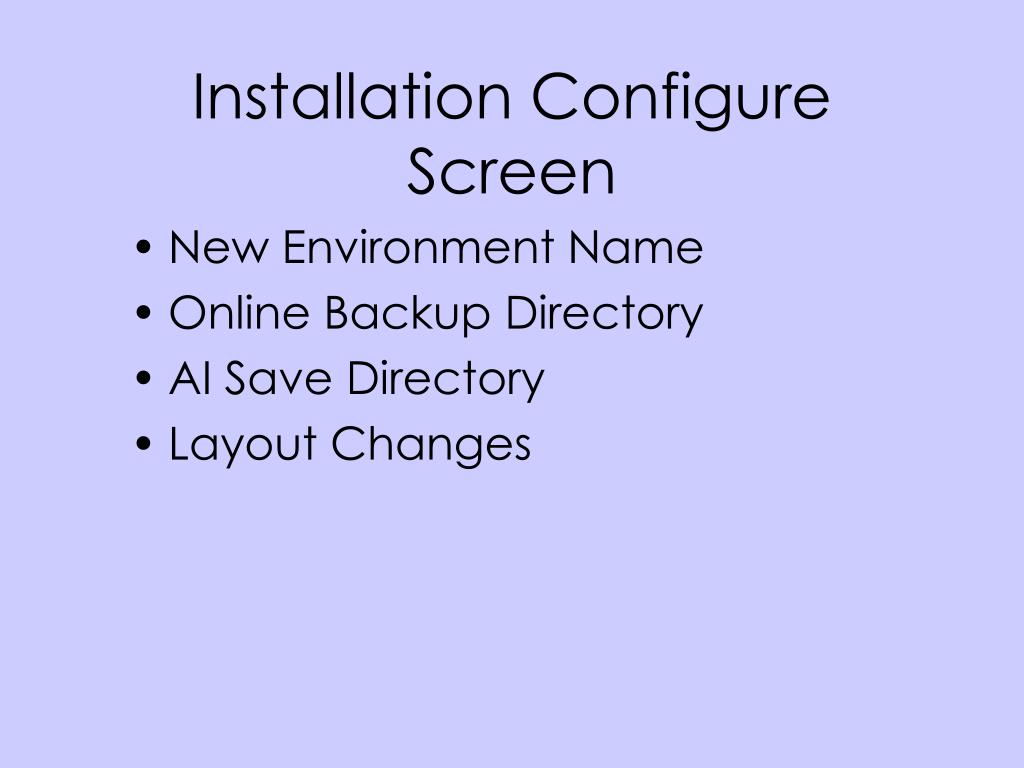

  48. Installation Configure Screen • New Environment Name • Online Backup Directory • AI Save Directory • Layout Changes

  49. Database Configuration • With storage areas, MARC has the ability to configure extents for the storage areas • Each storage area can be configured to have a certain number of fixed extents plus the size for the fixed extents

  50. AppServer Changes • The AppServer source code is not on the Unix server anymore • Therefore the AppServer is not compiled from MARC anymore • The AppServer is pushed from the Staging Client
