Presentation Transcript

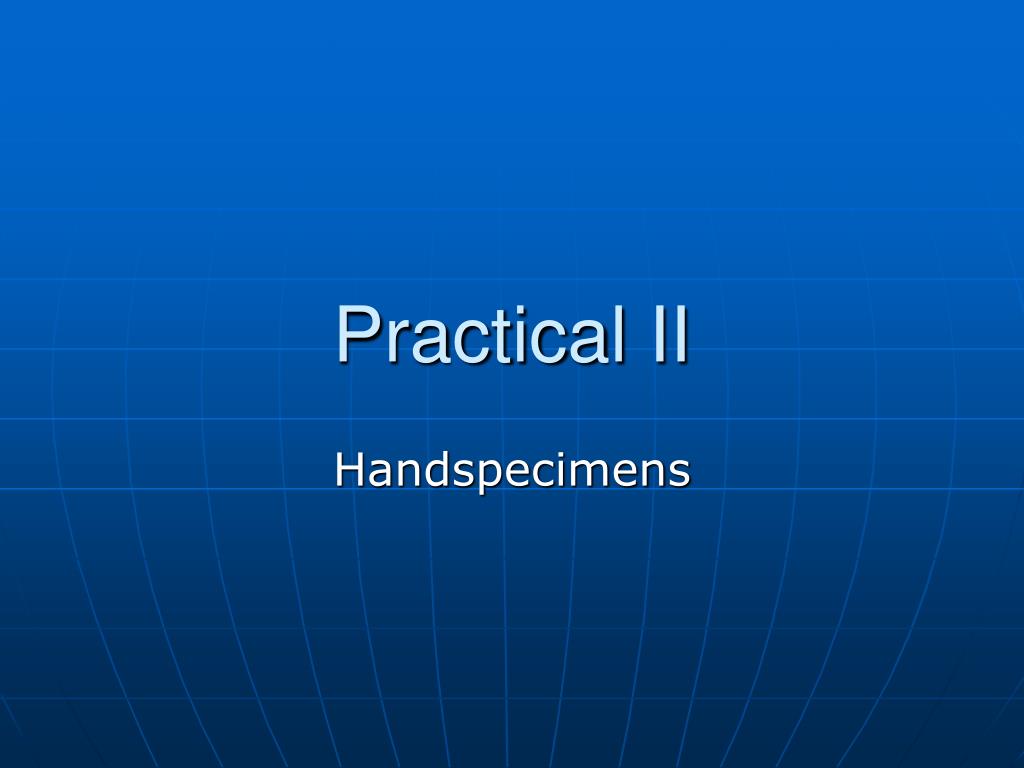

  1. Practical II Handspecimens

  2. Elementary chemical composition • 4000 mineral species with individual mineral names (currently) • Within species different polytypes: • Quartz: amethyst, citrine, rosequartz, etc.; • Beryl: emerald (Cr-rich); aquamarine (Fe-rich) • Common minerals contain abundant elements: O, H, Si, Al, Na, Mg, Ca, Fe, K • Lithophile, chalcophile, siderophile, halogenophile

  3. Classification of minerals • Genetic: • According to principal processes by which minerals are formed • Not mineralogical and problematic • Geochemical • Based on principal chemical elements • Irrational: minerals that consist of many elements? • Crystal chemical • Functional relationship between chemical composition • Acceptable • Geochemical and crystal chemical • Very useful

  4. Classification

  5. Silicates

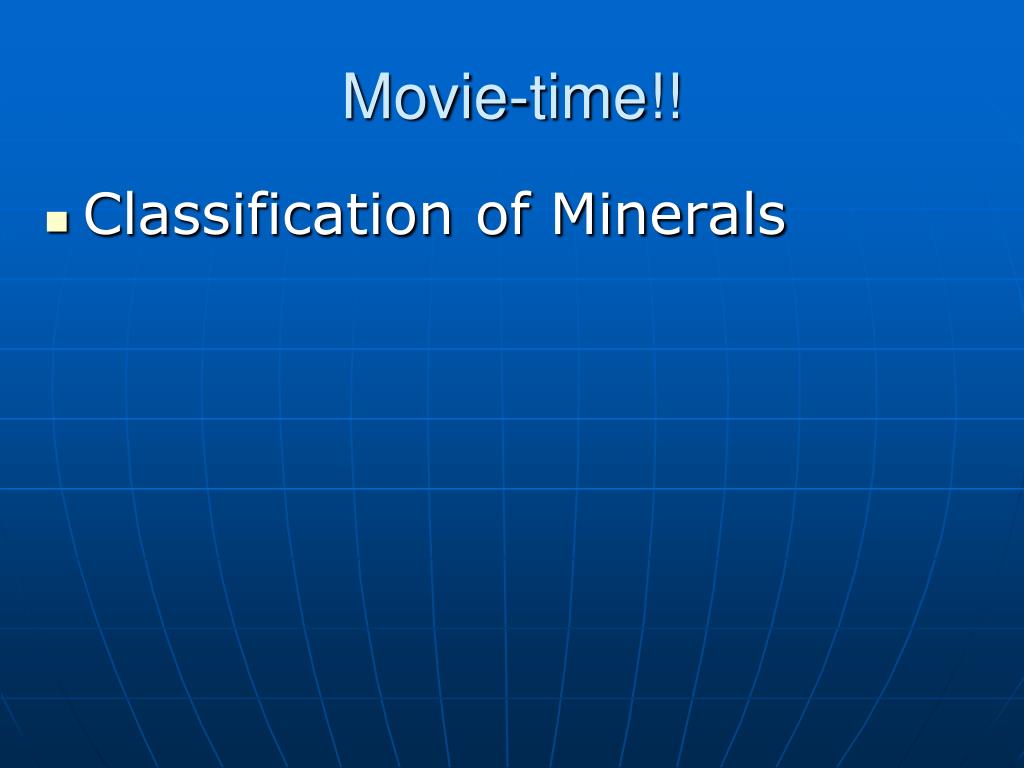

  6. Movie-time!! • Classification of Minerals

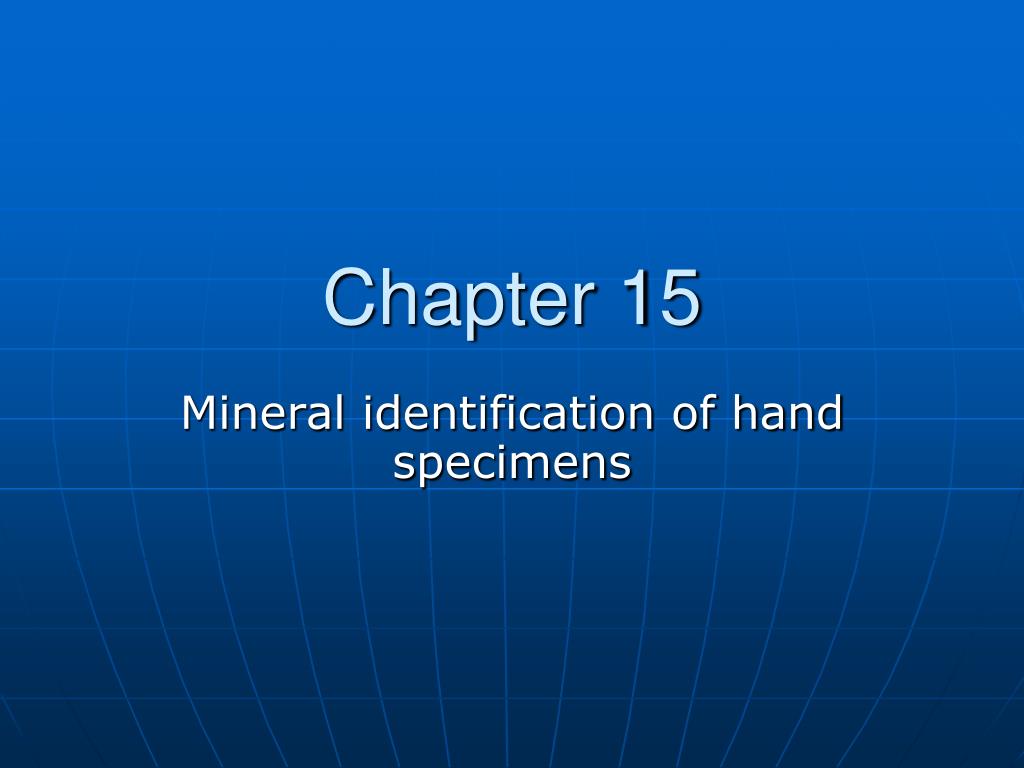

  7. Chapter 15 Mineral identification of hand specimens

  8. Stage of crystallisation Euhedral Subhedral Anhedral

  9. Colour, streak and luster Colour: as directly observed Streak: colour of powdered sample Luster: character of light reflected from mineral surface

  10. Mechanical properties • Hardness: 1-10 • Thumbnail 2 • Copper penny 3-4 • Blade of pocket knife 5-6 • Quartz 6-7 • Cleavage: • Number of cleavage planes • Orientation relative to each other • Development of cleavage: Perfect, strong, weak • Fracture: • Irregular break: conchoidal, stepped, splintery • Tenacity: malleable, ductile, plastic, brittle, sectile, elastically or inelastically flexible

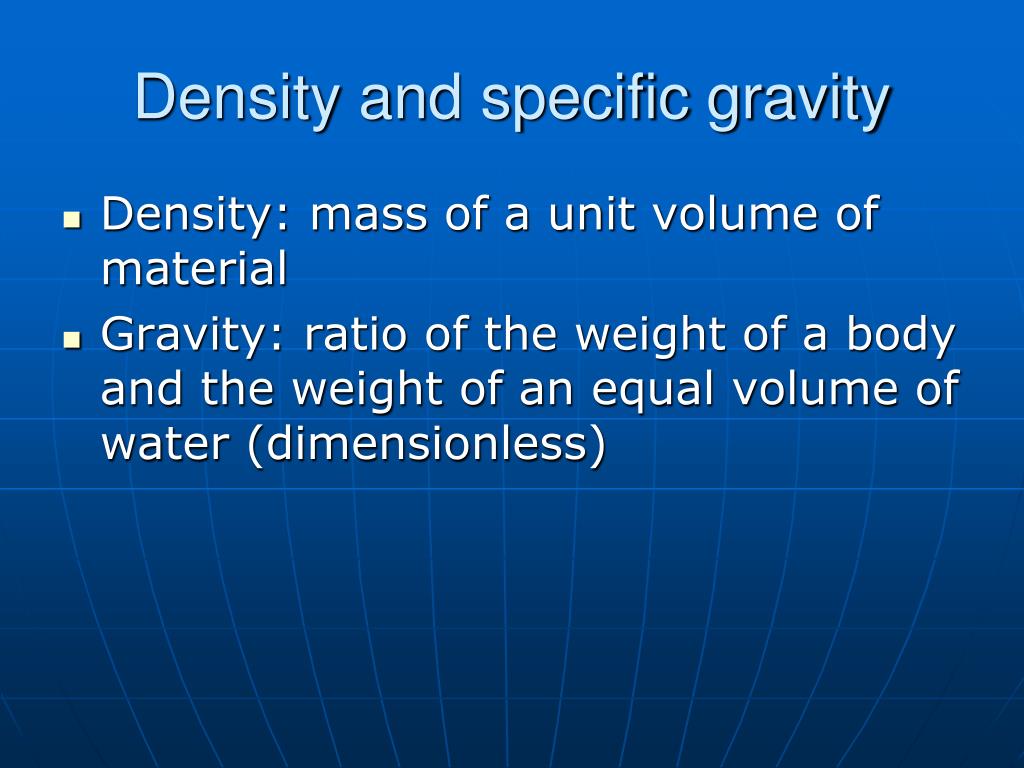

  11. Density and specific gravity Density: mass of a unit volume of material Gravity: ratio of the weight of a body and the weight of an equal volume of water (dimensionless)

  12. Movie-time!! Identification of minerals
