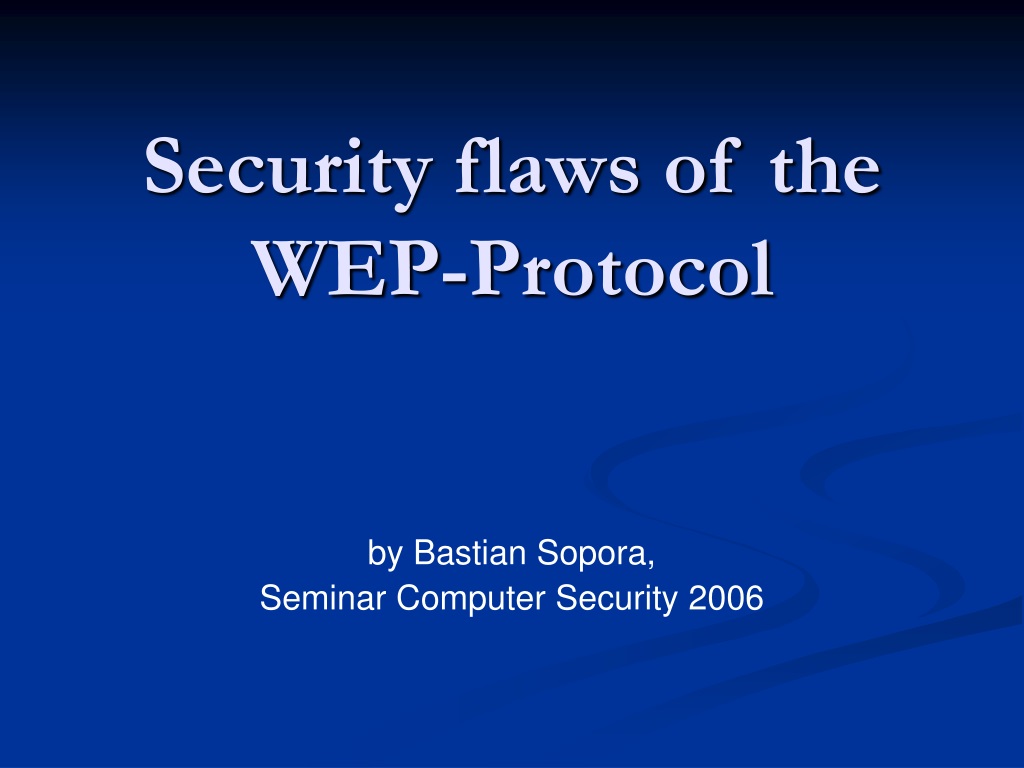

  1. Security flaws of the WEP-Protocol by Bastian Sopora, Seminar Computer Security 2006

  2. Agenda • Introduction • Basics of the WEP-Protocol • Weaknesses of WEP • Breaking WEP • Alternatives & Outlook • Summary & Discussion

  3. Wireless Networking • ALOHAnet • 1997: IEEE 802.11 (IR) • 1999: IEEE 802.11b (11Mbps) • 2003: IEEE 802.11g (54Mbps) • 2007: IEEE 802.11n (540Mbps)

  4. The need for security • Why do we need the WEP-Protocoll? • Wi-Fi networks use radio transmissions • prone to eavesdropping • Mechanism to prevent outsiders from • accessing network data & traffic • using network resources

  5. IEEE reactions • 1999: Wired Equivalent Privacy (WEP) • 2003: WiFi Protected Access (WPA)

  6. Agenda • Introduction • Basics of the WEP-Protocol • Weaknesses of WEP • Breaking WEP • Alternatives & Outlook • Summary & Discussion

  7. WEP – the basic idea • WEP = Wired Equivalent Privacy • As secure as a wired network • Part of the IEEE 802.11 standard

  8. WEP – how it works • Encrypt all network packages using • a stream-cipher (RC4) for confidentiality • a checksum (CRC) for integrity

  9. WEP – different flavors • Originally (1999) 64 bit: • Legal limits • 24 bit Initialization Vector (IV) • 40 bit key • 128 bit: • 104 bit (26 Hex-Characters) key • 256 bit: • 232 bit key • Available, but not common

  10. Small steps? Evolution of WEP to WEP128 to WEP256: • Initialization Vector remains at 24 bit • Encryption key size increases

  11. Agenda • Introduction • Basics of the WEP-Protocol • Weaknesses of WEP • Breaking WEP • Alternatives & Outlook • Summary & Discussion

  12. The major flaw • A Stream-Cipher should never use the same key twice

  13. The Stream-Cipher-Breakdown • E(A) = A xor C [C is the key] E(B) = B xor C • Compute E(A) xor E(B) xor is commutative, hence: E(A) xor E(B) = A xor C xor B xor C = A xor B xor C xor C = A xor B

  14. The major flaw • A Stream-Cipher should never use the same key twice... • ...or else we know A xor B, which is relatively easy to break • if both messages are in a natural language. or • if we know one of the messages.

  15. The WEP-repetition • For a 24 bit Initialization Vector, there is a 50% chance of repetition after 5000 packets...

  16. The Theory • Fluhrer, Mantin, and Shamir wrote a paper on the WEP weakness in the RC4 implementation... • Cornell University • “Weaknesses in the Key Scheduling Algorithm of RC4“

  17. Agenda • Introduction • Basics of the WEP-Protocol • Weaknesses of WEP • Breaking WEP • Alternatives & Outlook • Summary & Discussion

  18. Feasibility of attack • Practical • Cheap • Easy • Fast

  19. Feasibility of attack • Practical • Cheap • Easy • Fast • WEP Users: time to panic!

  20. How to do it... • Stubblefield, Ioannidis, and Rubin wrote a paper about the implementation in 2001 • Rice University & AT&T • “Using the Fluhrer, Mantin, and Shamir Attack to Break WEP” • Only six pages!

  21. How to do it... • Collect packets (about 6m for WEP128) • Only observe the first byte • Depends on only 3 values (S[1], S[S[1]], S[S[1]+S[S[1]]) • May be known plaintext (“0xAA“) • Try guessing the key, byte by byte • chance of 1/20 per byte

  22. How WE do it... • Aircrack-ng • Available freely for Linux, Windows and certain PDAs • Only requires about 1m packets for WEP128

  23. Agenda • Introduction • Basics of the WEP-Protocol • Weaknesses of WEP • Breaking WEP • Alternatives & Outlook • Summary & Discussion

  24. Outlook for WEP • WEP2 • Enlarged IV • enforced 128-bit encryption • WEP+ • Only use strong IVs • has to be used on both ends ...a dead end...

  25. Outlook for WEP • WEP2 • No change in concept, just more packets needed • WEP+ • How does one enforce the client side? ...a dead end...

  26. Alternatives • WPA, WPA2, 802.1X • 48 bit IV, mutate key after certain time • Depend on an authentication server • IPsec, VPN • Tunneling and secure wrapping of packets

  27. Agenda • Introduction • Basics of the WEP-Protocol • Weaknesses of WEP • Breaking WEP • Alternatives & Outlook • Summary & Discussion

  28. Summary: WEP • WEP is not secure! • Faulty implementation of RC4 • Developing an attack was easy • A successful attack only needs: • Off-the-shelf hardware (Laptop, Prism2) • Free software • A very short time (a few days at most)
