Impact of H2S on Concrete: A Case Study from Hilton Head

This case study explores the significant deterioration of the outer layer of concrete due to hydrogen sulfide (H2S) exposure on Hilton Head Island. A concrete bench has displayed severe damage, with approximately 1 inch of surface loss. The importance of thorough surface preparation is highlighted, utilizing a high-pressure cleaning technique at 5000 psi and 5 gpm with a 0-degree rotating nozzle. Following cleaning, a ½ inch Quadex Aluminaliner was installed, along with a 100 mil application of Raven 405 to restore functionality and improve durability.

rob
Télécharger la présentation

Impact of H2S on Concrete: A Case Study from Hilton Head

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

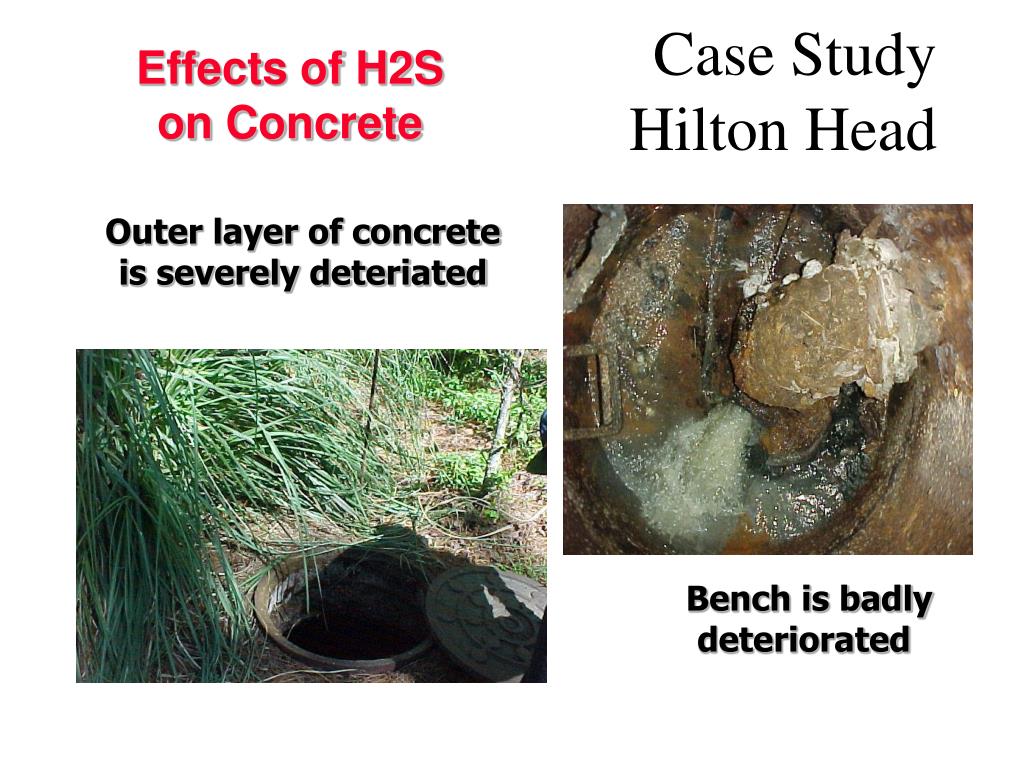

  1. Effects of H2S on Concrete Case Study Hilton Head Outer layer of concrete is severely deteriated Bench is badly deteriorated

  2. Before Cleaning & Prep

  3. Concrete Severely Deteriorated Approx 1” loss

  4. Surface prep is critical 5000 psi at 5 gpm 0 degree rotating nozzle

  5. After Build Back of ½” Quadex Aluminaliner

  6. After application of 100 mils Raven 405
