Ch. 3 Alkane Structure vs. Reactivity

Ch. 3 Alkane Structure vs. Reactivity. Alkane Structure and Radical Halogenation R-H reacts with halogens just like methane DH o for Et-H = 98 kcal/mol DH o for Me-H = 105 kcal/mol ( D E = -25 kcal/mol) Only one possible product Halogenation of Propane: 2 o and 1 o hydrogens

robbin
Télécharger la présentation

Ch. 3 Alkane Structure vs. Reactivity

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

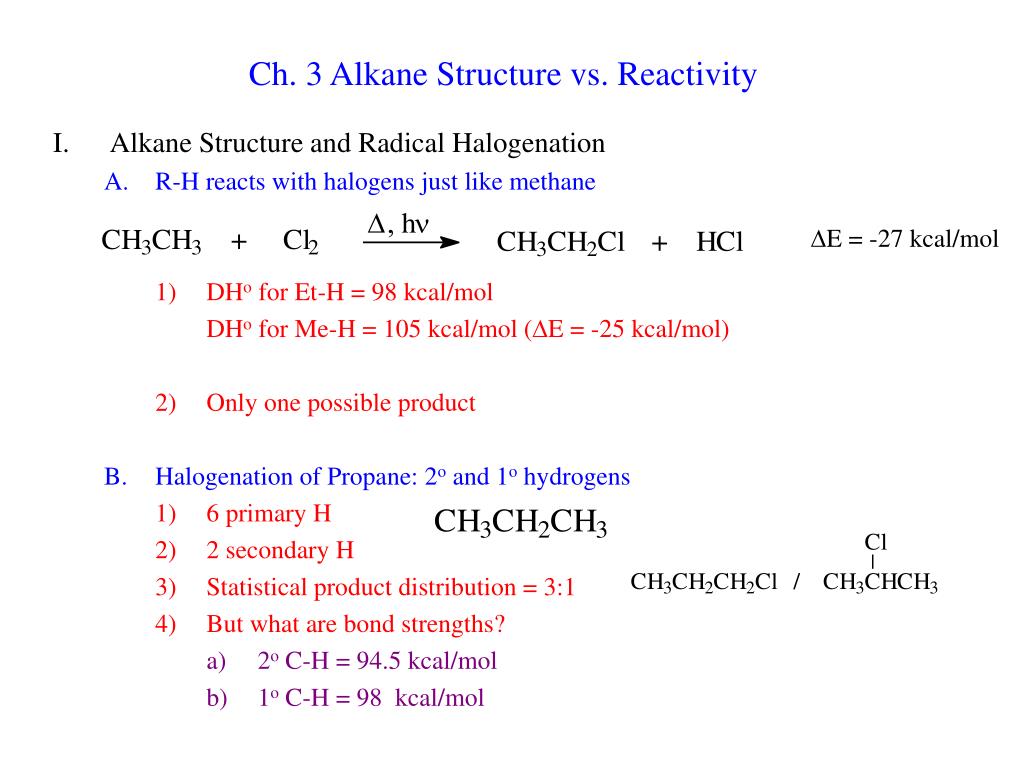

  1. Ch. 3 Alkane Structure vs. Reactivity • Alkane Structure and Radical Halogenation • R-H reacts with halogens just like methane • DHo for Et-H = 98 kcal/mol DHo for Me-H = 105 kcal/mol (DE = -25 kcal/mol) • Only one possible product • Halogenation of Propane: 2o and 1o hydrogens • 6 primary H • 2 secondary H • Statistical product distribution = 3:1 • But what are bond strengths? • 2o C-H = 94.5 kcal/mol • 1o C-H = 98 kcal/mol DE = -27 kcal/mol

  2. Secondary H abstraction is easier than Primary H abstraction • Secondary radical is more stable • Primary radical is less stable • Experimental ratio of products: • Relative Reactivity = • Secondary H about 4 time more reactive than Primary H • Chlorine has a 4:1 Selectivity for Secondary:Primary • Selectivity depends on X2, temp, etc…; not always 4:1 43% 57%

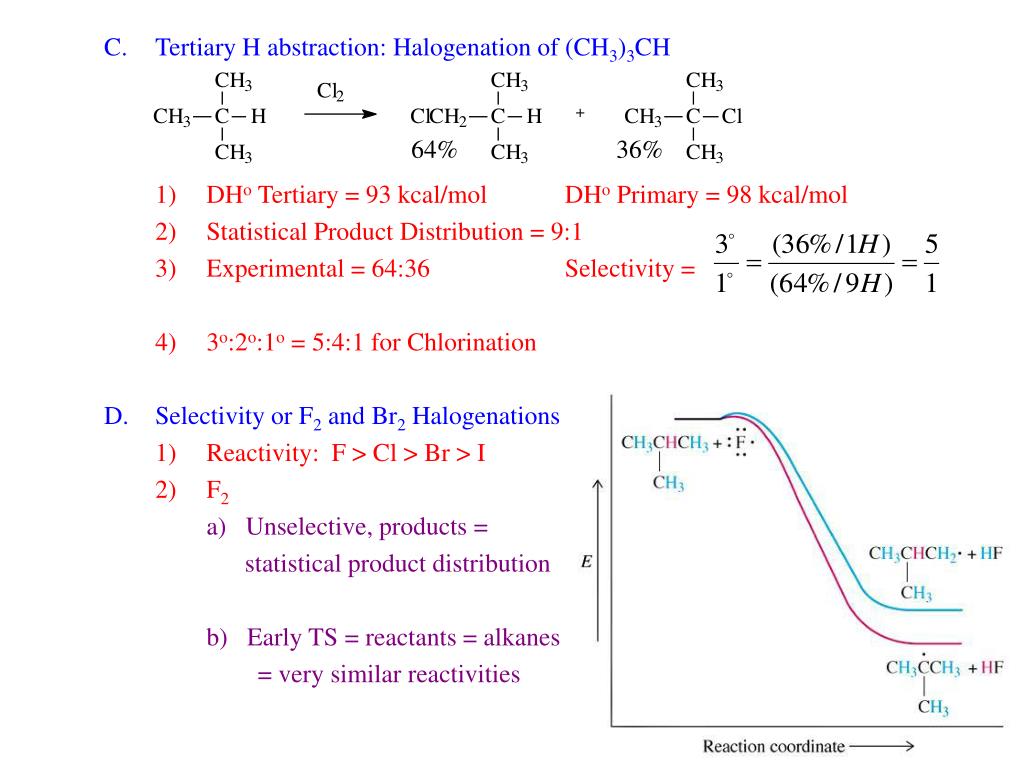

  3. Tertiary H abstraction: Halogenation of (CH3)3CH • DHo Tertiary = 93 kcal/mol DHo Primary = 98 kcal/mol • Statistical Product Distribution = 9:1 • Experimental = 64:36 Selectivity = • 3o:2o:1o = 5:4:1 for Chlorination • Selectivity or F2 and Br2 Halogenations • Reactivity: F > Cl > Br > I • F2 a) Unselective, products = statistical product distribution b) Early TS = reactants = alkanes = very similar reactivities 64% 36%

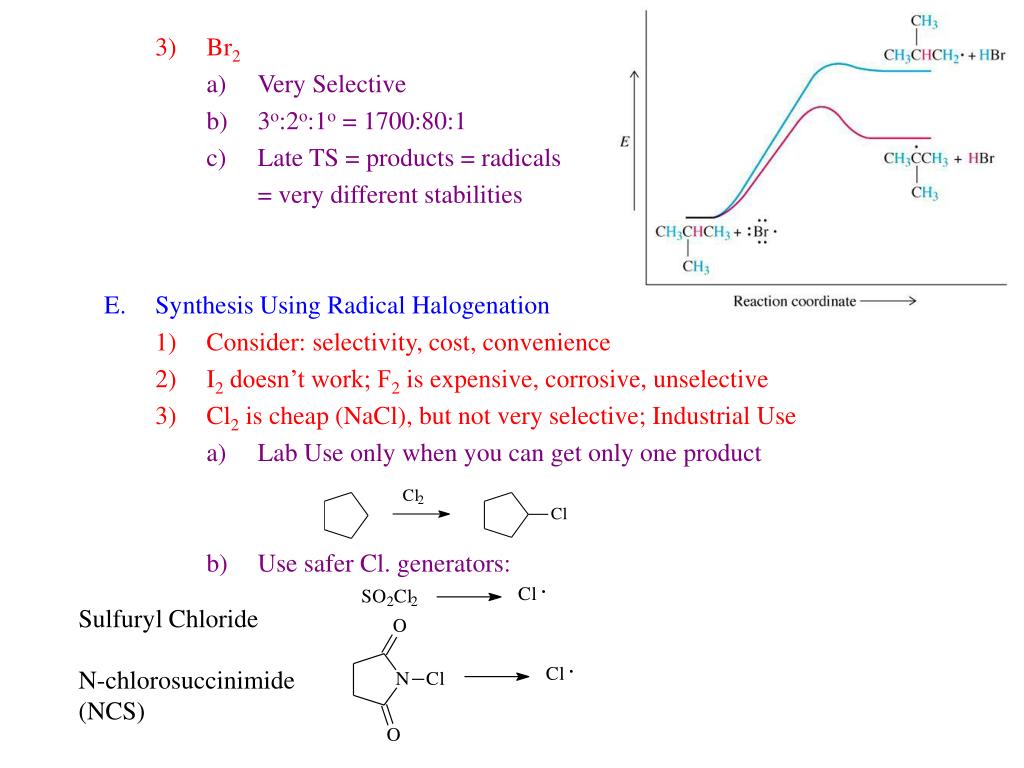

  4. Br2 • Very Selective • 3o:2o:1o = 1700:80:1 • Late TS = products = radicals = very different stabilities • Synthesis Using Radical Halogenation • Consider: selectivity, cost, convenience • I2 doesn’t work; F2 is expensive, corrosive, unselective • Cl2 is cheap (NaCl), but not very selective; Industrial Use • Lab Use only when you can get only one product • Use safer Cl. generators: Sulfuryl Chloride N-chlorosuccinimide (NCS)

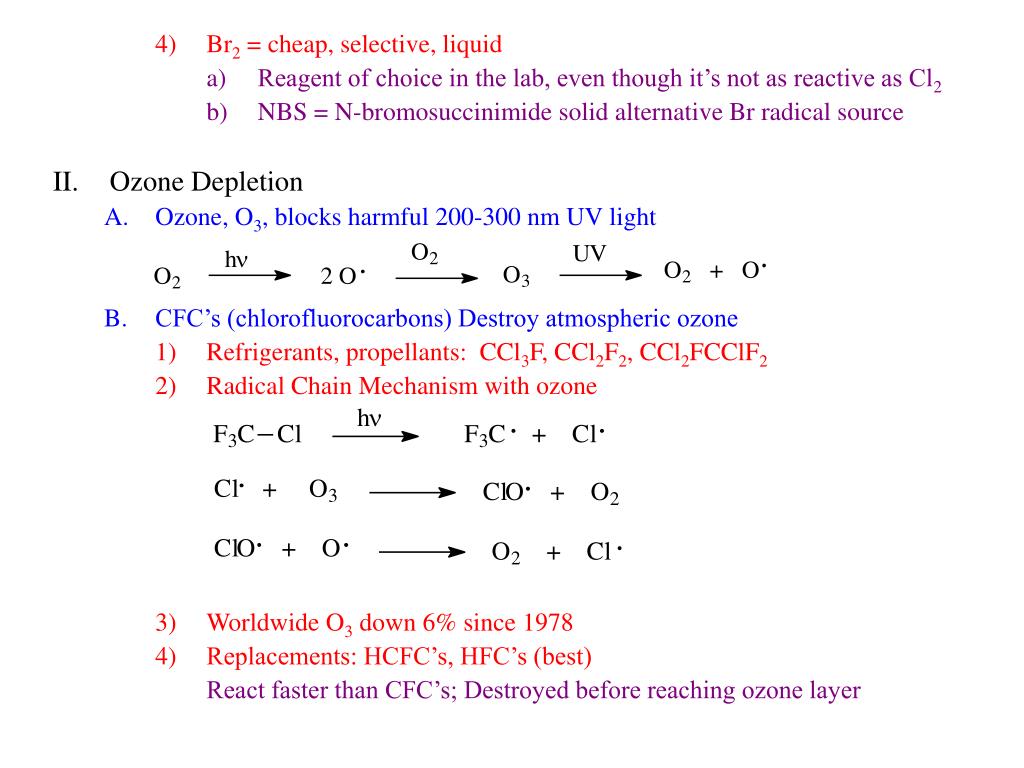

  5. Br2 = cheap, selective, liquid • Reagent of choice in the lab, even though it’s not as reactive as Cl2 • NBS = N-bromosuccinimide solid alternative Br radical source • Ozone Depletion • Ozone, O3, blocks harmful 200-300 nm UV light • CFC’s (chlorofluorocarbons) Destroy atmospheric ozone • Refrigerants, propellants: CCl3F, CCl2F2, CCl2FCClF2 • Radical Chain Mechanism with ozone • Worldwide O3 down 6% since 1978 • Replacements: HCFC’s, HFC’s (best) React faster than CFC’s; Destroyed before reaching ozone layer

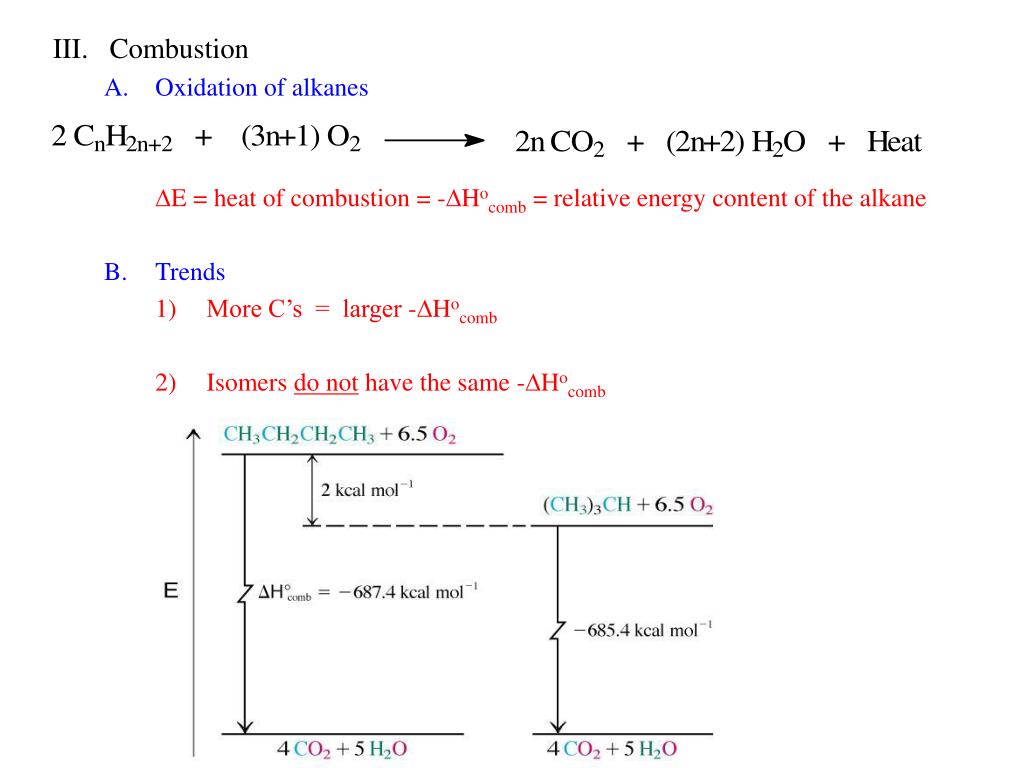

  6. Combustion • Oxidation of alkanes DE = heat of combustion = -DHocomb = relative energy content of the alkane • Trends • More C’s = larger -DHocomb • Isomers do not have the same -DHocomb
