Counting the maximum number of base pairs

Counting the maximum number of base pairs. But how to count? An RNA could be very long; there may be many possible ways that base pairs can be formed: e.g., …… A C G G U A C G U C ….. conflicting pairs A - U, A - U G - C, G - C etc.

robert
Télécharger la présentation

Counting the maximum number of base pairs

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Counting the maximum number of base pairs • But how to count? An RNA could be very long; there may be many possible ways that base pairs can be formed: e.g., ……ACGGUACGUC….. conflicting pairs A-U, A-U G-C, G-C etc. Even the number of non-conflicting combinations of base pairs is exponentially large.

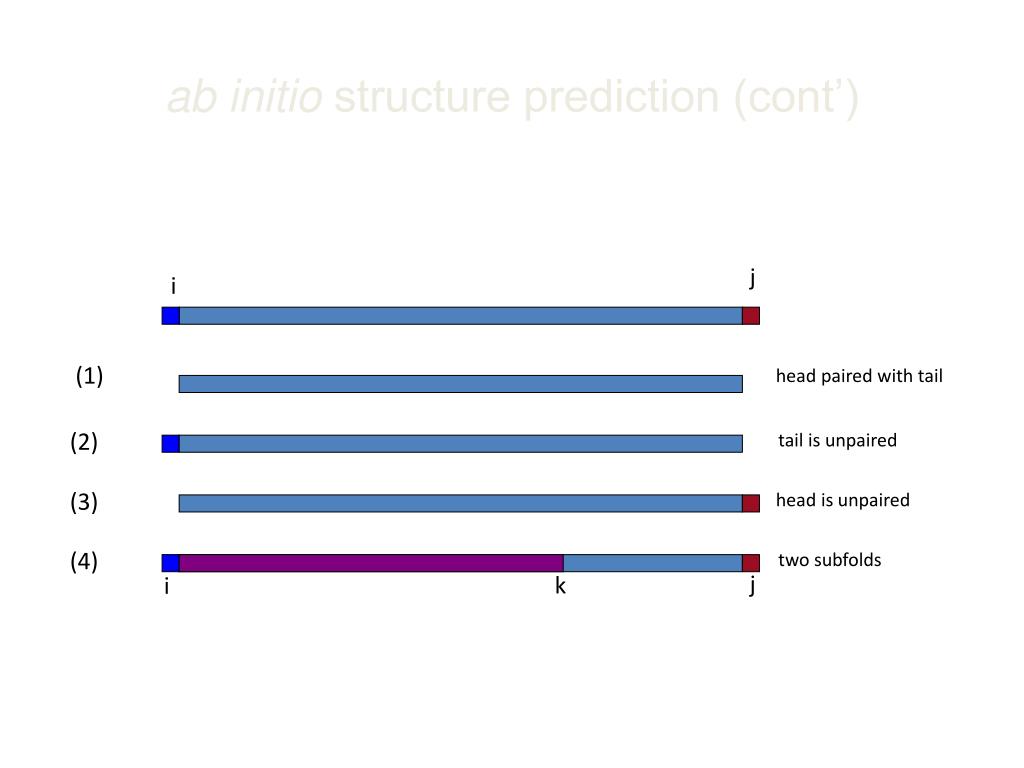

  2. j i (1) head paired with tail (2) tail is unpaired (3) head is unpaired (4) two subfolds j i k ab initio structure prediction (cont’)

  3. looking at shorter (e.g., very short) subsequences in a long sequence ACGGU…ACGUC • For subsequences of length 1, A, C, G, G, U, …, A, C, G, U, C #of base pairs 0, 0, 0, 0, 0, …, 0, 0, 0, 0, 0 • For subsequences of length 2, AC, CG, GG, GU, …, AC, CG, GU, UC # 0, 1. 0, 1, …, 0, 1, 1, 0 • For subsequence of length 3, ACG, CGG, GGU, …, UAC, ACG, CGU, GUC, UUC ?: e.g., GUC (1) G-C + U --> 1+0 =1 head-tail (2) G + UC --> 0+0 =0 head unpaired (3) GU + C --> 1+0 =1 tail unpaired (4) GU + C --> 1+0 =1 split (5) G + UC --> 0+0 =0 split

  4. examine a little longer sequence …..ACGGUACGU….. i j ==> max of {cases 1, 2, 3, 4} • Head-tail paired, count = 1 + max count in subsequence CGGUACG i+1 j-1 2. Head unpaired, count = max count in subsequence CGGUACGU i+1 j • Tail unpaired, count = max count in subsequence ACGGUACG i j-1 • Split (why needed and where to split ?) ACGGUACGU when k=i+2 i j ==> ACG + GUACGU <---- k ---> count = max count in ACG + max count in GUACGU

  5. simple model: (i, j) = 1 Ab initio structure prediction (cont’) • Maximizing the number of base pairs (Nussinov et al, 1978)

  6. G G G A A A U C C 0 0 0 0 0 0 1 2 3 0 0 0 0 0 1 2 3 0 0 0 0 1 2 2 GAAAUC 0 0 0 1 1 1 0 0 1 1 1 0 1 1 1 0 0 0 0 0 0 G G G A A A U C C GGGAAAUCC Ci,j = 0 when i=j AAUC AU

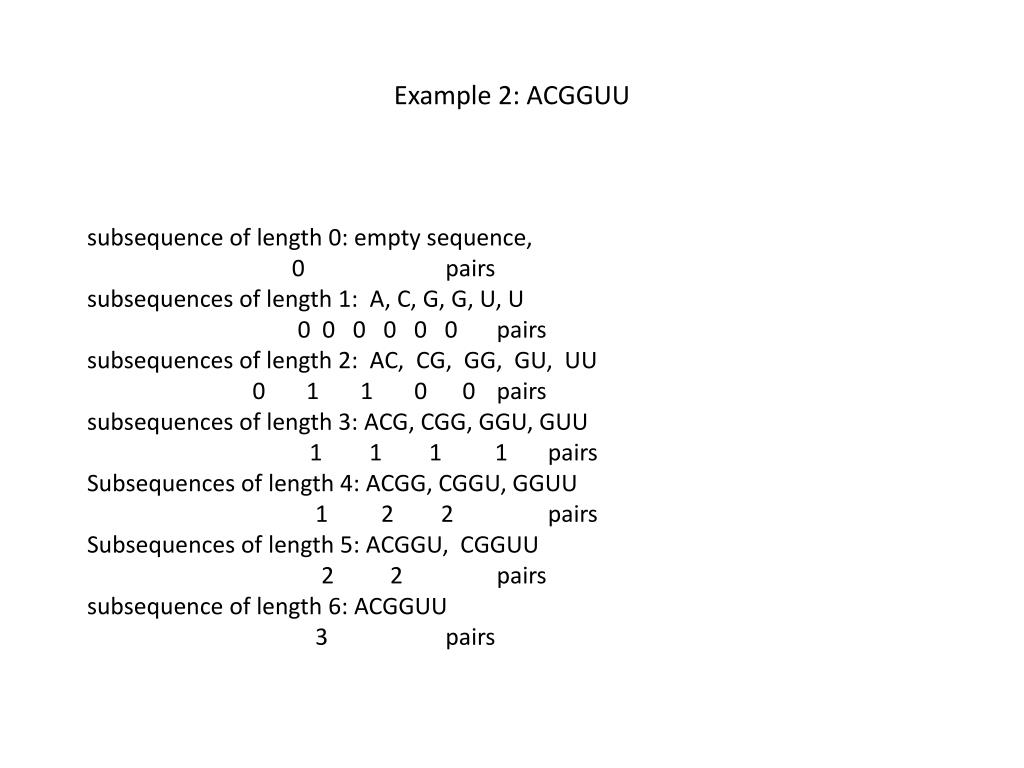

  7. Example 2: ACGGUU subsequence of length 0: empty sequence, 0 pairs subsequences of length 1: A, C, G, G, U, U 0 0 0 0 0 0 pairs subsequences of length 2: AC, CG, GG, GU, UU 0 1 1 0 0 pairs subsequences of length 3: ACG, CGG, GGU, GUU 1 1 1 1 pairs Subsequences of length 4: ACGG, CGGU, GGUU 1 2 2 pairs Subsequences of length 5: ACGGU, CGGUU 2 2 pairs subsequence of length 6: ACGGUU 3 pairs
