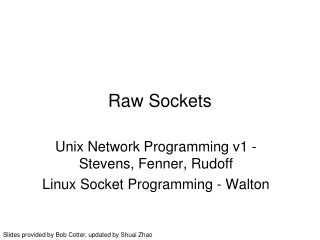

Raw Sockets. Unix Network Programming v1 - Stevens, Fenner, Rudoff Linux Socket Programming - Walton. Slides provided by Bob Cotter, updated by Shuai Zhao. Simple Layered Model. Application. FTP, e-mail, Client/Server. Transport. Connection Control. Internetwork. Routing. Network Access.

robinsonjoyce
Télécharger la présentation

Raw Sockets

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Raw Sockets Unix Network Programming v1 - Stevens, Fenner, Rudoff Linux Socket Programming - Walton Slides provided by Bob Cotter, updated by Shuai Zhao

  2. Simple Layered Model Application FTP, e-mail, Client/Server Transport Connection Control Internetwork Routing Network Access Ethernet, fiber, Token Ring

  3. IP Data Encapsulation User Data Application Layer TCP TCP / UDP Layer IP Layer PH Physical Layer

  4. IP Raw Socket Application User Data Raw socket TCP Bypassing Normal Network stack PH

  5. What can you do with Raw Sockets? • A way to pass information to network protocols other than TCP or UDP (e.g. ICMP and IGMP) • A way to implement new IPv4 protocols • A way to build our own packets (be careful here) • …

  6. Why Would We Use Them? • We can only receive frames destined to a particular address (unicast), broadcast and multicast • All headers ( from layer 1 all way to layer 3, OSI model) are removed by network stack and only the data is shipped to Layer 4 (app layer) • We can not modify the packet headers of packets when they are sent out from our host.

  7. Why Raw is interesting? • Use case: • Promiscuous mode: receive frames for all computers connected to our broadcast domain • sudo ifconfig eth0 promisc • sudo tcpdump –i eth0 • Get all the headers from network packet – raw socket • Sniffing • Packet injection • Network monitoring tools: wireshark • Network hacking tools: nmap

  8. Promiscuous Mode • Let network driver accept all packets, even the packet is not for you. • Used for network monitoring: legit (wireshark) or hacker (nmap) • Set up your interface to be promisc: • Sudo ifconfig eth0 promisc

  9. Sniffing – getting all headers • If interface is in promiscuous mode, means we are getting “full packets” with all the headers • Getting packets for all of your broadcast domain users

  10. Packet injectionsending arbitrary packets-make your own packet • We artificially make a packet and send out to network • Most active network monitoring tools and hacking tools are using it • Total network stack bypass

  11. Normal Socket Operation (TCP) • Create a socket • s = socket (PF_INET, SOCK_STREAM, IPPROTO_TCP) • Bind to a port (optional) • Identify local IP and port desired and create data structure • bind (s, (struct sockaddr *) &sin, sizeof(sin)) • Establish a connection to server • Identify server IP and port • connect (s, (struct sockaddr *) &sin, sizeof(sin)) • Send / Receive data • Place data to be send into buffer • recv (s, buf, strlen(buf), 0);

  12. Raw Sockets Operation (ICMP) • Create a socket • s = socket (PF_INET, SOCK_RAW, IPPROTO_ICMP) • Send / Receive data • Place data to be sent into buffer • sendto (s, buf, strlen(buf), 0, addr, &len);

  13. Create a Raw Socket • s = socket (PF_INET, SOCK_RAW, protocol) • IPPROTO_ICMP, IPPROTO_IP, etc. • Can create our own IP header if we wish • const int on = 1; • setsockopt (s, IPPROTO_IP, IP_HDRINCL, &on, sizeof (on));

  14. Raw Socket Output • Normal output performed using sendto or sendmsg. • Write or send can be used if the socket has been connected • If IP_HDRINCL not set, starting addr of the data (buf) specifies the first byte following the IP header that the kernel will build. • Size only includes the data above the IP header. • If IP_HDRINCL is set, the starting addr of the data identifies the first byte of the IP header. • Size includes the IP header • Set IP id field to 0 (tells kernel to set this field) • Kernel will calculate IP checksum • Kernel can fragment raw packets exceeding outgoing MTU

  15. Raw Socket Input • Received TCP / UDP NEVER passed to a raw socket. • Most ICMP packets are passed to a raw socket • All IGMP packets are passed to a raw socket • All IP datagrams with a protocol field that the kernel does not understand (process) are passed to a raw socket. • If packet has been fragmented, packet is reassembled before being passed to raw socket

  16. The Making of a Sniffer • Create a raw socket – socket() • Set interface you want to sniff on in promiscuous mode • Bind raw socket to this interface – bind() • Receive packets on the socket – recvfrom() • Process received packets • Close the raw socket

  17. Packet injector • Create a raw socket • Bind socket to the interface you want to send packets onto – bind() • Create a packet • Send the packet – sendto() • Close the socket

  18. Limitations? • Raw sockets require root privileges. • No Automatic ICMP • Raw TCP / UDP unlikely

  19. Raw TCP packets • TCP Packet = TCP Header + Data • But in order to send your packet over the network, you need add IP header in the front of TCP packet. • Once you construct your own TCP header, you can choose to either use kernel automatically constructed IP header or manually construct a IP header as well

  20. Tell kernel you have your own IP Header //IP_HDRINCL to tell the kernel that headers are included in the packet int on= 1; const int *val = &on; if (setsockopt (s, IPPROTO_IP, IP_HDRINCL, val, sizeof (on)) < 0) { perror("Error setting IP_HDRINCL"); exit(0); }

  21. IP Headers

  22. TCP Header

  23. Sinffer-exmaple.c • struct iphdr *iph； • struct tcphdr *tcph； • Reference link: http://www.binarytides.com/raw-sockets-c-code-linux/

  24. IP Header construct iph->ihl = 5; iph->version = 4; iph->tos = 0; iph->tot_len = sizeof (struct iphdr) + sizeof (struct tcphdr) + strlen(data); iph->id = htonl (54321); //Id of this packet iph->frag_off = 0; iph->ttl = 255; iph->protocol = IPPROTO_TCP; iph->check = 0; //Set to 0 before calculating checksum iph->saddr = inet_addr ( source_ip ); //Spoof the source ip address iph->daddr = sin.sin_addr.s_addr; iph->check = csum ((unsigned short *) datagram, iph->tot_len);

  25. TCP header construct tcph->source = htons (1234); tcph->dest = htons (80); tcph->seq = 0; tcph->ack_seq = 0; tcph->doff = 5; //tcp header size tcph->fin=0; tcph->syn=1; tcph->rst=0; tcph->psh=0; tcph->ack=0; tcph->urg=0; tcph->window = htons (5840); /* maximum allowed window size */ tcph->check = 0; //leave checksum 0 now, filled later by pseudo header tcph->urg_ptr = 0;

  26. Summary • Raw Sockets allow access to Protocols other than the standard TCP and UDP • Performance and capabilities may be OS dependent. • Some OSs block the ability to send packets that originate from raw sockets (although reception may be permitted). • Raw sockets remove the burden of the complex TCP/IP protocol stack, but they also remove the safeguards and support that those protocols provide
