  1. JSC RailTransAuto Delivering finished vehicles from manufacturers to dealers throughout the Russian Federation and CIS countries using railway transportation 2008

  2. RailTransAuto JSC Corporate structure JSC“Russian Railways” 51% “TransGroup AS” Ltd 49% JSC “RailTransAuto” JSC “RailTransAuto” is the major vehicle rail carrier in Russian Federation. The fleet of wagons of the company: As on April of 2008 - 2300specialized double-deck wagons. By the end of year 2008 the car fleet will number 3000 wagons. By the end of year 2010 – 5100 wagons.

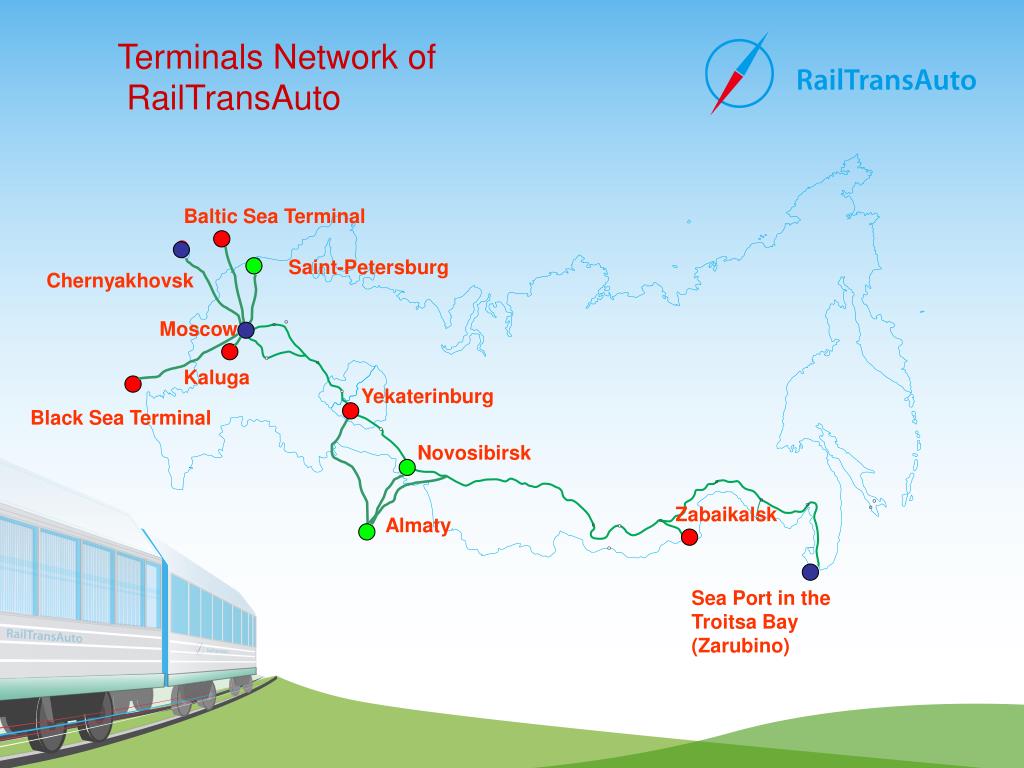

  3. Saint-Petersburg Chernyakhovsk Moscow Yekaterinburg Novosibirsk Zabaikalsk Terminals Network of RailTransAuto Baltic Sea Terminal Kaluga Black Sea Terminal Almaty Sea Port in the Troitsa Bay (Zarubino)

  4. Zarubino Compound The Compound is located at the territory of Sea Port in Troitsa Bay, southern part of Primorsky Krai, 238 km from Vladivostok. Total area upon commissioning 1st stage: 3.5 hectares – 1750 а/м; Total area upon commissioning 2nd stage: 7 hectares – 3500 а/м - Railway tracks zone: 40 wagons. The prospectives of enlargement: 2 hectares - on the territory of the containers storage area and timber storage - 1000 vehicles 1 hectare - 2 sections of refrigirators - 500 vehicles 7-storied parking lot (10,5) hectares - 5000 vehicles As a result: total capacity - 10 000 vehicles 4 railways tracks will be use to handle this amount of vehicles (2 berthing track lines, 2 interport track lines) Renovation of 11 km of railway tracks between railway station Sukhanovka and terminal “Zarubino”

  5. 1 - Railway line area; 2 - Storage area; 3 - Temporary customs area of port; 4 - Administrative area; 5 - Entrance (сheck-point); 6 - Inspection area; 7 - Completing and loading area. Plan of Zarubino Compound 6 3 4 7 2 5 8 1

  6. TAU-Terminal nearby Almaty (Kazakhstan) Our strategic partner in Kazakhstan – “TAU-terminal” in Almaty (7 ha in October of 2008, 20 ha in 2009). We are planning to construct terminal with “TAU-Terminal” (51% - RailTransAuto, 49% - TAU-Terminal). Terminal is to be constructed on the Baiserke railway station (7 km from Almaty)

  7. Novosibirsk Compound The terminal is located within the city boundaries. Area upon commissioning 1st stage: 2.5 hectares. Area upon commissioning 2nd stage: 8.2 hectares. Total area – 36 ha Compound zones (for the 1st stage): - zone for Temporary Storage Warehouse (TSW), capacity 250 vehicles; - warehousing area for 896 vehicles; - railway tracks zone: 24 cars (240 vehicles); - shipping zone, capacity 196 vehicles (simultaneous departure of 28 car-carrying-trucks).

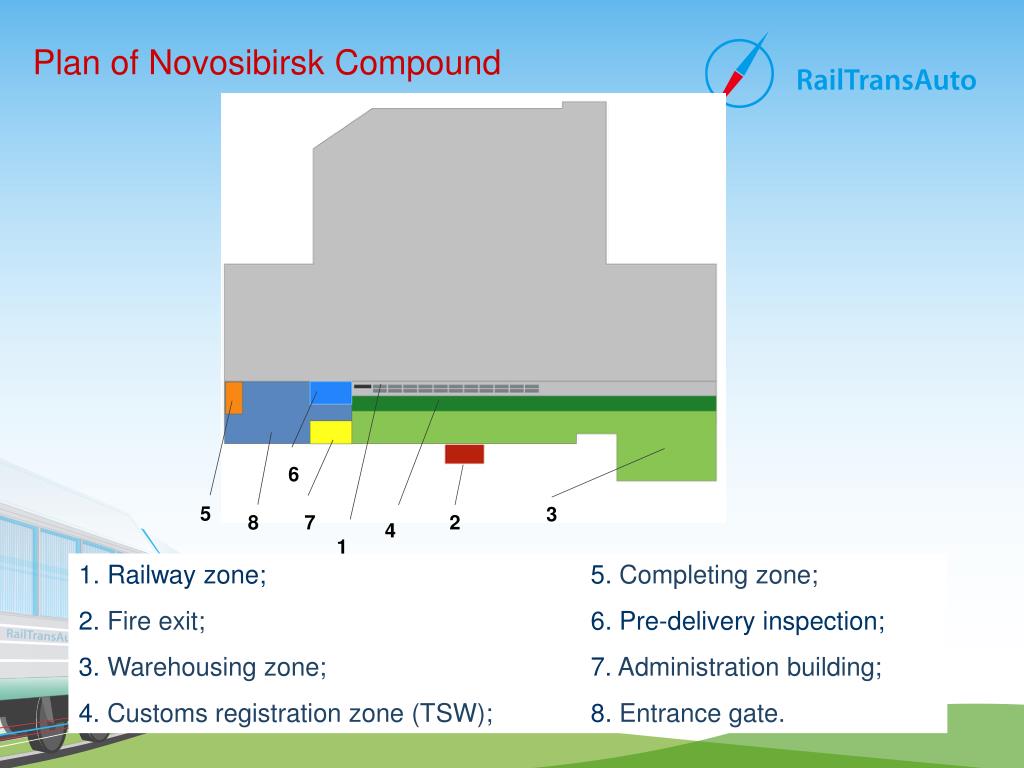

  8. 6 5 3 8 7 2 4 1 Plan of Novosibirsk Compound 1. Railway zone;5. Completing zone; 2. Fire exit; 6. Pre-delivery inspection; 3. Warehousing zone;7. Administration building; 4. Customs registration zone (TSW); 8. Entrance gate.

  9. Mikhnevo Compound (Moscow region) Compound is located in 50 km to the South of the Moscow Ring Road. The first stage of compound – 10,75 hectares (was ready in October 2007). Total area of the compound– 15,2 hectares (2nd stage - May 2008). Warehousing at a time at the first stageof 4840 vehicles at a time, car wash, PDI. After May 2008 – Zone of Temporary Storage Warehouse (TSW). Railway zone 39 wagons – 390 vehicles. Simultaneous shipment of 25 trucks - 175 vehicles.

  10. Plan of Mikhnevo compound 8 • Railway zone; • Fire exit; • Storage area; • Customs zone; • Loading zone; • PDI zone; • Administrative building; • Entrance control post; • Expansion possibility. 9 7 1 6 5 4 3 2

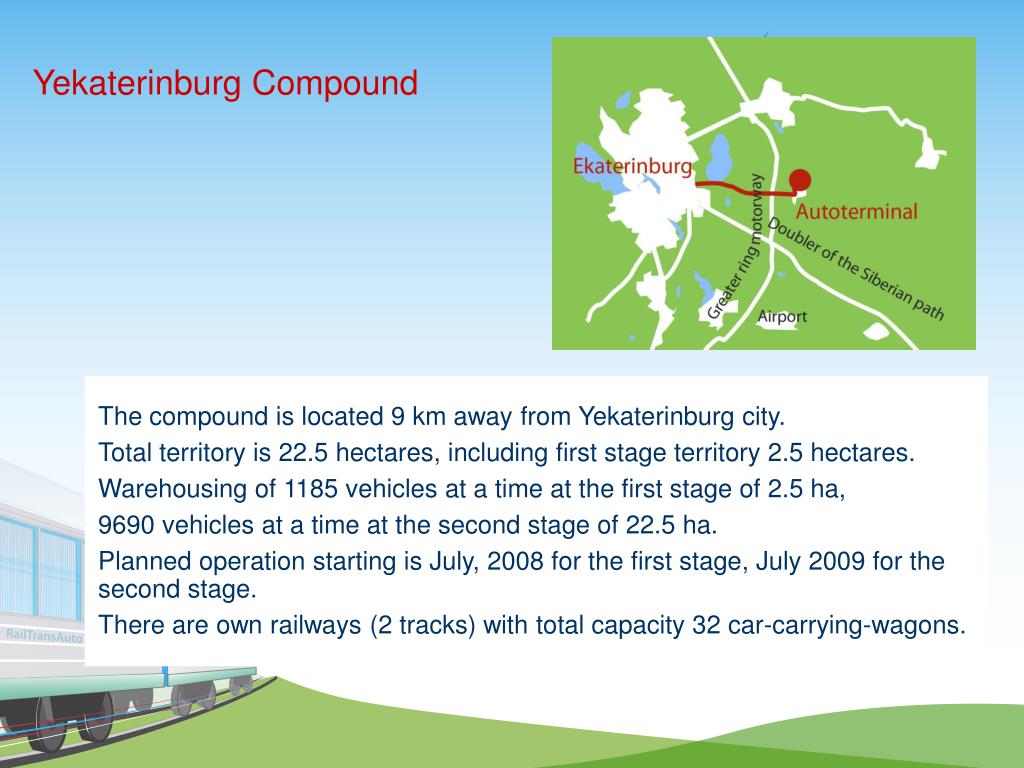

  11. Yekaterinburg Compound The compound is located 9 km away from Yekaterinburg city. Total territory is 22.5 hectares, including first stage territory 2.5 hectares. Warehousing of 1185 vehicles at a time at the first stage of 2.5 ha, 9690 vehicles at a time at the second stage of 22.5 ha. Planned operation starting is July, 2008 for the first stage, July 2009 for the second stage. There are own railways (2 tracks) with total capacity 32 car-carrying-wagons.

  12. Plan of Yekaterinburg Compound 1- Railway zone; 2 – Completing zone; 3 – Warehousing zone; 4 – Administration building; 5 – Pre-delivery inspection zone; 6 – Prospect expansion zone; 7 – Entrance gate; 8 – Fire exit; 9 - Customs registration zone (TSW). 6 8 9 2 7 4 5 1 3

  13. Chernyakhovsk compound 1st stage zone of the terminal: Zone for Temporary Storage Warehousing (TSW) 650 vehicles; warehousing area – 1000 vehicles railway tracks zone – 3 tracks 900 mlength each. The transshipment of containers is also provided. Terminal is located 90 km away from Kaliningrad, at the territory adjoining the Novy Chernyakhovsk railway station. Total area upon commissioning 1st stage: 3 hectares. Total area upon commissioning 2nd stage: 30 hectares.

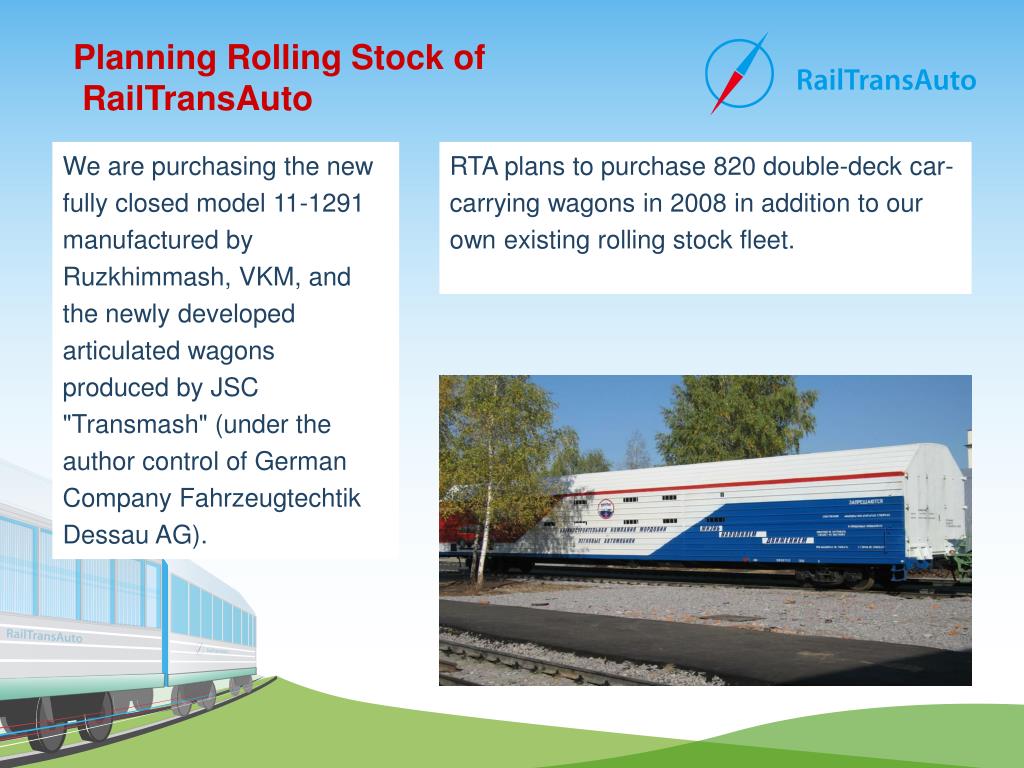

  14. Planning Rolling Stock of RailTransAuto We are purchasing the new fully closed model 11-1291 manufactured by Ruzkhimmash, VKM, and the newly developed articulated wagons produced by JSC "Transmash" (under the author control of German Company Fahrzeugtechtik Dessau AG). RTA plans to purchase 820 double-deck car-carrying wagons in 2008 in addition to our own existing rolling stock fleet.

  15. New specialized double-deck wagon model 11-1291

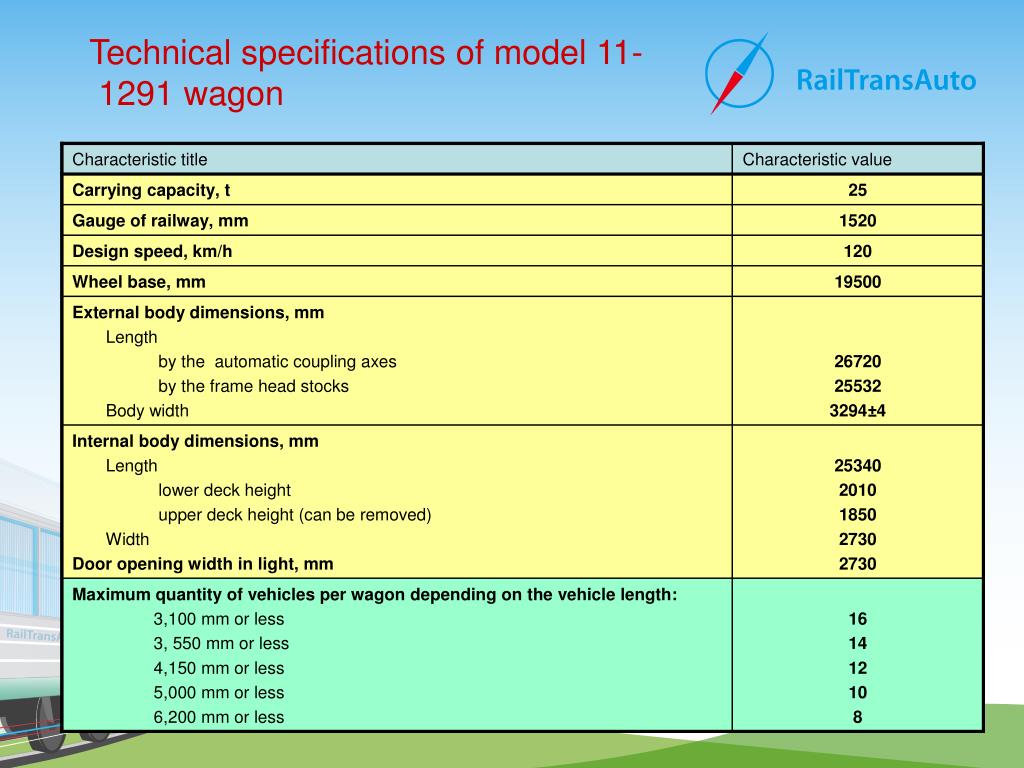

  16. Technical specifications of model 11-1291 wagon

  17. Model 11-1291 wagon advantages Fully covered body At the time of transportation entirely covered wagon body provides full safety of the vehicles (including polished vehicles). Enlarged carrying capacity Wagon carrying capacity is 25 ton, that exceeds carrying capacity of model 11-287 or model 11-835 wagon by 9 ton, and allows transportation of almost all vehicles brands, either light vehicles or commercial ones as well. Extended wagon length Internal part of wagon is enlarged by 2400 mm in comparison with model 11-287 and model 11-835, that expands the loading space considerably. Expandedlower deck height Due to the changes in wagon construction lower deck height is expanded (2010 mm by contrast to 1820 mm in model 11-287 and model 11-835 wagons), that allows to load the lower deck with the vehicles up to 1940 mm high. Removable upper deck Upper deck can be removed. Clear height of wagon in this case is 3900 mm. It allows transportation of commercial vehicles over than 1940 mm high.

  18. Fastening of vehicles in wagon Fastening of vehicles against displacement in lengthwise and transverse directions is carried out using wheel stopper. Originally designed construction of stoppers allows to secure low-clearance vehicles (height of stopper in operating condition is 12 cm).

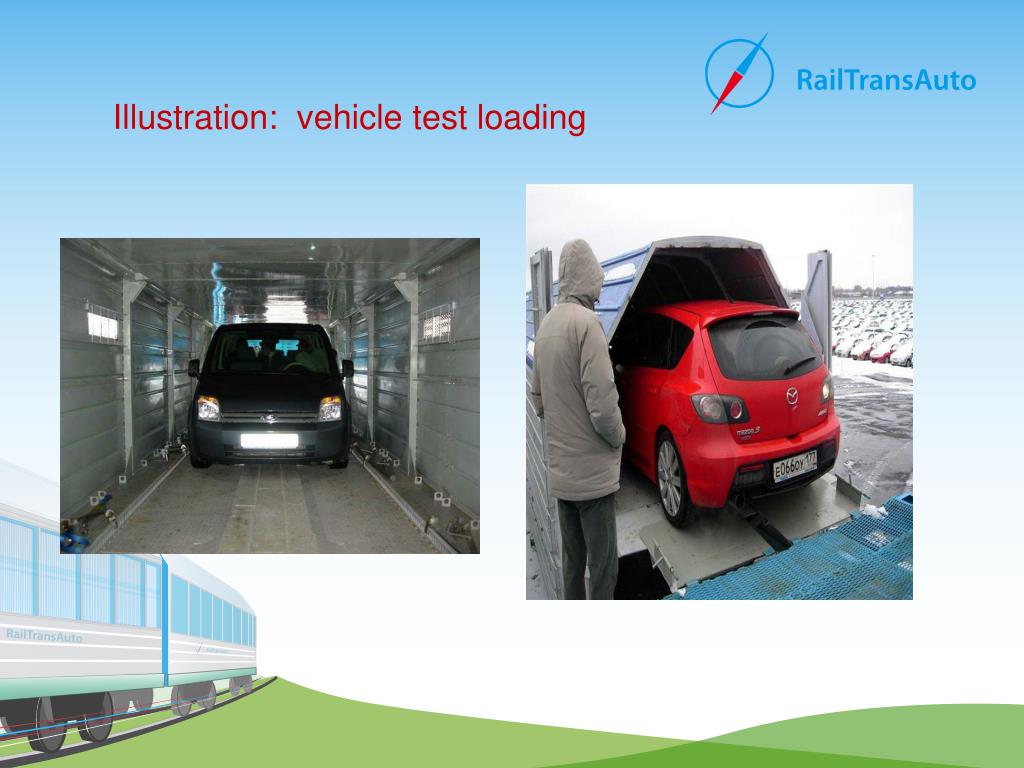

  19. Illustration: vehicle test loading

  20. New wagon model 11-720 (constructed by Fahrzeugtechnik Dessau AG)

  21. Thank you for your attention! JSC RailTransAuto Dokuchaev per., 6 bld. 2 , Moscow 107078, Russia Tel: +7 (495) 777-02-55 Fax: +7 (495) 777-02-44 info@railtransauto.ru www.railtransauto.ru
