  1. X-LIN Hotware Wireless Co., Ltd. Long Range Wireless LAN Platform WISP in Canada (Total Solution License Program) May, 2007

  2. Backhaul connect AP. Scenario 1 Backhaul Satellite Broadband Provider Hot spot To WAN To next Node (station) Bridge units Back-to-back WL2410/AP hub HUB Satellite Receiver Router OR Station 3 wired WAN PCMCIA Station 1 WL-2401/WWB Bridge units Back-to-back WL2410/AP hub WL-2402 in house Station 2

  3. Backhaul connect AP. Scenario 2 AP 5GHz backhaul 5GHz backhaul AP cell 1 Backhaul Master Sever Headquarter To WAN Backhaul Slave AP Backhaul PCMCIA or Centrino Hot spot AP cell 2

  4. AP + 120-degree antenna back-to-back scenario Each antenna covers 120 degree Distance among antennas: 3 meters RF channel spaced by 6 channels Advantages: Best Coverage and Reliability !! Big bandwidth for each tower (3 times) High flexibility of RF channel options !! Outdoor AP Advantages of Tower: Beam width: 360 degree, omni-directional Total bandwidth: Multiplied by number of AP Channel Flexibility: 39 channels. Overlapping channels with other tower: many, many…. DC injector H U B To : Sever or WAN

  5. AP (WL-2410GM) with sectorized omni-directional array with 3 x 120-degree sectorial antennas Backhaul (xLink-5801a) with flat panel

  6. Total Solution License Program : WISP, IPTV, VOiP, on-line billing, WiFi handset, surveillance Under tower control cabin

  7. Mountain top tower

  8. ASU-24005G on top of client’s premise

  9. ASU-24005G at client’s premise Barely invisible

  10. Sector antenna for Access point Dish for 5GHz backhaul

  11. PTZ fastdome for surveillance and tower security Wind power for tower

  12. Client equipment, AMU-24005G, with YAGI antenna on a telephone pole.

  13. ON-LINE sign-in and billing via credit card IPTV service on users demand

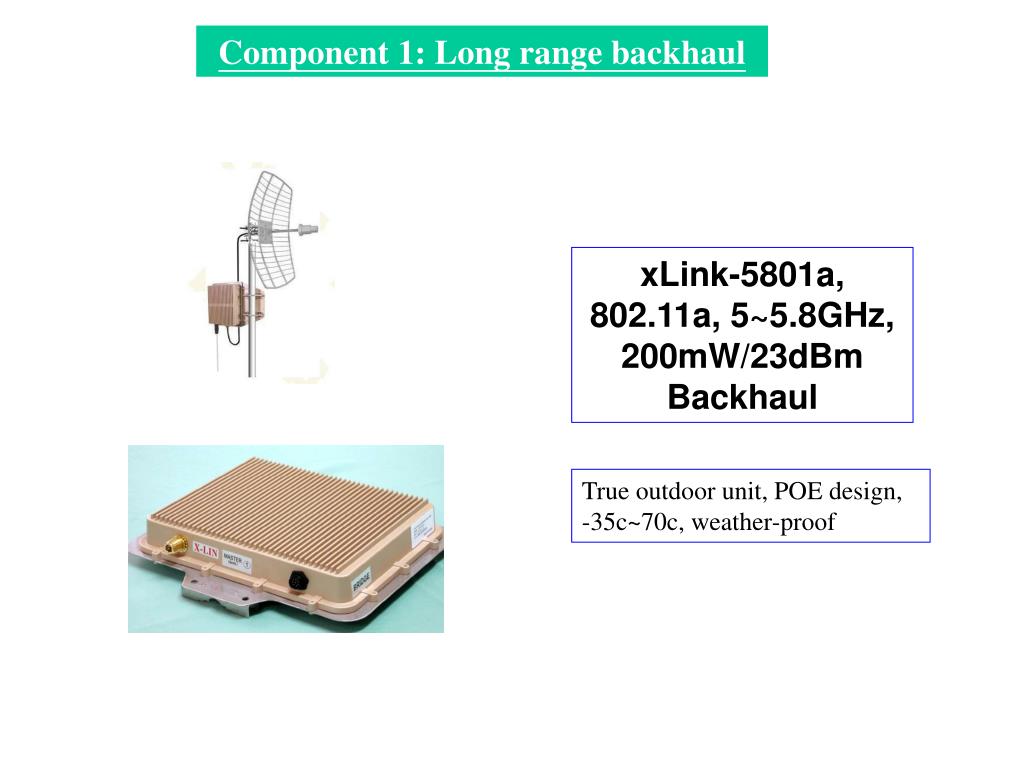

  14. Component 1: Long range backhaul xLink-5801a, 802.11a, 5~5.8GHz, 200mW/23dBm Backhaul True outdoor unit, POE design, -35c~70c, weather-proof

  15. Component 2: Node AP WL-2410/GM, 1 watt 802.11g, (AP/Client/Repeater/Bridge) With omni antenna or sectorial 120-degree antenna; or omni-directional array with 3 x 120-degree sectorial antennas

  16. Component 3: Node AP WL-24005G, 802.11g, 100mW AP/Client/Bridge/Repeater True outdoor unit, POE design, -35c~70c, weather-proof

  17. Component 4: fixed CPE ASU-24005G, 802.11g, 100mW AP/Client/Bridge/Repeater Plastic cost-effective outdoor unit, POE design, -15c~65c, weather-proof

  18. Component 5 500mW WiFi AP/client/repeater/bridge Yagi Antenna • The 16dBi yagi access antenna enables the “last mile” connection to customers. • The units are the client side access points/transponders and antenna. • They connect to a customer’s computer or router in minutes using CATV cable and a DC power adapter. • They are weather proofed with O rings. • They include mounting hardware. • There are 3 variants (normal, medium and long range). • Yagi booster antennas and cables are included to further improve signal strength and reduce interference. This improves quality of service and reduces customer complaints. Up to 20km range. Antenna cable 1m, sma—sma CFD-200 TO PC or server LAN POE Patch cable, 25m Power To AC power

  19. Component 6: Mobile CPE All Wi-Fi complied client devices: PCMCIA USB adapter (like our USB-24005G) Centrino

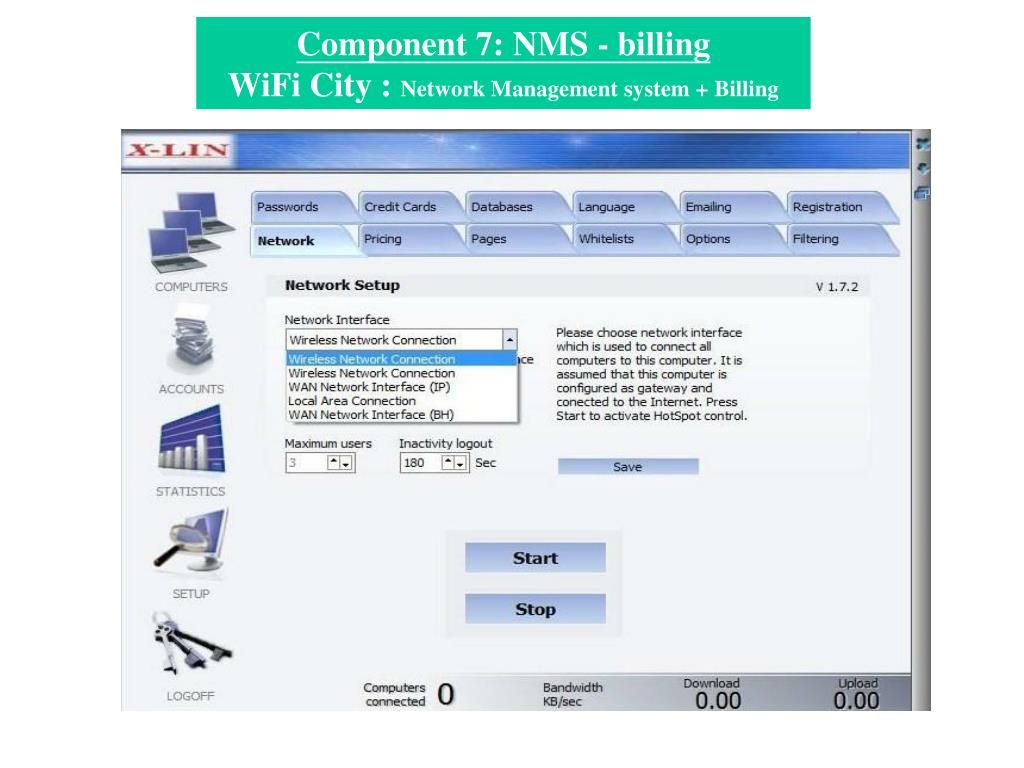

  20. Component 7: NMS - billing WiFi City : Network Management system + Billing

  21. X-LIN Innovation Thank you ! Hotware Wireless Co., Ltd. www.hotware.com.tw business@hotware.com.tw Tel : +886-3-4639125 Fax ; +886-3-4639367 Integration Center integrate@hotware.com.tw
