  1. Networking Paul Mealor GridPP Meeting, Cambridge, 14 Feb 2002 Paul Mealor, UCL

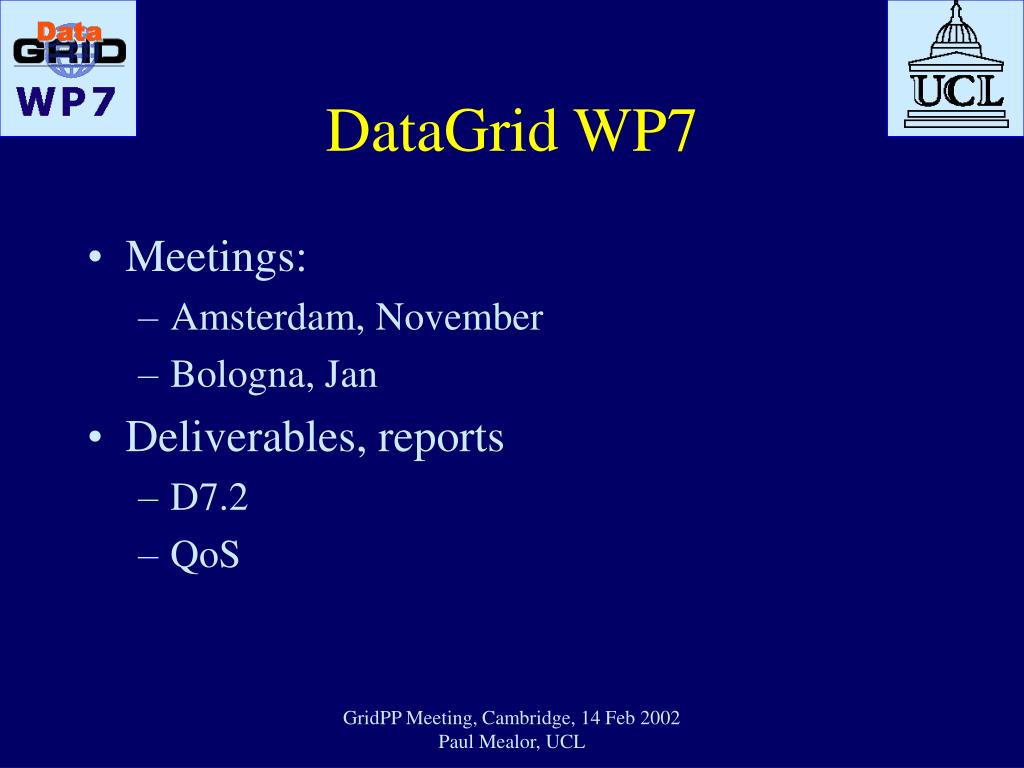

  2. DataGrid WP7 • Meetings: • Amsterdam, November • Bologna, Jan • Deliverables, reports • D7.2 • QoS GridPP Meeting, Cambridge, 14 Feb 2002 Paul Mealor, UCL

  3. Deliverable 7.2Demonstration of enhanced monitoring tools • Delivered • PingER, RTPL, IperfER, UDPmon, MapCenter, RIPE NCC Test Traffic Measurements • LDAP Publication • Future: Prediction and forecasting; NetSaint GridPP Meeting, Cambridge, 14 Feb 2002 Paul Mealor, UCL

  4. Monitoring tools - EDG-PingER • Available in TB1 v1 • Modification of PingER • PingER used extensively in HEP community • Measures RTT, Loss (and therefore connectivity) • Centrally configured GridPP Meeting, Cambridge, 14 Feb 2002 Paul Mealor, UCL

  5. Monitoring tools - EDG-PingER • Configuration system • On install: sends Franck Bonnassieux an email • Every night, cron job gets an individual configuration file from ccwp7.in2p3.fr • Consultation between WP7 and local sysadmin • Easy way to set up all network monitoring hosts GridPP Meeting, Cambridge, 14 Feb 2002 Paul Mealor, UCL

  6. Monitoring tools - EDG-PingER Apache cgi-bin scripts ping scripts log files cron GridPP Meeting, Cambridge, 14 Feb 2002 Paul Mealor, UCL

  7. Monitoring tools • EDG-IperfER • Based on PingER • Measures TCP throughput • UDPmon • Based on PingER • Measures UDP Ping and 1-way loss; calculates throughput GridPP Meeting, Cambridge, 14 Feb 2002 Paul Mealor, UCL

  8. Inter-packet time Time to receive Time to send Monitoring tools - UDPmon Zero stats OK done Send data frames at regular intervals Get remote statistics Send statistics GridPP Meeting, Cambridge, 14 Feb 2002 Paul Mealor, UCL

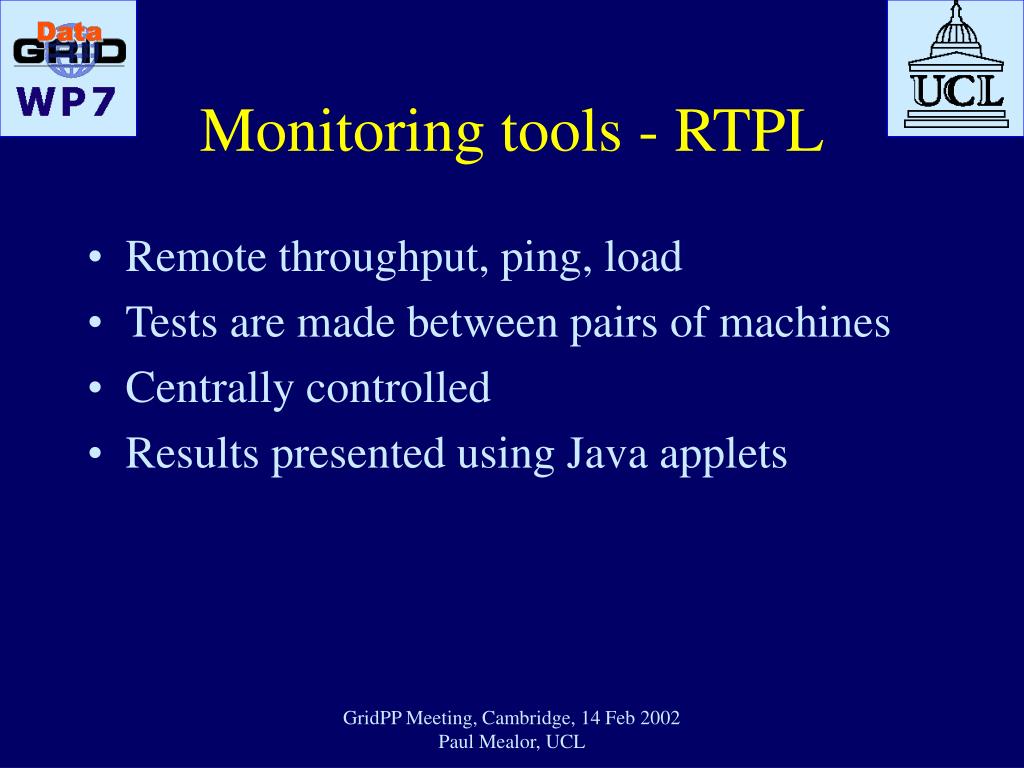

  9. Monitoring tools - RTPL • Remote throughput, ping, load • Tests are made between pairs of machines • Centrally controlled • Results presented using Java applets GridPP Meeting, Cambridge, 14 Feb 2002 Paul Mealor, UCL

  10. Monitoring tools - MapCenter • Provides various views showing the connectivity of various nodes on the Grid GridPP Meeting, Cambridge, 14 Feb 2002 Paul Mealor, UCL

  11. Monitoring tools - website • http://ccwp7.in2p3.fr/ • Links to other monitoring tools (MapCenter, RIPE NCC, NetSaint, RTPL) • Links to sites with WP7’s monitoring tools installed - 9 with PingER so far GridPP Meeting, Cambridge, 14 Feb 2002 Paul Mealor, UCL

  12. Monitoring tools - NetSaint • A thing “to do” in D7.2 GridPP Meeting, Cambridge, 14 Feb 2002 Paul Mealor, UCL

  13. Monitoring tools - others • Other systems under consideration are • RIPE NCC Test Traffic Measurements • Surveyor • NIMI • MRTG • Traceping • Netflow and cflowd • NWS GridPP Meeting, Cambridge, 14 Feb 2002 Paul Mealor, UCL

  14. Publication of monitoring data - LDAP • LDAP backend script to publish data from PingER • Available with TB1 • Part of the standard WP3 information system • Script is installed using an extra RPM • Slow-burning update cycle • Extra information providers for RTPL and NWS on their way GridPP Meeting, Cambridge, 14 Feb 2002 Paul Mealor, UCL

  15. Publication of monitoring data - LDAP • How it looks Mds-Vo-Name=ucl,Mds-Vo-Name=uk,Mds-Vo-Name=datagrid,o=grid in=netmon netmonrou=netmon.rl.ac.uk rou=netmon.dl.ac.uk netmontool=pinger netmonpacketsize=256 netmonpacketsize=512 GridPP Meeting, Cambridge, 14 Feb 2002 Paul Mealor, UCL

  16. Publication of monitoring data - R-GMA • Relational implementation of the grid monitoring architecture • Under development • WP7 is the first real user of it • Seems to be far better suited to publishing network monitoring data than the LDAP tree structure GridPP Meeting, Cambridge, 14 Feb 2002 Paul Mealor, UCL

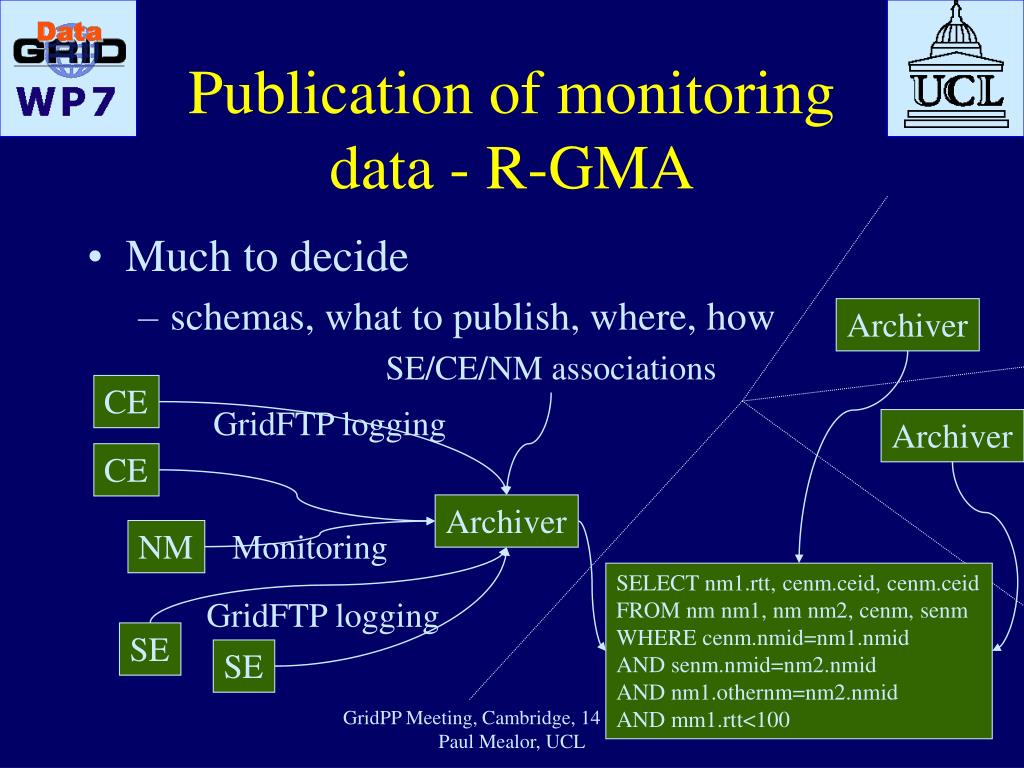

  17. Publication of monitoring data - R-GMA • Much to decide • schemas, what to publish, where, how Archiver SE/CE/NM associations CE GridFTP logging Archiver CE Archiver NM Monitoring SELECT nm1.rtt, cenm.ceid, cenm.ceid FROM nm nm1, nm nm2, cenm, senm WHERE cenm.nmid=nm1.nmid AND senm.nmid=nm2.nmid AND nm1.othernm=nm2.nmid AND mm1.rtt<100 GridFTP logging SE SE GridPP Meeting, Cambridge, 14 Feb 2002 Paul Mealor, UCL

  18. Other Stuff • Gigabit ethernet performance measurements • characterisation of NICs, Richard Hughes-Jones GridPP Meeting, Cambridge, 14 Feb 2002 Paul Mealor, UCL

  19. Other stuff • Tests of scavenger mode (DiffServ / QoS) • Cern External Network Division • Tests of TCP in high-bandwidth situations • Antony Antony • Tests of various other hardware • Routers and switches and things • Security (will be D7.5) GridPP Meeting, Cambridge, 14 Feb 2002 Paul Mealor, UCL

  20. END GridPP Meeting, Cambridge, 14 Feb 2002 Paul Mealor, UCL
