1. Final Review Dr. Bernard Chen Ph.D. University of Central Arkansas Fall 2010

2. Overcome Data Hazards with Dynamic Scheduling • Key idea: Allow instructions behind stall to proceed DIV F0 <- F2/F4 ADD F10<- F0+F8 SUB F12<- F8-F14

3. Overcome Data Hazards with Dynamic Scheduling • Key idea: Allow instructions behind stall to proceed DIV F0 <- F2/F4 SUB F12<- F8-F14 ADD F10<- F0+F8

4. Overcome Data Hazards with Dynamic Scheduling • Key idea: Allow instructions behind stall to proceed DIV F0 <- F2/F4 SUB F12<- F8-F14 ADD F10<- F0+F8 • Enables out-of-order execution and allows out-of-order completion(e.g., SUB) • In a dynamically scheduled pipeline, all instructions still pass through issue stage in order (in-order issue)

5. Overcome Data Hazards with Dynamic Scheduling • However, Dynamic execution creates WAR and WAW hazards and makes exceptions harder • Name dependence:when 2 instructions use same register or memory location, called a name, but no flow of data between the instructions associated with that name; • There are 2 versions of name dependence

6. I: sub r4,r1,r3 J: add r1,r2,r3 K: mul r6,r1,r7 WAR • InstrJ writes operand before InstrI reads it • If it caused a hazard in the pipeline, called a Write After Read (WAR) hazard

7. I: sub r1,r4,r3 J: add r1,r2,r3 K: mul r6,r1,r7 WAW • InstrJ writes operand before InstrI writes it. • If anti-dependence caused a hazard in the pipeline, called a Write After Write (WAW) hazard

8. Thread-level parallelism (TLP) • Thread: process with own instructions and data • thread may be a process part of a parallel program of multiple processes, or it may be an independent program • Each thread has all the state (instructions, data, PC, register state, and so on) necessary to allow it to execute • (Ch4: Data Level Parallelism: Perform identical operations on data, and lots of data)

9. New Approach: Mulithreaded Execution • Multithreading: multiple threads to share the functional units of 1 processor via overlapping • Processor must duplicate independent state of each thread e.g., a separate copy of register file, a separate PC, and for running independent programs, a separate page table

10. New Approach: Mulithreaded Execution • When switch? • Alternate instruction per thread (fine grain) • When a thread is stalled, perhaps for a cache miss, another thread can be executed (coarse grain)

11. Fine-Grained Multithreading • Switches between threads on each instruction, causing the execution of multiples threads to be interleaved • Usually done in a round-robin fashion, skipping any stalled threads • CPU must be able to switch threads every clock

12. Course-Grained Multithreading • Switches threads only on costly stalls, such as L2 cache misses • Advantages • Relieves need to have very fast thread-switching • Doesn’t slow down thread, since instructions from other threads issued only when the thread encounters a costly stall

13. Course-Grained Multithreading • Disadvantage is hard to overcome throughput losses from shorter stalls, due to pipeline start-up costs • Since CPU issues instructions from 1 thread, when a stall occurs, the pipeline must be emptied or frozen • New thread must fill pipeline before instructions can complete • Because of this start-up overhead, coarse-grained multithreading is better for reducing penalty of high cost stalls, where pipeline refill << stall time

14. Multithreaded Categories Thread 4 Thread 1 Thread 2 Thread 3 Thread 5

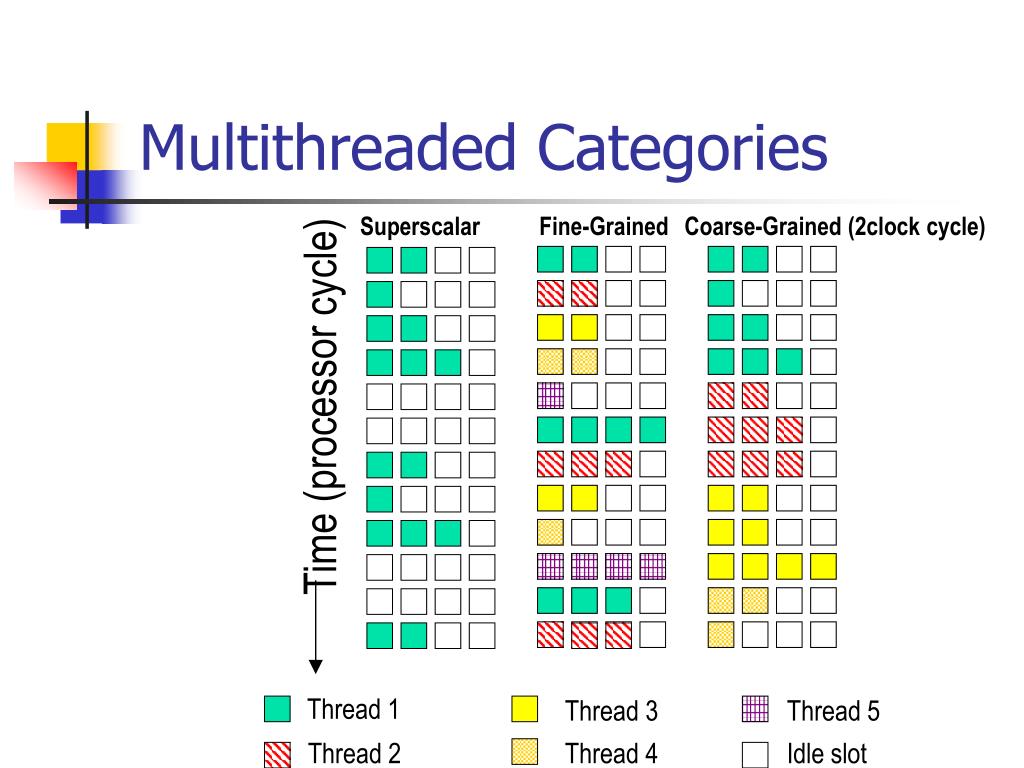

15. Multithreaded Categories Superscalar Fine-Grained Coarse-Grained (2clock cycle) Time (processor cycle) Thread 1 Thread 3 Thread 5 Thread 2 Thread 4 Idle slot

16. Flynn’s Taxonomy M.J. Flynn, "Very High-Speed Computers", Proc. of the IEEE, V 54, 1900-1909, Dec. 1966.

17. Back to Basics • “A parallel computer is a collection of processing elements that cooperate and communicate to solve large problems fast.” • Parallel Architecture = Computer Architecture + Communication Architecture • 2 classes of multiprocessors WRT memory: • Centralized Memory Multiprocessor • < few dozen processor chips Small enough to share single, centralized memory • Physically Distributed-Memory multiprocessor • Larger number chips and cores • BW demands  Memory distributed among processors

20. 2 Models for Communication and Memory Architecture • The first kind, communication occurs through a shared address space. • Centralized memory processor utilized this type of communication, named symmetric shared memory multiprocessors

21. 2 Models for Communication and Memory Architecture • The first kind, communication occurs through a shared address space • Even the physically separate memories can be addressed as on logically shared space • Meaning that the memory reference can be made by any processor to any memory location, (assume it has the access right) • These multiprocessors are called distributed shared memory (DSM)

22. 2 Models for Communication and Memory Architecture • Communication occurs through a shared address space (via loads and stores): shared memory multiprocessorseither • symmetric shared memory (centralized memory MP) • distributed shared memory (distributed memory MP) • Communication occurs by explicitly passing messages among the processors: message-passing multiprocessors, distributed memory MP

23. Multiprocessors Performance • Amdahl’s Law

24. 2 Classes of Cache Coherence Protocols • Snooping — Every cache with a copy of data also has a copy of sharing status of block, but no centralized state is kept • Directory based — Sharing status of a block of physical memory is kept in just one location, the directory

25. Snooping • Write through: the information is written to both the block in the cache and to the block in the lower-level memory • Write back: the information is only to the block in the cache. The modified cache block is written to main memory only when it is replaced or needed

26. Snooping (write back)

27. Snooping (write through)

28. Directory-Based Cache Coherence Protocols • To implement the operations, a directory must track the state of each cache block: • Shared (S): one or more processors have the block cached, and the value is up-to-date • Uncached (U): no processor has a copy of the cache block • Modified/Executed (E): exactly one processor has a copy of the cache block. The processor is called the owner of the block

29. Directory-based Protocol CPU 0 CPU 1 CPU 2 Interconnection Network Bit Vector X U 0 0 0 Directories X 7 Memories Caches

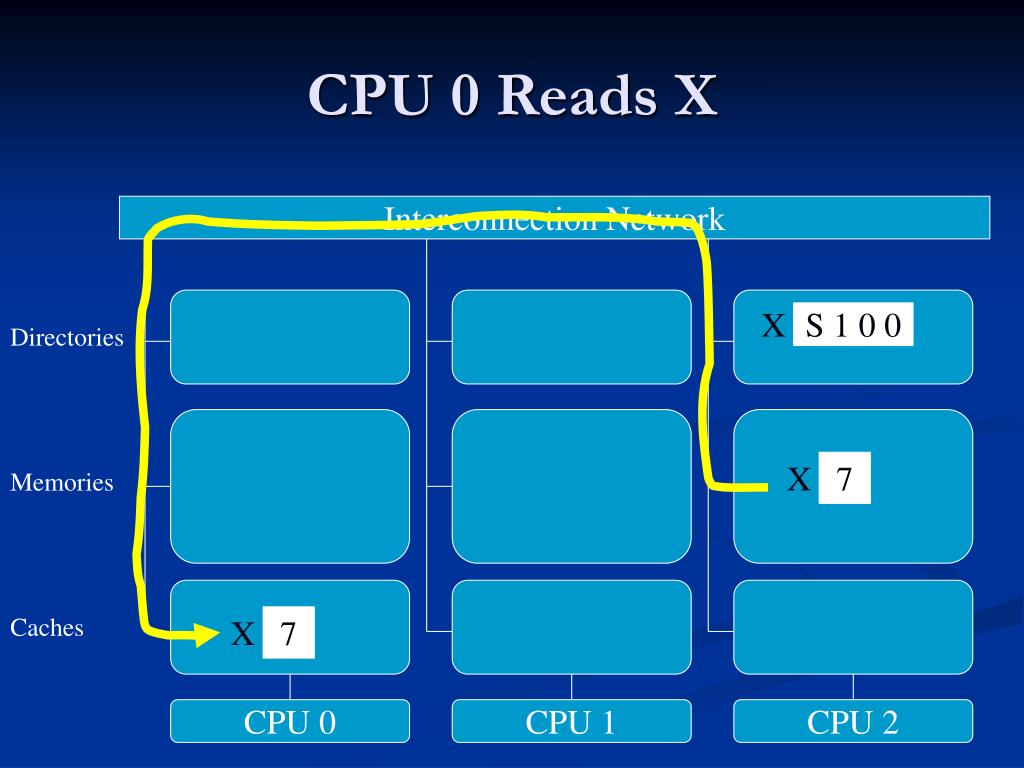

30. CPU 0 Reads X X X 7 7 CPU 0 CPU 1 CPU 2 Interconnection Network X S 1 0 0 Directories Memories Caches

31. CPU 2 Reads X X X X 7 7 7 CPU 0 CPU 1 CPU 2 Interconnection Network X S 1 0 1 Directories Memories Caches

32. CPU 0 Writes 6 to X X 7 CPU 0 CPU 1 CPU 2 Interconnection Network X E 1 0 0 Directories Memories Caches X 6

33. CPU 1 Reads X X X X 6 6 6 CPU 0 CPU 1 CPU 2 Interconnection Network X S 1 1 0 Directories Memories Caches

34. CPU 2 Writes 5 to X (Write back) X 6 CPU 0 CPU 1 CPU 2 Interconnection Network X E 0 0 1 Directories Memories X 5 Caches

35. CPU 0 Writes 4 to X X 5 CPU 0 CPU 1 CPU 2 Interconnection Network X E 1 0 0 Directories Memories Caches X 4

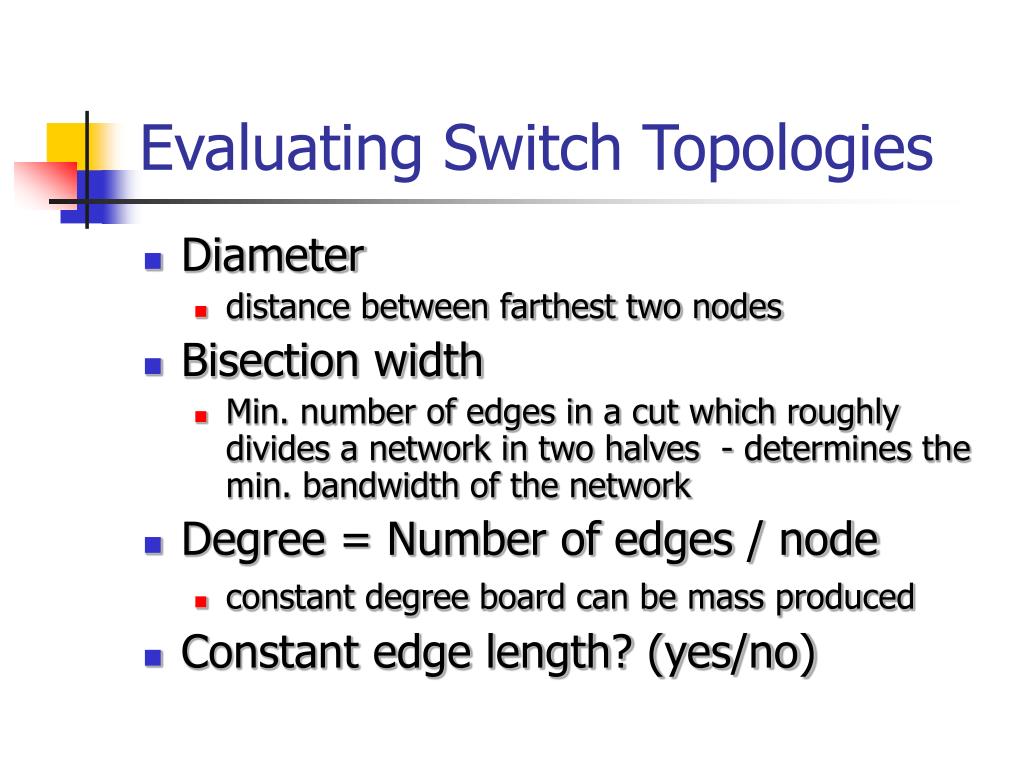

36. Evaluating Switch Topologies • Diameter • distance between farthest two nodes • Bisection width • Min. number of edges in a cut which roughly divides a network in two halves - determines the min. bandwidth of the network • Degree = Number of edges / node • constant degree board can be mass produced • Constant edge length? (yes/no)

37. 2-D Mesh Network

38. Binary Tree Network

39. Hypercube2 x 2 x … x 2 mesh

40. Hypercubes Illustrated

41. Butterfly Network
