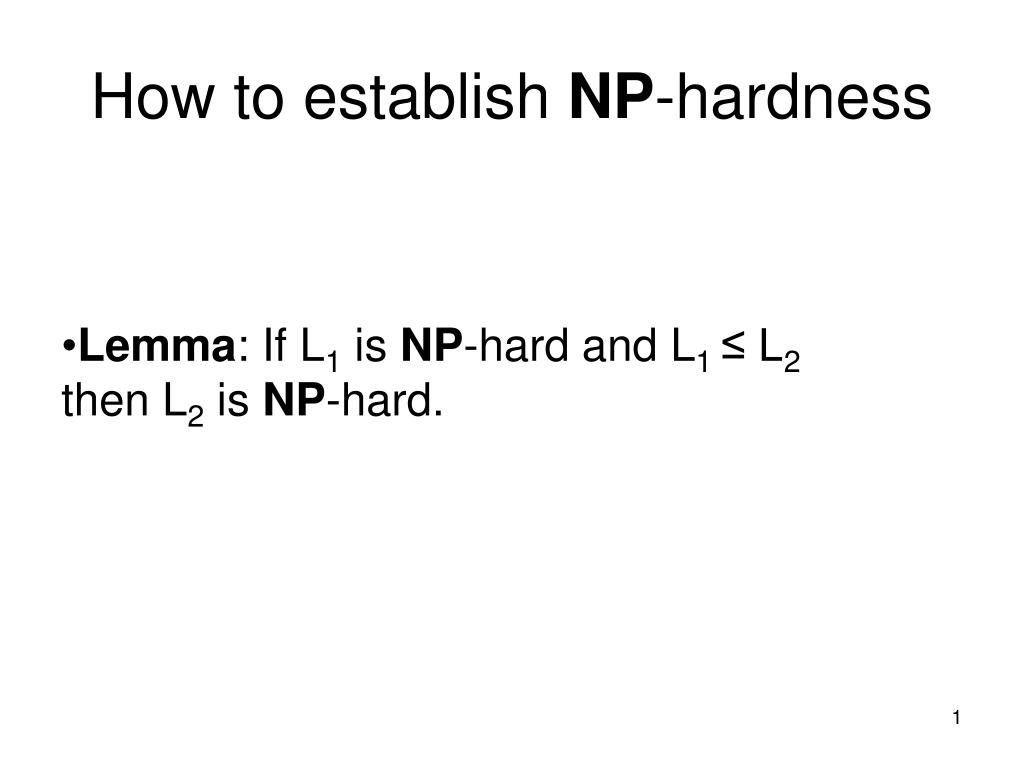

  1. How to establish NP-hardness Lemma: If L1 is NP-hard and L1 ≤ L2then L2 is NP-hard.

  2. SAT SAT is in NP. Cook’s theorem (1972): SAT is NP-hard.

  3. SAT SAT: Given a Boolean function in CNF representation, is there a way to assign truth values to the variables so that the function evaluates to true? SAT: Given a CNF, is it true that it does not represent the constant-0 function? Input: (¬x1∨ ¬x2) ∧ (x1∨ x2) Output: Yes. Input: (¬x1∨ ¬x2) ∧ (x1∨ x2) ∧ (x1∨ ¬x2 ) ∧ (¬x1∨ x2) Output: No.

  4. Cooks’ theorem: SAT is NP-hard Proof of Cook’s theorem: CIRCUIT SAT is NP-hard. CIRCUIT SAT reduces to SAT. Hence, SAT is NP-hard.

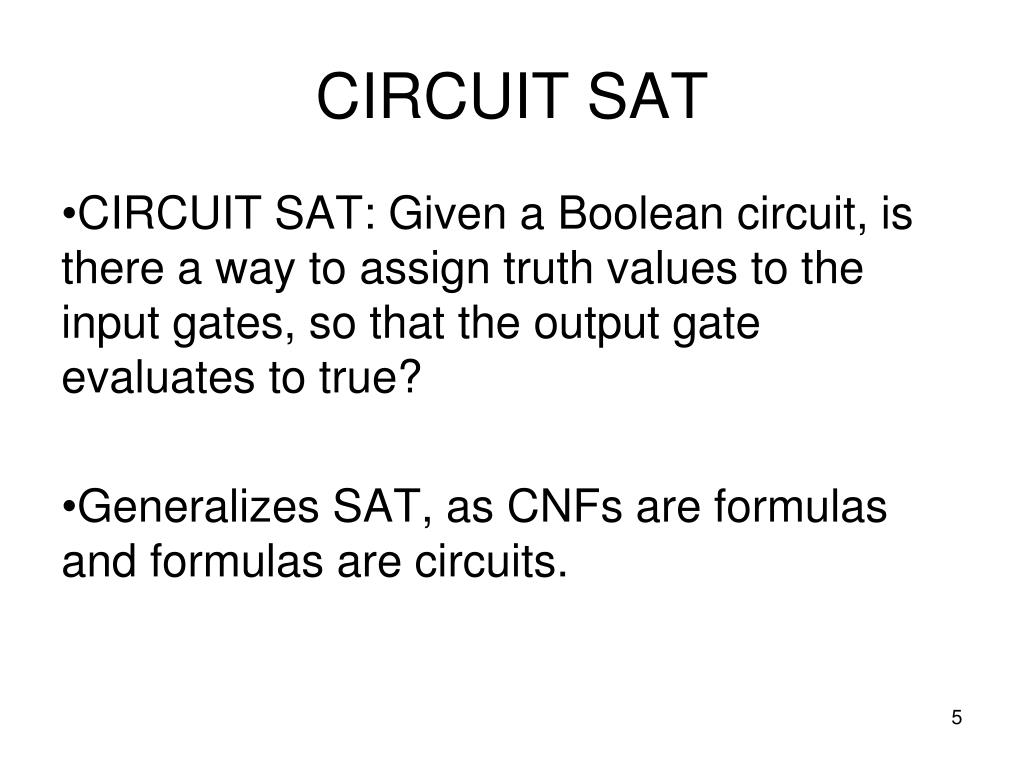

  5. CIRCUIT SAT CIRCUIT SAT: Given a Boolean circuit, is there a way to assign truth values to the input gates, so that the output gate evaluates to true? Generalizes SAT, as CNFs are formulas and formulas are circuits.

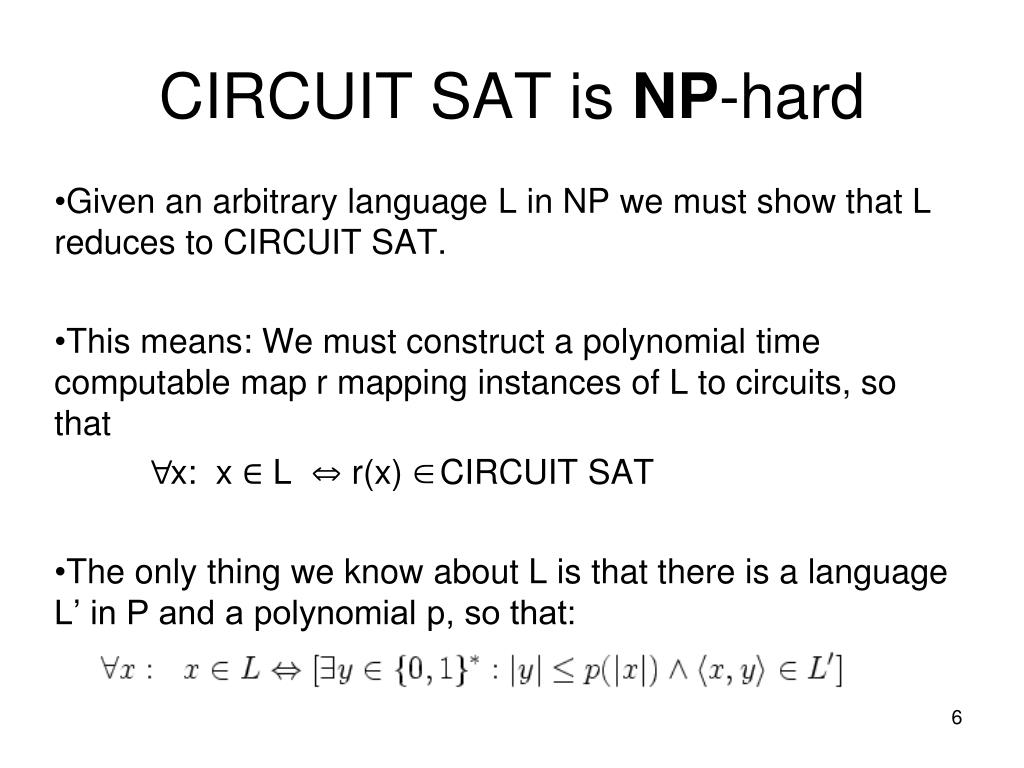

  6. CIRCUIT SAT is NP-hard Given an arbitrary language L in NP we must show that L reduces to CIRCUIT SAT. This means: We must construct a polynomial time computable map r mapping instances of L to circuits, so that ∀x: x ∈ L ⇔ r(x) ∈ CIRCUIT SAT The only thing we know about L is that there is a language L’ in P and a polynomial p, so that:

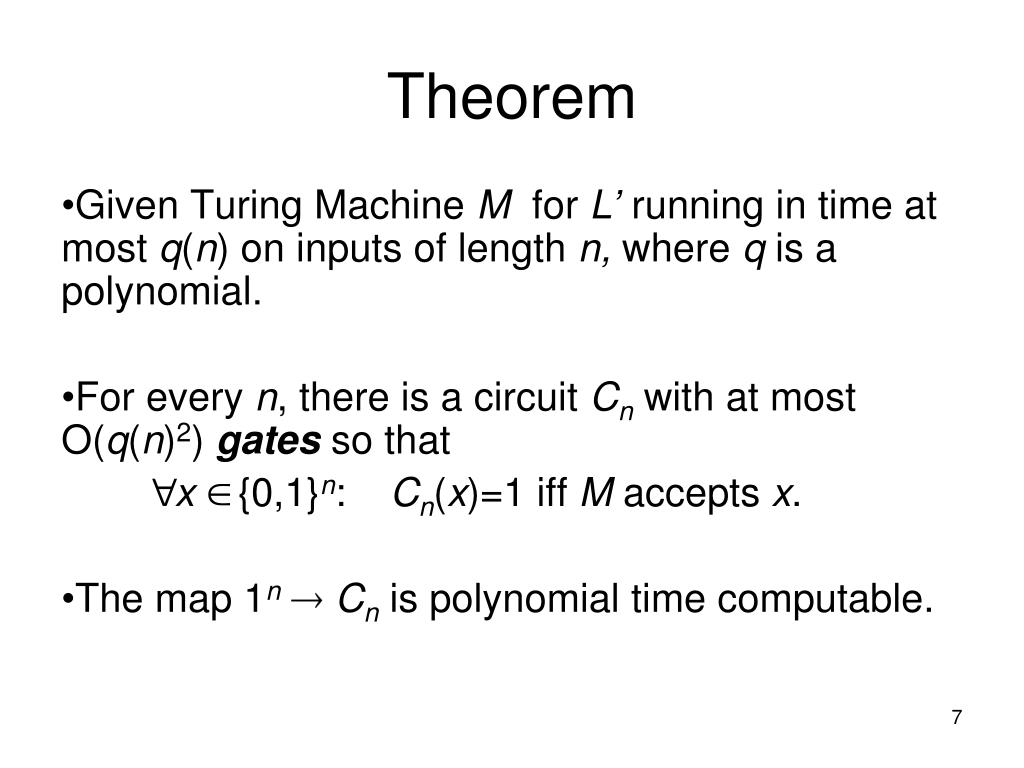

  7. Theorem Given Turing Machine M for L’ running in time at most q(n) on inputs of length n, where q is a polynomial. For every n, there is a circuit Cn with at most O(q(n)2) gates so that ∀x∈ {0,1}n: Cn(x)=1 iffM accepts x. The map 1nCn is polynomial time computable.

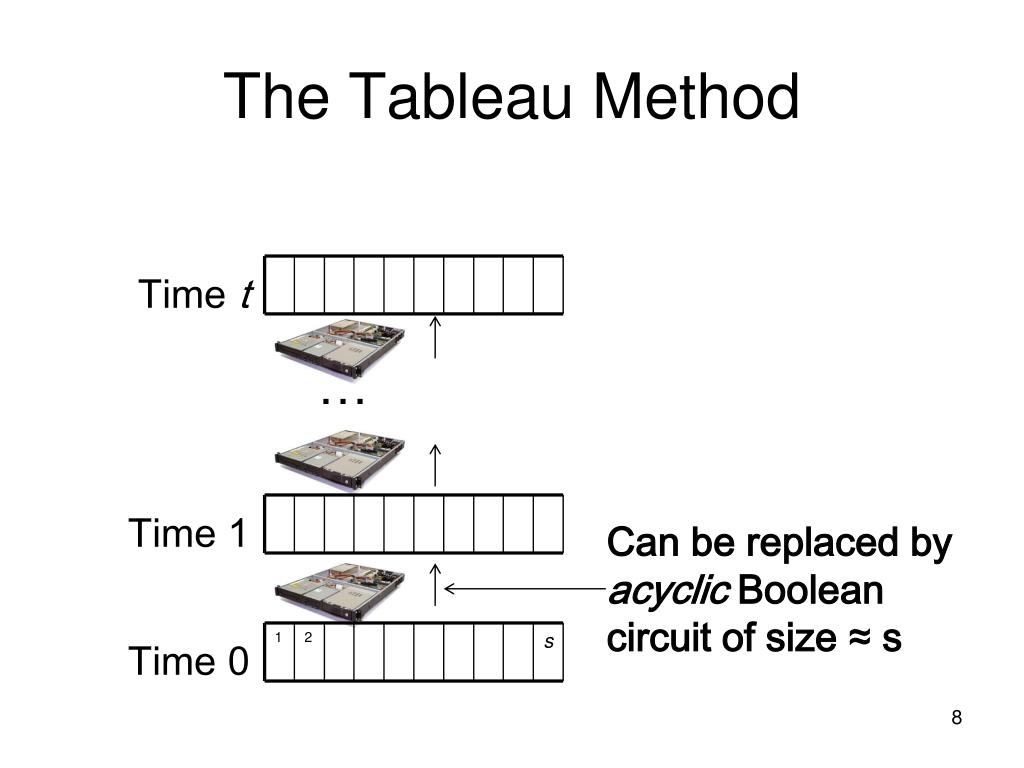

  8. The Tableau Method Time t … Time 1 Can be replaced by acyclic Boolean circuit of size ≈ s 1 2 s Time 0

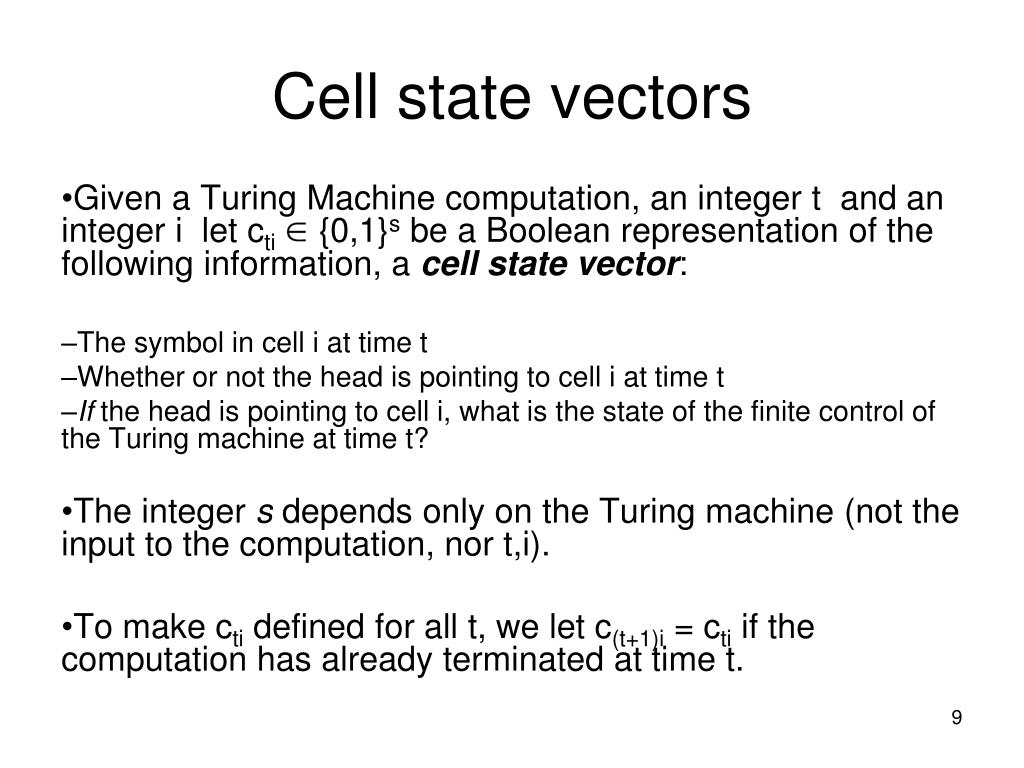

  9. Cell state vectors Given a Turing Machine computation, an integer t and an integer i let cti {0,1}s be a Boolean representation of the following information, a cell state vector: The symbol in cell i at time t Whether or not the head is pointing to cell i at time t If the head is pointing to cell i, what is the state of the finite control of the Turing machine at time t? The integer s depends only on the Turing machine (not the input to the computation, nor t,i). To make cti defined for all t, we let c(t+1)i = cti if the computation has already terminated at time t.

  10. Crucial Observation If we know the Turing machine and ct-1,i-1, ct-1,i, ct-1, i+1, we also can determine ct,i. In other words, there is a Boolean function h depending only on the Turing machine so that ct,i = h(ct-1,i-1, ct-1,i, ct-1,i+1). A circuit D for h is the central building block in a circuit computing all cell state vectors for all times for a given input.

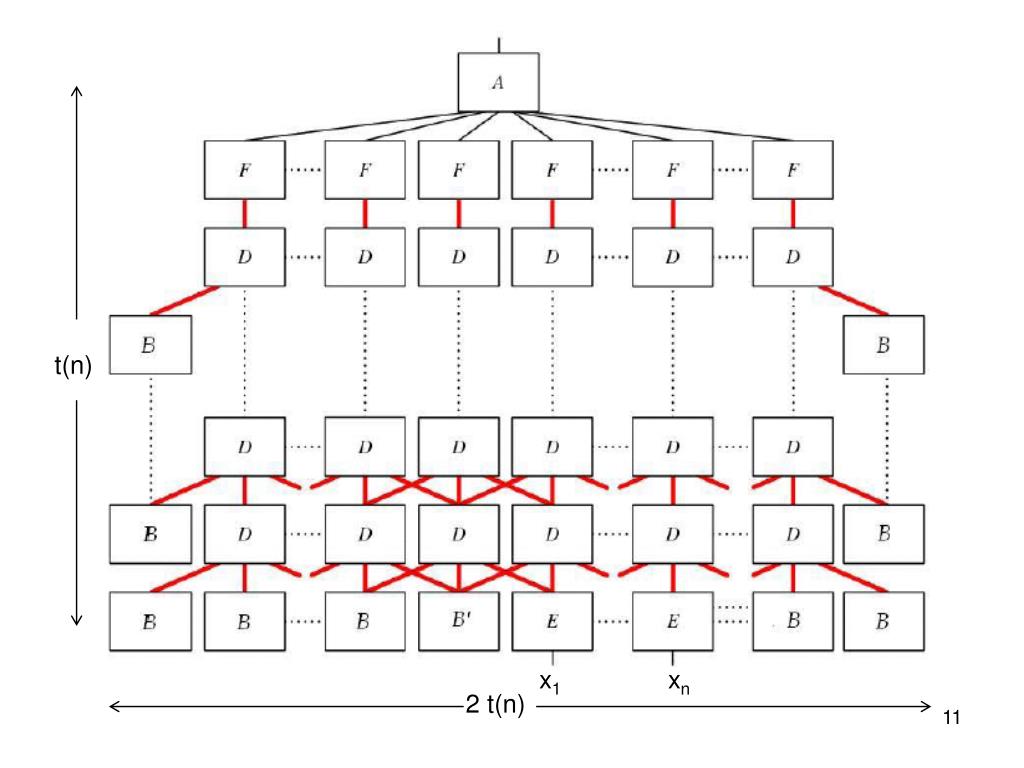

  11. t(n) x1 xn 2 t(n)

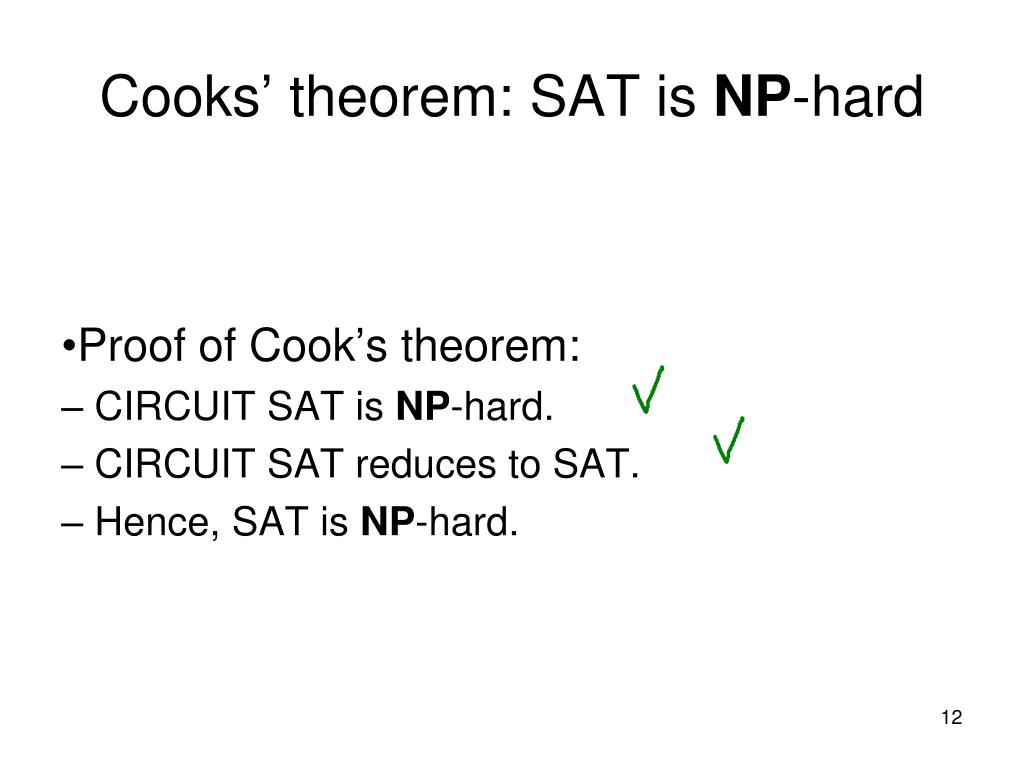

  12. Cooks’ theorem: SAT is NP-hard Proof of Cook’s theorem: CIRCUIT SAT is NP-hard. CIRCUIT SAT reduces to SAT. Hence, SAT is NP-hard.

  13. TSP HAMILTONIAN CYCLE MIN VERTEX COLORING SAT MAX INDEPENDENT SET SET COVER ILP MILP KNAPSACK TRIPARTITE MATCHING BINPACKING

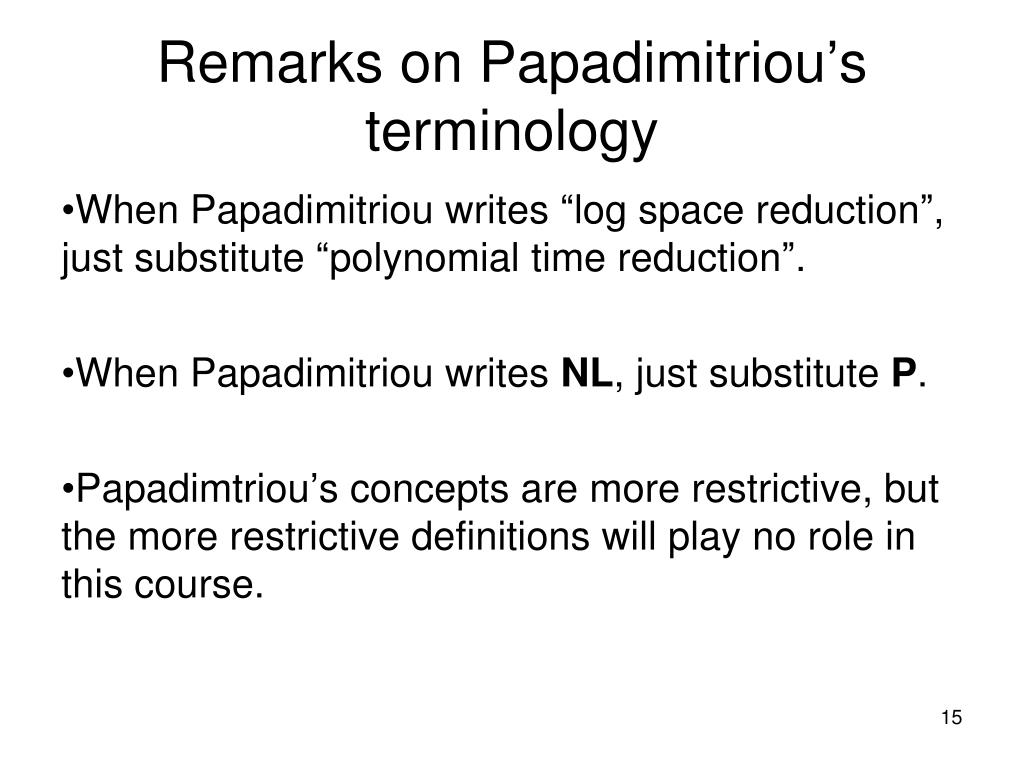

  14. Remarks on Papadimitriou’s terminology When Papadimitriou writes “log space reduction”, just substitute “polynomial time reduction”. When Papadimitriou writes NL, just substitute P. Papadimtriou’s concepts are more restrictive, but the more restrictive definitions will play no role in this course.
