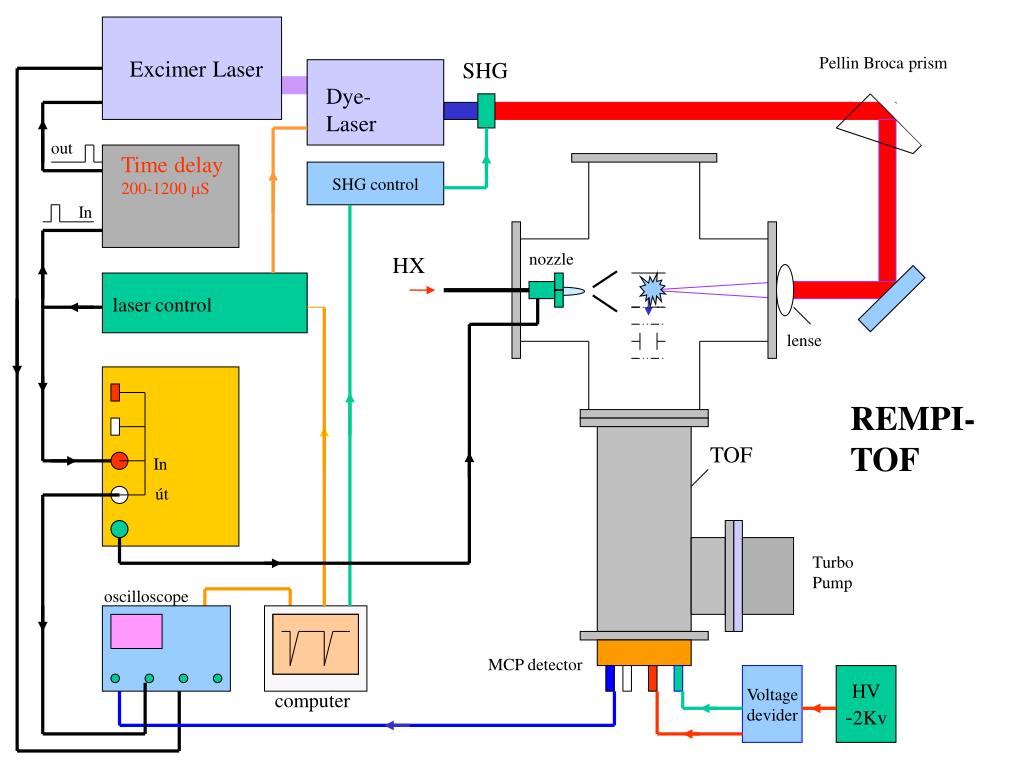

Excimer Laser. Pellin Broca prism. SHG. Dye- Laser. out. Time delay 200-1200 m S. SHG control. In. HX. laser control. In. út. oscilloscope. computer. nozzle. lense. REMPI-TOF. TOF. Turbo Pump. MCP detector. Voltage devider. HV - 2Kv. LASER radiation of C 2 H 2. Ion

ronny
Télécharger la présentation

out

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Excimer Laser Pellin Broca prism SHG Dye- Laser out Time delay 200-1200 mS SHG control In HX laser control In út oscilloscope computer nozzle lense REMPI-TOF TOF Turbo Pump MCP detector Voltage devider HV -2Kv

  2. LASER radiation of C2H2 Ion yield C2H2+ C+ C2+ H+ Magn jóna C2H+ CH+ CH2+ Mw Time of flight

  3. HCCH*: Orka HCCH:

  4. + + C2 C2 H2 Orka HCCH*:

  5. Orka HCCH*:

  6. C CH2 Orka HCCH*:

  7. LASER radiation of C2H2 Ion yield C2H2+ C+ C2+ H+ Magn jóna CH+ C2H+ CH2+ Mw Time of flight

  8. Big Organic molecules Interstellar space C2H2 ??? : Life(?)

  9. Interstellar space C2H2 ??? C CH2 C2 Big Organic molecules : Life(?)

  10. 2 AB+ + e AB** 1xhn 2xhn 3xhn nxhn AB E REMPI = Resonance Enhanced MultiPhoton Ionization Resonance excitation to high energy states of neutral species, followed by photon ionization; For example:

  11. Intensity Mass spectrum RCl = HCl H35Cl+ H+ Two photon resonance excitation= 82842.36 cm-1 35Cl+ H37Cl+ 12C+ 1 12 35 Mw

  12. H+ H35Cl+ 35Cl+ H37Cl+ Two photon excitation / cm-1 Ion yield REMPI- spectrum Mw / rel. cm-1

  13. 35Cl+ H35Cl+ 37Cl+ Mw H37Cl+ 2xhv H35Cl+ H37Cl+ 35Cl+ /cm-1 Mw / rel.

  14. H37Cl+ 2xhv 37Cl+ /cm-1 H35Cl+ 35Cl+ Mw /amu H+

  15. 2xhv/cm-1 H35Cl+ H37Cl+ H+ 35Cl+ 37Cl+ Mw/amu

  16. (4) H+ + Cl H+ Cl+ (ii) (v) (vi) number of photons: HCl+ (3) H+ Cl* H*+Cl (iii) (iv) (i) (2) HCl* H+Cl- (2) (1)
