  1. THE COMPANY CG TEC manages the business area Rescue, Protection and Security which is responsible for the development, production and marketing of security products for commercial and military applications.

  2. Portable and Rapid Use Because the CG Power Cutter is a portable, lightweight hand tool it is easy to reach awkard positions in emergency situations: • Rescue situations in rough terrain • Collapsed buildings The CG Power Cutter is easy to store in vehicles, boats, helicopters and carry hands free. No External Power Source The CG Power Cutter’s high cutting effect is generated by a powder-driven power unit. 2

  3. Kinetic Energy By using kinetic energy the CG Power Cutter cuts objects that can be difficult to cut with static energy equipment: • Electric cable approx. 90 mm • Steel wire approx. 60 mm • Seamless tube approx. 60 mm, wall 8 mm • Reinforcing bar approx. 30 mm • Car posts, steering columns, pedals • Chains, padlocks The CG Power Cutter is a life saving tool for rescue teams in both civilian and military environments. 3

  4. Data Certified • Length 650 mm 25” • Width 156 mm 6” • Weight 6.2 kg 13 lb • Cutting gap 90 mm 31/2” • European CE-machinery Directive 89/392/EEC • TÜV and GS Regulations • PTB CIP Certified • NATO Stock Number The CG Power Cutter with its Power Units has been tested and approved for transport worldwide by air, rail, road and sea. The Power Unit is classified in the division 1.4 S with the UN No. 0323. The CG Power Cutter is developed and manufactured by Saab Bofors Dynamics AB within ISO 9001 and ISO 14001 regulations. 4

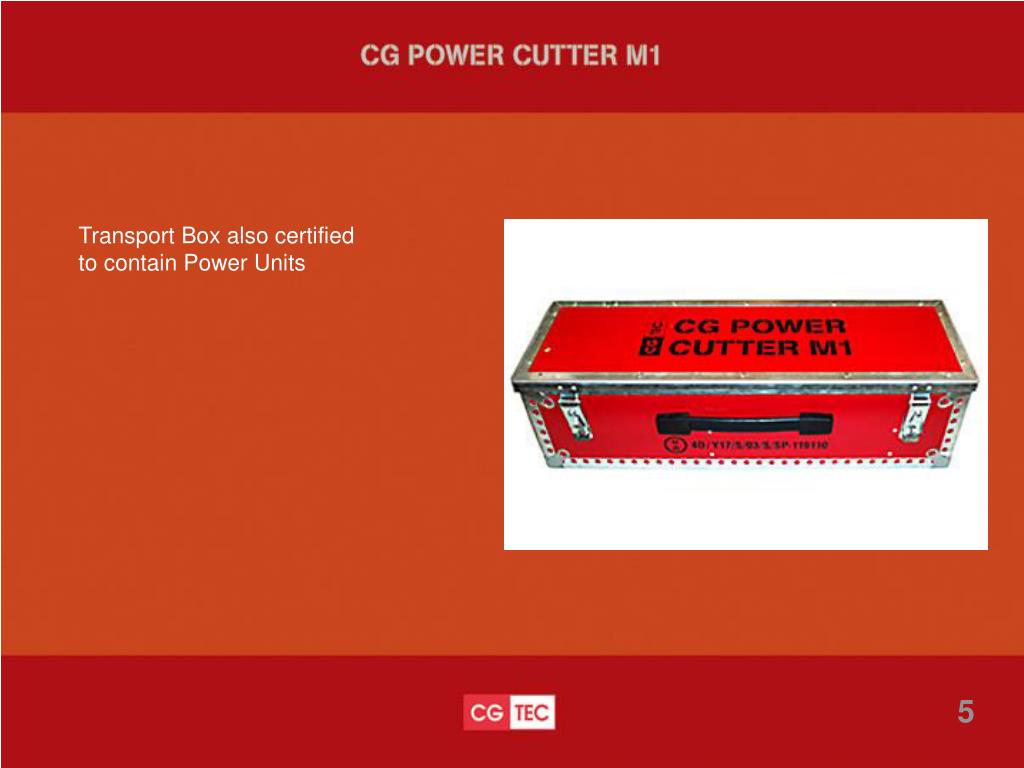

  5. Transport Box also certified to contain Power Units 5

  6. CG Power Cutter M1 Maintenance Tools  Operator Manual  Lubrication Oil (Break Free CLP) Loctite 243 6

  7. CG Power Cutter M1 Front Part and Mechanism 7

  8.  Front Part dismantled 8

  9.  Mechanism dismantled 9

  10.  Safety Kit. OPTIONALCan be stored in the transport box 10

  11. Piston Kit. One Kit contains: Front Piston   3 pcs O-ring 10 pcs O-ring 10 pcs Rear Piston   3 pcs Piston Ring   6 pcs 11

  12. Damper Kit. One Kit contains: O-ring 2 pcs External Damper 2 pcs Internal Damper 5 pcs Rear Damper 2 pcs 12

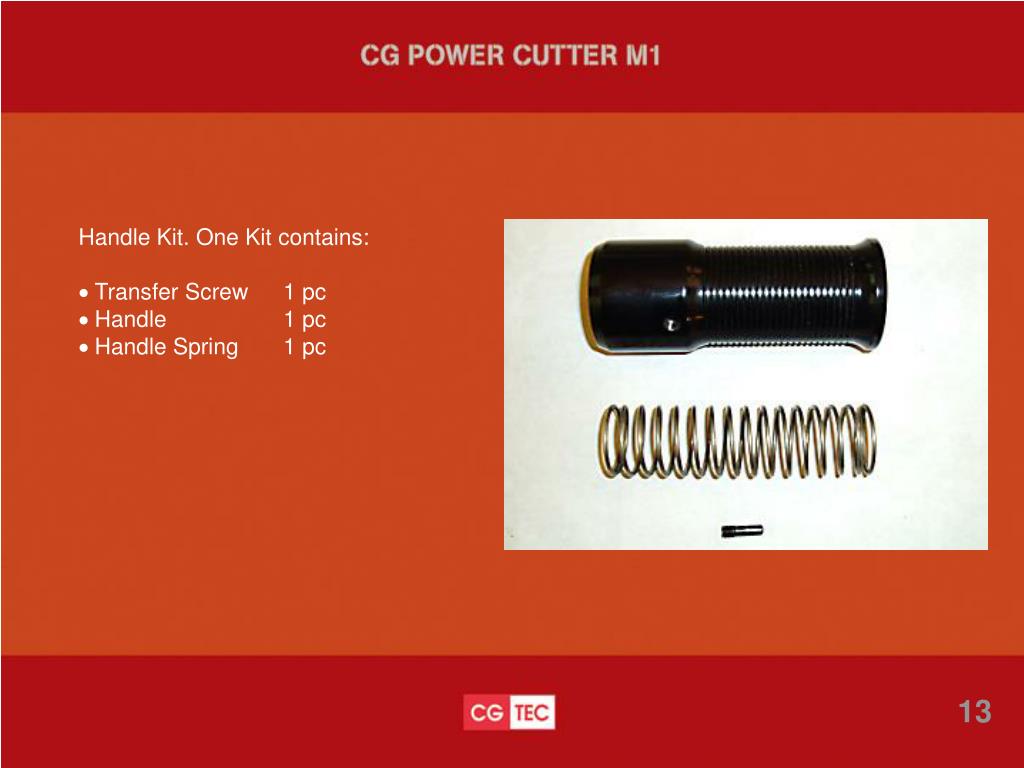

  13. Handle Kit. One Kit contains: Transfer Screw 1 pc Handle 1 pc Handle Spring 1 pc 13

  14. Trigger Kit. One Kit contains: Trigger Spring 5 pcs Trigger Sprint 5 pcs Trigger 5 pcs Snap Catch Spring  5 pcs Snap Catch Ball   10 pcs Fastening Screw  20 pcs 14

  15. Fastening Kit. One Kit contains: Front Locking Screw 10 pcs Rear Locking Screw 10 pcs Screw    3 pcs Nut  3 pcs Fastening Screw 40 pcs Transfer Screw 10 pcs 15

  16. Holder Components. One Kit contains:One complete Holder 16

  17. Ignition Piston.One Kit contains:One complete Ignition Piston 17

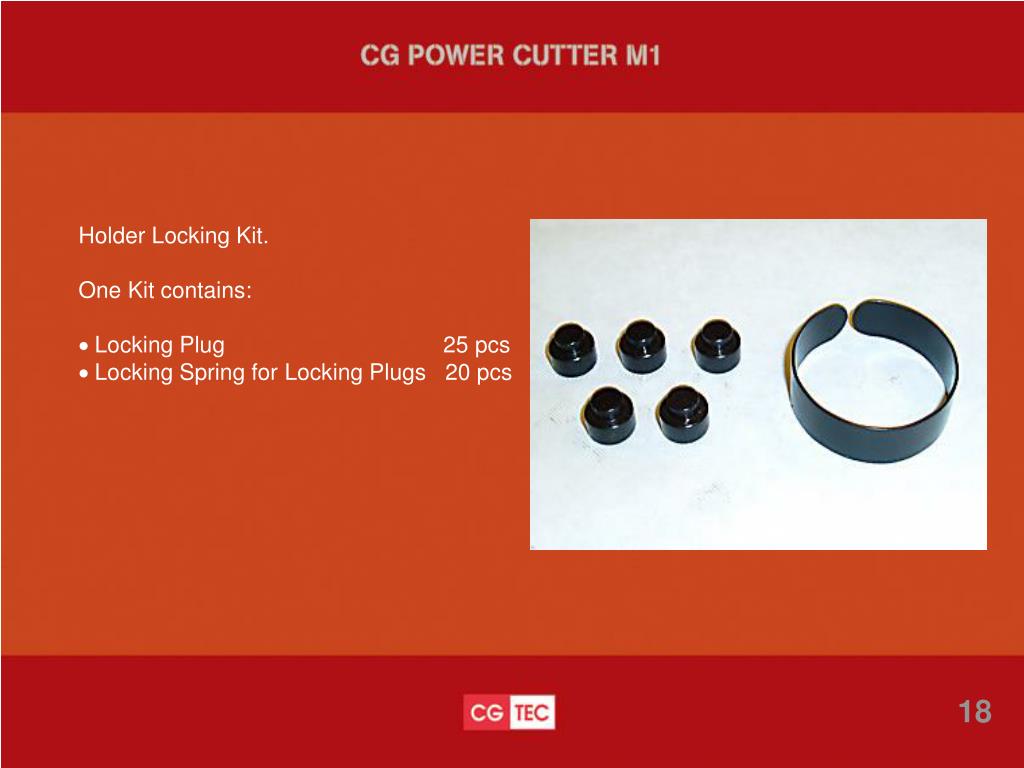

  18. Holder Locking Kit.One Kit contains: Locking Plug 25 pcs Locking Spring for Locking Plugs 20 pcs 18

  19. Single Spare Parts Cutting Blade Locking Ring Jaw Washer Aft Closure Guiding Sleeve Cover Handle Nut 19

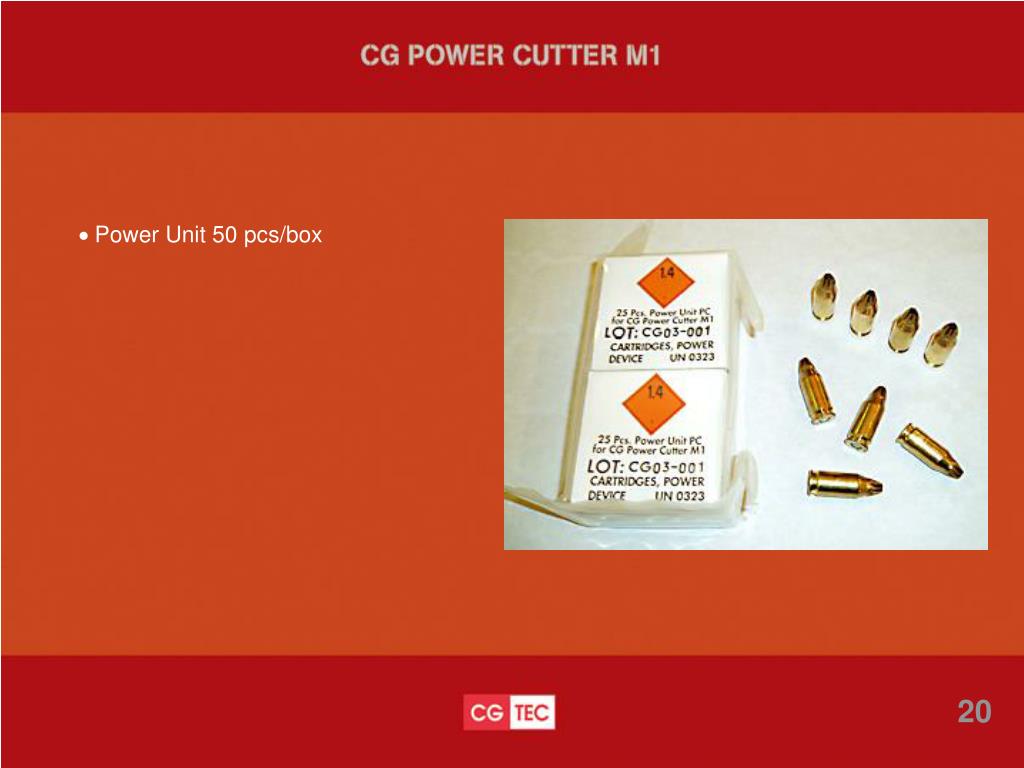

  20.  Power Unit 50 pcs/box 20

  21. Classified Transport Container for Power Unit for maximum 20 boxes 21

  22. Spare Parts List Holder compl. assy 0 906 512Catch (28) 1 pcsCatch spring (29) 1 pcsHolder (30) 1 pcsCatch pin (32) 1 pcsCatch spring pin (33) 1 pcsLocking plug (31) 5 pcsSpring for locking plugs (46) 1 pcsIgnition piston assy 0 906 514Ignition pin (36) 1 pcsSleeve (37) 1 pcsSpring (38) 1 pcsIgnition piston (39) 1 pcsLocking pin (40) 1 pcsStopper (41) 1 pcsPiston spring (43) 1 pcsSingle spare partsCutting blade (1) No. 906 506Locking ring (2) No. 906 518Jaw (5) No. 906 519Washer (6) No. 906 513Aft closure (19) No. 906 520Guiding sleeve (20) No. 906 521Cover (24) No. 906 522Handle nut (45) No. 906 524Holder locking kit 906 547Locking plug (31) 25 pcsSpring, locking plug (46) 20 pcsPlease note! Cylinder (8) and chamber housing (16) are not available as spare parts Piston kit 0 906 507Front piston (9) 3pcsO-ring (11) 10 pcsO-ring (14) 10 pcsRear piston (12) 3 pcsPiston ring (13) 6 pcsDamper kit 0 906 508O-ring (4) 2 pcsExternal damper (7) 2 pcsInternal damper (10) 5 pcsRear damper (42) 2 pcsHandle kit 0 906 509Transfer screw (34) 1 pcsHandle (35) 1 pcsHandle spring (44) 1 pcsTrigger kit 906 510Trigger spring (21) 5 pcsTrigger sprint (22) 5 pcsTrigger (25) 5 pcsSnap catch spring (26) 5 pcsSnap catch ball (27) 10 pcsFastening screw (23) 20 pcsFastening kit 906 511Front locking screw (3) 10 pcsRear locking screw (15) 10 pcsDriver screw (17) 3 pcsNut (18) 3 pcsFastening screw (23) 40 pcsTransfer screw (34) 10 pcsThe operator is entitled toreplace all the above components.
