Environmental Time Functions & Segment Parameters

roshaun avatar
roshaun
17 diapositives · 492 Views · Aug 31, 2012

Environmental Time Functions & Segment Parameters. Environmental Time Functions. Varies Conditions over Simulation Period Environmental properties with multiple time functions: Temperature Water velocity Light extinction Time Functions can have their own intervals. Segment Parameters.

Environmental Time Functions & Segment Parameters - slide 1
01 / 17Environmental Time Functions & Segment Parameters
1 / 17

Télécharger la présentation

Environmental Time Functions & Segment Parameters
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Environmental Time Functions&Segment Parameters

  2. Environmental Time Functions • Varies Conditions over Simulation Period • Environmental properties with multiple time functions: • Temperature • Water velocity • Light extinction • Time Functions can have their own intervals

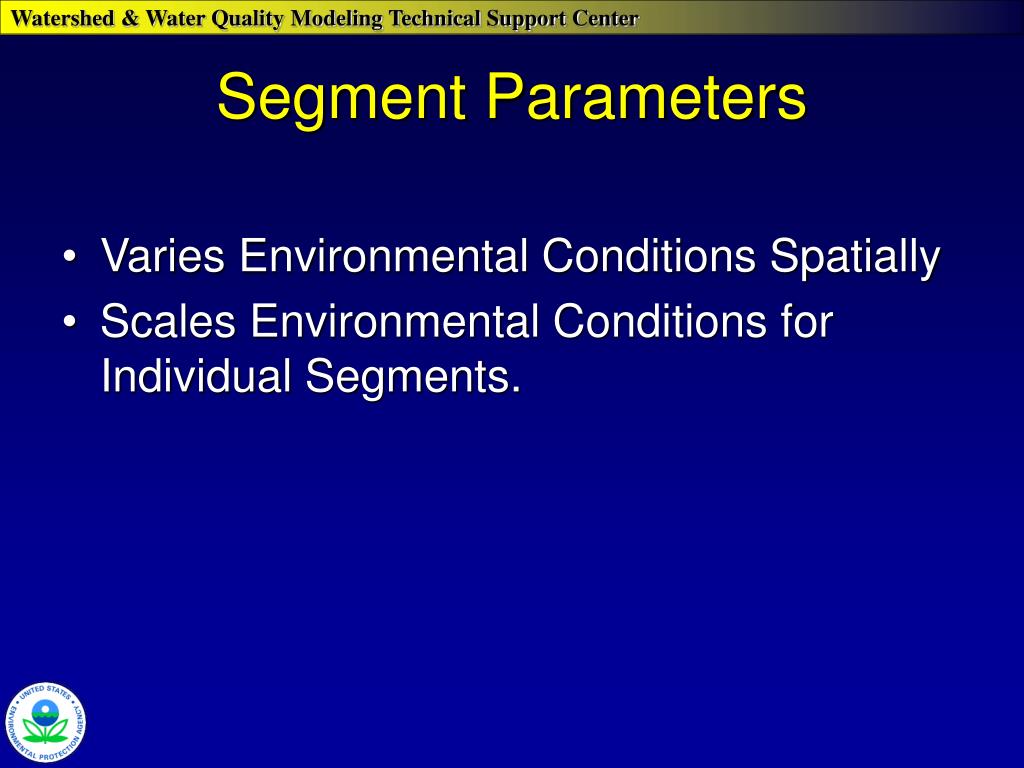

  3. Segment Parameters • Varies Environmental Conditions Spatially • Scales Environmental Conditions for Individual Segments.

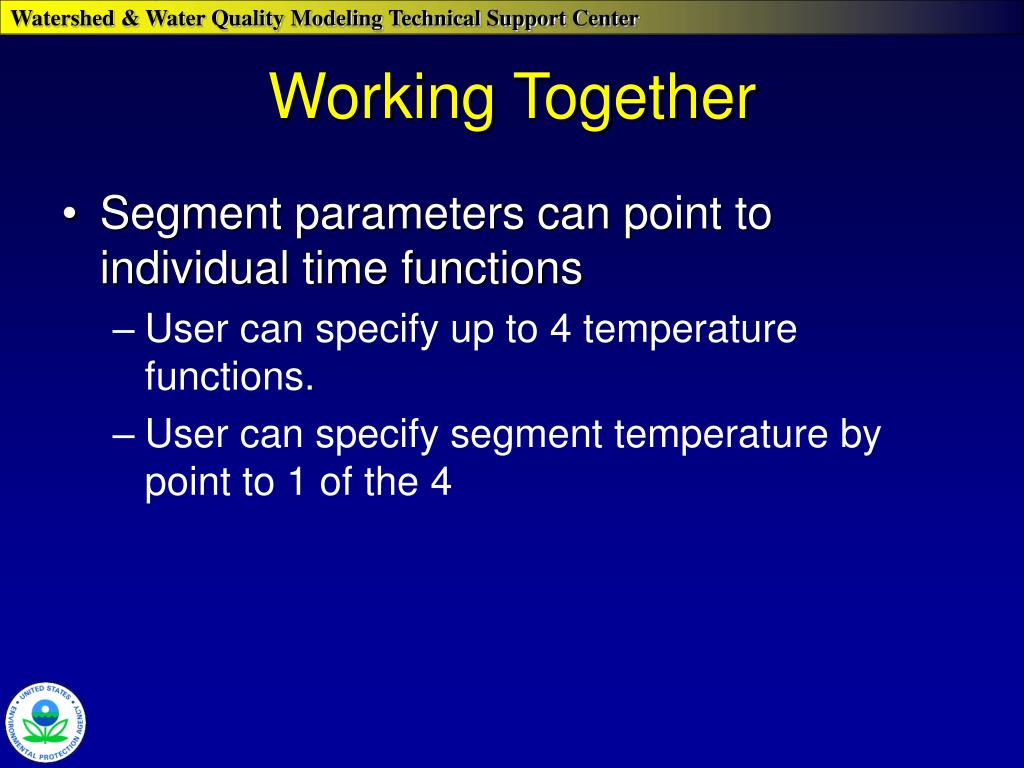

  4. Working Together • Segment parameters can point to individual time functions • User can specify up to 4 temperature functions. • User can specify segment temperature by point to 1 of the 4

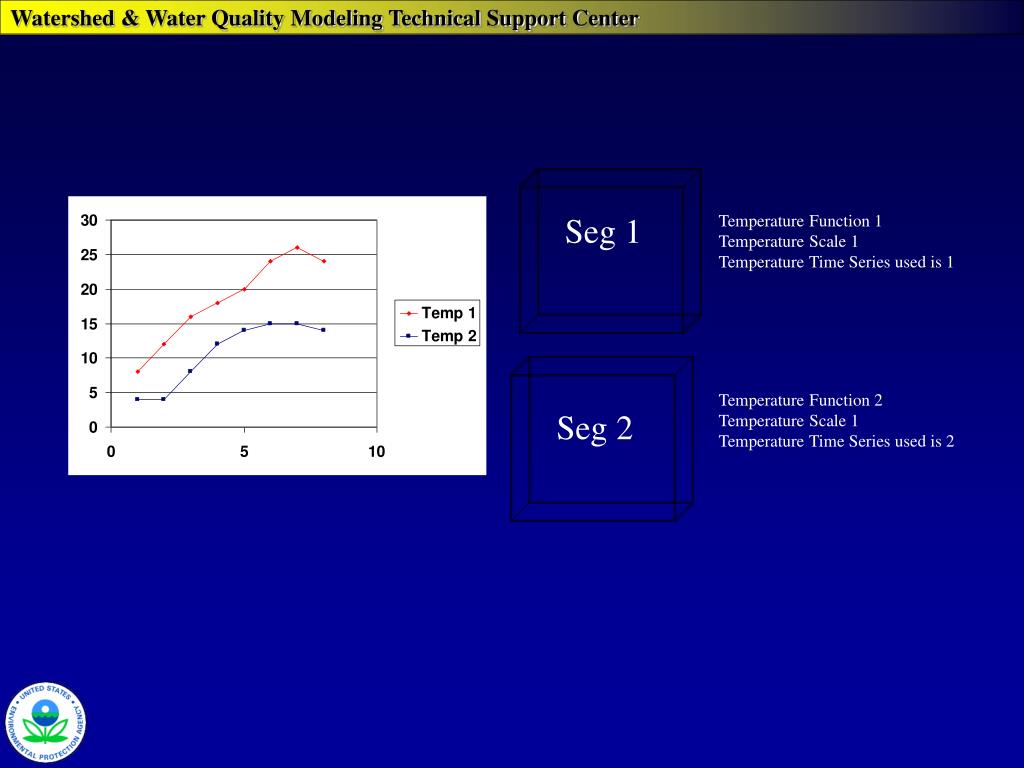

  5. Seg 1 Temperature Function 1 Temperature Scale 1 Temperature Time Series used is 1 Temperature Function 2 Temperature Scale 1 Temperature Time Series used is 2 Seg 2

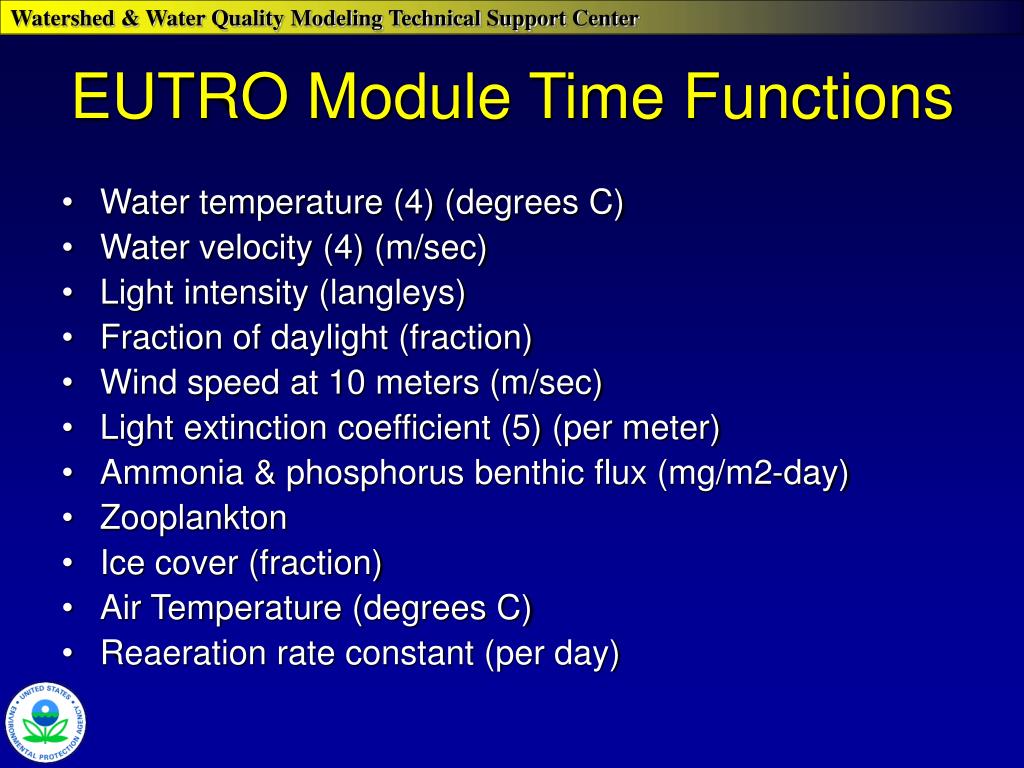

  6. EUTRO Module Time Functions • Water temperature (4) (degrees C) • Water velocity (4) (m/sec) • Light intensity (langleys) • Fraction of daylight (fraction) • Wind speed at 10 meters (m/sec) • Light extinction coefficient (5) (per meter) • Ammonia & phosphorus benthic flux (mg/m2-day) • Zooplankton • Ice cover (fraction) • Air Temperature (degrees C) • Reaeration rate constant (per day)

  7. EUTRO Module Segment Parameters • Water velocity time function pointer • Water temperature (time function pointer and multiplier) • Reaeration rate multiplier • Incoming solar radiation multiplier • Light extinction (time function pointer and multiplier) • Fraction of light intercepted by canopy (fraction) • Ammonia & phosphorus flux multipliers • Sediment oxygen demand, SOD (g/m2-day) • SOD temperature correction factor • Zooplankton

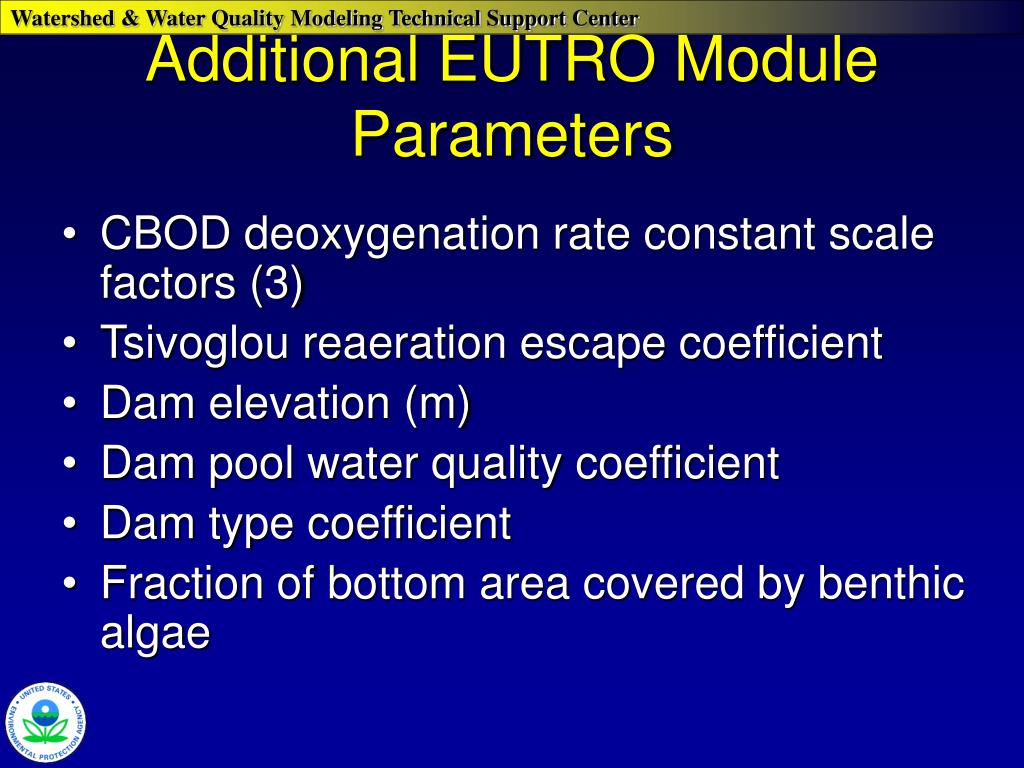

  8. Additional EUTRO Module Parameters • CBOD deoxygenation rate constant scale factors (3) • Tsivoglou reaeration escape coefficient • Dam elevation (m) • Dam pool water quality coefficient • Dam type coefficient • Fraction of bottom area covered by benthic algae

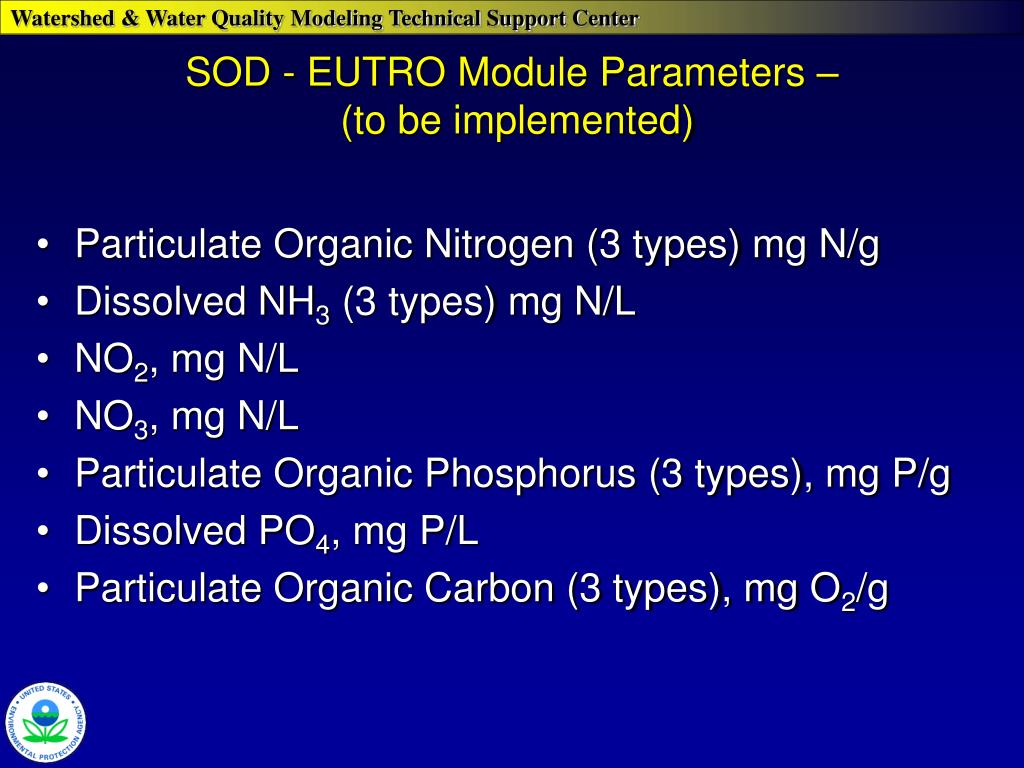

  9. SOD - EUTRO Module Parameters – (to be implemented) • Particulate Organic Nitrogen (3 types) mg N/g • Dissolved NH3 (3 types) mg N/L • NO2, mg N/L • NO3, mg N/L • Particulate Organic Phosphorus (3 types), mg P/g • Dissolved PO4, mg P/L • Particulate Organic Carbon (3 types), mg O2/g

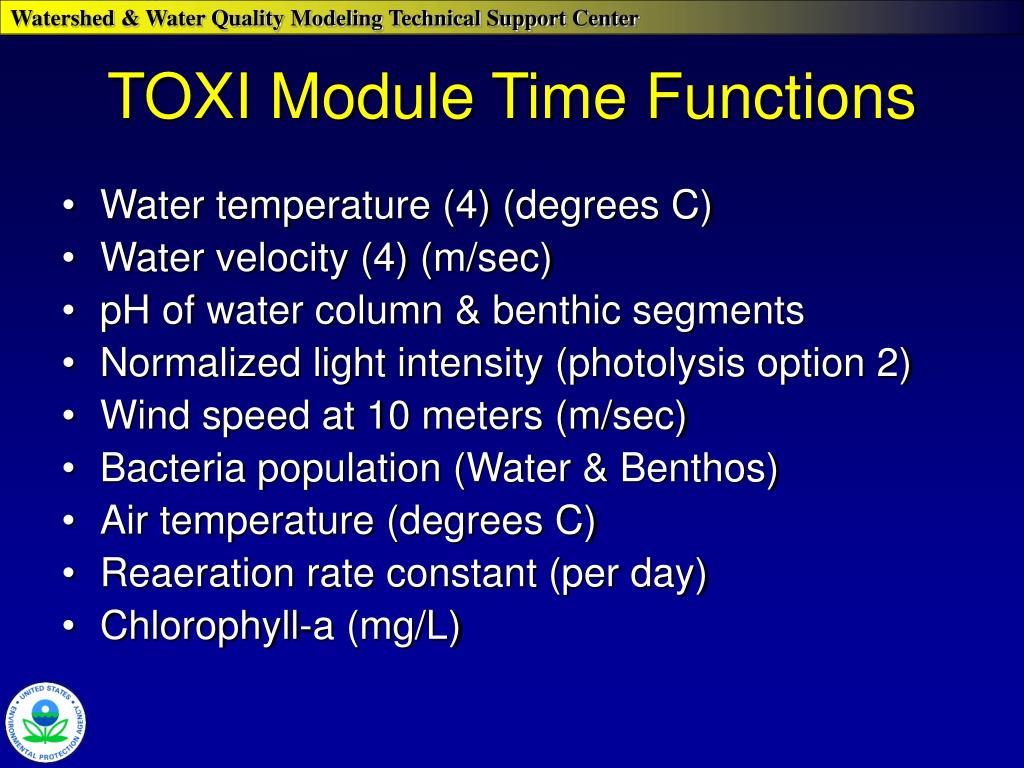

  10. TOXI Module Time Functions • Water temperature (4) (degrees C) • Water velocity (4) (m/sec) • pH of water column & benthic segments • Normalized light intensity (photolysis option 2) • Wind speed at 10 meters (m/sec) • Bacteria population (Water & Benthos) • Air temperature (degrees C) • Reaeration rate constant (per day) • Chlorophyll-a (mg/L)

  11. TOXI Module Segment Parameters • Water velocity time function pointer • Water temperature (time function pointer and multiplier) • Wind speed multiplier • Reaeration rate multiplier • Dissolved organic carbon, DOC (mg/L) • Fraction organic carbon for solids 1, 2, 3 (fraction) • Chlorophyll a concentration (mg/L) • pH • Light extinction coefficient (per meter) • Oxidative radical concentration (moles/L) • Bacteria Population (cells/100 mL) • Extra environmental property • Overall decay rate constant for chemicals 1, 2, 3 (per day)

  12. MERC Module Time Functions • Water temperature (4) (degrees C) • Normalized light intensity (photolysis option 2) • Wind speed at 10 meters (m/sec)

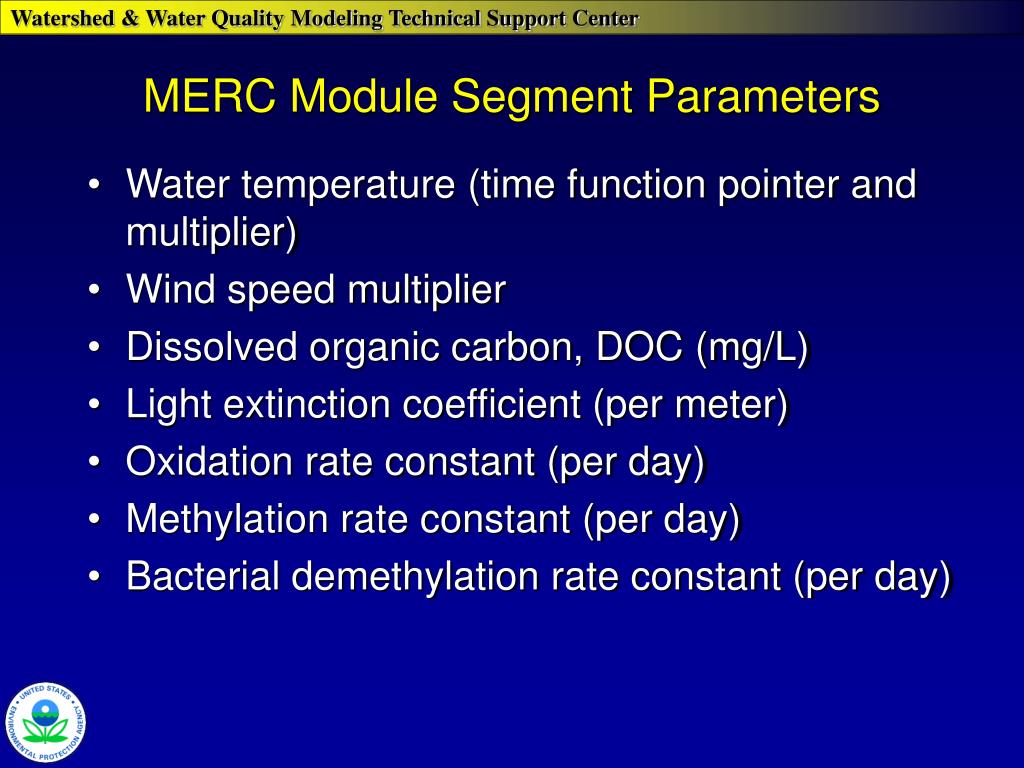

  13. MERC Module Segment Parameters • Water temperature (time function pointer and multiplier) • Wind speed multiplier • Dissolved organic carbon, DOC (mg/L) • Light extinction coefficient (per meter) • Oxidation rate constant (per day) • Methylation rate constant (per day) • Bacterial demethylation rate constant (per day)

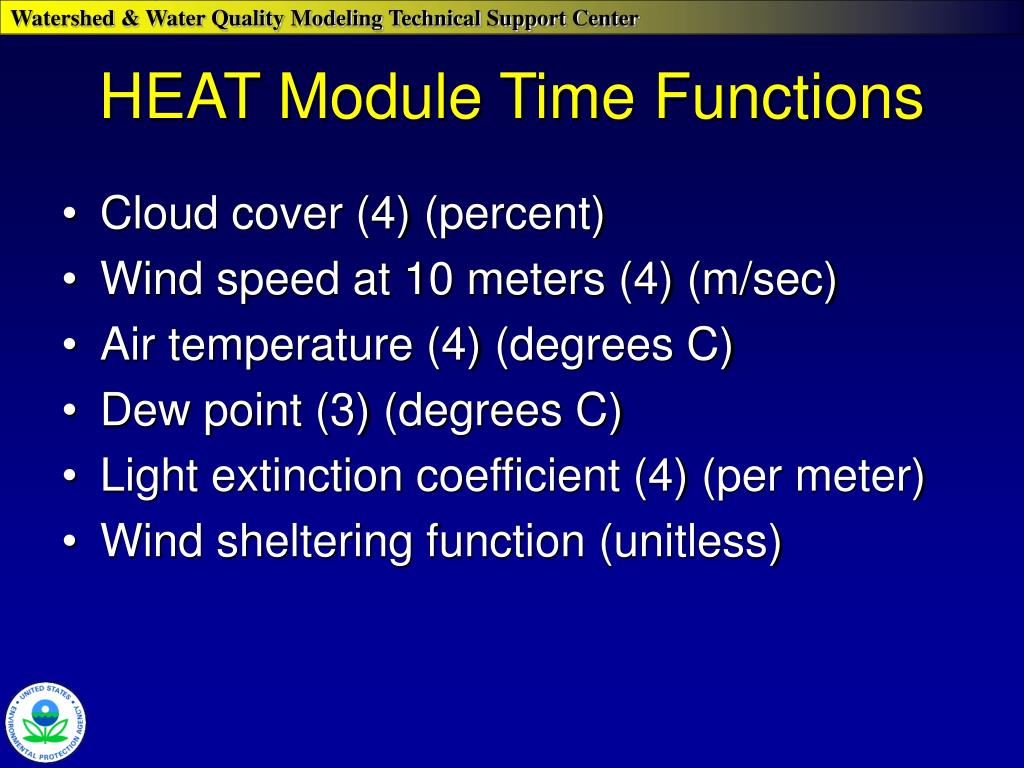

  14. HEAT Module Time Functions • Cloud cover (4) (percent) • Wind speed at 10 meters (4) (m/sec) • Air temperature (4) (degrees C) • Dew point (3) (degrees C) • Light extinction coefficient (4) (per meter) • Wind sheltering function (unitless)

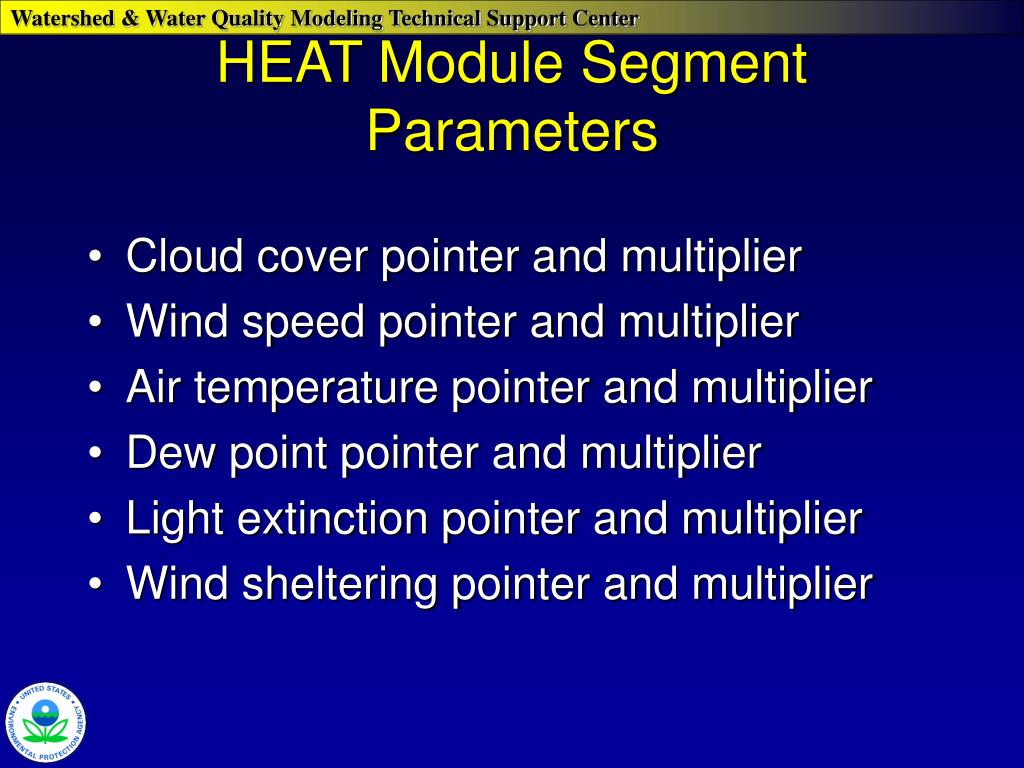

  15. HEAT Module Segment Parameters • Cloud cover pointer and multiplier • Wind speed pointer and multiplier • Air temperature pointer and multiplier • Dew point pointer and multiplier • Light extinction pointer and multiplier • Wind sheltering pointer and multiplier

  16. Kinetic Time Functions Steps to specify time functions: • Point and click on “Used” field to select or de-select time functions • Highlight Time Function • In bottom window, fill in time function values for beginning and ending times • As needed, add time rows by pressing “+ Insert” and edit Date, Time, and Value • Continue selecting time functions and entering data • Press “OK” and save

  17. Segment Properties - Parameters • Steps to specify parameters: • Press “Parameters” to enter screen • Highlight and edit parameter values for rows • Press “OK” and save
