  1. Open issues of the ppee analysis Mauro Raggi, LNF INFN 30th August 2014

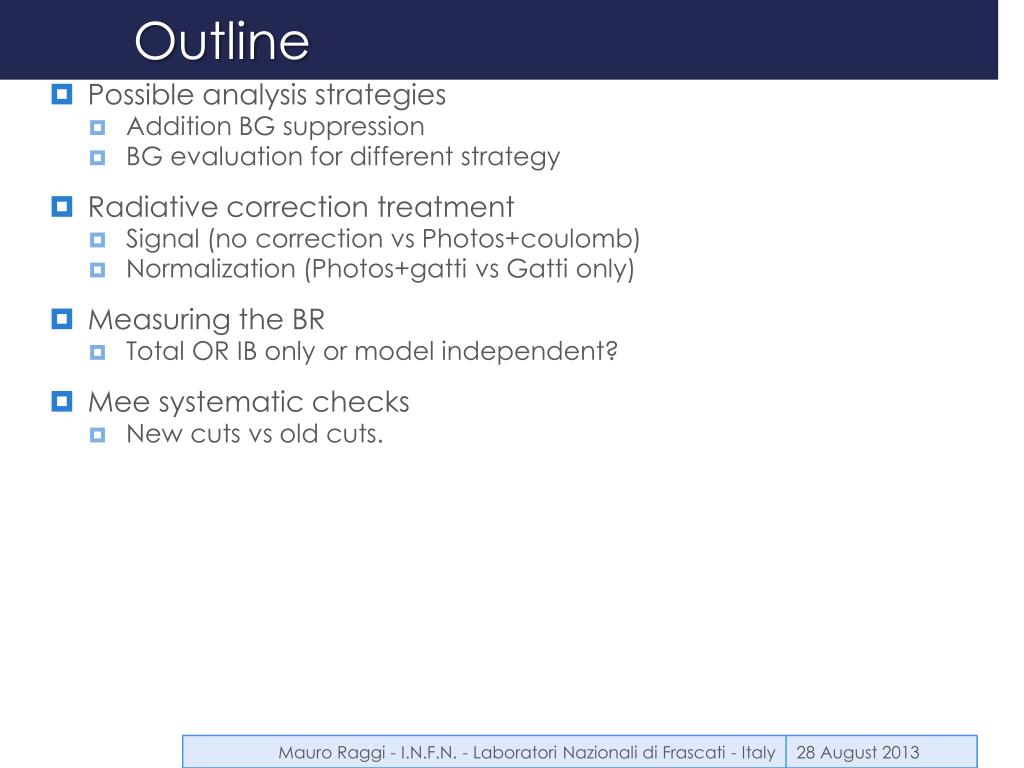

  2. Outline • Possible analysis strategies • Addition BG suppression • BG evaluation for different strategy • Radiative correction treatment • Signal (no correction vsPhotos+coulomb) • Normalization (Photos+gattivsGattionly) • Measuring the BR • Total OR IB only or model independent? • Meesystematic checks • New cuts vs old cuts. Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

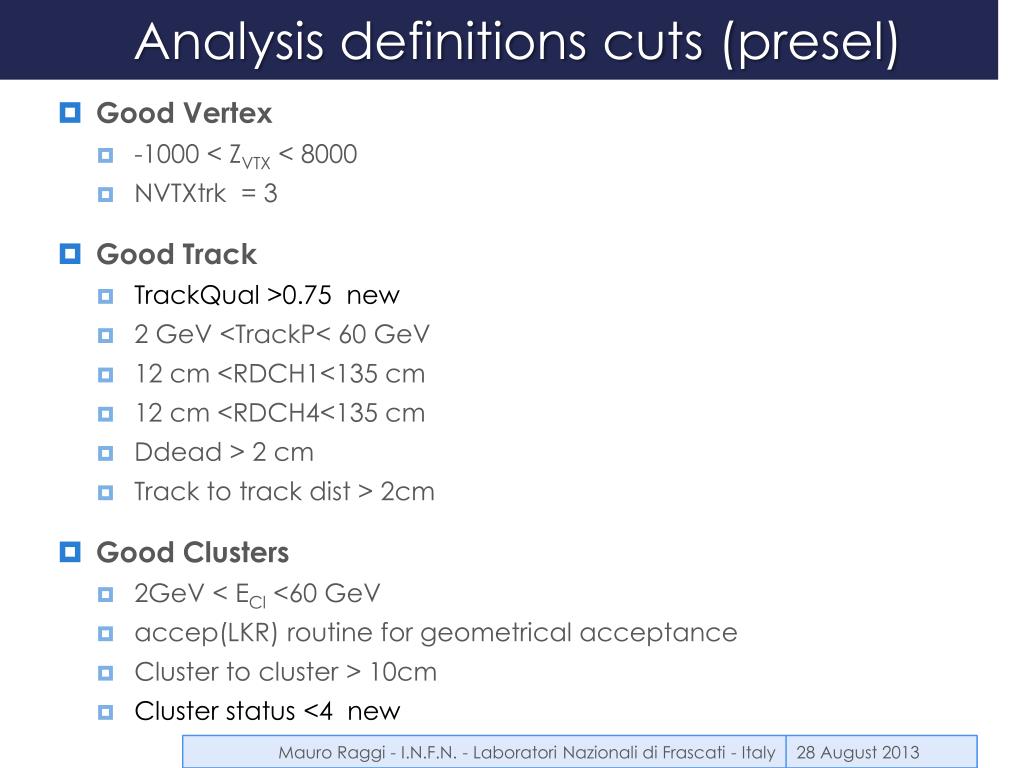

  3. Analysis definitions cuts (presel) • GoodVertex • -1000 < ZVTX< 8000 • NVTXtrk = 3 • GoodTrack • TrackQual>0.75 new • 2 GeV<TrackP< 60 GeV • 12 cm <RDCH1<135 cm • 12 cm <RDCH4<135 cm • Ddead > 2 cm • Track to trackdist > 2cm • GoodClusters • 2GeV < ECl<60 GeV • accep(LKR) routine for geometricalacceptance • Cluster to cluster > 10cm • Cluster status <4 new Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

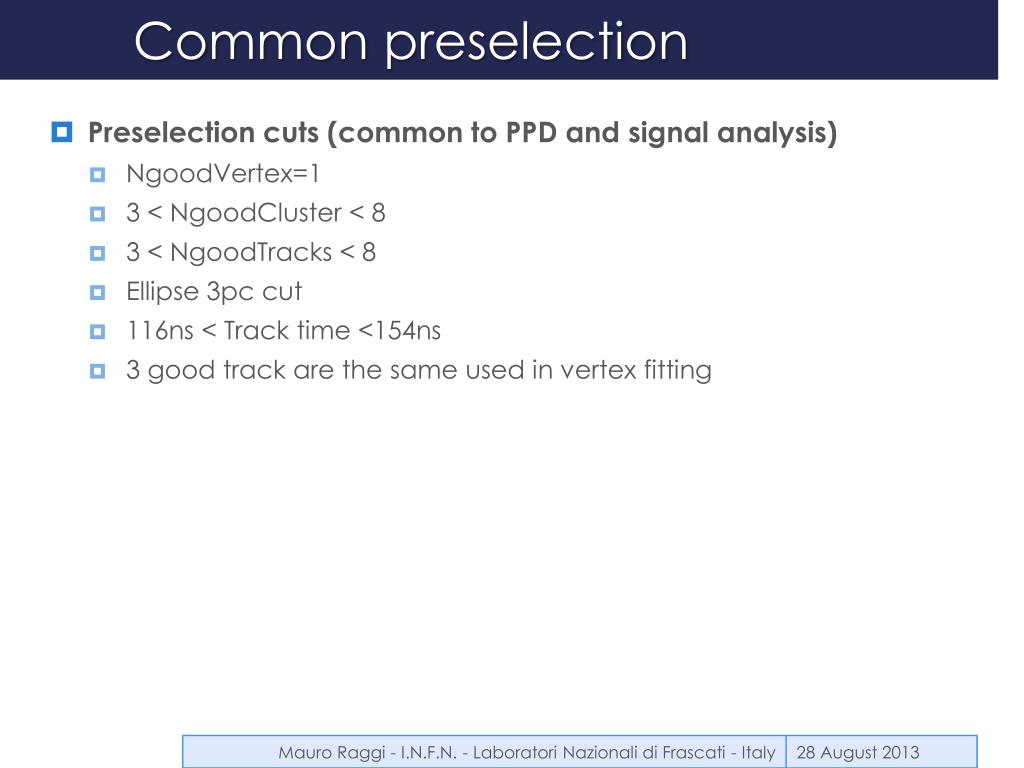

  4. Common preselection • Preselectioncuts (common to PPD and signalanalysis) • NgoodVertex=1 • 3 < NgoodCluster < 8 • 3 < NgoodTracks < 8 • Ellipse 3pc cut • 116ns < Track time <154ns • 3 goodtrack are the sameused in vertexfitting Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

  5. Signal selection • ngoodCl ≥4 • Nelectrons =2 E/P>0.85 • Npions =1 E/P<0.85 • Ngammas =2 cluster with no associatedtrack &Ecl>3 GeV • COG < 2 cm • abs(ETOT-pk)< 6 GeV • abs(Mpi0-MPI0PDG)<10 MeV • Mee > 0.001022GeV • Distance of electrons @ DCH1 > 0.25againstconversions • Total charge of electrons = 0 • abs(Meeg-MPI0PDG)>0.005 moved to 7MeV) cuton Dalitzdecays • Mpp > 0.12 GeV new rejectsmost of 3pD • abs(MK-MKPDG) < 10 MeV Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

  6. Additional suppression of the BG Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

  7. Mee for the two set of cuts Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

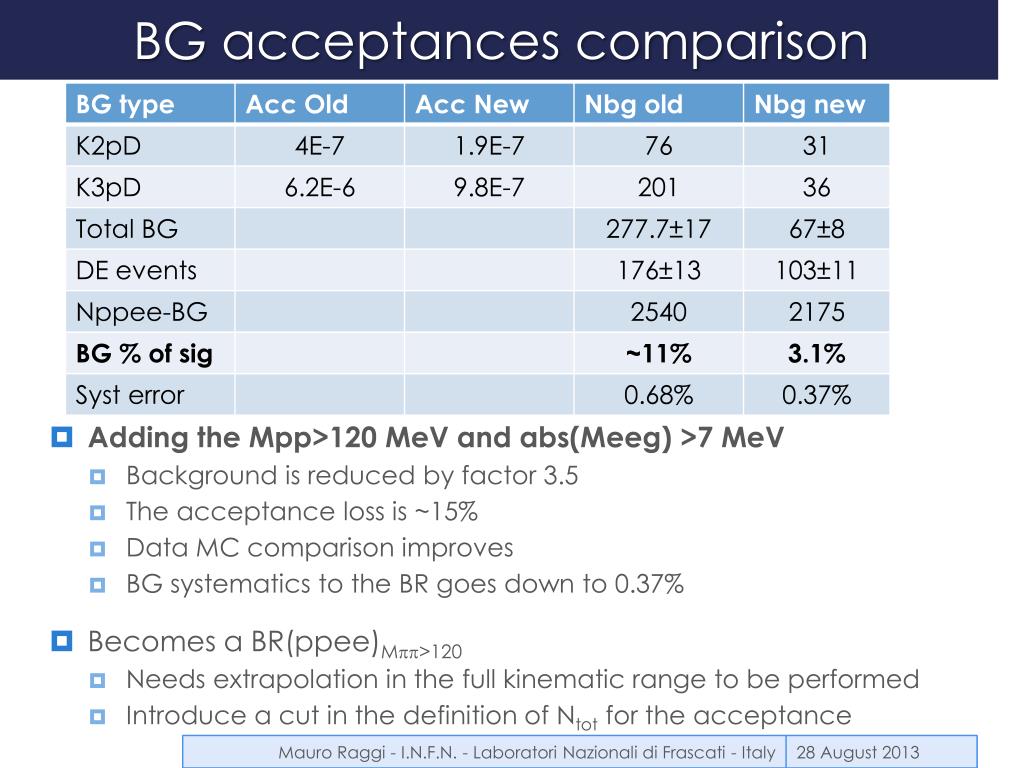

  8. BG acceptances comparison • Adding the Mpp>120 MeV and abs(Meeg) >7 MeV • Background isreduced by factor 3.5 • The acceptancelossis ~15% • Data MC comparisonimproves • BG systematics to the BR goes down to 0.37% • Becomes a BR(ppee)Mpp>120 • Needs extrapolation in the full kinematic range to be performed • Introduce a cut in the definition of Ntot for the acceptance Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

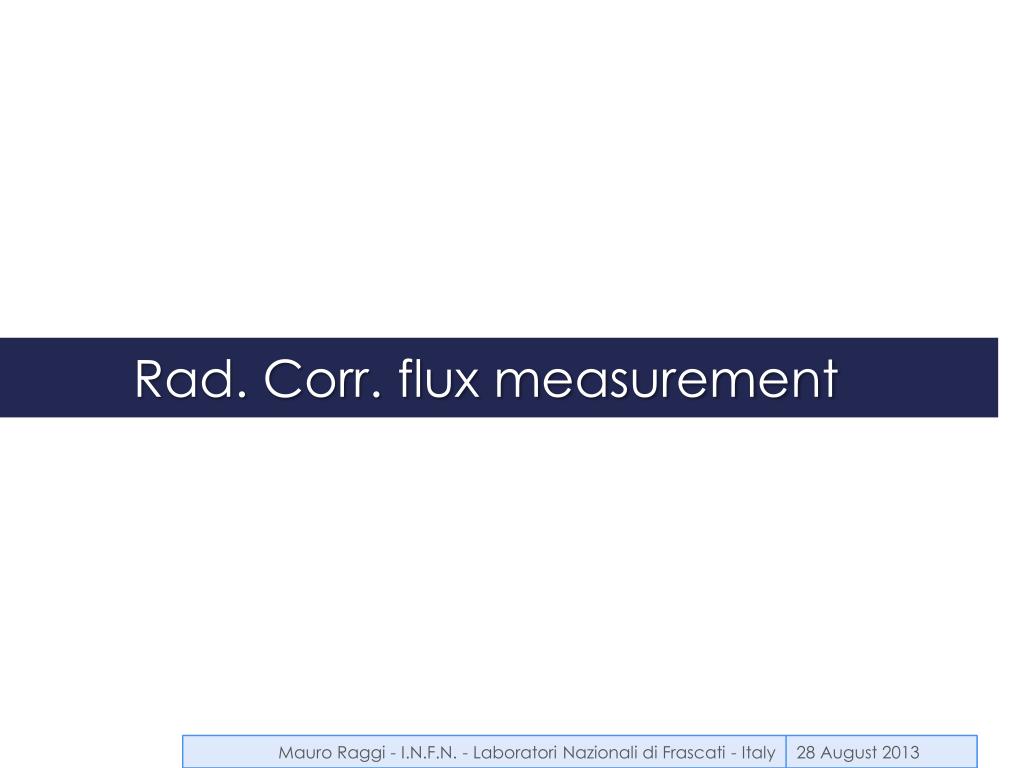

  9. Rad. Corr. flux measurement Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

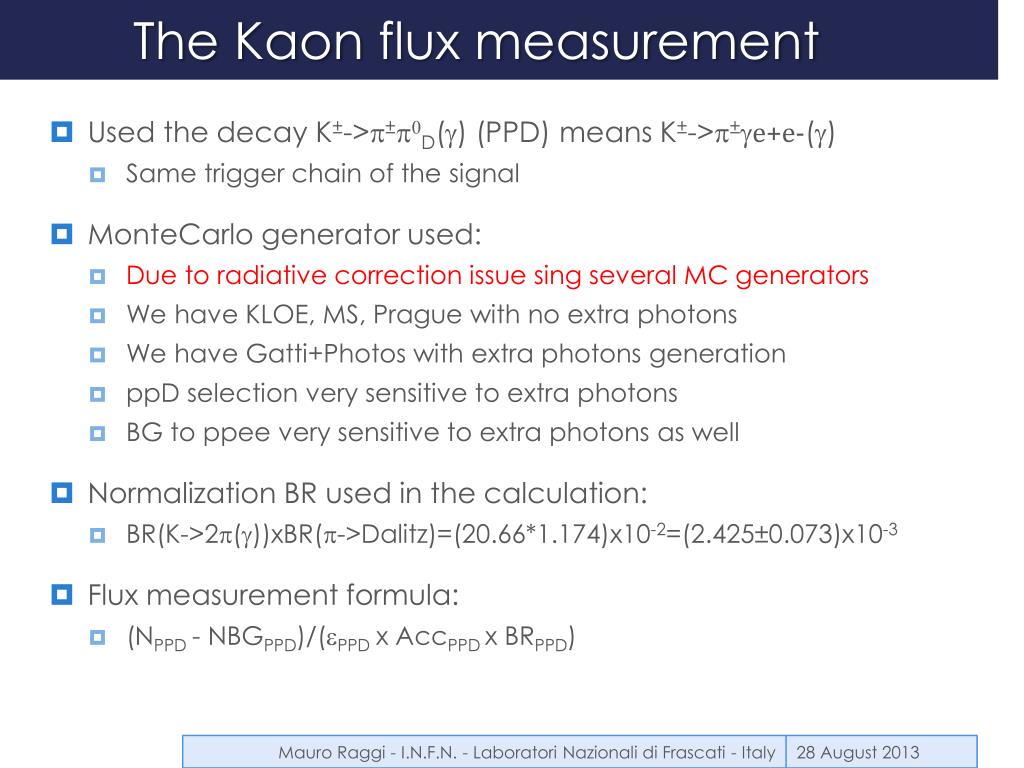

  10. The Kaon flux measurement • Used the decay K±->p±p0D(g) (PPD) means K±->p±ge+e-(g) • Same trigger chain of the signal • MonteCarlogenerator used: • Due to radiative correction issue sing several MC generators • We have KLOE, MS, Prague with no extra photons • We have Gatti+Photos with extra photons generation • ppD selection very sensitive to extra photons • BG to ppee very sensitive to extra photons as well • Normalization BR used in the calculation: • BR(K->2p(g))xBR(p->Dalitz)=(20.66*1.174)x10-2=(2.425±0.073)x10-3 • Flux measurement formula: • (NPPD - NBGPPD)/(ePPDx AccPPDx BRPPD) Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

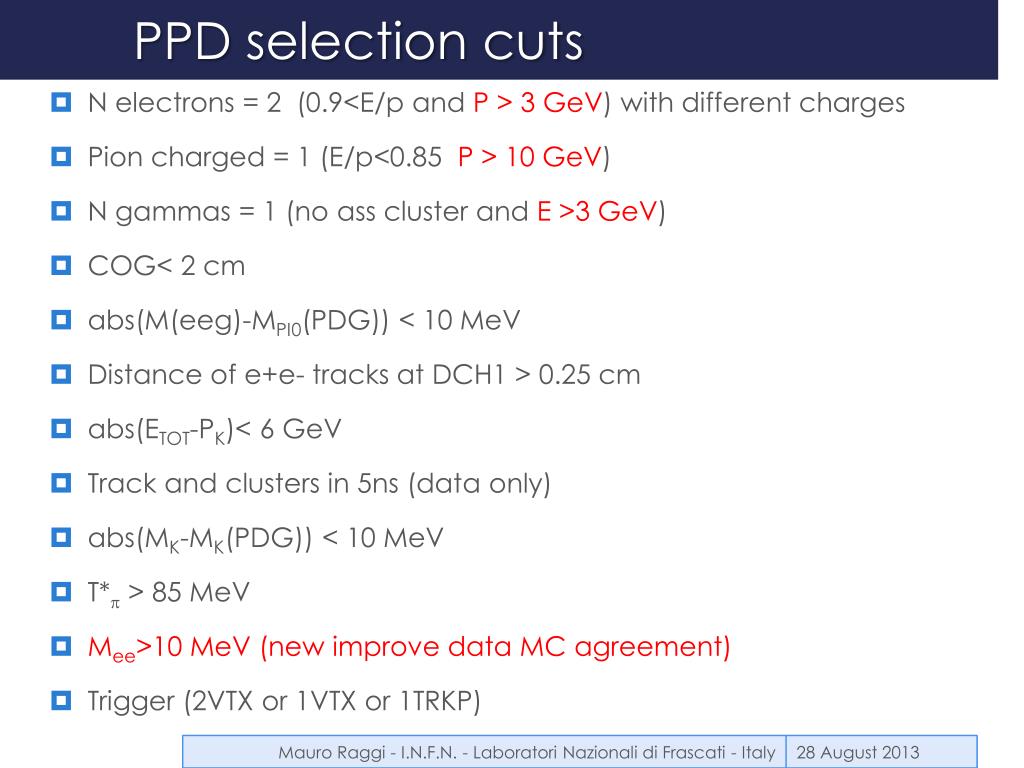

  11. PPD selection cuts • N electrons = 2 (0.9<E/p and P > 3 GeV) with different charges • Pion charged = 1 (E/p<0.85 P > 10 GeV) • N gammas = 1 (no ass cluster and E >3 GeV) • COG< 2 cm • abs(M(eeg)-MPI0(PDG)) < 10 MeV • Distance of e+e- tracks at DCH1 > 0.25 cm • abs(ETOT-PK)< 6 GeV • Track and clusters in 5ns (data only) • abs(MK-MK(PDG)) < 10 MeV • T*p > 85 MeV • Mee>10 MeV (new improve data MC agreement) • Trigger (2VTX or 1VTX or 1TRKP) Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

  12. Rad. Corr models acceptances • Rad. Correction systematic • Generation of extra photonsgive a 3.2% difference in the acceptance • Assumingphotos to have a 10% accuracywe propose 0.35% systematic • Absence of the Dalitz plot reweighting on our MC • We assume the maximum effect is None-Prague (0.7% systematic) Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

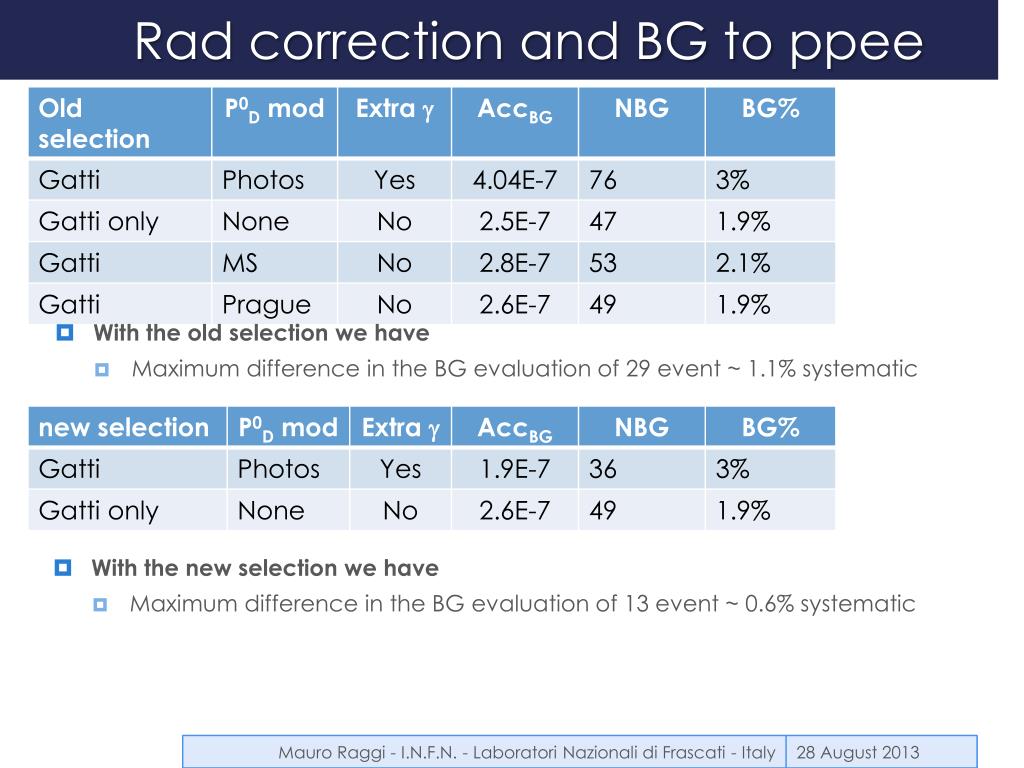

  13. Rad correction and BG to ppee • With the old selection we have • Maximum difference in the BG evaluation of 29 event ~ 1.1% systematic • With the new selection we have • Maximum difference in the BG evaluation of 13 event ~ 0.6% systematic Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

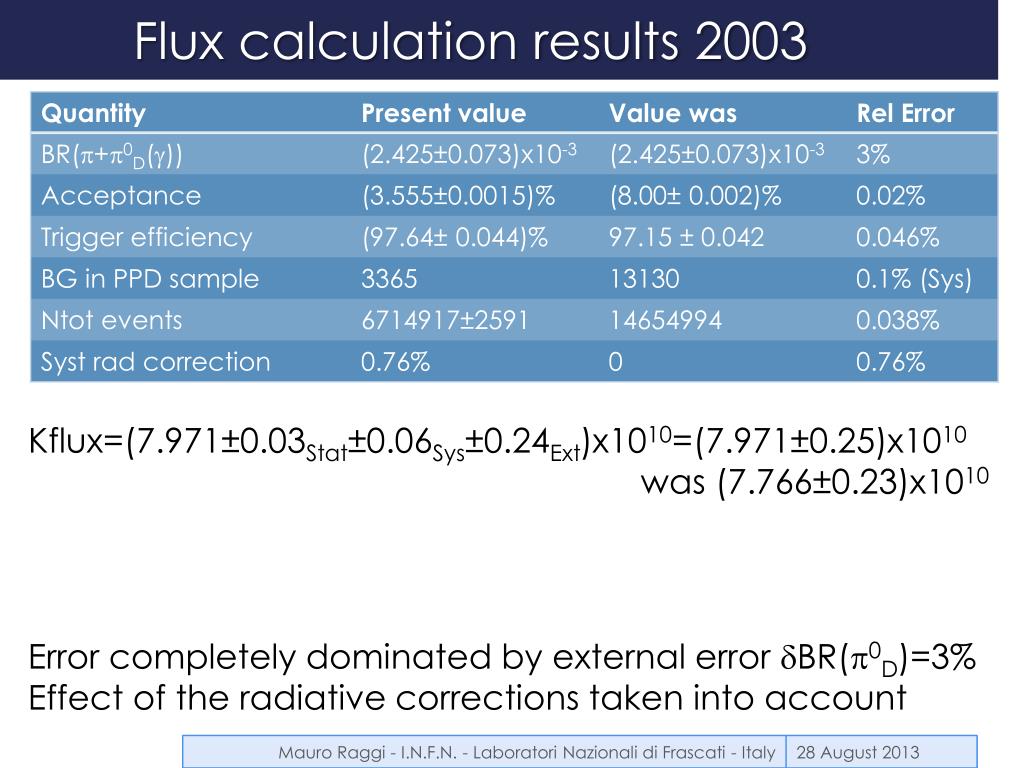

  14. Flux calculation results 2003 • Kflux=(7.971±0.03Stat±0.06Sys±0.24Ext)x1010=(7.971±0.25)x1010 • was (7.766±0.23)x1010 • Error completely dominated by external error dBR(p0D)=3% • Effect of the radiative corrections taken into account Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

  15. Radiative corrections ppee Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

  16. Radiative corrections on ppee • D’ambrioso papers does’nt include any kind of radiative corrections in the IB martix element and BR evaluation • We implemented the Photos into the IB generator of ppee(many thanks to Brigitte) • Include the radiative corrections due to e+e- interaction • We also included Coulomb corrections which are constant • We will estimate the systematic due to radiative correction by comparing the acceptance of corrected and non corrected MC • The acceptance are: • Rad corr (new sel)= 6.61E-3 with no rad 6.92E-3 -> 4.5% difference • Rad corr(old sel) = 7.44E-3 with no rad 7.81E-3 -> 4.7% difference • Assumingphotos to have a 10% accuracywe propose 0.45% systematic Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

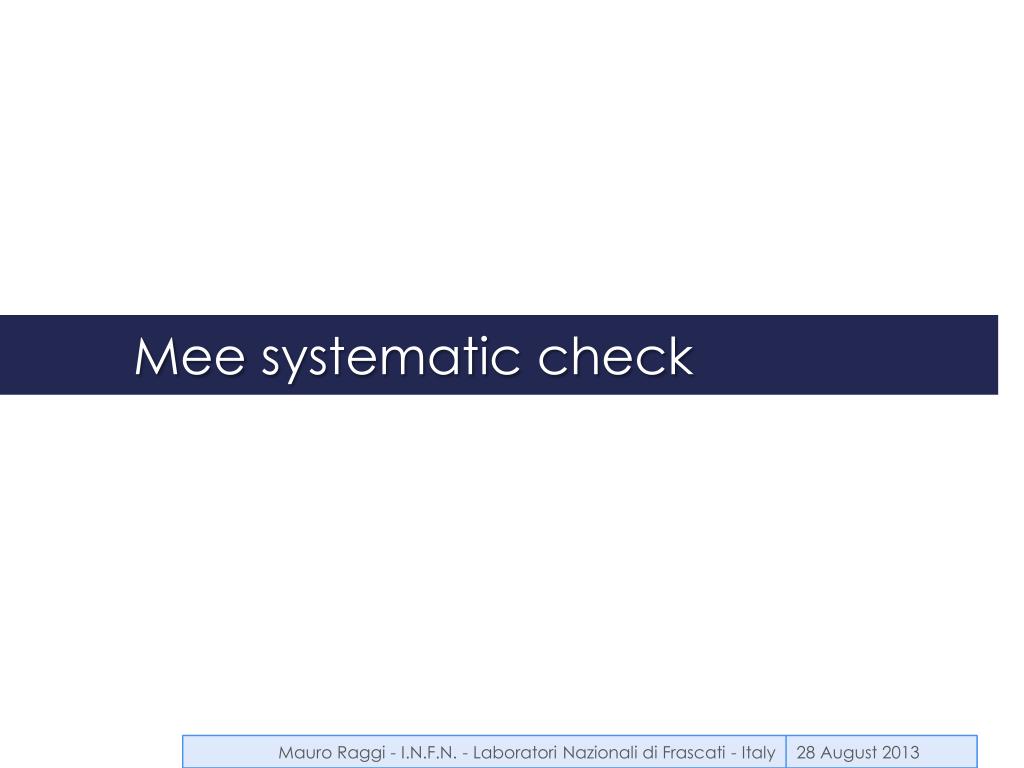

  17. Mee systematic check Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

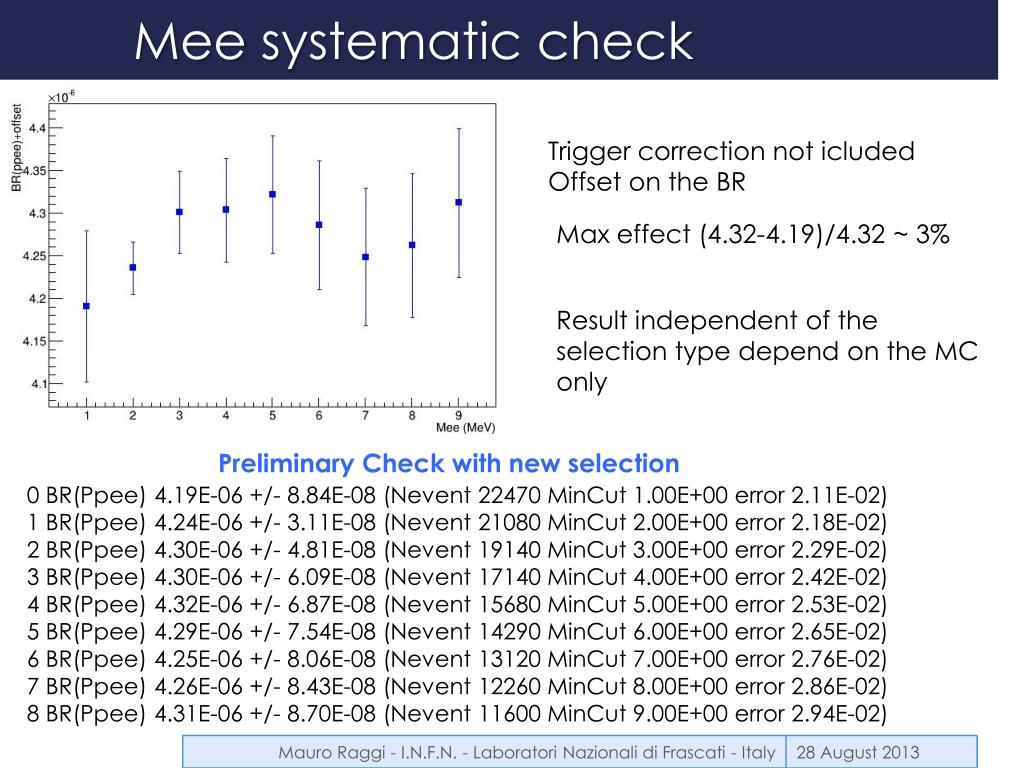

  18. Mee systematic check Trigger correction not icluded Offset on the BR Max effect (4.32-4.19)/4.32 ~ 3% Result independent of the selection type depend on the MC only Preliminary Check with new selection 0 BR(Ppee) 4.19E-06 +/- 8.84E-08 (Nevent22470 MinCut 1.00E+00 error 2.11E-02) 1 BR(Ppee) 4.24E-06 +/- 3.11E-08 (Nevent21080 MinCut 2.00E+00 error 2.18E-02) 2 BR(Ppee) 4.30E-06 +/- 4.81E-08 (Nevent19140 MinCut 3.00E+00 error 2.29E-02) 3 BR(Ppee) 4.30E-06 +/- 6.09E-08 (Nevent17140 MinCut 4.00E+00 error 2.42E-02) 4 BR(Ppee) 4.32E-06 +/- 6.87E-08 (Nevent15680 MinCut 5.00E+00 error 2.53E-02) 5 BR(Ppee) 4.29E-06 +/- 7.54E-08 (Nevent14290 MinCut 6.00E+00 error 2.65E-02) 6 BR(Ppee) 4.25E-06 +/- 8.06E-08 (Nevent13120 MinCut 7.00E+00 error 2.76E-02) 7 BR(Ppee) 4.26E-06 +/- 8.43E-08 (Nevent12260 MinCut 8.00E+00 error 2.86E-02) 8 BR(Ppee) 4.31E-06 +/- 8.70E-08 (Nevent11600 MinCut 9.00E+00 error 2.94E-02) Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

  19. DE component fitting Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

  20. DE and IB in the Mee spectrum • Difference on the spectrum is very little in the NA48/2 acceptance • G. D’Ambrosio theoretical paper does’nt provide proper treatment of radiative corrections for the IB that are greater than the DE effect itself due to the 2 electrons in the final state • BG is 3 times bigger than the DE component need a fit with • Data, IB, DE, INT, BG(2pd), BG(3pD) too many distributions • Much better conditions expected in NA62 • 104 rejection of the BG due to photon veto • 10-20 times more statistics expected • Needs in any case improved theoretical description to get a result. Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

  21. Fitting the DE • Fitting the DE using Mee is quite hard for different reasons: • IB and DE distributions of Mee are very similar much more wrtppg • Regions where the DE is dominant are populated by 10% BG • The low statistics does’nt allow to have a very hard selection cuts • Seems that our acceptance spoils the difference even more After the selection Before the selection IB MC GENDE MC GEN IB MC GENDE MC GEN Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

  22. Real life is even harder… Mee IB MC RECDE MC REC Reconstructed MC after correct DE normalization including higher acceptance factor 5 IB MC DE MC T*p IB MC DE MC Situation in T*pi looks a bit better but BG has to be taken into account… Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

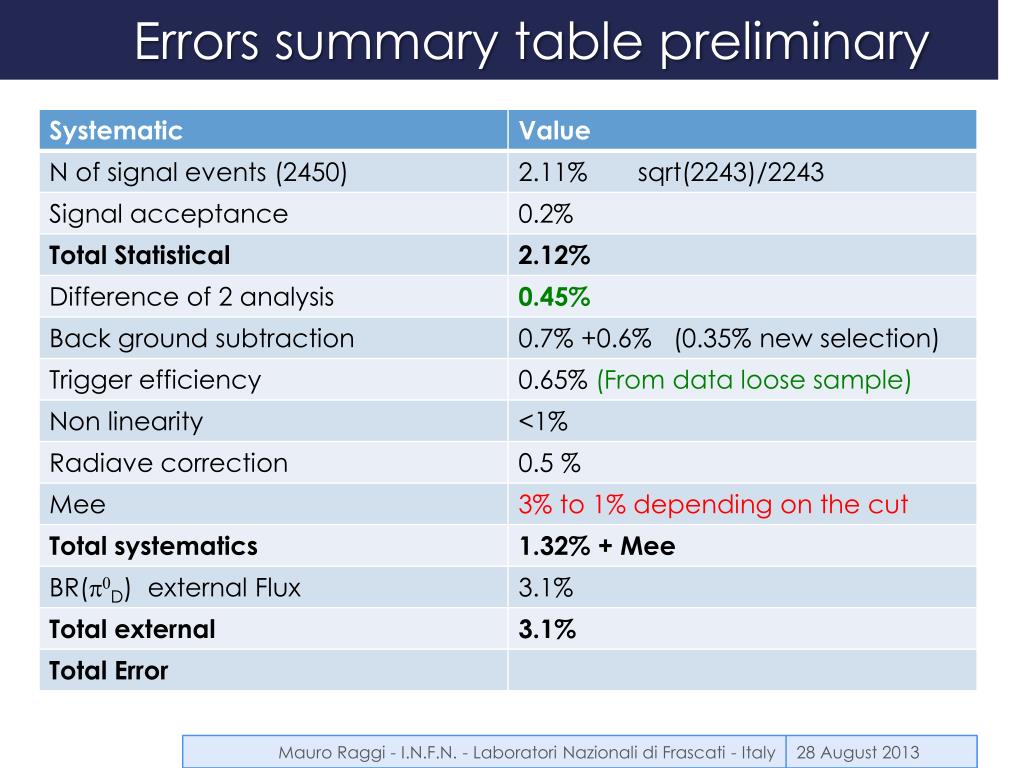

  23. Errors summary table preliminary Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

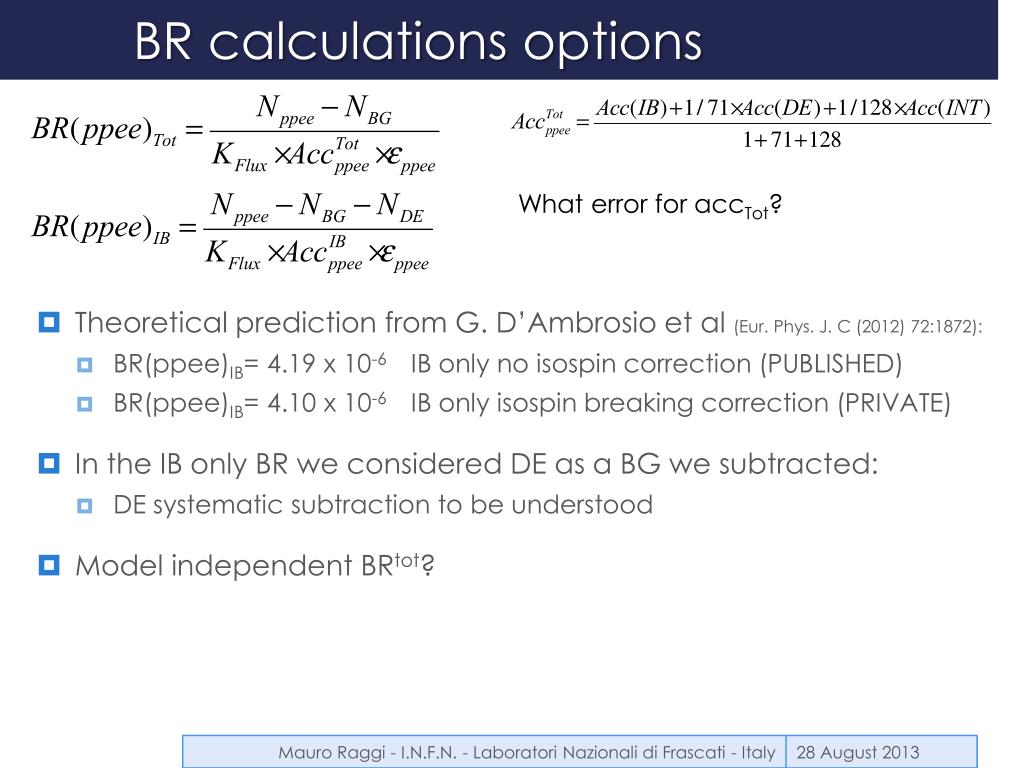

  24. BR calculations options • Theoretical prediction from G. D’Ambrosio et al (Eur. Phys. J. C (2012) 72:1872): • BR(ppee)IB= 4.19 x 10-6 IB only no isospin correction (PUBLISHED) • BR(ppee)IB= 4.10 x 10-6 IB only isospin breaking correction (PRIVATE) • In the IB only BR we considered DE as a BG we subtracted: • DE systematic subtraction to be understood • Model independent BRtot? What error for accTot? Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

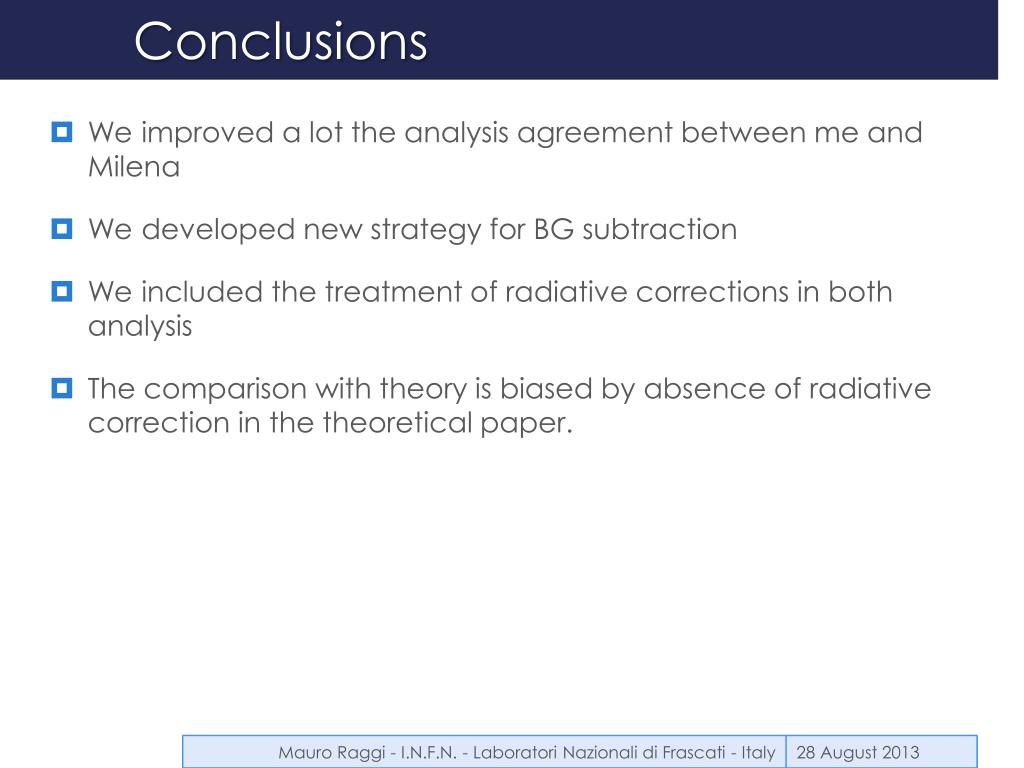

  25. Conclusions • We improved a lot the analysis agreement between me and Milena • We developed new strategy for BG subtraction • We included the treatment of radiative corrections in both analysis • The comparison with theory is biased by absence of radiative correction in the theoretical paper. Mauro Raggi - I.N.F.N. - Laboratori Nazionali di Frascati - Italy

  26. Thank you for your attention
