Presentation Transcript

  1. Face Detection using Color Segmentation and Eigenfaces Ashish Desai Lukas Herzog Kais Mayaah

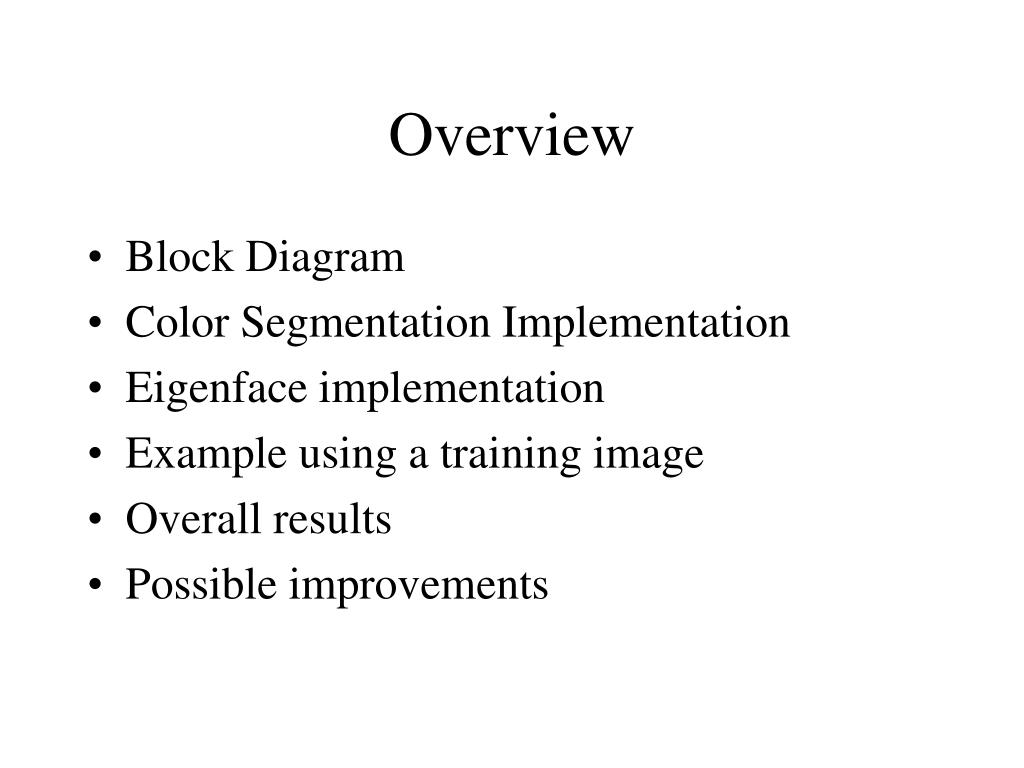

  2. Overview • Block Diagram • Color Segmentation Implementation • Eigenface implementation • Example using a training image • Overall results • Possible improvements

  3. Block Diagram

  4. Color Segmentation • Assumed Gaussian distribution of skin color in YbCbR color space • Found mean and standard deviation using a subset of the training images • Eliminated any pixel that fell out of the range of the mean +/- 1.6 standard deviations

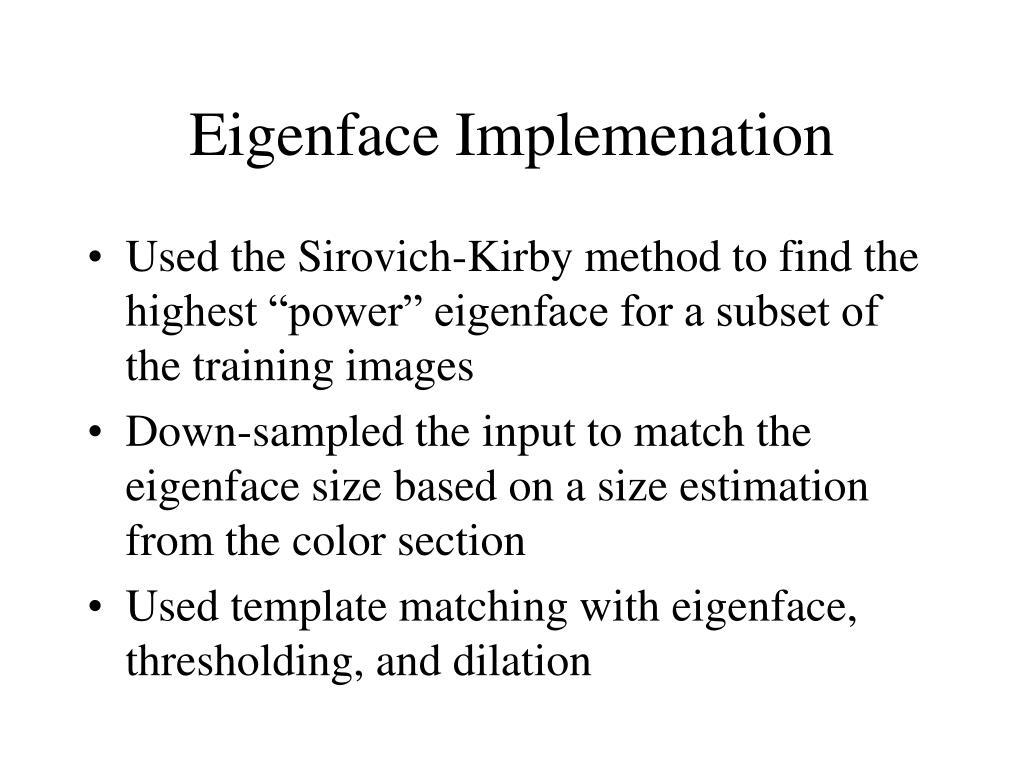

  5. Eigenface Implemenation • Used the Sirovich-Kirby method to find the highest “power” eigenface for a subset of the training images • Down-sampled the input to match the eigenface size based on a size estimation from the color section • Used template matching with eigenface, thresholding, and dilation

  6. Training_5.jpg Original

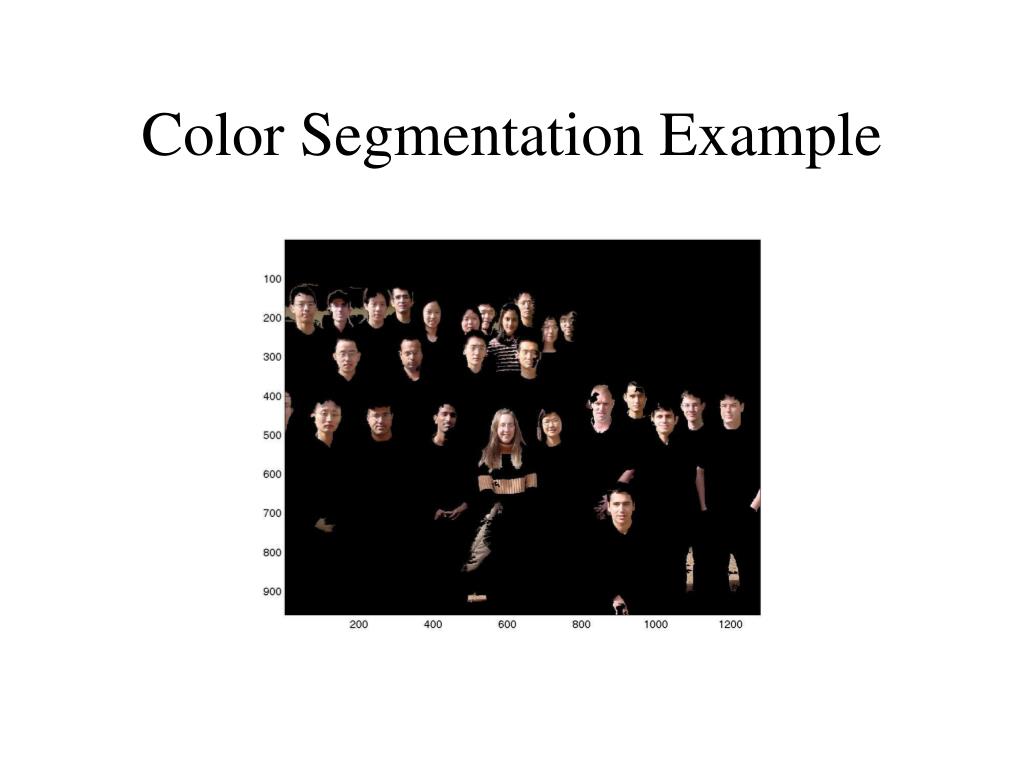

  7. Color Segmentation Example

  8. Eigenface and Dilation Example

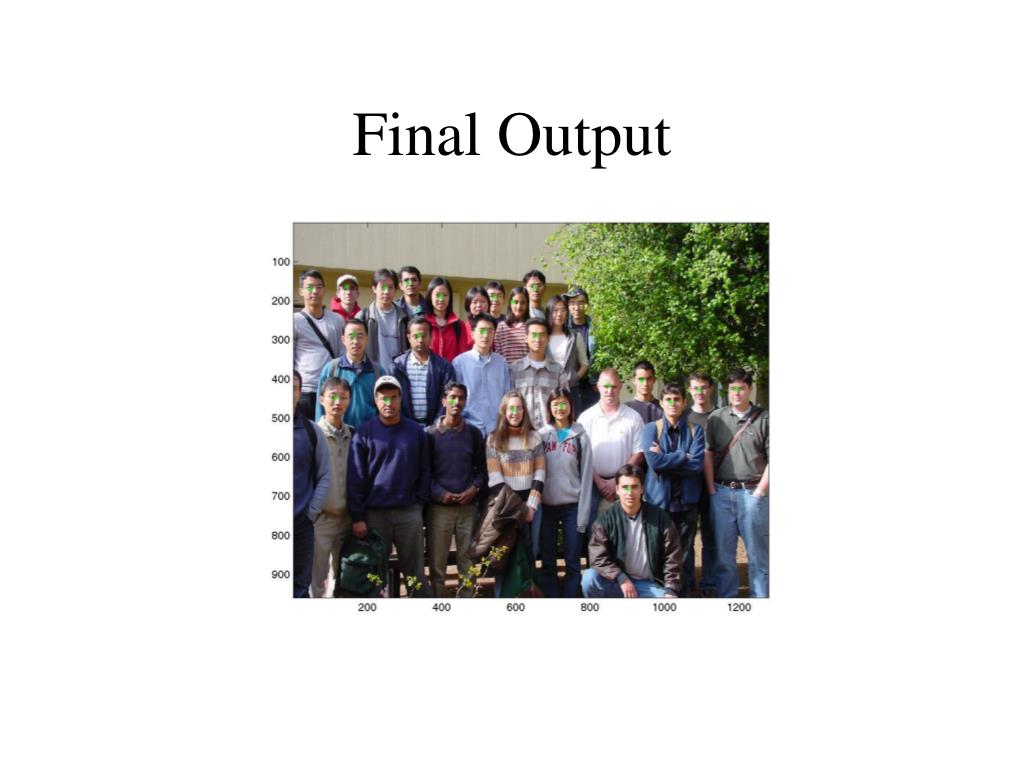

  9. Final Output

  10. Results with all Training Images

  11. Conclusion and Possible Improvements • Color segmentation was excellent first step • Eigenface implementation may need more examples faces to get better results • Could possibly use more “fuzzy” scheme, rather than finite threshold values
