  1. Android Game Framework CGDD4203

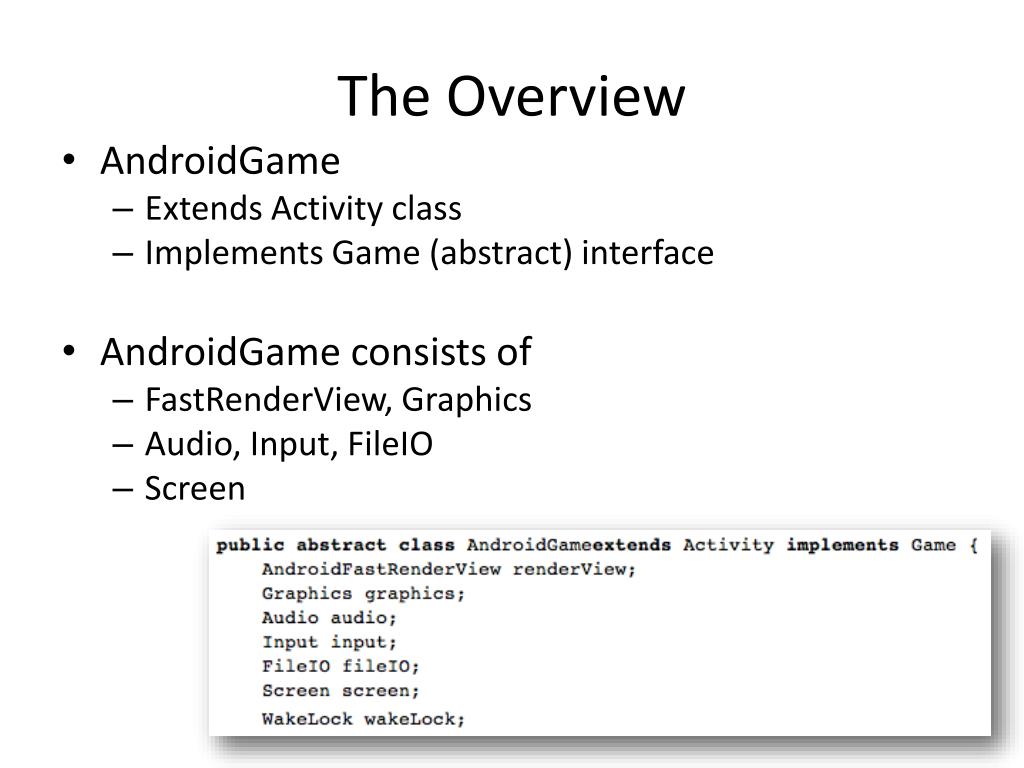

  2. The Overview • AndroidGame • Extends Activity class • Implements Game (abstract) interface • AndroidGame consists of • FastRenderView, Graphics • Audio, Input, FileIO • Screen

  3. OnCreate

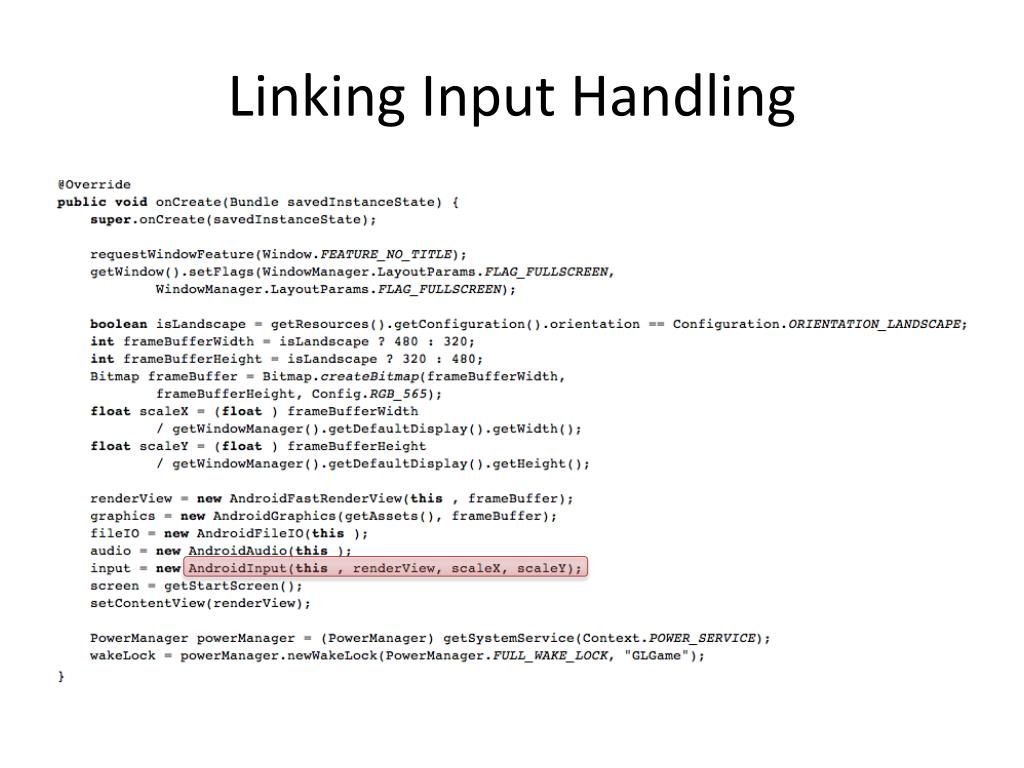

  4. Linking Input Handling

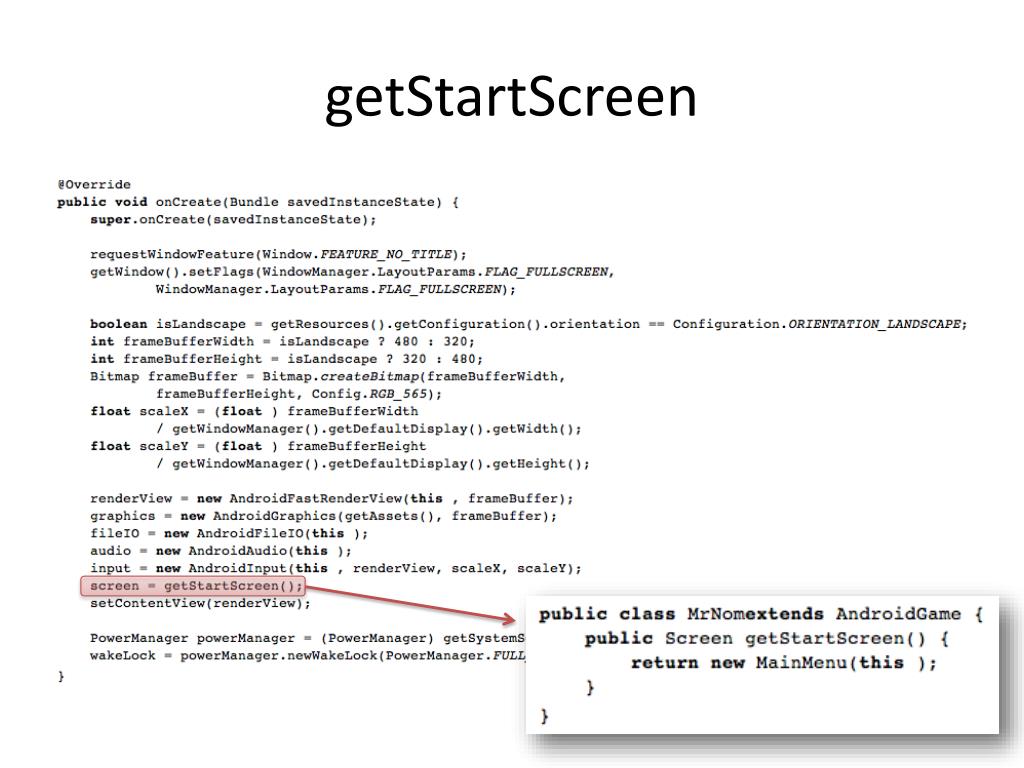

  5. getStartScreen

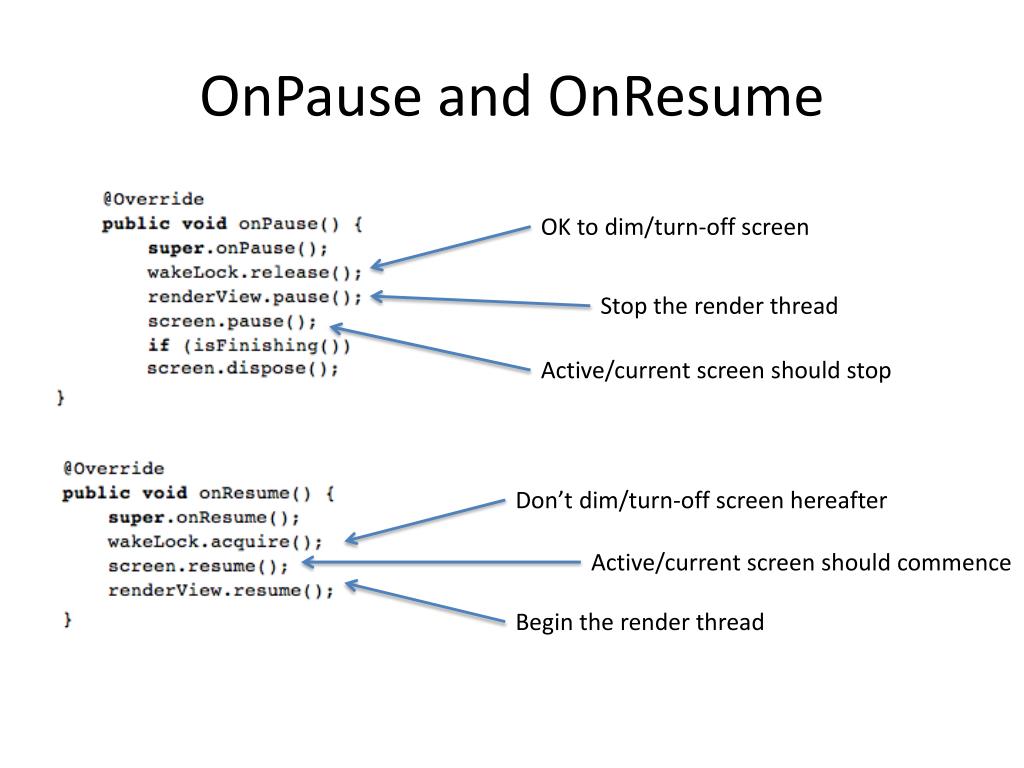

  6. OnPause and OnResume OK to dim/turn-off screen Stop the render thread Active/current screen should stop Don’t dim/turn-off screen hereafter Active/current screen should commence Begin the render thread

  7. setScreen – Getting Things Going Stop previously active screen Commence new active screen (with time/update delta of 0)

  8. Rendering

  9. AndroidFastRenderView • Threaded (implements Runnable) • Maintains • Reference to AndroidGame • Bitmap framebuffer (to draw) • SurfaceHolder (to lock/unlock canvas) • Responsible for calling update/present on game’s current screen

  10. The Thread’s Work Tell current screen toupdate/present itself Draw the frame bufferfullscreen (scaled)

  11. Input Handling

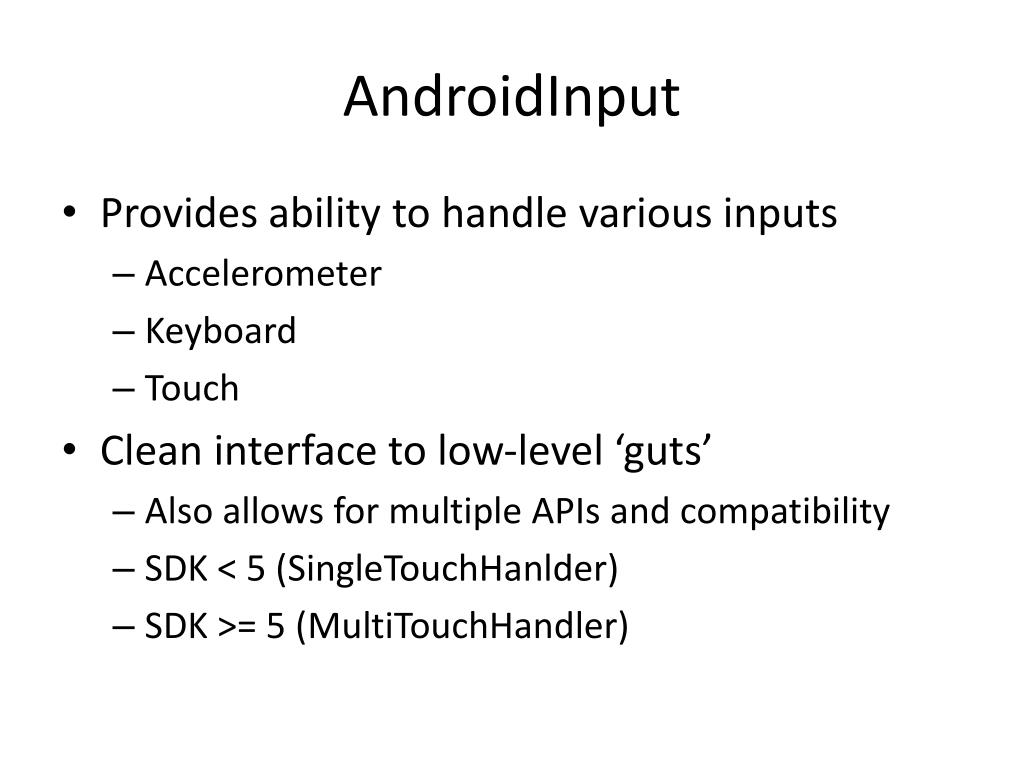

  12. AndroidInput • Provides ability to handle various inputs • Accelerometer • Keyboard • Touch • Clean interface to low-level ‘guts’ • Also allows for multiple APIs and compatibility • SDK < 5 (SingleTouchHanlder) • SDK >= 5 (MultiTouchHandler)

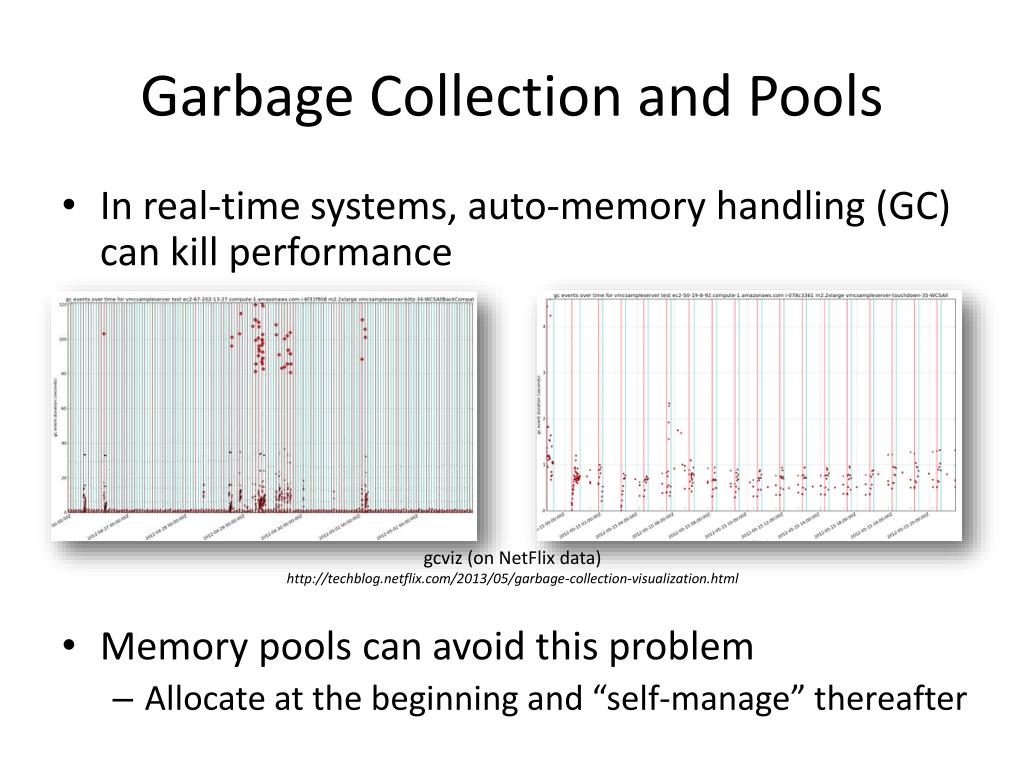

  13. Garbage Collection and Pools • In real-time systems, auto-memory handling (GC) can kill performance • Memory pools can avoid this problem • Allocate at the beginning and “self-manage” thereafter gcviz (on NetFlix data) http://techblog.netflix.com/2013/05/garbage-collection-visualization.html

  14. KeyboardHandler • Allocate pool (smart list) of KeyEvent • Maintain input buffer • Maintain events collection • Poll buffer periodically • Move from buffer to events collection • Shuffle memory from events collection to pool as needed • Don’t neglect to handle events or events collection will fill up (i.e., pool will empty)

  15. Pool Fixed Size (! GC) No allocation(! GC) Pool<KeyEvent> keyEventPool (capacity = 100 in this case) List<KeyEvent> keyEventsBuffer 1. Key is pressed 2. Key info copied (obj moved from pool into buffer) List<KeyEvent> keyEvents 3.This (#1 & #2)continues… No allocation(! GC) 4. Periodically (don’t wait too long) we call getKeyEvents 5. KeyEvent objects are “freed” back into the pool & moved into keyEvents

  16. Other Odds and Ends • AndroidFileIO • Audio • AndroidAudio • AndroidSound • AndroidMusic • Other Input • AccelerometerInput • AccelerometerHandler • CompassHandler All of this is ‘cake’ (no lie!) if you’ve followedeverything else.

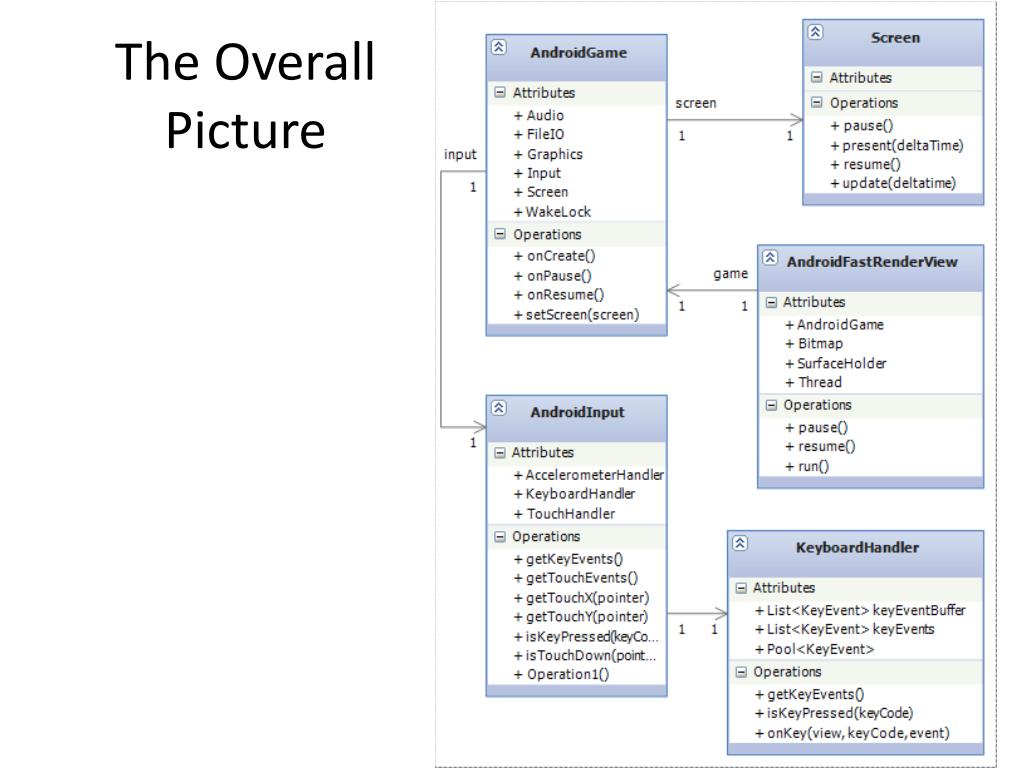

  17. The Overall Picture
