BizTalk 2009 Performance

SBPCT301 BizTalk 2009 Performance Ewan Fairweather Tim Wieman Paolo Salvatori BizTalk Customer Advisory Team (CAT) Microsoft Corporation

Session Objectives • Session Objective(s): • Provide illustrative examples of successful performance labs. • Provide information on the tools, techniques and processes used by the Rangers to run effective BizTalk performance labs. • Answer BizTalk performance related questions.

Results for Customer Performance Lab Initial results for BizTalk 2009 Performance Lab Visual Studio Test Demo Optimization Highlights & Open Q&A Agenda

Skandia Background • Existing ASP.NET COM+ based internet bank • New version of internet bank: • Go-live November 2008 • SOA based • BizTalk used as Skandia’s Service Bus • Leverages investments Skandia have made in IKForetag (Insurance application) • Current throughput 100,000 requests per day • Two-year projected growth to 250,000 requests per day • Will solidify BizTalk/WCF as the messaging platform for the bank • Ranger involvement • ADR delivered June 2008 • Performance Lab scheduled September 2008

Skandia Performance Lab Goals Determine if the BizTalk Server 2006 solution can meet the following performance requirements given hardware and software constraints: • Scenario 1 • Orchestration scenario • Throughput: 250,000 calls within 8 hours ~9 messages/sec sustainable • Latency: < 3 seconds for 99% of all response messages • Scenario 2 • Messaging scenario • Throughput: 250,000 calls within 8 hours ~9 messages/sec sustainable • Latency: < 3 seconds for 99% of all response messages • Conditions • No restriction on code changes • Additional hardware can be used if necessary • Start the solution testing with 2 BizTalk Server nodes and scale out to 4 BizTalk Server nodes • Considerable knowledge transfer

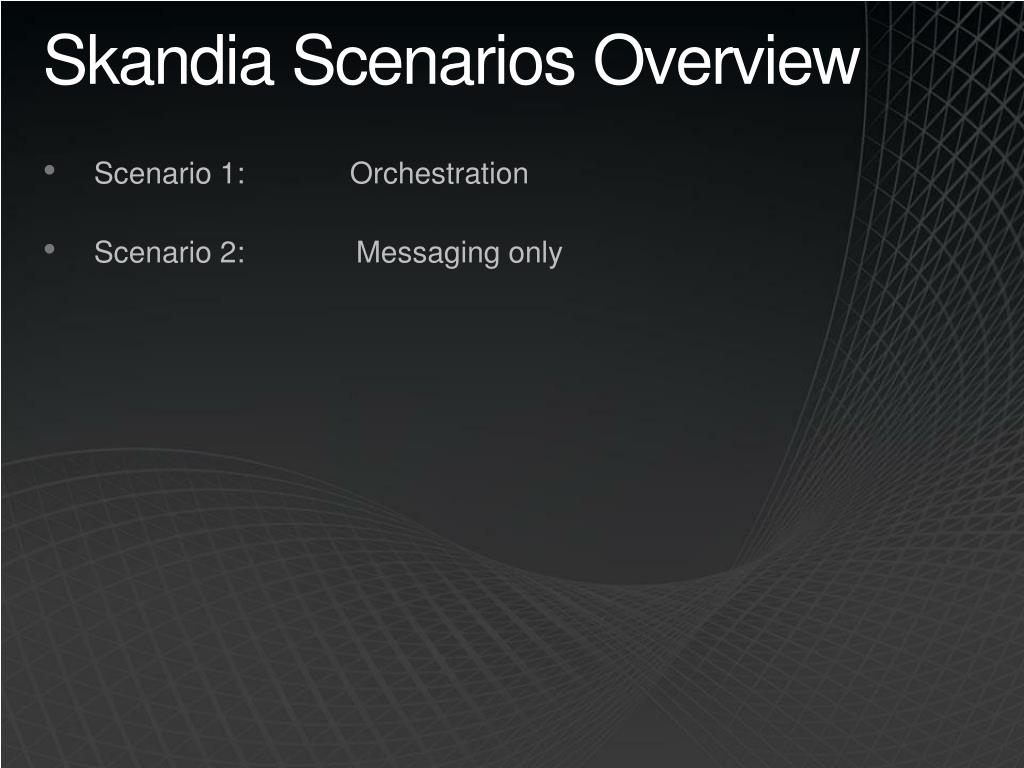

Skandia Scenarios Overview • Scenario 1: Orchestration • Scenario 2: Messaging only

Scenario 1 Message FlowOrchestration Scenario 4 3 2 5 1 6

~333% throughput improvement* ~195% of throughput requirements* Latency reduced to ~29% of original value* Stability validated by long running test *2 BizTalk Node Configuration Skandia Scenario 1 Results Summary 1 2 3 4 7 8 5 6

Scenario 2 Message FlowMessaging only 2 3 4 1

~480% throughput improvement* ~2000% of throughput requirements* Latency reduced to ~36% of original value* Stability validated by long running test *2 BizTalk Node Configuration Skandia Scenario 2 Results Summary 1 2 3 4 7 8 5 6

Logical Ports Test Scenario Logical Port Orchestration

Performance Comparison Summary Vs. Vs. 1 2 3

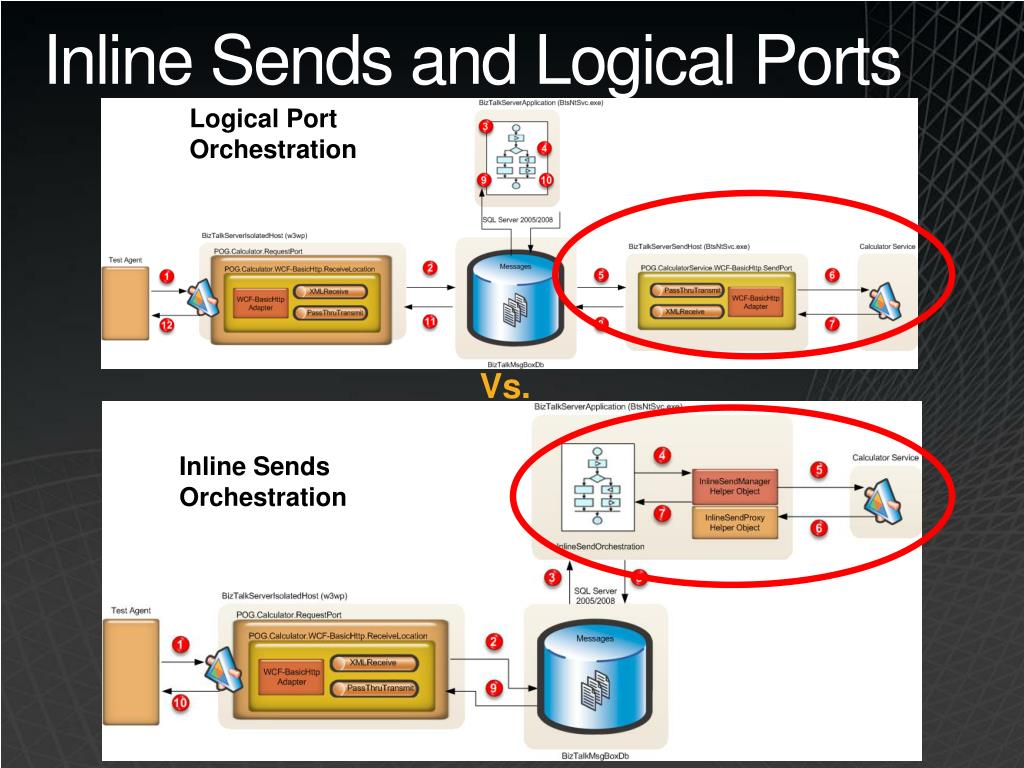

Inline Sends and Logical Ports Logical Port Orchestration Vs. Inline Sends Orchestration

Logical Ports and Inline Sends Results Summary Constant load 1 2 3 4 Stair step 7 8 5 6

Visual Studio Demo

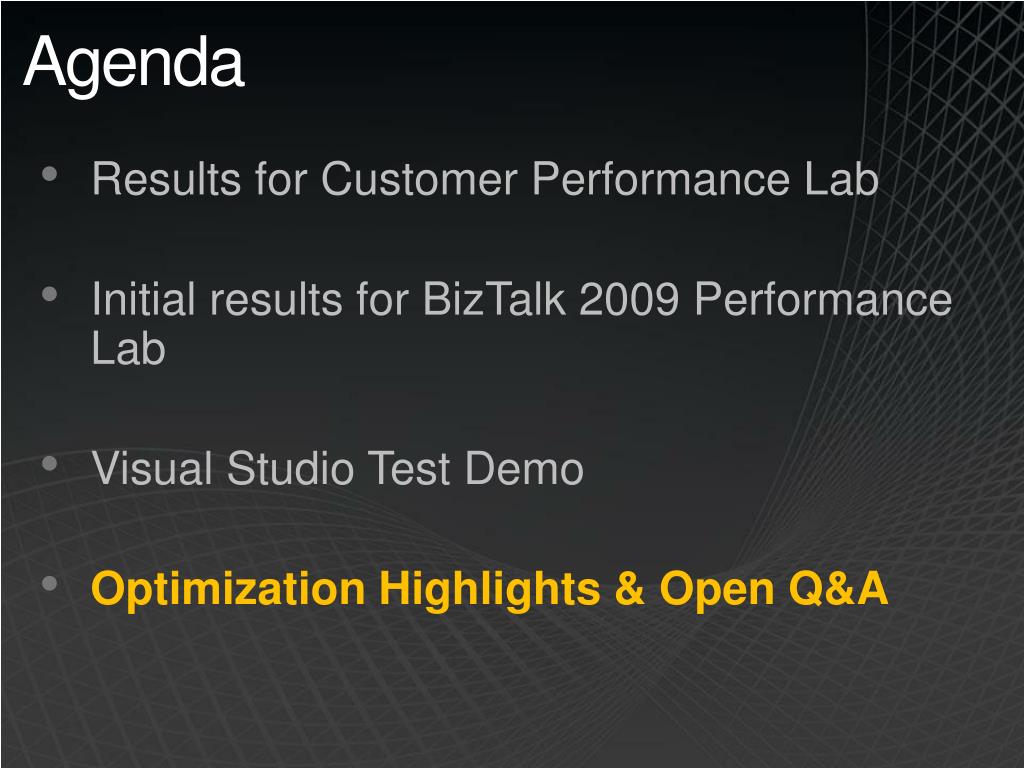

Agenda Results for Customer Performance Lab Initial results for BizTalk 2009 Performance Lab Visual Studio Test Demo Optimization Highlights & Open Q&A

Platform Optimization Highlights • Adjusted Windows Server 2008 for best performance • Disabled SynAttackProtect (Denial of Service checking) • Placed the PAGEFILE on a separate local disk • Changed the Speed & Duplex property of each NIC from “Auto” to 1 Gigabit Full Duplex • Stopped and disabled unused windows services on all BizTalk Server and SQL Server nodes • Disabled the debug flag in the web.config configuration files • Increased the maxconnection settings from the default value of 2 to 50 on BizTalk and Front-End web farm The following settings did not improve performance on Windows Server 2008 which has a self tuning network stack: • Modified or created several registry entries regarding TCP/IP, Network, Session Manager, LanManServer, FileSystem settings.

SQL Optimization Highlights • Before baseline: • Installed CU package 9 and installed Performance Dashboard • Pre-allocate space (size) for all data / log files • Fixed autogrowth value to a fixed amount • Granted Windows ‘Lock Pages In Memory’ and ‘Perform Volume Maintenance Task’ • Standard SQL optimizations: • Moved Data and Log files to separate LUNs • Output all Log/Full backups to dedicated LUN • Split TempDB into multiple equal sized files • Relieving contention on MessageBox: • R2 BizTalk stored procedures - Hotfix KB944234 • Spread tables and indexes of the BizTalkMsgBoxDb across multiple filegroups / multiple LUNs • Changed schedule of BizTalk ‘Mark Log’ backup job from 15 to 5 minutes • Scaling out: • Created dedicated SQL Server instance for BizTalkMsgBoxDb • Moved BizTalkMsgBoxDb to a dedicated Server

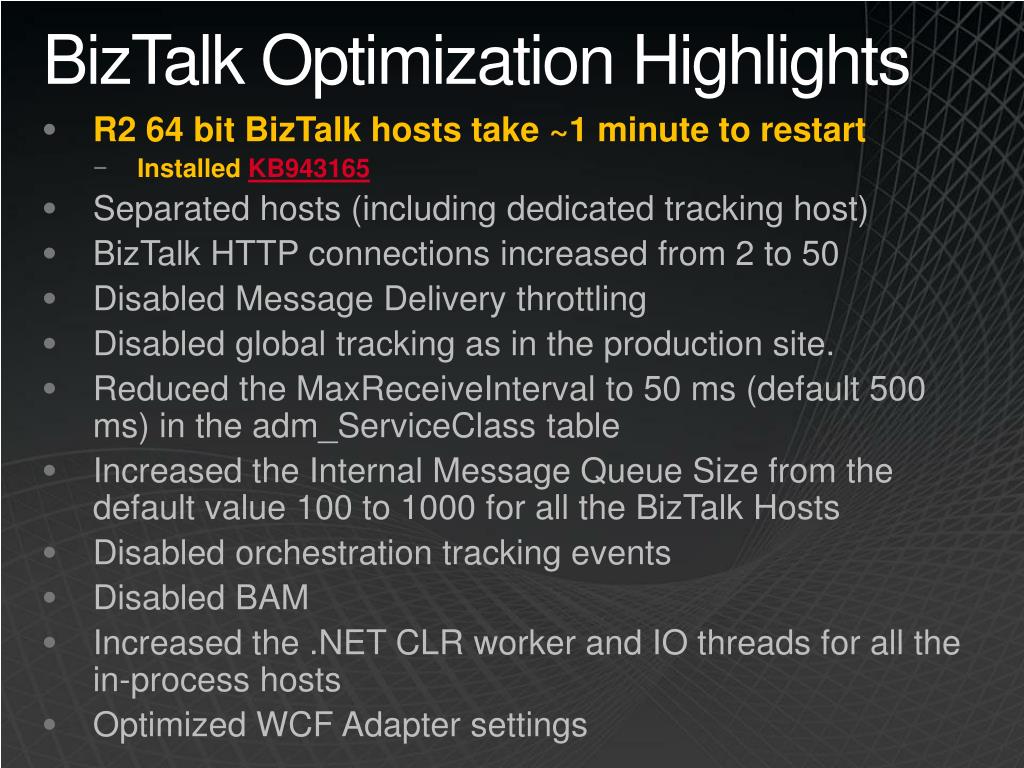

BizTalk Optimization Highlights • R2 64 bit BizTalk hosts take ~1 minute to restart • Installed KB943165 • Separated hosts (including dedicated tracking host) • BizTalk HTTP connections increased from 2 to 50 • Disabled Message Delivery throttling • Disabled global tracking as in the production site. • Reduced the MaxReceiveInterval to 50 ms (default 500 ms) in the adm_ServiceClass table • Increased the Internal Message Queue Size from the default value 100 to 1000 for all the BizTalk Hosts • Disabled orchestration tracking events • Disabled BAM • Increased the .NET CLR worker and IO threads for all the in-process hosts • Optimized WCF Adapter settings

Reduce costs and expenses Win market share from expensive competitors Optimize to do more with less! Delight our customers. Why Tune BizTalk Now - More than Ever?
