INTD 59 bathroom design basics

1. INTD 59 bathroom design basics

2. five basic steps in bath design gathering client & project information setting priorities researching and selecting product doing design and layout (space planning) drawing up a plan checklist before submitting design

3. client profile • list client’s physical characteristics & abilities that influence space use & interaction • color preference & style influence client’s feeling of well-being

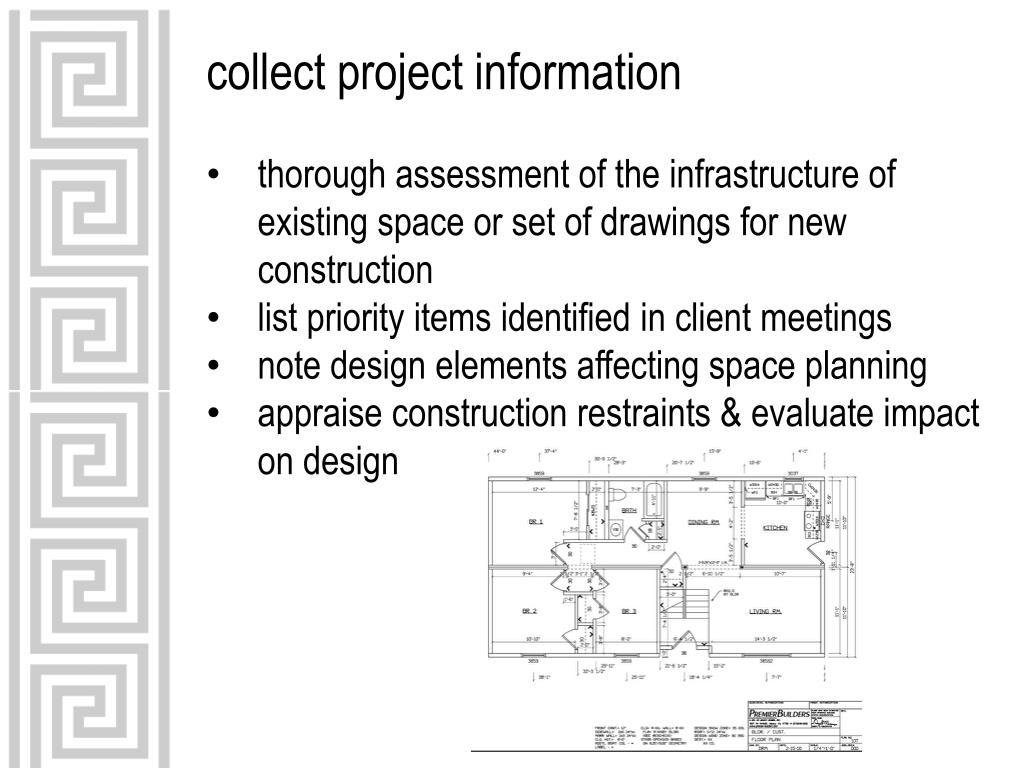

4. collect project information • thorough assessment of the infrastructure of existing space or set of drawings for new construction • list priority items identified in client meetings • note design elements affecting space planning • appraise construction restraints & evaluate impact on design

5. design goal • establish a visual style & functional goal for space • analyze overall space & possible design options • carefully examine volume, form, line, texture, light, scale & proportion, balance, contrast, & unity • select plumbing fixtures that reflect client’s ergonomic profile and style as well as function in the space—visit showrooms • review manufacturer’s product installation guidelines with plumber & contractor before laying out final plans

6. design goal • carefully consider mechanical systems before any construction starts (hvac ducts, registers, return air grills, chases, vents, water supply lines, drain pipes) • address all 4 layers of light within the space—comply with code!

7. design goal • use or movement of architectural elements must be done early in space planning stage • movement into and within space must be carefully planned—size of doorway and clearance space at each task area should meet or exceed minimums

8. basic bathroom • equipped with a toilet, vanity sink, tub-shower • arrange fixtures & design finishes to be functional, safe & relaxing

9. children’s bathroom • plan must ensure comfortable access to vanity sink & faucet at all stages of growth • lower drawer converts to a step • side mounted faucets • stacked towel bars • drawers at various • heights

10. master suite bath • bathing is just one of the activities—plan for additional amenities: • television • exercise equipment • lounging furniture • kitchenette • coffee/beverage center

11. wet rooms • the forefront in luxury bathroom design— • floor to ceiling tile • ample floor space for varied activities • wall mounted fixtures • freestanding tub • feeling of serenity—subtle finishes & colors • a ‘spa-like’ experience • massage tables • soaking tubs • steam shower rooms • saunas • chromatherapy tubs

12. wet rooms

13. planning checklist • analyze how the space relates to adjacent rooms • analyze space use • select plumbing fixtures • lay out space plan • verify space clearances • plan lighting layout • locate ventilation

14. planning checklist • locate towel bars & accessories • check structural blocking & sound control • select surfaces • create detail drawings for surface materials • prepare color boards • make up specification books

15. participation activity: space plan three different basic bathroom layouts according to the limitations provided by the instructor pay close attention to minimum clearances!
